Isuzu WW
▶
TRUCKS
▶
NPS
▶
51036 - NPS-LHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-41 - FUEL FILTER AND BRACKET
▶

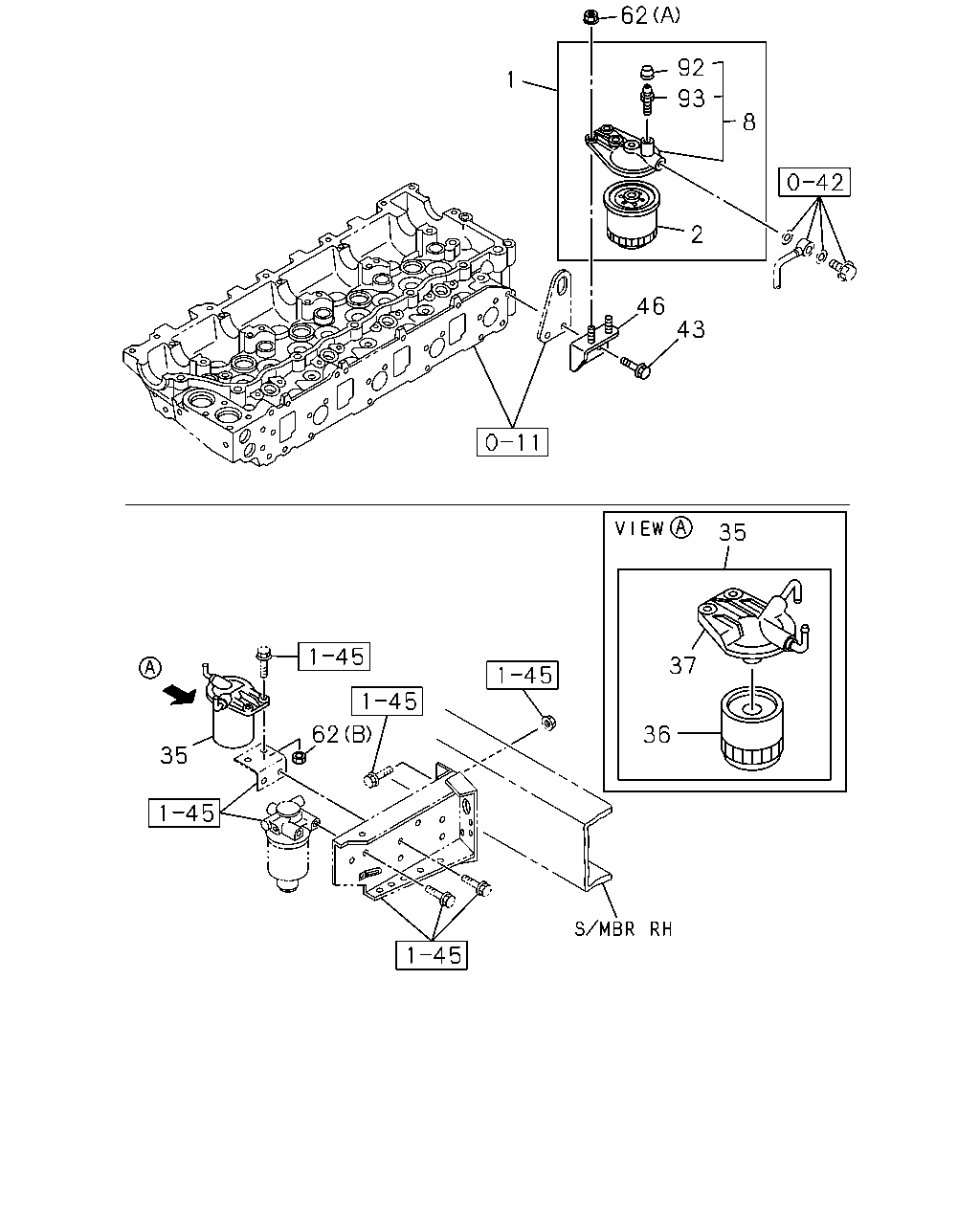

0-41 — FUEL FILTER AND BRACKET
(#41431) — 17 parça
62
92
1
93
8
2
46
43
35
37
62
36
35
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
03.890 FILTER ASM; FUEL
8-97171-451-2
01
1
0505-
2
03.890 ELEMENT KIT; FUEL FILTER
8-97172-549-1
01
1
0505-
8
03.890 COVER; FUEL FILTER
8-97172-543-1
01
1
0505-
35
03.890 FILTER ASM; SUB FUEL
FUEL FILTER DUAL(S6B)
8-97070-865-0
01
1
0505-0505
35
03.890 FILTER ASM; SUB FUEL
FUEL FILTER DUAL(S6B)
8-98006-454-0
01
1
0506-
36
03.890 ELEMENT; FUEL FILTER
FUEL FILTER DUAL(S6B)
8-94246-908-0
01
1
0505-0505
36
03.890 ELEMENT; FUEL FILTER
FUEL FILTER DUAL(S6B)
8-97916-993-2
01
1
0506-
37
03.890 COVER; FUEL FILTER
FUEL FILTER DUAL(S6B)
8-97363-518-0
01
1
0505-0505
37
03.890 COVER; FUEL FILTER
FUEL FILTER DUAL(S6B)
8-97917-558-0
01
1
0506-
43
03.890 BOLT; BRKT
00.029 M12X28 FLANGE
0-28181-228-0
02
1
0505-
46
03.890 BRACKET
8-94313-323-1
01
1
0505-
62
03.895 NUT; FUEL FILTER
04.785 (B) M10 FLANGE
0-91150-110-0
02
1
0505-0602
62
03.895 NUT; FUEL FILTER
03.162 (B) M10 FLANGE
0-91180-110-0
02
1
0603-
62
03.895 NUT; FUEL FILTER
FUEL FILTER DUAL(S6B) 08.917 (A) M10 FLANGE
0-91150-210-0
02
1
0505-0602
62
03.895 NUT; FUEL FILTER
FUEL FILTER DUAL(S6B) 04.085 (A) M10 FLANGE
0-91180-210-0
02
1
0603-
92
03.417 CAP; FUEL FILTER
8-97172-548-0
01
1
0505-
93
03.890 CONNECTOR; FUEL FILTER
8-97172-546-1
01
1
0505-
