0-33 — FAN AND FAN BELT (#41429) — 15 parça

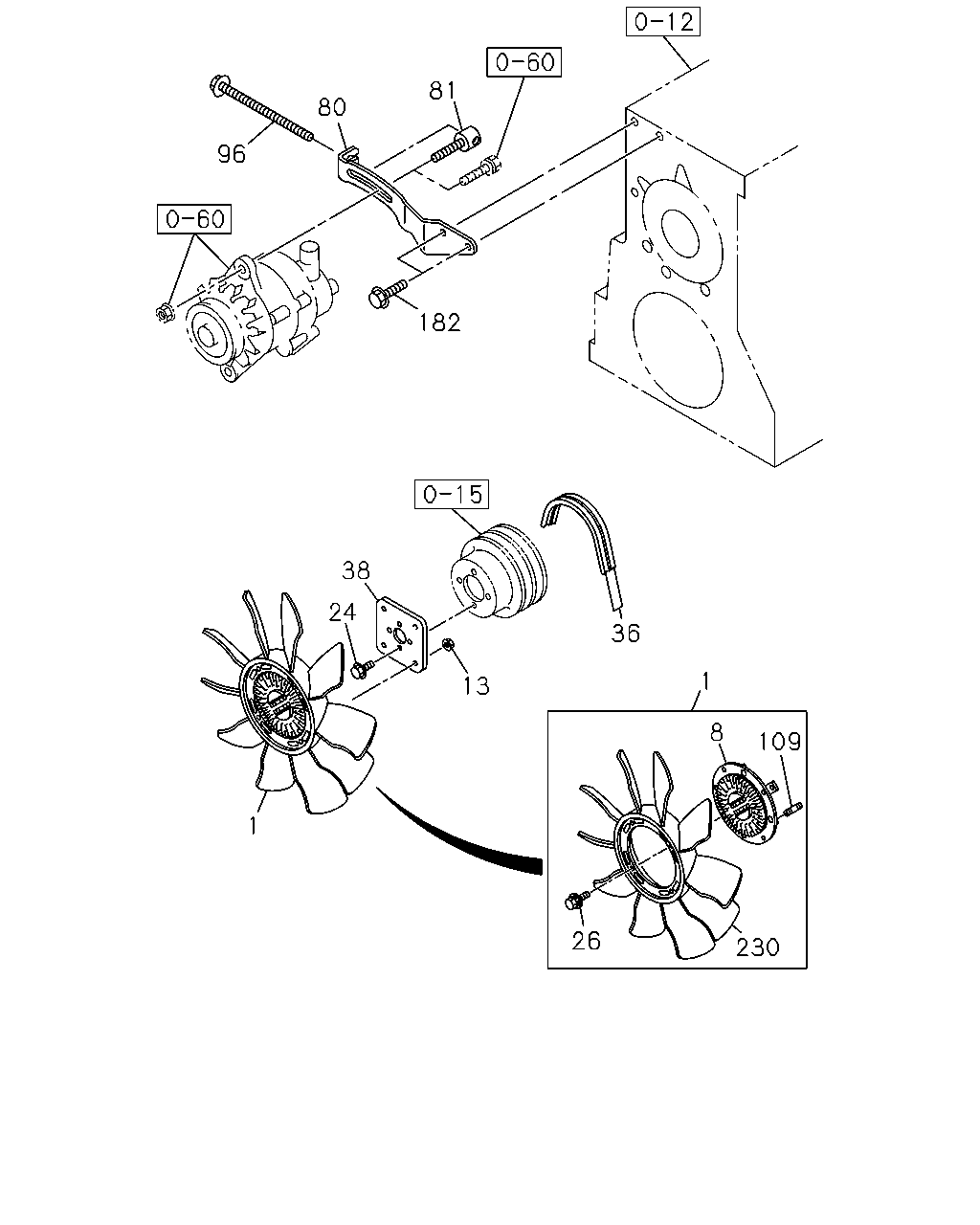

çizim 58084
81 80 96 182 38 24 36 1 13 8 109 1 26 230
BalonParca AdiParca NoAdetTipApplied Date
1 01.064 FAN; COOLING
OD=430 		8-97141-195-2 01 1 0505-
8 01.064 CLUTCH; COOLING FAN 8-97139-299-0 01 1 0505-
13 01.062 NUT; COOLING FAN
07.633 M8 FLANGE 		0-91150-108-0 04 1 0505-0602
13 01.062 NUT; COOLING FAN
M8 FLANGE 		0-91180-108-0 04 1 0603-
24 01.062 BOLT; FAN
08.900 M8X18 FLANGE 		0-28080-818-0 04 1 0505-
26 01.062 BOLT; FAN TO CLU
01.428 M6X12 FLANGE 		0-28080-612-0 04 1 0505-
36 01.066 BELT; COOLING FAN
1 SET=2 PIECE(8971801810) 		8-97180-199-1 01 1 0505-
38 01.062 SPACER; FAN 8-97108-643-0 01 1 0505-
80 02.317 PLATE; ADJ 8-97164-089-2 01 1 0505-
81 02.317 PIECE; SLIDING
AIR CONDITIONER MANUAL CONT(C60) 		8-97257-223-0 01 1 0505-
96 02.317 BOLT; ADJ PLATE
AIR CONDITIONER MANUAL CONT(C60) M8X130 FLANGE 		8-97172-720-1 01 1 0505-
109 01.062 STUD; FAN CLU
M8X13.5 L=22 		8-97049-577-1 04 1 0505-
182 01.062 BOLT; BRKT
02.183 M8X35 FLANGE 		0-28680-835-0 02 1 0505-0512
182 01.062 BOLT; BRKT
01.060 M8X35 FLANGE 		0-28650-835-0 02 1 0601-
230 01.055 FAN; COOLING 8-97140-854-1 01 1 0505-
