7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-45 - CONSOLE BOX
▶

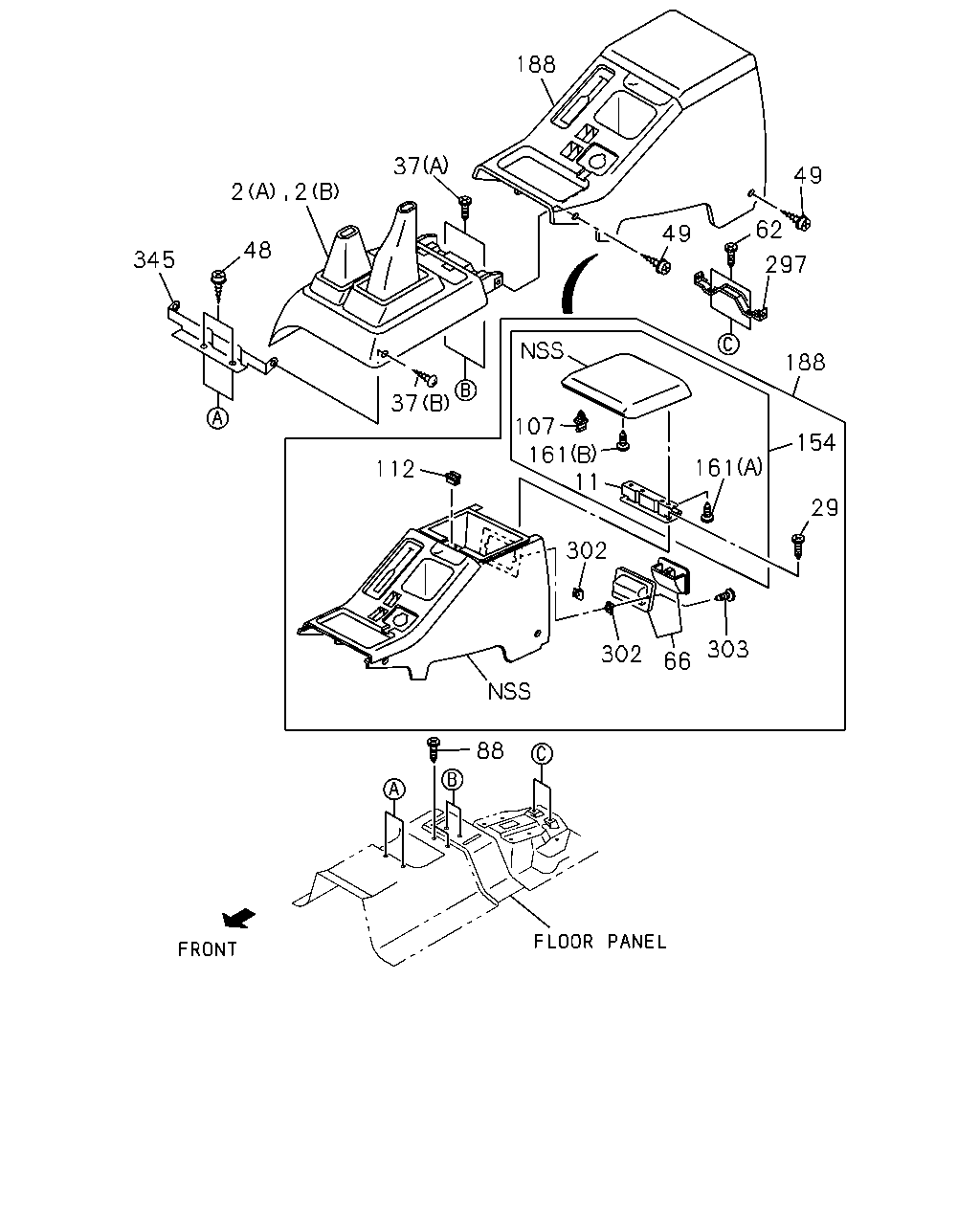

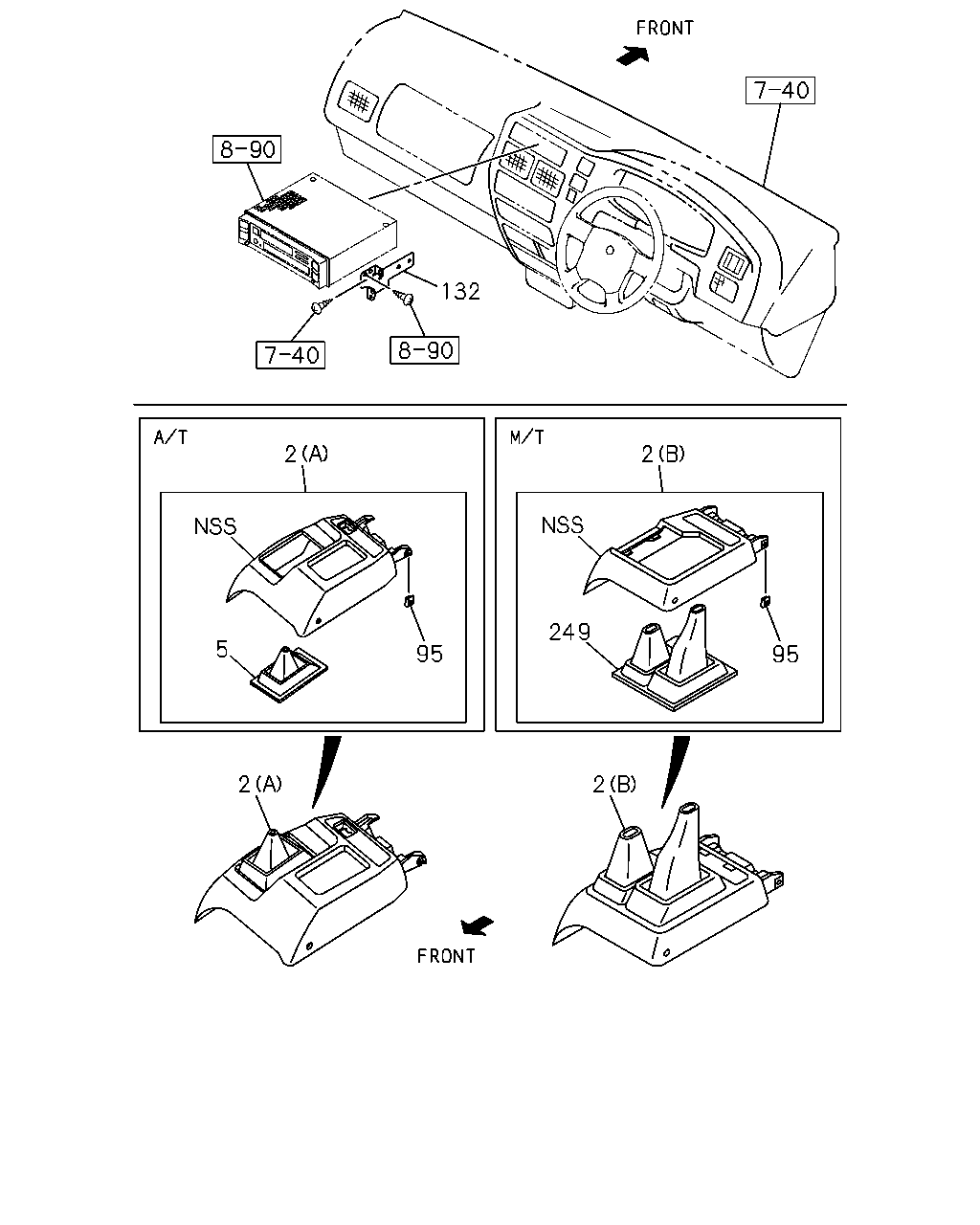

7-45 — CONSOLE BOX
(#41425) — 30 parça
◀
[745A] NO.1 (8 parça)
[745A] NO.2 (22 parça)
▶
132
2
2
249
5
95
95
2
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
CONSOLE; CENTER
A/T AISIN<RMD> (A) GRAY
8-97152-692-1
01
1
0009-
2
CONSOLE; CENTER
M/T MUA 5 SPEED<RMN> (B) GRAY
8-97155-554-1
01
1
0009-
5
COVER; SHIFT LEVER
A/T AISIN<RMD> BLACK
8-97155-687-0
01
1
0009-
95
NUT; SPIRE,RR PNL TO CONSOLE
M5 SPIRE NUT
8-94217-271-0
02
1
0009-
132
BRACKET; AUDIO BOX
USA
8-97107-583-2
01
1
0009-
132
BRACKET; AUDIO BOX
USA
8-97107-582-2
01
1
0009-
249
COVER
M/T MUA 5 SPEED<RMN> BLACK
8-97155-555-1
01
1
0009-
327
STRIPE; HAND BRAKE
THA
8-97069-669-1
01
1
0009-
188
37
49
2
2
62
49
48
345
297
188
37
107
161
11
154
161
112
29
302
303
302
66
88
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
CONSOLE; CENTER
A/T AISIN<RMD> (A) GRAY
8-97152-692-1
01
1
0009-
2
CONSOLE; CENTER
M/T MUA 5 SPEED<RMN> (B) GRAY
8-97155-554-1
01
1
0009-
11
HINGE; CONSOLE LID
THA
8-97920-181-0
01
1
0009-
29
SCREW; HINGE
M5X16 THA
8-97920-246-0
02
1
0009-
37
SCREW; CONSOLE
(A) M5X16 TAPPING W/PL WASHER
0-74315-516-0
02
1
0009-
37
SCREW; CONSOLE
(B) M5X16 TAPPING
9-09829-323-1
02
1
0009-
48
SCREW; BRKT,CENTER CONSOLE
M/T MUA 5 SPEED<RMN> M8X14
9-03900-814-0
02
1
0009-
49
SCREW; CONSOLE
M5X16 TAPPING
9-09829-323-1
04
1
0009-
62
SCREW; BRKT
M5X16 TAPPING W/PL WASHER
0-74315-516-0
02
1
0009-
66
TRAY ASM; ASH
GRAY
8-97150-683-1
01
1
0009-
88
SCREW
M/T MUA 5 SPEED<RMN> M8X14
9-03900-814-0
02
1
0009-
107
LOCK; LID,RR CONSOLE
THA
8-97920-226-0
01
1
0009-
112
LOCK; HOLE,RR CONSOLE
THA
8-97919-455-1
01
1
0009-
154
LID ASM; RR CONSOLE
THA
8-97920-178-0
01
1
0009-
161
SCREW; RR CONSOLE
(A) M3X10 TAPPING CK-HEAD
0-70080-310-0
04
1
0009-
161
SCREW; RR CONSOLE
(B) M5X16 THA
8-97920-246-0
02
1
0009-
188
CONSOLE; RR
THA
8-97919-216-1
01
1
0009-
297
BRACKET; RR CONSOLE
8-97069-670-2
01
1
0009-
302
RETAINER; ASH TRAY
8-94123-300-5
02
1
0009-
303
SCREW; ASH TRAY
M4X16 TAPPING OVAL-HEAD
9-07037-416-0
02
1
0009-
327
STRIPE; HAND BRAKE
THA
8-97069-669-1
01
1
0009-
345
BRACKET; CTR CONSOLE
M/T MUA 5 SPEED<RMN>
8-97072-944-1
01
1
0009-
