8-20 — METER CABLE (#4142) — 24 parça

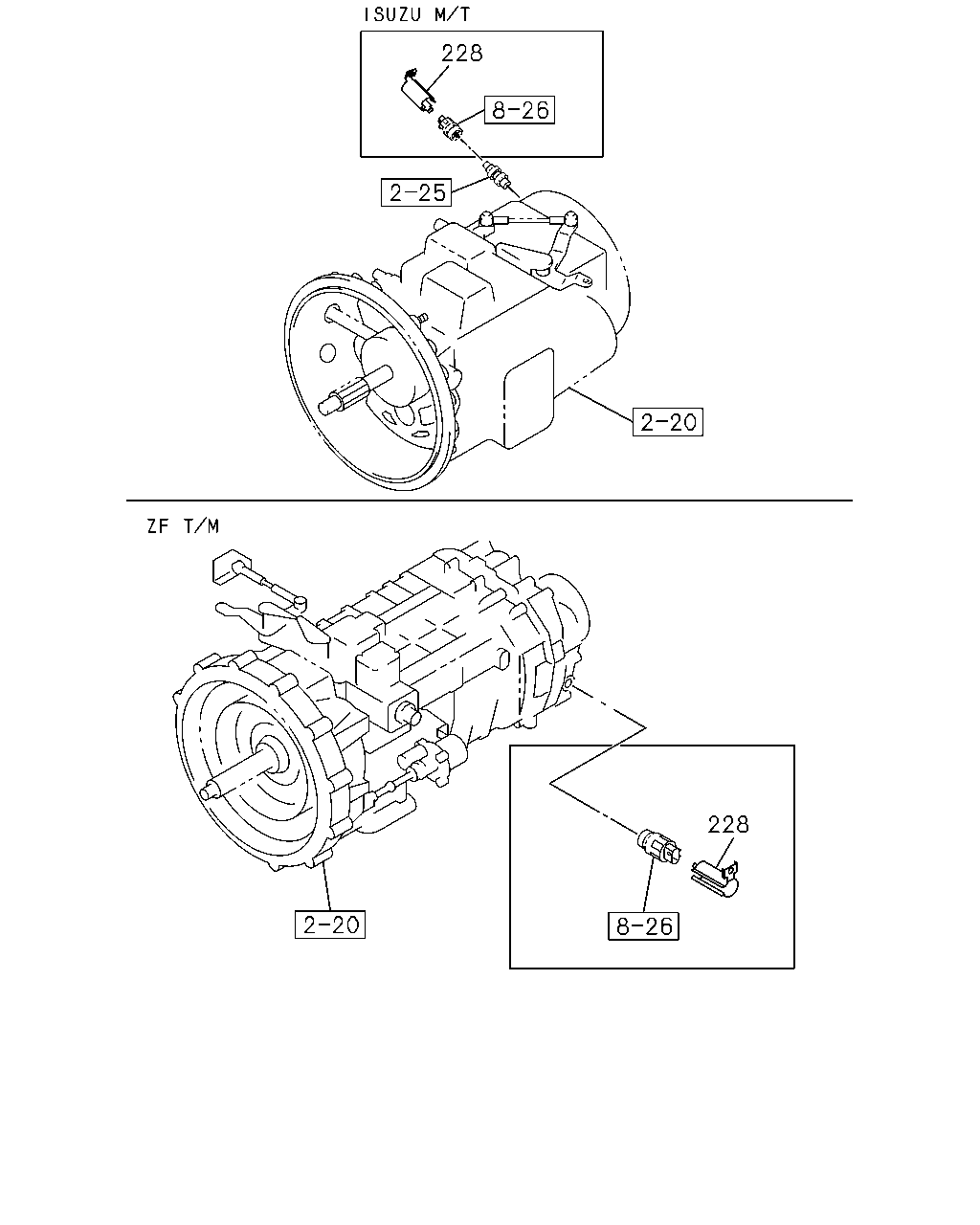

çizim 7347
228 228
BalonParca AdiParca NoAdetTipApplied Date A B
132 SENSOR; SPD,SPEEDOMETER
8PE1S(59L),10PE1S(60L) 		1-83127-115-0 01 1 9603-9904 ● ●
132 SENSOR; SPD,SPEEDOMETER
8PE1S(59L),10PE1S(60L),10PE1N(61L),10PE1H(68L) 		1-83127-115-0 01 1 9905- ● ●
228 PROTECTOR; SENSOR
MJA7U M/T(X6G),MJA6A M/T(X6V),MAG6W M/T(X8B), MAL5TM/T(Y1K),MAL6Q M/T(Y1M),TRANSMISSION-ZF 16S151 OD (Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) 		8-97168-308-0 01 1 9905-9910 ● ●
228 PROTECTOR; SENSOR
ISUZU M/T<X9A>,ZF M/T<X9E> 		8-97168-308-0 01 1 9911- ● ●

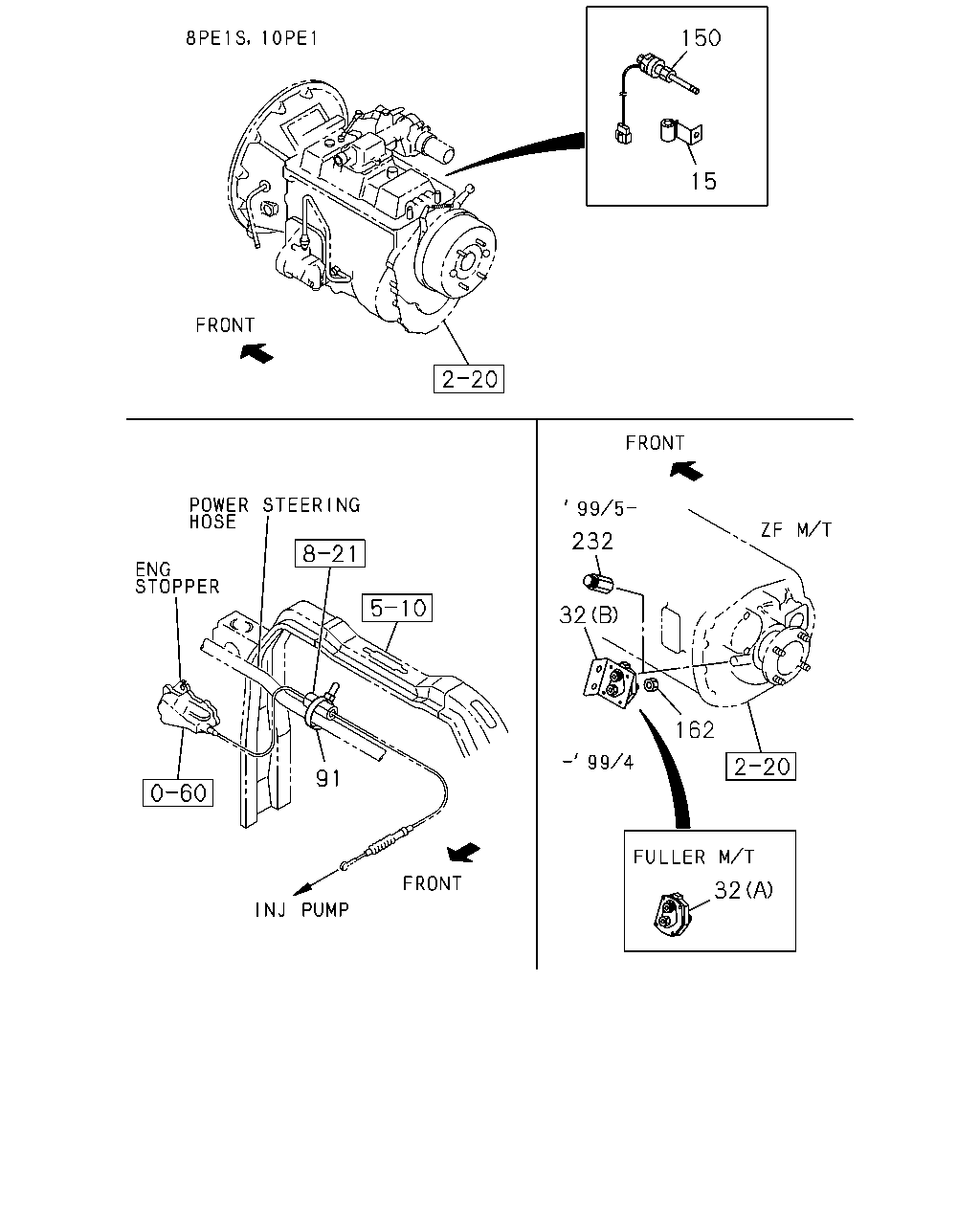

çizim 7348
150 15 232 32 162 91 32
BalonParca AdiParca NoAdetTipApplied Date A B
15 CLIP; BAND,HARNESS
8PE1S(59L),10PE1S(60L) ID=6 H=25 L=21 		1-09700-432-0 01 1 9603-9603 ● ●
15 CLIP; BAND,HARNESS
8PE1S(59L),10PE1S(60L) ID=6 H=25 L=21 		1-09700-432-0 01 1 9604-9904 ● ●
15 CLIP; BAND,HARNESS
8PE1S(59L),10PE1S(60L),10PE1N(61L),10PE1H(68L) ID=6 H=25 L=21 		1-09700-432-0 01 1 9905- ● ●
32 BOX; GEAR,FLEX SHAFT
TRANSMISSION-ZF 16S151 OD(Y2N) (B) 		1-83126-262-0 01 1 9603-9702 ● ●
32 BOX; GEAR,FLEX SHAFT
TRANSMISSION-ZF 16S151 OD(Y2N) (B) 		1-83126-409-0 01 1 9703-9904 ● ●
32 BOX; GEAR,FLEX SHAFT
TRANSMISSION-FULLER RTLO147 13 OD(Y2P) (A) 		1-83126-331-0 01 1 9603-9803 ●
91 CLIP; BAND
V TYPE ENG<91L> EXC. RLD GOVERNOR(SD7) L=140 		5-09707-031-1 02 1 9603-9910 ● ●
91 CLIP; BAND
V TYPE ENG<91L> EXC. RLD GOVERNOR(SD7) L=140 		5-09707-031-1 01 1 9911- ● ●
91 CLIP; BAND
V TYPE ENG<91L> GOVERNOR CONTROL<W69> EXC. RLD GOVERNOR(SD7) L=140 		5-09707-031-1 01 1 9603-9910 ●
91 CLIP; BAND
V TYPE ENG<91L> EXC. RLD GOVERNOR(SD7) L=250 		1-09707-126-0 01 1 9911- ● ●
91 CLIP; BAND
V TYPE ENG<91L> GOVERNOR CONTROL<W69> EXC. RLD GOVERNOR(SD7) L=250 		1-09707-126-0 01 1 9911- ●
132 SENSOR; SPD,SPEEDOMETER
8PE1S(59L),10PE1S(60L) 		1-83127-115-0 01 1 9603-9904 ● ●
132 SENSOR; SPD,SPEEDOMETER
8PE1S(59L),10PE1S(60L),10PE1N(61L),10PE1H(68L) 		1-83127-115-0 01 1 9905- ● ●
150 SENSOR; SPEED,ABS
8PE1S(59L),10PE1S(60L) 		1-83127-115-0 01 1 9802-9904 ● ●
150 SENSOR; SPEED,ABS
8PE1S(59L),10PE1S(60L),10PE1N(61L),10PE1H(68L) 		1-83127-115-0 01 1 9905- ● ●
150 SENSOR; SPEED,ABS
8PE1S(59L),10PE1S(60L) 		1-83127-115-0 01 1 9603-9904 ● ●
162 NUT; GEAR BOX
TRANSMISSION-ZF 16S151 OD(Y2N) M22 		9-83111-951-0 01 1 9603-9809 ● ●
162 NUT; GEAR BOX
TRANSMISSION-ZF 16S151 OD(Y2N) M22 		1-80249-005-0 01 1 9810-9904 ● ●
162 NUT; GEAR BOX
TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) M22 		1-80249-005-0 01 1 9905-9905 ● ●
232 ADAPTER; SPEED SENSOR
TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) 		1-80249-006-0 01 1 9905- ● ●
