Isuzu WW
▶
SUV
▶
UCS
▶
50892 - UCS(THAILAND)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-90 - REAR BUMPER
▶

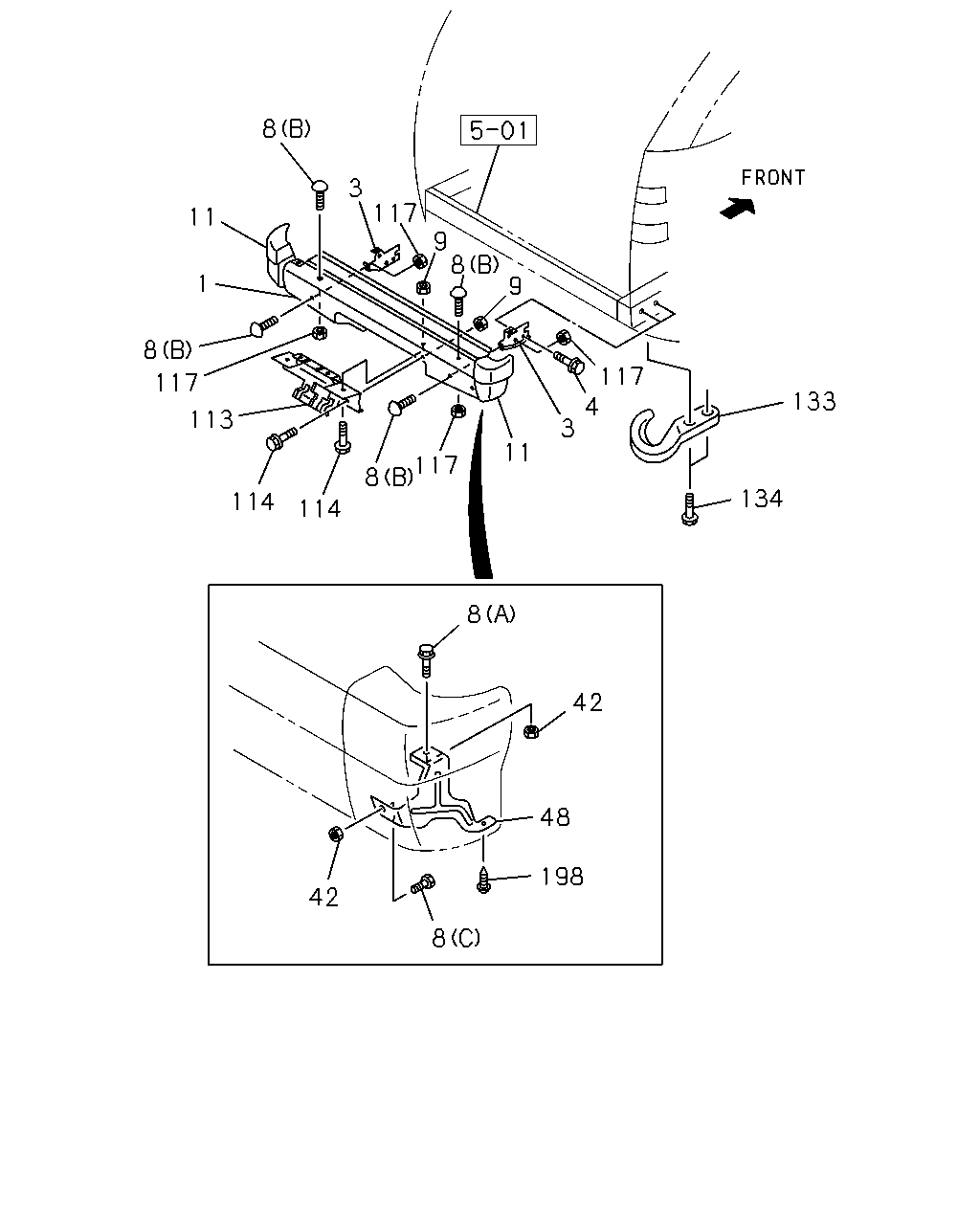

6-90 — REAR BUMPER
(#41417) — 19 parça
8
3
117
9
8
9
11
1
8
117
113
117
4
3
133
11
117
8
134
114
114
8
42
48
198
42
8
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BUMPER; RR
THA
8-97913-663-0
01
1
0009-
3
BRACKET; BUMPER
THA
8-97913-680-0
01
1
0009-
3
BRACKET; BUMPER
THA
8-97913-679-0
01
1
0009-
4
BOLT; BUMPER
M10X25
8-94188-801-1
04
1
0009-
8
BOLT; RR SIDE BUMPER
(A) M8X25 FLANGE
0-28680-825-0
02
1
0009-
8
BOLT; RR SIDE BUMPER
(B) M8X20 DACRO-COATING
8-94241-821-0
04
1
0009-
8
BOLT; RR SIDE BUMPER
(C) M8X20 THA
8-94382-794-0
02
1
0009-
9
NUT; BUMPER
M8 W/LK WASHER
8-94327-073-0
04
1
0009-
11
CAP; RR BUMPER
THA
8-97178-262-0
01
1
0009-
11
CAP; RR BUMPER
THA
8-97178-261-0
01
1
0009-
42
NUT; RR SIDE BUMPER
M8 W/LK WASHER
8-94327-073-0
04
1
0009-
48
RETAINER; BUMPER RR SIDE
THA
8-97913-683-0
01
1
0009-
48
RETAINER; BUMPER RR SIDE
THA
8-97913-682-0
01
1
0009-
113
BRACKET; LICENSE PLATE
THA
8-97913-684-0
01
1
0009-
114
BOLT; BRKT,LICENSE PLATE
M8X20 DACRO-COATING
8-94241-821-0
04
1
0009-
117
NUT; BRKT
M8 W/LK WASHER
8-94327-073-0
04
1
0009-
133
HOOK
THA
8-94183-262-0
01
1
0009-
134
BOLT; HOOK
M10X45 W/LK WASHER
0-50041-045-0
02
1
0009-
198
SCREW; TAP
M5X12 TAPPING W/PL WASHER
0-74110-512-0
02
1
0009-
