◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCS ▶ 50892 - UCS(THAILAND) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-86 - TRUNK OPENER AND FUEL LID ▶
6-86 — TRUNK OPENER AND FUEL LID (#41414) — 26 parça

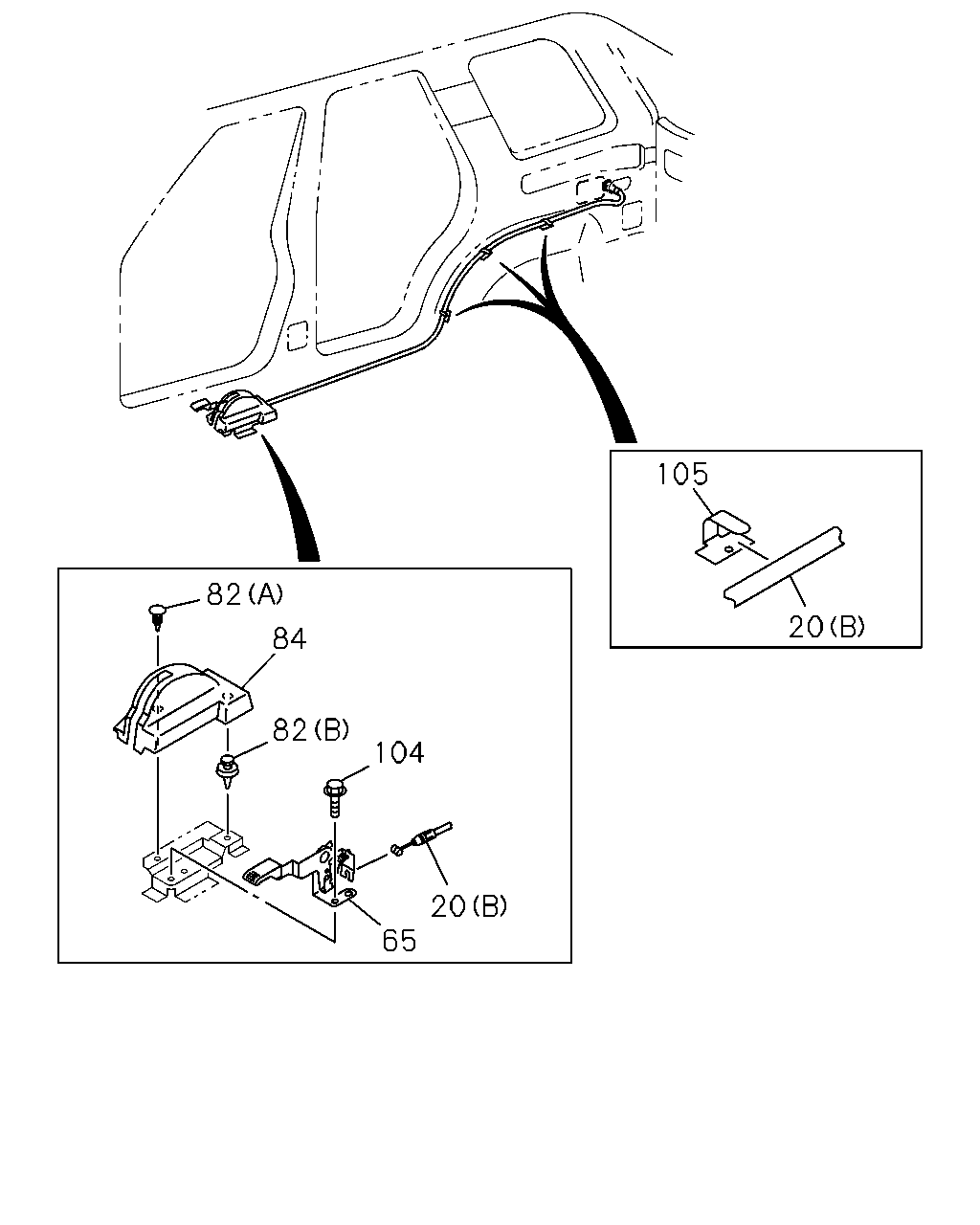

çizim 49673
105 82 84 20 82 104 20 65
BalonParca AdiParca NoAdetTipApplied Date
20 CABLE; TRUNK LID & FUEL FILLER
(B) 		8-97126-268-4 01 1 0009-
20 CABLE; TRUNK LID & FUEL FILLER
(A) THA 		8-97914-140-0 02 1 0009-
65 KNOB; FUEL FILLER DOOR
THA 		8-97920-444-0 01 1 0009-
82 CLIP; COVER
(A) OD=16 L=11 		1-76378-155-0 01 1 0009-
82 CLIP; COVER
(B) THA 		8-97019-200-0 01 1 0009-0101
82 CLIP; COVER
(B) H=19.1 THA 		8-94385-553-0 01 1 0102-
84 COVER; BRKT
GRAY 		8-97152-721-2 01 1 0009-
104 BOLT; KNOB
M6X12 FLANGE 		0-28080-612-0 02 1 0009-
105 CLIP; CABLE,FUEL LID OPENER 8-94138-987-0 03 1 0009-

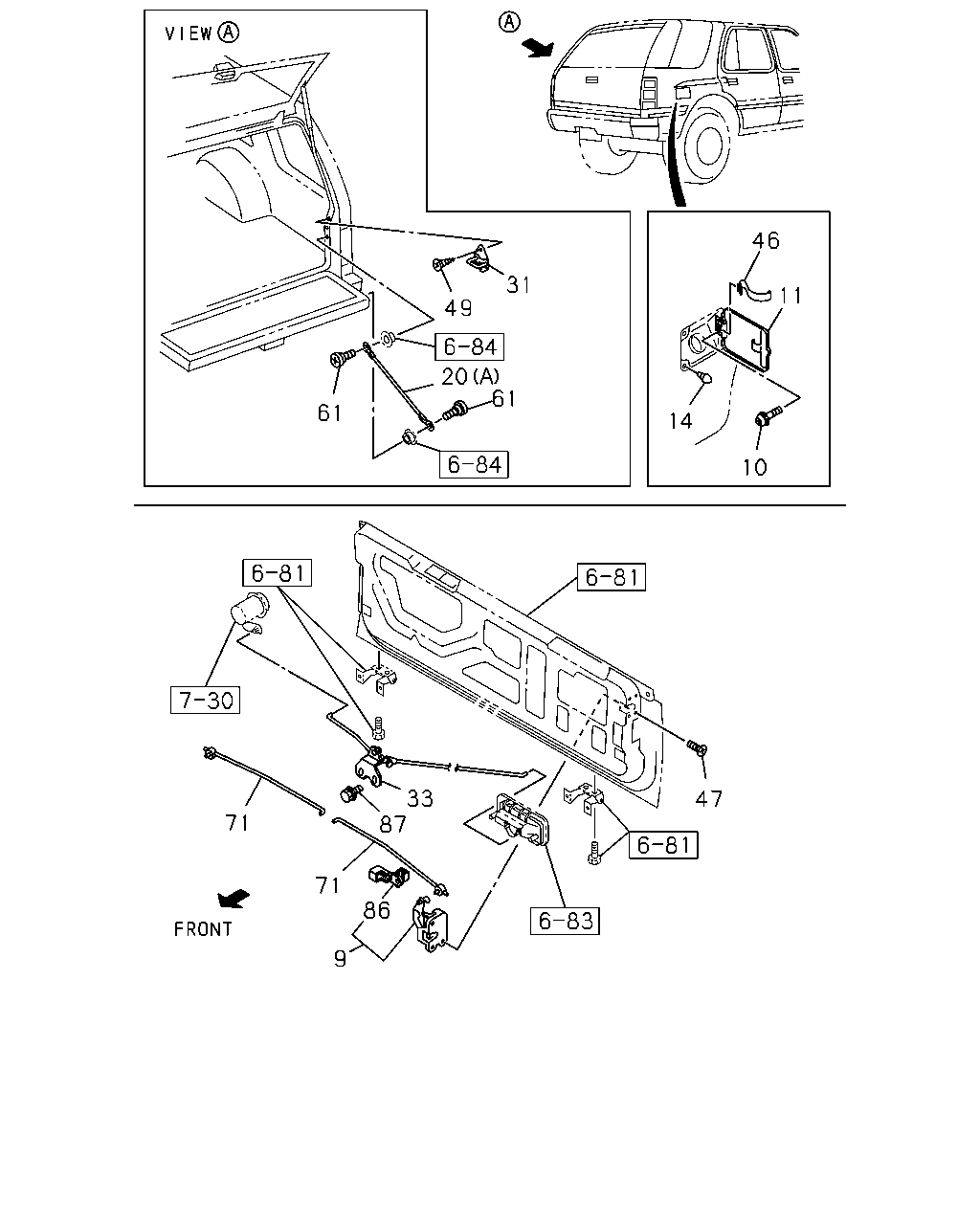

çizim 49758
46 31 11 49 20 61 61 14 10 33 87 47 71 71 86 9
BalonParca AdiParca NoAdetTipApplied Date
9 LOCK; TRUNK LID 8-97123-118-2 01 1 0009-
9 LOCK; TRUNK LID 8-97123-117-2 01 1 0009-
10 BOLT; FUEL FILLER LID
M6X10 FLANGE 		0-28080-610-0 02 1 0009-
11 LID; FUEL 8-97183-944-0 01 1 0009-
14 CUSHION; RUBBER,FUEL LID 8-94466-607-0 02 1 0009-
20 CABLE; TRUNK LID & FUEL FILLER
(B) 		8-97126-268-4 01 1 0009-
20 CABLE; TRUNK LID & FUEL FILLER
(A) THA 		8-97914-140-0 02 1 0009-
31 STRIKER; TAIL GATE 8-97068-596-0 02 1 0009-
33 CRANK ASM; TAIL GATE LK
USA 		8-97087-661-0 01 1 0009-
46 SPRING; FUEL FILLER DOOR 8-97120-141-3 01 1 0009-
47 SCREW; TAIL GATE LK
M6X16 OVAL-HD 		8-94172-523-0 06 1 0009-
49 SCREW; STRIKER TO TAIL GATE 8-94122-560-0 04 1 0009-
61 SCREW; CABLE 8-94379-455-0 04 1 0009-
71 LINK; TAIL GATE 8-94318-663-2 01 1 0009-
71 LINK; TAIL GATE 8-94318-662-2 01 1 0009-
86 HOLDER; LINK ROD 8-97085-220-0 02 1 0009-
87 BOLT; CRANK
M6X8 THA 		8-94155-893-0 02 1 0009-
