Isuzu WW
▶
SUV
▶
UCS
▶
50892 - UCS(THAILAND)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-66 - HEAD LINING AND TRIM
▶

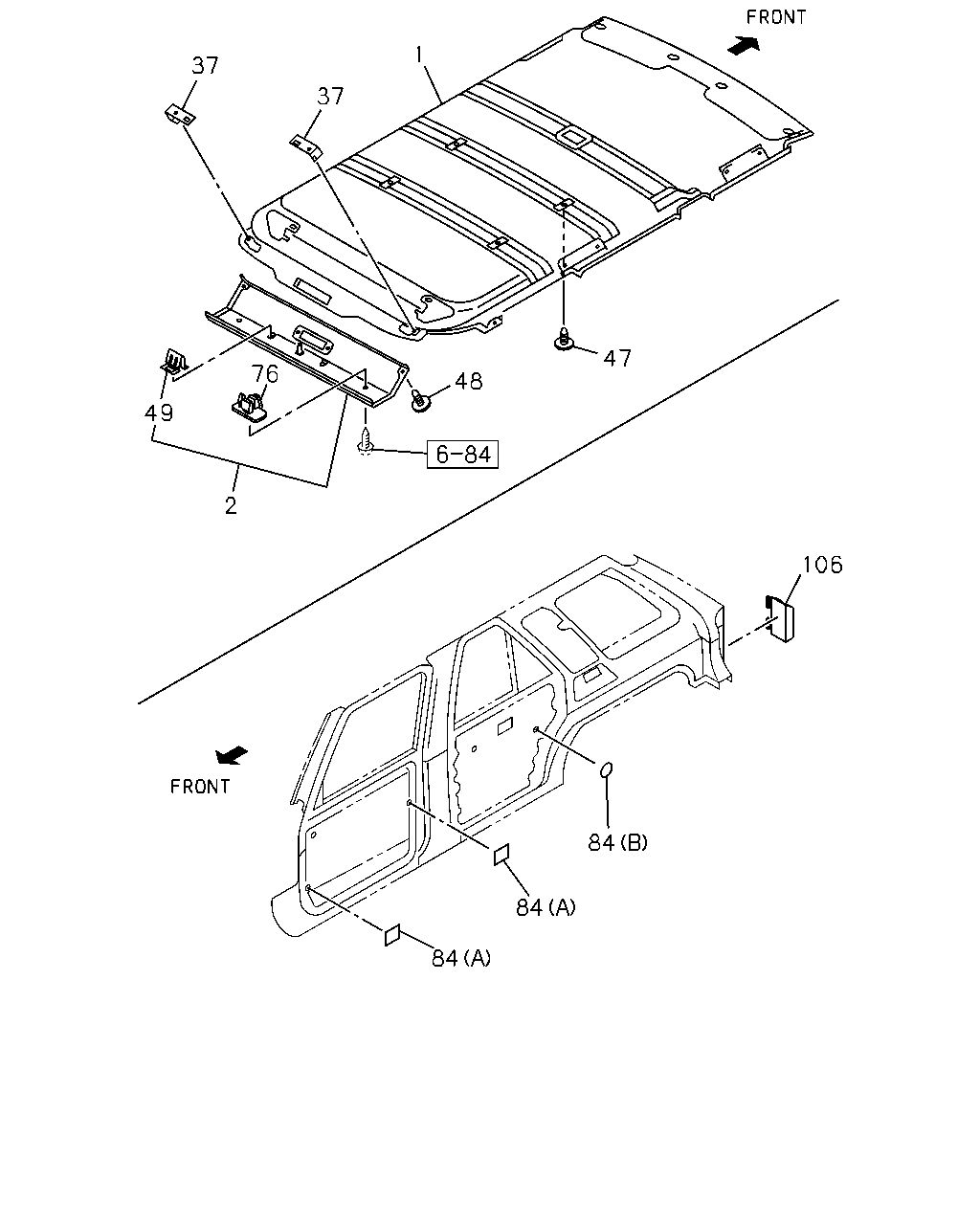

6-66 — HEAD LINING AND TRIM
(#41404) — 17 parça
◀
[666A] NO.1 (12 parça)
[666A] NO.2 (5 parça)
▶
1
37
37
76
47
48
49
2
106
84
84
84
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
LINING; HD
THA
8-97919-352-0
01
1
0009-
2
LINING; HD,ROOF RR
THA
8-97913-461-0
01
1
0009-
37
BRACKET; ROOF TRIM,RR
8-94369-950-1
01
1
0009-
37
BRACKET; ROOF TRIM,RR
8-94369-949-1
01
1
0009-
47
CLIP; HEADLINING
LIGHT GRAY
8-97153-166-0
10
1
0009-
48
CLIP; ROOF SIDE TRIM
GRAY
8-97150-618-0
02
1
0009-
49
CLIP; TRIM COVER
H=13 USA
8-94438-727-0
02
1
0009-
76
GROMMET; SCREW,ROOF RR TRIM
8-94338-713-0
02
1
0009-
84
PATCH; WATER PROOF SHEET,DOOR
(B) OD=30
8-97040-577-0
02
1
0009-
84
PATCH; WATER PROOF SHEET,DOOR
(B) OD=30
8-97040-577-0
02
1
0009-
84
PATCH; WATER PROOF SHEET,DOOR
(A) 45X45 T=0.08 THA
8-97911-013-0
04
1
0009-
106
STOPPER; TAIL GATE CABLE
THA
8-97913-666-0
02
1
0009-
110
160
85
91
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
85
PIN; SILL TREAD PLATE
GRAY
8-97152-690-0
12
1
0009-
91
PROTECTOR; RR WIPER
8-94379-243-3
01
1
0009-
110
VALVE; OUTLET VENT
8-94379-232-2
02
1
0009-
160
SEAL; DRIP
USA
8-97102-673-0
01
1
0009-
160
SEAL; DRIP
USA
8-97102-672-0
01
1
0009-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
