Isuzu WW
▶
SUV
▶
UCS
▶
50892 - UCS(THAILAND)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶

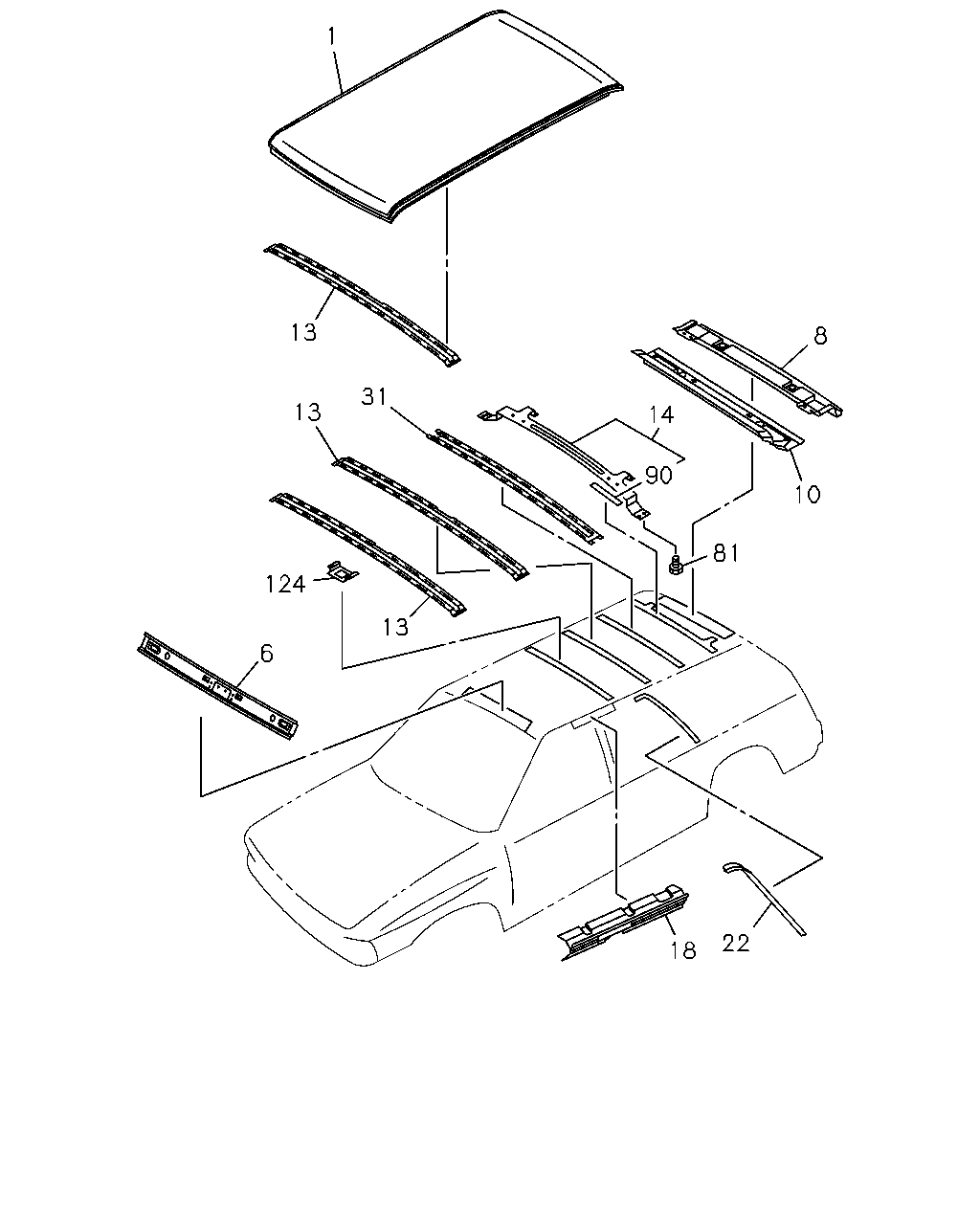

6-60 - ROOF PANEL
▶
6-60 — ROOF PANEL
(#41403) — 14 parça
1
13
8
31
13
14
90
10
81
124
13
6
22
18
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PANEL; ROOF
THA
8-97914-059-0
01
1
0009-
6
FRAME; ROOF FRT
8-94455-377-1
01
1
0009-
8
EXTENSION; ROOF RR
THA
8-97914-122-1
01
1
0009-
10
FRAME; ROOF RR
THA
8-97914-121-0
01
1
0009-
13
PANEL; ROOF SUPPORT
THA
8-97914-072-0
03
1
0009-
14
SUPPORT; ROOF
USA
8-97100-050-7
01
1
0009-
18
RAIL; ROOF CTR FRT
THA
8-97914-426-0
01
1
0009-
18
RAIL; ROOF CTR FRT
THA
8-97914-425-0
01
1
0009-
22
RAIL; ROOF CTR RR
USA
8-94332-124-0
01
1
0009-
22
RAIL; ROOF CTR RR
USA
8-94332-123-0
01
1
0009-
31
PANEL; ROOF SUPPORT,RR
THA
8-97914-123-0
01
1
0009-
81
BOLT; ROOF
M6X12 FLANGE
0-28480-612-0
04
1
0009-
90
CUSHION
USA
8-97126-448-1
01
1
0009-
124
BRACKET; ROOM LAMP
THA
8-97918-014-0
01
1
0009-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
