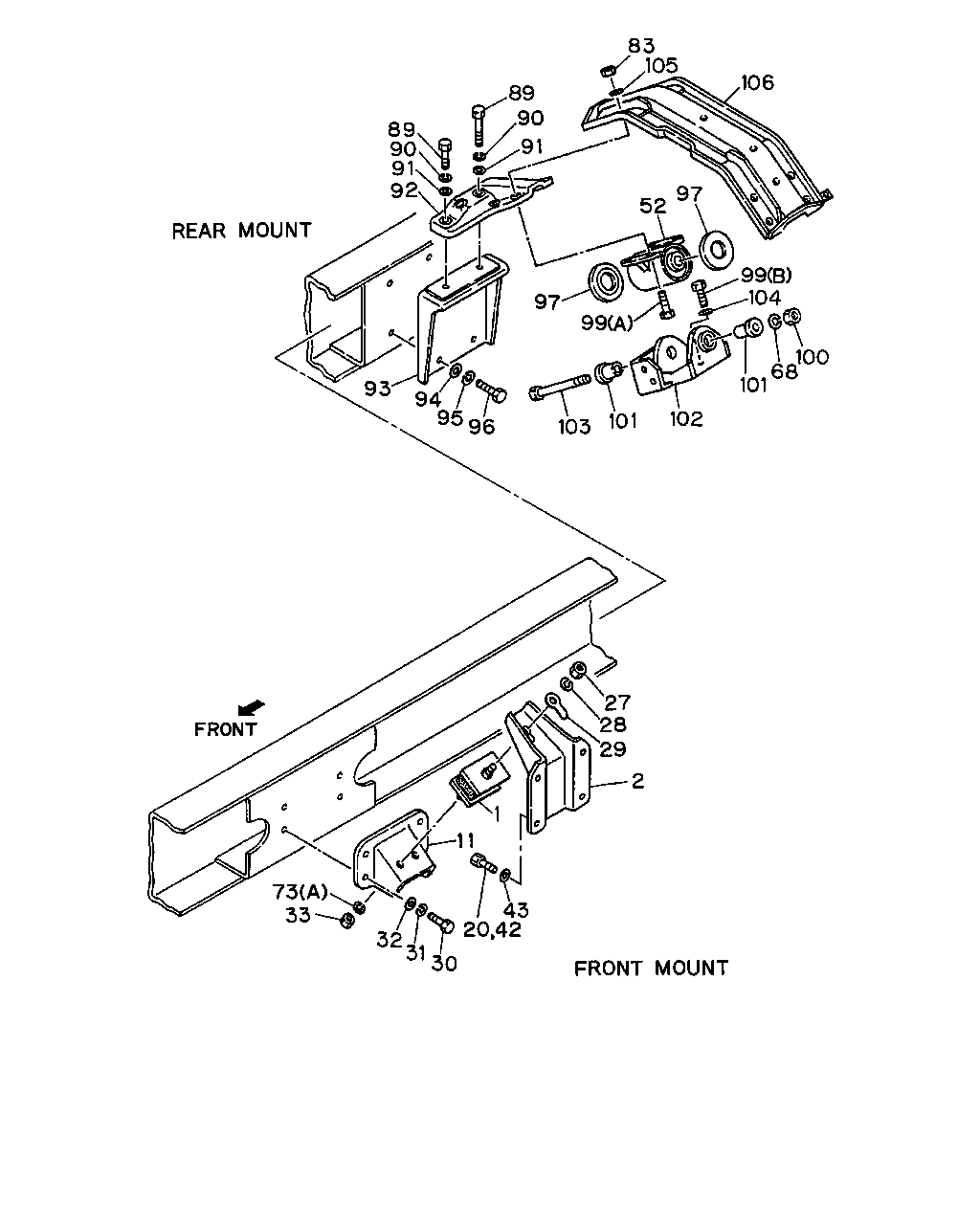

1 |
RUBBER; ENG FOOT,FRT
|
1-53215-132-2 |
02 |
1 |
8712- |
● |
● |
● |
| |
2 |
FOOT; ENG
|
1-11771-142-0 |
02 |
1 |
8712- |
● |
● |
● |
| |
11 |
BRACKET; CUSHION RUBBER,FRT
|
1-53211-120-1 |
01 |
1 |
8712- |
● |
● |
● |
| |
11 |
BRACKET; CUSHION RUBBER,FRT
|
1-53211-119-1 |
01 |
1 |
8712- |
● |
● |
● |
| |
20 |
BOLT; ENG FOOT
M14X32
|
9-92361-432-0 |
07 |
1 |
8712- |
● |
● |
● |
| |
27 |
NUT; CUSHION RUBBER TO ENG FOOT
M18
|
9-99110-418-0 |
02 |
1 |
8712- |
● |
● |
● |
| |
28 |
WASHER; LK,SUPPORT BRKT
ID=18.2
|
9-09150-518-0 |
02 |
1 |
8712- |
● |
● |
● |
| |
29 |
PLATE; LK,CUSHION RUBBER,FRT
|
1-53229-040-0 |
02 |
1 |
8712- |
● |
● |
● |
| |
30 |
BOLT; BRKT TO FRAME
M14X35
|
9-92061-435-0 |
08 |
1 |
8712- |
● |
● |
● |
| |
31 |
WASHER; LK,BRKT TO FRAME
ID=14.2
|
9-09150-814-0 |
08 |
1 |
8712- |
● |
● |
● |
| |
32 |
WASHER; PL,BRKT TO FRAME
ID=15 OD=26
|
9-09164-514-0 |
08 |
1 |
8712- |
● |
● |
● |
| |
33 |
NUT; CUSHION RUBBER TO BRKT
M14
|
9-99110-414-0 |
04 |
1 |
8712- |
● |
● |
● |
| |
42 |
BOLT; FOOT COOLER BRKT
M14X45
|
9-91666-445-0 |
01 |
1 |
8712-8912 |
● |
● |
● |
| |
42 |
BOLT; FOOT COOLER BRKT
M14X45
|
9-92361-445-0 |
01 |
1 |
9001- |
● |
● |
● |
| |
43 |
WASHER; ENG FOOT
ID=14.2
|
1-09503-050-0 |
08 |
1 |
8712- |
● |
● |
● |
| |
52 |
RUBBER; CUSHION,ENG MTG,RR
|
1-53220-088-1 |
02 |
1 |
8712- |
● |
● |
● |
| |
68 |
WASHER; LK,CUSHION RUBBER
ID=16.2
|
9-09150-516-0 |
02 |
1 |
8712- |
● |
● |
● |
| |
73 |
WASHER; LK,CUSHION RUBBER TO FRAME
(A)
ID=14.2
|
9-09150-514-0 |
04 |
1 |
8712- |
● |
● |
● |
| |
83 |
NUT; UPR BRKT RR
M12
|
9-99110-512-0 |
08 |
1 |
8712- |
● |
● |
● |
| |
89 |
BOLT; BRKT
M16X55
|
9-92361-655-0 |
02 |
1 |
8712- |
● |
● |
● |
| |
89 |
BOLT; BRKT
M16X70
|
9-92361-670-0 |
02 |
1 |
8712- |
● |
● |
● |
| |
90 |
WASHER; LK
ID=16.2
|
9-09150-616-0 |
04 |
1 |
8712- |
● |
● |
● |
| |
91 |
WASHER; PL
ID=16.2
|
1-09503-223-0 |
04 |
1 |
8712- |
● |
● |
● |
| |
92 |
BRACKET; ENG TO CUSHION RUBBER
|
1-53221-130-3 |
01 |
1 |
8712- |
● |
● |
● |
| |
92 |
BRACKET; ENG TO CUSHION RUBBER
|
1-53221-129-3 |
01 |
1 |
8712- |
● |
● |
● |
| |
93 |
BRACKET; MEMBER,ENG MTG RR
|
1-53221-128-1 |
02 |
1 |
8712- |
● |
● |
● |
| |
94 |
WASHER; PL,BRKT
ID=15
|
9-09651-069-0 |
08 |
1 |
8712- |
● |
● |
● |
| |
95 |
WASHER; LK,BRKT
ID=14.2
|
9-09150-614-0 |
08 |
1 |
8712- |
● |
● |
● |
| |
96 |
BOLT; BRKT
M14X45
|
9-91066-445-0 |
08 |
1 |
8712-8912 |
● |
● |
● |
| |
96 |
BOLT; BRKT
M14X45
|
9-92061-445-0 |
08 |
1 |
9001- |
● |
● |
● |
| |
97 |
RUBBER; STOPPER
|
9-53225-239-0 |
04 |
1 |
8712- |
● |
● |
● |
| |
99 |
BOLT; LWR BRKT RR
(A)
M12X60
|
1-09000-431-0 |
16 |
1 |
8712-9001 |
● |
● |
● |
| |
99 |
BOLT; LWR BRKT RR
(A)
M12X60
|
1-09000-431-0 |
08 |
1 |
8712- |
● |
● |
● |
| |
99 |
BOLT; LWR BRKT RR
(B)
M14X32
|
9-92351-432-0 |
08 |
1 |
9002-9005 |
● |
● |
|
| |
99 |
BOLT; LWR BRKT RR
(B)
M14X32
|
0-23801-432-0 |
08 |
1 |
9006- |
● |
● |
|
| |
100 |
NUT; CUSHION RUBBER
M16
|
9-99110-416-0 |
02 |
1 |
8712- |
● |
● |
● |
| |
101 |
COLLAR; CUSHION RUBBER
|
9-53229-075-0 |
04 |
1 |
8712- |
● |
● |
● |
| |
102 |
BRACKET; LWR CUSHION RUBBER
|
1-53221-101-3 |
01 |
1 |
8712- |
● |
● |
● |
| |
102 |
BRACKET; LWR CUSHION RUBBER
|
1-53221-136-3 |
01 |
1 |
8712- |
● |
● |
● |
| |
103 |
BOLT; CUSHION RUBBER RR,LWR
M16X200
|
9-09801-097-0 |
02 |
1 |
8712- |
● |
● |
● |
| |
104 |
WASHER; PL,CUSHION RUBBER
ID=15
|
9-09651-069-0 |
08 |
1 |
8712- |
● |
● |
|
| |
105 |
WASHER
ID=12.2
|
1-09503-224-0 |
16 |
1 |
8712- |
● |
● |
● |
| |
106 |
MEMBER; MTG,RR
|
1-53221-134-4 |
01 |
1 |
8712- |
● |
● |
● |
