Isuzu WW
▶
PICKUP
▶
TFR
▶
50965 - TFR/TFS-RHD
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-84 - BACK TRIM
▶

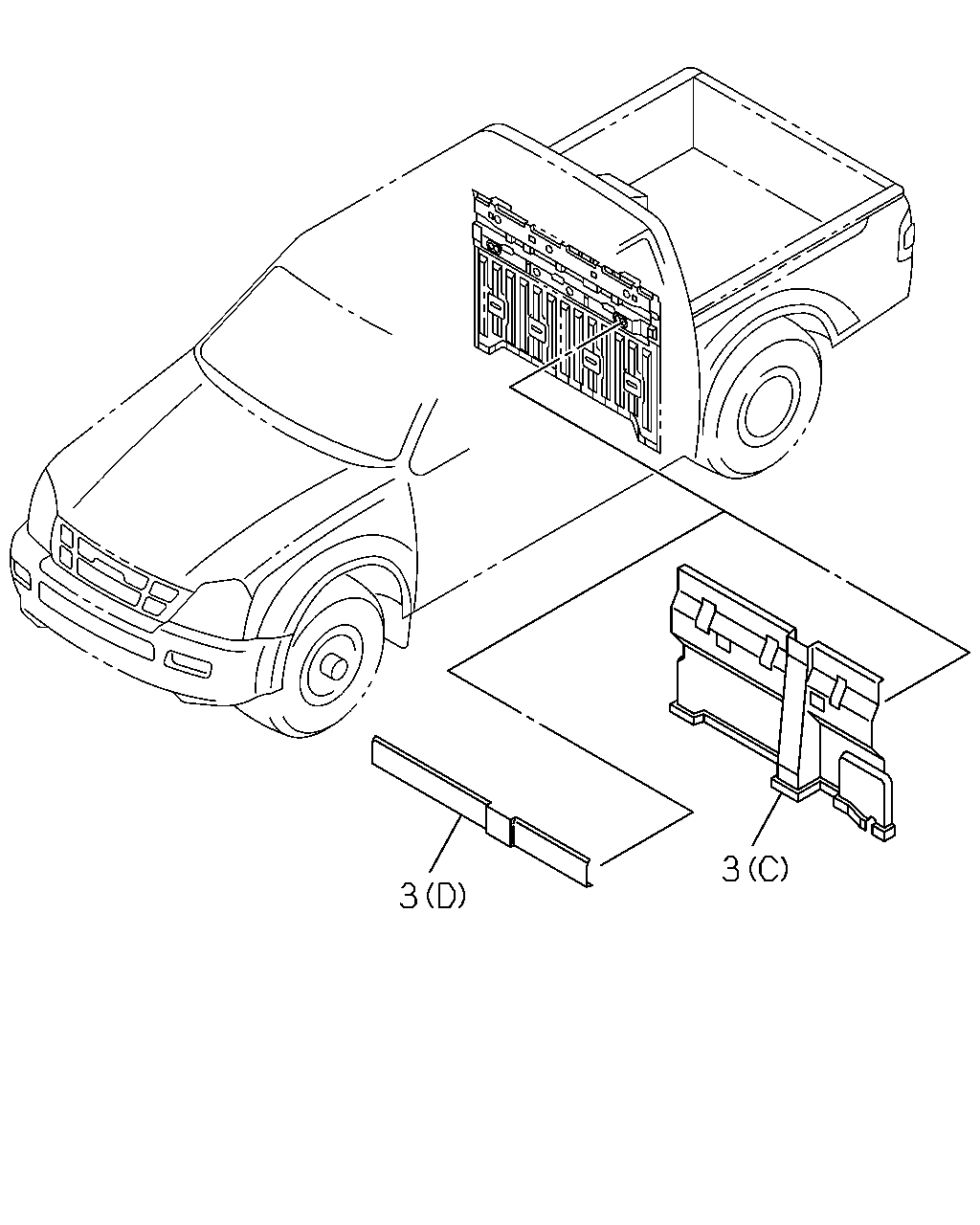

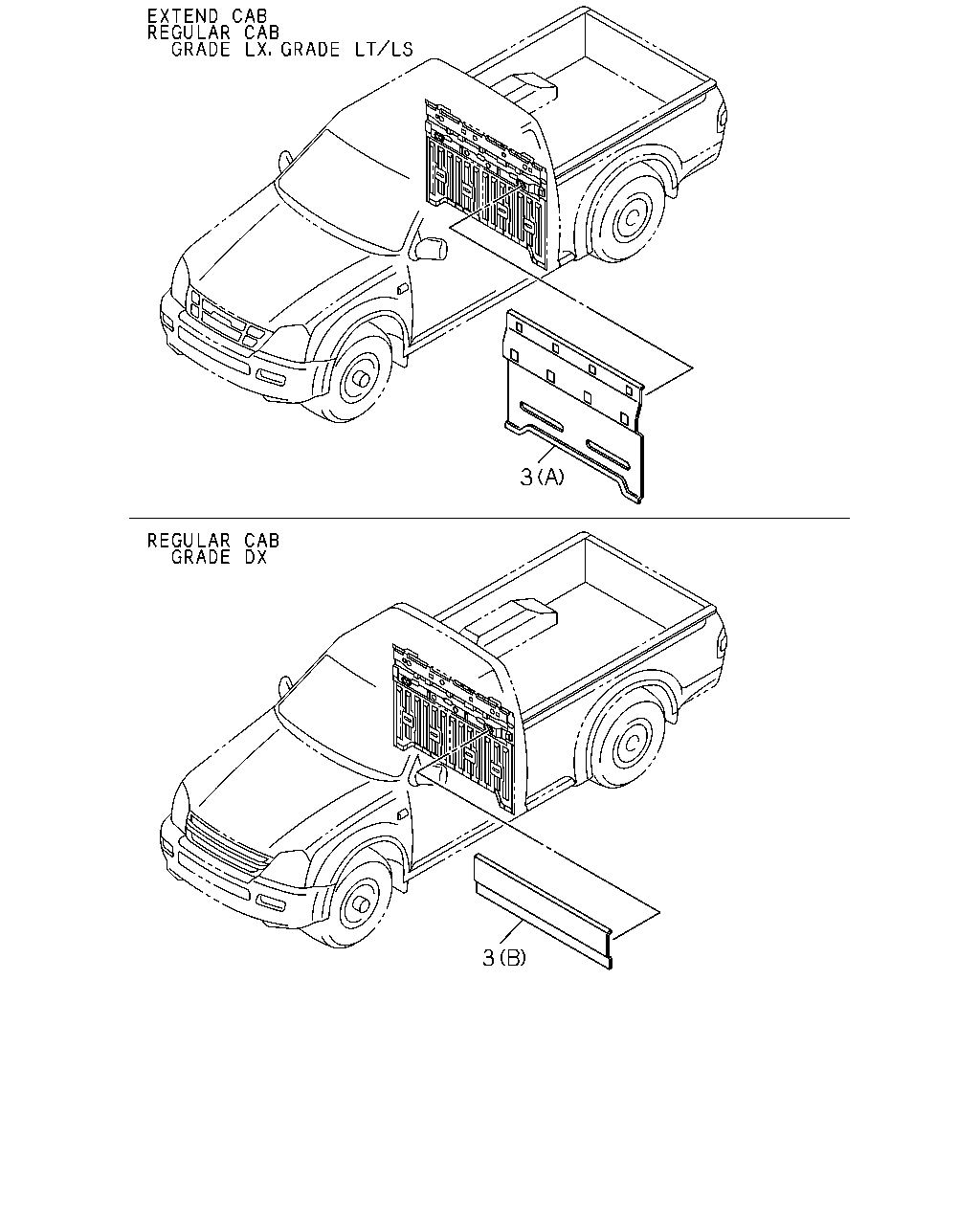

6-84 — BACK TRIM
(#41398) — 34 parça
Tümü
A - TFB5CF
B - TFB5CK
C - TFS5C
D - TFB5SF
E - TFB5SK
F - TFS5S
G - TFB5WF
H - TFS5W
◀
[684A] CREW CAB (17 parça)
[684A] EXTEND,REGULAR CAB (17 parça)
▶
3
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
G
H
3
16.578 TRIM; FULL,BACK UPR
(A) DARK GRAY
8-97396-099-0
01
1
0307-0609
●
●
●
3
16.578 TRIM; FULL,BACK UPR
JUMP SEAT<AJ2> (A) DARK GRAY
8-97403-581-0
01
1
0610-0709
●
●
3
16.578 TRIM; FULL,BACK UPR
JUMP SEAT<AJ2> (A) DARK GRAY
8-97403-581-0
01
1
0710-0812
●
●
●
3
16.578 TRIM; FULL,BACK UPR
JUMP SEAT<AJ2> (A) DARK GRAY
8-97415-637-0
01
1
0901-
●
●
●
3
16.578 TRIM; FULL,BACK UPR
VINYL TRIM<8LJ>,CLOTH TRIM STANDARD, VAR 1<8LK> EXC. JUMP SEAT<AJ2> (A) GRAY
8-97403-586-0
01
1
0610-0808
●
●
●
3
16.578 TRIM; FULL,BACK UPR
VINYL TRIM<8LJ>,CLOTH TRIM STANDARD, VAR 1<8LK> EXC. JUMP SEAT<AJ2> (A) DARK GRAY
8-97415-638-0
01
1
0809-
●
●
●
3
16.578 TRIM; FULL,BACK UPR
CLOTH TRIM SUPER DELUXE, VAR 1<8LM> EXC. JUMP SEAT<AJ2> (A) DARK GRAY
8-97403-587-0
01
1
0610-0808
●
●
3
16.578 TRIM; FULL,BACK UPR
CLOTH TRIM SUPER DELUXE, VAR 1<8LM> EXC. JUMP SEAT<AJ2> (A) DARK GRAY
8-97415-640-0
01
1
0809-
●
●
3
16.578 TRIM; FULL,BACK UPR
GRADE DX(RBA) (B) DARK GRAY
8-97395-385-0
01
1
0307-0609
●
●
●
3
16.578 TRIM; FULL,BACK UPR
GRADE DX(RBA) (B) DARK GRAY
8-97403-578-0
01
1
0610-
●
●
●
3
16.578 TRIM; FULL,BACK UPR
GRADE LX(RBB),GRADE LT/LS(RBD) (A) DARK GRAY
8-97293-964-0
01
1
0307-0609
●
●
●
3
16.578 TRIM; FULL,BACK UPR
GRADE LX(RBB),GRADE LT/LS(RBD) (A) DARK GRAY
8-97403-575-0
01
1
0610-0808
●
●
●
3
16.578 TRIM; FULL,BACK UPR
GRADE LX(RBB),GRADE LT/LS(RBD) (A) DARK GRAY
8-97415-635-0
01
1
0809-
●
●
●
3
16.578 TRIM; FULL,BACK UPR
GRADE DX(RBA) (D) DARK GRAY
8-97395-685-0
01
1
0307-0609
●
●
3
16.578 TRIM; FULL,BACK UPR
GRADE DX(RBA) (D) DARK GRAY
8-97403-580-0
01
1
0610-
●
●
3
16.578 TRIM; FULL,BACK UPR
GRADE LX(RBB),GRADE LT/LS(RBD) (C) DARK GRAY
8-97293-963-2
01
1
0307-0609
●
●
3
16.578 TRIM; FULL,BACK UPR
GRADE LX(RBB),GRADE LT/LS(RBD) (C) DARK GRAY
8-97403-574-2
01
1
0610-
●
●
3
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
G
H
3
16.578 TRIM; FULL,BACK UPR
(A) DARK GRAY
8-97396-099-0
01
1
0307-0609
●
●
●
3
16.578 TRIM; FULL,BACK UPR
JUMP SEAT<AJ2> (A) DARK GRAY
8-97403-581-0
01
1
0610-0709
●
●
3
16.578 TRIM; FULL,BACK UPR
JUMP SEAT<AJ2> (A) DARK GRAY
8-97403-581-0
01
1
0710-0812
●
●
●
3
16.578 TRIM; FULL,BACK UPR
JUMP SEAT<AJ2> (A) DARK GRAY
8-97415-637-0
01
1
0901-
●
●
●
3
16.578 TRIM; FULL,BACK UPR
VINYL TRIM<8LJ>,CLOTH TRIM STANDARD, VAR 1<8LK> EXC. JUMP SEAT<AJ2> (A) GRAY
8-97403-586-0
01
1
0610-0808
●
●
●
3
16.578 TRIM; FULL,BACK UPR
VINYL TRIM<8LJ>,CLOTH TRIM STANDARD, VAR 1<8LK> EXC. JUMP SEAT<AJ2> (A) DARK GRAY
8-97415-638-0
01
1
0809-
●
●
●
3
16.578 TRIM; FULL,BACK UPR
CLOTH TRIM SUPER DELUXE, VAR 1<8LM> EXC. JUMP SEAT<AJ2> (A) DARK GRAY
8-97403-587-0
01
1
0610-0808
●
●
3
16.578 TRIM; FULL,BACK UPR
CLOTH TRIM SUPER DELUXE, VAR 1<8LM> EXC. JUMP SEAT<AJ2> (A) DARK GRAY
8-97415-640-0
01
1
0809-
●
●
3
16.578 TRIM; FULL,BACK UPR
GRADE DX(RBA) (B) DARK GRAY
8-97395-385-0
01
1
0307-0609
●
●
●
3
16.578 TRIM; FULL,BACK UPR
GRADE DX(RBA) (B) DARK GRAY
8-97403-578-0
01
1
0610-
●
●
●
3
16.578 TRIM; FULL,BACK UPR
GRADE LX(RBB),GRADE LT/LS(RBD) (A) DARK GRAY
8-97293-964-0
01
1
0307-0609
●
●
●
3
16.578 TRIM; FULL,BACK UPR
GRADE LX(RBB),GRADE LT/LS(RBD) (A) DARK GRAY
8-97403-575-0
01
1
0610-0808
●
●
●
3
16.578 TRIM; FULL,BACK UPR
GRADE LX(RBB),GRADE LT/LS(RBD) (A) DARK GRAY
8-97415-635-0
01
1
0809-
●
●
●
3
16.578 TRIM; FULL,BACK UPR
GRADE DX(RBA) (D) DARK GRAY
8-97395-685-0
01
1
0307-0609
●
●
3
16.578 TRIM; FULL,BACK UPR
GRADE DX(RBA) (D) DARK GRAY
8-97403-580-0
01
1
0610-
●
●
3
16.578 TRIM; FULL,BACK UPR
GRADE LX(RBB),GRADE LT/LS(RBD) (C) DARK GRAY
8-97293-963-2
01
1
0307-0609
●
●
3
16.578 TRIM; FULL,BACK UPR
GRADE LX(RBB),GRADE LT/LS(RBD) (C) DARK GRAY
8-97403-574-2
01
1
0610-
●
●
