8-05 — INTERIOR LAMP (#4139) — 126 parça

1 85 2 2 11 4 3 56 88 8 33 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	LAMP ASM; ROOM EXC. LAMP-ROOM OPERATION W/CONSOLE<C93>	1-82140-050-1	01	1	9603-9909	●	●
1	LAMP ASM; ROOM EXC. ROOM LAMP FLUORESCENT<NGG>	1-82140-050-1	01	1	9910-	●	●
2	BULB; ROOM LAMP EXC. LAMP-ROOM OPERATION W/CONSOLE<C93> 24V 10W	1-82195-001-0	02	1	9603-9909	●	●
2	BULB; ROOM LAMP EXC. ROOM LAMP FLUORESCENT<NGG> 24V 10W	1-82195-001-0	02	1	9910-	●	●
3	LENS; ROOM LAMP EXC. LAMP-ROOM OPERATION W/CONSOLE<C93>	8-94206-208-0	01	1	9603-9709	●	●
3	LENS; ROOM LAMP EXC. LAMP-ROOM OPERATION W/CONSOLE<C93>	1-82145-020-0	01	1	9710-9909	●	●
3	LENS; ROOM LAMP EXC. ROOM LAMP FLUORESCENT<NGG>	1-82145-020-0	01	1	9910-	●	●
4	SCREW; ROOM LAMP EXC. LAMP-ROOM OPERATION W/CONSOLE<C93> M5X25	5-09981-093-0	03	1	9603-9909	●	●
4	SCREW; ROOM LAMP EXC. ROOM LAMP FLUORESCENT<NGG> M5X25	5-09981-093-0	03	1	9910-9911	●	●
4	SCREW; ROOM LAMP EXC. ROOM LAMP FLUORESCENT<NGG> M5X20 TAPPING	9-07066-520-0	03	1	9912-	●	●
8	COVER; BED ROOM LAMP CENTER SEAT DELETE(SP9) DELUXE CAB(W14)	1-73347-803-2	01	1	0101-	●	●
11	LAMP ASM; ASH TRAY POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8>	1-76458-076-1	01	1	9603-	●	●
15	LAMP; INSPECTION DELUXE CAB(W14)	1-82140-052-1	01	1	9905-	●	●
33	GROMMET; SCREW,LAMP (A) M4	5-09470-002-0	02	1	9603-	●	●
33	GROMMET; SCREW,LAMP DELUXE CAB(W14) (B)	1-09983-182-0	01	1	9905-	●	●
56	BRACKET; LAMP DELUXE CAB(W14)	1-86830-302-1	01	1	9905-	●	●
85	BULB; ASH TRAY POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> 24V 1.4W	1-76457-041-0	01	1	9603-	●	●
88	BOLT; LAMP DELUXE CAB(W14) (B) M8X20.5 W/LK&PL WASHER	8-94279-207-0	01	1	9905-	●	●
88	BOLT; LAMP LAMP-ROOM OPERATION W/CONSOLE<C93> (A) M6X16 W/LK&PL WASHER	1-09980-574-0	06	1	9603-9904	●	●
88	BOLT; LAMP LAMP-ROOM OPERATION W/CONSOLE<C93> (A) M6X16 W/LK&PL WASHER	1-09980-574-0	04	1	9905-9909	●	●
88	BOLT; LAMP ROOM LAMP FLUORESCENT<NGG> (A) M6X16 W/LK&PL WASHER	1-09980-574-0	04	1	9910-	●	●

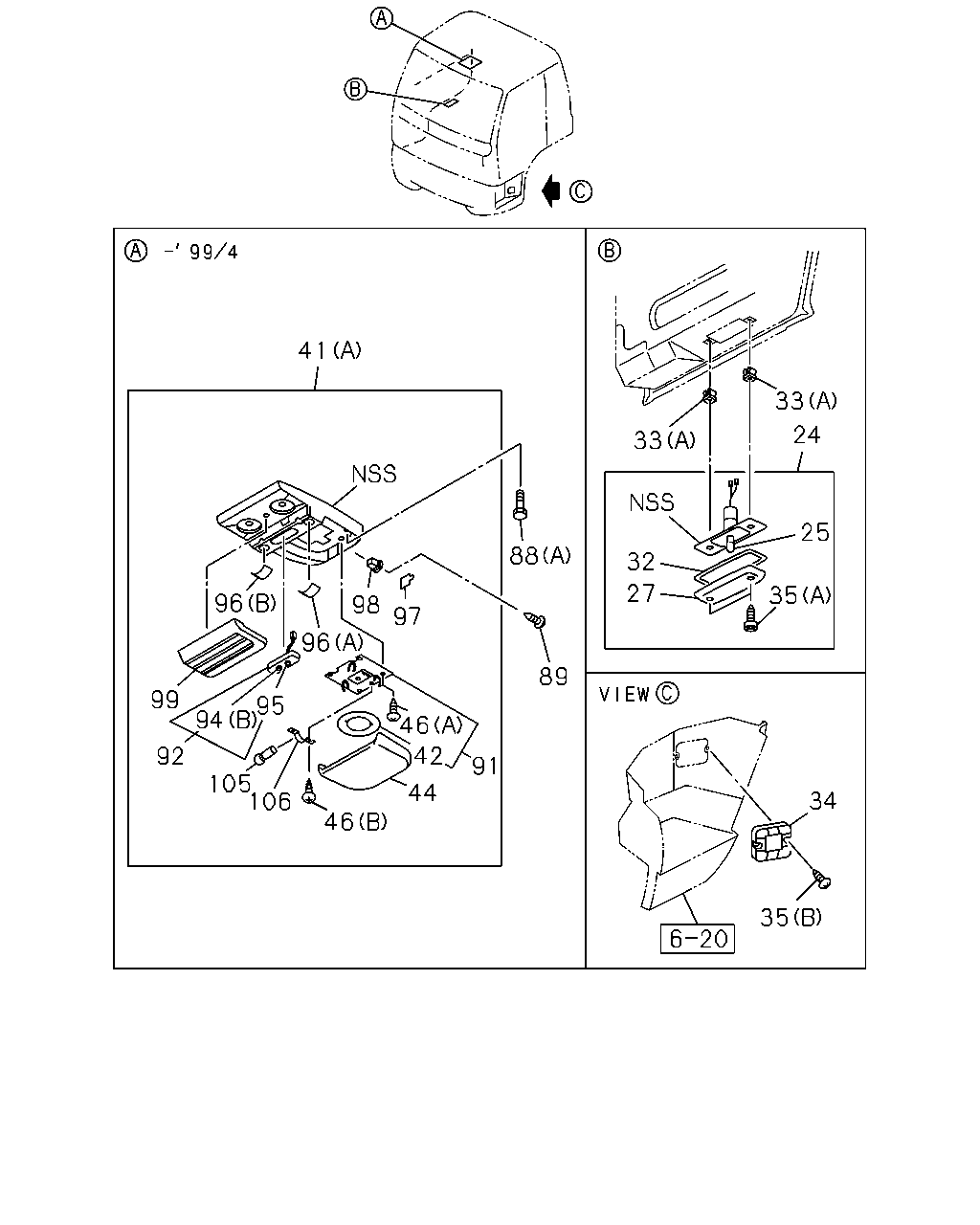

41 33 24 33 25 88 32 27 35 96 98 97 96 89 99 95 94 46 42 92 91 105 106 44 34 46 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	LAMP; STEP	1-82140-044-0	01	1	9603-9904	●	●
24	LAMP; STEP	1-82140-052-1	01	1	9905-	●	●
25	BULB; STEP LAMP 24V 12W	1-82194-004-0	01	1	9603-9904	●	●
25	BULB; STEP LAMP 24V 5W	1-82194-042-0	01	1	9905-	●	●
27	LENS; STEP LAMP	1-87550-003-0	01	1	9603-9904	●	●
27	LENS; STEP LAMP	1-82145-019-0	01	1	9905-	●	●
32	GASKET; HSG	1-82146-004-0	01	1	9603-9904	●	●
33	GROMMET; SCREW,LAMP (A) M4	5-09470-002-0	02	1	9603-	●	●
33	GROMMET; SCREW,LAMP DELUXE CAB(W14) (B)	1-09983-182-0	01	1	9905-	●	●
34	COVER; STEP LAMP EXC. CORNARING LAMP<TDS>	1-71907-444-0	02	1	9603-	●	●
35	SCREW; STEP LAMP (A)	1-82149-002-0	02	1	9603-9904	●	●
35	SCREW; STEP LAMP (A) M4X20	1-82149-006-0	02	1	9905-	●	●
35	SCREW; STEP LAMP EXC. CORNARING LAMP<TDS> (B) M4X20 TAPPING W/PL WASHER	0-74310-420-0	04	1	9603-	●	●
41	LAMP ASM; FLUORESCENT LAMP-ROOM OPERATION W/CONSOLE<C93> (A)	1-86830-245-2	01	1	9603-9904	●	●
41	LAMP ASM; FLUORESCENT LAMP-ROOM OPERATION W/CONSOLE<C93> (B)	1-86830-305-2	01	1	9905-9909	●	●
41	LAMP ASM; FLUORESCENT ROOM LAMP FLUORESCENT<NGG> EXC. LAMP-ROOM OPERATION W/CONSOLE<C93> (B)	1-86830-305-2	01	1	9910-	●	●
41	LAMP ASM; FLUORESCENT LAMP-ROOM OPERATION W/CONSOLE<C93> ROOM LAMP FLUORESCENT<NGG> (B)	1-86830-284-3	01	1	9910-		●
42	LAMP; FLUORESCENT LAMP-ROOM OPERATION W/CONSOLE<C93>	1-86830-094-1	01	1	9603-9909	●	●
42	LAMP; FLUORESCENT ROOM LAMP FLUORESCENT<NGG>	1-86830-094-1	01	1	9910-	●	●
44	LENS; FLUORESCENT LAMP LAMP-ROOM OPERATION W/CONSOLE<C93>	1-86830-092-0	01	1	9603-9909	●	●
44	LENS; FLUORESCENT LAMP ROOM LAMP FLUORESCENT<NGG>	1-86830-092-0	01	1	9910-	●	●
46	SCREW; FLUORESCENT LAMP LAMP-ROOM OPERATION W/CONSOLE<C93> (A) M5X10 TAPPING	1-86830-095-0	08	1	9905-9909	●	●
46	SCREW; FLUORESCENT LAMP ROOM LAMP FLUORESCENT<NGG> (A) M5X10 TAPPING	1-86830-095-0	08	1	9910-	●	●
46	SCREW; FLUORESCENT LAMP LAMP-ROOM OPERATION W/CONSOLE<C93> (B) M4X12	1-86830-202-0	07	1	9905-9909	●	●
46	SCREW; FLUORESCENT LAMP ROOM LAMP FLUORESCENT<NGG> (B) M4X12	1-86830-202-0	07	1	9910-	●	●
46	SCREW; FLUORESCENT LAMP LAMP-ROOM OPERATION W/CONSOLE<C93> (C) M3X6 TAPPING	1-86830-336-0	01	1	9905-9909	●	●
46	SCREW; FLUORESCENT LAMP ROOM LAMP FLUORESCENT<NGG> (C) M3X6 TAPPING	1-86830-336-0	01	1	9910-	●	●
46	SCREW; FLUORESCENT LAMP LAMP-ROOM OPERATION W/CONSOLE<C93> (A) M5X10 TAPPING	1-86830-095-0	04	1	9603-9904	●	●
46	SCREW; FLUORESCENT LAMP LAMP-ROOM OPERATION W/CONSOLE<C93> (B) M4X12	1-86830-202-0	02	1	9603-9904	●	●
88	BOLT; LAMP DELUXE CAB(W14) (B) M8X20.5 W/LK&PL WASHER	8-94279-207-0	01	1	9905-	●	●
88	BOLT; LAMP LAMP-ROOM OPERATION W/CONSOLE<C93> (A) M6X16 W/LK&PL WASHER	1-09980-574-0	06	1	9603-9904	●	●
88	BOLT; LAMP LAMP-ROOM OPERATION W/CONSOLE<C93> (A) M6X16 W/LK&PL WASHER	1-09980-574-0	04	1	9905-9909	●	●
88	BOLT; LAMP ROOM LAMP FLUORESCENT<NGG> (A) M6X16 W/LK&PL WASHER	1-09980-574-0	04	1	9910-	●	●
89	SCREW; LENS,FLUORESCENT LAMP LAMP-ROOM OPERATION W/CONSOLE<C93> M5X10 TAPPING	9-07076-510-0	01	1	9603-9909	●	●
89	SCREW; LENS,FLUORESCENT LAMP ROOM LAMP FLUORESCENT<NGG> M5X10 TAPPING	9-07076-510-0	01	1	9910-	●	●
91	LAMP SUB ASM; FLUORESCENT LAMP-ROOM OPERATION W/CONSOLE<C93>	1-86830-207-0	01	1	9603-9904	●	●
92	SWITCH ASM; FLUORESCENT LAMP-ROOM OPERATION W/CONSOLE<C93>	1-86830-340-0	01	1	9905-9909	●	●
92	SWITCH ASM; FLUORESCENT ROOM LAMP FLUORESCENT<NGG>	1-86830-340-0	01	1	9910-	●	●
92	SWITCH ASM; FLUORESCENT LAMP-ROOM OPERATION W/CONSOLE<C93>	1-86830-280-0	01	1	9603-9904	●	●
94	KNOB; ROOM LAMP SW LAMP-ROOM OPERATION W/CONSOLE<C93> (B)	1-86830-099-0	01	1	9905-9909	●	●
94	KNOB; ROOM LAMP SW ROOM LAMP FLUORESCENT<NGG> (B)	1-86830-099-0	01	1	9910-	●	●
94	KNOB; ROOM LAMP SW LAMP-ROOM OPERATION W/CONSOLE<C93> (B)	1-86830-098-0	01	1	9603-9904	●	●
94	KNOB; ROOM LAMP SW LAMP-ROOM OPERATION W/CONSOLE<C93> (A)	1-86830-304-0	01	1	9905-9909	●	●
94	KNOB; ROOM LAMP SW ROOM LAMP FLUORESCENT<NGG> (A)	1-86830-304-0	01	1	9910-	●	●
95	KNOB; SPOT LAMP SW LAMP-ROOM OPERATION W/CONSOLE<C93>	1-86830-099-0	01	1	9603-9904	●	●
96	CAP; SPOT LAMP LAMP-ROOM OPERATION W/CONSOLE<C93> (A)	1-86830-100-0	01	1	9603-9904	●	●
96	CAP; SPOT LAMP LAMP-ROOM OPERATION W/CONSOLE<C93> (B)	1-86830-282-0	01	1	9603-9909	●	●
96	CAP; SPOT LAMP ROOM LAMP FLUORESCENT<NGG> EXC. LAMP-ROOM OPERATION W/CONSOLE<C93> (B)	1-86830-282-0	01	1	9910-	●	●
97	CAP; LENS FIX LAMP-ROOM OPERATION W/CONSOLE<C93>	1-86830-101-0	01	1	9603-9909	●	●
97	CAP; LENS FIX ROOM LAMP FLUORESCENT<NGG>	1-86830-101-0	01	1	9910-	●	●
98	GROMMET; SCREW,LENS FIX LAMP-ROOM OPERATION W/CONSOLE<C93>	1-86830-102-0	01	1	9603-9909	●	●
98	GROMMET; SCREW,LENS FIX ROOM LAMP FLUORESCENT<NGG>	1-86830-102-0	01	1	9910-	●	●
99	COVER; AIR PURIFIER LAMP-ROOM OPERATION W/CONSOLE<C93>	1-86830-103-0	01	1	9603-9904	●	●
105	BULB; FLUORESCENT LAMP LAMP-ROOM OPERATION W/CONSOLE<C93> 28V 20W	1-86830-200-0	01	1	9603-9909	●	●
105	BULB; FLUORESCENT LAMP ROOM LAMP FLUORESCENT<NGG> 28V 20W	1-86830-200-0	01	1	9910-	●	●
106	SOCKET; BULB LAMP-ROOM OPERATION W/CONSOLE<C93>	1-86830-201-0	01	1	9603-9909	●	●
106	SOCKET; BULB ROOM LAMP FLUORESCENT<NGG>	1-86830-201-0	01	1	9910-	●	●

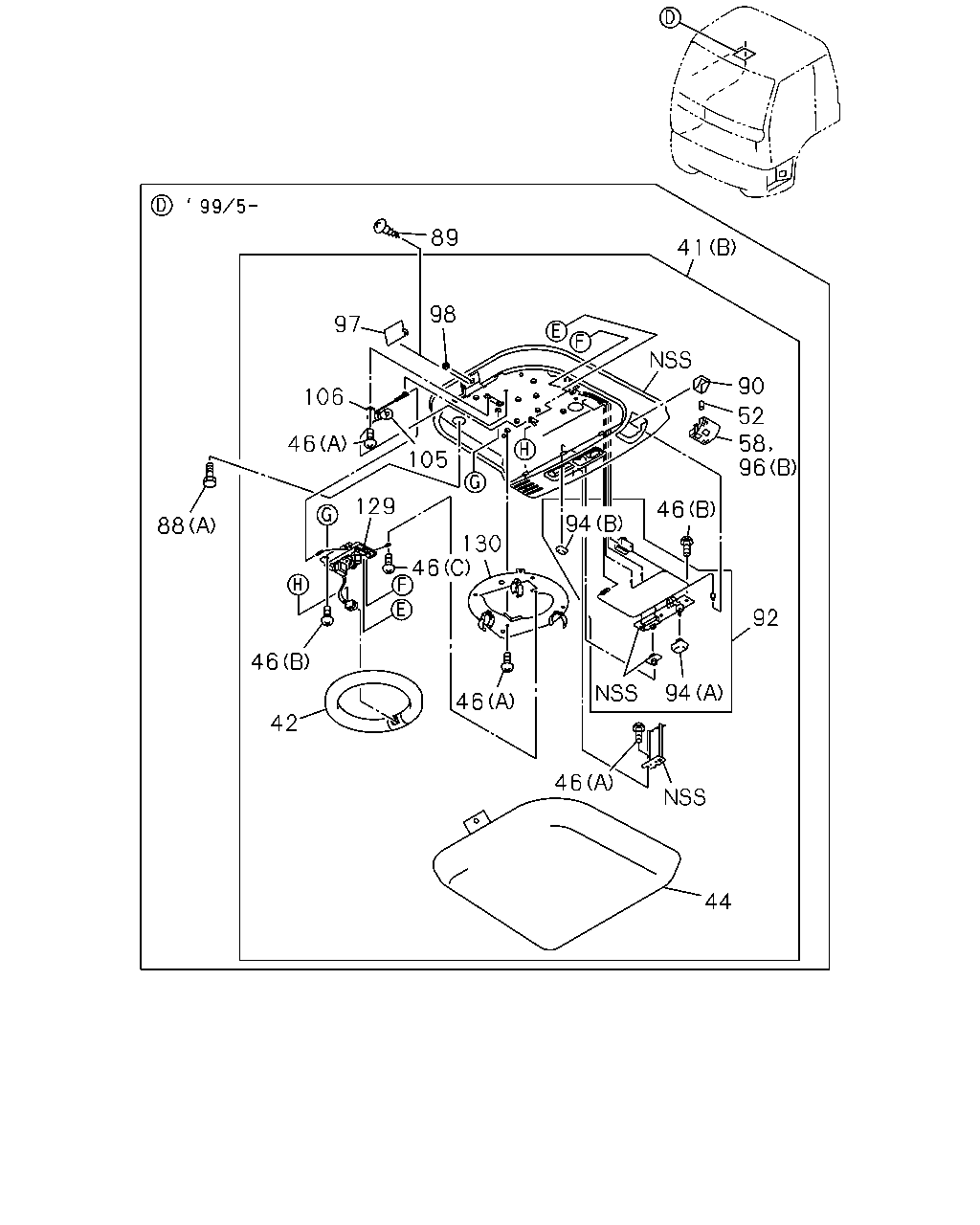

89 41 98 97 90 106 52 58 96 46 105 129 46 94 88 130 46 92 46 94 46 42 46 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
41	LAMP ASM; FLUORESCENT LAMP-ROOM OPERATION W/CONSOLE<C93> (A)	1-86830-245-2	01	1	9603-9904	●	●
41	LAMP ASM; FLUORESCENT LAMP-ROOM OPERATION W/CONSOLE<C93> (B)	1-86830-305-2	01	1	9905-9909	●	●
41	LAMP ASM; FLUORESCENT ROOM LAMP FLUORESCENT<NGG> EXC. LAMP-ROOM OPERATION W/CONSOLE<C93> (B)	1-86830-305-2	01	1	9910-	●	●
41	LAMP ASM; FLUORESCENT LAMP-ROOM OPERATION W/CONSOLE<C93> ROOM LAMP FLUORESCENT<NGG> (B)	1-86830-284-3	01	1	9910-		●
42	LAMP; FLUORESCENT LAMP-ROOM OPERATION W/CONSOLE<C93>	1-86830-094-1	01	1	9603-9909	●	●
42	LAMP; FLUORESCENT ROOM LAMP FLUORESCENT<NGG>	1-86830-094-1	01	1	9910-	●	●
44	LENS; FLUORESCENT LAMP LAMP-ROOM OPERATION W/CONSOLE<C93>	1-86830-092-0	01	1	9603-9909	●	●
44	LENS; FLUORESCENT LAMP ROOM LAMP FLUORESCENT<NGG>	1-86830-092-0	01	1	9910-	●	●
46	SCREW; FLUORESCENT LAMP LAMP-ROOM OPERATION W/CONSOLE<C93> (A) M5X10 TAPPING	1-86830-095-0	08	1	9905-9909	●	●
46	SCREW; FLUORESCENT LAMP ROOM LAMP FLUORESCENT<NGG> (A) M5X10 TAPPING	1-86830-095-0	08	1	9910-	●	●
46	SCREW; FLUORESCENT LAMP LAMP-ROOM OPERATION W/CONSOLE<C93> (B) M4X12	1-86830-202-0	07	1	9905-9909	●	●
46	SCREW; FLUORESCENT LAMP ROOM LAMP FLUORESCENT<NGG> (B) M4X12	1-86830-202-0	07	1	9910-	●	●
46	SCREW; FLUORESCENT LAMP LAMP-ROOM OPERATION W/CONSOLE<C93> (C) M3X6 TAPPING	1-86830-336-0	01	1	9905-9909	●	●
46	SCREW; FLUORESCENT LAMP ROOM LAMP FLUORESCENT<NGG> (C) M3X6 TAPPING	1-86830-336-0	01	1	9910-	●	●
46	SCREW; FLUORESCENT LAMP LAMP-ROOM OPERATION W/CONSOLE<C93> (A) M5X10 TAPPING	1-86830-095-0	04	1	9603-9904	●	●
46	SCREW; FLUORESCENT LAMP LAMP-ROOM OPERATION W/CONSOLE<C93> (B) M4X12	1-86830-202-0	02	1	9603-9904	●	●
52	BULB; SPOT LAMP LAMP-ROOM OPERATION W/CONSOLE<C93> ROOM LAMP FLUORESCENT<NGG> 28V 6W	1-86830-090-0	01	1	9910-		●
58	LENS; SPOT LAMP LAMP-ROOM OPERATION W/CONSOLE<C93> ROOM LAMP FLUORESCENT<NGG>	1-86830-089-0	01	1	9910-		●
88	BOLT; LAMP DELUXE CAB(W14) (B) M8X20.5 W/LK&PL WASHER	8-94279-207-0	01	1	9905-	●	●
88	BOLT; LAMP LAMP-ROOM OPERATION W/CONSOLE<C93> (A) M6X16 W/LK&PL WASHER	1-09980-574-0	06	1	9603-9904	●	●
88	BOLT; LAMP LAMP-ROOM OPERATION W/CONSOLE<C93> (A) M6X16 W/LK&PL WASHER	1-09980-574-0	04	1	9905-9909	●	●
88	BOLT; LAMP ROOM LAMP FLUORESCENT<NGG> (A) M6X16 W/LK&PL WASHER	1-09980-574-0	04	1	9910-	●	●
89	SCREW; LENS,FLUORESCENT LAMP LAMP-ROOM OPERATION W/CONSOLE<C93> M5X10 TAPPING	9-07076-510-0	01	1	9603-9909	●	●
89	SCREW; LENS,FLUORESCENT LAMP ROOM LAMP FLUORESCENT<NGG> M5X10 TAPPING	9-07076-510-0	01	1	9910-	●	●
90	BASE; LAMP LAMP-ROOM OPERATION W/CONSOLE<C93> ROOM LAMP FLUORESCENT<NGG>	1-86830-091-0	01	1	9910-		●
92	SWITCH ASM; FLUORESCENT LAMP-ROOM OPERATION W/CONSOLE<C93>	1-86830-340-0	01	1	9905-9909	●	●
92	SWITCH ASM; FLUORESCENT ROOM LAMP FLUORESCENT<NGG>	1-86830-340-0	01	1	9910-	●	●
92	SWITCH ASM; FLUORESCENT LAMP-ROOM OPERATION W/CONSOLE<C93>	1-86830-280-0	01	1	9603-9904	●	●
94	KNOB; ROOM LAMP SW LAMP-ROOM OPERATION W/CONSOLE<C93> (B)	1-86830-099-0	01	1	9905-9909	●	●
94	KNOB; ROOM LAMP SW ROOM LAMP FLUORESCENT<NGG> (B)	1-86830-099-0	01	1	9910-	●	●
94	KNOB; ROOM LAMP SW LAMP-ROOM OPERATION W/CONSOLE<C93> (B)	1-86830-098-0	01	1	9603-9904	●	●
94	KNOB; ROOM LAMP SW LAMP-ROOM OPERATION W/CONSOLE<C93> (A)	1-86830-304-0	01	1	9905-9909	●	●
94	KNOB; ROOM LAMP SW ROOM LAMP FLUORESCENT<NGG> (A)	1-86830-304-0	01	1	9910-	●	●
96	CAP; SPOT LAMP LAMP-ROOM OPERATION W/CONSOLE<C93> (A)	1-86830-100-0	01	1	9603-9904	●	●
96	CAP; SPOT LAMP LAMP-ROOM OPERATION W/CONSOLE<C93> (B)	1-86830-282-0	01	1	9603-9909	●	●
96	CAP; SPOT LAMP ROOM LAMP FLUORESCENT<NGG> EXC. LAMP-ROOM OPERATION W/CONSOLE<C93> (B)	1-86830-282-0	01	1	9910-	●	●
97	CAP; LENS FIX LAMP-ROOM OPERATION W/CONSOLE<C93>	1-86830-101-0	01	1	9603-9909	●	●
97	CAP; LENS FIX ROOM LAMP FLUORESCENT<NGG>	1-86830-101-0	01	1	9910-	●	●
98	GROMMET; SCREW,LENS FIX LAMP-ROOM OPERATION W/CONSOLE<C93>	1-86830-102-0	01	1	9603-9909	●	●
98	GROMMET; SCREW,LENS FIX ROOM LAMP FLUORESCENT<NGG>	1-86830-102-0	01	1	9910-	●	●
105	BULB; FLUORESCENT LAMP LAMP-ROOM OPERATION W/CONSOLE<C93> 28V 20W	1-86830-200-0	01	1	9603-9909	●	●
105	BULB; FLUORESCENT LAMP ROOM LAMP FLUORESCENT<NGG> 28V 20W	1-86830-200-0	01	1	9910-	●	●
106	SOCKET; BULB LAMP-ROOM OPERATION W/CONSOLE<C93>	1-86830-201-0	01	1	9603-9909	●	●
106	SOCKET; BULB ROOM LAMP FLUORESCENT<NGG>	1-86830-201-0	01	1	9910-	●	●
129	INVERTER ASM; FLUORESCENT LAMP LAMP-ROOM OPERATION W/CONSOLE<C93>	1-86830-338-0	01	1	9905-9909	●	●
129	INVERTER ASM; FLUORESCENT LAMP ROOM LAMP FLUORESCENT<NGG>	1-86830-338-0	01	1	9910-	●	●
130	PLATE ASM; FLUORESCENT LAMP LAMP-ROOM OPERATION W/CONSOLE<C93>	1-86830-339-0	01	1	9905-9909	●	●
130	PLATE ASM; FLUORESCENT LAMP ROOM LAMP FLUORESCENT<NGG>	1-86830-339-0	01	1	9910-	●	●
