◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50949 - NPR/NQR(EUROPE)-LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-80 - BACK PANEL ▶
6-80 — BACK PANEL (#41387) — 123 parça

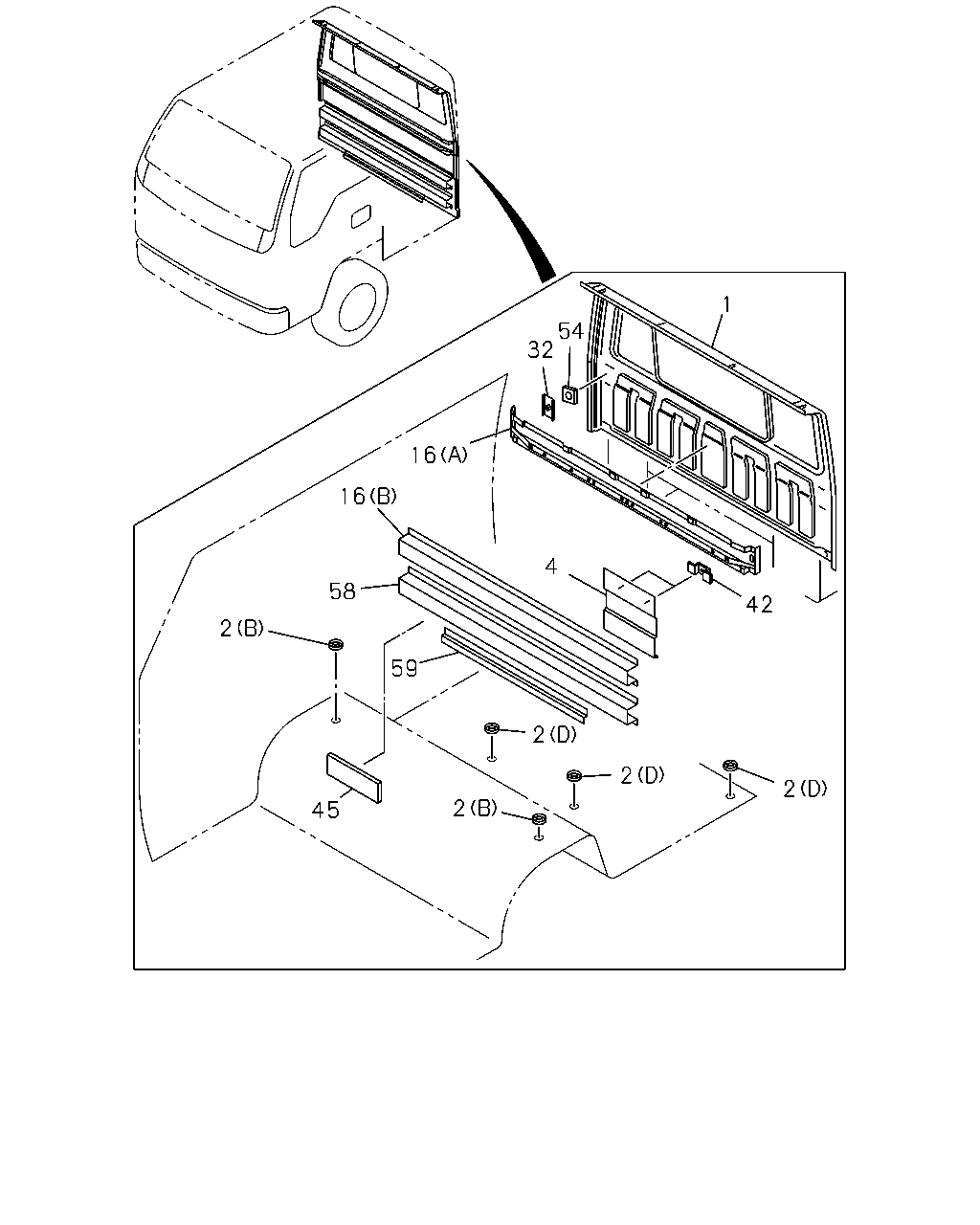

çizim 51860
1 54 32 16 16 4 58 42 2 59 2 2 2 2 45
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 16.587 PANEL; BACK OUTER 8-97851-267-6 01 1 0302- ● ●
1 16.587 PANEL; BACK OUTER 8-97859-127-0 01 1 0302-0506 ● ● ● ● ●
1 16.587 PANEL; BACK OUTER 8-97859-127-0 01 1 0507- ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.165 (A) OD=25 BLACK 		1-76798-019-0 04 1 0302-0506 ● ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.165 (A) OD=25 BLACK 		1-76798-019-0 04 1 0507-0606 ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
MANUAL TILT CAB<RWZ> 16.165 (A) OD=25 BLACK 		1-76798-019-0 04 1 0607- ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
02.580 (C) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 0302-0506 ● ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
02.580 (C) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 0507-0710 ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.545 (C) OD=32 BLACK 		8-98031-126-0 02 1 0711- ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
00.785 (B) OD=16.2 		8-94492-493-0 02 1 0302-0506 ● ● ● ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
00.785 (B) OD=16.2 		8-94492-493-0 02 1 0507-0512 ● ● ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.547 (B) OD=15.0 		8-94279-040-0 02 1 0601- ● ● ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
15.222 (D) OD=35 		8-94122-971-0 04 1 0302- ● ●
4 16.575 PANEL; CAB BACK LWR
4JH1 ENG(RJX) CENTER 		8-97997-979-0 01 1 0302-0506 ●
4 16.575 PANEL; CAB BACK LWR
4JH1-TC ENG(RDM) CENTER 		8-97997-979-0 01 1 0507-0606 ●
4 16.575 PANEL; CAB BACK LWR
4JJ1 ENG(LFB) CENTER 		8-97997-979-0 01 1 0607- ●
4 16.575 PANEL; CAB BACK LWR
4JH1 ENG(RJX) SIDE 		8-97997-981-0 01 1 0302-0506 ●
4 16.575 PANEL; CAB BACK LWR
4JH1-TC ENG(RDM) SIDE 		8-97997-981-0 01 1 0507-0606 ●
4 16.575 PANEL; CAB BACK LWR
4JJ1 ENG(LFB) SIDE 		8-97997-981-0 01 1 0607- ●
4 16.575 PANEL; CAB BACK LWR
4JH1 ENG(RJX) SIDE 		8-97997-980-0 01 1 0302-0506 ●
4 16.575 PANEL; CAB BACK LWR
4JH1-TC ENG(RDM) SIDE 		8-97997-980-0 01 1 0507-0606 ●
4 16.575 PANEL; CAB BACK LWR
4JJ1 ENG(LFB) SIDE 		8-97997-980-0 01 1 0607- ●
4 16.575 PANEL; CAB BACK LWR
4HE1 ENG(RLY) CENTER 		8-97851-268-3 01 1 0302-0506 ● ●
4 16.575 PANEL; CAB BACK LWR
4HK1-TCN ENG(RDQ) CENTER 		8-97851-268-3 01 1 0507-0606 ●
4 16.575 PANEL; CAB BACK LWR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) CENTER 		8-97851-268-3 01 1 0507-0606 ●
4 16.575 PANEL; CAB BACK LWR
4HK1-TCC ENG(RDV) CENTER 		8-97851-268-3 01 1 0607- ●
4 16.575 PANEL; CAB BACK LWR
4HE1 ENG(RLY) SIDE 		8-97851-293-5 01 1 0302-0506 ● ●
4 16.575 PANEL; CAB BACK LWR
4HK1-TCN ENG(RDQ) SIDE 		8-97851-293-5 01 1 0507-0606 ●
4 16.575 PANEL; CAB BACK LWR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) SIDE 		8-97851-293-5 01 1 0507-0606 ●
4 16.575 PANEL; CAB BACK LWR
4HK1-TCC ENG(RDV) SIDE 		8-97851-293-5 01 1 0607- ●
4 16.575 PANEL; CAB BACK LWR
4HE1 ENG(RLY) SIDE 		8-97892-520-1 01 1 0302-0506 ● ●
4 16.575 PANEL; CAB BACK LWR
4HK1-TCN ENG(RDQ) SIDE 		8-97892-520-1 01 1 0507-0606 ●
4 16.575 PANEL; CAB BACK LWR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) SIDE 		8-97892-520-1 01 1 0507-0606 ●
4 16.575 PANEL; CAB BACK LWR
4HK1-TCC ENG(RDV) SIDE 		8-97892-520-1 01 1 0607- ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4JH1 ENG(RJX) (A) 		8-97851-106-9 01 1 0302-0506 ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(A) 		8-97851-106-9 01 1 0302-0506 ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4JH1-TC ENG(RDM) (A) 		8-97851-106-9 01 1 0507-0606 ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ) (A) 		8-97851-106-9 01 1 0507-0606 ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A) 		8-97851-106-9 01 1 0507-0606 ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4JJ1 ENG(LFB) (A) 		8-97851-106-9 01 1 0607- ● ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HK1-TCC ENG(RDV) (A) 		8-97851-106-9 01 1 0607- ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HE1 ENG(RLY) (A) 		8-97890-837-1 01 1 0302-0506 ● ● ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A) 		8-97890-837-1 01 1 0507-0606 ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HK1-TCC ENG(RDV) (A) 		8-97890-837-1 01 1 0607- ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(B) 		8-97851-415-1 01 1 0302- ● ●
32 16.587 PATCH; AIR INT DUCT 8-97892-522-1 01 1 0302- ● ●
42 16.587 BRACKET; HEAT PROTECTOR
16.588 		8-94265-170-1 04 1 0302- ● ●
45 16.587 SHEET; MELTING,BACK PANEL
4HK1-TCC ENG(RDV) 16.850 NON ASBESTOS 1000X600 T=1.5; PARTS O NLY 		8-94262-093-0 01 1 0607- ●
54 16.587 SEAL; STUD
16.585 30X30 ID=9 T=0.7 		1-61281-444-1 01 1 0302- ● ●
58 16.575 REINFORCEMENT; SEAT BELT ANCHOR
4JH1 ENG(RJX) 		8-97898-590-1 01 1 0302-0506 ●
58 16.575 REINFORCEMENT; SEAT BELT ANCHOR
4JH1-TC ENG(RDM) 		8-97898-590-1 01 1 0507-0606 ●
58 16.575 REINFORCEMENT; SEAT BELT ANCHOR
4JJ1 ENG(LFB) 		8-97898-590-1 01 1 0607- ●
59 16.587 PLATE; FLOOR TO BACK PANEL
4JH1 ENG(RJX) 		8-97898-593-0 01 1 0302-0506 ●
59 16.587 PLATE; FLOOR TO BACK PANEL
4JH1-TC ENG(RDM) 		8-97898-593-0 01 1 0507-0606 ●
59 16.587 PLATE; FLOOR TO BACK PANEL
4JJ1 ENG(LFB) 		8-97898-593-0 01 1 0607- ●

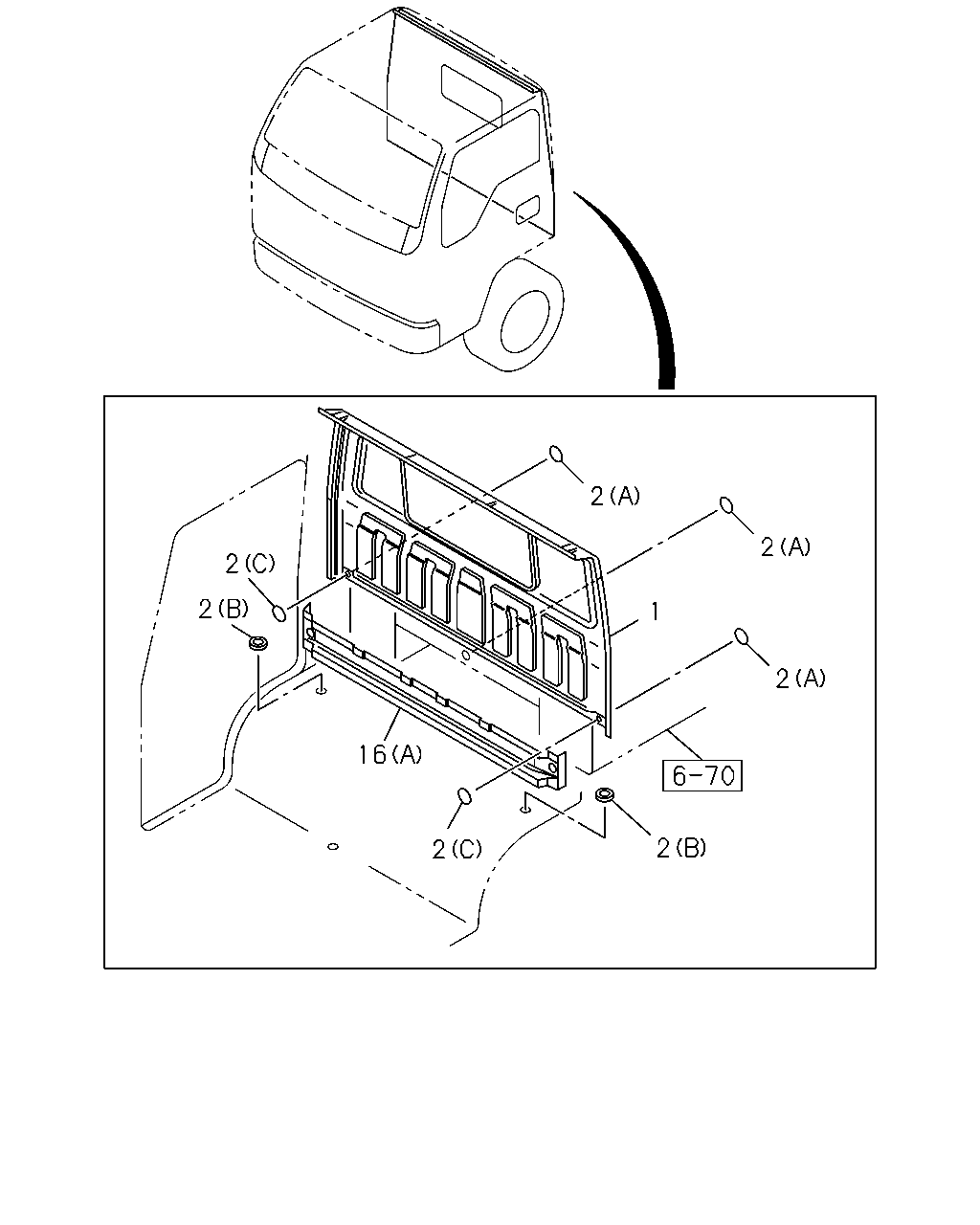

çizim 51939
2 2 2 2 1 2 16 2 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 16.587 PANEL; BACK OUTER 8-97851-267-6 01 1 0302- ● ●
1 16.587 PANEL; BACK OUTER 8-97859-127-0 01 1 0302-0506 ● ● ● ● ●
1 16.587 PANEL; BACK OUTER 8-97859-127-0 01 1 0507- ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.165 (A) OD=25 BLACK 		1-76798-019-0 04 1 0302-0506 ● ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.165 (A) OD=25 BLACK 		1-76798-019-0 04 1 0507-0606 ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
MANUAL TILT CAB<RWZ> 16.165 (A) OD=25 BLACK 		1-76798-019-0 04 1 0607- ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
02.580 (C) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 0302-0506 ● ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
02.580 (C) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 0507-0710 ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.545 (C) OD=32 BLACK 		8-98031-126-0 02 1 0711- ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
00.785 (B) OD=16.2 		8-94492-493-0 02 1 0302-0506 ● ● ● ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
00.785 (B) OD=16.2 		8-94492-493-0 02 1 0507-0512 ● ● ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.547 (B) OD=15.0 		8-94279-040-0 02 1 0601- ● ● ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
15.222 (D) OD=35 		8-94122-971-0 04 1 0302- ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4JH1 ENG(RJX) (A) 		8-97851-106-9 01 1 0302-0506 ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(A) 		8-97851-106-9 01 1 0302-0506 ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4JH1-TC ENG(RDM) (A) 		8-97851-106-9 01 1 0507-0606 ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ) (A) 		8-97851-106-9 01 1 0507-0606 ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A) 		8-97851-106-9 01 1 0507-0606 ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4JJ1 ENG(LFB) (A) 		8-97851-106-9 01 1 0607- ● ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HK1-TCC ENG(RDV) (A) 		8-97851-106-9 01 1 0607- ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HE1 ENG(RLY) (A) 		8-97890-837-1 01 1 0302-0506 ● ● ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A) 		8-97890-837-1 01 1 0507-0606 ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HK1-TCC ENG(RDV) (A) 		8-97890-837-1 01 1 0607- ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(B) 		8-97851-415-1 01 1 0302- ● ●

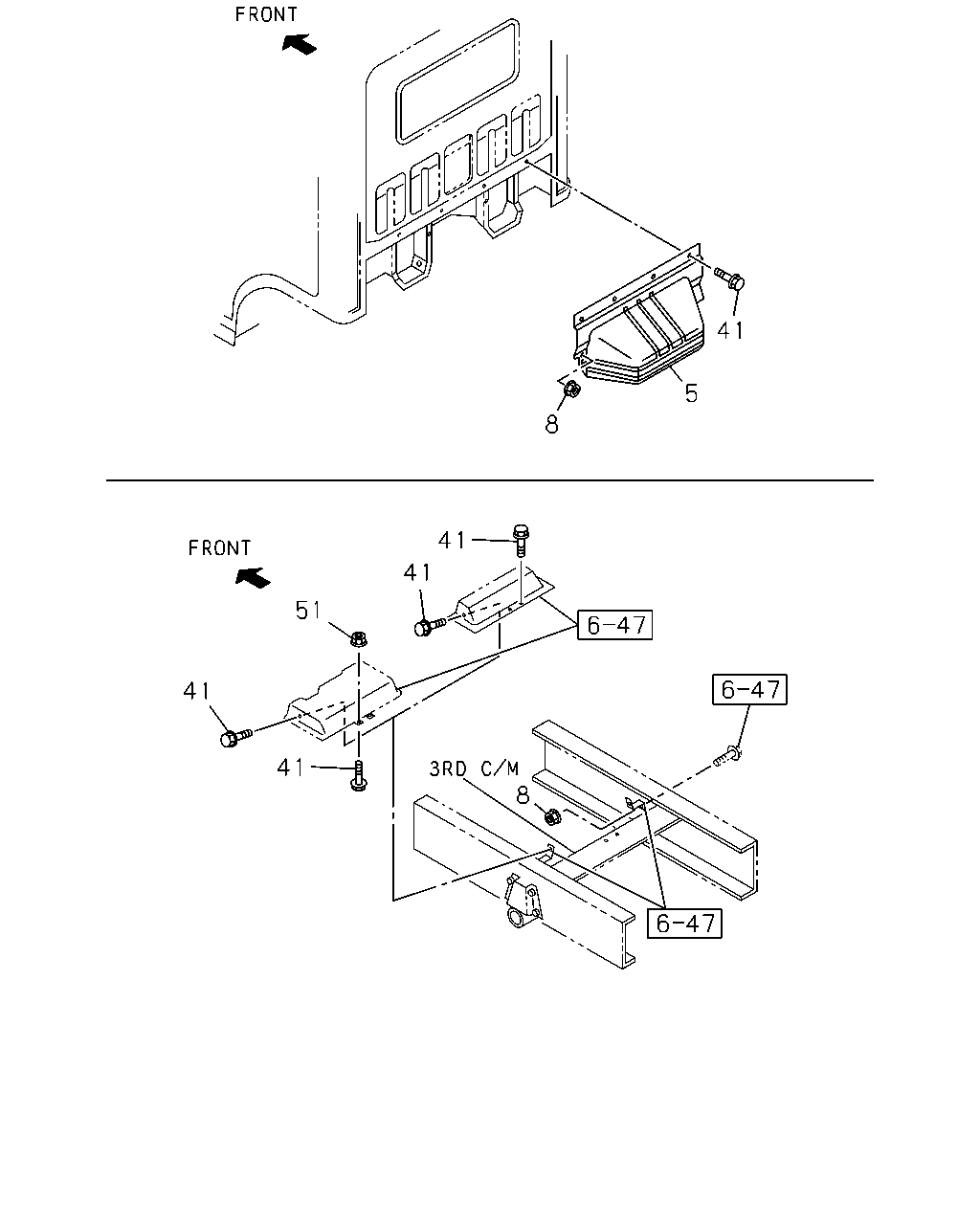

çizim 53278
41 5 8 41 41 51 41 41 8
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
5 16.587 PANEL; CAB BACK
4JH1 ENG(RJX) 		8-97205-590-4 01 1 0302-0506 ● ●
5 16.587 PANEL; CAB BACK
4JH1-TC ENG(RDM) 		8-97205-590-5 01 1 0507-0606 ●
5 16.587 PANEL; CAB BACK
4JH1-TC ENG(RDM) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97205-590-5 01 1 0507-0606 ●
5 16.587 PANEL; CAB BACK
4HE1 ENG(RLY) 		8-97287-554-1 01 1 0302-0505 ● ● ● ● ●
5 16.587 PANEL; CAB BACK
4HE1 ENG(RLY) 		8-98021-287-0 01 1 0506-0506 ● ● ● ● ●
5 16.587 PANEL; CAB BACK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98021-287-0 01 1 0507-0606 ● ● ●
5 16.587 PANEL; CAB BACK
4HK1-TCC ENG(RDV) FLOOR REMOTE SHIFT<M11> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98042-522-0 01 1 0607- ● ● ●
8 16.587 NUT; BACK PANEL
4JH1 ENG(RJX) 07.633 M8 FLANGE 		0-91150-108-0 01 1 0302-0506 ● ●
8 16.587 NUT; BACK PANEL
4HE1 ENG(RLY) 07.633 M8 FLANGE 		0-91150-108-0 01 1 0302-0506 ● ●
8 16.587 NUT; BACK PANEL
4JH1-TC ENG(RDM) M/T MYY5T(RSM) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 07.633 M8 FLANGE 		0-91150-108-0 01 1 0507-0507 ● ●
8 16.587 NUT; BACK PANEL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 07.633 M8 FLANGE 		0-91150-108-0 01 1 0507-0507 ●
8 16.587 NUT; BACK PANEL
4JH1-TC ENG(RDM) M/T MYY5T(RSM) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 07.633 M8 FLANGE 		0-91150-108-0 01 1 0507-0602 ● ●
8 16.587 NUT; BACK PANEL
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 07.633 M8 FLANGE 		0-91150-108-0 01 1 0507-0602 ●
8 16.587 NUT; BACK PANEL
4JH1-TC ENG(RDM) M/T MYY5T(RSM) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0603-0606 ● ●
8 16.587 NUT; BACK PANEL
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0603-0606 ●
8 16.587 NUT; BACK PANEL
4HK1-TCC ENG(RDV) M/T MZZ6F(RSR) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0607- ●
8 16.587 NUT; BACK PANEL
07.633 M8 FLANGE 		0-91150-108-0 02 1 0302-0506 ● ● ● ● ●
8 16.587 NUT; BACK PANEL
4JH1 ENG(RJX) 07.633 M8 FLANGE 		0-91150-108-0 02 1 0302-0506 ● ● ●
8 16.587 NUT; BACK PANEL
4JH1-TC ENG(RDM) M/T MYY5T(RSM) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 07.633 M8 FLANGE 		0-91150-108-0 02 1 0507-0602 ● ● ●
8 16.587 NUT; BACK PANEL
4JH1-TC ENG(RDM) 07.633 M8 FLANGE 		0-91150-108-0 02 1 0507-0602 ●
8 16.587 NUT; BACK PANEL
4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 07.633 M8 FLANGE 		0-91150-108-0 02 1 0507-0602 ● ● ●
8 16.587 NUT; BACK PANEL
4JH1-TC ENG(RDM) M/T MYY5T(RSM) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE 		0-91180-108-0 02 1 0603-0606 ● ● ●
8 16.587 NUT; BACK PANEL
4JH1-TC ENG(RDM) 01.062 M8 FLANGE 		0-91180-108-0 02 1 0603-0606 ●
8 16.587 NUT; BACK PANEL
4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE 		0-91180-108-0 02 1 0603-0606 ● ● ●
8 16.587 NUT; BACK PANEL
4HK1-TCC ENG(RDV) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE 		0-91180-108-0 02 1 0607- ● ● ●
41 16.587 BOLT
4JH1 ENG(RJX),4HE1 ENG(RLY) 08.155 M5X16 TAPPING W/PL WASHER 		8-94496-177-1 04 1 0302-0506 ● ●
41 16.587 BOLT
4HE1 ENG(RLY) 08.155 M5X16 TAPPING W/PL WASHER 		8-94496-177-1 04 1 0302-0506 ● ● ●
41 16.587 BOLT
4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 08.155 M5X16 TAPPING W/PL WASHER 		8-94496-177-1 04 1 0507-0606 ● ● ● ●
41 16.587 BOLT
4HK1-TCC ENG(RDV) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 08.155 M5X16 TAPPING W/PL WASHER 		8-94496-177-1 04 1 0607- ● ● ●
41 16.587 BOLT
4HE1 ENG(RLY) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> 02.664 M8X20 FLANGE 		0-28680-820-0 04 1 0302-0506 ● ● ● ● ● ● ●
41 16.587 BOLT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 02.664 M8X20 FLANGE 		0-28680-820-0 04 1 0507-0507 ● ● ● ●
41 16.587 BOLT
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 02.664 M8X20 FLANGE 		0-28680-820-0 04 1 0507-0512 ● ● ● ●
41 16.587 BOLT
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.531 M8X20 FLANGE 		0-28650-820-0 04 1 0601-0606 ● ● ● ●
41 16.587 BOLT
4HK1-TCC ENG(RDV) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.531 M8X20 FLANGE 		0-28650-820-0 04 1 0607- ● ● ● ●
41 16.587 BOLT
4JH1 ENG(RJX) M/T MYY5T(RSM) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8X16 FLANGE 		0-28080-816-0 04 1 0302-0506 ● ● ●
41 16.587 BOLT
4JH1-TC ENG(RDM) M/T MYY5T(RSM) 01.062 M8X16 FLANGE 		0-28080-816-0 04 1 0507-0512 ●
41 16.587 BOLT
4JH1-TC ENG(RDM) M/T MYY5T(RSM) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8X16 FLANGE 		0-28080-816-0 04 1 0507-0512 ● ●
41 16.587 BOLT
4JH1-TC ENG(RDM) M/T MYY5T(RSM) 02.343 M8X16 FLANGE 		0-28050-816-0 04 1 0601-0606 ●
41 16.587 BOLT
4JH1-TC ENG(RDM) M/T MYY5T(RSM) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 02.343 M8X16 FLANGE 		0-28050-816-0 04 1 0601-0606 ● ●
51 16.587 NUT; PANEL
4HE1 ENG(RLY) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 02 1 0302-0506 ● ● ● ● ● ● ●
51 16.587 NUT; PANEL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 07.633 M8 FLANGE 		0-91150-108-0 02 1 0507-0507 ● ● ● ●
51 16.587 NUT; PANEL
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 07.633 M8 FLANGE 		0-91150-108-0 02 1 0507-0602 ● ● ● ●
51 16.587 NUT; PANEL
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE 		0-91180-108-0 02 1 0603-0606 ● ● ● ●
51 16.587 NUT; PANEL
4HK1-TCC ENG(RDV) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE 		0-91180-108-0 02 1 0607- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
