6-76 — FLOOR EQUIPMENT AND SEALING (#41385) — 458 parça

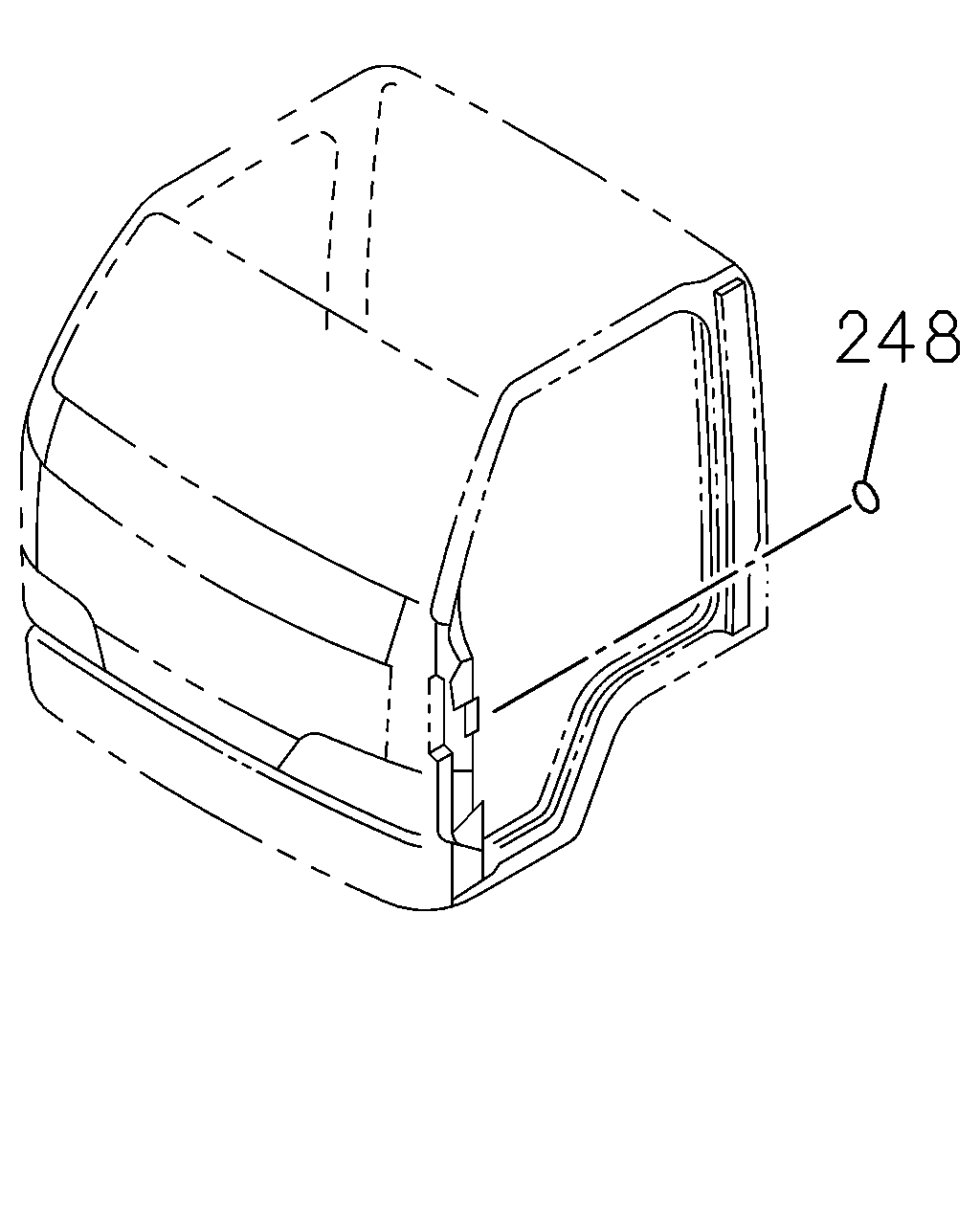

çizim 12402
248
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
248 16.850 SEAL; EXT,FRT & RR
02.580 OD=36 T=0.05 BLACK 		5-76777-035-0 04 1 0307-0506 ● ● ● ● ● ● ●

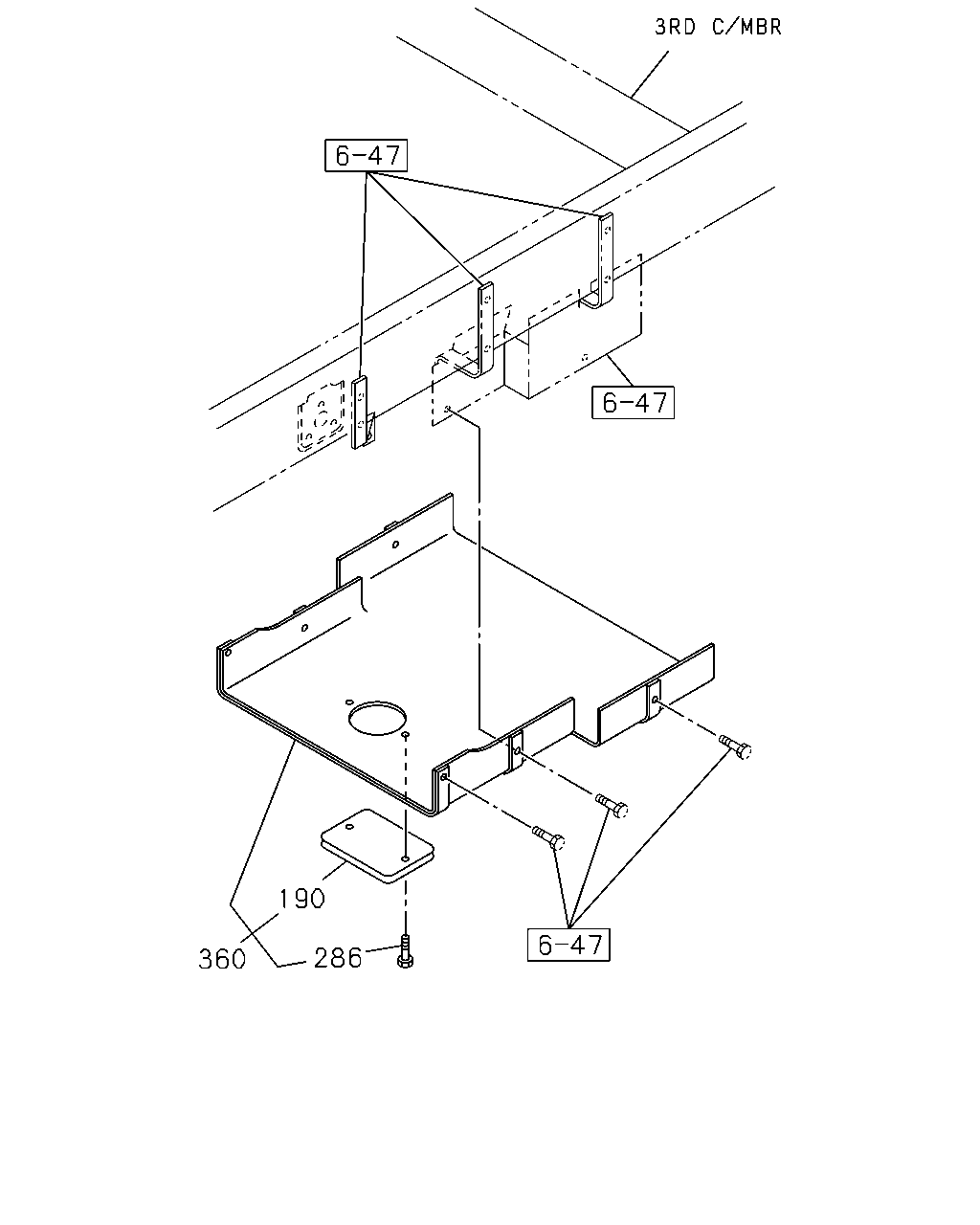

çizim 12593
190 286 360
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
190 16.549 LID
4HE1 ENG(RLY) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> 		8-97180-904-1 01 1 0302-0506 ● ● ● ● ● ● ●
190 16.549 LID
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97180-904-1 01 1 0507-0507 ● ● ● ●
190 16.549 LID
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97180-904-1 01 1 0507-0606 ● ● ● ●
190 16.549 LID
4HK1-TCC ENG(RDV) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97180-904-1 01 1 0607- ● ● ● ●
286 16.545 BOLT; LID
4HE1 ENG(RLY) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> 04.439 M6X16 FLANGE 		0-28680-616-0 02 1 0302-0506 ● ● ● ● ● ● ●
286 16.545 BOLT; LID
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.439 M6X16 FLANGE 		0-28680-616-0 02 1 0507-0507 ● ● ● ●
286 16.545 BOLT; LID
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.439 M6X16 FLANGE 		0-28680-616-0 02 1 0507-0512 ● ● ● ●
286 16.545 BOLT; LID
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 02.343 M6X16 FLANGE 		0-28650-616-0 02 1 0601-0606 ● ● ● ●
286 16.545 BOLT; LID
4HK1-TCC ENG(RDV) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 02.343 M6X16 FLANGE 		0-28650-616-0 02 1 0607- ● ● ● ●
360 16.549 COVER; LWR
4HE1 ENG(RLY) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> 		8-97183-607-2 01 1 0302-0506 ● ● ● ● ● ● ●
360 16.549 COVER; LWR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97183-607-2 01 1 0507-0507 ● ● ● ●
360 16.549 COVER; LWR
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97183-607-2 01 1 0507-0606 ● ● ● ●
360 16.549 COVER; LWR
4HK1-TCC ENG(RDV) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98032-814-0 01 1 0607- ● ● ● ●
360 16.549 COVER; LWR
4JH1 ENG(RJX) M/T MYY5T(RSM) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97260-025-1 01 1 0302-0506 ● ● ●
360 16.549 COVER; LWR
4JH1-TC ENG(RDM) M/T MYY5T(RSM) 		8-97260-025-1 01 1 0507-0606 ●
360 16.549 COVER; LWR
4JH1-TC ENG(RDM) M/T MYY5T(RSM) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97260-025-1 01 1 0507-0606 ● ●

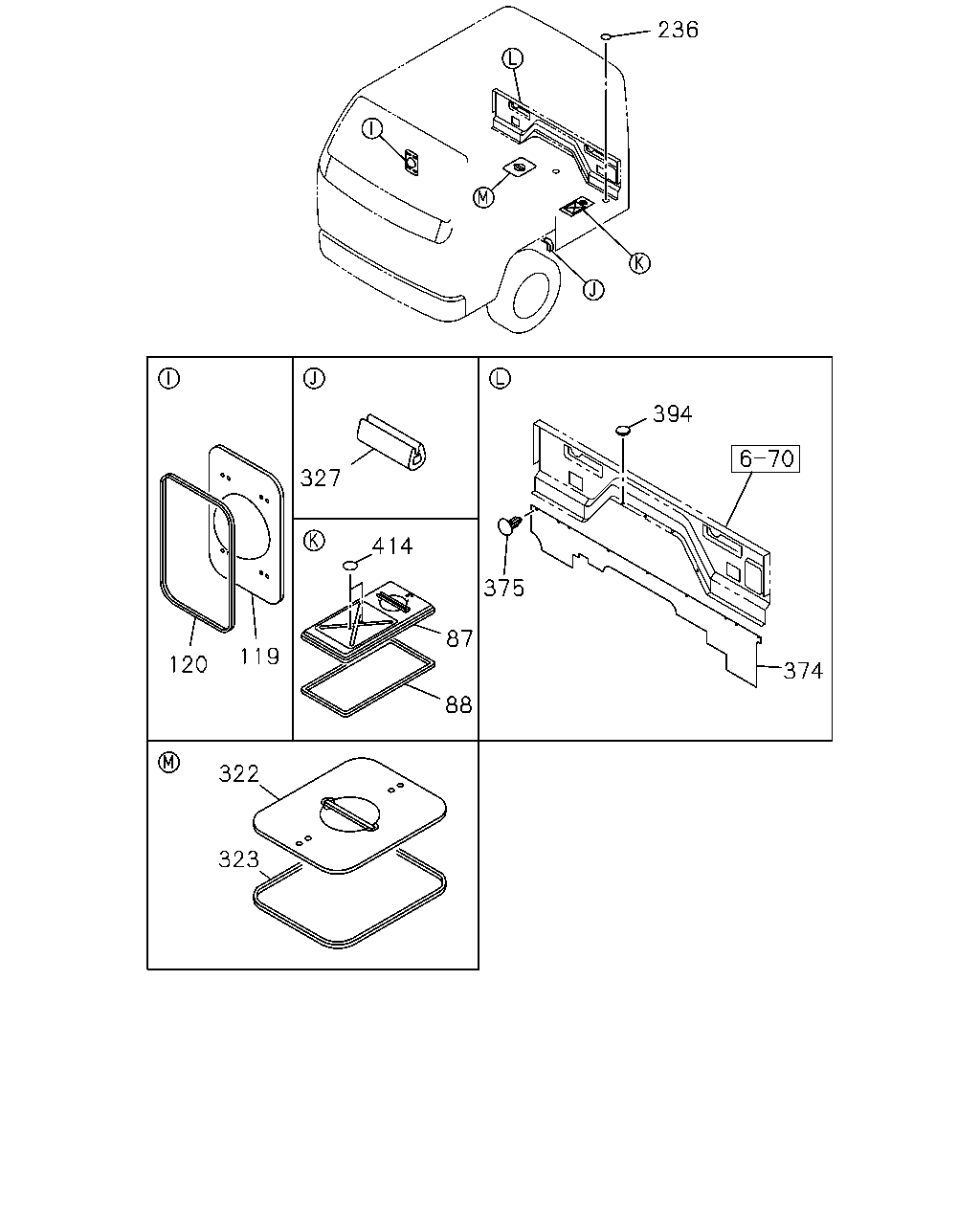

çizim 51861
236 394 327 414 375 87 119 120 374 88 322 323
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
87 16.549 COVER; BATTERY CHECK HOLE 8-97856-332-4 01 1 0302-0409 ● ●
87 16.549 COVER; BATTERY CHECK HOLE 8-97410-416-0 01 1 0410- ● ●
88 16.549 SEAL; BATTERY CHECK HOLE COVER 8-97853-725-1 01 1 0302- ● ●
119 16.090 LID; P/S OIL TANK 8-97853-440-2 01 1 0302- ● ●
120 16.090 SEAL; LID,P/S 8-97853-441-1 01 1 0302- ● ●
236 16.549 SEAL; CHECK HOLE
16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0302- ● ●
322 16.549 COVER; A/T OIL
4JH1 ENG(RJX) 		8-97853-442-2 01 1 0302-0506 ●
322 16.549 COVER; A/T OIL
4JH1-TC ENG(RDM) 		8-97853-442-2 01 1 0507-0606 ●
322 16.549 COVER; A/T OIL
4JJ1 ENG(LFB) 		8-97853-442-2 01 1 0607- ●
323 16.549 SEAL; COVER,A/T OIL
4JH1 ENG(RJX) 		8-97853-443-2 01 1 0302-0506 ●
323 16.549 SEAL; COVER,A/T OIL
4JH1-TC ENG(RDM) 		8-97853-443-2 01 1 0507-0606 ●
323 16.549 SEAL; COVER,A/T OIL
4JJ1 ENG(LFB) 		8-97853-443-2 01 1 0607- ●
327 16.545 FINISHER; CTR PILLAR,LWR 8-97857-257-1 02 1 0302- ● ●
374 16.549 COVER; ENG,RR LWR
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 		8-97994-696-0 01 1 0302-0506 ●
374 16.549 COVER; ENG,RR LWR
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> 		8-97994-696-0 01 1 0507-0606 ●
374 16.549 COVER; ENG,RR LWR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97994-696-0 01 1 0507-0606 ●
374 16.549 COVER; ENG,RR LWR
4JH1 ENG(RJX) 		8-97994-848-0 01 1 0302-0506 ●
374 16.549 COVER; ENG,RR LWR
4JH1-TC ENG(RDM) 		8-97994-848-0 01 1 0507-0606 ●
374 16.549 COVER; ENG,RR LWR
4HE1 ENG(RLY) 		8-97898-984-2 01 1 0302-0506 ●
374 16.549 COVER; ENG,RR LWR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER<7QQ> 		8-97898-984-2 01 1 0507-0606 ●
374 16.549 COVER; ENG,RR LWR
4HK1-TCC ENG(RDV) 		8-97898-984-2 01 1 0607- ●
375 16.549 CLIP; COVER,ENG
4JH1 ENG(RJX) 16.320 OD=8.3 		8-94279-989-0 09 1 0302-0506 ●
375 16.549 CLIP; COVER,ENG
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 16.320 OD=8.3 		8-94279-989-0 09 1 0302-0506 ●
375 16.549 CLIP; COVER,ENG
4JH1-TC ENG(RDM) 16.320 OD=8.3 		8-94279-989-0 09 1 0507-0606 ●
375 16.549 CLIP; COVER,ENG
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> 16.320 OD=8.3 		8-94279-989-0 09 1 0507-0606 ●
375 16.549 CLIP; COVER,ENG
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. HYDRO BRAKE BOOSTER<7QQ> 16.320 OD=8.3 		8-94279-989-0 09 1 0507-0606 ●
375 16.549 CLIP; COVER,ENG
4HE1 ENG(RLY) 16.320 OD=8.3 		8-94279-989-0 13 1 0302-0506 ●
375 16.549 CLIP; COVER,ENG
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER<7QQ> 16.320 OD=8.3 		8-94279-989-0 13 1 0507-0606 ●
375 16.549 CLIP; COVER,ENG
4HK1-TCC ENG(RDV) 16.320 OD=8.3 		8-94279-989-0 13 1 0607- ●
394 16.549 SEAL; FIXING HOLE
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 0302-0506 ●
394 16.549 SEAL; FIXING HOLE
4HE1 ENG(RLY) 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 0302-0506 ●
394 16.549 SEAL; FIXING HOLE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 0507-0606 ●
394 16.549 SEAL; FIXING HOLE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 0507-0606 ●
414 16.549 SEAL; BATTERY COVER
16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0410- ● ●

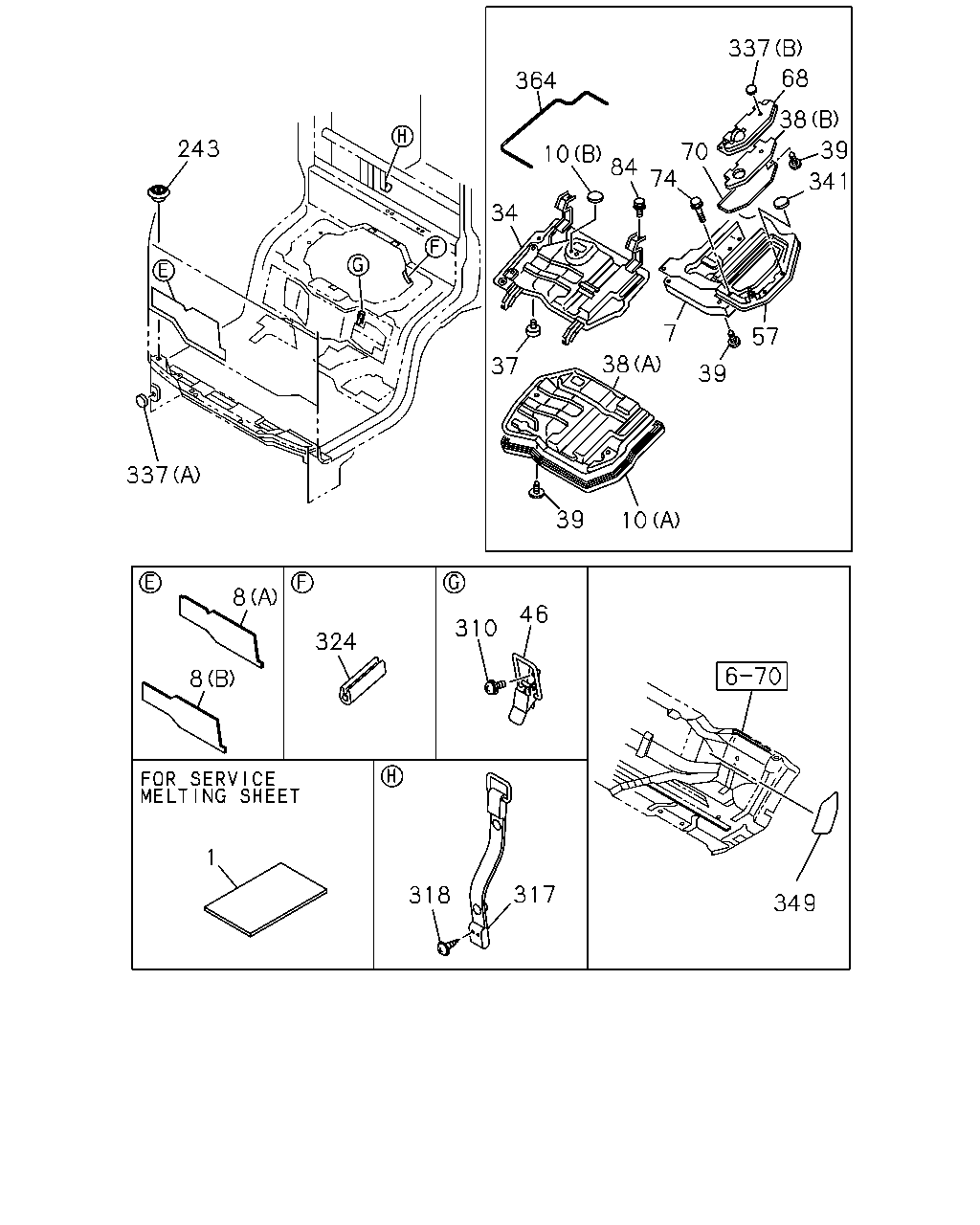

çizim 52261
337 68 364 38 243 39 70 74 10 84 341 34 7 57 38 37 39 337 39 10 8 46 310 324 8 1 317 318 349
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 16.850 SHEET; MELTING,FLOOR
NON ASBESTOS 1000X600 T=1.5; PARTS O NLY 		8-94262-093-0 AR 1 0302-0506 ● ● ● ● ● ● ●
1 16.850 SHEET; MELTING,FLOOR
NON ASBESTOS 1000X600 T=1.5; PARTS O NLY 		8-94262-093-0 AR 1 0507- ● ● ● ● ● ●
7 16.545 INSULATOR; SUPPORT COVER
MANUAL TILT CAB<RWZ> 		8-97850-896-0 01 1 0302-0506 ● ● ● ● ●
7 16.545 INSULATOR; SUPPORT COVER
MANUAL TILT CAB<RWZ> 		8-97850-896-0 01 1 0507- ● ● ● ●
7 16.545 INSULATOR; SUPPORT COVER
EXC. MANUAL TILT CAB<RWZ> 		8-97850-897-0 01 1 0302-0506 ● ● ● ● ●
7 16.545 INSULATOR; SUPPORT COVER 8-97850-897-0 01 1 0302-0506 ● ●
7 16.545 INSULATOR; SUPPORT COVER
EXC. MANUAL TILT CAB<RWZ> 		8-97850-897-0 01 1 0507-0606 ● ● ● ●
7 16.545 INSULATOR; SUPPORT COVER 8-97850-897-0 01 1 0507-0606 ● ●
7 16.545 INSULATOR; SUPPORT COVER 8-97850-897-0 01 1 0607- ● ●
8 16.802 MAT; SILENCER,FRT PANEL
(A) 		8-97853-606-1 01 1 0302-0506 ● ● ● ● ● ● ●
8 16.802 MAT; SILENCER,FRT PANEL
(B) 		8-97581-661-3 01 1 0507- ● ● ● ● ● ●
8 16.802 MAT; SILENCER,FRT PANEL
(A) 		8-97853-605-2 01 1 0302-0506 ● ● ● ● ● ● ●
8 16.802 MAT; SILENCER,FRT PANEL
(B) 		8-97581-660-3 01 1 0507- ● ● ● ● ● ●
10 16.549 SEAL; ENG COVER
BODY COLOR ARC WHITE(729) INTERIOR DELUXE<RBB> 16.592 (B) OD=36 WHITE 		1-76778-007-0 01 1 0302-0506 ● ● ● ● ●
10 16.549 SEAL; ENG COVER
BODY COLOR ARC WHITE(729) INTERIOR DELUXE<RBB> 16.592 (B) OD=36 WHITE 		1-76778-007-0 01 1 0507- ● ● ● ●
10 16.549 SEAL; ENG COVER
BODY COLOR POLAR SILVER MET(845), BODY COLOR MARINE BLUE(890) INTERIOR DELUXE<RBB> 02.580 (B) OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 0302-0506 ● ● ● ● ●
10 16.549 SEAL; ENG COVER
BODY COLOR POLAR SILVER MET(845), BODY COLOR MARINE BLUE(890) INTERIOR DELUXE<RBB> 02.580 (B) OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 0507-0710 ● ● ● ●
10 16.549 SEAL; ENG COVER
BODY COLOR POLAR SILVER MET(845), BODY COLOR MARINE BLUE(890) INTERIOR DELUXE<RBB> 16.545 (B) OD=32 BLACK 		8-98031-126-0 01 1 0711- ● ● ● ●
10 16.549 SEAL; ENG COVER
(A) 		8-97853-267-5 01 1 0302-0305 ● ● ● ● ● ● ●
10 16.549 SEAL; ENG COVER
(A) 		8-97581-109-0 01 1 0306-0506 ● ● ● ● ● ● ●
10 16.549 SEAL; ENG COVER
(A) 		8-97581-109-1 01 1 0507-0606 ● ● ● ● ● ●
10 16.549 SEAL; ENG COVER
MANUAL TILT CAB<RWZ> (A) 		8-97581-109-1 01 1 0607- ● ● ● ●
10 16.549 SEAL; ENG COVER
(A) 		8-97581-109-1 01 1 0607- ● ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (E) L=519 		8-97995-003-0 01 1 0302-0305 ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) (E) L=519 		8-97995-003-0 01 1 0302-0305 ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (E) L=543 		8-97582-085-0 01 1 0306-0506 ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) (E) L=543 		8-97582-085-0 01 1 0306-0506 ●
10 16.549 SEAL; ENG COVER
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (E) L=543 		8-97582-085-0 01 1 0507-0507 ●
10 16.549 SEAL; ENG COVER
4HK1-TCN ENG(RDQ) (E) L=543 		8-97582-085-0 01 1 0507-0507 ●
10 16.549 SEAL; ENG COVER
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (E) L=543 		8-97582-085-0 01 1 0508-0606 ●
10 16.549 SEAL; ENG COVER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (E) L=543 		8-97582-085-0 01 1 0508-0606 ●
10 16.549 SEAL; ENG COVER
4HK1-TCC ENG(RDV) (F) 		8-97995-002-0 01 1 0607- ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (G) L=804 		8-97995-004-0 01 1 0302-0305 ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) (G) L=804 		8-97995-004-0 01 1 0302-0305 ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (G) L=804 		8-97582-086-0 01 1 0306-0506 ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) (G) L=804 		8-97582-086-0 01 1 0306-0506 ●
10 16.549 SEAL; ENG COVER
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (G) L=804 		8-97582-086-0 01 1 0507-0507 ●
10 16.549 SEAL; ENG COVER
4HK1-TCN ENG(RDQ) (G) L=804 		8-97582-086-0 01 1 0507-0507 ●
10 16.549 SEAL; ENG COVER
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (G) L=804 		8-97582-086-0 01 1 0508-0606 ●
10 16.549 SEAL; ENG COVER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (G) L=804 		8-97582-086-0 01 1 0508-0606 ●
10 16.549 SEAL; ENG COVER
4HK1-TCC ENG(RDV) (H) L=519 		8-97995-005-0 01 1 0607- ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (F) L=886 		8-97996-183-0 01 1 0302-0506 ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) (F) L=886 		8-97996-183-0 01 1 0302-0506 ●
10 16.549 SEAL; ENG COVER
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (F) L=886 		8-97996-183-0 01 1 0507-0606 ●
10 16.549 SEAL; ENG COVER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (F) L=886 		8-97996-183-0 01 1 0507-0606 ●
10 16.549 SEAL; ENG COVER
4HK1-TCC ENG(RDV) (G) L=804 		8-97582-086-0 01 1 0607- ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (H) L=566 		8-97996-184-0 01 1 0302-0506 ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) (H) L=566 		8-97996-184-0 01 1 0302-0506 ●
10 16.549 SEAL; ENG COVER
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (H) L=566 		8-97996-184-0 01 1 0507-0606 ●
10 16.549 SEAL; ENG COVER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (H) L=566 		8-97996-184-0 01 1 0507-0606 ●
10 16.549 SEAL; ENG COVER
4HK1-TCC ENG(RDV) (I) L=436 		8-97582-087-0 01 1 0607- ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (I) L=512 		8-97996-185-0 01 1 0302-0305 ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) (I) L=512 		8-97996-185-0 01 1 0302-0305 ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (I) L=481 		8-97582-088-0 01 1 0306-0506 ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) (I) L=481 		8-97582-088-0 01 1 0306-0506 ●
10 16.549 SEAL; ENG COVER
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (I) L=481 		8-97582-088-0 01 1 0507-0606 ●
10 16.549 SEAL; ENG COVER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (I) L=481 		8-97582-088-0 01 1 0507-0606 ●
10 16.549 SEAL; ENG COVER
4HK1-TCC ENG(RDV) (E) L=543 		8-97582-085-0 01 1 0607- ●
10 16.549 SEAL; ENG COVER
4JH1 ENG(RJX) (C) L=1196 		8-97898-985-2 01 1 0302-0506 ●
10 16.549 SEAL; ENG COVER
4JH1-TC ENG(RDM) (C) L=1196 		8-97898-985-2 01 1 0507-0606 ●
10 16.549 SEAL; ENG COVER
4JJ1 ENG(LFB) (C) L=1196 		8-97898-985-2 01 1 0607- ●
10 16.549 SEAL; ENG COVER
4JH1 ENG(RJX) (D) L=993 		8-97898-986-2 01 1 0302-0506 ●
10 16.549 SEAL; ENG COVER
4JH1-TC ENG(RDM) (D) L=993 		8-97898-986-2 01 1 0507-0606 ●
10 16.549 SEAL; ENG COVER
4JJ1 ENG(LFB) (D) L=993 		8-97898-986-2 01 1 0607- ●
34 16.549 COVER ASM; ENG,CAB FLOOR 8-97850-679-1 01 1 0302-0506 ● ● ● ● ● ● ●
34 16.549 COVER ASM; ENG,CAB FLOOR 8-97850-679-1 01 1 0507- ● ● ● ● ● ●
37 16.549 RUBBER; BUFFER,ENG COVER
16.155 OD=30 T=10 		5-74917-001-2 02 1 0302-0506 ● ● ● ● ● ● ●
37 16.549 RUBBER; BUFFER,ENG COVER
16.155 OD=30 T=10 		5-74917-001-2 02 1 0507-0606 ● ● ● ● ● ●
37 16.549 RUBBER; BUFFER,ENG COVER
MANUAL TILT CAB<RWZ> 16.155 OD=30 T=10 		5-74917-001-2 02 1 0607- ● ● ● ●
37 16.549 RUBBER; BUFFER,ENG COVER
16.155 OD=30 T=10 		5-74917-001-2 02 1 0607- ● ●
38 16.549 INSULATOR; ENG COVER
(A) 		8-97856-450-3 01 1 0302-0506 ● ● ● ● ● ● ●
38 16.549 INSULATOR; ENG COVER
(A) 		8-97856-450-3 01 1 0507-0606 ● ● ● ● ● ●
38 16.549 INSULATOR; ENG COVER
MANUAL TILT CAB<RWZ> (A) 		8-97856-450-3 01 1 0607- ● ● ● ●
38 16.549 INSULATOR; ENG COVER
(A) 		8-97856-450-3 01 1 0607- ● ●
38 16.549 INSULATOR; ENG COVER
4JH1 ENG(RJX),4HE1 ENG(RLY) (B) 		8-97856-803-0 01 1 0302-0506 ●
38 16.549 INSULATOR; ENG COVER
4HE1 ENG(RLY) (B) 		8-97856-803-0 01 1 0302-0506 ●
38 16.549 INSULATOR; ENG COVER
4JH1-TC ENG(RDM) (B) 		8-97856-803-0 01 1 0507-0507 ●
38 16.549 INSULATOR; ENG COVER
4HK1-TCS ENG(RJS) (B) 		8-97856-803-0 01 1 0507-0507 ●
38 16.549 INSULATOR; ENG COVER
4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ) (B) 		8-97856-803-0 01 1 0508-0606 ●
38 16.549 INSULATOR; ENG COVER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B) 		8-97856-803-0 01 1 0508-0606 ●
38 16.549 INSULATOR; ENG COVER
(B) 		8-97856-803-0 01 1 0607- ● ●
39 16.549 CLIP; INSULATOR,COVER
MANUAL TILT CAB<RWZ> OD=30 		8-94279-952-0 09 1 0302-0506 ● ● ● ● ●
39 16.549 CLIP; INSULATOR,COVER
MANUAL TILT CAB<RWZ> OD=30 		8-94279-952-0 09 1 0507- ● ● ● ●
39 16.549 CLIP; INSULATOR,COVER
EXC. MANUAL TILT CAB<RWZ> OD=30 		8-94279-952-0 06 1 0302-0506 ● ● ● ● ●
39 16.549 CLIP; INSULATOR,COVER
OD=30 		8-94279-952-0 06 1 0302-0506 ●
39 16.549 CLIP; INSULATOR,COVER
EXC. MANUAL TILT CAB<RWZ> OD=30 		8-94279-952-0 06 1 0507-0606 ● ● ● ●
39 16.549 CLIP; INSULATOR,COVER
OD=30 		8-94279-952-0 06 1 0507-0606 ● ●
39 16.549 CLIP; INSULATOR,COVER
OD=30 		8-94279-952-0 06 1 0607- ● ●
39 16.549 CLIP; INSULATOR,COVER
OD=30 		8-94279-952-0 05 1 0302-0506 ● ● ● ● ● ● ●
39 16.549 CLIP; INSULATOR,COVER
OD=30 		8-94279-952-0 05 1 0507-0606 ● ● ● ● ● ●
39 16.549 CLIP; INSULATOR,COVER
MANUAL TILT CAB<RWZ> OD=30 		8-94279-952-0 05 1 0607- ● ● ● ●
39 16.549 CLIP; INSULATOR,COVER
OD=30 		8-94279-952-0 05 1 0607- ● ●
39 16.549 CLIP; INSULATOR,COVER
4JH1 ENG(RJX),4HE1 ENG(RLY) OD=30 		8-94279-952-0 02 1 0302-0506 ●
39 16.549 CLIP; INSULATOR,COVER
4HE1 ENG(RLY) OD=30 		8-94279-952-0 02 1 0302-0506 ●
39 16.549 CLIP; INSULATOR,COVER
4JH1-TC ENG(RDM) OD=30 		8-94279-952-0 02 1 0507-0507 ●
39 16.549 CLIP; INSULATOR,COVER
4HK1-TCS ENG(RJS) OD=30 		8-94279-952-0 02 1 0507-0507 ●
39 16.549 CLIP; INSULATOR,COVER
4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ) OD=30 		8-94279-952-0 02 1 0508-0606 ●
39 16.549 CLIP; INSULATOR,COVER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) OD=30 		8-94279-952-0 02 1 0508-0606 ●
39 16.549 CLIP; INSULATOR,COVER
OD=30 		8-94279-952-0 02 1 0607- ● ●
46 16.549 HOOK ASM; ENG COVER 8-97853-632-2 02 1 0302-0506 ● ● ● ● ● ● ●
46 16.549 HOOK ASM; ENG COVER 8-97853-632-2 02 1 0507-0606 ● ● ● ● ● ●
46 16.549 HOOK ASM; ENG COVER
MANUAL TILT CAB<RWZ> 		8-97853-632-2 02 1 0607- ● ● ● ●
46 16.549 HOOK ASM; ENG COVER 8-97853-632-2 02 1 0607- ● ●
57 16.549 COVER ASM; SUPPORT,CAB FLOOR
MANUAL TILT CAB<RWZ> 		8-97850-888-0 01 1 0302-0506 ● ● ● ● ●
57 16.549 COVER ASM; SUPPORT,CAB FLOOR
MANUAL TILT CAB<RWZ> 		8-97850-888-0 01 1 0507- ● ● ● ●
57 16.549 COVER ASM; SUPPORT,CAB FLOOR
EXC. MANUAL TILT CAB<RWZ> 		8-97850-889-0 01 1 0302-0506 ● ● ● ● ●
57 16.549 COVER ASM; SUPPORT,CAB FLOOR 8-97850-889-0 01 1 0302-0506 ● ●
57 16.549 COVER ASM; SUPPORT,CAB FLOOR
EXC. MANUAL TILT CAB<RWZ> 		8-97850-889-0 01 1 0507- ● ● ● ●
57 16.549 COVER ASM; SUPPORT,CAB FLOOR 8-97850-889-0 01 1 0507- ● ●
68 16.549 COVER ASM; SUB,ENG COVER
EXC. MANUAL TILT CAB<RWZ> 		8-97853-712-3 01 1 0302-0312 ● ● ● ● ●
68 16.549 COVER ASM; SUB,ENG COVER 8-97853-712-3 01 1 0302-0312 ● ●
68 16.549 COVER ASM; SUB,ENG COVER
EXC. MANUAL TILT CAB<RWZ> 		8-97583-489-0 01 1 0401-0506 ● ● ● ● ●
68 16.549 COVER ASM; SUB,ENG COVER 8-97583-489-0 01 1 0401-0506 ● ●
68 16.549 COVER ASM; SUB,ENG COVER
EXC. MANUAL TILT CAB<RWZ> 		8-97583-489-0 01 1 0507-0606 ● ● ● ●
68 16.549 COVER ASM; SUB,ENG COVER 8-97583-489-0 01 1 0507-0606 ● ●
68 16.549 COVER ASM; SUB,ENG COVER 8-97583-489-0 01 1 0607-0608 ● ●
68 16.549 COVER ASM; SUB,ENG COVER 8-98040-141-0 01 1 0609- ● ●
70 16.549 SEAL; ENG SUB COVER,CAB FLOOR
EXC. MANUAL TILT CAB<RWZ> 		8-97853-050-1 01 1 0302-0506 ● ● ● ● ●
70 16.549 SEAL; ENG SUB COVER,CAB FLOOR 8-97853-050-1 01 1 0302-0506 ● ●
70 16.549 SEAL; ENG SUB COVER,CAB FLOOR
EXC. MANUAL TILT CAB<RWZ> 		8-97853-050-1 01 1 0507-0606 ● ● ● ●
70 16.549 SEAL; ENG SUB COVER,CAB FLOOR 8-97853-050-1 01 1 0507-0606 ● ●
70 16.549 SEAL; ENG SUB COVER,CAB FLOOR 8-97853-050-1 01 1 0607- ● ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
02.664 M8X20 FLANGE 		0-28680-820-0 05 1 0302-0506 ● ● ● ● ● ● ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
02.664 M8X20 FLANGE 		0-28680-820-0 05 1 0507-0512 ● ● ● ● ● ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
01.531 M8X20 FLANGE 		0-28650-820-0 05 1 0601- ● ● ● ● ● ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0302-0506 ● ● ● ● ● ● ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0507-0512 ● ● ● ● ● ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0601- ● ● ● ● ● ●
84 16.549 BOLT; ENG COVER HINGE
02.664 M8X20 FLANGE 		0-28680-820-0 04 1 0302-0506 ● ● ● ● ● ● ●
84 16.549 BOLT; ENG COVER HINGE
02.664 M8X20 FLANGE 		0-28680-820-0 04 1 0507-0512 ● ● ● ● ● ●
84 16.549 BOLT; ENG COVER HINGE
01.531 M8X20 FLANGE 		0-28650-820-0 04 1 0601- ● ● ● ● ● ●
243 16.547 GROMMET; STOPPER,CHECK HOLE LID
OD=12.1 		8-97898-423-0 01 1 0302-0506 ● ● ● ● ● ● ●
243 16.547 GROMMET; STOPPER,CHECK HOLE LID
OD=12.1 		8-97898-423-0 01 1 0507- ● ● ● ● ● ●
310 16.549 SCREW; ENG COVER HOOK
16.320 M6X20 W/LK&PL WASHER 		8-94279-403-0 04 1 0302-0506 ● ● ● ● ● ● ●
310 16.549 SCREW; ENG COVER HOOK
16.320 M6X20 W/LK&PL WASHER 		8-94279-403-0 04 1 0507-0612 ● ● ● ● ● ●
310 16.549 SCREW; ENG COVER HOOK
16.570 M6X16 		0-38050-616-0 04 1 0701-0810 ● ● ● ● ● ●
310 16.549 SCREW; ENG COVER HOOK
02.343 M6X16 FLANGE 		0-28650-616-0 04 1 0811- ● ● ● ● ● ●
317 16.549 BAND; ENGINE COVER
L=535 BLACK 		8-97867-201-1 01 1 0302-0506 ● ● ● ● ● ● ●
317 16.549 BAND; ENGINE COVER
L=535 BLACK 		8-97867-201-1 01 1 0507-0606 ● ● ● ● ● ●
317 16.549 BAND; ENGINE COVER
MANUAL TILT CAB<RWZ> L=535 BLACK 		8-97867-201-1 01 1 0607- ● ● ● ●
317 16.549 BAND; ENGINE COVER
L=535 BLACK 		8-97867-201-1 01 1 0607- ● ●
318 16.549 SCREW; BAND
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0302-0506 ● ● ● ● ● ● ●
318 16.549 SCREW; BAND
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0507-0604 ● ● ● ● ● ●
318 16.549 SCREW; BAND
03.885 M5X16 TAPPING W/PL WASHER 		0-74360-516-0 02 1 0605-0606 ● ● ● ● ● ●
318 16.549 SCREW; BAND
MANUAL TILT CAB<RWZ> 03.885 M5X16 TAPPING W/PL WASHER 		0-74360-516-0 02 1 0607-0612 ● ● ● ●
318 16.549 SCREW; BAND
03.885 M5X16 TAPPING W/PL WASHER 		0-74360-516-0 02 1 0607-0612 ● ●
318 16.549 SCREW; BAND
MANUAL TILT CAB<RWZ> 16.570 T25 M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 02 1 0701- ● ● ● ●
318 16.549 SCREW; BAND
16.570 T25 M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 02 1 0701- ● ●
324 16.545 FINISHER; FLOOR PANEL
L=140 		8-97892-742-0 01 1 0302-0506 ● ● ● ● ● ● ●
324 16.545 FINISHER; FLOOR PANEL
L=140 		8-97892-742-0 01 1 0507-0606 ● ● ● ● ● ●
324 16.545 FINISHER; FLOOR PANEL
MANUAL TILT CAB<RWZ> L=140 		8-97892-742-0 01 1 0607- ● ● ● ●
324 16.545 FINISHER; FLOOR PANEL
L=140 		8-97892-742-0 01 1 0607- ● ●
337 16.545 SEAL; CLIP HOLE
EXC. MANUAL TILT CAB<RWZ> 16.570 (B) OD=20 T=0.05 WHITE 		8-97856-832-2 02 1 0302-0506 ● ● ● ● ●
337 16.545 SEAL; CLIP HOLE
EXC. MANUAL TILT CAB<RWZ> 16.570 (B) OD=20 T=0.05 WHITE 		8-97856-832-2 02 1 0507-0606 ● ● ● ●
337 16.545 SEAL; CLIP HOLE
16.165 (A) OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 0302-0506 ● ● ● ● ● ● ●
337 16.545 SEAL; CLIP HOLE
16.165 (A) OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 0507- ● ● ● ● ● ●
341 16.549 SEAL; INSULATOR HOLE
EXC. MANUAL TILT CAB<RWZ> 16.570 OD=20 T=0.05 WHITE 		8-97856-832-2 01 1 0302-0506 ● ● ● ● ●
341 16.549 SEAL; INSULATOR HOLE
16.570 OD=20 T=0.05 WHITE 		8-97856-832-2 01 1 0302-0506 ● ●
341 16.549 SEAL; INSULATOR HOLE
EXC. MANUAL TILT CAB<RWZ> 16.570 OD=20 T=0.05 WHITE 		8-97856-832-2 01 1 0507-0606 ● ● ● ●
341 16.549 SEAL; INSULATOR HOLE
16.570 OD=20 T=0.05 WHITE 		8-97856-832-2 01 1 0507-0606 ● ●
341 16.549 SEAL; INSULATOR HOLE
16.570 OD=20 T=0.05 WHITE 		8-97856-832-2 01 1 0607-0610 ● ●
341 16.549 SEAL; INSULATOR HOLE
16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 01 1 0611- ● ●
349 16.549 PROTECTOR
4JJ1 ENG(LFB) 		8-98039-389-1 01 1 0607-0705 ● ● ● ●
349 16.549 PROTECTOR
4JJ1 ENG(LFB) 		8-98090-192-0 01 1 0706- ● ● ● ●
349 16.549 PROTECTOR
4JJ1 ENG(LFB) 		8-98039-388-1 01 1 0607-0705 ● ● ● ●
349 16.549 PROTECTOR
4JJ1 ENG(LFB) 		8-98090-191-0 01 1 0706- ● ● ● ●
364 16.545 FINISHER; ENG COVER SIDE
L=1000 		8-97892-743-0 01 1 0302-0506 ● ● ● ● ● ● ●
364 16.545 FINISHER; ENG COVER SIDE
L=1000 		8-97892-743-0 01 1 0507-0606 ● ● ● ● ● ●
364 16.545 FINISHER; ENG COVER SIDE
MANUAL TILT CAB<RWZ> L=1000 		8-97892-743-0 01 1 0607- ● ● ● ●
364 16.545 FINISHER; ENG COVER SIDE
L=1000 		8-97892-743-0 01 1 0607- ● ●

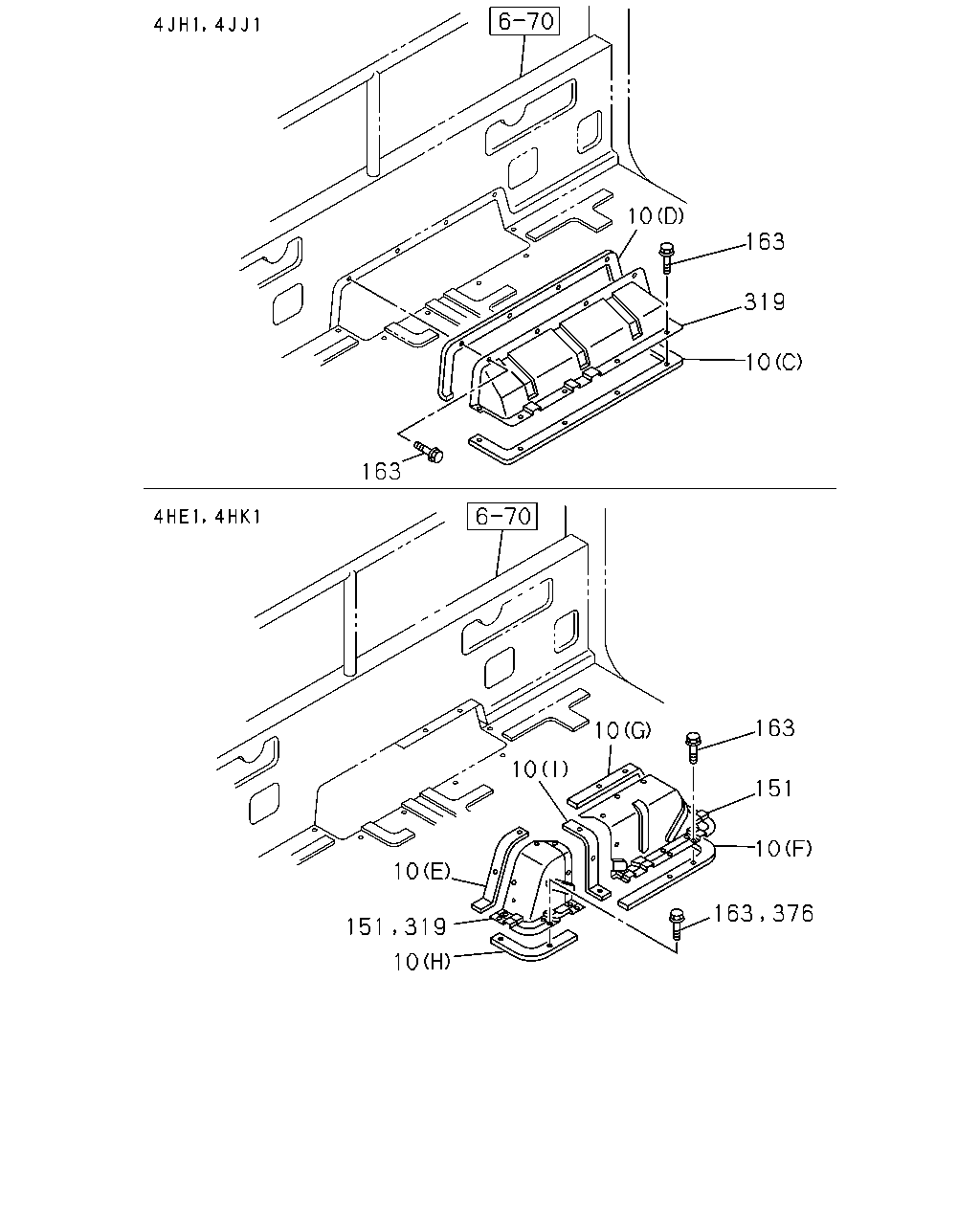

çizim 52695
10 163 319 10 163 163 10 10 151 10 10 151 319 10 163 376
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
10 16.549 SEAL; ENG COVER
BODY COLOR ARC WHITE(729) INTERIOR DELUXE<RBB> 16.592 (B) OD=36 WHITE 		1-76778-007-0 01 1 0302-0506 ● ● ● ● ●
10 16.549 SEAL; ENG COVER
BODY COLOR ARC WHITE(729) INTERIOR DELUXE<RBB> 16.592 (B) OD=36 WHITE 		1-76778-007-0 01 1 0507- ● ● ● ●
10 16.549 SEAL; ENG COVER
BODY COLOR POLAR SILVER MET(845), BODY COLOR MARINE BLUE(890) INTERIOR DELUXE<RBB> 02.580 (B) OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 0302-0506 ● ● ● ● ●
10 16.549 SEAL; ENG COVER
BODY COLOR POLAR SILVER MET(845), BODY COLOR MARINE BLUE(890) INTERIOR DELUXE<RBB> 02.580 (B) OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 0507-0710 ● ● ● ●
10 16.549 SEAL; ENG COVER
BODY COLOR POLAR SILVER MET(845), BODY COLOR MARINE BLUE(890) INTERIOR DELUXE<RBB> 16.545 (B) OD=32 BLACK 		8-98031-126-0 01 1 0711- ● ● ● ●
10 16.549 SEAL; ENG COVER
(A) 		8-97853-267-5 01 1 0302-0305 ● ● ● ● ● ● ●
10 16.549 SEAL; ENG COVER
(A) 		8-97581-109-0 01 1 0306-0506 ● ● ● ● ● ● ●
10 16.549 SEAL; ENG COVER
(A) 		8-97581-109-1 01 1 0507-0606 ● ● ● ● ● ●
10 16.549 SEAL; ENG COVER
MANUAL TILT CAB<RWZ> (A) 		8-97581-109-1 01 1 0607- ● ● ● ●
10 16.549 SEAL; ENG COVER
(A) 		8-97581-109-1 01 1 0607- ● ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (E) L=519 		8-97995-003-0 01 1 0302-0305 ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) (E) L=519 		8-97995-003-0 01 1 0302-0305 ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (E) L=543 		8-97582-085-0 01 1 0306-0506 ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) (E) L=543 		8-97582-085-0 01 1 0306-0506 ●
10 16.549 SEAL; ENG COVER
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (E) L=543 		8-97582-085-0 01 1 0507-0507 ●
10 16.549 SEAL; ENG COVER
4HK1-TCN ENG(RDQ) (E) L=543 		8-97582-085-0 01 1 0507-0507 ●
10 16.549 SEAL; ENG COVER
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (E) L=543 		8-97582-085-0 01 1 0508-0606 ●
10 16.549 SEAL; ENG COVER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (E) L=543 		8-97582-085-0 01 1 0508-0606 ●
10 16.549 SEAL; ENG COVER
4HK1-TCC ENG(RDV) (F) 		8-97995-002-0 01 1 0607- ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (G) L=804 		8-97995-004-0 01 1 0302-0305 ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) (G) L=804 		8-97995-004-0 01 1 0302-0305 ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (G) L=804 		8-97582-086-0 01 1 0306-0506 ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) (G) L=804 		8-97582-086-0 01 1 0306-0506 ●
10 16.549 SEAL; ENG COVER
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (G) L=804 		8-97582-086-0 01 1 0507-0507 ●
10 16.549 SEAL; ENG COVER
4HK1-TCN ENG(RDQ) (G) L=804 		8-97582-086-0 01 1 0507-0507 ●
10 16.549 SEAL; ENG COVER
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (G) L=804 		8-97582-086-0 01 1 0508-0606 ●
10 16.549 SEAL; ENG COVER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (G) L=804 		8-97582-086-0 01 1 0508-0606 ●
10 16.549 SEAL; ENG COVER
4HK1-TCC ENG(RDV) (H) L=519 		8-97995-005-0 01 1 0607- ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (F) L=886 		8-97996-183-0 01 1 0302-0506 ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) (F) L=886 		8-97996-183-0 01 1 0302-0506 ●
10 16.549 SEAL; ENG COVER
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (F) L=886 		8-97996-183-0 01 1 0507-0606 ●
10 16.549 SEAL; ENG COVER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (F) L=886 		8-97996-183-0 01 1 0507-0606 ●
10 16.549 SEAL; ENG COVER
4HK1-TCC ENG(RDV) (G) L=804 		8-97582-086-0 01 1 0607- ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (H) L=566 		8-97996-184-0 01 1 0302-0506 ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) (H) L=566 		8-97996-184-0 01 1 0302-0506 ●
10 16.549 SEAL; ENG COVER
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (H) L=566 		8-97996-184-0 01 1 0507-0606 ●
10 16.549 SEAL; ENG COVER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (H) L=566 		8-97996-184-0 01 1 0507-0606 ●
10 16.549 SEAL; ENG COVER
4HK1-TCC ENG(RDV) (I) L=436 		8-97582-087-0 01 1 0607- ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (I) L=512 		8-97996-185-0 01 1 0302-0305 ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) (I) L=512 		8-97996-185-0 01 1 0302-0305 ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (I) L=481 		8-97582-088-0 01 1 0306-0506 ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) (I) L=481 		8-97582-088-0 01 1 0306-0506 ●
10 16.549 SEAL; ENG COVER
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (I) L=481 		8-97582-088-0 01 1 0507-0606 ●
10 16.549 SEAL; ENG COVER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (I) L=481 		8-97582-088-0 01 1 0507-0606 ●
10 16.549 SEAL; ENG COVER
4HK1-TCC ENG(RDV) (E) L=543 		8-97582-085-0 01 1 0607- ●
10 16.549 SEAL; ENG COVER
4JH1 ENG(RJX) (C) L=1196 		8-97898-985-2 01 1 0302-0506 ●
10 16.549 SEAL; ENG COVER
4JH1-TC ENG(RDM) (C) L=1196 		8-97898-985-2 01 1 0507-0606 ●
10 16.549 SEAL; ENG COVER
4JJ1 ENG(LFB) (C) L=1196 		8-97898-985-2 01 1 0607- ●
10 16.549 SEAL; ENG COVER
4JH1 ENG(RJX) (D) L=993 		8-97898-986-2 01 1 0302-0506 ●
10 16.549 SEAL; ENG COVER
4JH1-TC ENG(RDM) (D) L=993 		8-97898-986-2 01 1 0507-0606 ●
10 16.549 SEAL; ENG COVER
4JJ1 ENG(LFB) (D) L=993 		8-97898-986-2 01 1 0607- ●
151 16.549 COVER ASM; ENG
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 		8-97997-525-0 01 1 0302-0305 ●
151 16.549 COVER ASM; ENG
4HE1 ENG(RLY) 		8-97997-525-0 01 1 0302-0305 ●
151 16.549 COVER ASM; ENG
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 		8-97582-093-0 01 1 0306-0506 ●
151 16.549 COVER ASM; ENG
4HE1 ENG(RLY) 		8-97582-093-0 01 1 0306-0506 ●
151 16.549 COVER ASM; ENG
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> 		8-97582-093-0 01 1 0507-0606 ●
151 16.549 COVER ASM; ENG
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 		8-97582-093-0 01 1 0507-0606 ●
151 16.549 COVER ASM; ENG
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 		8-97997-523-1 01 1 0302-0305 ●
151 16.549 COVER ASM; ENG
4HE1 ENG(RLY) 		8-97997-523-1 01 1 0302-0305 ●
151 16.549 COVER ASM; ENG
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 		8-97582-091-0 01 1 0306-0506 ●
151 16.549 COVER ASM; ENG
4HE1 ENG(RLY) 		8-97582-091-0 01 1 0306-0506 ●
151 16.549 COVER ASM; ENG
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> 		8-97582-091-0 01 1 0507-0606 ●
151 16.549 COVER ASM; ENG
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 		8-97582-091-0 01 1 0507-0606 ●
151 16.549 COVER ASM; ENG
4HK1-TCC ENG(RDV) 		8-97582-089-0 01 1 0607- ●
163 16.549 BOLT; RR,ENG COVER,FRT
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 02.762 M6X20 W/LK&PL WASHER 		8-94279-203-0 15 1 0302-0305 ●
163 16.549 BOLT; RR,ENG COVER,FRT
4HE1 ENG(RLY) 02.762 M6X20 W/LK&PL WASHER 		8-94279-203-0 15 1 0302-0305 ●
163 16.549 BOLT; RR,ENG COVER,FRT
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 02.762 M6X20 W/LK&PL WASHER 		8-94279-203-0 14 1 0306-0307 ●
163 16.549 BOLT; RR,ENG COVER,FRT
4HE1 ENG(RLY) 02.762 M6X20 W/LK&PL WASHER 		8-94279-203-0 14 1 0306-0307 ●
163 16.549 BOLT; RR,ENG COVER,FRT
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 02.762 M6X20 W/LK&PL WASHER 		8-94279-203-0 12 1 0308-0506 ●
163 16.549 BOLT; RR,ENG COVER,FRT
4HE1 ENG(RLY) 02.762 M6X20 W/LK&PL WASHER 		8-94279-203-0 12 1 0308-0506 ●
163 16.549 BOLT; RR,ENG COVER,FRT
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> 02.762 M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 0507-0606 ●
163 16.549 BOLT; RR,ENG COVER,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 02.762 M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 0507-0606 ●
163 16.549 BOLT; RR,ENG COVER,FRT
4HK1-TCC ENG(RDV) 02.343 M6X16 FLANGE 		0-28650-616-0 03 1 0607- ●
163 16.549 BOLT; RR,ENG COVER,FRT
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> 02.762 M6X20 W/LK&PL WASHER 		8-94279-203-0 09 1 0507-0606 ●
163 16.549 BOLT; RR,ENG COVER,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 02.762 M6X20 W/LK&PL WASHER 		8-94279-203-0 09 1 0507-0606 ●
163 16.549 BOLT; RR,ENG COVER,FRT
4HK1-TCC ENG(RDV) 02.762 M6X20 W/LK&PL WASHER 		8-94279-203-0 05 1 0607- ●
163 16.549 BOLT; RR,ENG COVER,FRT
4JH1 ENG(RJX) 02.334 M6X16 W/PL WASHER 		8-97803-781-0 10 1 0302-0506 ●
163 16.549 BOLT; RR,ENG COVER,FRT
4JH1-TC ENG(RDM) 02.334 M6X16 W/PL WASHER 		8-97803-781-0 10 1 0507-0606 ●
163 16.549 BOLT; RR,ENG COVER,FRT
4JJ1 ENG(LFB) 02.334 M6X16 W/PL WASHER 		8-97803-781-0 10 1 0607- ●
319 16.549 COVER; ENG RR,FLOOR
4JH1 ENG(RJX) 		8-97898-994-1 01 1 0302-0506 ●
319 16.549 COVER; ENG RR,FLOOR
4JH1-TC ENG(RDM) 		8-97898-994-1 01 1 0507-0606 ●
319 16.549 COVER; ENG RR,FLOOR
4JJ1 ENG(LFB) 		8-97898-994-1 01 1 0607- ●
319 16.549 COVER; ENG RR,FLOOR
4HK1-TCC ENG(RDV) 		8-97582-090-0 01 1 0607- ●
376 16.549 BOLT; RR ENG COVER
4HK1-TCC ENG(RDV) 02.334 M6X16 W/PL WASHER 		8-97803-781-0 04 1 0607- ●

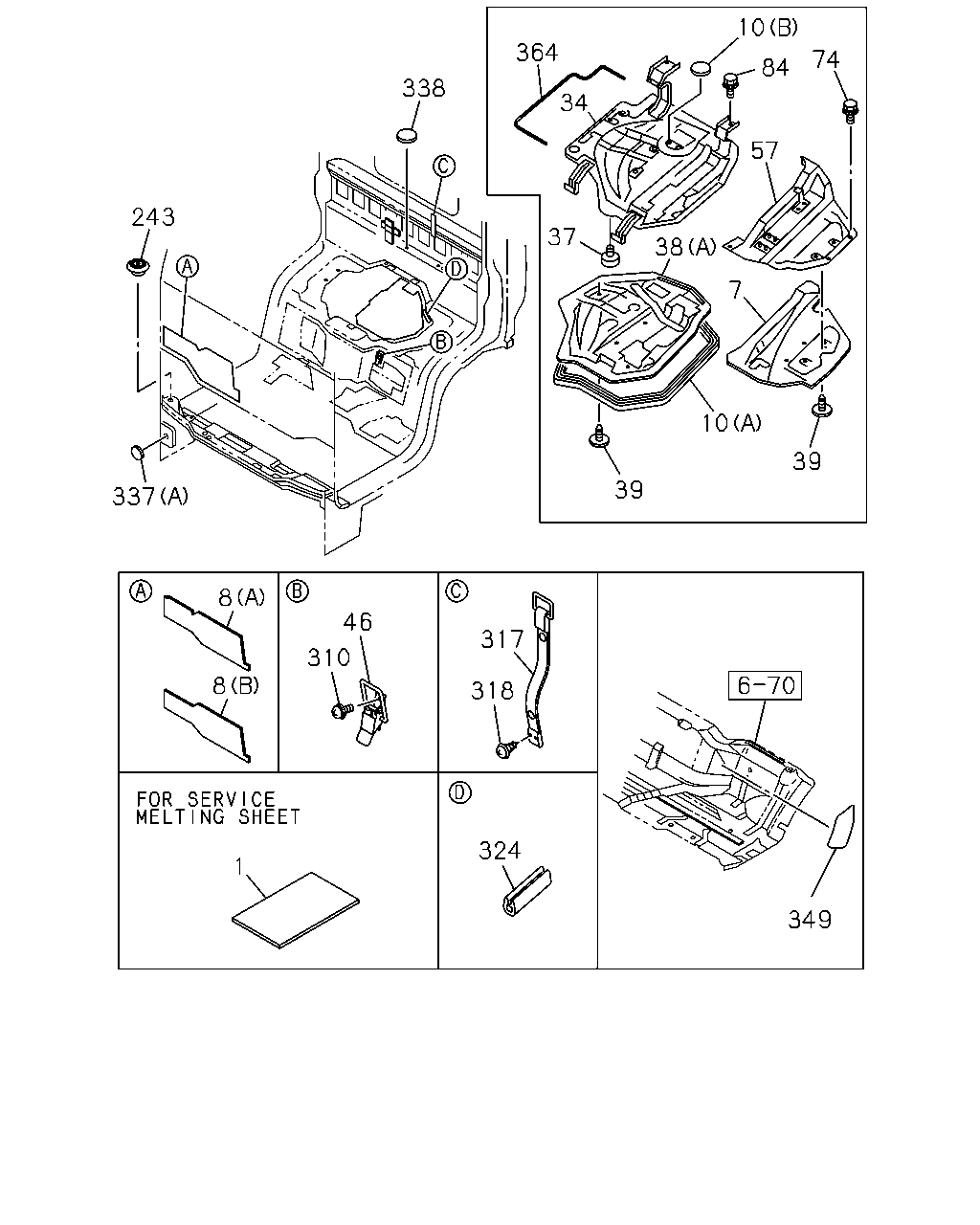

çizim 53244
10 364 74 84 338 34 57 243 37 38 7 10 39 39 337 8 46 317 310 8 318 324 1 349
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 16.850 SHEET; MELTING,FLOOR
NON ASBESTOS 1000X600 T=1.5; PARTS O NLY 		8-94262-093-0 AR 1 0302-0506 ● ● ● ● ● ● ●
1 16.850 SHEET; MELTING,FLOOR
NON ASBESTOS 1000X600 T=1.5; PARTS O NLY 		8-94262-093-0 AR 1 0507- ● ● ● ● ● ●
7 16.545 INSULATOR; SUPPORT COVER
MANUAL TILT CAB<RWZ> 		8-97850-896-0 01 1 0302-0506 ● ● ● ● ●
7 16.545 INSULATOR; SUPPORT COVER
MANUAL TILT CAB<RWZ> 		8-97850-896-0 01 1 0507- ● ● ● ●
7 16.545 INSULATOR; SUPPORT COVER
EXC. MANUAL TILT CAB<RWZ> 		8-97850-897-0 01 1 0302-0506 ● ● ● ● ●
7 16.545 INSULATOR; SUPPORT COVER 8-97850-897-0 01 1 0302-0506 ● ●
7 16.545 INSULATOR; SUPPORT COVER
EXC. MANUAL TILT CAB<RWZ> 		8-97850-897-0 01 1 0507-0606 ● ● ● ●
7 16.545 INSULATOR; SUPPORT COVER 8-97850-897-0 01 1 0507-0606 ● ●
7 16.545 INSULATOR; SUPPORT COVER 8-97850-897-0 01 1 0607- ● ●
8 16.802 MAT; SILENCER,FRT PANEL
(A) 		8-97853-606-1 01 1 0302-0506 ● ● ● ● ● ● ●
8 16.802 MAT; SILENCER,FRT PANEL
(B) 		8-97581-661-3 01 1 0507- ● ● ● ● ● ●
8 16.802 MAT; SILENCER,FRT PANEL
(A) 		8-97853-605-2 01 1 0302-0506 ● ● ● ● ● ● ●
8 16.802 MAT; SILENCER,FRT PANEL
(B) 		8-97581-660-3 01 1 0507- ● ● ● ● ● ●
10 16.549 SEAL; ENG COVER
BODY COLOR ARC WHITE(729) INTERIOR DELUXE<RBB> 16.592 (B) OD=36 WHITE 		1-76778-007-0 01 1 0302-0506 ● ● ● ● ●
10 16.549 SEAL; ENG COVER
BODY COLOR ARC WHITE(729) INTERIOR DELUXE<RBB> 16.592 (B) OD=36 WHITE 		1-76778-007-0 01 1 0507- ● ● ● ●
10 16.549 SEAL; ENG COVER
BODY COLOR POLAR SILVER MET(845), BODY COLOR MARINE BLUE(890) INTERIOR DELUXE<RBB> 02.580 (B) OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 0302-0506 ● ● ● ● ●
10 16.549 SEAL; ENG COVER
BODY COLOR POLAR SILVER MET(845), BODY COLOR MARINE BLUE(890) INTERIOR DELUXE<RBB> 02.580 (B) OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 0507-0710 ● ● ● ●
10 16.549 SEAL; ENG COVER
BODY COLOR POLAR SILVER MET(845), BODY COLOR MARINE BLUE(890) INTERIOR DELUXE<RBB> 16.545 (B) OD=32 BLACK 		8-98031-126-0 01 1 0711- ● ● ● ●
10 16.549 SEAL; ENG COVER
(A) 		8-97853-267-5 01 1 0302-0305 ● ● ● ● ● ● ●
10 16.549 SEAL; ENG COVER
(A) 		8-97581-109-0 01 1 0306-0506 ● ● ● ● ● ● ●
10 16.549 SEAL; ENG COVER
(A) 		8-97581-109-1 01 1 0507-0606 ● ● ● ● ● ●
10 16.549 SEAL; ENG COVER
MANUAL TILT CAB<RWZ> (A) 		8-97581-109-1 01 1 0607- ● ● ● ●
10 16.549 SEAL; ENG COVER
(A) 		8-97581-109-1 01 1 0607- ● ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (E) L=519 		8-97995-003-0 01 1 0302-0305 ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) (E) L=519 		8-97995-003-0 01 1 0302-0305 ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (E) L=543 		8-97582-085-0 01 1 0306-0506 ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) (E) L=543 		8-97582-085-0 01 1 0306-0506 ●
10 16.549 SEAL; ENG COVER
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (E) L=543 		8-97582-085-0 01 1 0507-0507 ●
10 16.549 SEAL; ENG COVER
4HK1-TCN ENG(RDQ) (E) L=543 		8-97582-085-0 01 1 0507-0507 ●
10 16.549 SEAL; ENG COVER
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (E) L=543 		8-97582-085-0 01 1 0508-0606 ●
10 16.549 SEAL; ENG COVER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (E) L=543 		8-97582-085-0 01 1 0508-0606 ●
10 16.549 SEAL; ENG COVER
4HK1-TCC ENG(RDV) (F) 		8-97995-002-0 01 1 0607- ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (G) L=804 		8-97995-004-0 01 1 0302-0305 ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) (G) L=804 		8-97995-004-0 01 1 0302-0305 ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (G) L=804 		8-97582-086-0 01 1 0306-0506 ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) (G) L=804 		8-97582-086-0 01 1 0306-0506 ●
10 16.549 SEAL; ENG COVER
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (G) L=804 		8-97582-086-0 01 1 0507-0507 ●
10 16.549 SEAL; ENG COVER
4HK1-TCN ENG(RDQ) (G) L=804 		8-97582-086-0 01 1 0507-0507 ●
10 16.549 SEAL; ENG COVER
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (G) L=804 		8-97582-086-0 01 1 0508-0606 ●
10 16.549 SEAL; ENG COVER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (G) L=804 		8-97582-086-0 01 1 0508-0606 ●
10 16.549 SEAL; ENG COVER
4HK1-TCC ENG(RDV) (H) L=519 		8-97995-005-0 01 1 0607- ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (F) L=886 		8-97996-183-0 01 1 0302-0506 ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) (F) L=886 		8-97996-183-0 01 1 0302-0506 ●
10 16.549 SEAL; ENG COVER
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (F) L=886 		8-97996-183-0 01 1 0507-0606 ●
10 16.549 SEAL; ENG COVER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (F) L=886 		8-97996-183-0 01 1 0507-0606 ●
10 16.549 SEAL; ENG COVER
4HK1-TCC ENG(RDV) (G) L=804 		8-97582-086-0 01 1 0607- ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (H) L=566 		8-97996-184-0 01 1 0302-0506 ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) (H) L=566 		8-97996-184-0 01 1 0302-0506 ●
10 16.549 SEAL; ENG COVER
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (H) L=566 		8-97996-184-0 01 1 0507-0606 ●
10 16.549 SEAL; ENG COVER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (H) L=566 		8-97996-184-0 01 1 0507-0606 ●
10 16.549 SEAL; ENG COVER
4HK1-TCC ENG(RDV) (I) L=436 		8-97582-087-0 01 1 0607- ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (I) L=512 		8-97996-185-0 01 1 0302-0305 ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) (I) L=512 		8-97996-185-0 01 1 0302-0305 ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (I) L=481 		8-97582-088-0 01 1 0306-0506 ●
10 16.549 SEAL; ENG COVER
4HE1 ENG(RLY) (I) L=481 		8-97582-088-0 01 1 0306-0506 ●
10 16.549 SEAL; ENG COVER
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (I) L=481 		8-97582-088-0 01 1 0507-0606 ●
10 16.549 SEAL; ENG COVER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (I) L=481 		8-97582-088-0 01 1 0507-0606 ●
10 16.549 SEAL; ENG COVER
4HK1-TCC ENG(RDV) (E) L=543 		8-97582-085-0 01 1 0607- ●
10 16.549 SEAL; ENG COVER
4JH1 ENG(RJX) (C) L=1196 		8-97898-985-2 01 1 0302-0506 ●
10 16.549 SEAL; ENG COVER
4JH1-TC ENG(RDM) (C) L=1196 		8-97898-985-2 01 1 0507-0606 ●
10 16.549 SEAL; ENG COVER
4JJ1 ENG(LFB) (C) L=1196 		8-97898-985-2 01 1 0607- ●
10 16.549 SEAL; ENG COVER
4JH1 ENG(RJX) (D) L=993 		8-97898-986-2 01 1 0302-0506 ●
10 16.549 SEAL; ENG COVER
4JH1-TC ENG(RDM) (D) L=993 		8-97898-986-2 01 1 0507-0606 ●
10 16.549 SEAL; ENG COVER
4JJ1 ENG(LFB) (D) L=993 		8-97898-986-2 01 1 0607- ●
34 16.549 COVER ASM; ENG,CAB FLOOR 8-97850-679-1 01 1 0302-0506 ● ● ● ● ● ● ●
34 16.549 COVER ASM; ENG,CAB FLOOR 8-97850-679-1 01 1 0507- ● ● ● ● ● ●
37 16.549 RUBBER; BUFFER,ENG COVER
16.155 OD=30 T=10 		5-74917-001-2 02 1 0302-0506 ● ● ● ● ● ● ●
37 16.549 RUBBER; BUFFER,ENG COVER
16.155 OD=30 T=10 		5-74917-001-2 02 1 0507-0606 ● ● ● ● ● ●
37 16.549 RUBBER; BUFFER,ENG COVER
MANUAL TILT CAB<RWZ> 16.155 OD=30 T=10 		5-74917-001-2 02 1 0607- ● ● ● ●
37 16.549 RUBBER; BUFFER,ENG COVER
16.155 OD=30 T=10 		5-74917-001-2 02 1 0607- ● ●
38 16.549 INSULATOR; ENG COVER
(A) 		8-97856-450-3 01 1 0302-0506 ● ● ● ● ● ● ●
38 16.549 INSULATOR; ENG COVER
(A) 		8-97856-450-3 01 1 0507-0606 ● ● ● ● ● ●
38 16.549 INSULATOR; ENG COVER
MANUAL TILT CAB<RWZ> (A) 		8-97856-450-3 01 1 0607- ● ● ● ●
38 16.549 INSULATOR; ENG COVER
(A) 		8-97856-450-3 01 1 0607- ● ●
38 16.549 INSULATOR; ENG COVER
4JH1 ENG(RJX),4HE1 ENG(RLY) (B) 		8-97856-803-0 01 1 0302-0506 ●
38 16.549 INSULATOR; ENG COVER
4HE1 ENG(RLY) (B) 		8-97856-803-0 01 1 0302-0506 ●
38 16.549 INSULATOR; ENG COVER
4JH1-TC ENG(RDM) (B) 		8-97856-803-0 01 1 0507-0507 ●
38 16.549 INSULATOR; ENG COVER
4HK1-TCS ENG(RJS) (B) 		8-97856-803-0 01 1 0507-0507 ●
38 16.549 INSULATOR; ENG COVER
4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ) (B) 		8-97856-803-0 01 1 0508-0606 ●
38 16.549 INSULATOR; ENG COVER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B) 		8-97856-803-0 01 1 0508-0606 ●
38 16.549 INSULATOR; ENG COVER
(B) 		8-97856-803-0 01 1 0607- ● ●
39 16.549 CLIP; INSULATOR,COVER
MANUAL TILT CAB<RWZ> OD=30 		8-94279-952-0 09 1 0302-0506 ● ● ● ● ●
39 16.549 CLIP; INSULATOR,COVER
MANUAL TILT CAB<RWZ> OD=30 		8-94279-952-0 09 1 0507- ● ● ● ●
39 16.549 CLIP; INSULATOR,COVER
EXC. MANUAL TILT CAB<RWZ> OD=30 		8-94279-952-0 06 1 0302-0506 ● ● ● ● ●
39 16.549 CLIP; INSULATOR,COVER
OD=30 		8-94279-952-0 06 1 0302-0506 ●
39 16.549 CLIP; INSULATOR,COVER
EXC. MANUAL TILT CAB<RWZ> OD=30 		8-94279-952-0 06 1 0507-0606 ● ● ● ●
39 16.549 CLIP; INSULATOR,COVER
OD=30 		8-94279-952-0 06 1 0507-0606 ● ●
39 16.549 CLIP; INSULATOR,COVER
OD=30 		8-94279-952-0 06 1 0607- ● ●
39 16.549 CLIP; INSULATOR,COVER
OD=30 		8-94279-952-0 05 1 0302-0506 ● ● ● ● ● ● ●
39 16.549 CLIP; INSULATOR,COVER
OD=30 		8-94279-952-0 05 1 0507-0606 ● ● ● ● ● ●
39 16.549 CLIP; INSULATOR,COVER
MANUAL TILT CAB<RWZ> OD=30 		8-94279-952-0 05 1 0607- ● ● ● ●
39 16.549 CLIP; INSULATOR,COVER
OD=30 		8-94279-952-0 05 1 0607- ● ●
39 16.549 CLIP; INSULATOR,COVER
4JH1 ENG(RJX),4HE1 ENG(RLY) OD=30 		8-94279-952-0 02 1 0302-0506 ●
39 16.549 CLIP; INSULATOR,COVER
4HE1 ENG(RLY) OD=30 		8-94279-952-0 02 1 0302-0506 ●
39 16.549 CLIP; INSULATOR,COVER
4JH1-TC ENG(RDM) OD=30 		8-94279-952-0 02 1 0507-0507 ●
39 16.549 CLIP; INSULATOR,COVER
4HK1-TCS ENG(RJS) OD=30 		8-94279-952-0 02 1 0507-0507 ●
39 16.549 CLIP; INSULATOR,COVER
4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ) OD=30 		8-94279-952-0 02 1 0508-0606 ●
39 16.549 CLIP; INSULATOR,COVER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) OD=30 		8-94279-952-0 02 1 0508-0606 ●
39 16.549 CLIP; INSULATOR,COVER
OD=30 		8-94279-952-0 02 1 0607- ● ●
46 16.549 HOOK ASM; ENG COVER 8-97853-632-2 02 1 0302-0506 ● ● ● ● ● ● ●
46 16.549 HOOK ASM; ENG COVER 8-97853-632-2 02 1 0507-0606 ● ● ● ● ● ●
46 16.549 HOOK ASM; ENG COVER
MANUAL TILT CAB<RWZ> 		8-97853-632-2 02 1 0607- ● ● ● ●
46 16.549 HOOK ASM; ENG COVER 8-97853-632-2 02 1 0607- ● ●
57 16.549 COVER ASM; SUPPORT,CAB FLOOR
MANUAL TILT CAB<RWZ> 		8-97850-888-0 01 1 0302-0506 ● ● ● ● ●
57 16.549 COVER ASM; SUPPORT,CAB FLOOR
MANUAL TILT CAB<RWZ> 		8-97850-888-0 01 1 0507- ● ● ● ●
57 16.549 COVER ASM; SUPPORT,CAB FLOOR
EXC. MANUAL TILT CAB<RWZ> 		8-97850-889-0 01 1 0302-0506 ● ● ● ● ●
57 16.549 COVER ASM; SUPPORT,CAB FLOOR 8-97850-889-0 01 1 0302-0506 ● ●
57 16.549 COVER ASM; SUPPORT,CAB FLOOR
EXC. MANUAL TILT CAB<RWZ> 		8-97850-889-0 01 1 0507- ● ● ● ●
57 16.549 COVER ASM; SUPPORT,CAB FLOOR 8-97850-889-0 01 1 0507- ● ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
02.664 M8X20 FLANGE 		0-28680-820-0 05 1 0302-0506 ● ● ● ● ● ● ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
02.664 M8X20 FLANGE 		0-28680-820-0 05 1 0507-0512 ● ● ● ● ● ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
01.531 M8X20 FLANGE 		0-28650-820-0 05 1 0601- ● ● ● ● ● ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0302-0506 ● ● ● ● ● ● ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0507-0512 ● ● ● ● ● ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0601- ● ● ● ● ● ●
84 16.549 BOLT; ENG COVER HINGE
02.664 M8X20 FLANGE 		0-28680-820-0 04 1 0302-0506 ● ● ● ● ● ● ●
84 16.549 BOLT; ENG COVER HINGE
02.664 M8X20 FLANGE 		0-28680-820-0 04 1 0507-0512 ● ● ● ● ● ●
84 16.549 BOLT; ENG COVER HINGE
01.531 M8X20 FLANGE 		0-28650-820-0 04 1 0601- ● ● ● ● ● ●
243 16.547 GROMMET; STOPPER,CHECK HOLE LID
OD=12.1 		8-97898-423-0 01 1 0302-0506 ● ● ● ● ● ● ●
243 16.547 GROMMET; STOPPER,CHECK HOLE LID
OD=12.1 		8-97898-423-0 01 1 0507- ● ● ● ● ● ●
310 16.549 SCREW; ENG COVER HOOK
16.320 M6X20 W/LK&PL WASHER 		8-94279-403-0 04 1 0302-0506 ● ● ● ● ● ● ●
310 16.549 SCREW; ENG COVER HOOK
16.320 M6X20 W/LK&PL WASHER 		8-94279-403-0 04 1 0507-0612 ● ● ● ● ● ●
310 16.549 SCREW; ENG COVER HOOK
16.570 M6X16 		0-38050-616-0 04 1 0701-0810 ● ● ● ● ● ●
310 16.549 SCREW; ENG COVER HOOK
02.343 M6X16 FLANGE 		0-28650-616-0 04 1 0811- ● ● ● ● ● ●
317 16.549 BAND; ENGINE COVER
L=535 BLACK 		8-97867-201-1 01 1 0302-0506 ● ● ● ● ● ● ●
317 16.549 BAND; ENGINE COVER
L=535 BLACK 		8-97867-201-1 01 1 0507-0606 ● ● ● ● ● ●
317 16.549 BAND; ENGINE COVER
MANUAL TILT CAB<RWZ> L=535 BLACK 		8-97867-201-1 01 1 0607- ● ● ● ●
317 16.549 BAND; ENGINE COVER
L=535 BLACK 		8-97867-201-1 01 1 0607- ● ●
318 16.549 SCREW; BAND
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0302-0506 ● ● ● ● ● ● ●
318 16.549 SCREW; BAND
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0507-0604 ● ● ● ● ● ●
318 16.549 SCREW; BAND
03.885 M5X16 TAPPING W/PL WASHER 		0-74360-516-0 02 1 0605-0606 ● ● ● ● ● ●
318 16.549 SCREW; BAND
MANUAL TILT CAB<RWZ> 03.885 M5X16 TAPPING W/PL WASHER 		0-74360-516-0 02 1 0607-0612 ● ● ● ●
318 16.549 SCREW; BAND
03.885 M5X16 TAPPING W/PL WASHER 		0-74360-516-0 02 1 0607-0612 ● ●
318 16.549 SCREW; BAND
MANUAL TILT CAB<RWZ> 16.570 T25 M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 02 1 0701- ● ● ● ●
318 16.549 SCREW; BAND
16.570 T25 M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 02 1 0701- ● ●
324 16.545 FINISHER; FLOOR PANEL
L=140 		8-97892-742-0 01 1 0302-0506 ● ● ● ● ● ● ●
324 16.545 FINISHER; FLOOR PANEL
L=140 		8-97892-742-0 01 1 0507-0606 ● ● ● ● ● ●
324 16.545 FINISHER; FLOOR PANEL
MANUAL TILT CAB<RWZ> L=140 		8-97892-742-0 01 1 0607- ● ● ● ●
324 16.545 FINISHER; FLOOR PANEL
L=140 		8-97892-742-0 01 1 0607- ● ●
337 16.545 SEAL; CLIP HOLE
EXC. MANUAL TILT CAB<RWZ> 16.570 (B) OD=20 T=0.05 WHITE 		8-97856-832-2 02 1 0302-0506 ● ● ● ● ●
337 16.545 SEAL; CLIP HOLE
EXC. MANUAL TILT CAB<RWZ> 16.570 (B) OD=20 T=0.05 WHITE 		8-97856-832-2 02 1 0507-0606 ● ● ● ●
337 16.545 SEAL; CLIP HOLE
16.165 (A) OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 0302-0506 ● ● ● ● ● ● ●
337 16.545 SEAL; CLIP HOLE
16.165 (A) OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 0507- ● ● ● ● ● ●
338 16.545 SEAL; CHECK ARM
16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 0302-0506 ● ● ● ● ●
338 16.545 SEAL; CHECK ARM
16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 0507- ● ● ● ●
349 16.549 PROTECTOR
4JJ1 ENG(LFB) 		8-98039-389-1 01 1 0607-0705 ● ● ● ●
349 16.549 PROTECTOR
4JJ1 ENG(LFB) 		8-98090-192-0 01 1 0706- ● ● ● ●
349 16.549 PROTECTOR
4JJ1 ENG(LFB) 		8-98039-388-1 01 1 0607-0705 ● ● ● ●
349 16.549 PROTECTOR
4JJ1 ENG(LFB) 		8-98090-191-0 01 1 0706- ● ● ● ●
364 16.545 FINISHER; ENG COVER SIDE
L=1000 		8-97892-743-0 01 1 0302-0506 ● ● ● ● ● ● ●
364 16.545 FINISHER; ENG COVER SIDE
L=1000 		8-97892-743-0 01 1 0507-0606 ● ● ● ● ● ●
364 16.545 FINISHER; ENG COVER SIDE
MANUAL TILT CAB<RWZ> L=1000 		8-97892-743-0 01 1 0607- ● ● ● ●
364 16.545 FINISHER; ENG COVER SIDE
L=1000 		8-97892-743-0 01 1 0607- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
