◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50949 - NPR/NQR(EUROPE)-LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-75 - MAT AND CARPET ▶
6-75 — MAT AND CARPET (#41384) — 77 parça

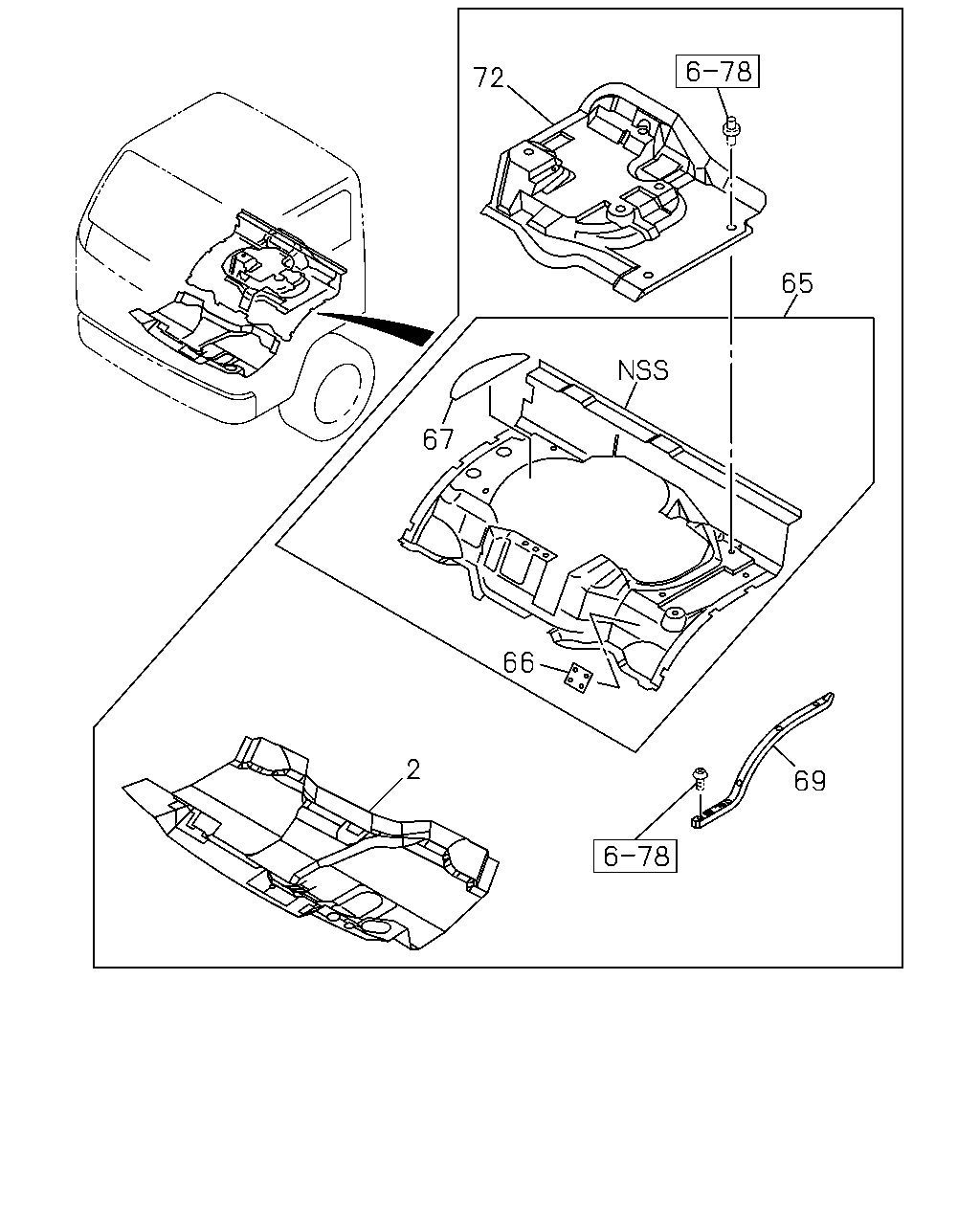

çizim 13356
72 65 67 66 2 69
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
2 16.800 MAT; FLOOR
AIR CONDITIONER MANUAL CONT(C60) DARK GRAY 		8-97581-122-1 01 1 0302-0506 ● ● ● ● ● ● ●
2 16.800 MAT; FLOOR
AIR CONDITIONER MANUAL CONT(C60) GRAY 		8-97588-993-3 01 1 0507- ● ● ● ● ● ●
2 16.800 MAT; FLOOR
EXC. AIR CONDITIONER MANUAL CONT(C60) DARK GRAY 		8-97581-123-1 01 1 0302-0506 ● ● ● ● ● ● ●
2 16.800 MAT; FLOOR
EXC. AIR CONDITIONER MANUAL CONT(C60) GRAY 		8-97588-994-3 01 1 0507- ● ● ● ● ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
4JJ1 ENG(LFB) MANUAL TILT CAB<RWZ> 		8-97407-852-0 01 1 0607- ● ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
DARK GRAY 		8-97996-702-0 01 1 0302-0506 ● ● ● ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
GRAY 		8-97589-102-1 01 1 0507-0606 ● ● ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
4HK1-TCC ENG(RDV) MANUAL TILT CAB<RWZ> GRAY 		8-97589-102-1 01 1 0607- ● ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
DARK GRAY 		8-97996-707-0 01 1 0302-0506 ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
GRAY 		8-97589-103-1 01 1 0507- ● ●
66 16.549 HOOK; COVER
DARK GRAY 		8-97997-582-0 02 1 0302-0506 ● ● ● ● ● ● ●
66 16.549 HOOK; COVER
GRAY 		8-97583-948-0 02 1 0507-0606 ● ● ● ● ● ●
66 16.549 HOOK; COVER
MANUAL TILT CAB<RWZ> GRAY 		8-97583-948-0 02 1 0607- ● ● ● ●
66 16.549 HOOK; COVER
GRAY 		8-97583-948-0 02 1 0607- ● ●
67 16.549 LID; COVER
DARK GRAY 		8-97997-588-0 01 1 0302-0506 ● ● ● ● ● ● ●
67 16.549 LID; COVER
GRAY 		8-97587-505-0 01 1 0507-0606 ● ● ● ● ● ●
67 16.549 LID; COVER
MANUAL TILT CAB<RWZ> GRAY 		8-97587-505-0 01 1 0607- ● ● ● ●
67 16.549 LID; COVER
GRAY 		8-97587-505-0 01 1 0607- ● ●
69 16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
DARK GRAY 		8-97857-552-0 01 1 0302-0506 ● ● ● ● ● ● ●
69 16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY 		8-97582-229-1 01 1 0507-0702 ● ● ● ● ● ●
69 16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY 		8-97409-479-0 01 1 0703- ● ● ● ● ● ●
69 16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
DARK GRAY 		8-97857-551-0 01 1 0302-0506 ● ● ● ● ● ● ●
69 16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY 		8-97582-228-1 01 1 0507-0702 ● ● ● ● ● ●
69 16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY 		8-97409-478-0 01 1 0703- ● ● ● ● ● ●
72 16.800 MAT; SILENCER,ENG COVER
DARK GRAY 		8-97996-766-0 01 1 0302-0506 ● ● ● ● ● ● ●
72 16.800 MAT; SILENCER,ENG COVER
GRAY 		8-97589-119-1 01 1 0507-0606 ● ● ● ● ● ●
72 16.800 MAT; SILENCER,ENG COVER
MANUAL TILT CAB<RWZ> GRAY 		8-97589-119-1 01 1 0607- ● ● ● ●
72 16.800 MAT; SILENCER,ENG COVER
GRAY 		8-97589-119-1 01 1 0607- ● ●

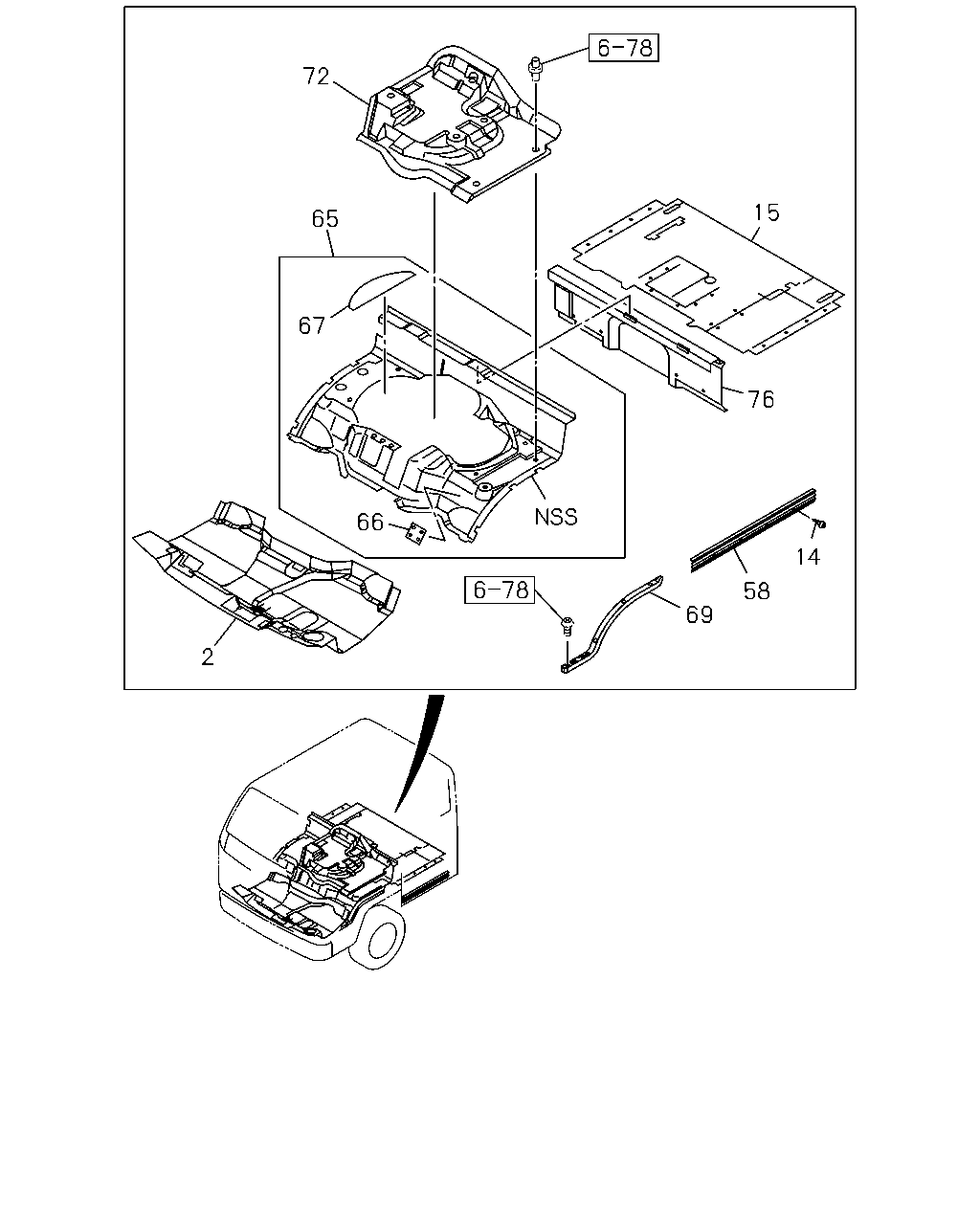

çizim 54441
72 15 65 67 76 66 14 58 69 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
2 16.800 MAT; FLOOR
AIR CONDITIONER MANUAL CONT(C60) DARK GRAY 		8-97581-122-1 01 1 0302-0506 ● ● ● ● ● ● ●
2 16.800 MAT; FLOOR
AIR CONDITIONER MANUAL CONT(C60) GRAY 		8-97588-993-3 01 1 0507- ● ● ● ● ● ●
2 16.800 MAT; FLOOR
EXC. AIR CONDITIONER MANUAL CONT(C60) DARK GRAY 		8-97581-123-1 01 1 0302-0506 ● ● ● ● ● ● ●
2 16.800 MAT; FLOOR
EXC. AIR CONDITIONER MANUAL CONT(C60) GRAY 		8-97588-994-3 01 1 0507- ● ● ● ● ● ●
14 16.870 SCREW; PLATE
16.345 M5X16 W/PL WASHER TAPPING 		8-94279-123-0 08 1 0302-0612 ● ●
14 16.870 SCREW; PLATE
16.090 T25 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 08 1 0701- ● ●
15 16.800 MAT; FLOOR REAR
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> DARK GRAY 		8-97996-770-0 01 1 0302-0506 ●
15 16.800 MAT; FLOOR REAR
4HE1 ENG(RLY) DARK GRAY 		8-97996-770-0 01 1 0302-0506 ●
15 16.800 MAT; FLOOR REAR
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> GRAY 		8-97588-997-1 01 1 0507-0606 ●
15 16.800 MAT; FLOOR REAR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) GRAY 		8-97588-997-1 01 1 0507-0606 ●
15 16.800 MAT; FLOOR REAR
4HK1-TCC ENG(RDV) GRAY 		8-97407-763-0 01 1 0607- ●
15 16.800 MAT; FLOOR REAR
4JH1 ENG(RJX) DARK GRAY 		8-97996-786-0 01 1 0302-0506 ●
15 16.800 MAT; FLOOR REAR
4JH1-TC ENG(RDM) GRAY 		8-97588-998-1 01 1 0507-0606 ●
15 16.800 MAT; FLOOR REAR
4JJ1 ENG(LFB) GRAY 		8-97588-998-1 01 1 0607- ●
58 08.153 PLATE; GUARD,RR FLOOR MAT 8-97081-344-3 02 1 0302- ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
4JJ1 ENG(LFB) MANUAL TILT CAB<RWZ> 		8-97407-852-0 01 1 0607- ● ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
DARK GRAY 		8-97996-702-0 01 1 0302-0506 ● ● ● ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
GRAY 		8-97589-102-1 01 1 0507-0606 ● ● ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
4HK1-TCC ENG(RDV) MANUAL TILT CAB<RWZ> GRAY 		8-97589-102-1 01 1 0607- ● ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
DARK GRAY 		8-97996-707-0 01 1 0302-0506 ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
GRAY 		8-97589-103-1 01 1 0507- ● ●
66 16.549 HOOK; COVER
DARK GRAY 		8-97997-582-0 02 1 0302-0506 ● ● ● ● ● ● ●
66 16.549 HOOK; COVER
GRAY 		8-97583-948-0 02 1 0507-0606 ● ● ● ● ● ●
66 16.549 HOOK; COVER
MANUAL TILT CAB<RWZ> GRAY 		8-97583-948-0 02 1 0607- ● ● ● ●
66 16.549 HOOK; COVER
GRAY 		8-97583-948-0 02 1 0607- ● ●
67 16.549 LID; COVER
DARK GRAY 		8-97997-588-0 01 1 0302-0506 ● ● ● ● ● ● ●
67 16.549 LID; COVER
GRAY 		8-97587-505-0 01 1 0507-0606 ● ● ● ● ● ●
67 16.549 LID; COVER
MANUAL TILT CAB<RWZ> GRAY 		8-97587-505-0 01 1 0607- ● ● ● ●
67 16.549 LID; COVER
GRAY 		8-97587-505-0 01 1 0607- ● ●
69 16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
DARK GRAY 		8-97857-552-0 01 1 0302-0506 ● ● ● ● ● ● ●
69 16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY 		8-97582-229-1 01 1 0507-0702 ● ● ● ● ● ●
69 16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY 		8-97409-479-0 01 1 0703- ● ● ● ● ● ●
69 16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
DARK GRAY 		8-97857-551-0 01 1 0302-0506 ● ● ● ● ● ● ●
69 16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY 		8-97582-228-1 01 1 0507-0702 ● ● ● ● ● ●
69 16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY 		8-97409-478-0 01 1 0703- ● ● ● ● ● ●
72 16.800 MAT; SILENCER,ENG COVER
DARK GRAY 		8-97996-766-0 01 1 0302-0506 ● ● ● ● ● ● ●
72 16.800 MAT; SILENCER,ENG COVER
GRAY 		8-97589-119-1 01 1 0507-0606 ● ● ● ● ● ●
72 16.800 MAT; SILENCER,ENG COVER
MANUAL TILT CAB<RWZ> GRAY 		8-97589-119-1 01 1 0607- ● ● ● ●
72 16.800 MAT; SILENCER,ENG COVER
GRAY 		8-97589-119-1 01 1 0607- ● ●
76 16.800 MAT; FLOOR,REINF,CAB RR MTG
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> DARK GRAY 		8-97985-070-0 01 1 0302-0506 ●
76 16.800 MAT; FLOOR,REINF,CAB RR MTG
4HE1 ENG(RLY) DARK GRAY 		8-97985-070-0 01 1 0302-0506 ●
76 16.800 MAT; FLOOR,REINF,CAB RR MTG
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> GRAY 		8-97589-116-0 01 1 0507-0507 ●
76 16.800 MAT; FLOOR,REINF,CAB RR MTG
4HK1-TCN ENG(RDQ) GRAY 		8-97589-116-0 01 1 0507-0507 ●
76 16.800 MAT; FLOOR,REINF,CAB RR MTG
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> GRAY 		8-97589-116-1 01 1 0508-0606 ●
76 16.800 MAT; FLOOR,REINF,CAB RR MTG
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) GRAY 		8-97589-116-1 01 1 0508-0606 ●
76 16.800 MAT; FLOOR,REINF,CAB RR MTG
4HK1-TCC ENG(RDV) 		8-97404-848-1 01 1 0607- ●
76 16.800 MAT; FLOOR,REINF,CAB RR MTG
4JH1 ENG(RJX) DARK GRAY 		8-97985-068-0 01 1 0302-0506 ●
76 16.800 MAT; FLOOR,REINF,CAB RR MTG
4JH1-TC ENG(RDM) GRAY 		8-97589-114-1 01 1 0507-0606 ●
76 16.800 MAT; FLOOR,REINF,CAB RR MTG
4JJ1 ENG(LFB) GRAY 		8-97589-114-2 01 1 0607- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
