6-52 — REAR DOOR LOCK AND HANDLE (#41378) — 76 parça

52 15 16 17 16 15 16 27 16 16 20 16 17 29 16 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
15	16.341 LINK; RR DOOR LK EXC. AUTO DOOR LOCK<AU4> (B)	8-97857-913-1	01	1	0507-	●	●
15	16.341 LINK; RR DOOR LK EXC. AUTO DOOR LOCK<AU4> (B)	8-97857-914-1	01	1	0507-	●	●
15	16.341 LINK; RR DOOR LK EXC. AUTO DOOR LOCK<AU4> (A) DARK GRAY	8-97868-444-0	01	1	0302-0506	●	●
15	16.341 LINK; RR DOOR LK EXC. AUTO DOOR LOCK<AU4> (A) GRAY	8-97582-322-1	01	1	0507-0708	●	●
15	16.341 LINK; RR DOOR LK EXC. AUTO DOOR LOCK<AU4> (A) GRAY	8-97406-325-1	01	1	0709-	●	●
15	16.341 LINK; RR DOOR LK EXC. AUTO DOOR LOCK<AU4> (A) DARK GRAY	8-97868-443-0	01	1	0302-0506	●	●
15	16.341 LINK; RR DOOR LK EXC. AUTO DOOR LOCK<AU4> (A) GRAY	8-97582-321-1	01	1	0507-0708	●	●
15	16.341 LINK; RR DOOR LK EXC. AUTO DOOR LOCK<AU4> (A) GRAY	8-97406-324-1	01	1	0709-	●	●
16	16.345 CLIP; DOOR LK LINK EXC. AUTO DOOR LOCK<AU4> (B)	1-74517-134-1	05	1	0507-	●	●
16	16.345 CLIP; DOOR LK LINK EXC. AUTO DOOR LOCK<AU4> (B)	1-74517-135-1	05	1	0507-	●	●
16	16.345 CLIP; DOOR LK LINK 16.335 (A)	8-97859-069-0	01	1	0302-	●	●
16	16.345 CLIP; DOOR LK LINK (A)	8-97852-643-0	01	1	0302-	●	●
17	16.330 LOCK; DOOR,RR DOOR AUTO DOOR LOCK<AU4> VOLTAGE 24V<7AE> DARK GRAY	8-97867-205-5	01	1	0302-0506	●
17	16.330 LOCK; DOOR,RR DOOR AUTO DOOR LOCK<AU4> DARK GRAY	8-97867-205-5	01	1	0302-0506		●
17	16.330 LOCK; DOOR,RR DOOR AUTO DOOR LOCK<AU4> VOLTAGE 24V<7AE> GRAY	8-97582-320-5	01	1	0507-0606	●
17	16.330 LOCK; DOOR,RR DOOR AUTO DOOR LOCK<AU4> GRAY	8-97582-320-5	01	1	0507-0606		●
17	16.330 LOCK; DOOR,RR DOOR AUTO DOOR LOCK<AU4> GRAY	8-97582-320-6	01	1	0607-0708	●	●
17	16.330 LOCK; DOOR,RR DOOR AUTO DOOR LOCK<AU4> GRAY	8-97406-323-6	01	1	0709-	●	●
17	16.330 LOCK; DOOR,RR DOOR AUTO DOOR LOCK<AU4> VOLTAGE 24V<7AE> DARK GRAY	8-97867-204-5	01	1	0302-0506	●
17	16.330 LOCK; DOOR,RR DOOR AUTO DOOR LOCK<AU4> DARK GRAY	8-97867-204-5	01	1	0302-0506		●
17	16.330 LOCK; DOOR,RR DOOR AUTO DOOR LOCK<AU4> VOLTAGE 24V<7AE> GRAY	8-97582-319-5	01	1	0507-0606	●
17	16.330 LOCK; DOOR,RR DOOR AUTO DOOR LOCK<AU4> GRAY	8-97582-319-5	01	1	0507-0606		●
17	16.330 LOCK; DOOR,RR DOOR AUTO DOOR LOCK<AU4> GRAY	8-97582-319-6	01	1	0607-0708	●	●
17	16.330 LOCK; DOOR,RR DOOR AUTO DOOR LOCK<AU4> GRAY	8-97406-322-6	01	1	0709-	●	●
17	16.330 LOCK; DOOR,RR DOOR AUTO DOOR LOCK<AU4> EXC. VOLTAGE 24V<7AE> DARK GRAY	8-97867-801-5	01	1	0302-0506	●
17	16.330 LOCK; DOOR,RR DOOR AUTO DOOR LOCK<AU4> EXC. VOLTAGE 24V<7AE> GRAY	8-97582-318-5	01	1	0507-0606	●
17	16.330 LOCK; DOOR,RR DOOR AUTO DOOR LOCK<AU4> EXC. VOLTAGE 24V<7AE> DARK GRAY	8-97867-800-5	01	1	0302-0506	●
17	16.330 LOCK; DOOR,RR DOOR AUTO DOOR LOCK<AU4> EXC. VOLTAGE 24V<7AE> GRAY	8-97582-317-5	01	1	0507-0606	●
17	16.330 LOCK; DOOR,RR DOOR EXC. AUTO DOOR LOCK<AU4>	8-97852-474-3	01	1	0302-	●	●
17	16.330 LOCK; DOOR,RR DOOR EXC. AUTO DOOR LOCK<AU4>	8-97852-473-3	01	1	0302-	●	●
20	16.330 SCREW; DOOR LK M6X16	1-09981-447-1	06	1	0302-0612	●	●
20	16.330 SCREW; DOOR LK M6X14.5	8-98004-342-0	06	1	0701-	●	●
27	16.330 SCREW; RR DOOR LOCK EXC. AUTO DOOR LOCK<AU4> 16.183 M6X16 W/LK&PL WASHER	8-94279-402-0	04	1	0302-0305	●	●
27	16.330 SCREW; RR DOOR LOCK EXC. AUTO DOOR LOCK<AU4> 16.183 M6X16 W/LK&PL WASHER	8-97582-826-0	04	1	0306-0612	●	●
27	16.330 SCREW; RR DOOR LOCK EXC. AUTO DOOR LOCK<AU4> 16.650 M6X12 HEXALOBULAR SOCKET	0-38050-612-0	04	1	0701-0705	●	●
27	16.330 SCREW; RR DOOR LOCK EXC. AUTO DOOR LOCK<AU4> 16.350 M6X8 W/TORQUES	8-98064-276-1	04	1	0706-	●	●
29	16.345 KNOB; LK LINK,RR DOOR AUTO DOOR LOCK<AU4> 16.157 DARK GRAY	8-97098-574-0	02	1	0302-0506	●	●
29	16.345 KNOB; LK LINK,RR DOOR AUTO DOOR LOCK<AU4> 16.157 GRAY	8-97582-706-0	02	1	0507-0708	●	●
29	16.345 KNOB; LK LINK,RR DOOR AUTO DOOR LOCK<AU4> 16.157 GRAY	8-97406-876-0	02	1	0709-	●	●
52	16.341 BELL CRANK ASM; RR DOOR EXC. AUTO DOOR LOCK<AU4>	8-97857-874-2	01	1	0302-	●	●
52	16.341 BELL CRANK ASM; RR DOOR EXC. AUTO DOOR LOCK<AU4>	8-97857-873-2	01	1	0302-	●	●

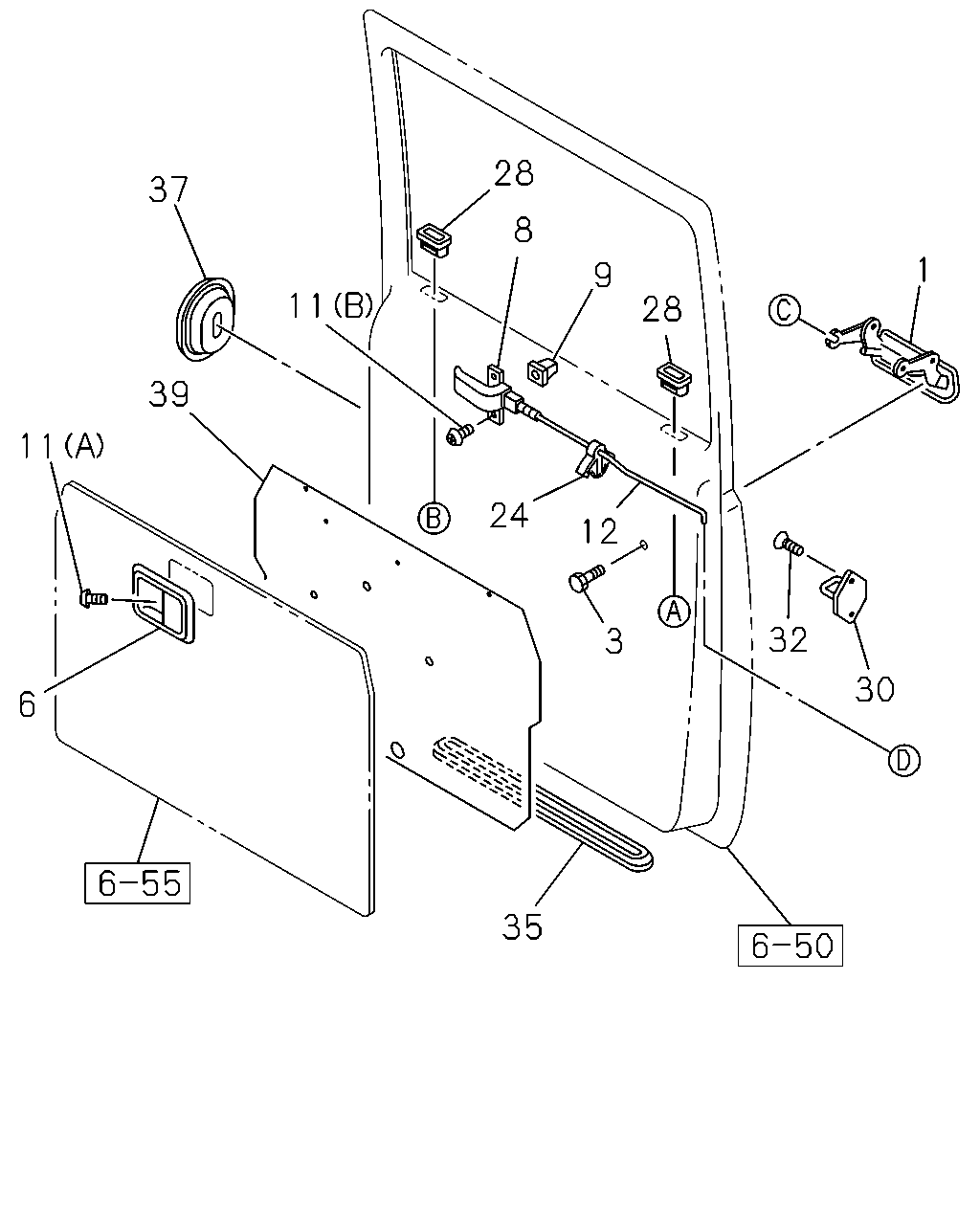

28 37 8 1 9 11 28 39 11 24 12 32 3 30 6 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	16.360 HANDLE; OUTSIDE,RR DOOR 16.350	8-97867-722-1	01	1	0302-	●	●
1	16.360 HANDLE; OUTSIDE,RR DOOR 16.350	8-97867-721-1	01	1	0302-	●	●
3	16.350 BOLT; DOOR OUTSIDE HANDLE M6X12 W/LK&PL WASHER	8-94279-200-0	04	1	0302-	●	●
6	16.345 BEZEL; INSIDE HANDLE,DOOR LOCK DARK GRAY	8-97867-236-2	01	1	0302-0506	●	●
6	16.345 BEZEL; INSIDE HANDLE,DOOR LOCK GRAY	8-97582-326-2	01	1	0507-0709	●	●
6	16.345 BEZEL; INSIDE HANDLE,DOOR LOCK GRAY	8-98090-301-0	01	1	0710-	●	●
6	16.345 BEZEL; INSIDE HANDLE,DOOR LOCK DARK GRAY	8-97867-235-2	01	1	0302-0506	●	●
6	16.345 BEZEL; INSIDE HANDLE,DOOR LOCK GRAY	8-97582-325-2	01	1	0507-0709	●	●
6	16.345 BEZEL; INSIDE HANDLE,DOOR LOCK GRAY	8-98090-300-0	01	1	0710-	●	●
8	16.345 HANDLE; INSIDE,RR DOOR DARK GRAY	8-97867-234-3	01	1	0302-0506	●	●
8	16.345 HANDLE; INSIDE,RR DOOR GRAY	8-97582-324-3	01	1	0507-0709	●	●
8	16.345 HANDLE; INSIDE,RR DOOR GRAY	8-98090-299-0	01	1	0710-	●	●
8	16.345 HANDLE; INSIDE,RR DOOR DARK GRAY	8-97867-233-3	01	1	0302-0506	●	●
8	16.345 HANDLE; INSIDE,RR DOOR GRAY	8-97582-323-3	01	1	0507-0709	●	●
8	16.345 HANDLE; INSIDE,RR DOOR GRAY	8-98090-298-0	01	1	0710-	●	●
9	16.345 GROMMET; SCREW,INSIDE HANDLE 01.269 D=8.6X7.7 L=7.5	8-94279-078-0	04	1	0302-	●	●
11	16.345 SCREW; INSIDE HANDLE (A) M4X10 TAPPING OVAL-HEAD	0-70680-410-0	02	1	0302-0603	●	●
11	16.345 SCREW; INSIDE HANDLE 16.120 (A) M4X10 TAPPING OVAL-HEAD	0-70640-410-0	02	1	0604-	●	●
11	16.345 SCREW; INSIDE HANDLE 16.802 (B) M5X16 TAPPING W/PL WASHER	0-74310-516-0	04	1	0302-0604	●	●
11	16.345 SCREW; INSIDE HANDLE 03.885 (B) M5X16 TAPPING W/PL WASHER	0-74360-516-0	04	1	0605-0612	●	●
11	16.345 SCREW; INSIDE HANDLE 16.090 (B) T25 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	04	1	0701-0708	●	●
11	16.345 SCREW; INSIDE HANDLE 16.570 (B) T25 M5X16 TAPPING HEXALOBULAR	0-72380-516-0	04	1	0709-	●	●
12	16.350 ROD; DOOR LK RR	8-97852-226-1	01	1	0302-	●	●
12	16.350 ROD; DOOR LK RR	8-97852-225-1	01	1	0302-	●	●
24	16.345 ANTIRATTLER; DOOR INSIDE HANDLE AUTO DOOR LOCK<AU4> 16.341 ID=3.8 WHITE	8-94217-699-0	02	1	0302-	●	●
24	16.345 ANTIRATTLER; DOOR INSIDE HANDLE EXC. AUTO DOOR LOCK<AU4> 16.341 ID=3.8 WHITE	8-94217-699-0	06	1	0302-	●	●
28	16.157 ESCUTCHEON; LK BUTTON,RR DOOR DARK GRAY	8-97867-208-1	02	1	0302-0506	●	●
28	16.157 ESCUTCHEON; LK BUTTON,RR DOOR GRAY	8-97582-330-1	02	1	0507-0708	●	●
28	16.157 ESCUTCHEON; LK BUTTON,RR DOOR GRAY	8-97406-330-1	02	1	0709-	●	●
30	16.335 STRIKER; RR DOOR	8-97221-702-1	02	1	0302-	●	●
32	16.335 SCREW; DOOR STRIKER M8X23 W/LK WASHER	8-97221-701-0	04	1	0302-0612	●	●
32	16.335 SCREW; DOOR STRIKER M8X20 CK-HEAD	8-98004-343-2	04	1	0701-	●	●
35	16.155 PLUG; RR DOOR LWR HOLE	8-97852-222-1	02	1	0302-	●	●
37	16.157 GROMMET; RR DOOR EXC. AUTO DOOR LOCK<AU4> 16.570	8-94279-724-0	02	1	0302-	●	●
39	16.350 SEAL; INSIDE HANDLE,RR DOOR 16.345	8-94271-609-1	02	1	0302-	●	●
