◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50949 - NPR/NQR(EUROPE)-LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-50 - REAR DOOR AND HINGE ▶
6-50 — REAR DOOR AND HINGE (#41376) — 16 parça

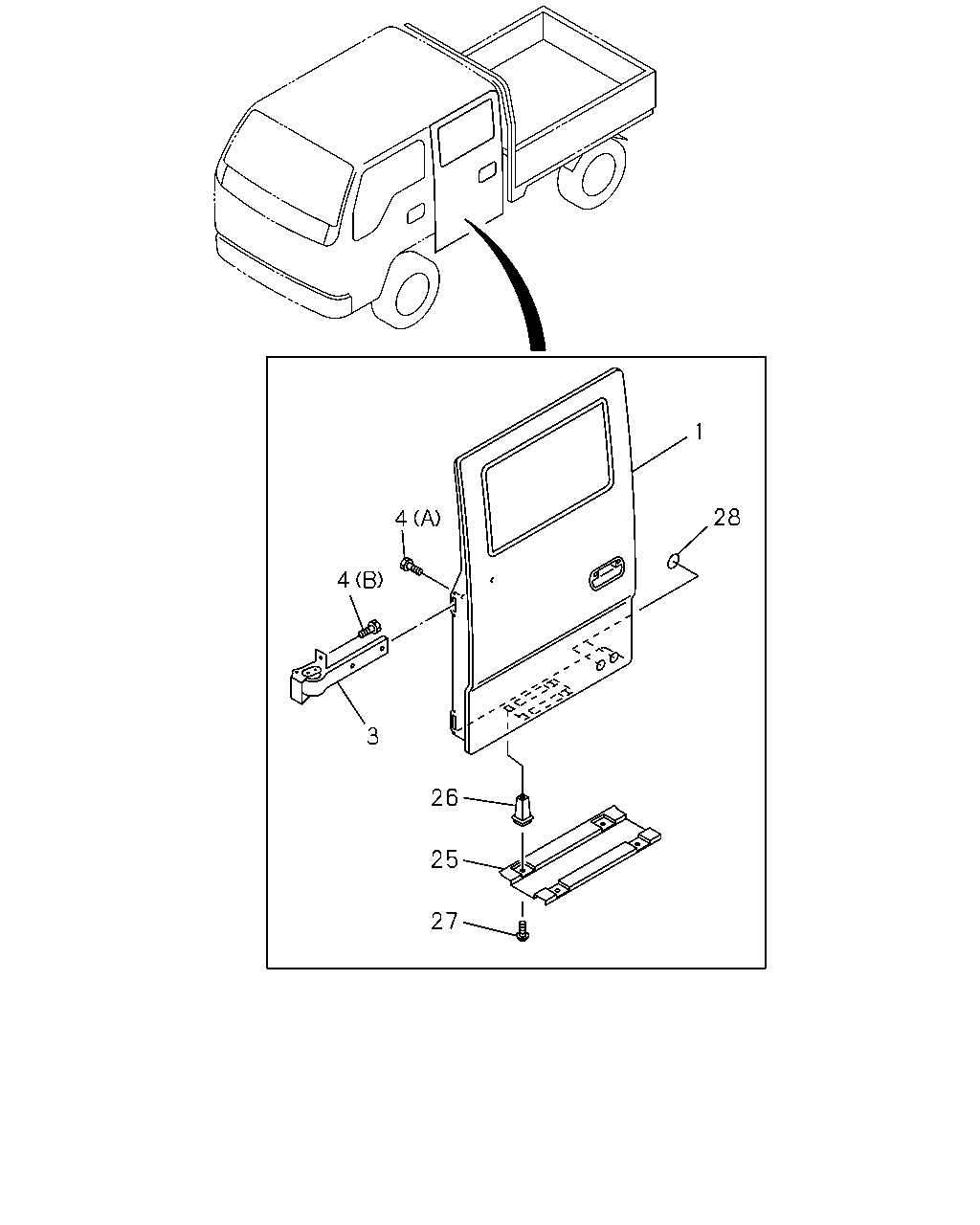

çizim 54728
1 28 4 4 3 26 25 27
BalonParca AdiParca NoAdetTipApplied Date A B
1 16.150 DOOR ASM; REAR
AUTO DOOR LOCK<AU4> 		8-97852-348-9 01 1 0302-0710 ● ●
1 16.150 DOOR ASM; REAR
AUTO DOOR LOCK<AU4> 		8-98088-503-0 01 1 0711- ● ●
1 16.150 DOOR ASM; REAR
AUTO DOOR LOCK<AU4> 		8-97852-347-9 01 1 0302-0710 ● ●
1 16.150 DOOR ASM; REAR
AUTO DOOR LOCK<AU4> 		8-98088-502-0 01 1 0711- ● ●
1 16.150 DOOR ASM; REAR
EXC. AUTO DOOR LOCK<AU4> 		8-97857-868-6 01 1 0302- ● ●
1 16.150 DOOR ASM; REAR
EXC. AUTO DOOR LOCK<AU4> 		8-97857-867-6 01 1 0302- ● ●
3 16.335 HINGE; RR DOOR 8-97852-197-3 04 1 0302- ● ●
4 16.335 BOLT; HINGE
16.320 (A) M8X20 W/LK&PL WASHER 		8-94279-104-0 08 1 0302-0805 ● ●
4 16.335 BOLT; HINGE
16.085 (A) M8X20 W/LK&PL WASHER 		8-97359-709-0 08 1 0806- ● ●
4 16.335 BOLT; HINGE
16.320 (B) M8X24.5 W/LK&PL WASHER 		8-94279-217-0 12 1 0302- ● ●
25 16.152 BRACKET; DOOR 8-97852-513-2 02 1 0302- ● ●
26 16.152 GROMMET; SCREW,BRKT
16.802 D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 08 1 0302- ● ●
27 16.152 SCREW; BRKT
16.345 M5X16 W/PL WASHER TAPPING 		8-94279-123-0 08 1 0302-0612 ● ●
27 16.152 SCREW; BRKT
16.090 T25 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 08 1 0701-1101 ● ●
27 16.152 SCREW; BRKT
16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 08 1 1102- ● ●
28 16.325 SEAL; RR DOOR
16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 0302- ● ●
