◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50949 - NPR/NQR(EUROPE)-LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-47 - MUD GUARD AND INSULATOR ▶
6-47 — MUD GUARD AND INSULATOR (#41375) — 538 parça
çizim 11262
285 92 56 33 219 86
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
33 08.155 BOLT; MUD COVER
ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60) 00.738 (D) M6X16 FLANGE 		0-28080-616-0 01 1 0612-0708 ● ● ● ● ● ●
33 08.155 BOLT; MUD COVER
ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60) 09.242 (D) M6X16 FLANGE 		0-28050-616-0 01 1 0709- ● ● ● ● ● ●
33 08.155 BOLT; MUD COVER
04.785 (D) M6X16 		0-20800-616-0 02 1 0302-0506 ● ● ● ● ● ● ●
33 08.155 BOLT; MUD COVER
04.785 (D) M6X16 		0-20800-616-0 02 1 0507- ● ● ● ● ● ●
33 08.155 BOLT; MUD COVER
00.738 (D) M6X16 FLANGE 		0-28080-616-0 06 1 0302-0506 ● ● ● ● ● ● ●
33 08.155 BOLT; MUD COVER
00.738 (D) M6X16 FLANGE 		0-28080-616-0 06 1 0507-0512 ● ● ● ● ● ●
33 08.155 BOLT; MUD COVER
09.242 (D) M6X16 FLANGE 		0-28050-616-0 06 1 0601- ● ● ● ● ● ●
33 08.155 BOLT; MUD COVER
07.010 (A) M8X20 FLANGE 		0-28080-820-0 05 1 0302-0506 ● ● ● ● ● ● ●
33 08.155 BOLT; MUD COVER
07.010 (A) M8X20 FLANGE 		0-28080-820-0 05 1 0507-0512 ● ● ● ● ● ●
33 08.155 BOLT; MUD COVER
04.338 (A) M8X20 FLANGE 		0-28050-820-0 05 1 0601- ● ● ● ● ● ●
33 08.155 BOLT; MUD COVER
02.334 (C) M6X25 FLANGE 		0-28680-625-0 04 1 0302-0506 ● ● ● ● ● ● ●
33 08.155 BOLT; MUD COVER
02.334 (C) M6X25 FLANGE 		0-28680-625-0 04 1 0507-0512 ● ● ● ● ● ●
33 08.155 BOLT; MUD COVER
00.685 (C) M6X25 FLANGE 		0-28650-625-0 04 1 0601-0604 ● ● ● ● ● ●
33 08.155 BOLT; MUD COVER
(C) M6X26 W/PL WASHER 		8-98035-643-0 04 1 0605- ● ● ● ● ● ●
33 08.155 BOLT; MUD COVER
16.320 (B) M8X20 W/LK&PL WASHER 		8-94279-104-0 01 1 0302-0506 ● ● ● ● ● ● ●
33 08.155 BOLT; MUD COVER
16.320 (B) M8X20 W/LK&PL WASHER 		8-94279-104-0 01 1 0507-0805 ● ● ● ● ● ●
33 08.155 BOLT; MUD COVER
16.085 (B) M8X20 W/LK&PL WASHER 		8-97359-709-0 01 1 0806- ● ● ● ● ● ●
56 08.155 WASHER; PL,COVER
ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60) 04.595 ID=8.4 OD=22 		0-91610-708-0 01 1 0612- ● ● ● ● ● ●
86 08.154 CLIP; MUD GUARD
ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60) 16.320 OD=8.3 		8-94279-989-0 03 1 0612- ● ● ● ● ● ●
92 08.155 NUT; MUD COVER
ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60) 01.540 (B) M6 FLANGE 		0-91180-206-0 01 1 0612- ● ● ● ● ● ●
92 08.155 NUT; MUD COVER
07.633 (A) M8 FLANGE 		0-91150-108-0 02 1 0302-0506 ● ● ● ● ● ● ●
92 08.155 NUT; MUD COVER
07.633 (A) M8 FLANGE 		0-91150-108-0 02 1 0507-0602 ● ● ● ● ● ●
92 08.155 NUT; MUD COVER
01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 0603- ● ● ● ● ● ●
219 08.155 FLAP; MUD GUARD
ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97128-468-0 01 1 0612- ● ● ● ● ● ●
219 08.155 FLAP; MUD GUARD
(A) 		8-97218-080-0 02 1 0302-0506 ● ● ● ● ●
219 08.155 FLAP; MUD GUARD
(A) 		8-97218-080-0 02 1 0507- ● ● ● ●
219 08.155 FLAP; MUD GUARD
(A) 		8-97222-869-0 02 1 0302- ● ●
285 08.155 BRACKET; MUD COVER
ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60) (D) 		8-97128-269-0 01 1 0612- ● ● ● ● ● ●
285 08.155 BRACKET; MUD COVER
4HE1 ENG(RLY) (A) 		8-97035-780-4 01 1 0302-0506 ● ● ● ● ● ● ●
285 08.155 BRACKET; MUD COVER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A) 		8-97035-780-4 01 1 0507-0606 ● ● ● ●
285 08.155 BRACKET; MUD COVER
4HK1-TCN ENG(RDQ) (A) 		8-97035-780-4 01 1 0507-0606 ●
285 08.155 BRACKET; MUD COVER
4HK1-TCC ENG(RDV) (A) 		8-97035-780-4 01 1 0607- ● ● ● ●
285 08.155 BRACKET; MUD COVER
4HE1 ENG(RLY) (C) 		8-97035-778-4 01 1 0302-0506 ● ● ● ● ● ● ●
285 08.155 BRACKET; MUD COVER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (C) 		8-97035-778-4 01 1 0507-0606 ● ● ● ●
285 08.155 BRACKET; MUD COVER
4HK1-TCN ENG(RDQ) (C) 		8-97035-778-4 01 1 0507-0606 ●
285 08.155 BRACKET; MUD COVER
4HK1-TCC ENG(RDV) (C) 		8-97035-778-4 01 1 0607- ● ● ● ●
285 08.155 BRACKET; MUD COVER
4JH1 ENG(RJX) (A) 		8-97225-272-1 01 1 0302-0506 ● ● ●
285 08.155 BRACKET; MUD COVER
4JH1-TC ENG(RDM) (A) 		8-97225-272-1 01 1 0507-0606 ● ● ●
285 08.155 BRACKET; MUD COVER
4JJ1 ENG(LFB) (A) 		8-97225-272-1 01 1 0607- ● ● ● ●
285 08.155 BRACKET; MUD COVER
4JH1 ENG(RJX) (B) 		8-97089-653-2 01 1 0302-0506 ● ● ●
285 08.155 BRACKET; MUD COVER
4JH1-TC ENG(RDM) (B) 		8-97089-653-2 01 1 0507-0606 ● ● ●
285 08.155 BRACKET; MUD COVER
4JJ1 ENG(LFB) (B) 		8-97089-653-2 01 1 0607- ● ● ● ●

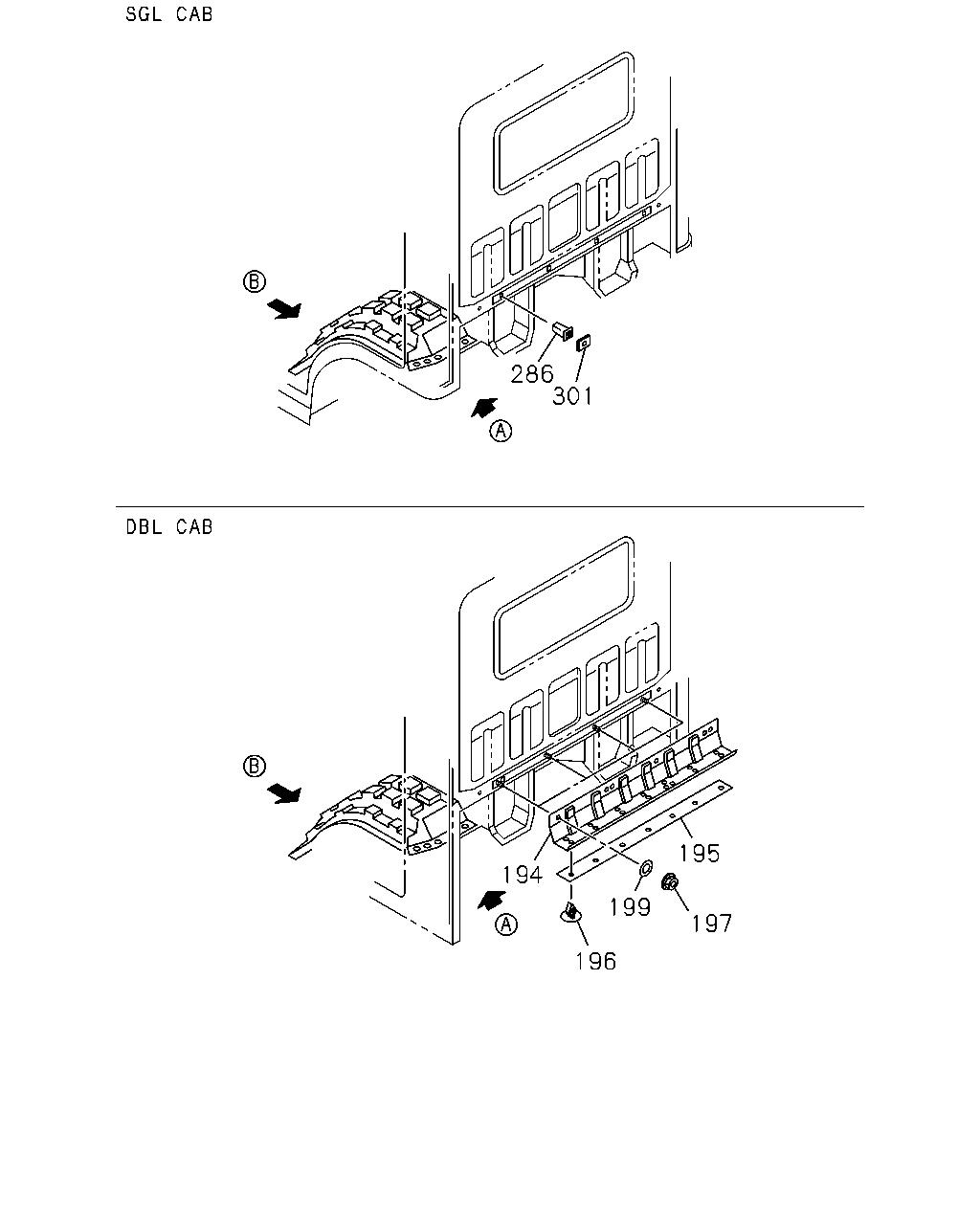

çizim 13557
286 301 195 194 199 197 196
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
194 03.602 BRACKET; HEAT PROTECTOR 8-94272-529-3 01 1 0302- ● ●
195 03.602 PROTECTOR; HEAT 8-94272-528-1 01 1 0302- ● ●
196 03.602 CLIP; HEAT PROTECTOR 8-94244-922-0 07 1 0302- ● ●
197 03.602 NUT; HEAT PROTECTOR,CAB BACK
03.417 M6 FLANGE 		8-94279-514-0 04 1 0302- ● ●
199 03.602 WASHER; PL,HEAT PROTECTOR 8-94292-135-0 04 1 0302- ● ●
286 08.155 GROMMET; SCREW,HEAT PROTECTOR 8-97994-312-0 04 1 0302-0506 ● ● ● ● ●
286 08.155 GROMMET; SCREW,HEAT PROTECTOR 8-97994-312-0 04 1 0507- ● ● ● ●
301 08.155 HOLDER; HEAT PROTECTOR 8-97994-313-0 04 1 0302-0506 ● ● ● ● ●
301 08.155 HOLDER; HEAT PROTECTOR 8-97994-313-0 04 1 0507- ● ● ● ●

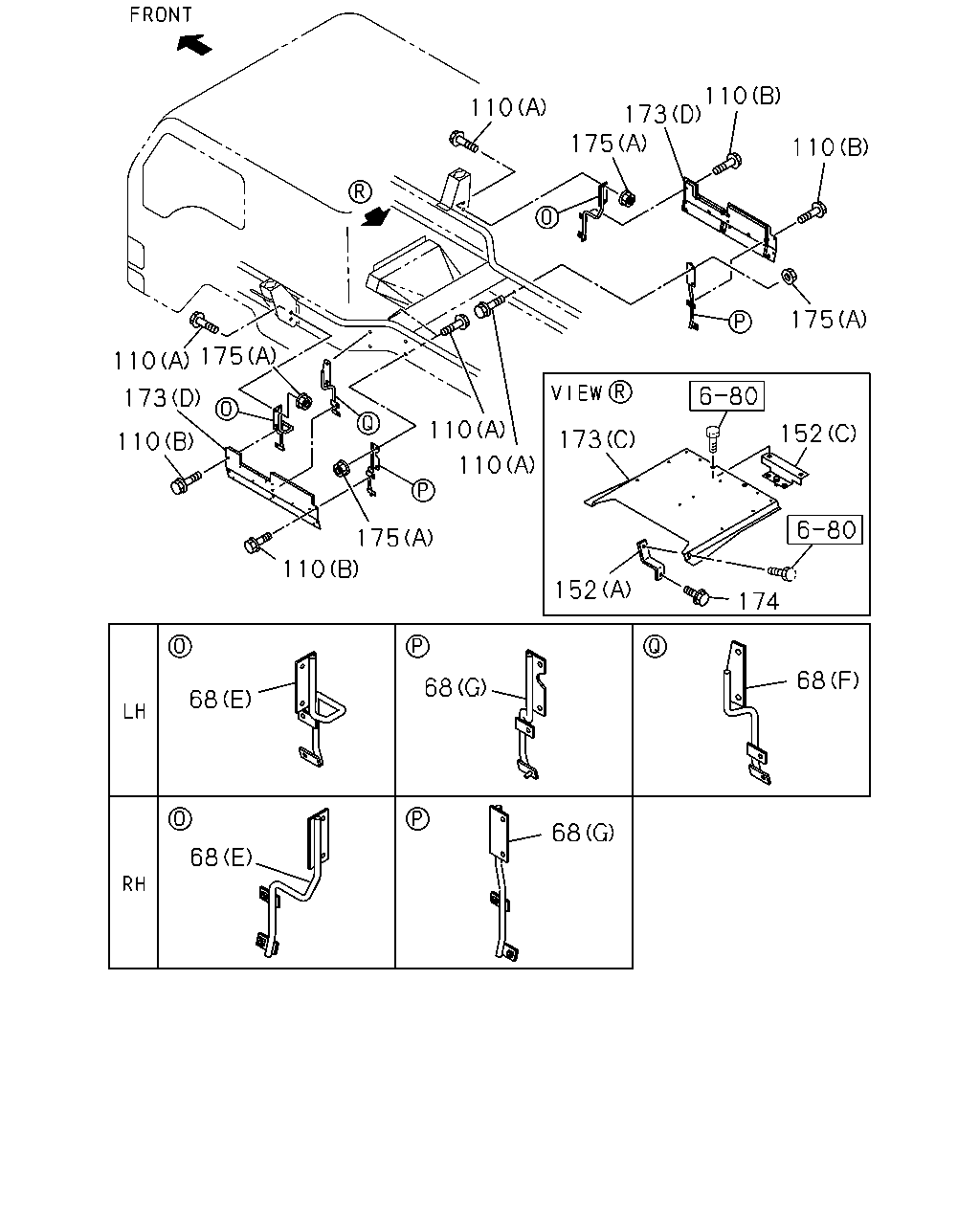

çizim 51527
110 173 175 110 110 175 175 110 173 110 152 173 110 110 175 110 152 174 68 68 68 68 68
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
68 08.155 STAY; COVER
4HE1 ENG(RLY) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> 16.549 (A) 		8-97180-878-0 01 1 0302-0506 ● ● ● ● ● ● ●
68 08.155 STAY; COVER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 16.549 (A) 		8-97180-878-0 01 1 0507-0507 ● ● ● ●
68 08.155 STAY; COVER
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 16.549 (A) 		8-97180-878-0 01 1 0507-0606 ● ● ● ●
68 08.155 STAY; COVER
4HK1-TCC ENG(RDV) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 16.549 (A) 		8-97180-878-0 01 1 0607- ● ● ● ●
68 08.155 STAY; COVER
4HE1 ENG(RLY) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> 16.549 (D) 		8-97180-983-1 01 1 0302-0506 ● ● ● ● ● ● ●
68 08.155 STAY; COVER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 16.549 (D) 		8-97180-983-1 01 1 0507-0507 ● ● ● ●
68 08.155 STAY; COVER
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 16.549 (D) 		8-97180-983-1 01 1 0507-0606 ● ● ● ●
68 08.155 STAY; COVER
4HK1-TCC ENG(RDV) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 16.549 (D) 		8-97180-983-1 01 1 0607- ● ● ● ●
68 08.155 STAY; COVER
4HE1 ENG(RLY) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> (C) 		8-97216-695-2 01 1 0302-0506 ● ● ● ● ● ● ●
68 08.155 STAY; COVER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-97216-695-2 01 1 0507-0507 ● ● ● ●
68 08.155 STAY; COVER
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-97216-695-2 01 1 0507-0606 ● ● ● ●
68 08.155 STAY; COVER
4HK1-TCC ENG(RDV) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-97216-695-2 01 1 0607- ● ● ● ●
68 08.155 STAY; COVER
4HE1 ENG(RLY) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> 16.549 (A) 		8-97180-879-0 01 1 0302-0506 ● ● ● ● ● ● ●
68 08.155 STAY; COVER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 16.549 (A) 		8-97180-879-0 01 1 0507-0507 ● ● ● ●
68 08.155 STAY; COVER
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 16.549 (A) 		8-97180-879-0 01 1 0507-0606 ● ● ● ●
68 08.155 STAY; COVER
4HK1-TCC ENG(RDV) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98043-476-0 01 1 0607- ● ● ● ●
68 08.155 STAY; COVER
4HE1 ENG(RLY) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> 16.549 (B) 		8-97180-880-0 01 1 0302-0506 ● ● ● ● ● ● ●
68 08.155 STAY; COVER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 16.549 (B) 		8-97180-880-0 01 1 0507-0507 ● ● ● ●
68 08.155 STAY; COVER
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 16.549 (B) 		8-97180-880-0 01 1 0507-0606 ● ● ● ●
68 08.155 STAY; COVER
4HK1-TCC ENG(RDV) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 16.549 (B) 		8-97180-880-0 01 1 0607- ● ● ● ●
68 08.155 STAY; COVER
4HE1 ENG(RLY) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> 16.549 (D) 		8-97180-984-1 01 1 0302-0506 ● ● ● ● ● ● ●
68 08.155 STAY; COVER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 16.549 (D) 		8-97180-984-1 01 1 0507-0507 ● ● ● ●
68 08.155 STAY; COVER
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 16.549 (D) 		8-97180-984-1 01 1 0507-0606 ● ● ● ●
68 08.155 STAY; COVER
4HK1-TCC ENG(RDV) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 16.549 (D) 		8-97180-984-1 01 1 0607- ● ● ● ●
68 08.155 STAY; COVER
4JH1 ENG(RJX) M/T MYY5T(RSM) EXC. FRAME STRAIGHT TYPE<7KJ> (F) 		8-97260-030-1 01 1 0302-0506 ● ● ●
68 08.155 STAY; COVER
4JH1-TC ENG(RDM) M/T MYY5T(RSM) (F) 		8-97260-030-1 01 1 0507-0606 ●
68 08.155 STAY; COVER
4JH1-TC ENG(RDM) M/T MYY5T(RSM) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) (F) 		8-97260-030-1 01 1 0507-0606 ● ●
68 08.155 STAY; COVER
4JH1 ENG(RJX) M/T MYY5T(RSM) EXC. FRAME STRAIGHT TYPE<7KJ> (G) 		8-97260-031-1 01 1 0302-0506 ● ● ●
68 08.155 STAY; COVER
4JH1-TC ENG(RDM) M/T MYY5T(RSM) (G) 		8-97260-031-1 01 1 0507-0606 ●
68 08.155 STAY; COVER
4JH1-TC ENG(RDM) M/T MYY5T(RSM) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) (G) 		8-97260-031-1 01 1 0507-0606 ● ●
68 08.155 STAY; COVER
4JH1 ENG(RJX) M/T MYY5T(RSM) EXC. FRAME STRAIGHT TYPE<7KJ> (E) 		8-97300-157-1 01 1 0302-0506 ● ● ●
68 08.155 STAY; COVER
4JH1-TC ENG(RDM) M/T MYY5T(RSM) (E) 		8-97300-157-1 01 1 0507-0606 ●
68 08.155 STAY; COVER
4JH1-TC ENG(RDM) M/T MYY5T(RSM) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) (E) 		8-97300-157-1 01 1 0507-0606 ● ●
68 08.155 STAY; COVER
4JH1 ENG(RJX) M/T MYY5T(RSM) EXC. FRAME STRAIGHT TYPE<7KJ> (E) 		8-97260-027-1 01 1 0302-0506 ● ● ●
68 08.155 STAY; COVER
4JH1-TC ENG(RDM) M/T MYY5T(RSM) (E) 		8-97260-027-1 01 1 0507-0606 ●
68 08.155 STAY; COVER
4JH1-TC ENG(RDM) M/T MYY5T(RSM) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) (E) 		8-97260-027-1 01 1 0507-0606 ● ●
68 08.155 STAY; COVER
4JH1 ENG(RJX) M/T MYY5T(RSM) EXC. FRAME STRAIGHT TYPE<7KJ> (G) 		8-97260-029-1 01 1 0302-0506 ● ● ●
68 08.155 STAY; COVER
4JH1-TC ENG(RDM) M/T MYY5T(RSM) (G) 		8-97260-029-1 01 1 0507-0606 ●
68 08.155 STAY; COVER
4JH1-TC ENG(RDM) M/T MYY5T(RSM) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) (G) 		8-97260-029-1 01 1 0507-0606 ● ●
110 08.155 BOLT; BRKT
4JH1 ENG(RJX) M/T MYY5T(RSM) EXC. FRAME STRAIGHT TYPE<7KJ> 03.405 (B) M10X30 FLANGE 		0-28681-030-0 08 1 0302-0506 ● ●
110 08.155 BOLT; BRKT
4JH1-TC ENG(RDM) M/T MYY5T(RSM) 03.405 (B) M10X30 FLANGE 		0-28681-030-0 08 1 0507-0512 ●
110 08.155 BOLT; BRKT
4JH1-TC ENG(RDM) M/T MYY5T(RSM) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 03.405 (B) M10X30 FLANGE 		0-28681-030-0 08 1 0507-0512 ●
110 08.155 BOLT; BRKT
4JH1-TC ENG(RDM) M/T MYY5T(RSM) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 00.029 (B) M10X30 FLANGE 		0-28651-030-0 08 1 0601-0606 ● ●
110 08.155 BOLT; BRKT
4HE1 ENG(RLY) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> 02.559 (A) M8X25 FLANGE 		0-28680-825-0 09 1 0302-0506 ● ● ● ● ● ● ●
110 08.155 BOLT; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 02.559 (A) M8X25 FLANGE 		0-28680-825-0 09 1 0507-0507 ● ● ● ●
110 08.155 BOLT; BRKT
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 02.559 (A) M8X25 FLANGE 		0-28680-825-0 09 1 0507-0512 ● ● ● ●
110 08.155 BOLT; BRKT
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 06.216 (A) M8X25 FLANGE 		0-28650-825-0 09 1 0601-0606 ● ● ● ●
110 08.155 BOLT; BRKT
4HK1-TCC ENG(RDV) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 06.216 (A) M8X25 FLANGE 		0-28650-825-0 09 1 0607- ● ● ● ●
110 08.155 BOLT; BRKT
4HE1 ENG(RLY) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> 03.405 (B) M10X30 FLANGE 		0-28681-030-0 10 1 0302-0506 ● ● ● ● ● ● ●
110 08.155 BOLT; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.405 (B) M10X30 FLANGE 		0-28681-030-0 10 1 0507-0507 ● ● ● ●
110 08.155 BOLT; BRKT
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.405 (B) M10X30 FLANGE 		0-28681-030-0 10 1 0507-0512 ● ● ● ●
110 08.155 BOLT; BRKT
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 00.029 (B) M10X30 FLANGE 		0-28651-030-0 10 1 0601-0606 ● ● ● ●
110 08.155 BOLT; BRKT
4HK1-TCC ENG(RDV) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 00.029 (B) M10X30 FLANGE 		0-28651-030-0 10 1 0607- ● ● ● ●
110 08.155 BOLT; BRKT
4JH1 ENG(RJX) M/T MYY5T(RSM) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (A) M8X25 FLANGE 		0-28680-825-0 15 1 0302-0506 ● ● ●
110 08.155 BOLT; BRKT
4JH1-TC ENG(RDM) M/T MYY5T(RSM) 02.559 (A) M8X25 FLANGE 		0-28680-825-0 15 1 0507-0512 ●
110 08.155 BOLT; BRKT
4JH1-TC ENG(RDM) M/T MYY5T(RSM) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 02.559 (A) M8X25 FLANGE 		0-28680-825-0 15 1 0507-0512 ● ●
110 08.155 BOLT; BRKT
4JH1-TC ENG(RDM) M/T MYY5T(RSM) 06.216 (A) M8X25 FLANGE 		0-28650-825-0 15 1 0601-0606 ●
110 08.155 BOLT; BRKT
4JH1-TC ENG(RDM) M/T MYY5T(RSM) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 06.216 (A) M8X25 FLANGE 		0-28650-825-0 15 1 0601-0606 ● ●
110 08.155 BOLT; BRKT
4JH1 ENG(RJX) M/T MYY5T(RSM) EXC. FRAME STRAIGHT TYPE<7KJ> 03.405 (B) M10X30 FLANGE 		0-28681-030-0 06 1 0302-0506 ●
110 08.155 BOLT; BRKT
4JH1-TC ENG(RDM) M/T MYY5T(RSM) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 03.405 (B) M10X30 FLANGE 		0-28681-030-0 06 1 0507-0512 ●
110 08.155 BOLT; BRKT
4JH1-TC ENG(RDM) M/T MYY5T(RSM) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 00.029 (B) M10X30 FLANGE 		0-28651-030-0 06 1 0601-0606 ●
152 04.275 BRACKET; PANEL,TRANS
4JH1 ENG(RJX) M/T MYY5T(RSM) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97225-329-0 01 1 0302-0506 ● ●
152 04.275 BRACKET; PANEL,TRANS
4JH1-TC ENG(RDM) M/T MYY5T(RSM) (A) 		8-97225-329-0 01 1 0507-0606 ●
152 04.275 BRACKET; PANEL,TRANS
4JH1-TC ENG(RDM) M/T MYY5T(RSM) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97225-329-0 01 1 0507-0606 ●
152 04.275 BRACKET; PANEL,TRANS
4JH1 ENG(RJX) M/T MYY5T(RSM) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97207-757-0 01 1 0302-0506 ● ●
152 04.275 BRACKET; PANEL,TRANS
4JH1-TC ENG(RDM) M/T MYY5T(RSM) (A) 		8-97207-757-0 01 1 0507-0606 ●
152 04.275 BRACKET; PANEL,TRANS
4JH1-TC ENG(RDM) M/T MYY5T(RSM) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97207-757-0 01 1 0507-0606 ●

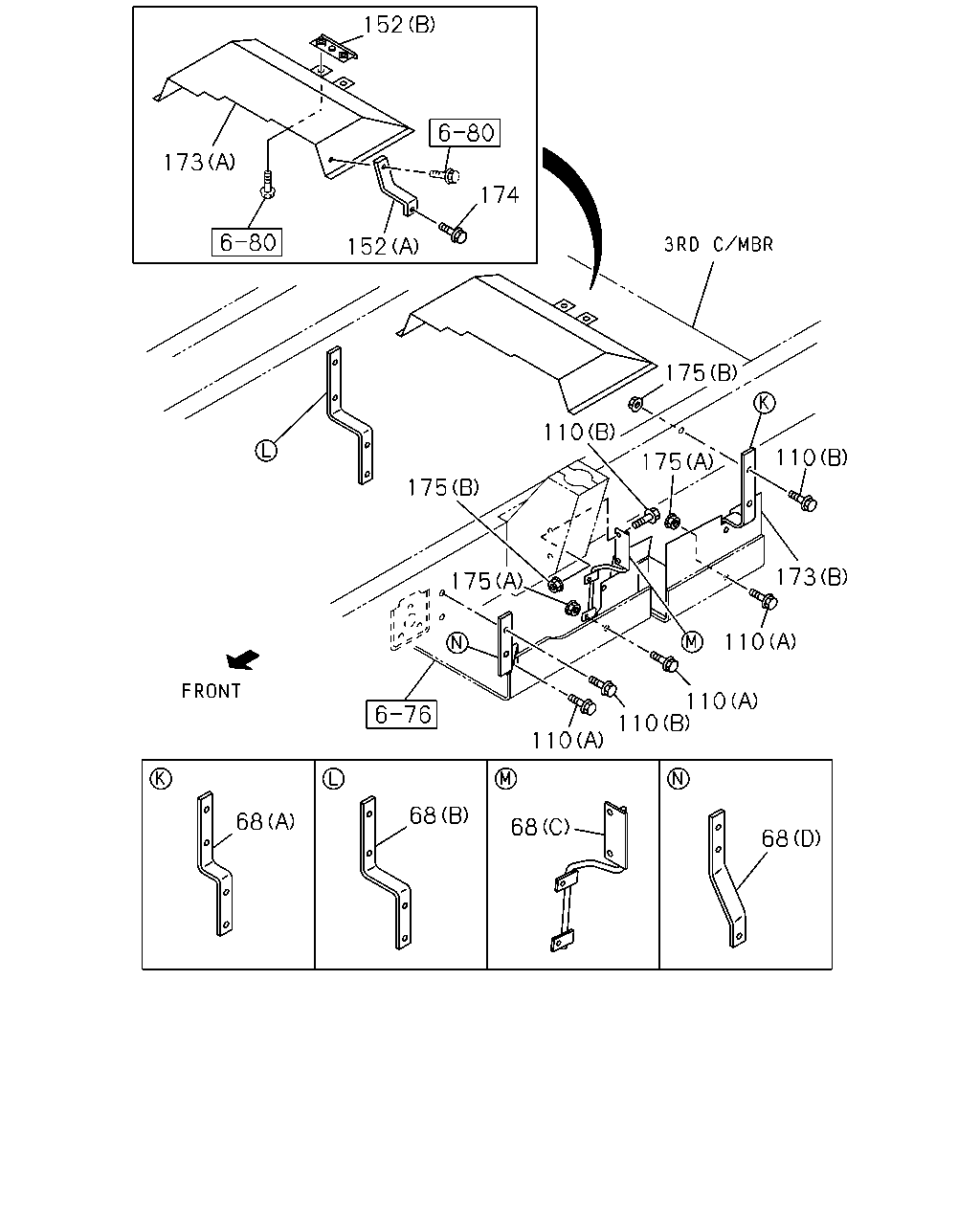

152 04.275 BRACKET; PANEL,TRANS
4HE1 ENG(RLY) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> 16.545 (A) 		8-97180-799-0 01 1 0302-0506 ● ● ● ● ● ● ●
152 04.275 BRACKET; PANEL,TRANS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 16.545 (A) 		8-97180-799-0 01 1 0507-0507 ● ● ● ●
152 04.275 BRACKET; PANEL,TRANS
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 16.545 (A) 		8-97180-799-0 01 1 0507-0606 ● ● ● ●
152 04.275 BRACKET; PANEL,TRANS
4HK1-TCC ENG(RDV) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 16.545 (A) 		8-97180-799-0 01 1 0607-0609 ● ● ● ●
152 04.275 BRACKET; PANEL,TRANS
4HK1-TCC ENG(RDV) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 16.545 (A) 		8-97180-799-0 01 1 0610- ● ● ●
152 04.275 BRACKET; PANEL,TRANS
4HE1 ENG(RLY) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> 16.545 (A) 		8-97180-800-0 01 1 0302-0506 ● ● ● ● ● ● ●
152 04.275 BRACKET; PANEL,TRANS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 16.545 (A) 		8-97180-800-0 01 1 0507-0507 ●
152 04.275 BRACKET; PANEL,TRANS
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 16.545 (A) 		8-97180-800-0 01 1 0507-0606 ●
152 04.275 BRACKET; PANEL,TRANS
4HK1-TCC ENG(RDV) M/T MZZ6F(RSR) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 16.545 (A) 		8-97180-800-0 01 1 0607- ●
152 04.275 BRACKET; PANEL,TRANS
4JH1 ENG(RJX) M/T MYY5T(RSM) EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-97327-321-1 01 1 0302-0506 ● ● ●
152 04.275 BRACKET; PANEL,TRANS
4JH1-TC ENG(RDM) M/T MYY5T(RSM) (C) 		8-97327-321-1 01 1 0507-0606 ●
152 04.275 BRACKET; PANEL,TRANS
4JH1-TC ENG(RDM) M/T MYY5T(RSM) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-97327-321-1 01 1 0507-0606 ● ●
152 04.275 BRACKET; PANEL,TRANS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98020-077-0 01 1 0507-0507 ● ● ●
152 04.275 BRACKET; PANEL,TRANS
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98020-077-0 01 1 0507-0606 ● ● ●
152 04.275 BRACKET; PANEL,TRANS
4HK1-TCC ENG(RDV) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98020-077-0 01 1 0607- ● ● ●
152 04.275 BRACKET; PANEL,TRANS
4JH1 ENG(RJX) M/T MYY5T(RSM) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97287-307-1 01 1 0302-0506 ●
152 04.275 BRACKET; PANEL,TRANS
4JH1-TC ENG(RDM) M/T MYY5T(RSM) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97287-307-1 01 1 0507-0606 ●
152 04.275 BRACKET; PANEL,TRANS
4JH1 ENG(RJX) M/T MYY5T(RSM) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97287-306-1 01 1 0302-0506 ●
152 04.275 BRACKET; PANEL,TRANS
4JH1-TC ENG(RDM) M/T MYY5T(RSM) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97287-306-1 01 1 0507-0606 ●
152 04.275 BRACKET; PANEL,TRANS
4HE1 ENG(RLY) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> (B) 		8-97304-652-0 01 1 0302-0506 ● ●
152 04.275 BRACKET; PANEL,TRANS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97304-652-0 01 1 0507-0507 ●
152 04.275 BRACKET; PANEL,TRANS
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97304-652-0 01 1 0507-0606 ●
152 04.275 BRACKET; PANEL,TRANS
4HK1-TCC ENG(RDV) M/T MZZ6F(RSR) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97304-652-0 01 1 0607-0609 ●
152 04.275 BRACKET; PANEL,TRANS
4HK1-TCC ENG(RDV) M/T MZZ6F(RSR) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98061-725-0 01 1 0610- ●
173 08.155 COVER; TRANS SIDE
4JH1 ENG(RJX) M/T MYY5T(RSM) EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-97327-319-0 01 1 0302-0506 ● ●
173 08.155 COVER; TRANS SIDE
4JH1-TC ENG(RDM) M/T MYY5T(RSM) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-97327-319-1 01 1 0507-0606 ● ●
173 08.155 COVER; TRANS SIDE
4HE1 ENG(RLY) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> (A) 		8-97180-795-2 01 1 0302-0506 ● ● ● ● ●
173 08.155 COVER; TRANS SIDE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97180-795-2 01 1 0507-0507 ● ● ●
173 08.155 COVER; TRANS SIDE
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97180-795-2 01 1 0507-0606 ● ● ●
173 08.155 COVER; TRANS SIDE
4HK1-TCC ENG(RDV) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98042-523-0 01 1 0607- ● ● ●
173 08.155 COVER; TRANS SIDE
4HE1 ENG(RLY) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> (B) 		8-97205-594-0 01 1 0302-0506 ● ● ● ● ● ● ●
173 08.155 COVER; TRANS SIDE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97205-594-0 01 1 0507-0507 ● ● ● ●
173 08.155 COVER; TRANS SIDE
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97205-594-0 01 1 0507-0606 ● ● ● ●
173 08.155 COVER; TRANS SIDE
4HK1-TCC ENG(RDV) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97205-594-0 01 1 0607- ● ● ● ●
173 08.155 COVER; TRANS SIDE
4HE1 ENG(RLY) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> (B) 		8-97205-593-0 01 1 0302-0506 ● ● ● ● ● ● ●
173 08.155 COVER; TRANS SIDE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97205-593-0 01 1 0507-0507 ● ● ● ●
173 08.155 COVER; TRANS SIDE
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97205-593-0 01 1 0507-0606 ● ● ● ●
173 08.155 COVER; TRANS SIDE
4HK1-TCC ENG(RDV) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98032-813-0 01 1 0607- ● ● ● ●
173 08.155 COVER; TRANS SIDE
4JH1 ENG(RJX) M/T MYY5T(RSM) EXC. FRAME STRAIGHT TYPE<7KJ> (D) 		8-97300-155-0 01 1 0302-0506 ● ● ●
173 08.155 COVER; TRANS SIDE
4JH1-TC ENG(RDM) M/T MYY5T(RSM) (D) 		8-97300-155-1 01 1 0507-0606 ●
173 08.155 COVER; TRANS SIDE
4JH1-TC ENG(RDM) M/T MYY5T(RSM) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-97300-155-1 01 1 0507-0606 ● ●
173 08.155 COVER; TRANS SIDE
4JH1 ENG(RJX) M/T MYY5T(RSM) EXC. FRAME STRAIGHT TYPE<7KJ> (D) 		8-97300-297-0 01 1 0302-0506 ● ● ●
173 08.155 COVER; TRANS SIDE
4JH1-TC ENG(RDM) M/T MYY5T(RSM) (D) 		8-97300-297-1 01 1 0507-0606 ●
173 08.155 COVER; TRANS SIDE
4JH1-TC ENG(RDM) M/T MYY5T(RSM) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-97300-297-1 01 1 0507-0606 ● ●
173 08.155 COVER; TRANS SIDE
4JH1 ENG(RJX) M/T MYY5T(RSM) EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-97327-415-0 01 1 0302-0506 ●
173 08.155 COVER; TRANS SIDE
4JH1-TC ENG(RDM) M/T MYY5T(RSM) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-97327-415-1 01 1 0507-0606 ●
173 08.155 COVER; TRANS SIDE
4HE1 ENG(RLY) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> (A) 		8-97305-494-1 01 1 0302-0505 ● ●
173 08.155 COVER; TRANS SIDE
4HE1 ENG(RLY) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> (A) 		8-98021-289-0 01 1 0506-0506 ● ●
173 08.155 COVER; TRANS SIDE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98021-289-0 01 1 0507-0507 ●
173 08.155 COVER; TRANS SIDE
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98021-289-0 01 1 0507-0606 ●
173 08.155 COVER; TRANS SIDE
4HK1-TCC ENG(RDV) M/T MZZ6F(RSR) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98021-289-0 01 1 0607- ●
174 08.155 BOLT; STAY FIX
4HE1 ENG(RLY) M/T MZZ6F(RSR) 02.559 M8X25 FLANGE 		0-28680-825-0 02 1 0302-0506 ● ● ● ● ● ● ●
174 08.155 BOLT; STAY FIX
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 02.559 M8X25 FLANGE 		0-28680-825-0 02 1 0507-0507 ● ● ● ●
174 08.155 BOLT; STAY FIX
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 02.559 M8X25 FLANGE 		0-28680-825-0 02 1 0507-0512 ● ● ● ●
174 08.155 BOLT; STAY FIX
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 0601-0606 ● ● ● ●
174 08.155 BOLT; STAY FIX
4HK1-TCC ENG(RDV) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 0607- ● ● ● ●
174 08.155 BOLT; STAY FIX
4HE1 ENG(RLY) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> 03.405 M10X25 FLANGE 		0-28681-025-0 02 1 0302-0506 ● ● ● ● ● ● ●
174 08.155 BOLT; STAY FIX
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.405 M10X25 FLANGE 		0-28681-025-0 02 1 0507-0507 ● ● ● ●
174 08.155 BOLT; STAY FIX
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.405 M10X25 FLANGE 		0-28681-025-0 02 1 0507-0512 ● ● ● ●
174 08.155 BOLT; STAY FIX
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 00.029 M10X25 FLANGE 		0-28651-025-0 02 1 0601-0606 ● ● ● ●
174 08.155 BOLT; STAY FIX
4HK1-TCC ENG(RDV) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 00.029 M10X25 FLANGE 		0-28651-025-0 02 1 0607- ● ● ● ●
174 08.155 BOLT; STAY FIX
4JH1 ENG(RJX) M/T MYY5T(RSM) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0302-0506 ● ● ●
174 08.155 BOLT; STAY FIX
4JH1-TC ENG(RDM) M/T MYY5T(RSM) 02.559 M8X25 FLANGE 		0-28680-825-0 03 1 0507-0512 ●
174 08.155 BOLT; STAY FIX
4JH1-TC ENG(RDM) M/T MYY5T(RSM) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 02.559 M8X25 FLANGE 		0-28680-825-0 03 1 0507-0512 ● ●
174 08.155 BOLT; STAY FIX
4JH1-TC ENG(RDM) M/T MYY5T(RSM) 06.216 M8X25 FLANGE 		0-28650-825-0 03 1 0601-0606 ●
174 08.155 BOLT; STAY FIX
4JH1-TC ENG(RDM) M/T MYY5T(RSM) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 06.216 M8X25 FLANGE 		0-28650-825-0 03 1 0601-0606 ● ●
175 08.155 NUT; STAY FIX
4HE1 ENG(RLY) M/T MZZ6F(RSR) 04.785 (B) M10 FLANGE 		0-91150-110-0 06 1 0302-0506 ● ● ● ● ● ● ●
175 08.155 NUT; STAY FIX
4JH1-TC ENG(RDM) M/T MYY5T(RSM) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 04.785 (B) M10 FLANGE 		0-91150-110-0 06 1 0507-0507 ● ● ●
175 08.155 NUT; STAY FIX
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.785 (B) M10 FLANGE 		0-91150-110-0 06 1 0507-0507 ● ● ● ●
175 08.155 NUT; STAY FIX
4JH1-TC ENG(RDM) M/T MYY5T(RSM) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 04.785 (B) M10 FLANGE 		0-91150-110-0 06 1 0507-0602 ● ● ●
175 08.155 NUT; STAY FIX
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.785 (B) M10 FLANGE 		0-91150-110-0 06 1 0507-0602 ● ● ● ●
175 08.155 NUT; STAY FIX
4JH1-TC ENG(RDM) M/T MYY5T(RSM) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M10 FLANGE 		0-91180-110-0 06 1 0603-0606 ● ● ●
175 08.155 NUT; STAY FIX
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M10 FLANGE 		0-91180-110-0 06 1 0603-0606 ● ● ● ●
175 08.155 NUT; STAY FIX
4HK1-TCC ENG(RDV) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M10 FLANGE 		0-91180-110-0 06 1 0607- ● ● ● ●
175 08.155 NUT; STAY FIX
4HE1 ENG(RLY) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> 07.633 (A) M8 FLANGE 		0-91150-108-0 03 1 0302-0506 ● ● ● ● ● ● ●
175 08.155 NUT; STAY FIX
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 07.633 (A) M8 FLANGE 		0-91150-108-0 03 1 0507-0507 ● ● ● ●
175 08.155 NUT; STAY FIX
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 07.633 (A) M8 FLANGE 		0-91150-108-0 03 1 0507-0602 ● ● ● ●
175 08.155 NUT; STAY FIX
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 (A) M8 FLANGE 		0-91180-108-0 03 1 0603-0606 ● ● ● ●
175 08.155 NUT; STAY FIX
4HK1-TCC ENG(RDV) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 (A) M8 FLANGE 		0-91180-108-0 03 1 0607- ● ● ● ●
175 08.155 NUT; STAY FIX
4JH1 ENG(RJX) M/T MYY5T(RSM) EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 (A) M8 FLANGE 		0-91150-108-0 05 1 0302-0506 ● ● ●
175 08.155 NUT; STAY FIX
4JH1-TC ENG(RDM) M/T MYY5T(RSM) 07.633 (A) M8 FLANGE 		0-91150-108-0 05 1 0507-0602 ●
175 08.155 NUT; STAY FIX
4JH1-TC ENG(RDM) M/T MYY5T(RSM) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 07.633 (A) M8 FLANGE 		0-91150-108-0 05 1 0507-0602 ● ●
175 08.155 NUT; STAY FIX
4JH1-TC ENG(RDM) M/T MYY5T(RSM) 01.062 (A) M8 FLANGE 		0-91180-108-0 05 1 0603-0606 ●
175 08.155 NUT; STAY FIX
4JH1-TC ENG(RDM) M/T MYY5T(RSM) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 (A) M8 FLANGE 		0-91180-108-0 05 1 0603-0606 ● ●

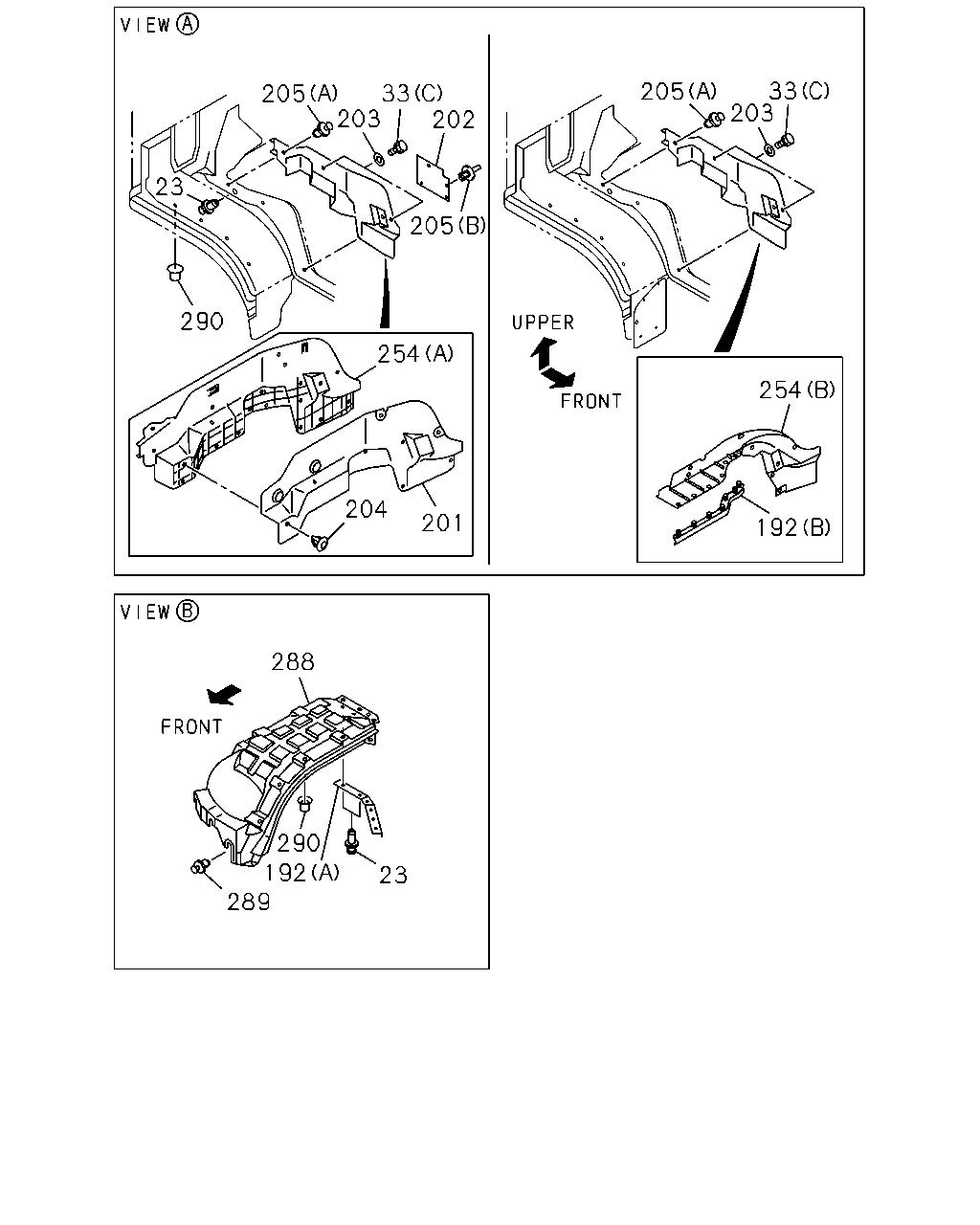

çizim 52727
33 203 205 33 203 202 205 23 205 290 254 254 204 201 192 288 290 192 289 23
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
23 08.154 FASTENER; MUD COVER
16.320 OD=8.3 		8-97997-832-0 06 1 0302-0506 ● ● ● ● ● ● ●
23 08.154 FASTENER; MUD COVER
4JH1-TC ENG(RDM) 16.320 OD=8.3 		8-97997-832-0 06 1 0507-0606 ● ● ●
23 08.154 FASTENER; MUD COVER
4JJ1 ENG(LFB) 16.320 OD=8.3 		8-97997-832-0 06 1 0607- ● ● ● ●
23 08.154 FASTENER; MUD COVER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 16.320 OD=8.3 		8-97997-832-0 10 1 0507-0606 ● ● ● ●
23 08.154 FASTENER; MUD COVER
4HK1-TCN ENG(RDQ) 16.320 OD=8.3 		8-97997-832-0 10 1 0507-0606 ●
23 08.154 FASTENER; MUD COVER
4HK1-TCC ENG(RDV) 16.320 OD=8.3 		8-97997-832-0 10 1 0607- ● ● ● ●
33 08.155 BOLT; MUD COVER
ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60) 00.738 (D) M6X16 FLANGE 		0-28080-616-0 01 1 0612-0708 ● ● ● ● ● ●
33 08.155 BOLT; MUD COVER
ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60) 09.242 (D) M6X16 FLANGE 		0-28050-616-0 01 1 0709- ● ● ● ● ● ●
33 08.155 BOLT; MUD COVER
04.785 (D) M6X16 		0-20800-616-0 02 1 0302-0506 ● ● ● ● ● ● ●
33 08.155 BOLT; MUD COVER
04.785 (D) M6X16 		0-20800-616-0 02 1 0507- ● ● ● ● ● ●
33 08.155 BOLT; MUD COVER
00.738 (D) M6X16 FLANGE 		0-28080-616-0 06 1 0302-0506 ● ● ● ● ● ● ●
33 08.155 BOLT; MUD COVER
00.738 (D) M6X16 FLANGE 		0-28080-616-0 06 1 0507-0512 ● ● ● ● ● ●
33 08.155 BOLT; MUD COVER
09.242 (D) M6X16 FLANGE 		0-28050-616-0 06 1 0601- ● ● ● ● ● ●
33 08.155 BOLT; MUD COVER
07.010 (A) M8X20 FLANGE 		0-28080-820-0 05 1 0302-0506 ● ● ● ● ● ● ●
33 08.155 BOLT; MUD COVER
07.010 (A) M8X20 FLANGE 		0-28080-820-0 05 1 0507-0512 ● ● ● ● ● ●
33 08.155 BOLT; MUD COVER
04.338 (A) M8X20 FLANGE 		0-28050-820-0 05 1 0601- ● ● ● ● ● ●
33 08.155 BOLT; MUD COVER
02.334 (C) M6X25 FLANGE 		0-28680-625-0 04 1 0302-0506 ● ● ● ● ● ● ●
33 08.155 BOLT; MUD COVER
02.334 (C) M6X25 FLANGE 		0-28680-625-0 04 1 0507-0512 ● ● ● ● ● ●
33 08.155 BOLT; MUD COVER
00.685 (C) M6X25 FLANGE 		0-28650-625-0 04 1 0601-0604 ● ● ● ● ● ●
33 08.155 BOLT; MUD COVER
(C) M6X26 W/PL WASHER 		8-98035-643-0 04 1 0605- ● ● ● ● ● ●
33 08.155 BOLT; MUD COVER
16.320 (B) M8X20 W/LK&PL WASHER 		8-94279-104-0 01 1 0302-0506 ● ● ● ● ● ● ●
33 08.155 BOLT; MUD COVER
16.320 (B) M8X20 W/LK&PL WASHER 		8-94279-104-0 01 1 0507-0805 ● ● ● ● ● ●
33 08.155 BOLT; MUD COVER
16.085 (B) M8X20 W/LK&PL WASHER 		8-97359-709-0 01 1 0806- ● ● ● ● ● ●
192 08.153 SEAL; MUD COVER
(A) 		8-97857-297-3 02 1 0302-0506 ● ● ● ● ● ● ●
192 08.153 SEAL; MUD COVER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B) 		8-97581-413-0 01 1 0507-0606 ● ● ● ●
192 08.153 SEAL; MUD COVER
4HK1-TCN ENG(RDQ) (B) 		8-97581-413-0 01 1 0507-0606 ●
192 08.153 SEAL; MUD COVER
4HK1-TCC ENG(RDV) (B) 		8-97581-413-1 01 1 0607- ● ● ● ●
192 08.153 SEAL; MUD COVER
4JJ1 ENG(LFB) (B) 		8-97899-171-1 01 1 0607- ● ● ● ●
192 08.153 SEAL; MUD COVER
4JJ1 ENG(LFB) (B) 		8-97899-170-1 01 1 0607- ● ● ● ●
192 08.153 SEAL; MUD COVER
4JH1-TC ENG(RDM) (A) 		8-97857-297-4 02 1 0507-0606 ● ● ●
192 08.153 SEAL; MUD COVER
4JJ1 ENG(LFB) (A) 		8-97857-297-4 02 1 0607-1106 ● ● ● ●
192 08.153 SEAL; MUD COVER
4JJ1 ENG(LFB) (A) 		8-98192-031-0 02 1 1107- ● ● ● ●
192 08.153 SEAL; MUD COVER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A) 		8-97896-994-1 02 1 0507-0606 ● ● ● ●
192 08.153 SEAL; MUD COVER
4HK1-TCN ENG(RDQ) (A) 		8-97896-994-1 02 1 0507-0606 ●
192 08.153 SEAL; MUD COVER
4HK1-TCC ENG(RDV) (A) 		8-97896-994-1 02 1 0607-1106 ● ● ● ●
192 08.153 SEAL; MUD COVER
4HK1-TCC ENG(RDV) (A) 		8-98192-033-0 02 1 1107- ● ● ● ●
192 08.153 SEAL; MUD COVER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B) 		8-97581-414-0 01 1 0507-0606 ● ● ● ●
192 08.153 SEAL; MUD COVER
4HK1-TCN ENG(RDQ) (B) 		8-97581-414-0 01 1 0507-0606 ●
192 08.153 SEAL; MUD COVER
4HK1-TCC ENG(RDV) (B) 		8-97581-414-1 01 1 0607- ● ● ● ●
201 08.155 INSULATOR; VALANCE
4HE1 ENG(RLY) 		8-97853-631-3 01 1 0302-0506 ● ● ● ● ● ● ●
201 08.155 INSULATOR; VALANCE
4HE1 ENG(RLY) 		8-97892-184-1 01 1 0302-0506 ● ● ● ● ● ● ●
201 08.155 INSULATOR; VALANCE
4JH1 ENG(RJX) 		8-97892-213-3 01 1 0302-0506 ● ● ●
201 08.155 INSULATOR; VALANCE
4JH1-TC ENG(RDM) 		8-97892-213-4 01 1 0507-0606 ● ● ●
201 08.155 INSULATOR; VALANCE
4JH1 ENG(RJX) 		8-97892-212-3 01 1 0302-0506 ● ● ●
201 08.155 INSULATOR; VALANCE
4JH1-TC ENG(RDM) 		8-97892-212-4 01 1 0507-0606 ● ● ●
202 08.155 RUBBER; MUD,VALANCE PANEL
4HE1 ENG(RLY) 		8-97892-185-0 01 1 0302-0506 ● ● ● ● ● ● ●
203 08.155 WASHER; PL,VALANCE
ID=6.4 OD=22 		8-94279-631-0 04 1 0302-0506 ● ● ● ● ● ● ●
203 08.155 WASHER; PL,VALANCE
ID=6.4 OD=22 		8-94279-631-0 04 1 0507-0604 ● ● ● ● ● ●
204 08.155 CLIP; VALANCE,INSULATOR
OD=18 L=17 		8-94279-702-0 14 1 0302-0308 ● ● ● ● ● ● ●
204 08.155 CLIP; VALANCE,INSULATOR
OD=18 L=17 		8-94279-702-0 12 1 0309-0506 ● ● ● ● ● ● ●
204 08.155 CLIP; VALANCE,INSULATOR
4JH1-TC ENG(RDM) OD=18 L=17 		8-94279-702-0 12 1 0507-0606 ● ● ●
205 08.155 FASTENER; MUD COVER
12.934 (A) D=5.8 SCREW & GROMMET NYLON 		8-94242-150-0 02 1 0302-0506 ● ● ● ● ● ● ●
205 08.155 FASTENER; MUD COVER
12.934 (A) D=5.8 SCREW & GROMMET NYLON 		8-94242-150-0 02 1 0507- ● ● ● ● ● ●
205 08.155 FASTENER; MUD COVER
4HE1 ENG(RLY) (B) 		5-09989-002-0 04 1 0302-0506 ● ● ● ● ● ● ●
254 08.153 COVER; MUD,VALANCE
(A) 		8-97853-359-3 01 1 0302-0506 ● ● ● ● ● ● ●
254 08.153 COVER; MUD,VALANCE
4JH1-TC ENG(RDM) (A) 		8-97853-359-3 01 1 0507-0606 ● ● ●
254 08.153 COVER; MUD,VALANCE
4HE1 ENG(RLY) (A) 		8-97892-183-0 01 1 0302-0506 ● ● ● ● ● ● ●
254 08.153 COVER; MUD,VALANCE
4JH1-TC ENG(RDM) (A) 		8-97853-358-3 01 1 0507-0606 ● ● ●
254 08.153 COVER; MUD,VALANCE
4JH1 ENG(RJX) (A) 		8-97853-358-3 01 1 0302-0506 ● ● ●
254 08.153 COVER; MUD,VALANCE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B) 		8-97899-213-4 01 1 0507-0606 ● ● ● ●
254 08.153 COVER; MUD,VALANCE
4HK1-TCN ENG(RDQ) (B) 		8-97899-213-4 01 1 0507-0606 ●
254 08.153 COVER; MUD,VALANCE
(B) 		8-97899-213-4 01 1 0607- ● ● ● ● ● ●
254 08.153 COVER; MUD,VALANCE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B) 		8-97899-214-4 01 1 0507-0606 ● ● ● ●
254 08.153 COVER; MUD,VALANCE
4HK1-TCN ENG(RDQ) (B) 		8-97899-214-4 01 1 0507-0606 ●
254 08.153 COVER; MUD,VALANCE
(B) 		8-97899-214-4 01 1 0607- ● ● ● ● ● ●
288 08.155 LINER; TIRE HOUSE 8-97581-241-0 01 1 0302-0506 ● ● ● ● ● ● ●
288 08.155 LINER; TIRE HOUSE 8-97581-241-0 01 1 0507- ● ● ● ● ● ●
288 08.155 LINER; TIRE HOUSE 8-97581-240-0 01 1 0302-0506 ● ● ● ● ● ● ●
288 08.155 LINER; TIRE HOUSE 8-97581-240-0 01 1 0507- ● ● ● ● ● ●
289 08.155 FASTENER; LINER
16.320 OD=8.3 		8-94279-989-0 18 1 0302-0506 ● ● ● ● ● ● ●
289 08.155 FASTENER; LINER
16.320 OD=8.3 		8-94279-989-0 18 1 0507- ● ● ● ● ● ●
290 08.155 NUT; LINER
CAP NUT BLACK 		8-94279-526-0 08 1 0302-0506 ● ● ● ● ● ● ●
290 08.155 NUT; LINER
CAP NUT BLACK 		8-94279-526-0 08 1 0507- ● ● ● ● ● ●
çizim 53308
152 173 174 152 175 110 175 110 175 173 175 110 110 110 110 68 68 68 68
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
68 08.155 STAY; COVER
4HE1 ENG(RLY) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> 16.549 (A) 		8-97180-878-0 01 1 0302-0506 ● ● ● ● ● ● ●
68 08.155 STAY; COVER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 16.549 (A) 		8-97180-878-0 01 1 0507-0507 ● ● ● ●
68 08.155 STAY; COVER
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 16.549 (A) 		8-97180-878-0 01 1 0507-0606 ● ● ● ●
68 08.155 STAY; COVER
4HK1-TCC ENG(RDV) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 16.549 (A) 		8-97180-878-0 01 1 0607- ● ● ● ●
68 08.155 STAY; COVER
4HE1 ENG(RLY) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> 16.549 (D) 		8-97180-983-1 01 1 0302-0506 ● ● ● ● ● ● ●
68 08.155 STAY; COVER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 16.549 (D) 		8-97180-983-1 01 1 0507-0507 ● ● ● ●
68 08.155 STAY; COVER
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 16.549 (D) 		8-97180-983-1 01 1 0507-0606 ● ● ● ●
68 08.155 STAY; COVER
4HK1-TCC ENG(RDV) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 16.549 (D) 		8-97180-983-1 01 1 0607- ● ● ● ●
68 08.155 STAY; COVER
4HE1 ENG(RLY) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> (C) 		8-97216-695-2 01 1 0302-0506 ● ● ● ● ● ● ●
68 08.155 STAY; COVER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-97216-695-2 01 1 0507-0507 ● ● ● ●
68 08.155 STAY; COVER
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-97216-695-2 01 1 0507-0606 ● ● ● ●
68 08.155 STAY; COVER
4HK1-TCC ENG(RDV) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-97216-695-2 01 1 0607- ● ● ● ●
68 08.155 STAY; COVER
4HE1 ENG(RLY) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> 16.549 (A) 		8-97180-879-0 01 1 0302-0506 ● ● ● ● ● ● ●
68 08.155 STAY; COVER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 16.549 (A) 		8-97180-879-0 01 1 0507-0507 ● ● ● ●
68 08.155 STAY; COVER
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 16.549 (A) 		8-97180-879-0 01 1 0507-0606 ● ● ● ●
68 08.155 STAY; COVER
4HK1-TCC ENG(RDV) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98043-476-0 01 1 0607- ● ● ● ●
68 08.155 STAY; COVER
4HE1 ENG(RLY) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> 16.549 (B) 		8-97180-880-0 01 1 0302-0506 ● ● ● ● ● ● ●
68 08.155 STAY; COVER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 16.549 (B) 		8-97180-880-0 01 1 0507-0507 ● ● ● ●
68 08.155 STAY; COVER
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 16.549 (B) 		8-97180-880-0 01 1 0507-0606 ● ● ● ●
68 08.155 STAY; COVER
4HK1-TCC ENG(RDV) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 16.549 (B) 		8-97180-880-0 01 1 0607- ● ● ● ●
68 08.155 STAY; COVER
4HE1 ENG(RLY) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> 16.549 (D) 		8-97180-984-1 01 1 0302-0506 ● ● ● ● ● ● ●
68 08.155 STAY; COVER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 16.549 (D) 		8-97180-984-1 01 1 0507-0507 ● ● ● ●
68 08.155 STAY; COVER
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 16.549 (D) 		8-97180-984-1 01 1 0507-0606 ● ● ● ●
68 08.155 STAY; COVER
4HK1-TCC ENG(RDV) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 16.549 (D) 		8-97180-984-1 01 1 0607- ● ● ● ●
68 08.155 STAY; COVER
4JH1 ENG(RJX) M/T MYY5T(RSM) EXC. FRAME STRAIGHT TYPE<7KJ> (F) 		8-97260-030-1 01 1 0302-0506 ● ● ●
68 08.155 STAY; COVER
4JH1-TC ENG(RDM) M/T MYY5T(RSM) (F) 		8-97260-030-1 01 1 0507-0606 ●
68 08.155 STAY; COVER
4JH1-TC ENG(RDM) M/T MYY5T(RSM) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) (F) 		8-97260-030-1 01 1 0507-0606 ● ●
68 08.155 STAY; COVER
4JH1 ENG(RJX) M/T MYY5T(RSM) EXC. FRAME STRAIGHT TYPE<7KJ> (G) 		8-97260-031-1 01 1 0302-0506 ● ● ●
68 08.155 STAY; COVER
4JH1-TC ENG(RDM) M/T MYY5T(RSM) (G) 		8-97260-031-1 01 1 0507-0606 ●
68 08.155 STAY; COVER
4JH1-TC ENG(RDM) M/T MYY5T(RSM) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) (G) 		8-97260-031-1 01 1 0507-0606 ● ●
68 08.155 STAY; COVER
4JH1 ENG(RJX) M/T MYY5T(RSM) EXC. FRAME STRAIGHT TYPE<7KJ> (E) 		8-97300-157-1 01 1 0302-0506 ● ● ●
68 08.155 STAY; COVER
4JH1-TC ENG(RDM) M/T MYY5T(RSM) (E) 		8-97300-157-1 01 1 0507-0606 ●
68 08.155 STAY; COVER
4JH1-TC ENG(RDM) M/T MYY5T(RSM) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) (E) 		8-97300-157-1 01 1 0507-0606 ● ●
68 08.155 STAY; COVER
4JH1 ENG(RJX) M/T MYY5T(RSM) EXC. FRAME STRAIGHT TYPE<7KJ> (E) 		8-97260-027-1 01 1 0302-0506 ● ● ●
68 08.155 STAY; COVER
4JH1-TC ENG(RDM) M/T MYY5T(RSM) (E) 		8-97260-027-1 01 1 0507-0606 ●
68 08.155 STAY; COVER
4JH1-TC ENG(RDM) M/T MYY5T(RSM) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) (E) 		8-97260-027-1 01 1 0507-0606 ● ●
68 08.155 STAY; COVER
4JH1 ENG(RJX) M/T MYY5T(RSM) EXC. FRAME STRAIGHT TYPE<7KJ> (G) 		8-97260-029-1 01 1 0302-0506 ● ● ●
68 08.155 STAY; COVER
4JH1-TC ENG(RDM) M/T MYY5T(RSM) (G) 		8-97260-029-1 01 1 0507-0606 ●
68 08.155 STAY; COVER
4JH1-TC ENG(RDM) M/T MYY5T(RSM) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) (G) 		8-97260-029-1 01 1 0507-0606 ● ●
110 08.155 BOLT; BRKT
4JH1 ENG(RJX) M/T MYY5T(RSM) EXC. FRAME STRAIGHT TYPE<7KJ> 03.405 (B) M10X30 FLANGE 		0-28681-030-0 08 1 0302-0506 ● ●
110 08.155 BOLT; BRKT
4JH1-TC ENG(RDM) M/T MYY5T(RSM) 03.405 (B) M10X30 FLANGE 		0-28681-030-0 08 1 0507-0512 ●
110 08.155 BOLT; BRKT
4JH1-TC ENG(RDM) M/T MYY5T(RSM) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 03.405 (B) M10X30 FLANGE 		0-28681-030-0 08 1 0507-0512 ●
110 08.155 BOLT; BRKT
4JH1-TC ENG(RDM) M/T MYY5T(RSM) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 00.029 (B) M10X30 FLANGE 		0-28651-030-0 08 1 0601-0606 ● ●
110 08.155 BOLT; BRKT
4HE1 ENG(RLY) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> 02.559 (A) M8X25 FLANGE 		0-28680-825-0 09 1 0302-0506 ● ● ● ● ● ● ●
110 08.155 BOLT; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 02.559 (A) M8X25 FLANGE 		0-28680-825-0 09 1 0507-0507 ● ● ● ●
110 08.155 BOLT; BRKT
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 02.559 (A) M8X25 FLANGE 		0-28680-825-0 09 1 0507-0512 ● ● ● ●
110 08.155 BOLT; BRKT
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 06.216 (A) M8X25 FLANGE 		0-28650-825-0 09 1 0601-0606 ● ● ● ●
110 08.155 BOLT; BRKT
4HK1-TCC ENG(RDV) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 06.216 (A) M8X25 FLANGE 		0-28650-825-0 09 1 0607- ● ● ● ●
110 08.155 BOLT; BRKT
4HE1 ENG(RLY) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> 03.405 (B) M10X30 FLANGE 		0-28681-030-0 10 1 0302-0506 ● ● ● ● ● ● ●
110 08.155 BOLT; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.405 (B) M10X30 FLANGE 		0-28681-030-0 10 1 0507-0507 ● ● ● ●
110 08.155 BOLT; BRKT
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.405 (B) M10X30 FLANGE 		0-28681-030-0 10 1 0507-0512 ● ● ● ●
110 08.155 BOLT; BRKT
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 00.029 (B) M10X30 FLANGE 		0-28651-030-0 10 1 0601-0606 ● ● ● ●
110 08.155 BOLT; BRKT
4HK1-TCC ENG(RDV) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 00.029 (B) M10X30 FLANGE 		0-28651-030-0 10 1 0607- ● ● ● ●
110 08.155 BOLT; BRKT
4JH1 ENG(RJX) M/T MYY5T(RSM) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (A) M8X25 FLANGE 		0-28680-825-0 15 1 0302-0506 ● ● ●
110 08.155 BOLT; BRKT
4JH1-TC ENG(RDM) M/T MYY5T(RSM) 02.559 (A) M8X25 FLANGE 		0-28680-825-0 15 1 0507-0512 ●
110 08.155 BOLT; BRKT
4JH1-TC ENG(RDM) M/T MYY5T(RSM) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 02.559 (A) M8X25 FLANGE 		0-28680-825-0 15 1 0507-0512 ● ●
110 08.155 BOLT; BRKT
4JH1-TC ENG(RDM) M/T MYY5T(RSM) 06.216 (A) M8X25 FLANGE 		0-28650-825-0 15 1 0601-0606 ●
110 08.155 BOLT; BRKT
4JH1-TC ENG(RDM) M/T MYY5T(RSM) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 06.216 (A) M8X25 FLANGE 		0-28650-825-0 15 1 0601-0606 ● ●
110 08.155 BOLT; BRKT
4JH1 ENG(RJX) M/T MYY5T(RSM) EXC. FRAME STRAIGHT TYPE<7KJ> 03.405 (B) M10X30 FLANGE 		0-28681-030-0 06 1 0302-0506 ●
110 08.155 BOLT; BRKT
4JH1-TC ENG(RDM) M/T MYY5T(RSM) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 03.405 (B) M10X30 FLANGE 		0-28681-030-0 06 1 0507-0512 ●
110 08.155 BOLT; BRKT
4JH1-TC ENG(RDM) M/T MYY5T(RSM) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 00.029 (B) M10X30 FLANGE 		0-28651-030-0 06 1 0601-0606 ●
152 04.275 BRACKET; PANEL,TRANS
4JH1 ENG(RJX) M/T MYY5T(RSM) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97225-329-0 01 1 0302-0506 ● ●
152 04.275 BRACKET; PANEL,TRANS
4JH1-TC ENG(RDM) M/T MYY5T(RSM) (A) 		8-97225-329-0 01 1 0507-0606 ●
152 04.275 BRACKET; PANEL,TRANS
4JH1-TC ENG(RDM) M/T MYY5T(RSM) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97225-329-0 01 1 0507-0606 ●
152 04.275 BRACKET; PANEL,TRANS
4JH1 ENG(RJX) M/T MYY5T(RSM) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97207-757-0 01 1 0302-0506 ● ●
152 04.275 BRACKET; PANEL,TRANS
4JH1-TC ENG(RDM) M/T MYY5T(RSM) (A) 		8-97207-757-0 01 1 0507-0606 ●
152 04.275 BRACKET; PANEL,TRANS
4JH1-TC ENG(RDM) M/T MYY5T(RSM) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97207-757-0 01 1 0507-0606 ●
152 04.275 BRACKET; PANEL,TRANS
4HE1 ENG(RLY) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> 16.545 (A) 		8-97180-799-0 01 1 0302-0506 ● ● ● ● ● ● ●
152 04.275 BRACKET; PANEL,TRANS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 16.545 (A) 		8-97180-799-0 01 1 0507-0507 ● ● ● ●
152 04.275 BRACKET; PANEL,TRANS
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 16.545 (A) 		8-97180-799-0 01 1 0507-0606 ● ● ● ●
152 04.275 BRACKET; PANEL,TRANS
4HK1-TCC ENG(RDV) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 16.545 (A) 		8-97180-799-0 01 1 0607-0609 ● ● ● ●
152 04.275 BRACKET; PANEL,TRANS
4HK1-TCC ENG(RDV) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 16.545 (A) 		8-97180-799-0 01 1 0610- ● ● ●
152 04.275 BRACKET; PANEL,TRANS
4HE1 ENG(RLY) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> 16.545 (A) 		8-97180-800-0 01 1 0302-0506 ● ● ● ● ● ● ●
152 04.275 BRACKET; PANEL,TRANS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 16.545 (A) 		8-97180-800-0 01 1 0507-0507 ●
152 04.275 BRACKET; PANEL,TRANS
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 16.545 (A) 		8-97180-800-0 01 1 0507-0606 ●
152 04.275 BRACKET; PANEL,TRANS
4HK1-TCC ENG(RDV) M/T MZZ6F(RSR) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 16.545 (A) 		8-97180-800-0 01 1 0607- ●
152 04.275 BRACKET; PANEL,TRANS
4JH1 ENG(RJX) M/T MYY5T(RSM) EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-97327-321-1 01 1 0302-0506 ● ● ●
152 04.275 BRACKET; PANEL,TRANS
4JH1-TC ENG(RDM) M/T MYY5T(RSM) (C) 		8-97327-321-1 01 1 0507-0606 ●
152 04.275 BRACKET; PANEL,TRANS
4JH1-TC ENG(RDM) M/T MYY5T(RSM) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-97327-321-1 01 1 0507-0606 ● ●
152 04.275 BRACKET; PANEL,TRANS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98020-077-0 01 1 0507-0507 ● ● ●
152 04.275 BRACKET; PANEL,TRANS
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98020-077-0 01 1 0507-0606 ● ● ●
152 04.275 BRACKET; PANEL,TRANS
4HK1-TCC ENG(RDV) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98020-077-0 01 1 0607- ● ● ●
152 04.275 BRACKET; PANEL,TRANS
4JH1 ENG(RJX) M/T MYY5T(RSM) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97287-307-1 01 1 0302-0506 ●
152 04.275 BRACKET; PANEL,TRANS
4JH1-TC ENG(RDM) M/T MYY5T(RSM) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97287-307-1 01 1 0507-0606 ●
152 04.275 BRACKET; PANEL,TRANS
4JH1 ENG(RJX) M/T MYY5T(RSM) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97287-306-1 01 1 0302-0506 ●
152 04.275 BRACKET; PANEL,TRANS
4JH1-TC ENG(RDM) M/T MYY5T(RSM) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97287-306-1 01 1 0507-0606 ●
152 04.275 BRACKET; PANEL,TRANS
4HE1 ENG(RLY) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> (B) 		8-97304-652-0 01 1 0302-0506 ● ●
152 04.275 BRACKET; PANEL,TRANS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97304-652-0 01 1 0507-0507 ●
152 04.275 BRACKET; PANEL,TRANS
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97304-652-0 01 1 0507-0606 ●
152 04.275 BRACKET; PANEL,TRANS
4HK1-TCC ENG(RDV) M/T MZZ6F(RSR) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97304-652-0 01 1 0607-0609 ●
152 04.275 BRACKET; PANEL,TRANS
4HK1-TCC ENG(RDV) M/T MZZ6F(RSR) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98061-725-0 01 1 0610- ●
173 08.155 COVER; TRANS SIDE
4JH1 ENG(RJX) M/T MYY5T(RSM) EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-97327-319-0 01 1 0302-0506 ● ●
173 08.155 COVER; TRANS SIDE
4JH1-TC ENG(RDM) M/T MYY5T(RSM) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-97327-319-1 01 1 0507-0606 ● ●
173 08.155 COVER; TRANS SIDE
4HE1 ENG(RLY) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> (A) 		8-97180-795-2 01 1 0302-0506 ● ● ● ● ●
173 08.155 COVER; TRANS SIDE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97180-795-2 01 1 0507-0507 ● ● ●
173 08.155 COVER; TRANS SIDE
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97180-795-2 01 1 0507-0606 ● ● ●
173 08.155 COVER; TRANS SIDE
4HK1-TCC ENG(RDV) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98042-523-0 01 1 0607- ● ● ●
173 08.155 COVER; TRANS SIDE
4HE1 ENG(RLY) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> (B) 		8-97205-594-0 01 1 0302-0506 ● ● ● ● ● ● ●
173 08.155 COVER; TRANS SIDE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97205-594-0 01 1 0507-0507 ● ● ● ●
173 08.155 COVER; TRANS SIDE
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97205-594-0 01 1 0507-0606 ● ● ● ●
173 08.155 COVER; TRANS SIDE
4HK1-TCC ENG(RDV) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97205-594-0 01 1 0607- ● ● ● ●
173 08.155 COVER; TRANS SIDE
4HE1 ENG(RLY) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> (B) 		8-97205-593-0 01 1 0302-0506 ● ● ● ● ● ● ●
173 08.155 COVER; TRANS SIDE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97205-593-0 01 1 0507-0507 ● ● ● ●
173 08.155 COVER; TRANS SIDE
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97205-593-0 01 1 0507-0606 ● ● ● ●
173 08.155 COVER; TRANS SIDE
4HK1-TCC ENG(RDV) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98032-813-0 01 1 0607- ● ● ● ●
173 08.155 COVER; TRANS SIDE
4JH1 ENG(RJX) M/T MYY5T(RSM) EXC. FRAME STRAIGHT TYPE<7KJ> (D) 		8-97300-155-0 01 1 0302-0506 ● ● ●
173 08.155 COVER; TRANS SIDE
4JH1-TC ENG(RDM) M/T MYY5T(RSM) (D) 		8-97300-155-1 01 1 0507-0606 ●
173 08.155 COVER; TRANS SIDE
4JH1-TC ENG(RDM) M/T MYY5T(RSM) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-97300-155-1 01 1 0507-0606 ● ●
173 08.155 COVER; TRANS SIDE
4JH1 ENG(RJX) M/T MYY5T(RSM) EXC. FRAME STRAIGHT TYPE<7KJ> (D) 		8-97300-297-0 01 1 0302-0506 ● ● ●
173 08.155 COVER; TRANS SIDE
4JH1-TC ENG(RDM) M/T MYY5T(RSM) (D) 		8-97300-297-1 01 1 0507-0606 ●
173 08.155 COVER; TRANS SIDE
4JH1-TC ENG(RDM) M/T MYY5T(RSM) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-97300-297-1 01 1 0507-0606 ● ●
173 08.155 COVER; TRANS SIDE
4JH1 ENG(RJX) M/T MYY5T(RSM) EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-97327-415-0 01 1 0302-0506 ●
173 08.155 COVER; TRANS SIDE
4JH1-TC ENG(RDM) M/T MYY5T(RSM) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-97327-415-1 01 1 0507-0606 ●
173 08.155 COVER; TRANS SIDE
4HE1 ENG(RLY) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> (A) 		8-97305-494-1 01 1 0302-0505 ● ●
173 08.155 COVER; TRANS SIDE
4HE1 ENG(RLY) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> (A) 		8-98021-289-0 01 1 0506-0506 ● ●
173 08.155 COVER; TRANS SIDE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98021-289-0 01 1 0507-0507 ●
173 08.155 COVER; TRANS SIDE
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98021-289-0 01 1 0507-0606 ●
173 08.155 COVER; TRANS SIDE
4HK1-TCC ENG(RDV) M/T MZZ6F(RSR) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98021-289-0 01 1 0607- ●
174 08.155 BOLT; STAY FIX
4HE1 ENG(RLY) M/T MZZ6F(RSR) 02.559 M8X25 FLANGE 		0-28680-825-0 02 1 0302-0506 ● ● ● ● ● ● ●
174 08.155 BOLT; STAY FIX
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 02.559 M8X25 FLANGE 		0-28680-825-0 02 1 0507-0507 ● ● ● ●
174 08.155 BOLT; STAY FIX
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 02.559 M8X25 FLANGE 		0-28680-825-0 02 1 0507-0512 ● ● ● ●
174 08.155 BOLT; STAY FIX
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 0601-0606 ● ● ● ●
174 08.155 BOLT; STAY FIX
4HK1-TCC ENG(RDV) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 0607- ● ● ● ●
174 08.155 BOLT; STAY FIX
4HE1 ENG(RLY) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> 03.405 M10X25 FLANGE 		0-28681-025-0 02 1 0302-0506 ● ● ● ● ● ● ●
174 08.155 BOLT; STAY FIX
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.405 M10X25 FLANGE 		0-28681-025-0 02 1 0507-0507 ● ● ● ●
174 08.155 BOLT; STAY FIX
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.405 M10X25 FLANGE 		0-28681-025-0 02 1 0507-0512 ● ● ● ●
174 08.155 BOLT; STAY FIX
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 00.029 M10X25 FLANGE 		0-28651-025-0 02 1 0601-0606 ● ● ● ●
174 08.155 BOLT; STAY FIX
4HK1-TCC ENG(RDV) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 00.029 M10X25 FLANGE 		0-28651-025-0 02 1 0607- ● ● ● ●
174 08.155 BOLT; STAY FIX
4JH1 ENG(RJX) M/T MYY5T(RSM) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0302-0506 ● ● ●
174 08.155 BOLT; STAY FIX
4JH1-TC ENG(RDM) M/T MYY5T(RSM) 02.559 M8X25 FLANGE 		0-28680-825-0 03 1 0507-0512 ●
174 08.155 BOLT; STAY FIX
4JH1-TC ENG(RDM) M/T MYY5T(RSM) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 02.559 M8X25 FLANGE 		0-28680-825-0 03 1 0507-0512 ● ●
174 08.155 BOLT; STAY FIX
4JH1-TC ENG(RDM) M/T MYY5T(RSM) 06.216 M8X25 FLANGE 		0-28650-825-0 03 1 0601-0606 ●
174 08.155 BOLT; STAY FIX
4JH1-TC ENG(RDM) M/T MYY5T(RSM) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 06.216 M8X25 FLANGE 		0-28650-825-0 03 1 0601-0606 ● ●
175 08.155 NUT; STAY FIX
4HE1 ENG(RLY) M/T MZZ6F(RSR) 04.785 (B) M10 FLANGE 		0-91150-110-0 06 1 0302-0506 ● ● ● ● ● ● ●
175 08.155 NUT; STAY FIX
4JH1-TC ENG(RDM) M/T MYY5T(RSM) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 04.785 (B) M10 FLANGE 		0-91150-110-0 06 1 0507-0507 ● ● ●
175 08.155 NUT; STAY FIX
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.785 (B) M10 FLANGE 		0-91150-110-0 06 1 0507-0507 ● ● ● ●
175 08.155 NUT; STAY FIX
4JH1-TC ENG(RDM) M/T MYY5T(RSM) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 04.785 (B) M10 FLANGE 		0-91150-110-0 06 1 0507-0602 ● ● ●
175 08.155 NUT; STAY FIX
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.785 (B) M10 FLANGE 		0-91150-110-0 06 1 0507-0602 ● ● ● ●
175 08.155 NUT; STAY FIX
4JH1-TC ENG(RDM) M/T MYY5T(RSM) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M10 FLANGE 		0-91180-110-0 06 1 0603-0606 ● ● ●
175 08.155 NUT; STAY FIX
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M10 FLANGE 		0-91180-110-0 06 1 0603-0606 ● ● ● ●
175 08.155 NUT; STAY FIX
4HK1-TCC ENG(RDV) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M10 FLANGE 		0-91180-110-0 06 1 0607- ● ● ● ●
175 08.155 NUT; STAY FIX
4HE1 ENG(RLY) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> 07.633 (A) M8 FLANGE 		0-91150-108-0 03 1 0302-0506 ● ● ● ● ● ● ●
175 08.155 NUT; STAY FIX
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 07.633 (A) M8 FLANGE 		0-91150-108-0 03 1 0507-0507 ● ● ● ●
175 08.155 NUT; STAY FIX
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 07.633 (A) M8 FLANGE 		0-91150-108-0 03 1 0507-0602 ● ● ● ●
175 08.155 NUT; STAY FIX
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 (A) M8 FLANGE 		0-91180-108-0 03 1 0603-0606 ● ● ● ●
175 08.155 NUT; STAY FIX
4HK1-TCC ENG(RDV) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 (A) M8 FLANGE 		0-91180-108-0 03 1 0607- ● ● ● ●
175 08.155 NUT; STAY FIX
4JH1 ENG(RJX) M/T MYY5T(RSM) EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 (A) M8 FLANGE 		0-91150-108-0 05 1 0302-0506 ● ● ●
175 08.155 NUT; STAY FIX
4JH1-TC ENG(RDM) M/T MYY5T(RSM) 07.633 (A) M8 FLANGE 		0-91150-108-0 05 1 0507-0602 ●
175 08.155 NUT; STAY FIX
4JH1-TC ENG(RDM) M/T MYY5T(RSM) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 07.633 (A) M8 FLANGE 		0-91150-108-0 05 1 0507-0602 ● ●
175 08.155 NUT; STAY FIX
4JH1-TC ENG(RDM) M/T MYY5T(RSM) 01.062 (A) M8 FLANGE 		0-91180-108-0 05 1 0603-0606 ●
175 08.155 NUT; STAY FIX
4JH1-TC ENG(RDM) M/T MYY5T(RSM) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 (A) M8 FLANGE 		0-91180-108-0 05 1 0603-0606 ● ●

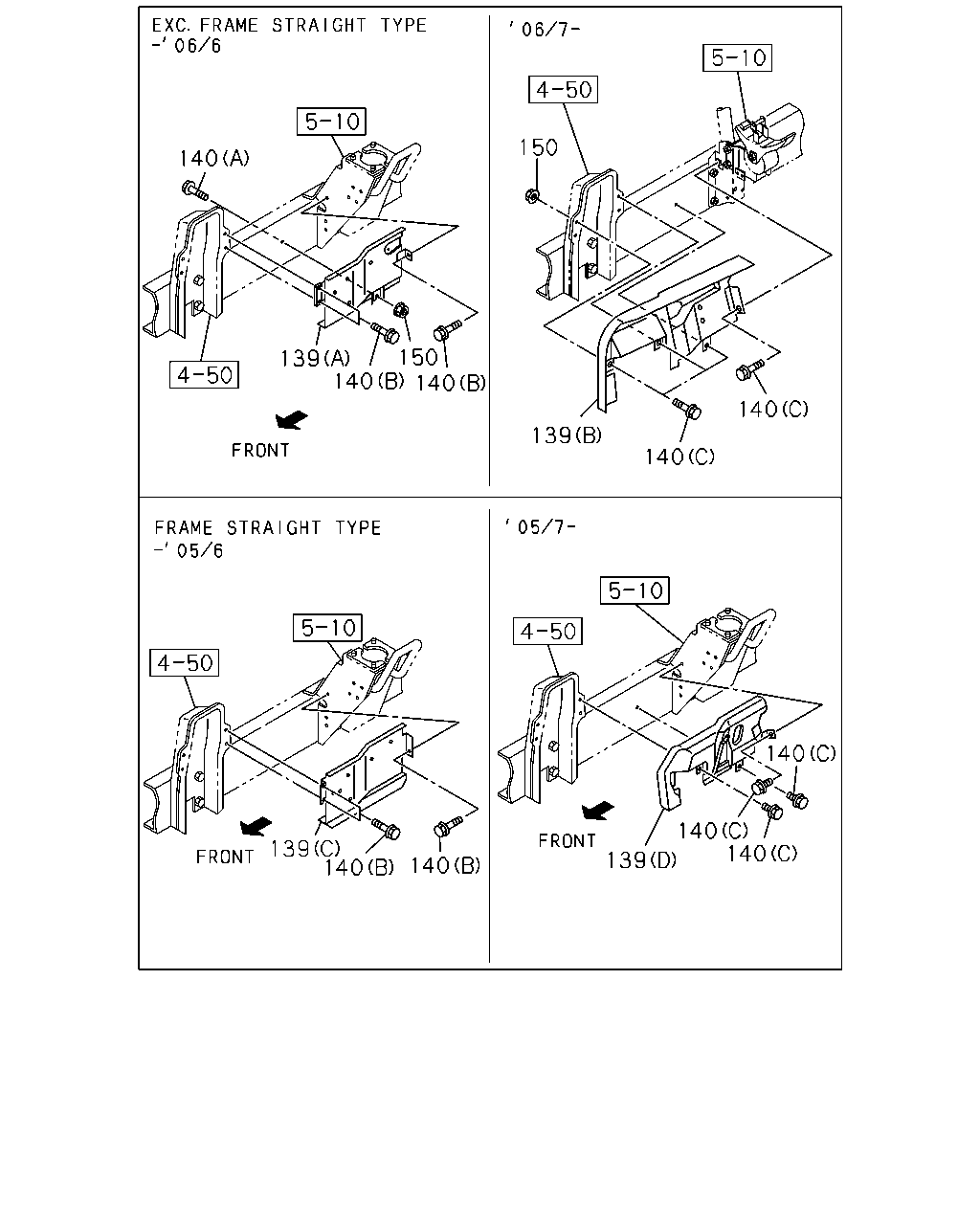

çizim 54517
150 140 139 150 140 140 140 139 140 140 140 140 140 139 140 139
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
139 08.153 PANEL; SIDE
FRAME STRAIGHT TYPE<7KJ> (C) 		8-97171-996-0 01 1 0302-0506 ● ● ●
139 08.153 PANEL; SIDE
(C) 		8-97171-996-0 01 1 0302-0506 ● ● ● ●
139 08.153 PANEL; SIDE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (D) 		8-97352-124-1 01 1 0507-0606 ●
139 08.153 PANEL; SIDE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (D) 		8-97352-124-1 01 1 0507-0606 ● ● ●
139 08.153 PANEL; SIDE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (D) 		8-97352-124-1 01 1 0507-0606 ●
139 08.153 PANEL; SIDE
4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> (D) 		8-97352-124-1 01 1 0607- ● ●
139 08.153 PANEL; SIDE
4HK1-TCC ENG(RDV) (D) 		8-97352-124-1 01 1 0607- ● ●
139 08.153 PANEL; SIDE
FRAME STRAIGHT TYPE<7KJ> (C) 		8-97188-736-0 01 1 0302-0506 ● ● ●
139 08.153 PANEL; SIDE
(C) 		8-97188-736-0 01 1 0302-0506 ● ● ● ●
139 08.153 PANEL; SIDE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (D) 		8-97352-125-2 01 1 0507-0606 ●
139 08.153 PANEL; SIDE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (D) 		8-97352-125-2 01 1 0507-0606 ● ● ●
139 08.153 PANEL; SIDE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (D) 		8-97352-125-2 01 1 0507-0606 ●
139 08.153 PANEL; SIDE
4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> (D) 		8-97352-125-2 01 1 0607- ● ●
139 08.153 PANEL; SIDE
4HK1-TCC ENG(RDV) (D) 		8-97352-125-2 01 1 0607- ● ●
139 08.153 PANEL; SIDE
4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97040-138-3 01 1 0302-0506 ● ● ●
139 08.153 PANEL; SIDE
4JH1-TC ENG(RDM) (A) 		8-97040-138-3 01 1 0507-0606 ●
139 08.153 PANEL; SIDE
4JH1-TC ENG(RDM) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97040-138-3 01 1 0507-0606 ● ●
139 08.153 PANEL; SIDE
4JJ1 ENG(LFB) (B) 		8-97255-624-3 01 1 0607- ● ●
139 08.153 PANEL; SIDE
4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-97255-624-3 01 1 0607- ● ●
139 08.153 PANEL; SIDE
4JH1 ENG(RJX) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-94101-539-2 01 1 0302-0506 ● ● ●
139 08.153 PANEL; SIDE
4JH1-TC ENG(RDM) (A) 		8-94101-539-2 01 1 0507-0606 ●
139 08.153 PANEL; SIDE
4JH1-TC ENG(RDM) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-94101-539-2 01 1 0507-0606 ● ●
139 08.153 PANEL; SIDE
4JJ1 ENG(LFB) (B) 		8-97255-623-2 01 1 0607- ● ●
139 08.153 PANEL; SIDE
4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-97255-623-2 01 1 0607- ● ●
140 08.155 BOLT; SIDE PANEL
04.595 (B) M8X20 FLANGE 		0-28480-820-0 06 1 0302-0506 ● ● ● ● ● ● ●
140 08.155 BOLT; SIDE PANEL
4JH1-TC ENG(RDM) 04.595 (B) M8X20 FLANGE 		0-28480-820-0 06 1 0507-0512 ● ● ●
140 08.155 BOLT; SIDE PANEL
4JH1-TC ENG(RDM) 07.242 (B) M8X20 FLANGE 		0-28450-820-0 06 1 0601-0606 ● ● ●
140 08.155 BOLT; SIDE PANEL
01.219 (C) M8X25 W/LK&PL WASHER 		1-09030-074-0 06 1 0607-0611 ● ● ● ● ● ●
140 08.155 BOLT; SIDE PANEL
(C) M8X25 W/LK&PL WASHER 		1-09030-093-0 06 1 0612- ● ● ● ● ● ●
140 08.155 BOLT; SIDE PANEL
EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (A) M8X25 FLANGE 		0-28680-825-0 02 1 0302-0506 ● ● ●
140 08.155 BOLT; SIDE PANEL
4JH1-TC ENG(RDM) 02.559 (A) M8X25 FLANGE 		0-28680-825-0 02 1 0507-0512 ●
140 08.155 BOLT; SIDE PANEL
4JH1-TC ENG(RDM) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (A) M8X25 FLANGE 		0-28680-825-0 02 1 0507-0512 ● ●
140 08.155 BOLT; SIDE PANEL
4JH1-TC ENG(RDM) 06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 0601-0606 ●
140 08.155 BOLT; SIDE PANEL
4JH1-TC ENG(RDM) EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 0601-0606 ● ●
140 08.155 BOLT; SIDE PANEL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 01.219 (C) M8X25 W/LK&PL WASHER 		1-09030-074-0 06 1 0507-0606 ●
140 08.155 BOLT; SIDE PANEL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.219 (C) M8X25 W/LK&PL WASHER 		1-09030-074-0 06 1 0507-0606 ● ● ●
140 08.155 BOLT; SIDE PANEL
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> 01.219 (C) M8X25 W/LK&PL WASHER 		1-09030-074-0 06 1 0507-0606 ●
150 08.155 NUT; SIDE PANEL
EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 02 1 0302-0506 ● ● ●
150 08.155 NUT; SIDE PANEL
07.633 M8 FLANGE 		0-91150-108-0 02 1 0507-0602 ●
150 08.155 NUT; SIDE PANEL
EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 02 1 0507-0602 ● ●
150 08.155 NUT; SIDE PANEL
01.062 M8 FLANGE 		0-91180-108-0 02 1 0603-0606 ●
150 08.155 NUT; SIDE PANEL
EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 02 1 0603-0606 ● ●
150 08.155 NUT; SIDE PANEL
01.062 M8 FLANGE 		0-91180-108-0 02 1 0607- ● ● ● ● ● ●
çizim 54583
112 92 112 145 5 66 24 145 350 5 66 76 24 76 350 34 67 33 33 33 33 219 33 219 5 285 285 3 3 285
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
3 08.153 GUARD; MUD,RR 8-97048-729-1 01 1 0302-0312 ● ● ● ● ●
3 08.153 GUARD; MUD,RR 8-97366-988-1 01 1 0401-0506 ● ● ● ● ●
3 08.153 GUARD; MUD,RR 8-97366-988-1 01 1 0507- ● ● ● ●
3 08.153 GUARD; MUD,RR 8-97048-728-3 01 1 0302-0506 ● ● ● ● ●
3 08.153 GUARD; MUD,RR 8-97048-728-3 01 1 0507- ● ● ● ●
3 08.153 GUARD; MUD,RR 8-97081-735-3 01 1 0302-0312 ● ●
3 08.153 GUARD; MUD,RR 8-97366-989-1 01 1 0401- ● ●
3 08.153 GUARD; MUD,RR 8-97081-734-5 01 1 0302- ● ●
5 08.155 NUT; FLAP RUBBER
08.915 M6 		9-09111-406-0 08 1 0302-0506 ● ● ● ● ● ● ●
5 08.155 NUT; FLAP RUBBER
08.915 M6 		9-09111-406-0 08 1 0507-0512 ● ● ● ● ● ●
5 08.155 NUT; FLAP RUBBER
M6 		0-91111-506-0 08 1 0601- ● ● ● ● ● ●
24 08.155 PLATE; MUD COVER 8-97095-186-0 02 1 0302-0506 ● ● ● ● ● ● ●
24 08.155 PLATE; MUD COVER 8-97095-186-0 02 1 0507- ● ● ● ● ● ●
33 08.155 BOLT; MUD COVER
ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60) 00.738 (D) M6X16 FLANGE 		0-28080-616-0 01 1 0612-0708 ● ● ● ● ● ●
33 08.155 BOLT; MUD COVER
ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60) 09.242 (D) M6X16 FLANGE 		0-28050-616-0 01 1 0709- ● ● ● ● ● ●
33 08.155 BOLT; MUD COVER
04.785 (D) M6X16 		0-20800-616-0 02 1 0302-0506 ● ● ● ● ● ● ●
33 08.155 BOLT; MUD COVER
04.785 (D) M6X16 		0-20800-616-0 02 1 0507- ● ● ● ● ● ●
33 08.155 BOLT; MUD COVER
00.738 (D) M6X16 FLANGE 		0-28080-616-0 06 1 0302-0506 ● ● ● ● ● ● ●
33 08.155 BOLT; MUD COVER
00.738 (D) M6X16 FLANGE 		0-28080-616-0 06 1 0507-0512 ● ● ● ● ● ●
33 08.155 BOLT; MUD COVER
09.242 (D) M6X16 FLANGE 		0-28050-616-0 06 1 0601- ● ● ● ● ● ●
33 08.155 BOLT; MUD COVER
07.010 (A) M8X20 FLANGE 		0-28080-820-0 05 1 0302-0506 ● ● ● ● ● ● ●
33 08.155 BOLT; MUD COVER
07.010 (A) M8X20 FLANGE 		0-28080-820-0 05 1 0507-0512 ● ● ● ● ● ●
33 08.155 BOLT; MUD COVER
04.338 (A) M8X20 FLANGE 		0-28050-820-0 05 1 0601- ● ● ● ● ● ●
33 08.155 BOLT; MUD COVER
02.334 (C) M6X25 FLANGE 		0-28680-625-0 04 1 0302-0506 ● ● ● ● ● ● ●
33 08.155 BOLT; MUD COVER
02.334 (C) M6X25 FLANGE 		0-28680-625-0 04 1 0507-0512 ● ● ● ● ● ●
33 08.155 BOLT; MUD COVER
00.685 (C) M6X25 FLANGE 		0-28650-625-0 04 1 0601-0604 ● ● ● ● ● ●
33 08.155 BOLT; MUD COVER
(C) M6X26 W/PL WASHER 		8-98035-643-0 04 1 0605- ● ● ● ● ● ●
33 08.155 BOLT; MUD COVER
16.320 (B) M8X20 W/LK&PL WASHER 		8-94279-104-0 01 1 0302-0506 ● ● ● ● ● ● ●
33 08.155 BOLT; MUD COVER
16.320 (B) M8X20 W/LK&PL WASHER 		8-94279-104-0 01 1 0507-0805 ● ● ● ● ● ●
33 08.155 BOLT; MUD COVER
16.085 (B) M8X20 W/LK&PL WASHER 		8-97359-709-0 01 1 0806- ● ● ● ● ● ●
34 08.155 WASHER; PL,MUD COVER
00.206 ID=6.4 		9-09160-506-0 04 1 0302- ● ●
66 08.155 WASHER; LK
00.206 ID=6.1 		9-09150-506-0 06 1 0302-0506 ● ● ● ● ● ● ●
66 08.155 WASHER; LK
00.206 ID=6.1 		9-09150-506-0 06 1 0507-0603 ● ● ● ● ● ●
66 08.155 WASHER; LK
ID=6.1 		0-91510-506-0 06 1 0604- ● ● ● ● ● ●
67 08.155 WASHER; PL
00.206 ID=6.4 		9-09160-506-0 04 1 0302-0506 ● ● ● ● ●
67 08.155 WASHER; PL
00.206 ID=6.4 		9-09160-506-0 04 1 0507- ● ● ● ●
76 08.155 BOLT; MUD GUARD
07.010 M8X20 FLANGE 		0-28080-820-0 04 1 0302-0506 ● ● ● ● ● ● ●
76 08.155 BOLT; MUD GUARD
07.010 M8X20 FLANGE 		0-28080-820-0 04 1 0507-0512 ● ● ● ● ● ●
76 08.155 BOLT; MUD GUARD
04.338 M8X20 FLANGE 		0-28050-820-0 04 1 0601- ● ● ● ● ● ●
92 08.155 NUT; MUD COVER
ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60) 01.540 (B) M6 FLANGE 		0-91180-206-0 01 1 0612- ● ● ● ● ● ●
92 08.155 NUT; MUD COVER
07.633 (A) M8 FLANGE 		0-91150-108-0 02 1 0302-0506 ● ● ● ● ● ● ●
92 08.155 NUT; MUD COVER
07.633 (A) M8 FLANGE 		0-91150-108-0 02 1 0507-0602 ● ● ● ● ● ●
92 08.155 NUT; MUD COVER
01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 0603- ● ● ● ● ● ●
112 08.155 BOLT; BRKT
02.559 M8X25 FLANGE 		0-28680-825-0 05 1 0302-0506 ● ● ● ● ● ● ●
112 08.155 BOLT; BRKT
02.559 M8X25 FLANGE 		0-28680-825-0 05 1 0507-0512 ● ● ● ● ● ●
112 08.155 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 05 1 0601- ● ● ● ● ● ●
145 08.155 NUT; BRKT
07.633 M8 FLANGE 		0-91150-108-0 06 1 0302-0506 ● ● ● ● ● ● ●
145 08.155 NUT; BRKT
07.633 M8 FLANGE 		0-91150-108-0 06 1 0507-0602 ● ● ● ● ● ●
145 08.155 NUT; BRKT
01.062 M8 FLANGE 		0-91180-108-0 06 1 0603- ● ● ● ● ● ●
219 08.155 FLAP; MUD GUARD
ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97128-468-0 01 1 0612- ● ● ● ● ● ●
219 08.155 FLAP; MUD GUARD
(A) 		8-97218-080-0 02 1 0302-0506 ● ● ● ● ●
219 08.155 FLAP; MUD GUARD
(A) 		8-97218-080-0 02 1 0507- ● ● ● ●
219 08.155 FLAP; MUD GUARD
(A) 		8-97222-869-0 02 1 0302- ● ●
285 08.155 BRACKET; MUD COVER
ISRAEL COUNTRY(CV4) AIR CONDITIONER MANUAL CONT(C60) (D) 		8-97128-269-0 01 1 0612- ● ● ● ● ● ●
285 08.155 BRACKET; MUD COVER
4HE1 ENG(RLY) (A) 		8-97035-780-4 01 1 0302-0506 ● ● ● ● ● ● ●
285 08.155 BRACKET; MUD COVER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A) 		8-97035-780-4 01 1 0507-0606 ● ● ● ●
285 08.155 BRACKET; MUD COVER
4HK1-TCN ENG(RDQ) (A) 		8-97035-780-4 01 1 0507-0606 ●
285 08.155 BRACKET; MUD COVER
4HK1-TCC ENG(RDV) (A) 		8-97035-780-4 01 1 0607- ● ● ● ●
285 08.155 BRACKET; MUD COVER
4HE1 ENG(RLY) (C) 		8-97035-778-4 01 1 0302-0506 ● ● ● ● ● ● ●
285 08.155 BRACKET; MUD COVER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (C) 		8-97035-778-4 01 1 0507-0606 ● ● ● ●
285 08.155 BRACKET; MUD COVER
4HK1-TCN ENG(RDQ) (C) 		8-97035-778-4 01 1 0507-0606 ●
285 08.155 BRACKET; MUD COVER
4HK1-TCC ENG(RDV) (C) 		8-97035-778-4 01 1 0607- ● ● ● ●
285 08.155 BRACKET; MUD COVER
4JH1 ENG(RJX) (A) 		8-97225-272-1 01 1 0302-0506 ● ● ●
285 08.155 BRACKET; MUD COVER
4JH1-TC ENG(RDM) (A) 		8-97225-272-1 01 1 0507-0606 ● ● ●
285 08.155 BRACKET; MUD COVER
4JJ1 ENG(LFB) (A) 		8-97225-272-1 01 1 0607- ● ● ● ●
285 08.155 BRACKET; MUD COVER
4JH1 ENG(RJX) (B) 		8-97089-653-2 01 1 0302-0506 ● ● ●
285 08.155 BRACKET; MUD COVER
4JH1-TC ENG(RDM) (B) 		8-97089-653-2 01 1 0507-0606 ● ● ●
285 08.155 BRACKET; MUD COVER
4JJ1 ENG(LFB) (B) 		8-97089-653-2 01 1 0607- ● ● ● ●
350 08.155 PROTECTOR; EDGE,MUD COVER 8-97227-208-0 02 1 0302- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
