6-30 — FRONT DOOR AND HINGE (#41370) — 52 parça

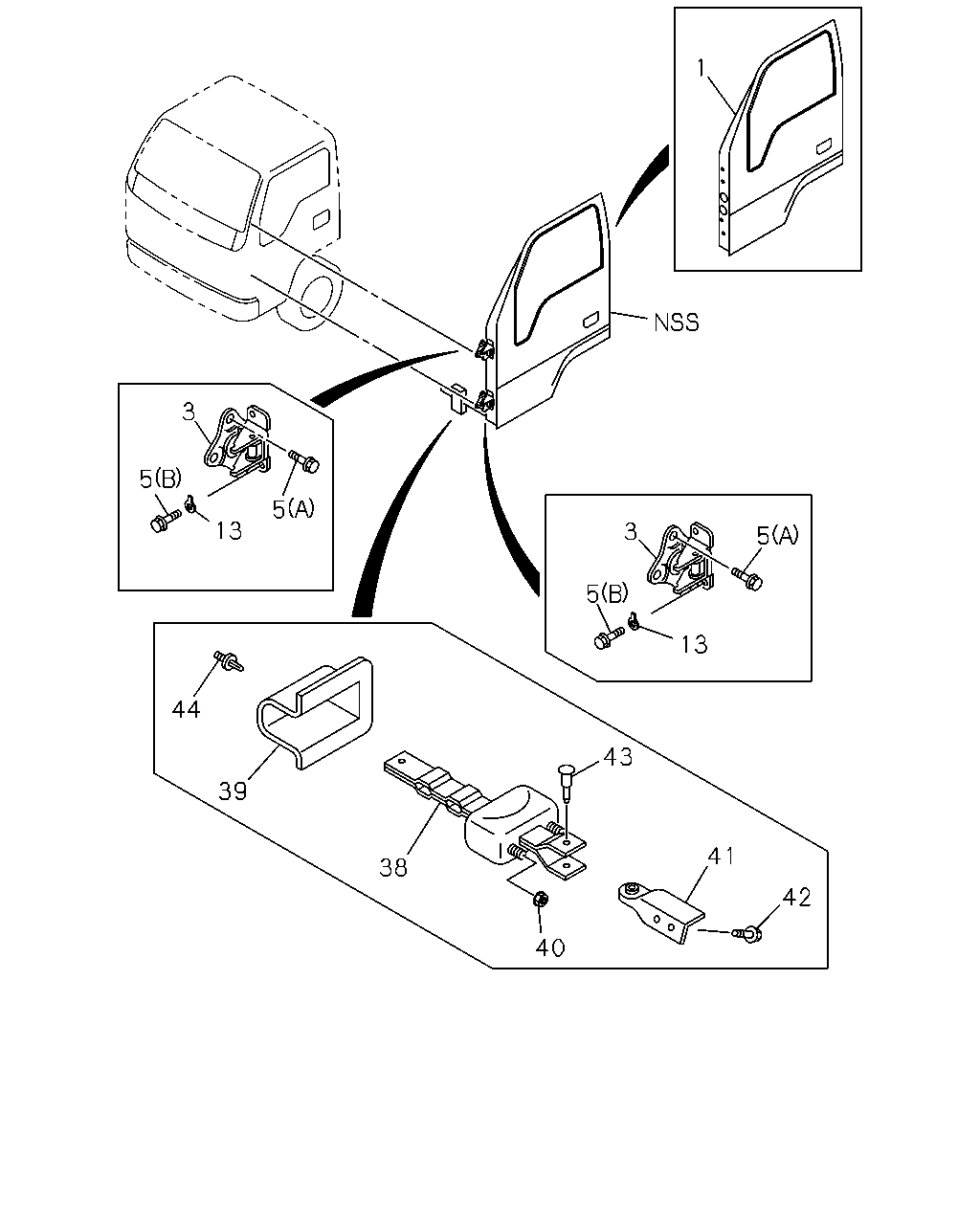

çizim 54689
1 3 5 5 13 3 5 5 13 44 43 39 41 38 42 40
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 16.150 DOOR ASM; FRT,WO/TRIM
DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> 		8-97863-850-1 01 1 0302-0302 ● ● ● ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> 		8-97581-431-0 01 1 0303-0303 ● ● ● ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> 		8-97863-850-1 01 1 0304-0404 ● ● ● ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> 		8-97581-431-1 01 1 0405-0506 ● ● ● ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> 		8-97581-431-2 01 1 0507- ● ● ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> 		8-97863-849-1 01 1 0302-0302 ● ● ● ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> 		8-97581-430-0 01 1 0303-0303 ● ● ● ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> 		8-97863-849-1 01 1 0304-0404 ● ● ● ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> 		8-97581-430-1 01 1 0405-0506 ● ● ● ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> 		8-97581-430-1 01 1 0507- ● ● ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> 		8-97892-889-1 01 1 0302-0305 ● ● ● ● ● ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> 		8-97581-448-1 01 1 0306-0506 ● ● ● ● ● ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> 		8-97581-448-2 01 1 0507- ● ● ● ● ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> 		8-97892-888-1 01 1 0302-0305 ● ● ● ● ● ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> 		8-97581-447-1 01 1 0306-0506 ● ● ● ● ● ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
EXC. DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> 		8-97581-447-1 01 1 0507- ● ● ● ● ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> 		8-97896-658-1 01 1 0302-0302 ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> 15.150 		8-97581-440-0 01 1 0303-0303 ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> 		8-97896-658-1 01 1 0304-0404 ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> 15.150 		8-97581-440-2 01 1 0405- ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> 		8-97896-657-1 01 1 0302-0302 ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> 		8-97581-439-0 01 1 0303-0303 ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> 		8-97896-657-1 01 1 0304-0404 ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM
DOOR MIRROR<6VE>,DOOR MIRROR WIDE ANGLE<7QF> 		8-97581-439-1 01 1 0405- ● ●
3 16.320 HINGE; DOOR FRT 8-97852-007-5 04 1 0302-0506 ● ● ● ● ● ● ●
3 16.320 HINGE; DOOR FRT 8-97852-007-5 04 1 0507- ● ● ● ● ● ●
5 16.320 BOLT; HINGE
(B) M8X22 FLANGE 		8-94279-098-1 08 1 0302-0506 ● ● ● ● ●
5 16.320 BOLT; HINGE
(B) M8X22 FLANGE 		8-94279-098-1 08 1 0507- ● ● ● ●
5 16.320 BOLT; HINGE
(A) M8X18 W/LK&PL WASHER 		8-94279-232-0 12 1 0302-0506 ● ● ● ● ● ● ●
5 16.320 BOLT; HINGE
(A) M8X18 W/LK&PL WASHER 		8-94279-232-0 12 1 0507- ● ● ● ● ● ●
5 16.320 BOLT; HINGE
(B) M8X24.5 W/LK&PL WASHER 		8-94279-217-0 08 1 0302- ● ●
13 16.320 WASHER; HINGE
ID=8.1 W/SEAL 		8-97890-584-1 04 1 0302-0506 ● ● ● ● ●
13 16.320 WASHER; HINGE
ID=8.1 W/SEAL 		8-97890-584-1 04 1 0507- ● ● ● ●
38 16.320 CHECKER ASM; DOOR 8-97867-841-1 02 1 0302-0302 ● ● ● ● ● ● ●
38 16.320 CHECKER ASM; DOOR 8-97581-681-1 02 1 0302-0506 ● ● ● ● ● ● ●
38 16.320 CHECKER ASM; DOOR 8-97581-681-2 02 1 0507- ● ● ● ● ● ●
39 16.320 COVER; CHECKER 8-97852-365-5 02 1 0302-0506 ● ● ● ● ● ● ●
39 16.320 COVER; CHECKER 8-97852-365-5 02 1 0507- ● ● ● ● ● ●
40 16.320 NUT; CHECKER
07.633 M8 FLANGE 		0-91150-108-0 04 1 0302-0506 ● ● ● ● ● ● ●
40 16.320 NUT; CHECKER
07.633 M8 FLANGE 		0-91150-108-0 04 1 0507-0602 ● ● ● ● ● ●
40 16.320 NUT; CHECKER
01.062 M8 FLANGE 		0-91180-108-0 04 1 0603- ● ● ● ● ● ●
41 16.320 BRACKET; CHECKER 8-97852-403-1 01 1 0302-0506 ● ● ● ● ● ● ●
41 16.320 BRACKET; CHECKER 8-97852-403-1 01 1 0507- ● ● ● ● ● ●
41 16.320 BRACKET; CHECKER 8-97852-402-1 01 1 0302-0506 ● ● ● ● ● ● ●
41 16.320 BRACKET; CHECKER 8-97852-402-1 01 1 0507- ● ● ● ● ● ●
42 16.320 BOLT; BRKT
04.634 M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 0302-0506 ● ● ● ● ● ● ●
42 16.320 BOLT; BRKT
04.634 M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 0507-0808 ● ● ● ● ● ●
42 16.320 BOLT; BRKT
06.514 M8X24.5 W/LK&PL WASHER 		8-98051-939-0 04 1 0809- ● ● ● ● ● ●
43 16.320 PIN 8-97852-057-1 02 1 0302-0506 ● ● ● ● ● ● ●
43 16.320 PIN 8-97852-057-1 02 1 0507- ● ● ● ● ● ●
44 16.320 FASTENER; COVER
OD=8.3 		8-97997-832-0 02 1 0302-0506 ● ● ● ● ● ● ●
44 16.320 FASTENER; COVER
OD=8.3 		8-97997-832-0 02 1 0507- ● ● ● ● ● ●
