6-01 — FRONT BUMPER (#41364) — 312 parça

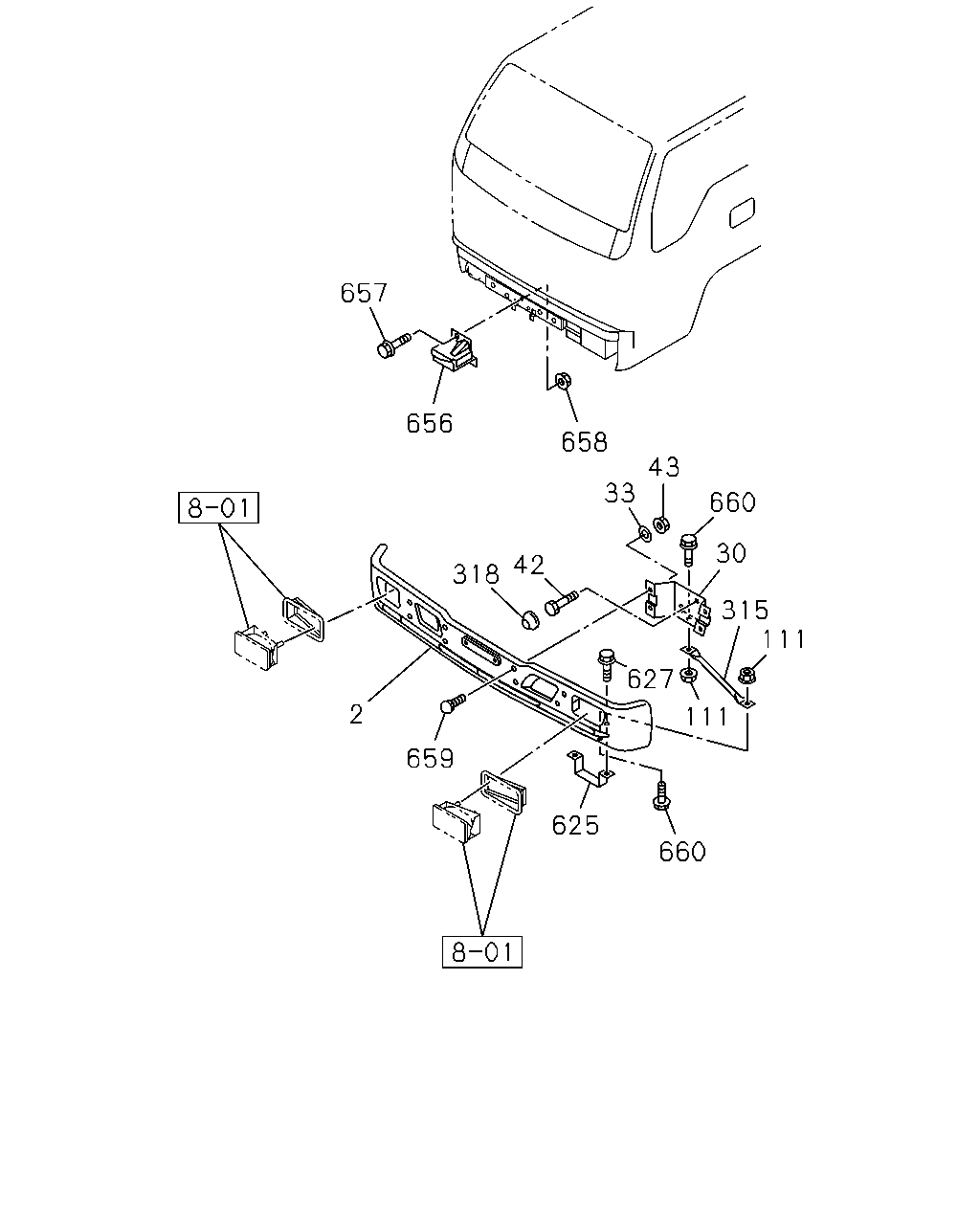

çizim 52624
657 656 658 43 33 660 30 42 318 315 111 627 2 111 659 625 660
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
2 07.831 BUMPER; FRT,CENTER
BODY COLOR POLAR SILVER MET(845) FOG LAMP<T96> EXC. ISRAEL COUNTRY(CV4) SILVER 		8-97580-946-2 01 1 0302-0506 ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR POLAR SILVER MET(845) FRONT BUMPER PAINTED<VB5> SILVER 		8-97580-946-2 01 1 0507-0606 ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR POLAR SILVER MET(845) FRONT BUMPER PAINTED<VB5> SILVER 		8-97580-946-2 01 1 0607-0701 ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR POLAR SILVER MET(845) SILVER 		8-97580-946-2 01 1 0702- ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
ISRAEL COUNTRY(CV4) EXC. COLOR KEYED BUMPER<S4H>,FOG LAMP<T96> DARK GRAY 		8-97999-013-0 01 1 0302-0506 ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729),BODY COLORMARINE BLUE(890) ISRAEL COUNTRY(CV4) EXC. COLOR KEYED BUMPER<S4H>,FOG LAMP<T96> DARK GRAY 		8-97999-013-0 01 1 0302-0506 ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729) FOG LAMP<T96> EXC. ISRAEL COUNTRY(CV4) WHITE 		8-97580-945-2 01 1 0302-0506 ● ● ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729) FRONT BUMPER PAINTED<VB5> WHITE 		8-97580-945-2 01 1 0507-0606 ● ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729) FRONT BUMPER PAINTED<VB5> WHITE 		8-97580-945-2 01 1 0607-0701 ● ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729) WHITE 		8-97580-945-2 01 1 0702- ● ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729) ISRAEL COUNTRY(CV4) COLOR KEYED BUMPER<S4H> EXC. FOG LAMP<T96> WHITE 		8-97999-014-0 01 1 0302-0506 ● ● ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729) ISRAEL COUNTRY(CV4) COLOR KEYED BUMPER<S4H> FOG LAMP<T96> VOLTAGE 24V<7AE> WHITE 		8-97999-733-0 01 1 0302-0506 ● ● ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729) VOLTAGE 24V<7AE> EXC. FRT BUMPER DARK GRAY<EQ9>, FRONTBUMPER PAINTED<VB5> WHITE 		8-97999-733-0 01 1 0507-0606 ● ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729) EXC. FRONT BUMPER PAINTED<VB5> WHITE 		8-97999-733-0 01 1 0607-0701 ● ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729),BODY COLORMARINE BLUE(890) ISRAEL COUNTRY(CV4) FOG LAMP<T96> VOLTAGE 24V<7AE> EXC. COLOR KEYED BUMPER<S4H> DARK GRAY 		8-97999-026-0 01 1 0302-0506 ● ● ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729),BODY COLORMARINE BLUE(890) FRT BUMPER DARK GRAY<EQ9> VOLTAGE 24V<7AE> DARK GRAY 		8-97583-042-0 01 1 0507-0606 ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR POLAR SILVER MET(845) VOLTAGE 24V<7AE> EXC. FRONT BUMPER PAINTED<VB5> DARK GRAY 		8-97583-042-0 01 1 0507-0606 ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR POLAR SILVER MET(845) EXC. FRONT BUMPER PAINTED<VB5> DARK GRAY 		8-97583-042-0 01 1 0607-0701 ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR MARINE BLUE(890) FOG LAMP<T96> EXC. ISRAEL COUNTRY(CV4) BLUE 		8-97580-947-2 01 1 0302-0506 ● ● ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR MARINE BLUE(890) FRONT BUMPER PAINTED<VB5> BLUE 		8-97580-947-2 01 1 0507-0606 ● ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR MARINE BLUE(890) FRONT BUMPER PAINTED<VB5> BLUE 		8-97580-947-2 01 1 0607-0701 ● ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR MARINE BLUE(890) BLUE 		8-97580-947-2 01 1 0702- ● ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR MARINE BLUE(890) ISRAEL COUNTRY(CV4) COLOR KEYED BUMPER<S4H> FOG LAMP<T96> VOLTAGE 24V<7AE> BLUE 		8-97581-580-0 01 1 0302-0506 ● ● ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR MARINE BLUE(890) VOLTAGE 24V<7AE> EXC. FRT BUMPER DARK GRAY<EQ9>, FRONTBUMPER PAINTED<VB5> BLUE 		8-97581-580-0 01 1 0507-0606 ● ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR MARINE BLUE(890) EXC. FRONT BUMPER PAINTED<VB5> BLUE 		8-97581-580-0 01 1 0607-0701 ● ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR MARINE BLUE(890) ISRAEL COUNTRY(CV4) COLOR KEYED BUMPER<S4H> EXC. FOG LAMP<T96> PRIMER 		8-97998-075-0 01 1 0302-0506 ● ● ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729) ISRAEL COUNTRY(CV4) COLOR KEYED BUMPER<S4H> FOG LAMP<T96> EXC. VOLTAGE 24V<7AE> WHITE 		8-97581-578-0 01 1 0302-0506 ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729) EXC. FRT BUMPER DARK GRAY<EQ9>, FRONTBUMPER PAINTED<VB5>,VOLTAGE 24V<7AE> WHITE 		8-97581-578-0 01 1 0507-0606 ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729),BODY COLORMARINE BLUE(890) ISRAEL COUNTRY(CV4) FOG LAMP<T96> EXC. COLOR KEYED BUMPER<S4H>, VOLTAGE24V<7AE> DARK GRAY 		8-97999-025-0 01 1 0302-0506 ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729),BODY COLORMARINE BLUE(890) FRT BUMPER DARK GRAY<EQ9> EXC. VOLTAGE 24V<7AE> DARK GRAY 		8-97589-231-0 01 1 0507-0606 ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR POLAR SILVER MET(845) EXC. FRONT BUMPER PAINTED<VB5>, VOLTAGE 24V<7AE> DARK GRAY 		8-97589-231-0 01 1 0507-0606 ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR MARINE BLUE(890) ISRAEL COUNTRY(CV4) COLOR KEYED BUMPER<S4H> FOG LAMP<T96> EXC. VOLTAGE 24V<7AE> BLUE 		8-97581-579-0 01 1 0302-0506 ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR MARINE BLUE(890) EXC. FRT BUMPER DARK GRAY<EQ9>, FRONTBUMPER PAINTED<VB5>,VOLTAGE 24V<7AE> BLUE 		8-97581-579-0 01 1 0507-0606 ● ●
30 07.869 BRACKET; FRT BUMPER
FOG LAMP<T96> EXC. ISRAEL COUNTRY(CV4) 		8-97999-729-0 01 1 0302-0506 ● ● ● ● ● ● ●
30 07.869 BRACKET; FRT BUMPER 8-97999-729-0 01 1 0507-0606 ●
30 07.869 BRACKET; FRT BUMPER
FRONT BUMPER PAINTED<VB5> 		8-97999-729-0 01 1 0507-0606 ● ● ● ● ●
30 07.869 BRACKET; FRT BUMPER
FRONT BUMPER PAINTED<VB5> 		8-97999-729-0 01 1 0607-0701 ● ● ● ● ● ●
30 07.869 BRACKET; FRT BUMPER 8-97999-729-0 01 1 0702- ● ● ● ● ● ●
30 07.869 BRACKET; FRT BUMPER
FOG LAMP<T96> EXC. ISRAEL COUNTRY(CV4) 		8-97998-620-0 01 1 0302-0308 ● ● ● ● ● ● ●
30 07.869 BRACKET; FRT BUMPER
FOG LAMP<T96> EXC. ISRAEL COUNTRY(CV4) 		8-97999-728-0 01 1 0309-0506 ● ● ● ● ● ● ●
30 07.869 BRACKET; FRT BUMPER 8-97999-728-0 01 1 0507-0606 ●
30 07.869 BRACKET; FRT BUMPER
FRONT BUMPER PAINTED<VB5> 		8-97999-728-0 01 1 0507-0606 ● ● ● ● ●
30 07.869 BRACKET; FRT BUMPER
FRONT BUMPER PAINTED<VB5> 		8-97999-728-0 01 1 0607-0701 ● ● ● ● ● ●
30 07.869 BRACKET; FRT BUMPER 8-97999-728-0 01 1 0702- ● ● ● ● ● ●
30 07.869 BRACKET; FRT BUMPER
ISRAEL COUNTRY(CV4) EXC. FRAME STRAIGHT TYPE<7KJ> 01.263 		8-97093-639-3 02 1 0302-0506 ● ● ●
30 07.869 BRACKET; FRT BUMPER
ISRAEL COUNTRY(CV4) EXC. FRAME STRAIGHT TYPE<7KJ> 01.263 		8-97093-639-3 02 1 0507-0606 ● ●
30 07.869 BRACKET; FRT BUMPER
ISRAEL COUNTRY(CV4) 01.263 		8-97093-639-3 02 1 0607-0701 ● ●
30 07.869 BRACKET; FRT BUMPER
ISRAEL COUNTRY(CV4) EXC. FRAME STRAIGHT TYPE<7KJ> 01.263 		8-97093-639-3 02 1 0607-0701 ● ●
33 07.874 WASHER; PL,BRKT TO BUMPER
FOG LAMP<T96> EXC. ISRAEL COUNTRY(CV4) 04.085 ID=10.5 OD=22 		9-09164-610-0 08 1 0302-0506 ● ● ● ● ● ● ●
33 07.874 WASHER; PL,BRKT TO BUMPER
04.085 ID=10.5 OD=22 		9-09164-610-0 08 1 0507-0605 ●
33 07.874 WASHER; PL,BRKT TO BUMPER
FRONT BUMPER PAINTED<VB5> 04.085 ID=10.5 OD=22 		9-09164-610-0 08 1 0507-0605 ● ● ● ● ●
33 07.874 WASHER; PL,BRKT TO BUMPER
00.002 ID=10.5 OD=22 		0-91614-610-0 08 1 0606-0606 ●
33 07.874 WASHER; PL,BRKT TO BUMPER
FRONT BUMPER PAINTED<VB5> 00.002 ID=10.5 OD=22 		0-91614-610-0 08 1 0606-0606 ● ● ● ● ●
33 07.874 WASHER; PL,BRKT TO BUMPER
FRONT BUMPER PAINTED<VB5> 00.002 ID=10.5 OD=22 		0-91614-610-0 08 1 0607-0701 ● ● ● ● ● ●
33 07.874 WASHER; PL,BRKT TO BUMPER
00.002 ID=10.5 OD=22 		0-91614-610-0 08 1 0702- ● ● ● ● ● ●
42 07.874 BOLT; BUMPER
M10X35 W/LK&PL WASHER 		8-97101-865-0 04 1 0302-0506 ● ● ● ● ● ● ●
42 07.874 BOLT; BUMPER
M10X35 W/LK&PL WASHER 		8-97101-865-0 04 1 0507- ● ● ● ● ● ●
43 07.874 NUT; BRKT TO BUMPER
FOG LAMP<T96> EXC. ISRAEL COUNTRY(CV4) M10 FLANGE 		5-09440-006-0 08 1 0302-0506 ● ● ● ● ● ● ●
43 07.874 NUT; BRKT TO BUMPER
M10 FLANGE 		5-09440-006-0 08 1 0507-0606 ●
43 07.874 NUT; BRKT TO BUMPER
FRONT BUMPER PAINTED<VB5> M10 FLANGE 		5-09440-006-0 08 1 0507-0606 ● ● ● ● ●
43 07.874 NUT; BRKT TO BUMPER
FRONT BUMPER PAINTED<VB5> M10 FLANGE 		5-09440-006-0 08 1 0607-0701 ● ● ● ● ● ●
43 07.874 NUT; BRKT TO BUMPER
M10 FLANGE 		5-09440-006-0 08 1 0702- ● ● ● ● ● ●
111 07.874 NUT; STAY
FOG LAMP<T96> EXC. ISRAEL COUNTRY(CV4) 01.062 M8 FLANGE 		0-91180-108-0 04 1 0302-0308 ● ● ● ● ● ● ●
111 07.874 NUT; STAY
FOG LAMP<T96> EXC. ISRAEL COUNTRY(CV4),VOLTAGE 24V<7AE> 01.062 M8 FLANGE 		0-91180-108-0 04 1 0309-0506 ● ● ●
111 07.874 NUT; STAY
01.062 M8 FLANGE 		0-91180-108-0 04 1 0507-0602 ●
111 07.874 NUT; STAY
FRONT BUMPER PAINTED<VB5> EXC. VOLTAGE 24V<7AE> 01.062 M8 FLANGE 		0-91180-108-0 04 1 0507-0602 ● ●
111 07.874 NUT; STAY
01.062 M8 FLANGE 		0-91180-108-0 04 1 0603-0606 ●
111 07.874 NUT; STAY
FRONT BUMPER PAINTED<VB5> 01.062 M8 FLANGE 		0-91180-108-0 04 1 0603-0606 ● ● ● ● ●
111 07.874 NUT; STAY
FRONT BUMPER PAINTED<VB5> 01.062 M8 FLANGE 		0-91180-108-0 04 1 0607-0701 ● ● ● ● ● ●
111 07.874 NUT; STAY
01.062 M8 FLANGE 		0-91180-108-0 04 1 0702- ● ● ● ● ● ●
111 07.874 NUT; STAY
FOG LAMP<T96> VOLTAGE 24V<7AE> EXC. ISRAEL COUNTRY(CV4) 07.633 M8 FLANGE 		0-91150-108-0 04 1 0309-0506 ● ● ● ● ● ● ●
111 07.874 NUT; STAY
FRONT BUMPER PAINTED<VB5> VOLTAGE 24V<7AE> 07.633 M8 FLANGE 		0-91150-108-0 04 1 0507-0602 ● ● ● ● ●
315 07.831 STAY; BUMPER
FOG LAMP<T96> EXC. ISRAEL COUNTRY(CV4) 		8-97998-624-0 02 1 0302-0506 ● ● ● ● ● ● ●
315 07.831 STAY; BUMPER 8-97998-624-0 02 1 0507-0606 ●
315 07.831 STAY; BUMPER
FRONT BUMPER PAINTED<VB5> 		8-97998-624-0 02 1 0507-0606 ● ● ● ● ●
315 07.831 STAY; BUMPER
FRONT BUMPER PAINTED<VB5> 		8-97998-624-0 02 1 0607-0701 ● ● ● ● ● ●
315 07.831 STAY; BUMPER 8-97998-624-0 02 1 0702- ● ● ● ● ● ●
318 07.832 CAP; BUMPER SIDE 8-97582-950-0 02 1 0309-0506 ● ● ● ● ● ● ●
318 07.832 CAP; BUMPER SIDE 8-97582-950-0 02 1 0507- ● ● ● ● ● ●
625 07.831 COVER; FOG LAMP
BODY COLOR POLAR SILVER MET(845) FOG LAMP<T96> EXC. ISRAEL COUNTRY(CV4) SILVER 		8-97580-583-0 02 1 0302-0506 ● ● ● ● ●
625 07.831 COVER; FOG LAMP
BODY COLOR POLAR SILVER MET(845) FRONT BUMPER PAINTED<VB5> SILVER 		8-97580-583-0 02 1 0507-0701 ● ● ● ●
625 07.831 COVER; FOG LAMP
BODY COLOR POLAR SILVER MET(845) SILVER 		8-97580-583-0 02 1 0702- ● ● ● ●
625 07.831 COVER; FOG LAMP
BODY COLOR ARC WHITE(729) FOG LAMP<T96> EXC. ISRAEL COUNTRY(CV4) WHITE 		8-97580-564-0 02 1 0302-0506 ● ● ● ● ● ● ●
625 07.831 COVER; FOG LAMP
BODY COLOR ARC WHITE(729) FRONT BUMPER PAINTED<VB5> WHITE 		8-97580-564-0 02 1 0507-0701 ● ● ● ● ● ●
625 07.831 COVER; FOG LAMP
BODY COLOR ARC WHITE(729) WHITE 		8-97580-564-0 02 1 0702- ● ● ● ● ● ●
625 07.831 COVER; FOG LAMP
BODY COLOR MARINE BLUE(890) FOG LAMP<T96> EXC. ISRAEL COUNTRY(CV4) BLUE 		8-97580-584-0 02 1 0302-0506 ● ● ● ● ● ● ●
625 07.831 COVER; FOG LAMP
BODY COLOR MARINE BLUE(890) FRONT BUMPER PAINTED<VB5> BLUE 		8-97580-584-0 02 1 0507-0701 ● ● ● ● ● ●
625 07.831 COVER; FOG LAMP
BODY COLOR MARINE BLUE(890) BLUE 		8-97580-584-0 02 1 0702- ● ● ● ● ● ●
627 07.874 BOLT; FOG LAMP COVER
FOG LAMP<T96> EXC. ISRAEL COUNTRY(CV4) 04.439 M6X16 FLANGE 		0-28680-616-0 04 1 0302-0506 ● ● ● ● ● ● ●
627 07.874 BOLT; FOG LAMP COVER
04.439 M6X16 FLANGE 		0-28680-616-0 04 1 0507-0512 ●
627 07.874 BOLT; FOG LAMP COVER
FRONT BUMPER PAINTED<VB5> 04.439 M6X16 FLANGE 		0-28680-616-0 04 1 0507-0512 ● ● ● ● ●
627 07.874 BOLT; FOG LAMP COVER
02.343 M6X16 FLANGE 		0-28650-616-0 04 1 0601-0606 ●
627 07.874 BOLT; FOG LAMP COVER
FRONT BUMPER PAINTED<VB5> 02.343 M6X16 FLANGE 		0-28650-616-0 04 1 0601-0606 ● ● ● ● ●
627 07.874 BOLT; FOG LAMP COVER
FRONT BUMPER PAINTED<VB5> 02.343 M6X16 FLANGE 		0-28650-616-0 04 1 0607-0701 ● ● ● ● ● ●
627 07.874 BOLT; FOG LAMP COVER
02.343 M6X16 FLANGE 		0-28650-616-0 04 1 0702- ● ● ● ● ● ●
656 07.068 STOPPER; BUMPER
EXC. ISRAEL COUNTRY(CV4) 		8-97354-332-0 01 1 0302-0506 ● ● ● ● ● ● ●
656 07.068 STOPPER; BUMPER 8-97354-332-0 01 1 0507-0606 ●
656 07.068 STOPPER; BUMPER
EXC. ISRAEL COUNTRY(CV4) 		8-97354-332-0 01 1 0507-0606 ● ● ● ● ●
656 07.068 STOPPER; BUMPER
EXC. ISRAEL COUNTRY(CV4) 		8-97354-332-0 01 1 0607-0701 ● ● ● ● ● ●
656 07.068 STOPPER; BUMPER 8-97354-332-0 01 1 0702- ● ● ● ● ● ●
657 07.833 BOLT; STOPPER TO FRAME
EXC. ISRAEL COUNTRY(CV4) 02.664 M8X20 FLANGE 		0-28680-820-0 02 1 0302-0506 ● ● ● ● ● ● ●
657 07.833 BOLT; STOPPER TO FRAME
02.664 M8X20 FLANGE 		0-28680-820-0 02 1 0507-0512 ●
657 07.833 BOLT; STOPPER TO FRAME
EXC. ISRAEL COUNTRY(CV4) 02.664 M8X20 FLANGE 		0-28680-820-0 02 1 0507-0512 ● ● ● ● ●
657 07.833 BOLT; STOPPER TO FRAME
01.531 M8X20 FLANGE 		0-28650-820-0 02 1 0601-0606 ●
657 07.833 BOLT; STOPPER TO FRAME
EXC. ISRAEL COUNTRY(CV4) 01.531 M8X20 FLANGE 		0-28650-820-0 02 1 0601-0606 ● ● ● ● ●
657 07.833 BOLT; STOPPER TO FRAME
EXC. ISRAEL COUNTRY(CV4) 01.531 M8X20 FLANGE 		0-28650-820-0 02 1 0607-0701 ● ● ● ● ● ●
657 07.833 BOLT; STOPPER TO FRAME
01.531 M8X20 FLANGE 		0-28650-820-0 02 1 0702- ● ● ● ● ● ●
658 07.068 NUT; STOPPER TO FRAME
EXC. ISRAEL COUNTRY(CV4) 07.633 M8 FLANGE 		0-91150-108-0 02 1 0302-0506 ● ● ● ● ● ● ●
658 07.068 NUT; STOPPER TO FRAME
07.633 M8 FLANGE 		0-91150-108-0 02 1 0507-0602 ●
658 07.068 NUT; STOPPER TO FRAME
EXC. ISRAEL COUNTRY(CV4) 07.633 M8 FLANGE 		0-91150-108-0 02 1 0507-0602 ● ● ● ● ●
658 07.068 NUT; STOPPER TO FRAME
01.062 M8 FLANGE 		0-91180-108-0 02 1 0603-0606 ●
658 07.068 NUT; STOPPER TO FRAME
EXC. ISRAEL COUNTRY(CV4) 01.062 M8 FLANGE 		0-91180-108-0 02 1 0603-0606 ● ● ● ● ●
658 07.068 NUT; STOPPER TO FRAME
EXC. ISRAEL COUNTRY(CV4) 01.062 M8 FLANGE 		0-91180-108-0 02 1 0607-0701 ● ● ● ● ● ●
658 07.068 NUT; STOPPER TO FRAME
01.062 M8 FLANGE 		0-91180-108-0 02 1 0702- ● ● ● ● ● ●
659 07.833 BOLT; BRKT TO BUMPER
BODY COLOR POLAR SILVER MET(845) FOG LAMP<T96> EXC. ISRAEL COUNTRY(CV4) SILVER 		8-97985-112-0 08 1 0302-0506 ● ● ● ● ●
659 07.833 BOLT; BRKT TO BUMPER
BODY COLOR POLAR SILVER MET(845) FRONT BUMPER PAINTED<VB5> SILVER 		8-97985-112-0 08 1 0507-0701 ● ● ● ●
659 07.833 BOLT; BRKT TO BUMPER
BODY COLOR POLAR SILVER MET(845) SILVER 		8-97985-112-0 08 1 0702- ● ● ● ●
659 07.833 BOLT; BRKT TO BUMPER
BODY COLOR ARC WHITE(729) FOG LAMP<T96> EXC. ISRAEL COUNTRY(CV4) WHITE 		8-97985-111-0 08 1 0302-0506 ● ● ● ● ● ● ●
659 07.833 BOLT; BRKT TO BUMPER
BODY COLOR ARC WHITE(729) FRONT BUMPER PAINTED<VB5> WHITE 		8-97985-111-0 08 1 0507-0701 ● ● ● ● ● ●
659 07.833 BOLT; BRKT TO BUMPER
BODY COLOR ARC WHITE(729) WHITE 		8-97985-111-0 08 1 0702- ● ● ● ● ● ●
659 07.833 BOLT; BRKT TO BUMPER
BODY COLOR MARINE BLUE(890) FOG LAMP<T96> EXC. ISRAEL COUNTRY(CV4) BLUE 		8-97985-110-0 08 1 0302-0506 ● ● ● ● ● ● ●
659 07.833 BOLT; BRKT TO BUMPER
BODY COLOR MARINE BLUE(890) FRONT BUMPER PAINTED<VB5> BLUE 		8-97985-110-0 08 1 0507-0701 ● ● ● ● ● ●
659 07.833 BOLT; BRKT TO BUMPER
BODY COLOR MARINE BLUE(890) BLUE 		8-97985-110-0 08 1 0702- ● ● ● ● ● ●
660 07.833 BOLT; STAY
FOG LAMP<T96> EXC. ISRAEL COUNTRY(CV4) 01.062 M8X16 FLANGE 		0-28080-816-0 04 1 0302-0506 ● ● ● ● ● ● ●
660 07.833 BOLT; STAY
01.062 M8X16 FLANGE 		0-28080-816-0 04 1 0507-0512 ●
660 07.833 BOLT; STAY
FRONT BUMPER PAINTED<VB5> 01.062 M8X16 FLANGE 		0-28080-816-0 04 1 0507-0512 ● ● ● ● ●
660 07.833 BOLT; STAY
02.343 M8X16 FLANGE 		0-28050-816-0 04 1 0601-0606 ●
660 07.833 BOLT; STAY
FRONT BUMPER PAINTED<VB5> 02.343 M8X16 FLANGE 		0-28050-816-0 04 1 0601-0606 ● ● ● ● ●
660 07.833 BOLT; STAY
FRONT BUMPER PAINTED<VB5> 02.343 M8X16 FLANGE 		0-28050-816-0 04 1 0607-0701 ● ● ● ● ● ●
660 07.833 BOLT; STAY
02.343 M8X16 FLANGE 		0-28050-816-0 04 1 0702- ● ● ● ● ● ●

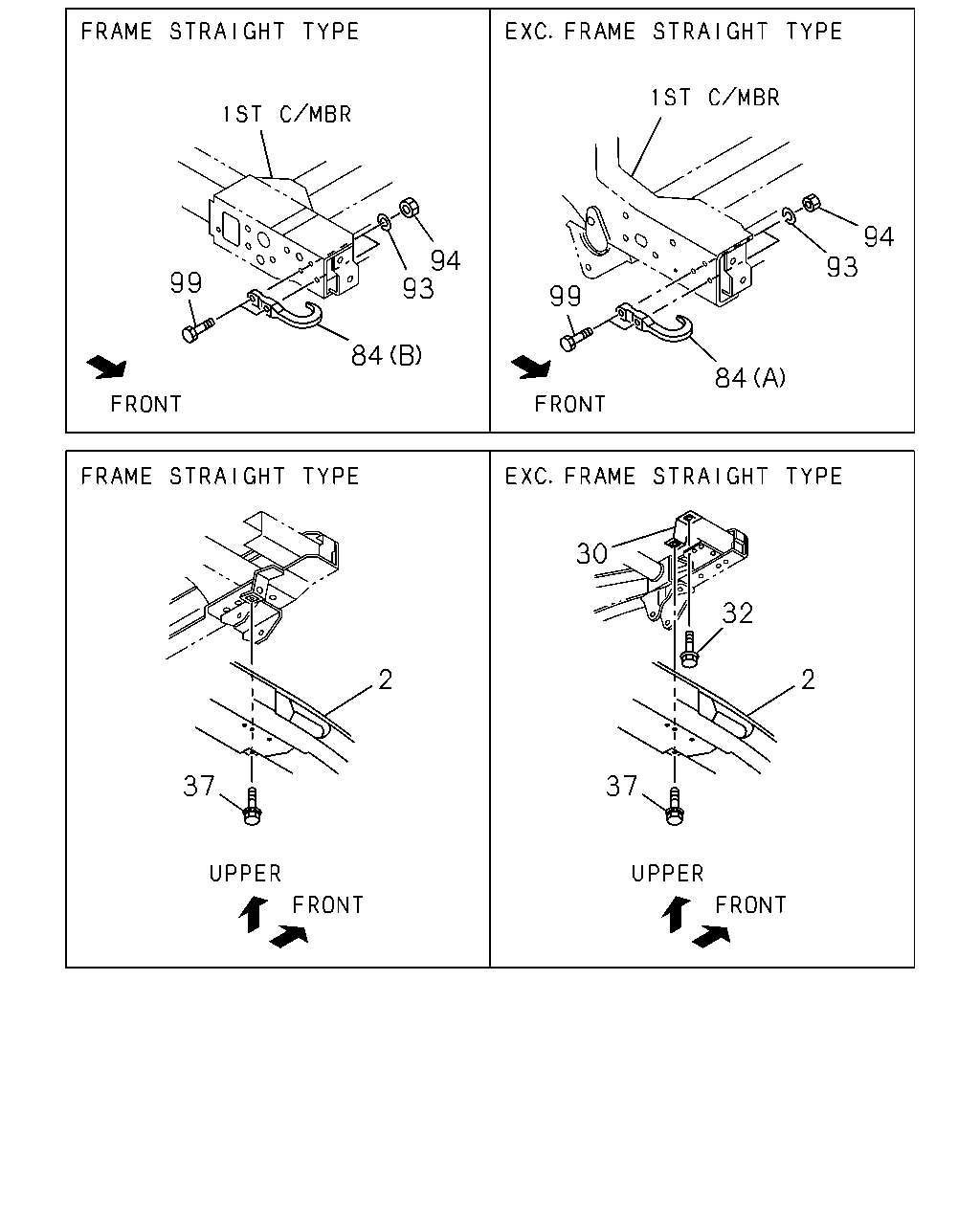

çizim 52651
94 93 94 93 99 99 84 84 30 32 2 2 37 37
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
2 07.831 BUMPER; FRT,CENTER
BODY COLOR POLAR SILVER MET(845) FOG LAMP<T96> EXC. ISRAEL COUNTRY(CV4) SILVER 		8-97580-946-2 01 1 0302-0506 ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR POLAR SILVER MET(845) FRONT BUMPER PAINTED<VB5> SILVER 		8-97580-946-2 01 1 0507-0606 ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR POLAR SILVER MET(845) FRONT BUMPER PAINTED<VB5> SILVER 		8-97580-946-2 01 1 0607-0701 ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR POLAR SILVER MET(845) SILVER 		8-97580-946-2 01 1 0702- ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
ISRAEL COUNTRY(CV4) EXC. COLOR KEYED BUMPER<S4H>,FOG LAMP<T96> DARK GRAY 		8-97999-013-0 01 1 0302-0506 ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729),BODY COLORMARINE BLUE(890) ISRAEL COUNTRY(CV4) EXC. COLOR KEYED BUMPER<S4H>,FOG LAMP<T96> DARK GRAY 		8-97999-013-0 01 1 0302-0506 ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729) FOG LAMP<T96> EXC. ISRAEL COUNTRY(CV4) WHITE 		8-97580-945-2 01 1 0302-0506 ● ● ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729) FRONT BUMPER PAINTED<VB5> WHITE 		8-97580-945-2 01 1 0507-0606 ● ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729) FRONT BUMPER PAINTED<VB5> WHITE 		8-97580-945-2 01 1 0607-0701 ● ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729) WHITE 		8-97580-945-2 01 1 0702- ● ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729) ISRAEL COUNTRY(CV4) COLOR KEYED BUMPER<S4H> EXC. FOG LAMP<T96> WHITE 		8-97999-014-0 01 1 0302-0506 ● ● ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729) ISRAEL COUNTRY(CV4) COLOR KEYED BUMPER<S4H> FOG LAMP<T96> VOLTAGE 24V<7AE> WHITE 		8-97999-733-0 01 1 0302-0506 ● ● ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729) VOLTAGE 24V<7AE> EXC. FRT BUMPER DARK GRAY<EQ9>, FRONTBUMPER PAINTED<VB5> WHITE 		8-97999-733-0 01 1 0507-0606 ● ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729) EXC. FRONT BUMPER PAINTED<VB5> WHITE 		8-97999-733-0 01 1 0607-0701 ● ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729),BODY COLORMARINE BLUE(890) ISRAEL COUNTRY(CV4) FOG LAMP<T96> VOLTAGE 24V<7AE> EXC. COLOR KEYED BUMPER<S4H> DARK GRAY 		8-97999-026-0 01 1 0302-0506 ● ● ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729),BODY COLORMARINE BLUE(890) FRT BUMPER DARK GRAY<EQ9> VOLTAGE 24V<7AE> DARK GRAY 		8-97583-042-0 01 1 0507-0606 ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR POLAR SILVER MET(845) VOLTAGE 24V<7AE> EXC. FRONT BUMPER PAINTED<VB5> DARK GRAY 		8-97583-042-0 01 1 0507-0606 ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR POLAR SILVER MET(845) EXC. FRONT BUMPER PAINTED<VB5> DARK GRAY 		8-97583-042-0 01 1 0607-0701 ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR MARINE BLUE(890) FOG LAMP<T96> EXC. ISRAEL COUNTRY(CV4) BLUE 		8-97580-947-2 01 1 0302-0506 ● ● ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR MARINE BLUE(890) FRONT BUMPER PAINTED<VB5> BLUE 		8-97580-947-2 01 1 0507-0606 ● ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR MARINE BLUE(890) FRONT BUMPER PAINTED<VB5> BLUE 		8-97580-947-2 01 1 0607-0701 ● ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR MARINE BLUE(890) BLUE 		8-97580-947-2 01 1 0702- ● ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR MARINE BLUE(890) ISRAEL COUNTRY(CV4) COLOR KEYED BUMPER<S4H> FOG LAMP<T96> VOLTAGE 24V<7AE> BLUE 		8-97581-580-0 01 1 0302-0506 ● ● ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR MARINE BLUE(890) VOLTAGE 24V<7AE> EXC. FRT BUMPER DARK GRAY<EQ9>, FRONTBUMPER PAINTED<VB5> BLUE 		8-97581-580-0 01 1 0507-0606 ● ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR MARINE BLUE(890) EXC. FRONT BUMPER PAINTED<VB5> BLUE 		8-97581-580-0 01 1 0607-0701 ● ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR MARINE BLUE(890) ISRAEL COUNTRY(CV4) COLOR KEYED BUMPER<S4H> EXC. FOG LAMP<T96> PRIMER 		8-97998-075-0 01 1 0302-0506 ● ● ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729) ISRAEL COUNTRY(CV4) COLOR KEYED BUMPER<S4H> FOG LAMP<T96> EXC. VOLTAGE 24V<7AE> WHITE 		8-97581-578-0 01 1 0302-0506 ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729) EXC. FRT BUMPER DARK GRAY<EQ9>, FRONTBUMPER PAINTED<VB5>,VOLTAGE 24V<7AE> WHITE 		8-97581-578-0 01 1 0507-0606 ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729),BODY COLORMARINE BLUE(890) ISRAEL COUNTRY(CV4) FOG LAMP<T96> EXC. COLOR KEYED BUMPER<S4H>, VOLTAGE24V<7AE> DARK GRAY 		8-97999-025-0 01 1 0302-0506 ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729),BODY COLORMARINE BLUE(890) FRT BUMPER DARK GRAY<EQ9> EXC. VOLTAGE 24V<7AE> DARK GRAY 		8-97589-231-0 01 1 0507-0606 ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR POLAR SILVER MET(845) EXC. FRONT BUMPER PAINTED<VB5>, VOLTAGE 24V<7AE> DARK GRAY 		8-97589-231-0 01 1 0507-0606 ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR MARINE BLUE(890) ISRAEL COUNTRY(CV4) COLOR KEYED BUMPER<S4H> FOG LAMP<T96> EXC. VOLTAGE 24V<7AE> BLUE 		8-97581-579-0 01 1 0302-0506 ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR MARINE BLUE(890) EXC. FRT BUMPER DARK GRAY<EQ9>, FRONTBUMPER PAINTED<VB5>,VOLTAGE 24V<7AE> BLUE 		8-97581-579-0 01 1 0507-0606 ● ●
30 07.869 BRACKET; FRT BUMPER
FOG LAMP<T96> EXC. ISRAEL COUNTRY(CV4) 		8-97999-729-0 01 1 0302-0506 ● ● ● ● ● ● ●
30 07.869 BRACKET; FRT BUMPER 8-97999-729-0 01 1 0507-0606 ●
30 07.869 BRACKET; FRT BUMPER
FRONT BUMPER PAINTED<VB5> 		8-97999-729-0 01 1 0507-0606 ● ● ● ● ●
30 07.869 BRACKET; FRT BUMPER
FRONT BUMPER PAINTED<VB5> 		8-97999-729-0 01 1 0607-0701 ● ● ● ● ● ●
30 07.869 BRACKET; FRT BUMPER 8-97999-729-0 01 1 0702- ● ● ● ● ● ●
30 07.869 BRACKET; FRT BUMPER
FOG LAMP<T96> EXC. ISRAEL COUNTRY(CV4) 		8-97998-620-0 01 1 0302-0308 ● ● ● ● ● ● ●
30 07.869 BRACKET; FRT BUMPER
FOG LAMP<T96> EXC. ISRAEL COUNTRY(CV4) 		8-97999-728-0 01 1 0309-0506 ● ● ● ● ● ● ●
30 07.869 BRACKET; FRT BUMPER 8-97999-728-0 01 1 0507-0606 ●
30 07.869 BRACKET; FRT BUMPER
FRONT BUMPER PAINTED<VB5> 		8-97999-728-0 01 1 0507-0606 ● ● ● ● ●
30 07.869 BRACKET; FRT BUMPER
FRONT BUMPER PAINTED<VB5> 		8-97999-728-0 01 1 0607-0701 ● ● ● ● ● ●
30 07.869 BRACKET; FRT BUMPER 8-97999-728-0 01 1 0702- ● ● ● ● ● ●
30 07.869 BRACKET; FRT BUMPER
ISRAEL COUNTRY(CV4) EXC. FRAME STRAIGHT TYPE<7KJ> 01.263 		8-97093-639-3 02 1 0302-0506 ● ● ●
30 07.869 BRACKET; FRT BUMPER
ISRAEL COUNTRY(CV4) EXC. FRAME STRAIGHT TYPE<7KJ> 01.263 		8-97093-639-3 02 1 0507-0606 ● ●
30 07.869 BRACKET; FRT BUMPER
ISRAEL COUNTRY(CV4) 01.263 		8-97093-639-3 02 1 0607-0701 ● ●
30 07.869 BRACKET; FRT BUMPER
ISRAEL COUNTRY(CV4) EXC. FRAME STRAIGHT TYPE<7KJ> 01.263 		8-97093-639-3 02 1 0607-0701 ● ●
32 07.874 BOLT; BRKT,BUMPER
ISRAEL COUNTRY(CV4) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 02 1 0302-0506 ● ● ●
32 07.874 BOLT; BRKT,BUMPER
ISRAEL COUNTRY(CV4) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 02 1 0507-0512 ● ●
32 07.874 BOLT; BRKT,BUMPER
ISRAEL COUNTRY(CV4) EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 0601-0606 ● ●
32 07.874 BOLT; BRKT,BUMPER
ISRAEL COUNTRY(CV4) 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 0607-0701 ● ●
32 07.874 BOLT; BRKT,BUMPER
ISRAEL COUNTRY(CV4) EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 0607-0701 ● ●
37 01.263 BOLT; BRKT TO BUMPER LWR
ISRAEL COUNTRY(CV4) 16.320 M8X22 W/LK&PL WASHER 		8-94279-148-1 02 1 0302-0506 ● ● ● ● ● ● ●
37 01.263 BOLT; BRKT TO BUMPER LWR
ISRAEL COUNTRY(CV4) 16.320 M8X22 W/LK&PL WASHER 		8-94279-148-1 02 1 0507-0606 ● ● ● ● ●
37 01.263 BOLT; BRKT TO BUMPER LWR
ISRAEL COUNTRY(CV4) 16.320 M8X22 W/LK&PL WASHER 		8-94279-148-1 02 1 0607-0701 ● ● ● ● ● ●
84 07.068 HOOK
FRAME STRAIGHT TYPE<7KJ> 07.112 (B) 		8-97122-535-0 01 1 0302-0506 ● ● ●
84 07.068 HOOK
07.112 (B) 		8-97122-535-0 01 1 0302-0506 ● ● ● ●
84 07.068 HOOK
FRAME STRAIGHT TYPE<7KJ> 07.112 (B) 		8-97122-535-0 01 1 0507-0606 ● ●
84 07.068 HOOK
07.112 (B) 		8-97122-535-0 01 1 0507-0606 ● ● ●
84 07.068 HOOK
FRAME STRAIGHT TYPE<7KJ> 07.112 (B) 		8-97122-535-0 01 1 0607- ● ●
84 07.068 HOOK
07.112 (B) 		8-97122-535-0 01 1 0607- ● ●
84 07.068 HOOK
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97189-109-0 01 1 0302-0506 ● ● ●
84 07.068 HOOK
(A) 		8-97189-109-0 01 1 0507-0606 ●
84 07.068 HOOK
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97189-109-0 01 1 0507-0606 ● ●
84 07.068 HOOK
(A) 		8-97189-109-0 01 1 0607- ● ●
84 07.068 HOOK
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97189-109-0 01 1 0607- ● ●
93 07.068 WASHER; LK,HOOK
05.422 ID=14.2 		9-09150-814-0 02 1 0302-0506 ● ● ● ● ● ● ●
93 07.068 WASHER; LK,HOOK
05.422 ID=14.2 		9-09150-814-0 02 1 0507-0603 ● ● ● ● ● ●
93 07.068 WASHER; LK,HOOK
06.174 ID=14.2 		0-91510-814-0 02 1 0604- ● ● ● ● ● ●
94 07.068 NUT; HOOK
07.529 M14 		9-99110-514-0 02 1 0302-0506 ● ● ● ● ● ● ●
94 07.068 NUT; HOOK
07.529 M14 		9-99110-514-0 02 1 0507-0512 ● ● ● ● ● ●
94 07.068 NUT; HOOK
07.833 M14 		0-91110-514-0 02 1 0601- ● ● ● ● ● ●
99 07.039 BOLT; HOOK
M14X50 		0-10806-450-0 02 1 0302-0506 ● ● ● ● ● ● ●
99 07.039 BOLT; HOOK
M14X50 		0-10806-450-0 02 1 0507-0512 ● ● ● ● ● ●
99 07.039 BOLT; HOOK
M14X50 		0-10856-450-0 02 1 0601- ● ● ● ● ● ●

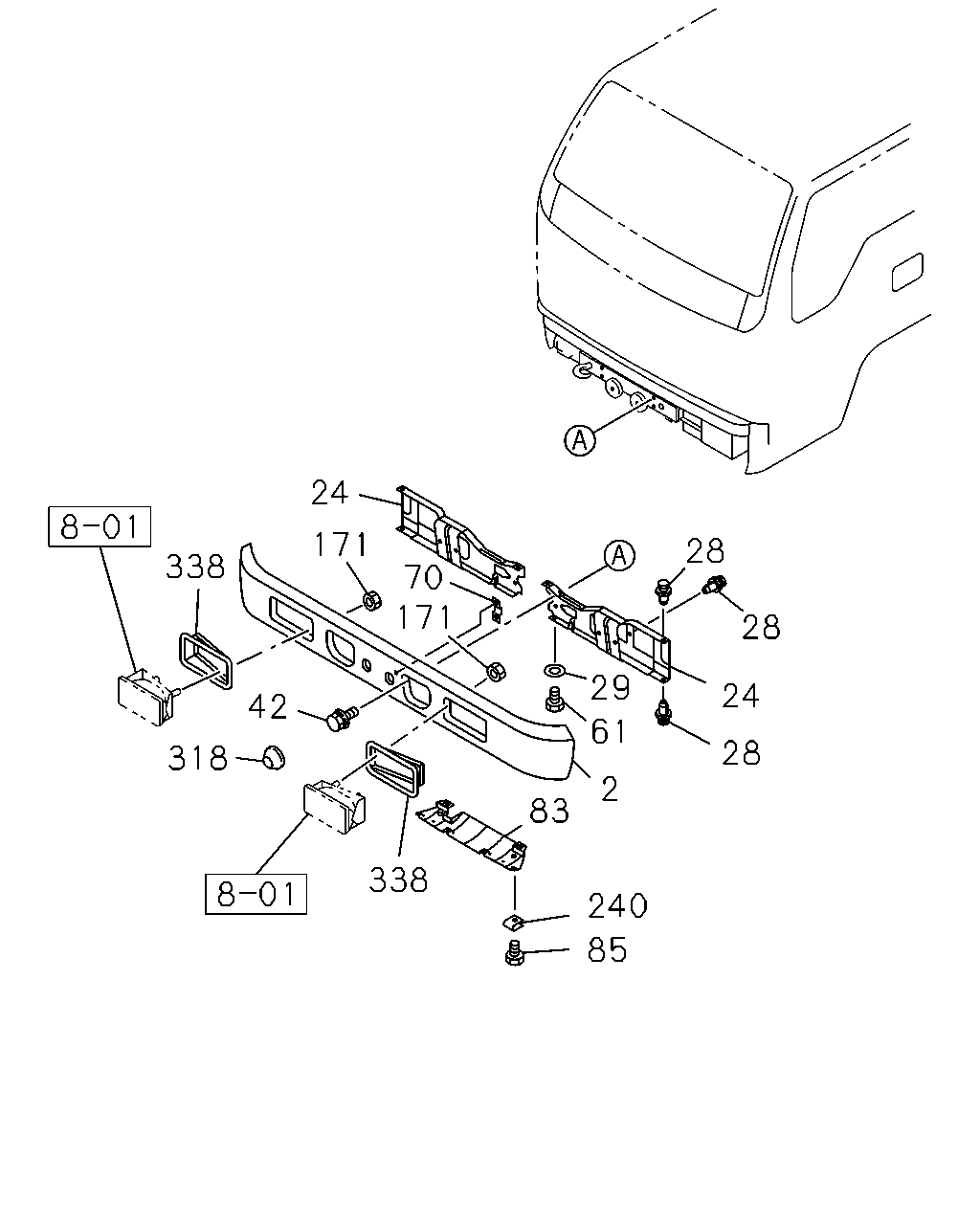

çizim 54474
24 171 28 70 171 338 28 29 24 42 61 28 318 2 83 338 240 85
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
2 07.831 BUMPER; FRT,CENTER
BODY COLOR POLAR SILVER MET(845) FOG LAMP<T96> EXC. ISRAEL COUNTRY(CV4) SILVER 		8-97580-946-2 01 1 0302-0506 ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR POLAR SILVER MET(845) FRONT BUMPER PAINTED<VB5> SILVER 		8-97580-946-2 01 1 0507-0606 ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR POLAR SILVER MET(845) FRONT BUMPER PAINTED<VB5> SILVER 		8-97580-946-2 01 1 0607-0701 ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR POLAR SILVER MET(845) SILVER 		8-97580-946-2 01 1 0702- ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
ISRAEL COUNTRY(CV4) EXC. COLOR KEYED BUMPER<S4H>,FOG LAMP<T96> DARK GRAY 		8-97999-013-0 01 1 0302-0506 ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729),BODY COLORMARINE BLUE(890) ISRAEL COUNTRY(CV4) EXC. COLOR KEYED BUMPER<S4H>,FOG LAMP<T96> DARK GRAY 		8-97999-013-0 01 1 0302-0506 ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729) FOG LAMP<T96> EXC. ISRAEL COUNTRY(CV4) WHITE 		8-97580-945-2 01 1 0302-0506 ● ● ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729) FRONT BUMPER PAINTED<VB5> WHITE 		8-97580-945-2 01 1 0507-0606 ● ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729) FRONT BUMPER PAINTED<VB5> WHITE 		8-97580-945-2 01 1 0607-0701 ● ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729) WHITE 		8-97580-945-2 01 1 0702- ● ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729) ISRAEL COUNTRY(CV4) COLOR KEYED BUMPER<S4H> EXC. FOG LAMP<T96> WHITE 		8-97999-014-0 01 1 0302-0506 ● ● ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729) ISRAEL COUNTRY(CV4) COLOR KEYED BUMPER<S4H> FOG LAMP<T96> VOLTAGE 24V<7AE> WHITE 		8-97999-733-0 01 1 0302-0506 ● ● ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729) VOLTAGE 24V<7AE> EXC. FRT BUMPER DARK GRAY<EQ9>, FRONTBUMPER PAINTED<VB5> WHITE 		8-97999-733-0 01 1 0507-0606 ● ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729) EXC. FRONT BUMPER PAINTED<VB5> WHITE 		8-97999-733-0 01 1 0607-0701 ● ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729),BODY COLORMARINE BLUE(890) ISRAEL COUNTRY(CV4) FOG LAMP<T96> VOLTAGE 24V<7AE> EXC. COLOR KEYED BUMPER<S4H> DARK GRAY 		8-97999-026-0 01 1 0302-0506 ● ● ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729),BODY COLORMARINE BLUE(890) FRT BUMPER DARK GRAY<EQ9> VOLTAGE 24V<7AE> DARK GRAY 		8-97583-042-0 01 1 0507-0606 ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR POLAR SILVER MET(845) VOLTAGE 24V<7AE> EXC. FRONT BUMPER PAINTED<VB5> DARK GRAY 		8-97583-042-0 01 1 0507-0606 ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR POLAR SILVER MET(845) EXC. FRONT BUMPER PAINTED<VB5> DARK GRAY 		8-97583-042-0 01 1 0607-0701 ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR MARINE BLUE(890) FOG LAMP<T96> EXC. ISRAEL COUNTRY(CV4) BLUE 		8-97580-947-2 01 1 0302-0506 ● ● ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR MARINE BLUE(890) FRONT BUMPER PAINTED<VB5> BLUE 		8-97580-947-2 01 1 0507-0606 ● ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR MARINE BLUE(890) FRONT BUMPER PAINTED<VB5> BLUE 		8-97580-947-2 01 1 0607-0701 ● ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR MARINE BLUE(890) BLUE 		8-97580-947-2 01 1 0702- ● ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR MARINE BLUE(890) ISRAEL COUNTRY(CV4) COLOR KEYED BUMPER<S4H> FOG LAMP<T96> VOLTAGE 24V<7AE> BLUE 		8-97581-580-0 01 1 0302-0506 ● ● ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR MARINE BLUE(890) VOLTAGE 24V<7AE> EXC. FRT BUMPER DARK GRAY<EQ9>, FRONTBUMPER PAINTED<VB5> BLUE 		8-97581-580-0 01 1 0507-0606 ● ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR MARINE BLUE(890) EXC. FRONT BUMPER PAINTED<VB5> BLUE 		8-97581-580-0 01 1 0607-0701 ● ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR MARINE BLUE(890) ISRAEL COUNTRY(CV4) COLOR KEYED BUMPER<S4H> EXC. FOG LAMP<T96> PRIMER 		8-97998-075-0 01 1 0302-0506 ● ● ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729) ISRAEL COUNTRY(CV4) COLOR KEYED BUMPER<S4H> FOG LAMP<T96> EXC. VOLTAGE 24V<7AE> WHITE 		8-97581-578-0 01 1 0302-0506 ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729) EXC. FRT BUMPER DARK GRAY<EQ9>, FRONTBUMPER PAINTED<VB5>,VOLTAGE 24V<7AE> WHITE 		8-97581-578-0 01 1 0507-0606 ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729),BODY COLORMARINE BLUE(890) ISRAEL COUNTRY(CV4) FOG LAMP<T96> EXC. COLOR KEYED BUMPER<S4H>, VOLTAGE24V<7AE> DARK GRAY 		8-97999-025-0 01 1 0302-0506 ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729),BODY COLORMARINE BLUE(890) FRT BUMPER DARK GRAY<EQ9> EXC. VOLTAGE 24V<7AE> DARK GRAY 		8-97589-231-0 01 1 0507-0606 ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR POLAR SILVER MET(845) EXC. FRONT BUMPER PAINTED<VB5>, VOLTAGE 24V<7AE> DARK GRAY 		8-97589-231-0 01 1 0507-0606 ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR MARINE BLUE(890) ISRAEL COUNTRY(CV4) COLOR KEYED BUMPER<S4H> FOG LAMP<T96> EXC. VOLTAGE 24V<7AE> BLUE 		8-97581-579-0 01 1 0302-0506 ● ● ●
2 07.831 BUMPER; FRT,CENTER
BODY COLOR MARINE BLUE(890) EXC. FRT BUMPER DARK GRAY<EQ9>, FRONTBUMPER PAINTED<VB5>,VOLTAGE 24V<7AE> BLUE 		8-97581-579-0 01 1 0507-0606 ● ●
24 07.869 BAR; FRT BUMPER
ISRAEL COUNTRY(CV4) FOG LAMP<T96> 		8-97073-672-4 01 1 0302-0506 ● ● ● ● ● ● ●
24 07.869 BAR; FRT BUMPER
EXC. FRONT BUMPER PAINTED<VB5> 		8-97073-672-4 01 1 0507-0606 ● ● ● ● ●
24 07.869 BAR; FRT BUMPER
EXC. FRONT BUMPER PAINTED<VB5> 		8-97073-672-4 01 1 0607-0701 ● ● ● ● ● ●
24 07.869 BAR; FRT BUMPER
ISRAEL COUNTRY(CV4) FOG LAMP<T96> 		8-97194-749-2 01 1 0302-0308 ● ● ● ● ● ● ●
24 07.869 BAR; FRT BUMPER
ISRAEL COUNTRY(CV4) FOG LAMP<T96> 		8-97073-671-4 01 1 0309-0506 ● ● ● ● ● ● ●
24 07.869 BAR; FRT BUMPER
EXC. FRONT BUMPER PAINTED<VB5> 		8-97073-671-4 01 1 0507-0606 ● ● ● ● ●
24 07.869 BAR; FRT BUMPER
EXC. FRONT BUMPER PAINTED<VB5> 		8-97073-671-4 01 1 0607-0701 ● ● ● ● ● ●
24 07.869 BAR; FRT BUMPER
ISRAEL COUNTRY(CV4) EXC. FOG LAMP<T96> 		8-97039-797-5 01 1 0302-0506 ● ● ● ● ● ● ●
24 07.869 BAR; FRT BUMPER
ISRAEL COUNTRY(CV4) EXC. FOG LAMP<T96> 		8-97192-521-2 01 1 0302-0308 ● ● ● ● ● ● ●
24 07.869 BAR; FRT BUMPER
ISRAEL COUNTRY(CV4) EXC. FOG LAMP<T96> 		8-97039-796-5 01 1 0309-0506 ● ● ● ● ● ● ●
28 07.833 FASTENER; BACK BAR
ISRAEL COUNTRY(CV4) 12.934 D=5.8 SCREW & GROMMET NYLON 		8-94242-150-0 08 1 0302-0506 ● ● ● ● ● ● ●
28 07.833 FASTENER; BACK BAR
EXC. FRONT BUMPER PAINTED<VB5> 12.934 D=5.8 SCREW & GROMMET NYLON 		8-94242-150-0 08 1 0507-0606 ● ● ● ● ●
28 07.833 FASTENER; BACK BAR
EXC. FRONT BUMPER PAINTED<VB5> 12.934 D=5.8 SCREW & GROMMET NYLON 		8-94242-150-0 08 1 0607-0701 ● ● ● ● ● ●
29 07.833 WASHER; FRT BUMPER
ISRAEL COUNTRY(CV4) ID=8.5 		8-94167-476-0 02 1 0302-0506 ● ● ● ● ● ● ●
29 07.833 WASHER; FRT BUMPER
EXC. FRONT BUMPER PAINTED<VB5> ID=8.5 		8-94167-476-0 02 1 0507-0606 ● ● ● ● ●
29 07.833 WASHER; FRT BUMPER
EXC. FRONT BUMPER PAINTED<VB5> ID=8.5 		8-94167-476-0 02 1 0607-0701 ● ● ● ● ● ●
42 07.874 BOLT; BUMPER
M10X35 W/LK&PL WASHER 		8-97101-865-0 04 1 0302-0506 ● ● ● ● ● ● ●
42 07.874 BOLT; BUMPER
M10X35 W/LK&PL WASHER 		8-97101-865-0 04 1 0507- ● ● ● ● ● ●
61 07.832 BOLT; BACK BAR
ISRAEL COUNTRY(CV4) 04.785 M8X18 W/LK WASHER 		0-50040-818-0 02 1 0302-0506 ● ● ● ● ● ● ●
61 07.832 BOLT; BACK BAR
EXC. FRONT BUMPER PAINTED<VB5> 04.785 M8X18 W/LK WASHER 		0-50040-818-0 02 1 0507-0606 ● ● ● ● ●
61 07.832 BOLT; BACK BAR
EXC. FRONT BUMPER PAINTED<VB5> 04.785 M8X18 W/LK WASHER 		0-50040-818-0 02 1 0607-0701 ● ● ● ● ● ●
70 07.800 BRACKET; LICENSE PLATE,FRT
ISRAEL COUNTRY(CV4) 		8-94151-164-1 02 1 0302-0506 ● ● ● ● ● ● ●
70 07.800 BRACKET; LICENSE PLATE,FRT
EXC. FRONT BUMPER PAINTED<VB5> 		8-94151-164-1 02 1 0507-0606 ● ● ● ● ●
70 07.800 BRACKET; LICENSE PLATE,FRT
EXC. FRONT BUMPER PAINTED<VB5> 		8-94151-164-1 02 1 0607-0701 ● ● ● ● ● ●
83 07.833 GUIDE; AIR,FRT BUMPER
ISRAEL COUNTRY(CV4) 		8-97076-719-2 01 1 0302-0506 ● ● ● ● ● ● ●
83 07.833 GUIDE; AIR,FRT BUMPER
EXC. FRONT BUMPER PAINTED<VB5> 		8-97076-719-2 01 1 0507-0606 ● ● ● ● ●
83 07.833 GUIDE; AIR,FRT BUMPER
EXC. FRONT BUMPER PAINTED<VB5> 		8-97076-719-2 01 1 0607-0701 ● ● ● ● ● ●
85 07.874 BOLT; AIR GUIDE,FRT BUMPER
ISRAEL COUNTRY(CV4) M6X22 W/PL WASHER 		8-97012-072-0 04 1 0302-0506 ● ● ● ● ● ● ●
85 07.874 BOLT; AIR GUIDE,FRT BUMPER
EXC. FRONT BUMPER PAINTED<VB5> M6X22 W/PL WASHER 		8-97012-072-0 04 1 0507-0606 ● ● ● ● ●
85 07.874 BOLT; AIR GUIDE,FRT BUMPER
EXC. FRONT BUMPER PAINTED<VB5> M6X22 W/PL WASHER 		8-97012-072-0 04 1 0607-0701 ● ● ● ● ● ●
171 07.869 NUT; BACK BAR
ISRAEL COUNTRY(CV4) FOG LAMP<T96> 04.012 M8 FLANGE 		1-09464-018-1 06 1 0302-0506 ● ● ● ● ● ● ●
171 07.869 NUT; BACK BAR
EXC. FRONT BUMPER PAINTED<VB5> 04.012 M8 FLANGE 		1-09464-018-1 06 1 0507-0606 ● ● ● ● ●
171 07.869 NUT; BACK BAR
EXC. FRONT BUMPER PAINTED<VB5> 04.012 M8 FLANGE 		1-09464-018-1 06 1 0607-0701 ● ● ● ● ● ●
171 07.869 NUT; BACK BAR
ISRAEL COUNTRY(CV4) EXC. FOG LAMP<T96> 04.012 M8 FLANGE 		1-09464-018-1 02 1 0302-0506 ● ● ● ● ● ● ●
240 07.833 NUT; AIR GUIDE,FRT BUMPER
ISRAEL COUNTRY(CV4) 16.085 M6 SPIRE NUT 		8-97210-973-1 04 1 0302-0506 ● ● ● ● ● ● ●
240 07.833 NUT; AIR GUIDE,FRT BUMPER
EXC. FRONT BUMPER PAINTED<VB5> 16.085 M6 SPIRE NUT 		8-97210-973-1 04 1 0507-0606 ● ● ● ● ●
240 07.833 NUT; AIR GUIDE,FRT BUMPER
EXC. FRONT BUMPER PAINTED<VB5> 16.085 M6 SPIRE NUT 		8-97210-973-1 04 1 0607-0701 ● ● ● ● ● ●
318 07.832 CAP; BUMPER SIDE 8-97582-950-0 02 1 0309-0506 ● ● ● ● ● ● ●
318 07.832 CAP; BUMPER SIDE 8-97582-950-0 02 1 0507- ● ● ● ● ● ●
338 07.832 BEZEL; FOG LAMP
BODY COLOR ARC WHITE(729) ISRAEL COUNTRY(CV4) COLOR KEYED BUMPER<S4H> FOG LAMP<T96> VOLTAGE 24V<7AE> WHITE 		8-97999-735-0 01 1 0302-0506 ● ● ● ● ● ● ●
338 07.832 BEZEL; FOG LAMP
BODY COLOR ARC WHITE(729) VOLTAGE 24V<7AE> EXC. FRT BUMPER DARK GRAY<EQ9>, FRONTBUMPER PAINTED<VB5> WHITE 		8-97999-735-0 01 1 0507-0606 ● ● ● ● ● ●
338 07.832 BEZEL; FOG LAMP
BODY COLOR ARC WHITE(729) EXC. FRONT BUMPER PAINTED<VB5> WHITE 		8-97999-735-0 01 1 0607-0701 ● ● ● ● ● ●
338 07.832 BEZEL; FOG LAMP
BODY COLOR ARC WHITE(729) ISRAEL COUNTRY(CV4) COLOR KEYED BUMPER<S4H> FOG LAMP<T96> VOLTAGE 24V<7AE> WHITE 		8-97999-734-0 01 1 0302-0506 ● ● ● ● ● ● ●
338 07.832 BEZEL; FOG LAMP
BODY COLOR ARC WHITE(729) VOLTAGE 24V<7AE> EXC. FRT BUMPER DARK GRAY<EQ9>, FRONTBUMPER PAINTED<VB5> WHITE 		8-97999-734-0 01 1 0507-0606 ● ● ● ● ● ●
338 07.832 BEZEL; FOG LAMP
BODY COLOR ARC WHITE(729) EXC. FRONT BUMPER PAINTED<VB5> WHITE 		8-97999-734-0 01 1 0607-0701 ● ● ● ● ● ●
338 07.832 BEZEL; FOG LAMP
BODY COLOR ARC WHITE(729),BODY COLORMARINE BLUE(890) ISRAEL COUNTRY(CV4) FOG LAMP<T96> VOLTAGE 24V<7AE> EXC. COLOR KEYED BUMPER<S4H> DARK GRAY 		8-97195-641-0 01 1 0302-0506 ● ● ● ● ● ● ●
338 07.832 BEZEL; FOG LAMP
BODY COLOR ARC WHITE(729),BODY COLORMARINE BLUE(890) FRT BUMPER DARK GRAY<EQ9> VOLTAGE 24V<7AE> DARK GRAY 		8-97583-045-0 01 1 0507-0606 ● ● ● ● ●
338 07.832 BEZEL; FOG LAMP
BODY COLOR POLAR SILVER MET(845) VOLTAGE 24V<7AE> EXC. FRONT BUMPER PAINTED<VB5> DARK GRAY 		8-97583-045-0 01 1 0507-0606 ● ● ●
338 07.832 BEZEL; FOG LAMP
BODY COLOR POLAR SILVER MET(845) EXC. FRONT BUMPER PAINTED<VB5> DARK GRAY 		8-97583-045-0 01 1 0607-0701 ● ● ● ●
338 07.832 BEZEL; FOG LAMP
BODY COLOR ARC WHITE(729),BODY COLORMARINE BLUE(890) ISRAEL COUNTRY(CV4) FOG LAMP<T96> VOLTAGE 24V<7AE> EXC. COLOR KEYED BUMPER<S4H> DARK GRAY 		8-97195-640-0 01 1 0302-0506 ● ● ● ● ● ● ●
338 07.832 BEZEL; FOG LAMP
BODY COLOR ARC WHITE(729),BODY COLORMARINE BLUE(890) FRT BUMPER DARK GRAY<EQ9> VOLTAGE 24V<7AE> DARK GRAY 		8-97583-044-0 01 1 0507-0606 ● ● ● ● ●
338 07.832 BEZEL; FOG LAMP
BODY COLOR POLAR SILVER MET(845) VOLTAGE 24V<7AE> EXC. FRONT BUMPER PAINTED<VB5> DARK GRAY 		8-97583-044-0 01 1 0507-0606 ● ● ●
338 07.832 BEZEL; FOG LAMP
BODY COLOR POLAR SILVER MET(845) EXC. FRONT BUMPER PAINTED<VB5> DARK GRAY 		8-97583-044-0 01 1 0607-0701 ● ● ● ●
338 07.832 BEZEL; FOG LAMP
BODY COLOR MARINE BLUE(890) ISRAEL COUNTRY(CV4) COLOR KEYED BUMPER<S4H> FOG LAMP<T96> VOLTAGE 24V<7AE> BLUE 		8-97581-582-0 01 1 0302-0506 ● ● ● ● ● ● ●
338 07.832 BEZEL; FOG LAMP
BODY COLOR MARINE BLUE(890) VOLTAGE 24V<7AE> EXC. FRT BUMPER DARK GRAY<EQ9>, FRONTBUMPER PAINTED<VB5> BLUE 		8-97581-582-0 01 1 0507-0606 ● ● ● ● ● ●
338 07.832 BEZEL; FOG LAMP
BODY COLOR MARINE BLUE(890) EXC. FRONT BUMPER PAINTED<VB5> BLUE 		8-97581-582-0 01 1 0607-0701 ● ● ● ● ● ●
338 07.832 BEZEL; FOG LAMP
BODY COLOR MARINE BLUE(890) ISRAEL COUNTRY(CV4) COLOR KEYED BUMPER<S4H> FOG LAMP<T96> VOLTAGE 24V<7AE> BLUE 		8-97581-581-0 01 1 0302-0506 ● ● ● ● ● ● ●
338 07.832 BEZEL; FOG LAMP
BODY COLOR MARINE BLUE(890) VOLTAGE 24V<7AE> EXC. FRT BUMPER DARK GRAY<EQ9>, FRONTBUMPER PAINTED<VB5> BLUE 		8-97581-581-0 01 1 0507-0606 ● ● ● ● ● ●
338 07.832 BEZEL; FOG LAMP
BODY COLOR MARINE BLUE(890) EXC. FRONT BUMPER PAINTED<VB5> BLUE 		8-97581-581-0 01 1 0607-0701 ● ● ● ● ● ●
338 07.832 BEZEL; FOG LAMP
BODY COLOR ARC WHITE(729) ISRAEL COUNTRY(CV4) COLOR KEYED BUMPER<S4H> FOG LAMP<T96> EXC. VOLTAGE 24V<7AE> WHITE 		8-97097-873-0 01 1 0302-0506 ● ● ●
338 07.832 BEZEL; FOG LAMP
BODY COLOR ARC WHITE(729) EXC. FRT BUMPER DARK GRAY<EQ9>, FRONTBUMPER PAINTED<VB5>,VOLTAGE 24V<7AE> WHITE 		8-97097-873-0 01 1 0507-0606 ● ●
338 07.832 BEZEL; FOG LAMP
BODY COLOR ARC WHITE(729) ISRAEL COUNTRY(CV4) COLOR KEYED BUMPER<S4H> FOG LAMP<T96> EXC. VOLTAGE 24V<7AE> WHITE 		8-97097-869-0 01 1 0302-0506 ● ● ●
338 07.832 BEZEL; FOG LAMP
BODY COLOR ARC WHITE(729) EXC. FRT BUMPER DARK GRAY<EQ9>, FRONTBUMPER PAINTED<VB5>,VOLTAGE 24V<7AE> WHITE 		8-97097-869-0 01 1 0507-0606 ● ●
338 07.832 BEZEL; FOG LAMP
BODY COLOR ARC WHITE(729),BODY COLORMARINE BLUE(890) ISRAEL COUNTRY(CV4) FOG LAMP<T96> EXC. COLOR KEYED BUMPER<S4H>, VOLTAGE24V<7AE> DARK GRAY 		8-97866-838-0 01 1 0302-0506 ● ● ●
338 07.832 BEZEL; FOG LAMP
BODY COLOR ARC WHITE(729),BODY COLORMARINE BLUE(890) FRT BUMPER DARK GRAY<EQ9> EXC. VOLTAGE 24V<7AE> DARK GRAY 		8-97589-233-0 01 1 0507-0606 ● ●
338 07.832 BEZEL; FOG LAMP
BODY COLOR POLAR SILVER MET(845) EXC. FRONT BUMPER PAINTED<VB5>, VOLTAGE 24V<7AE> DARK GRAY 		8-97589-233-0 01 1 0507-0606 ●
338 07.832 BEZEL; FOG LAMP
BODY COLOR ARC WHITE(729),BODY COLORMARINE BLUE(890) ISRAEL COUNTRY(CV4) FOG LAMP<T96> EXC. COLOR KEYED BUMPER<S4H>, VOLTAGE24V<7AE> DARK GRAY 		8-97866-837-0 01 1 0302-0506 ● ● ●
338 07.832 BEZEL; FOG LAMP
BODY COLOR ARC WHITE(729),BODY COLORMARINE BLUE(890) FRT BUMPER DARK GRAY<EQ9> EXC. VOLTAGE 24V<7AE> DARK GRAY 		8-97589-232-0 01 1 0507-0606 ● ●
338 07.832 BEZEL; FOG LAMP
BODY COLOR POLAR SILVER MET(845) EXC. FRONT BUMPER PAINTED<VB5>, VOLTAGE 24V<7AE> DARK GRAY 		8-97589-232-0 01 1 0507-0606 ●
338 07.832 BEZEL; FOG LAMP
BODY COLOR MARINE BLUE(890) ISRAEL COUNTRY(CV4) COLOR KEYED BUMPER<S4H> FOG LAMP<T96> EXC. VOLTAGE 24V<7AE> BLUE 		8-97097-871-0 01 1 0302-0506 ● ● ●
338 07.832 BEZEL; FOG LAMP
BODY COLOR MARINE BLUE(890) EXC. FRT BUMPER DARK GRAY<EQ9>, FRONTBUMPER PAINTED<VB5>,VOLTAGE 24V<7AE> BLUE 		8-97097-871-0 01 1 0507-0606 ● ●
338 07.832 BEZEL; FOG LAMP
BODY COLOR MARINE BLUE(890) ISRAEL COUNTRY(CV4) COLOR KEYED BUMPER<S4H> FOG LAMP<T96> EXC. VOLTAGE 24V<7AE> BLUE 		8-97097-867-0 01 1 0302-0506 ● ● ●
338 07.832 BEZEL; FOG LAMP
BODY COLOR MARINE BLUE(890) EXC. FRT BUMPER DARK GRAY<EQ9>, FRONTBUMPER PAINTED<VB5>,VOLTAGE 24V<7AE> BLUE 		8-97097-867-0 01 1 0507-0606 ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
