5-30 — SPARE TIRE CARRIER AND COVER (#41363) — 90 parça

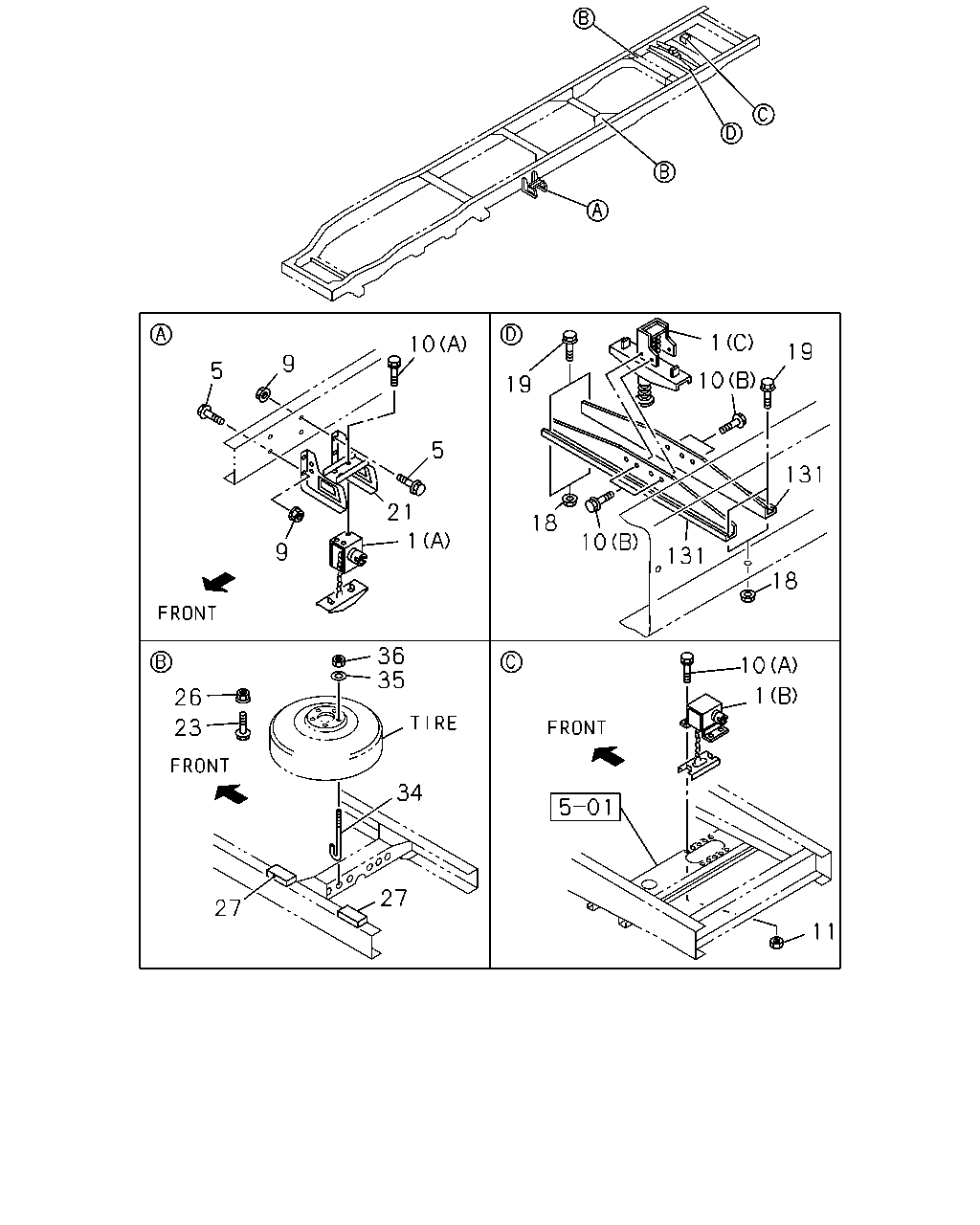

çizim 52687
1 10 19 9 5 10 19 5 131 21 18 1 10 9 131 18 36 35 10 1 26 23 34 27 27 11
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 07.629 HANGER ASM; TIRE FT
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> (A) FRONT 		8-94382-875-1 01 1 0302-0506 ●
1 07.629 HANGER ASM; TIRE FT
(A) FRONT 		8-94382-875-1 01 1 0507- ●
1 07.629 HANGER ASM; TIRE FT
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> (C) REAR 		1-53630-188-3 01 1 0302-0506 ● ● ● ●
1 07.629 HANGER ASM; TIRE FT
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> (C) REAR 		1-53630-188-3 01 1 0507-0606 ● ● ●
1 07.629 HANGER ASM; TIRE FT
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> (C) REAR 		1-53630-188-3 01 1 0607- ● ●
1 07.629 HANGER ASM; TIRE FT
G.V.W. 7.5-8.0TON(RPY) EXC. FRAME STRAIGHT TYPE<7KJ> (B) REAR 		8-97182-115-1 01 1 0302-0606 ●
1 07.629 HANGER ASM; TIRE FT
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) EXC. FRAME STRAIGHT TYPE<7KJ> (B) REAR 		8-97182-115-1 01 1 0607- ● ●
1 07.629 HANGER ASM; TIRE FT
G.V.W. 6.0-6.5TON(RPV) (B) REAR 		8-97182-115-1 01 1 0607- ●
1 07.629 HANGER ASM; TIRE FT
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> (B) REAR 		8-97182-113-1 01 1 0302-0606 ● ●
1 07.629 HANGER ASM; TIRE FT
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) EXC. FRAME STRAIGHT TYPE<7KJ> (B) REAR 		8-97182-113-1 01 1 0607- ●
1 07.629 HANGER ASM; TIRE FT
G.V.W. 3.5-4.0TON(RPQ) (B) REAR 		8-97182-113-1 01 1 0607- ●
1 07.629 HANGER ASM; TIRE FT
(A) FRONT 		8-97010-955-1 01 1 0302-0506 ● ● ●
1 07.629 HANGER ASM; TIRE FT
(A) FRONT 		8-97010-955-1 01 1 0507- ● ●
5 07.632 BOLT; BRKT TO FRAME
EXC. FRAME STRAIGHT TYPE<7KJ> 01.652 M10X25 W/LK WASHER 		0-50041-025-0 04 1 0302-0506 ●
5 07.632 BOLT; BRKT TO FRAME
01.652 M10X25 W/LK WASHER 		0-50041-025-0 04 1 0507-0512 ●
5 07.632 BOLT; BRKT TO FRAME
04.439 M10X25 W/LK WASHER 		0-50541-025-0 04 1 0601- ●
5 07.632 BOLT; BRKT TO FRAME
03.405 M10X30 FLANGE 		0-28681-030-0 04 1 0302-0506 ● ● ●
5 07.632 BOLT; BRKT TO FRAME
03.405 M10X30 FLANGE 		0-28681-030-0 04 1 0507-0512 ● ●
5 07.632 BOLT; BRKT TO FRAME
00.029 M10X30 FLANGE 		0-28651-030-0 04 1 0601- ● ●
9 07.633 NUT; BRKT TO FRAME
EXC. FRAME STRAIGHT TYPE<7KJ> 09.011 M10 		9-09110-410-0 04 1 0302-0506 ●
9 07.633 NUT; BRKT TO FRAME
09.011 M10 		9-09110-410-0 04 1 0507-0512 ●
9 07.633 NUT; BRKT TO FRAME
00.833 M10 		0-91110-510-0 04 1 0601- ●
9 07.633 NUT; BRKT TO FRAME
04.785 M10 FLANGE 		0-91150-110-0 04 1 0302-0506 ● ● ●
9 07.633 NUT; BRKT TO FRAME
04.785 M10 FLANGE 		0-91150-110-0 04 1 0507-0602 ● ●
9 07.633 NUT; BRKT TO FRAME
03.162 M10 FLANGE 		0-91180-110-0 04 1 0603- ● ●
10 07.632 BOLT; TIRE HANGER
EXC. FRAME STRAIGHT TYPE<7KJ> 02.664 (A) M8X20 FLANGE 		0-28680-820-0 03 1 0302-0506 ●
10 07.632 BOLT; TIRE HANGER
02.664 (A) M8X20 FLANGE 		0-28680-820-0 03 1 0302-0506 ● ● ●
10 07.632 BOLT; TIRE HANGER
02.664 (A) M8X20 FLANGE 		0-28680-820-0 03 1 0507-0512 ● ● ●
10 07.632 BOLT; TIRE HANGER
01.531 (A) M8X20 FLANGE 		0-28650-820-0 03 1 0601- ● ● ●
10 07.632 BOLT; TIRE HANGER
FRAME STRAIGHT TYPE<7KJ> 03.405 (B) M10X25 FLANGE 		0-28681-025-0 04 1 0302-0506 ● ● ●
10 07.632 BOLT; TIRE HANGER
03.405 (B) M10X25 FLANGE 		0-28681-025-0 04 1 0302-0506 ●
10 07.632 BOLT; TIRE HANGER
FRAME STRAIGHT TYPE<7KJ> 03.405 (B) M10X25 FLANGE 		0-28681-025-0 04 1 0507-0512 ● ●
10 07.632 BOLT; TIRE HANGER
03.405 (B) M10X25 FLANGE 		0-28681-025-0 04 1 0507-0512 ●
10 07.632 BOLT; TIRE HANGER
FRAME STRAIGHT TYPE<7KJ> 00.029 (B) M10X25 FLANGE 		0-28651-025-0 04 1 0601-0606 ● ●
10 07.632 BOLT; TIRE HANGER
00.029 (B) M10X25 FLANGE 		0-28651-025-0 04 1 0601-0606 ●
10 07.632 BOLT; TIRE HANGER
FRAME STRAIGHT TYPE<7KJ> 00.029 (B) M10X25 FLANGE 		0-28651-025-0 04 1 0607- ● ●
10 07.632 BOLT; TIRE HANGER
EXC. FRAME STRAIGHT TYPE<7KJ> 02.664 (A) M8X20 FLANGE 		0-28680-820-0 04 1 0302-0512 ● ●
10 07.632 BOLT; TIRE HANGER
EXC. FRAME STRAIGHT TYPE<7KJ> 01.531 (A) M8X20 FLANGE 		0-28650-820-0 04 1 0601-0606 ● ●
10 07.632 BOLT; TIRE HANGER
EXC. FRAME STRAIGHT TYPE<7KJ> 01.531 (A) M8X20 FLANGE 		0-28650-820-0 04 1 0607- ● ●
10 07.632 BOLT; TIRE HANGER
01.531 (A) M8X20 FLANGE 		0-28650-820-0 04 1 0607- ●
11 07.629 NUT; TIRE HANGER
EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 04 1 0302-0602 ● ●
11 07.629 NUT; TIRE HANGER
EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 04 1 0603-0606 ● ●
11 07.629 NUT; TIRE HANGER
EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 04 1 0607- ● ●
11 07.629 NUT; TIRE HANGER
01.062 M8 FLANGE 		0-91180-108-0 04 1 0607- ●
18 07.633 NUT; MEMBER
FRAME STRAIGHT TYPE<7KJ> 04.785 M10 FLANGE 		0-91150-110-0 04 1 0302-0506 ● ● ●
18 07.633 NUT; MEMBER
04.785 M10 FLANGE 		0-91150-110-0 04 1 0302-0506 ●
18 07.633 NUT; MEMBER
FRAME STRAIGHT TYPE<7KJ> 04.785 M10 FLANGE 		0-91150-110-0 04 1 0507-0602 ● ●
18 07.633 NUT; MEMBER
04.785 M10 FLANGE 		0-91150-110-0 04 1 0507-0602 ●
18 07.633 NUT; MEMBER
FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 04 1 0603-0606 ● ●
18 07.633 NUT; MEMBER
03.162 M10 FLANGE 		0-91180-110-0 04 1 0603-0606 ●
18 07.633 NUT; MEMBER
FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 04 1 0607- ● ●
19 07.632 BOLT; C/MBR
FRAME STRAIGHT TYPE<7KJ> 03.405 M10X30 FLANGE 		0-28681-030-0 04 1 0302-0506 ● ● ●
19 07.632 BOLT; C/MBR
03.405 M10X30 FLANGE 		0-28681-030-0 04 1 0302-0506 ●
19 07.632 BOLT; C/MBR
FRAME STRAIGHT TYPE<7KJ> 03.405 M10X30 FLANGE 		0-28681-030-0 04 1 0507-0512 ● ●
19 07.632 BOLT; C/MBR
03.405 M10X30 FLANGE 		0-28681-030-0 04 1 0507-0512 ●
19 07.632 BOLT; C/MBR
FRAME STRAIGHT TYPE<7KJ> 00.029 M10X30 FLANGE 		0-28651-030-0 04 1 0601-0606 ● ●
19 07.632 BOLT; C/MBR
00.029 M10X30 FLANGE 		0-28651-030-0 04 1 0601-0606 ●
19 07.632 BOLT; C/MBR
FRAME STRAIGHT TYPE<7KJ> 00.029 M10X30 FLANGE 		0-28651-030-0 04 1 0607- ● ●
21 07.629 BRACKET; SPARE TIRE HANGER
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97232-235-0 01 1 0302-0506 ●
21 07.629 BRACKET; SPARE TIRE HANGER 8-97232-235-0 01 1 0507- ●
21 07.629 BRACKET; SPARE TIRE HANGER 8-97188-263-1 01 1 0302-0506 ● ● ●
21 07.629 BRACKET; SPARE TIRE HANGER 8-97188-263-1 01 1 0507- ● ●
23 07.632 BOLT; BRKT,SPARE TIRE
FRAME STRAIGHT TYPE<7KJ> 03.162 M10X35 FLANGE 		0-28681-035-0 02 1 0302-0506 ●
26 07.629 NUT; BRKT FIX
FRAME STRAIGHT TYPE<7KJ> 04.785 M10 FLANGE 		0-91150-110-0 02 1 0302-0506 ●
27 07.629 CUSHION; FRAME TO SPARE TIRE
FRAME STRAIGHT TYPE<7KJ> 125X50X10 		8-94341-284-0 01 1 0302-0506 ●
34 07.629 BOLT; SPARE TIRE
FRAME STRAIGHT TYPE<7KJ> M12X305 		8-94441-189-0 02 1 0302-0506 ● ● ●
34 07.629 BOLT; SPARE TIRE
M12X305 		8-94441-189-0 02 1 0302-0506 ● ● ● ●
34 07.629 BOLT; SPARE TIRE
FRAME STRAIGHT TYPE<7KJ> M12X305 		8-94441-189-0 02 1 0507-0606 ● ●
34 07.629 BOLT; SPARE TIRE
M12X305 		8-94441-189-0 02 1 0507-0606 ● ● ●
34 07.629 BOLT; SPARE TIRE
FRAME STRAIGHT TYPE<7KJ> M12X305 		8-94441-189-0 02 1 0607- ● ●
34 07.629 BOLT; SPARE TIRE
M12X305 		8-94441-189-0 02 1 0607- ● ●
35 07.629 WASHER; PL,SPARE TIRE
FRAME STRAIGHT TYPE<7KJ> 07.243 ID=12.5 OD=54 		8-94466-483-0 02 1 0302-0506 ● ● ●
35 07.629 WASHER; PL,SPARE TIRE
07.243 ID=12.5 OD=54 		8-94466-483-0 02 1 0302-0506 ● ● ● ●
35 07.629 WASHER; PL,SPARE TIRE
FRAME STRAIGHT TYPE<7KJ> 07.243 ID=12.5 OD=54 		8-94466-483-0 02 1 0507-0606 ● ●
35 07.629 WASHER; PL,SPARE TIRE
07.243 ID=12.5 OD=54 		8-94466-483-0 02 1 0507-0606 ● ● ●
35 07.629 WASHER; PL,SPARE TIRE
FRAME STRAIGHT TYPE<7KJ> 07.243 ID=12.5 OD=54 		8-94466-483-0 02 1 0607- ● ●
35 07.629 WASHER; PL,SPARE TIRE
07.243 ID=12.5 OD=54 		8-94466-483-0 02 1 0607- ● ●
36 07.629 NUT; SPARE TIRE
FRAME STRAIGHT TYPE<7KJ> 05.816 M12 		9-99110-412-0 02 1 0302-0506 ● ● ●
36 07.629 NUT; SPARE TIRE
05.816 M12 		9-99110-412-0 02 1 0302-0506 ● ● ● ●
36 07.629 NUT; SPARE TIRE
FRAME STRAIGHT TYPE<7KJ> 05.816 M12 		9-99110-412-0 02 1 0507-0512 ● ●
36 07.629 NUT; SPARE TIRE
05.816 M12 		9-99110-412-0 02 1 0507-0512 ● ● ●
36 07.629 NUT; SPARE TIRE
FRAME STRAIGHT TYPE<7KJ> 05.002 M12 		0-91110-512-0 02 1 0601-0606 ● ●
36 07.629 NUT; SPARE TIRE
05.002 M12 		0-91110-512-0 02 1 0601-0606 ● ● ●
36 07.629 NUT; SPARE TIRE
FRAME STRAIGHT TYPE<7KJ> 05.002 M12 		0-91110-512-0 02 1 0607- ● ●
36 07.629 NUT; SPARE TIRE
05.002 M12 		0-91110-512-0 02 1 0607- ● ●
131 07.629 CROSSMEMBER; SPARE TIRE
FRAME STRAIGHT TYPE<7KJ> 		8-97167-802-0 02 1 0302-0506 ● ● ●
131 07.629 CROSSMEMBER; SPARE TIRE 8-97167-802-0 02 1 0302-0506 ●
131 07.629 CROSSMEMBER; SPARE TIRE
FRAME STRAIGHT TYPE<7KJ> 		8-97167-802-0 02 1 0507-0606 ● ●
131 07.629 CROSSMEMBER; SPARE TIRE 8-97167-802-0 02 1 0507-0606 ●
131 07.629 CROSSMEMBER; SPARE TIRE
FRAME STRAIGHT TYPE<7KJ> 		8-97167-802-0 02 1 0607- ● ●
