Sayfa 5-20 - Isuzu EPC

5-20 — BATTERY CARRIER (#41362) — 223 parça

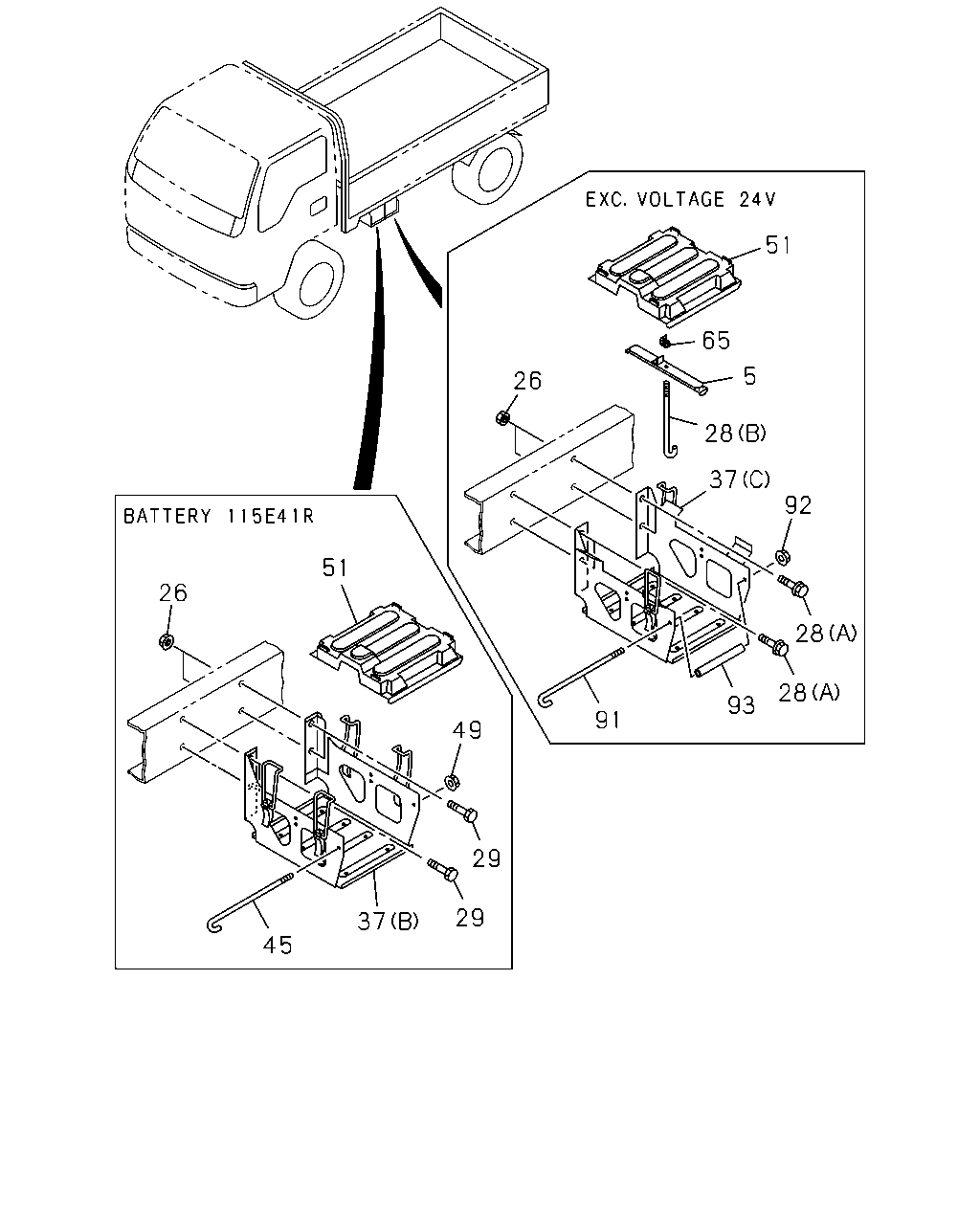

51 65 5 26 28 37 92 51 26 28 28 93 91 49 29 29 37 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
5	02.333 BRACKET; BATTERY RELAY 4HE1 ENG(RLY) EXC. VOLTAGE 24V<7AE>	8-94370-299-1	01	1	0302-0506	●	●	●
26	02.334 NUT; BRKT 4HE1 ENG(RLY) VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> 08.917 M10 FLANGE	0-91150-210-0	02	1	0302-0506	●	●
26	02.334 NUT; BRKT 4HE1 ENG(RLY) 08.917 M10 FLANGE	0-91150-210-0	02	1	0302-0506			●	●	●
26	02.334 NUT; BRKT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 08.917 M10 FLANGE	0-91150-210-0	02	1	0507-0602		●
26	02.334 NUT; BRKT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 08.917 M10 FLANGE	0-91150-210-0	02	1	0507-0602				●	●	●
26	02.334 NUT; BRKT 4HK1-TCN ENG(RDQ) 08.917 M10 FLANGE	0-91150-210-0	02	1	0507-0602			●
26	02.334 NUT; BRKT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 04.085 M10 FLANGE	0-91180-210-0	02	1	0603-0606		●
26	02.334 NUT; BRKT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 04.085 M10 FLANGE	0-91180-210-0	02	1	0603-0606				●	●	●
26	02.334 NUT; BRKT 4HK1-TCN ENG(RDQ) 04.085 M10 FLANGE	0-91180-210-0	02	1	0603-0606			●
26	02.334 NUT; BRKT FRAME STRAIGHT TYPE<7KJ> 04.085 M10 FLANGE	0-91180-210-0	02	1	0607-		●		●
26	02.334 NUT; BRKT 04.085 M10 FLANGE	0-91180-210-0	02	1	0607-					●	●
26	02.334 NUT; BRKT 4HE1 ENG(RLY) EXC. VOLTAGE 24V<7AE> 08.917 M10 FLANGE	0-91150-210-0	04	1	0302-0307	●	●
26	02.334 NUT; BRKT 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 08.917 M10 FLANGE	0-91150-210-0	04	1	0302-0307		●
26	02.334 NUT; BRKT 4HE1 ENG(RLY) 08.917 M10 FLANGE	0-91150-210-0	04	1	0302-0307						●	●
26	02.334 NUT; BRKT 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 08.917 M10 FLANGE	0-91150-210-0	03	1	0308-0506	●
26	02.334 NUT; BRKT 4JH1 ENG(RJX) 08.917 M10 FLANGE	0-91150-210-0	03	1	0302-0307	●	●
26	02.334 NUT; BRKT 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 08.917 M10 FLANGE	0-91150-210-0	03	1	0302-0307	●
26	02.334 NUT; BRKT 4JH1 ENG(RJX) 08.917 M10 FLANGE	0-91150-210-0	04	1	0308-0506	●	●	●
26	02.334 NUT; BRKT 4HE1 ENG(RLY) EXC. VOLTAGE 24V<7AE> 08.917 M10 FLANGE	0-91150-210-0	04	1	0308-0506	●	●
26	02.334 NUT; BRKT 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 08.917 M10 FLANGE	0-91150-210-0	04	1	0308-0506		●
26	02.334 NUT; BRKT 4HE1 ENG(RLY) 08.917 M10 FLANGE	0-91150-210-0	04	1	0308-0506						●	●
26	02.334 NUT; BRKT 4JH1-TC ENG(RDM) 08.917 M10 FLANGE	0-91150-210-0	04	1	0507-0602	●	●	●
26	02.334 NUT; BRKT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 08.917 M10 FLANGE	0-91150-210-0	04	1	0507-0602						●
26	02.334 NUT; BRKT 4JH1-TC ENG(RDM) 04.085 M10 FLANGE	0-91180-210-0	04	1	0603-0606	●	●	●
26	02.334 NUT; BRKT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 04.085 M10 FLANGE	0-91180-210-0	04	1	0603-0606						●
26	02.334 NUT; BRKT 04.085 M10 FLANGE	0-91180-210-0	04	1	0607-	●		●
26	02.334 NUT; BRKT EXC. FRAME STRAIGHT TYPE<7KJ> 04.085 M10 FLANGE	0-91180-210-0	04	1	0607-		●		●
26	02.334 NUT; BRKT 4HK1-TCC ENG(RDV) 04.085 M10 FLANGE	0-91180-210-0	04	1	0607-						●
28	02.334 BOLT; BRKT,BATTERY CARRIER 4HE1 ENG(RLY) EXC. VOLTAGE 24V<7AE> 03.162 (A) M10X35 FLANGE	0-28681-035-0	04	1	0302-0506	●	●	●
28	02.334 BOLT; BRKT,BATTERY CARRIER 4HE1 ENG(RLY) EXC. VOLTAGE 24V<7AE> (B) L=250	1-53616-081-0	01	1	0302-0506	●	●	●
29	02.334 BOLT; BRKT TO FRAME 4HE1 ENG(RLY) VOLTAGE 24V<7AE> EXC. BATTERY 115E41R<6XD> 09.171 M10X30 W/LK WASHER	0-50041-030-0	04	1	0302-0506	●	●	●	●	●	●	●
29	02.334 BOLT; BRKT TO FRAME 4JH1 ENG(RJX) 09.171 M10X30 W/LK WASHER	0-50041-030-0	04	1	0302-0506	●	●	●
29	02.334 BOLT; BRKT TO FRAME 4JH1-TC ENG(RDM) EXC. VOLTAGE 24V<7AE> 09.171 M10X30 W/LK WASHER	0-50041-030-0	04	1	0507-0512	●	●	●
29	02.334 BOLT; BRKT TO FRAME VOLTAGE 24V<7AE> EXC. BATTERY 115E41R<6XD> 09.171 M10X30 W/LK WASHER	0-50041-030-0	04	1	0507-0512		●	●	●	●	●
29	02.334 BOLT; BRKT TO FRAME 4JH1-TC ENG(RDM) EXC. VOLTAGE 24V<7AE> 04.439 M10X30 W/LK WASHER	0-50541-030-0	04	1	0601-0606	●	●	●
29	02.334 BOLT; BRKT TO FRAME VOLTAGE 24V<7AE> EXC. BATTERY 115E41R<6XD> 04.439 M10X30 W/LK WASHER	0-50541-030-0	04	1	0601-0606		●	●	●	●	●
29	02.334 BOLT; BRKT TO FRAME LEYLAND EQUIPMENT<S9Z> 04.439 M10X30 W/LK WASHER	0-50541-030-0	04	1	0607-	●	●	●	●	●	●
29	02.334 BOLT; BRKT TO FRAME BATTERY 80D26R<6KC>,BATTERY 65D23R<7DQ>,BATTERY 75D23R<7PC> 04.439 M10X30 W/LK WASHER	0-50541-030-0	04	1	0607-	●	●	●	●
29	02.334 BOLT; BRKT TO FRAME BATTERY 80D26R<6KC> 04.439 M10X30 W/LK WASHER	0-50541-030-0	04	1	0607-					●	●
29	02.334 BOLT; BRKT TO FRAME BATTERY 115E41R<6XD> 06.168 M10X35 FLANGE	0-28691-035-0	04	1	0302-0506		●	●	●	●	●	●
29	02.334 BOLT; BRKT TO FRAME BATTERY 115E41R<6XD> 06.168 M10X35 FLANGE	0-28691-035-0	04	1	0507-0512		●	●	●	●	●
29	02.334 BOLT; BRKT TO FRAME BATTERY 115E41R<6XD> 03.023 M10X35 FLANGE	0-28661-035-0	04	1	0601-0606		●	●	●	●	●
29	02.334 BOLT; BRKT TO FRAME BATTERY 115E41R<6XD> 03.023 M10X35 FLANGE	0-28661-035-0	04	1	0607-		●		●	●	●
37	02.333 BRACKET; BATTERY 4HE1 ENG(RLY) VOLTAGE 24V<7AE> EXC. BATTERY 115E41R<6XD> (A)	8-97356-174-0	01	1	0302-0506	●	●	●	●	●	●	●
37	02.333 BRACKET; BATTERY 4JH1 ENG(RJX) (A)	8-97356-174-0	01	1	0302-0506	●	●	●
37	02.333 BRACKET; BATTERY 4JH1-TC ENG(RDM) EXC. VOLTAGE 24V<7AE> (A)	8-97356-174-0	01	1	0507-0606	●	●	●
37	02.333 BRACKET; BATTERY VOLTAGE 24V<7AE> EXC. BATTERY 115E41R<6XD> (A)	8-97356-174-0	01	1	0507-0606		●	●	●	●	●
37	02.333 BRACKET; BATTERY LEYLAND EQUIPMENT<S9Z> (A)	8-97356-174-0	01	1	0607-0610	●	●	●	●	●	●
37	02.333 BRACKET; BATTERY BATTERY 80D26R<6KC>,BATTERY 65D23R<7DQ>,BATTERY 75D23R<7PC> (A)	8-97356-174-0	01	1	0607-0610	●	●	●	●
37	02.333 BRACKET; BATTERY BATTERY 80D26R<6KC> (A)	8-97356-174-0	01	1	0607-0610					●	●
37	02.333 BRACKET; BATTERY LEYLAND EQUIPMENT<S9Z> (A)	8-97384-068-2	01	1	0611-0612	●	●	●	●	●	●
37	02.333 BRACKET; BATTERY BATTERY 80D26R<6KC>,BATTERY 65D23R<7DQ>,BATTERY 75D23R<7PC> (A)	8-97384-068-2	01	1	0611-0612	●	●	●	●
37	02.333 BRACKET; BATTERY BATTERY 80D26R<6KC> (A)	8-97384-068-2	01	1	0611-0612					●	●
37	02.333 BRACKET; BATTERY LEYLAND EQUIPMENT<S9Z> (A)	8-97384-067-2	01	1	0701-	●	●	●	●	●	●
37	02.333 BRACKET; BATTERY BATTERY 80D26R<6KC>,BATTERY 65D23R<7DQ>,BATTERY 75D23R<7PC> (A)	8-97384-067-2	01	1	0701-	●	●	●	●
37	02.333 BRACKET; BATTERY BATTERY 80D26R<6KC> (A)	8-97384-067-2	01	1	0701-					●	●
37	02.333 BRACKET; BATTERY 4HE1 ENG(RLY) EXC. VOLTAGE 24V<7AE> (C)	8-97254-597-1	01	1	0302-0506	●	●	●
37	02.333 BRACKET; BATTERY BATTERY 115E41R<6XD> (B)	8-97134-838-0	01	1	0302-0506		●	●	●	●	●	●
37	02.333 BRACKET; BATTERY BATTERY 115E41R<6XD> (B)	8-97134-838-0	01	1	0507-0606		●	●	●	●	●
37	02.333 BRACKET; BATTERY BATTERY 115E41R<6XD> (B)	8-97134-838-0	01	1	0607-0706		●		●	●	●
37	02.333 BRACKET; BATTERY BATTERY 115E41R<6XD> (B)	8-98091-497-0	01	1	0707-		●		●	●	●
45	02.334 ROD; TENSION,BATTERY 4HE1 ENG(RLY) VOLTAGE 24V<7AE> EXC. BATTERY 115E41R<6XD>	9-53616-615-0	02	1	0302-0506	●	●	●	●	●	●	●
45	02.334 ROD; TENSION,BATTERY 4JH1 ENG(RJX)	9-53616-615-0	02	1	0302-0506	●	●	●
45	02.334 ROD; TENSION,BATTERY 4JH1-TC ENG(RDM) EXC. VOLTAGE 24V<7AE>	9-53616-615-0	02	1	0507-0606	●	●	●
45	02.334 ROD; TENSION,BATTERY VOLTAGE 24V<7AE> EXC. BATTERY 115E41R<6XD>	9-53616-615-0	02	1	0507-0606		●	●	●	●	●
45	02.334 ROD; TENSION,BATTERY LEYLAND EQUIPMENT<S9Z>	9-53616-615-0	02	1	0607-	●	●	●	●	●	●
45	02.334 ROD; TENSION,BATTERY BATTERY 80D26R<6KC>,BATTERY 65D23R<7DQ>,BATTERY 75D23R<7PC>	9-53616-615-0	02	1	0607-	●	●	●	●
45	02.334 ROD; TENSION,BATTERY BATTERY 80D26R<6KC>	9-53616-615-0	02	1	0607-					●	●
45	02.334 ROD; TENSION,BATTERY BATTERY 115E41R<6XD>	8-97134-740-0	02	1	0302-0506		●	●	●	●	●	●
45	02.334 ROD; TENSION,BATTERY BATTERY 115E41R<6XD>	8-97134-740-0	02	1	0507-0606		●	●	●	●	●
45	02.334 ROD; TENSION,BATTERY BATTERY 115E41R<6XD>	8-97134-740-0	02	1	0607-		●		●	●	●
49	02.334 NUT; ROD,BATTERY BATTERY 115E41R<6XD> 07.633 M8 FLANGE	0-91150-108-0	02	1	0302-0506		●	●	●	●	●	●
49	02.334 NUT; ROD,BATTERY BATTERY 115E41R<6XD> 07.633 M8 FLANGE	0-91150-108-0	02	1	0507-0602		●	●	●	●	●
49	02.334 NUT; ROD,BATTERY BATTERY 115E41R<6XD> 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-0606		●	●	●	●	●
49	02.334 NUT; ROD,BATTERY BATTERY 115E41R<6XD> 01.062 M8 FLANGE	0-91180-108-0	02	1	0607-		●		●	●	●
51	02.335 COVER; BATTERY 4HE1 ENG(RLY) VOLTAGE 24V<7AE> EXC. BATTERY 115E41R<6XD>	8-97120-747-0	01	1	0302-0506	●	●	●	●	●	●	●
51	02.335 COVER; BATTERY VOLTAGE 24V<7AE> EXC. BATTERY 115E41R<6XD>	8-97120-747-0	01	1	0507-0606		●	●
51	02.335 COVER; BATTERY EXC. BATTERY 115E41R<6XD>	8-97120-747-0	01	1	0507-0606				●	●	●
51	02.335 COVER; BATTERY LEYLAND EQUIPMENT<S9Z>	8-97120-747-0	01	1	0607-	●	●	●	●	●	●
51	02.335 COVER; BATTERY BATTERY 80D26R<6KC>,BATTERY 65D23R<7DQ>,BATTERY 75D23R<7PC>	8-97120-747-0	01	1	0607-	●	●	●	●
51	02.335 COVER; BATTERY BATTERY 80D26R<6KC>	8-97120-747-0	01	1	0607-					●	●
51	02.335 COVER; BATTERY 4HE1 ENG(RLY) EXC. BATTERY 115E41R<6XD>,VOLTAGE 24V<7AE>	9-53612-072-0	01	1	0302-0506	●	●	●
51	02.335 COVER; BATTERY BATTERY 115E41R<6XD>	9-53612-072-0	01	1	0302-0506		●	●	●	●	●	●
51	02.335 COVER; BATTERY BATTERY 115E41R<6XD>	9-53612-072-0	01	1	0507-0606		●	●	●	●	●
51	02.335 COVER; BATTERY BATTERY 115E41R<6XD>	9-53612-072-1	01	1	0607-		●		●	●	●
51	02.335 COVER; BATTERY 4JH1 ENG(RJX) EXC. VOLTAGE 24V<7AE>	8-97218-309-0	01	1	0302-0506	●	●	●
51	02.335 COVER; BATTERY 4JH1-TC ENG(RDM)	8-97218-309-0	01	1	0507-0606	●
51	02.335 COVER; BATTERY 4JH1-TC ENG(RDM) EXC. VOLTAGE 24V<7AE>	8-97218-309-0	01	1	0507-0606		●	●
65	02.333 PLATE; LOCK,BATTERY BRKT 4HE1 ENG(RLY) EXC. VOLTAGE 24V<7AE> 02.335	1-53618-040-0	01	1	0302-0506	●	●	●
91	02.334 BOLT; BRKT TO BRKT,BATTERY 4HE1 ENG(RLY) EXC. VOLTAGE 24V<7AE>	8-97122-608-0	01	1	0302-0506	●	●	●
92	02.334 NUT; BRKT,BATTERY 4HE1 ENG(RLY) EXC. VOLTAGE 24V<7AE> 07.633 M8 FLANGE	0-91150-108-0	01	1	0302-0506	●	●	●
93	02.335 SPACER; BOLT,BRKT,BATTERY 4HE1 ENG(RLY) EXC. VOLTAGE 24V<7AE>	8-97124-125-0	01	1	0302-0506	●	●	●

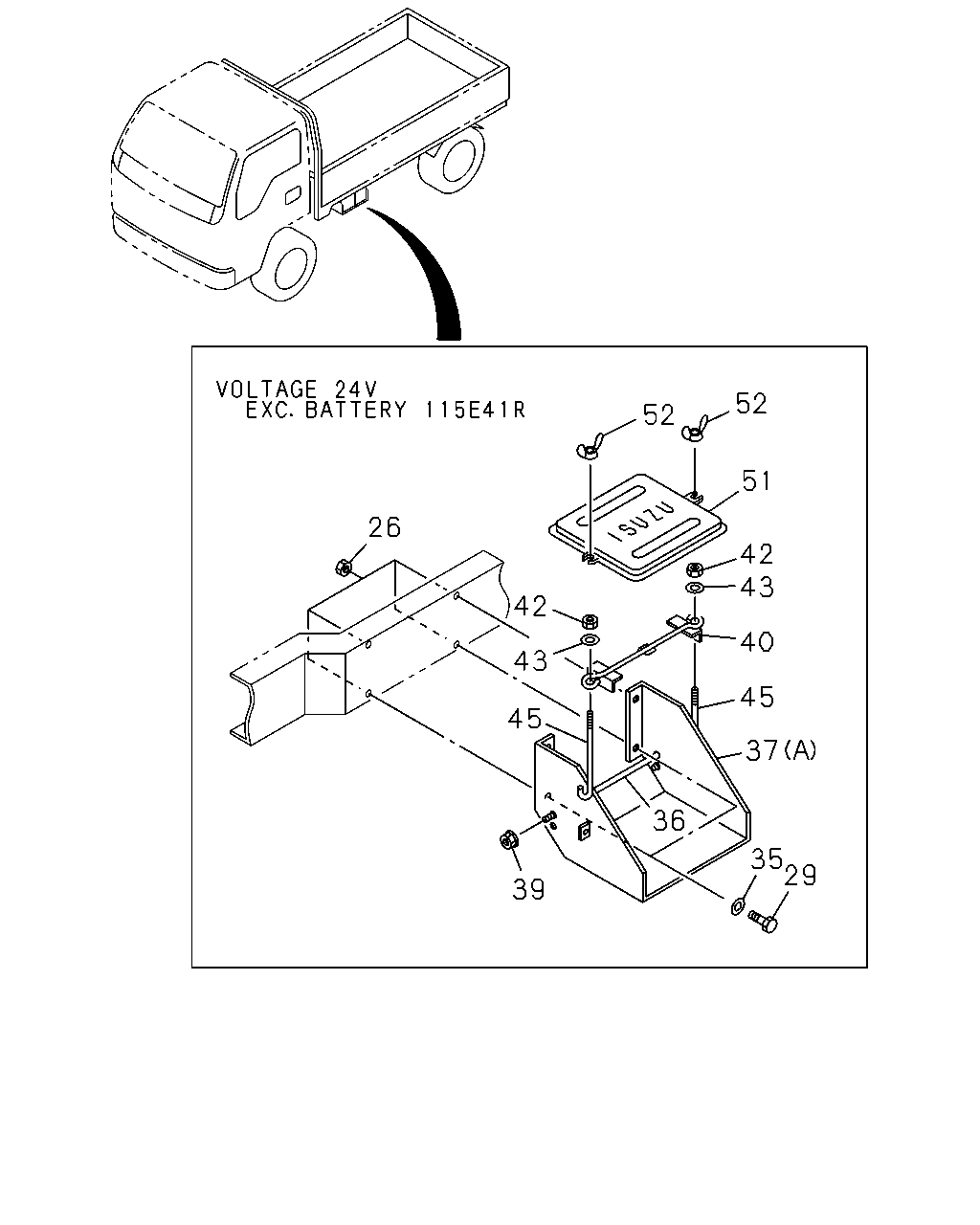

52 52 51 26 42 43 42 40 43 45 45 37 36 35 29 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
26	02.334 NUT; BRKT 4HE1 ENG(RLY) VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> 08.917 M10 FLANGE	0-91150-210-0	02	1	0302-0506	●	●
26	02.334 NUT; BRKT 4HE1 ENG(RLY) 08.917 M10 FLANGE	0-91150-210-0	02	1	0302-0506			●	●	●
26	02.334 NUT; BRKT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 08.917 M10 FLANGE	0-91150-210-0	02	1	0507-0602		●
26	02.334 NUT; BRKT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 08.917 M10 FLANGE	0-91150-210-0	02	1	0507-0602				●	●	●
26	02.334 NUT; BRKT 4HK1-TCN ENG(RDQ) 08.917 M10 FLANGE	0-91150-210-0	02	1	0507-0602			●
26	02.334 NUT; BRKT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 04.085 M10 FLANGE	0-91180-210-0	02	1	0603-0606		●
26	02.334 NUT; BRKT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 04.085 M10 FLANGE	0-91180-210-0	02	1	0603-0606				●	●	●
26	02.334 NUT; BRKT 4HK1-TCN ENG(RDQ) 04.085 M10 FLANGE	0-91180-210-0	02	1	0603-0606			●
26	02.334 NUT; BRKT FRAME STRAIGHT TYPE<7KJ> 04.085 M10 FLANGE	0-91180-210-0	02	1	0607-		●		●
26	02.334 NUT; BRKT 04.085 M10 FLANGE	0-91180-210-0	02	1	0607-					●	●
26	02.334 NUT; BRKT 4HE1 ENG(RLY) EXC. VOLTAGE 24V<7AE> 08.917 M10 FLANGE	0-91150-210-0	04	1	0302-0307	●	●
26	02.334 NUT; BRKT 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 08.917 M10 FLANGE	0-91150-210-0	04	1	0302-0307		●
26	02.334 NUT; BRKT 4HE1 ENG(RLY) 08.917 M10 FLANGE	0-91150-210-0	04	1	0302-0307						●	●
26	02.334 NUT; BRKT 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 08.917 M10 FLANGE	0-91150-210-0	03	1	0308-0506	●
26	02.334 NUT; BRKT 4JH1 ENG(RJX) 08.917 M10 FLANGE	0-91150-210-0	03	1	0302-0307	●	●
26	02.334 NUT; BRKT 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 08.917 M10 FLANGE	0-91150-210-0	03	1	0302-0307	●
26	02.334 NUT; BRKT 4JH1 ENG(RJX) 08.917 M10 FLANGE	0-91150-210-0	04	1	0308-0506	●	●	●
26	02.334 NUT; BRKT 4HE1 ENG(RLY) EXC. VOLTAGE 24V<7AE> 08.917 M10 FLANGE	0-91150-210-0	04	1	0308-0506	●	●
26	02.334 NUT; BRKT 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> 08.917 M10 FLANGE	0-91150-210-0	04	1	0308-0506		●
26	02.334 NUT; BRKT 4HE1 ENG(RLY) 08.917 M10 FLANGE	0-91150-210-0	04	1	0308-0506						●	●
26	02.334 NUT; BRKT 4JH1-TC ENG(RDM) 08.917 M10 FLANGE	0-91150-210-0	04	1	0507-0602	●	●	●
26	02.334 NUT; BRKT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 08.917 M10 FLANGE	0-91150-210-0	04	1	0507-0602						●
26	02.334 NUT; BRKT 4JH1-TC ENG(RDM) 04.085 M10 FLANGE	0-91180-210-0	04	1	0603-0606	●	●	●
26	02.334 NUT; BRKT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 04.085 M10 FLANGE	0-91180-210-0	04	1	0603-0606						●
26	02.334 NUT; BRKT 04.085 M10 FLANGE	0-91180-210-0	04	1	0607-	●		●
26	02.334 NUT; BRKT EXC. FRAME STRAIGHT TYPE<7KJ> 04.085 M10 FLANGE	0-91180-210-0	04	1	0607-		●		●
26	02.334 NUT; BRKT 4HK1-TCC ENG(RDV) 04.085 M10 FLANGE	0-91180-210-0	04	1	0607-						●
29	02.334 BOLT; BRKT TO FRAME 4HE1 ENG(RLY) VOLTAGE 24V<7AE> EXC. BATTERY 115E41R<6XD> 09.171 M10X30 W/LK WASHER	0-50041-030-0	04	1	0302-0506	●	●	●	●	●	●	●
29	02.334 BOLT; BRKT TO FRAME 4JH1 ENG(RJX) 09.171 M10X30 W/LK WASHER	0-50041-030-0	04	1	0302-0506	●	●	●
29	02.334 BOLT; BRKT TO FRAME 4JH1-TC ENG(RDM) EXC. VOLTAGE 24V<7AE> 09.171 M10X30 W/LK WASHER	0-50041-030-0	04	1	0507-0512	●	●	●
29	02.334 BOLT; BRKT TO FRAME VOLTAGE 24V<7AE> EXC. BATTERY 115E41R<6XD> 09.171 M10X30 W/LK WASHER	0-50041-030-0	04	1	0507-0512		●	●	●	●	●
29	02.334 BOLT; BRKT TO FRAME 4JH1-TC ENG(RDM) EXC. VOLTAGE 24V<7AE> 04.439 M10X30 W/LK WASHER	0-50541-030-0	04	1	0601-0606	●	●	●
29	02.334 BOLT; BRKT TO FRAME VOLTAGE 24V<7AE> EXC. BATTERY 115E41R<6XD> 04.439 M10X30 W/LK WASHER	0-50541-030-0	04	1	0601-0606		●	●	●	●	●
29	02.334 BOLT; BRKT TO FRAME LEYLAND EQUIPMENT<S9Z> 04.439 M10X30 W/LK WASHER	0-50541-030-0	04	1	0607-	●	●	●	●	●	●
29	02.334 BOLT; BRKT TO FRAME BATTERY 80D26R<6KC>,BATTERY 65D23R<7DQ>,BATTERY 75D23R<7PC> 04.439 M10X30 W/LK WASHER	0-50541-030-0	04	1	0607-	●	●	●	●
29	02.334 BOLT; BRKT TO FRAME BATTERY 80D26R<6KC> 04.439 M10X30 W/LK WASHER	0-50541-030-0	04	1	0607-					●	●
29	02.334 BOLT; BRKT TO FRAME BATTERY 115E41R<6XD> 06.168 M10X35 FLANGE	0-28691-035-0	04	1	0302-0506		●	●	●	●	●	●
29	02.334 BOLT; BRKT TO FRAME BATTERY 115E41R<6XD> 06.168 M10X35 FLANGE	0-28691-035-0	04	1	0507-0512		●	●	●	●	●
29	02.334 BOLT; BRKT TO FRAME BATTERY 115E41R<6XD> 03.023 M10X35 FLANGE	0-28661-035-0	04	1	0601-0606		●	●	●	●	●
29	02.334 BOLT; BRKT TO FRAME BATTERY 115E41R<6XD> 03.023 M10X35 FLANGE	0-28661-035-0	04	1	0607-		●		●	●	●
35	02.334 WASHER; PL,BATTERY CARRIER 4HE1 ENG(RLY) VOLTAGE 24V<7AE> EXC. BATTERY 115E41R<6XD> 16.682 ID=10.5 OD=22	9-09160-610-0	04	1	0302-0506	●	●	●	●	●	●	●
35	02.334 WASHER; PL,BATTERY CARRIER 4JH1 ENG(RJX) 16.682 ID=10.5 OD=22	9-09160-610-0	04	1	0302-0506	●	●	●
35	02.334 WASHER; PL,BATTERY CARRIER 4JH1-TC ENG(RDM) EXC. VOLTAGE 24V<7AE> 16.682 ID=10.5 OD=22	9-09160-610-0	04	1	0507-0605	●	●	●
35	02.334 WASHER; PL,BATTERY CARRIER VOLTAGE 24V<7AE> EXC. BATTERY 115E41R<6XD> 16.682 ID=10.5 OD=22	9-09160-610-0	04	1	0507-0605		●	●	●	●	●
35	02.334 WASHER; PL,BATTERY CARRIER 4JH1-TC ENG(RDM) EXC. VOLTAGE 24V<7AE> 04.046 ID=10.5 OD=22 T=1.6	0-91610-610-0	04	1	0606-0606	●	●	●
35	02.334 WASHER; PL,BATTERY CARRIER VOLTAGE 24V<7AE> EXC. BATTERY 115E41R<6XD> 04.046 ID=10.5 OD=22 T=1.6	0-91610-610-0	04	1	0606-0606		●	●	●	●	●
35	02.334 WASHER; PL,BATTERY CARRIER LEYLAND EQUIPMENT<S9Z> 04.046 ID=10.5 OD=22 T=1.6	0-91610-610-0	04	1	0607-	●	●	●	●	●	●
35	02.334 WASHER; PL,BATTERY CARRIER BATTERY 80D26R<6KC>,BATTERY 65D23R<7DQ>,BATTERY 75D23R<7PC> 04.046 ID=10.5 OD=22 T=1.6	0-91610-610-0	04	1	0607-	●	●	●	●
35	02.334 WASHER; PL,BATTERY CARRIER BATTERY 80D26R<6KC> 04.046 ID=10.5 OD=22 T=1.6	0-91610-610-0	04	1	0607-					●	●
36	02.334 STOPPER; BATTERY BATTERY 65D23R<7DQ>	8-94145-894-0	01	1	0302-0506	●	●	●	●	●	●	●
36	02.334 STOPPER; BATTERY BATTERY 65D23R<7DQ>	8-94145-894-0	01	1	0507-0606	●	●	●	●	●	●
36	02.334 STOPPER; BATTERY BATTERY 65D23R<7DQ>,BATTERY 75D23R<7PC>	8-94145-894-0	01	1	0607-	●	●	●	●
37	02.333 BRACKET; BATTERY 4HE1 ENG(RLY) VOLTAGE 24V<7AE> EXC. BATTERY 115E41R<6XD> (A)	8-97356-174-0	01	1	0302-0506	●	●	●	●	●	●	●
37	02.333 BRACKET; BATTERY 4JH1 ENG(RJX) (A)	8-97356-174-0	01	1	0302-0506	●	●	●
37	02.333 BRACKET; BATTERY 4JH1-TC ENG(RDM) EXC. VOLTAGE 24V<7AE> (A)	8-97356-174-0	01	1	0507-0606	●	●	●
37	02.333 BRACKET; BATTERY VOLTAGE 24V<7AE> EXC. BATTERY 115E41R<6XD> (A)	8-97356-174-0	01	1	0507-0606		●	●	●	●	●
37	02.333 BRACKET; BATTERY LEYLAND EQUIPMENT<S9Z> (A)	8-97356-174-0	01	1	0607-0610	●	●	●	●	●	●
37	02.333 BRACKET; BATTERY BATTERY 80D26R<6KC>,BATTERY 65D23R<7DQ>,BATTERY 75D23R<7PC> (A)	8-97356-174-0	01	1	0607-0610	●	●	●	●
37	02.333 BRACKET; BATTERY BATTERY 80D26R<6KC> (A)	8-97356-174-0	01	1	0607-0610					●	●
37	02.333 BRACKET; BATTERY LEYLAND EQUIPMENT<S9Z> (A)	8-97384-068-2	01	1	0611-0612	●	●	●	●	●	●
37	02.333 BRACKET; BATTERY BATTERY 80D26R<6KC>,BATTERY 65D23R<7DQ>,BATTERY 75D23R<7PC> (A)	8-97384-068-2	01	1	0611-0612	●	●	●	●
37	02.333 BRACKET; BATTERY BATTERY 80D26R<6KC> (A)	8-97384-068-2	01	1	0611-0612					●	●
37	02.333 BRACKET; BATTERY LEYLAND EQUIPMENT<S9Z> (A)	8-97384-067-2	01	1	0701-	●	●	●	●	●	●
37	02.333 BRACKET; BATTERY BATTERY 80D26R<6KC>,BATTERY 65D23R<7DQ>,BATTERY 75D23R<7PC> (A)	8-97384-067-2	01	1	0701-	●	●	●	●
37	02.333 BRACKET; BATTERY BATTERY 80D26R<6KC> (A)	8-97384-067-2	01	1	0701-					●	●
37	02.333 BRACKET; BATTERY 4HE1 ENG(RLY) EXC. VOLTAGE 24V<7AE> (C)	8-97254-597-1	01	1	0302-0506	●	●	●
37	02.333 BRACKET; BATTERY BATTERY 115E41R<6XD> (B)	8-97134-838-0	01	1	0302-0506		●	●	●	●	●	●
37	02.333 BRACKET; BATTERY BATTERY 115E41R<6XD> (B)	8-97134-838-0	01	1	0507-0606		●	●	●	●	●
37	02.333 BRACKET; BATTERY BATTERY 115E41R<6XD> (B)	8-97134-838-0	01	1	0607-0706		●		●	●	●
37	02.333 BRACKET; BATTERY BATTERY 115E41R<6XD> (B)	8-98091-497-0	01	1	0707-		●		●	●	●
39	02.334 NUT; STOPPER,BATTERY BATTERY 65D23R<7DQ> 04.594 M6 FLANGE	0-91150-106-0	01	1	0302-0506	●	●	●	●	●	●	●
39	02.334 NUT; STOPPER,BATTERY BATTERY 65D23R<7DQ> 04.594 M6 FLANGE	0-91150-106-0	01	1	0507-0602	●	●	●	●	●	●
39	02.334 NUT; STOPPER,BATTERY BATTERY 65D23R<7DQ> 01.062 M6 FLANGE	0-91180-106-0	01	1	0603-0606	●	●	●	●	●	●
39	02.334 NUT; STOPPER,BATTERY BATTERY 65D23R<7DQ>,BATTERY 75D23R<7PC> 01.062 M6 FLANGE	0-91180-106-0	01	1	0607-	●	●	●	●
40	02.335 CLAMP; BATTERY 4HE1 ENG(RLY) VOLTAGE 24V<7AE> EXC. BATTERY 115E41R<6XD>	5-53615-004-1	01	1	0302-0506	●	●	●	●	●	●	●
40	02.335 CLAMP; BATTERY 4JH1 ENG(RJX)	5-53615-004-1	01	1	0302-0506	●	●	●
40	02.335 CLAMP; BATTERY 4JH1-TC ENG(RDM) EXC. VOLTAGE 24V<7AE>	5-53615-004-1	01	1	0507-0606	●	●	●
40	02.335 CLAMP; BATTERY VOLTAGE 24V<7AE> EXC. BATTERY 115E41R<6XD>	5-53615-004-1	01	1	0507-0606		●	●	●	●	●
40	02.335 CLAMP; BATTERY LEYLAND EQUIPMENT<S9Z>	5-53615-004-1	01	1	0607-	●	●	●	●	●	●
40	02.335 CLAMP; BATTERY BATTERY 80D26R<6KC>,BATTERY 65D23R<7DQ>,BATTERY 75D23R<7PC>	5-53615-004-1	01	1	0607-	●	●	●	●
40	02.335 CLAMP; BATTERY BATTERY 80D26R<6KC>	5-53615-004-1	01	1	0607-					●	●
42	02.334 NUT; CLAMP 4HE1 ENG(RLY) VOLTAGE 24V<7AE> EXC. BATTERY 115E41R<6XD> 02.559 M8	9-09110-408-0	02	1	0302-0506	●	●	●	●	●	●	●
42	02.334 NUT; CLAMP 4JH1 ENG(RJX) 02.559 M8	9-09110-408-0	02	1	0302-0506	●	●	●
42	02.334 NUT; CLAMP 4JH1-TC ENG(RDM) EXC. VOLTAGE 24V<7AE> 02.559 M8	9-09110-408-0	02	1	0507-0512	●	●	●
42	02.334 NUT; CLAMP VOLTAGE 24V<7AE> EXC. BATTERY 115E41R<6XD> 02.559 M8	9-09110-408-0	02	1	0507-0512		●	●	●	●	●
42	02.334 NUT; CLAMP 4JH1-TC ENG(RDM) EXC. VOLTAGE 24V<7AE> M8	0-91110-508-0	02	1	0601-0606	●	●	●
42	02.334 NUT; CLAMP VOLTAGE 24V<7AE> EXC. BATTERY 115E41R<6XD> M8	0-91110-508-0	02	1	0601-0606		●	●	●	●	●
42	02.334 NUT; CLAMP LEYLAND EQUIPMENT<S9Z> M8	0-91110-508-0	02	1	0607-	●	●	●	●	●	●
42	02.334 NUT; CLAMP BATTERY 80D26R<6KC>,BATTERY 65D23R<7DQ>,BATTERY 75D23R<7PC> M8	0-91110-508-0	02	1	0607-	●	●	●	●
42	02.334 NUT; CLAMP BATTERY 80D26R<6KC> M8	0-91110-508-0	02	1	0607-					●	●
43	02.334 WASHER; PL,CLAMP 4HE1 ENG(RLY) VOLTAGE 24V<7AE> EXC. BATTERY 115E41R<6XD> 07.633 ID=8.4 OD=22	9-09164-708-0	02	1	0302-0506	●	●	●	●	●	●	●
43	02.334 WASHER; PL,CLAMP 4JH1 ENG(RJX) 07.633 ID=8.4 OD=22	9-09164-708-0	02	1	0302-0506	●	●	●
43	02.334 WASHER; PL,CLAMP 4JH1-TC ENG(RDM) EXC. VOLTAGE 24V<7AE> 07.633 ID=8.4 OD=22	9-09164-708-0	02	1	0507-0605	●	●	●
43	02.334 WASHER; PL,CLAMP VOLTAGE 24V<7AE> EXC. BATTERY 115E41R<6XD> 07.633 ID=8.4 OD=22	9-09164-708-0	02	1	0507-0605		●	●	●	●	●
43	02.334 WASHER; PL,CLAMP 4JH1-TC ENG(RDM) EXC. VOLTAGE 24V<7AE> 02.277 ID=8.4 OD=22	0-91614-708-0	02	1	0606-0606	●	●	●
43	02.334 WASHER; PL,CLAMP VOLTAGE 24V<7AE> EXC. BATTERY 115E41R<6XD> 02.277 ID=8.4 OD=22	0-91614-708-0	02	1	0606-0606		●	●	●	●	●
43	02.334 WASHER; PL,CLAMP LEYLAND EQUIPMENT<S9Z> 02.277 ID=8.4 OD=22	0-91614-708-0	02	1	0607-	●	●	●	●	●	●
43	02.334 WASHER; PL,CLAMP BATTERY 80D26R<6KC>,BATTERY 65D23R<7DQ>,BATTERY 75D23R<7PC> 02.277 ID=8.4 OD=22	0-91614-708-0	02	1	0607-	●	●	●	●
43	02.334 WASHER; PL,CLAMP BATTERY 80D26R<6KC> 02.277 ID=8.4 OD=22	0-91614-708-0	02	1	0607-					●	●
45	02.334 ROD; TENSION,BATTERY 4HE1 ENG(RLY) VOLTAGE 24V<7AE> EXC. BATTERY 115E41R<6XD>	9-53616-615-0	02	1	0302-0506	●	●	●	●	●	●	●
45	02.334 ROD; TENSION,BATTERY 4JH1 ENG(RJX)	9-53616-615-0	02	1	0302-0506	●	●	●
45	02.334 ROD; TENSION,BATTERY 4JH1-TC ENG(RDM) EXC. VOLTAGE 24V<7AE>	9-53616-615-0	02	1	0507-0606	●	●	●
45	02.334 ROD; TENSION,BATTERY VOLTAGE 24V<7AE> EXC. BATTERY 115E41R<6XD>	9-53616-615-0	02	1	0507-0606		●	●	●	●	●
45	02.334 ROD; TENSION,BATTERY LEYLAND EQUIPMENT<S9Z>	9-53616-615-0	02	1	0607-	●	●	●	●	●	●
45	02.334 ROD; TENSION,BATTERY BATTERY 80D26R<6KC>,BATTERY 65D23R<7DQ>,BATTERY 75D23R<7PC>	9-53616-615-0	02	1	0607-	●	●	●	●
45	02.334 ROD; TENSION,BATTERY BATTERY 80D26R<6KC>	9-53616-615-0	02	1	0607-					●	●
45	02.334 ROD; TENSION,BATTERY BATTERY 115E41R<6XD>	8-97134-740-0	02	1	0302-0506		●	●	●	●	●	●
45	02.334 ROD; TENSION,BATTERY BATTERY 115E41R<6XD>	8-97134-740-0	02	1	0507-0606		●	●	●	●	●
45	02.334 ROD; TENSION,BATTERY BATTERY 115E41R<6XD>	8-97134-740-0	02	1	0607-		●		●	●	●
51	02.335 COVER; BATTERY 4HE1 ENG(RLY) VOLTAGE 24V<7AE> EXC. BATTERY 115E41R<6XD>	8-97120-747-0	01	1	0302-0506	●	●	●	●	●	●	●
51	02.335 COVER; BATTERY VOLTAGE 24V<7AE> EXC. BATTERY 115E41R<6XD>	8-97120-747-0	01	1	0507-0606		●	●
51	02.335 COVER; BATTERY EXC. BATTERY 115E41R<6XD>	8-97120-747-0	01	1	0507-0606				●	●	●
51	02.335 COVER; BATTERY LEYLAND EQUIPMENT<S9Z>	8-97120-747-0	01	1	0607-	●	●	●	●	●	●
51	02.335 COVER; BATTERY BATTERY 80D26R<6KC>,BATTERY 65D23R<7DQ>,BATTERY 75D23R<7PC>	8-97120-747-0	01	1	0607-	●	●	●	●
51	02.335 COVER; BATTERY BATTERY 80D26R<6KC>	8-97120-747-0	01	1	0607-					●	●
51	02.335 COVER; BATTERY 4HE1 ENG(RLY) EXC. BATTERY 115E41R<6XD>,VOLTAGE 24V<7AE>	9-53612-072-0	01	1	0302-0506	●	●	●
51	02.335 COVER; BATTERY BATTERY 115E41R<6XD>	9-53612-072-0	01	1	0302-0506		●	●	●	●	●	●
51	02.335 COVER; BATTERY BATTERY 115E41R<6XD>	9-53612-072-0	01	1	0507-0606		●	●	●	●	●
51	02.335 COVER; BATTERY BATTERY 115E41R<6XD>	9-53612-072-1	01	1	0607-		●		●	●	●
51	02.335 COVER; BATTERY 4JH1 ENG(RJX) EXC. VOLTAGE 24V<7AE>	8-97218-309-0	01	1	0302-0506	●	●	●
51	02.335 COVER; BATTERY 4JH1-TC ENG(RDM)	8-97218-309-0	01	1	0507-0606	●
51	02.335 COVER; BATTERY 4JH1-TC ENG(RDM) EXC. VOLTAGE 24V<7AE>	8-97218-309-0	01	1	0507-0606		●	●
52	02.335 NUT; WING,COVER FIX 4HE1 ENG(RLY) VOLTAGE 24V<7AE> EXC. BATTERY 115E41R<6XD> M8 WING NUT	9-09118-408-0	02	1	0302-0506	●	●	●	●	●	●	●
52	02.335 NUT; WING,COVER FIX 4JH1 ENG(RJX) M8 WING NUT	9-09118-408-0	02	1	0302-0506	●	●	●
52	02.335 NUT; WING,COVER FIX 4JH1-TC ENG(RDM) EXC. VOLTAGE 24V<7AE> M8 WING NUT	9-09118-408-0	02	1	0507-0512	●	●	●
52	02.335 NUT; WING,COVER FIX VOLTAGE 24V<7AE> EXC. BATTERY 115E41R<6XD> M8 WING NUT	9-09118-408-0	02	1	0507-0512		●	●	●	●	●
52	02.335 NUT; WING,COVER FIX 4JH1-TC ENG(RDM) EXC. VOLTAGE 24V<7AE> M8 WING NUT	0-91118-408-0	02	1	0601-0606	●	●	●
52	02.335 NUT; WING,COVER FIX VOLTAGE 24V<7AE> EXC. BATTERY 115E41R<6XD> M8 WING NUT	0-91118-408-0	02	1	0601-0606		●	●	●	●	●
52	02.335 NUT; WING,COVER FIX LEYLAND EQUIPMENT<S9Z> M8 WING NUT	0-91118-408-0	02	1	0607-	●	●	●	●	●	●
52	02.335 NUT; WING,COVER FIX BATTERY 80D26R<6KC>,BATTERY 65D23R<7DQ>,BATTERY 75D23R<7PC> M8 WING NUT	0-91118-408-0	02	1	0607-	●	●	●	●
52	02.335 NUT; WING,COVER FIX BATTERY 80D26R<6KC> M8 WING NUT	0-91118-408-0	02	1	0607-					●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
