Sayfa 7-70 - Isuzu EPC

7-70 — SEPARATER AND BED (#4136) — 216 parça

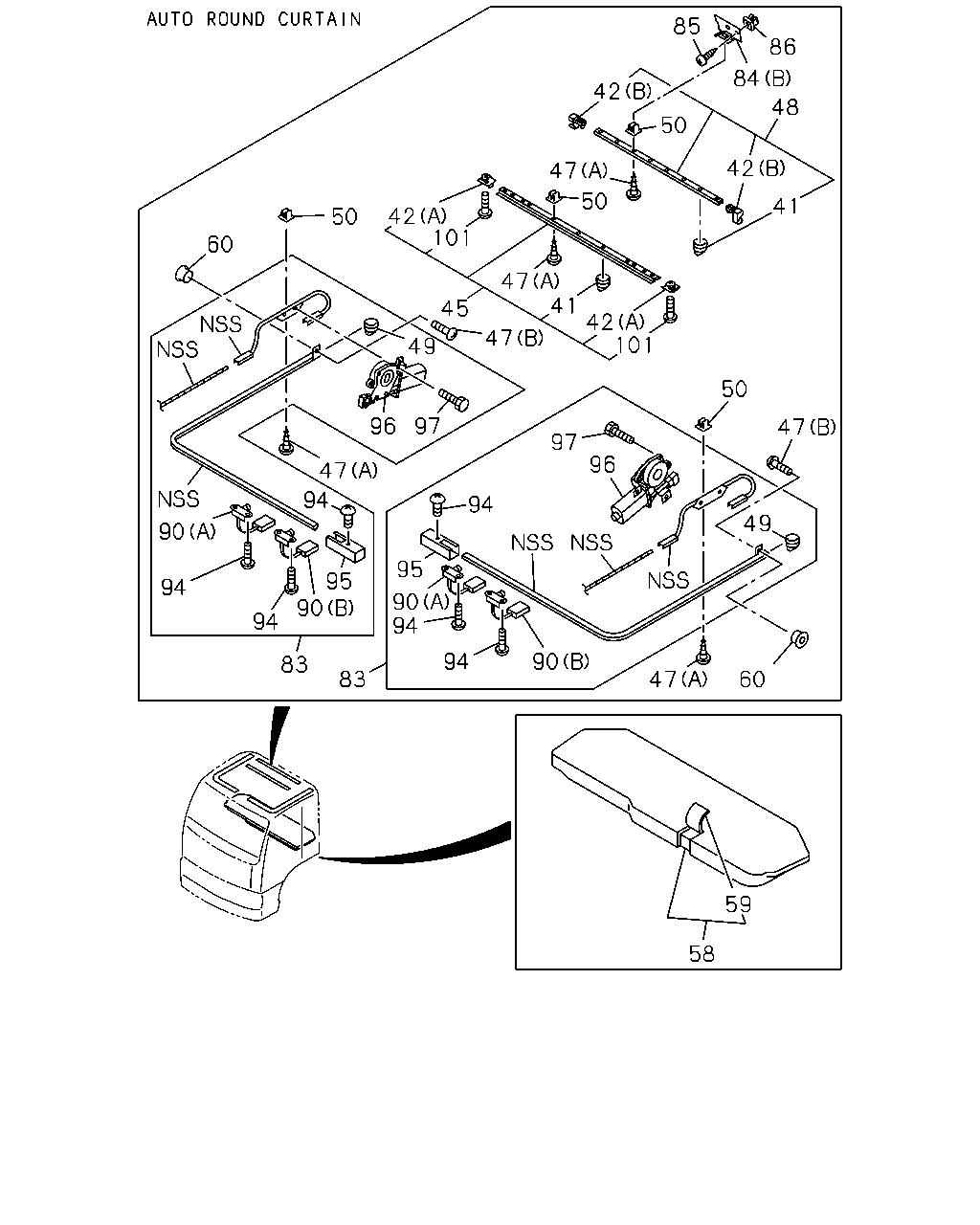

85 86 84 42 48 50 42 47 50 41 42 101 50 60 47 41 45 42 101 47 49 50 96 97 47 97 96 47 94 94 49 90 95 95 90 94 90 94 94 94 90 83 83 47 60 59 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
41	HOOK; CURTAIN RAIL AUTO ROUND CURTAIN<TAR> H=14.5 DARK GRAY	1-73996-105-0	08	1	9603-9904	●	●
41	HOOK; CURTAIN RAIL CURTAIN SLEEPER COMPARTMENT<E25>,AUTO ROUND CURTAIN<TAR> H=14.5 DARK GRAY	1-73996-105-0	13	1	9603-9904	●	●
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> H=14.5 DARK GRAY	1-73996-105-0	34	1	9905-	●	●
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4>,AUTO ROUND CURTAIN<TAR> H=14.5 DARK GRAY	1-73996-105-0	08	1	9905-	●	●
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>,AUTO ROUND CURTAIN<TAR> H=14.5 DARK GRAY	1-73996-105-0	14	1	9905-	●	●
42	STOPPER; CURTAIN RAIL (A)	1-73907-403-1	04	1	9603-9904	●	●
42	STOPPER; CURTAIN RAIL (B)	1-73996-146-2	02	1	9603-9904	●	●
42	STOPPER; CURTAIN RAIL (B)	1-73996-146-2	02	1	9905-	●	●
42	STOPPER; CURTAIN RAIL (A)	1-73907-403-1	02	1	9905-	●	●
42	STOPPER; CURTAIN RAIL EXC. AUTO ROUND CURTAIN<TAR> (C)	1-73908-193-0	04	1	9603-	●	●
45	RAIL; CURTAIN,FRT CURTAIN SLEEPER COMPARTMENT<E25>,AUTO ROUND CURTAIN<TAR> CABIN CENTER	1-73907-379-5	01	1	9603-9904	●	●
45	RAIL; CURTAIN,FRT WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>,AUTO ROUND CURTAIN<TAR> EXC. HIGH ROOF<S2F>	1-73907-379-5	01	1	9905-	●	●
45	RAIL; CURTAIN,FRT EXC. CURTAIN SLEEPER COMPARTMENT<E25>,AUTO ROUND CURTAIN<TAR> CABIN CENTER	1-73907-420-0	01	1	9603-9904	●	●
45	RAIL; CURTAIN,FRT EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>,HIGH ROOF<S2F>,AUTO ROUND CURTAIN<TAR>	1-73907-420-0	01	1	9905-	●	●
45	RAIL; CURTAIN,FRT HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>,AUTO ROUND CURTAIN<TAR>	1-73907-460-0	01	1	9905-	●	●
45	RAIL; CURTAIN,FRT WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>,AUTO ROUND CURTAIN<TAR> HIGH ROOF<S2F>	1-73907-380-6	01	1	9905-	●	●
47	SCREW; CURTAIN RAIL (A) M5X20	5-09981-059-0	32	1	9603-	●	●
47	SCREW; CURTAIN RAIL AUTO ROUND CURTAIN<TAR> (B) M5X16	9-93490-516-0	04	1	9603-	●	●
48	RAIL; CURTAIN,BACK AUTO ROUND CURTAIN<TAR>	1-73996-106-3	01	1	9603-9904	●	●
48	RAIL; CURTAIN,BACK WINDOW CURTAIN ROUND<BW4>,AUTO ROUND CURTAIN<TAR>	1-73996-106-3	01	1	9905-	●	●
48	RAIL; CURTAIN,BACK EXC. AUTO ROUND CURTAIN<TAR>	1-73996-279-0	01	1	9603-9904	●	●
48	RAIL; CURTAIN,BACK EXC. WINDOW CURTAIN ROUND<BW4>,AUTO ROUND CURTAIN<TAR>	1-73996-279-0	01	1	9905-0008	●	●
48	RAIL; CURTAIN,BACK EXC. WINDOW CURTAIN ROUND<BW4>,AUTO ROUND CURTAIN<TAR>	1-73908-111-0	01	1	0009-	●	●
49	HOOK; CURTAIN AUTO ROUND CURTAIN<TAR> H=14.5 DARK GRAY	1-73996-105-0	32	1	9603-	●	●
50	GROMMET; SCREW,CURTAIN RAIL D=8X8 L=7.5 M5 YELLOW	8-94279-740-0	32	1	9603-9708	●	●
50	GROMMET; SCREW,CURTAIN RAIL D=8.6X7.7 L=7.5	8-94279-078-0	32	1	9709-	●	●
58	BED; MAT MATTRESS SLEEPER CAB<E40>	1-75117-852-3	01	1	9603-0003	●	●
58	BED; MAT MATTRESS SLEEPER CAB<E40>	1-75117-990-1	01	1	0004-	●	●
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40>	1-75117-861-1	01	1	9603-0003	●	●
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40>	1-75127-082-0	01	1	0004-	●	●
60	HOLDER AUTO ROUND CURTAIN<TAR>	1-79198-011-0	04	1	9603-	●	●
83	RAIL; CURTAIN,AUTOMATIC AUTO ROUND CURTAIN<TAR>	1-73907-289-5	01	1	9603-	●	●
83	RAIL; CURTAIN,AUTOMATIC AUTO ROUND CURTAIN<TAR>	1-73907-288-5	01	1	9603-	●	●
84	BRACKET; CURTAIN RAIL (B)	1-73998-987-4	07	1	9603-	●	●
84	BRACKET; CURTAIN RAIL EXC. AUTO ROUND CURTAIN<TAR> (A)	1-73998-986-2	02	1	9603-	●	●
85	SCREW; BRKT M5X20	5-09981-059-0	07	1	9603-	●	●
85	SCREW; BRKT EXC. AUTO ROUND CURTAIN<TAR> M5X20	5-09981-059-0	02	1	9603-	●	●
86	GROMMET; SCREW,BRKT D=8X8 L=7.5 M5 YELLOW	8-94279-740-0	07	1	9603-9708	●	●
86	GROMMET; SCREW,BRKT D=8.6X7.7 L=7.5	8-94279-078-0	07	1	9709-	●	●
86	GROMMET; SCREW,BRKT EXC. AUTO ROUND CURTAIN<TAR> D=8X8 L=7.5 M5 YELLOW	8-94279-740-0	02	1	9603-9708	●	●
86	GROMMET; SCREW,BRKT EXC. AUTO ROUND CURTAIN<TAR> D=8.6X7.7 L=7.5	8-94279-078-0	02	1	9709-	●	●
90	SWITCH; CURTAIN RAIL AUTO ROUND CURTAIN<TAR> (A)	1-73996-224-2	02	1	9603-	●	●
90	SWITCH; CURTAIN RAIL AUTO ROUND CURTAIN<TAR> (B)	1-73996-225-2	02	1	9603-	●	●
94	FIXING PARTS; CURTAIN RAIL AUTO ROUND CURTAIN<TAR>	1-73996-256-0	10	1	9603-	●	●
95	COVER; SWITCH,CURTAIN RAIL AUTO ROUND CURTAIN<TAR>	1-73996-254-0	02	1	9603-	●	●
96	MOTOR ASM; CURTAIN RAIL AUTO ROUND CURTAIN<TAR>	1-73996-255-0	02	1	9603-	●	●
97	SCREW; MOTOR,CURTAIN RAIL AUTO ROUND CURTAIN<TAR> M6X25 W/LK WASHER	9-03910-625-0	04	1	9603-	●	●
101	SCREW; STOPPER EXC. CURTAIN SLEEPER COMPARTMENT<E25>,AUTO ROUND CURTAIN<TAR>	1-73907-400-0	02	1	9603-9704	●	●
101	SCREW; STOPPER	1-73907-400-0	02	1	9705-	●	●

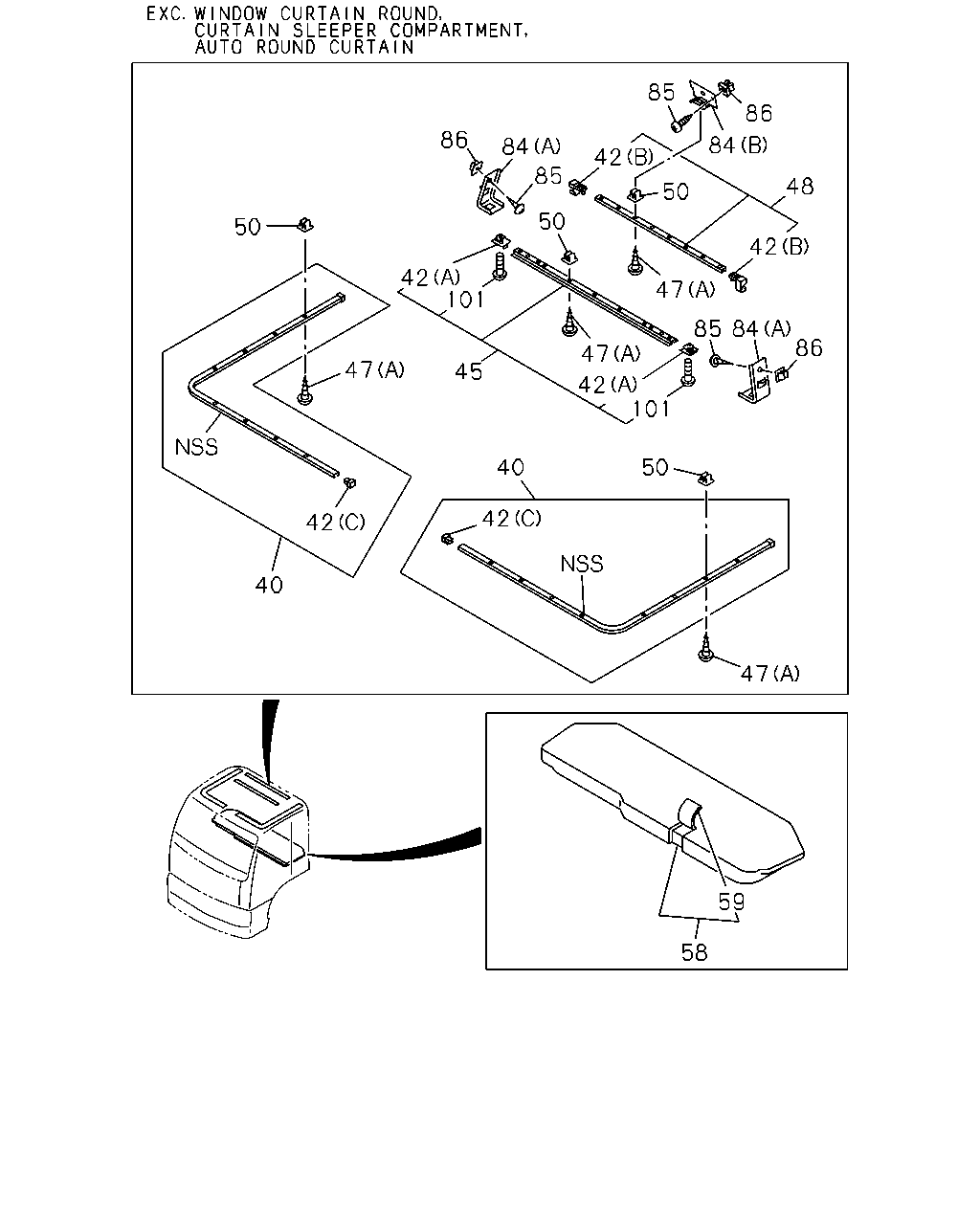

86 84 85 85 86 84 42 48 50 47 42 50 41 50 42 40 85 84 86 42 101 41 47 47 41 42 45 42 101 40 50 42 42 41 47 59 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
40	RAIL; CURTAIN,SIDE EXC. AUTO ROUND CURTAIN<TAR>	1-73907-424-0	01	1	9603-9904	●	●
40	RAIL; CURTAIN,SIDE EXC. WINDOW CURTAIN ROUND<BW4>,AUTO ROUND CURTAIN<TAR>	1-73907-424-0	01	1	9905-	●	●
40	RAIL; CURTAIN,SIDE EXC. AUTO ROUND CURTAIN<TAR>	1-73907-423-0	01	1	9603-9904	●	●
40	RAIL; CURTAIN,SIDE EXC. WINDOW CURTAIN ROUND<BW4>,AUTO ROUND CURTAIN<TAR>	1-73907-423-0	01	1	9905-	●	●
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4>	1-73907-465-0	01	1	9905-	●	●
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4>	1-73907-464-0	01	1	9905-	●	●
41	HOOK; CURTAIN RAIL AUTO ROUND CURTAIN<TAR> H=14.5 DARK GRAY	1-73996-105-0	08	1	9603-9904	●	●
41	HOOK; CURTAIN RAIL CURTAIN SLEEPER COMPARTMENT<E25>,AUTO ROUND CURTAIN<TAR> H=14.5 DARK GRAY	1-73996-105-0	13	1	9603-9904	●	●
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> H=14.5 DARK GRAY	1-73996-105-0	34	1	9905-	●	●
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4>,AUTO ROUND CURTAIN<TAR> H=14.5 DARK GRAY	1-73996-105-0	08	1	9905-	●	●
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>,AUTO ROUND CURTAIN<TAR> H=14.5 DARK GRAY	1-73996-105-0	14	1	9905-	●	●
42	STOPPER; CURTAIN RAIL (A)	1-73907-403-1	04	1	9603-9904	●	●
42	STOPPER; CURTAIN RAIL (B)	1-73996-146-2	02	1	9603-9904	●	●
42	STOPPER; CURTAIN RAIL (B)	1-73996-146-2	02	1	9905-	●	●
42	STOPPER; CURTAIN RAIL (A)	1-73907-403-1	02	1	9905-	●	●
42	STOPPER; CURTAIN RAIL EXC. AUTO ROUND CURTAIN<TAR> (C)	1-73908-193-0	04	1	9603-	●	●
45	RAIL; CURTAIN,FRT CURTAIN SLEEPER COMPARTMENT<E25>,AUTO ROUND CURTAIN<TAR> CABIN CENTER	1-73907-379-5	01	1	9603-9904	●	●
45	RAIL; CURTAIN,FRT WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>,AUTO ROUND CURTAIN<TAR> EXC. HIGH ROOF<S2F>	1-73907-379-5	01	1	9905-	●	●
45	RAIL; CURTAIN,FRT EXC. CURTAIN SLEEPER COMPARTMENT<E25>,AUTO ROUND CURTAIN<TAR> CABIN CENTER	1-73907-420-0	01	1	9603-9904	●	●
45	RAIL; CURTAIN,FRT EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>,HIGH ROOF<S2F>,AUTO ROUND CURTAIN<TAR>	1-73907-420-0	01	1	9905-	●	●
45	RAIL; CURTAIN,FRT HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>,AUTO ROUND CURTAIN<TAR>	1-73907-460-0	01	1	9905-	●	●
45	RAIL; CURTAIN,FRT WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>,AUTO ROUND CURTAIN<TAR> HIGH ROOF<S2F>	1-73907-380-6	01	1	9905-	●	●
47	SCREW; CURTAIN RAIL (A) M5X20	5-09981-059-0	32	1	9603-	●	●
47	SCREW; CURTAIN RAIL AUTO ROUND CURTAIN<TAR> (B) M5X16	9-93490-516-0	04	1	9603-	●	●
48	RAIL; CURTAIN,BACK AUTO ROUND CURTAIN<TAR>	1-73996-106-3	01	1	9603-9904	●	●
48	RAIL; CURTAIN,BACK WINDOW CURTAIN ROUND<BW4>,AUTO ROUND CURTAIN<TAR>	1-73996-106-3	01	1	9905-	●	●
48	RAIL; CURTAIN,BACK EXC. AUTO ROUND CURTAIN<TAR>	1-73996-279-0	01	1	9603-9904	●	●
48	RAIL; CURTAIN,BACK EXC. WINDOW CURTAIN ROUND<BW4>,AUTO ROUND CURTAIN<TAR>	1-73996-279-0	01	1	9905-0008	●	●
48	RAIL; CURTAIN,BACK EXC. WINDOW CURTAIN ROUND<BW4>,AUTO ROUND CURTAIN<TAR>	1-73908-111-0	01	1	0009-	●	●
50	GROMMET; SCREW,CURTAIN RAIL D=8X8 L=7.5 M5 YELLOW	8-94279-740-0	32	1	9603-9708	●	●
50	GROMMET; SCREW,CURTAIN RAIL D=8.6X7.7 L=7.5	8-94279-078-0	32	1	9709-	●	●
58	BED; MAT MATTRESS SLEEPER CAB<E40>	1-75117-852-3	01	1	9603-0003	●	●
58	BED; MAT MATTRESS SLEEPER CAB<E40>	1-75117-990-1	01	1	0004-	●	●
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40>	1-75117-861-1	01	1	9603-0003	●	●
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40>	1-75127-082-0	01	1	0004-	●	●
84	BRACKET; CURTAIN RAIL (B)	1-73998-987-4	07	1	9603-	●	●
84	BRACKET; CURTAIN RAIL EXC. AUTO ROUND CURTAIN<TAR> (A)	1-73998-986-2	02	1	9603-	●	●
85	SCREW; BRKT M5X20	5-09981-059-0	07	1	9603-	●	●
85	SCREW; BRKT EXC. AUTO ROUND CURTAIN<TAR> M5X20	5-09981-059-0	02	1	9603-	●	●
86	GROMMET; SCREW,BRKT D=8X8 L=7.5 M5 YELLOW	8-94279-740-0	07	1	9603-9708	●	●
86	GROMMET; SCREW,BRKT D=8.6X7.7 L=7.5	8-94279-078-0	07	1	9709-	●	●
86	GROMMET; SCREW,BRKT EXC. AUTO ROUND CURTAIN<TAR> D=8X8 L=7.5 M5 YELLOW	8-94279-740-0	02	1	9603-9708	●	●
86	GROMMET; SCREW,BRKT EXC. AUTO ROUND CURTAIN<TAR> D=8.6X7.7 L=7.5	8-94279-078-0	02	1	9709-	●	●
101	SCREW; STOPPER EXC. CURTAIN SLEEPER COMPARTMENT<E25>,AUTO ROUND CURTAIN<TAR>	1-73907-400-0	02	1	9603-9704	●	●
101	SCREW; STOPPER	1-73907-400-0	02	1	9705-	●	●

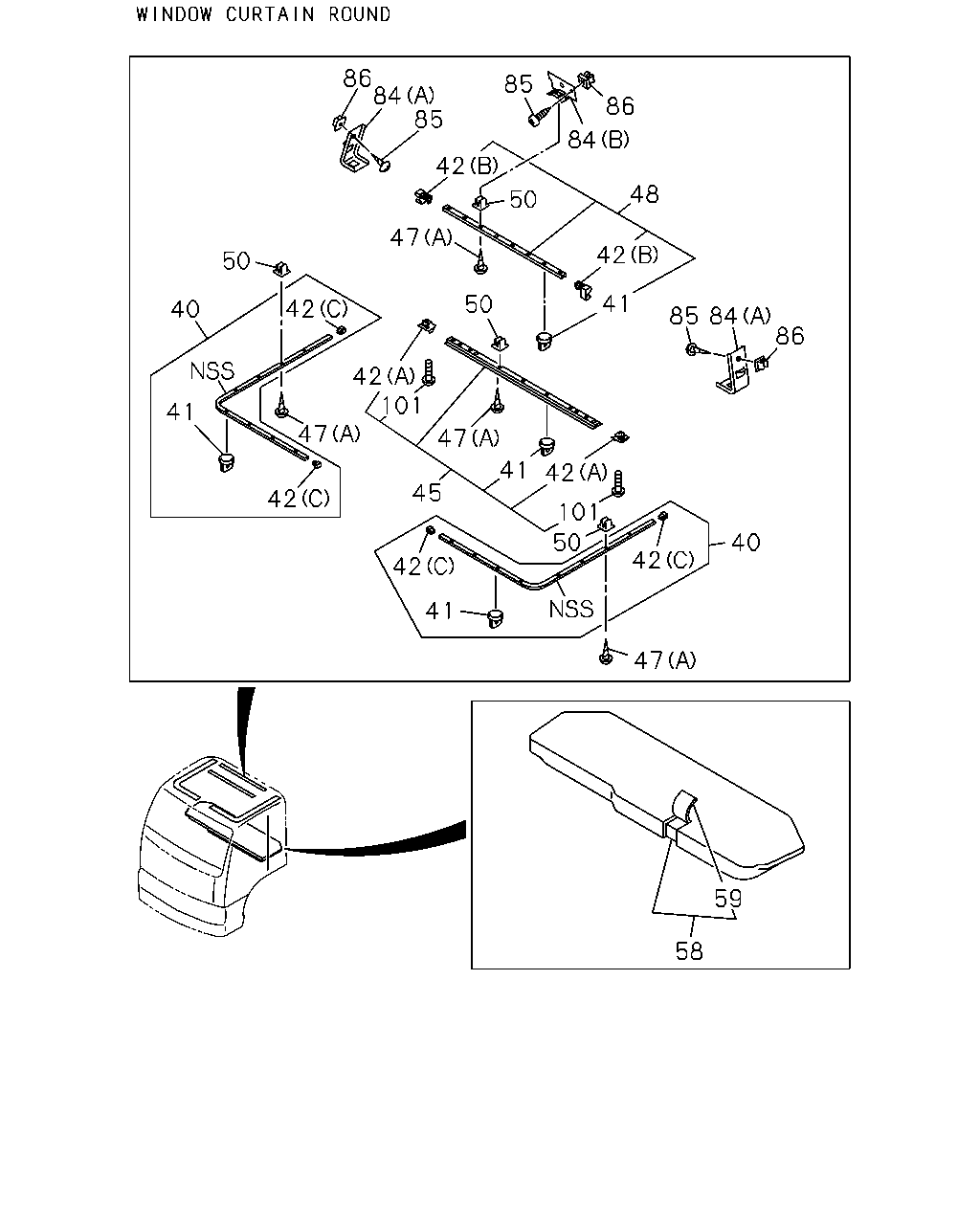

85 86 86 84 84 42 85 48 50 50 50 42 42 101 47 85 84 86 47 47 45 42 101 40 50 42 42 40 47 59 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
40	RAIL; CURTAIN,SIDE EXC. AUTO ROUND CURTAIN<TAR>	1-73907-424-0	01	1	9603-9904	●	●
40	RAIL; CURTAIN,SIDE EXC. WINDOW CURTAIN ROUND<BW4>,AUTO ROUND CURTAIN<TAR>	1-73907-424-0	01	1	9905-	●	●
40	RAIL; CURTAIN,SIDE EXC. AUTO ROUND CURTAIN<TAR>	1-73907-423-0	01	1	9603-9904	●	●
40	RAIL; CURTAIN,SIDE EXC. WINDOW CURTAIN ROUND<BW4>,AUTO ROUND CURTAIN<TAR>	1-73907-423-0	01	1	9905-	●	●
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4>	1-73907-465-0	01	1	9905-	●	●
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4>	1-73907-464-0	01	1	9905-	●	●
42	STOPPER; CURTAIN RAIL (A)	1-73907-403-1	04	1	9603-9904	●	●
42	STOPPER; CURTAIN RAIL (B)	1-73996-146-2	02	1	9603-9904	●	●
42	STOPPER; CURTAIN RAIL (B)	1-73996-146-2	02	1	9905-	●	●
42	STOPPER; CURTAIN RAIL (A)	1-73907-403-1	02	1	9905-	●	●
42	STOPPER; CURTAIN RAIL EXC. AUTO ROUND CURTAIN<TAR> (C)	1-73908-193-0	04	1	9603-	●	●
45	RAIL; CURTAIN,FRT CURTAIN SLEEPER COMPARTMENT<E25>,AUTO ROUND CURTAIN<TAR> CABIN CENTER	1-73907-379-5	01	1	9603-9904	●	●
45	RAIL; CURTAIN,FRT WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>,AUTO ROUND CURTAIN<TAR> EXC. HIGH ROOF<S2F>	1-73907-379-5	01	1	9905-	●	●
45	RAIL; CURTAIN,FRT EXC. CURTAIN SLEEPER COMPARTMENT<E25>,AUTO ROUND CURTAIN<TAR> CABIN CENTER	1-73907-420-0	01	1	9603-9904	●	●
45	RAIL; CURTAIN,FRT EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>,HIGH ROOF<S2F>,AUTO ROUND CURTAIN<TAR>	1-73907-420-0	01	1	9905-	●	●
45	RAIL; CURTAIN,FRT HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>,AUTO ROUND CURTAIN<TAR>	1-73907-460-0	01	1	9905-	●	●
45	RAIL; CURTAIN,FRT WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>,AUTO ROUND CURTAIN<TAR> HIGH ROOF<S2F>	1-73907-380-6	01	1	9905-	●	●
47	SCREW; CURTAIN RAIL (A) M5X20	5-09981-059-0	32	1	9603-	●	●
47	SCREW; CURTAIN RAIL AUTO ROUND CURTAIN<TAR> (B) M5X16	9-93490-516-0	04	1	9603-	●	●
48	RAIL; CURTAIN,BACK AUTO ROUND CURTAIN<TAR>	1-73996-106-3	01	1	9603-9904	●	●
48	RAIL; CURTAIN,BACK WINDOW CURTAIN ROUND<BW4>,AUTO ROUND CURTAIN<TAR>	1-73996-106-3	01	1	9905-	●	●
48	RAIL; CURTAIN,BACK EXC. AUTO ROUND CURTAIN<TAR>	1-73996-279-0	01	1	9603-9904	●	●
48	RAIL; CURTAIN,BACK EXC. WINDOW CURTAIN ROUND<BW4>,AUTO ROUND CURTAIN<TAR>	1-73996-279-0	01	1	9905-0008	●	●
48	RAIL; CURTAIN,BACK EXC. WINDOW CURTAIN ROUND<BW4>,AUTO ROUND CURTAIN<TAR>	1-73908-111-0	01	1	0009-	●	●
50	GROMMET; SCREW,CURTAIN RAIL D=8X8 L=7.5 M5 YELLOW	8-94279-740-0	32	1	9603-9708	●	●
50	GROMMET; SCREW,CURTAIN RAIL D=8.6X7.7 L=7.5	8-94279-078-0	32	1	9709-	●	●
58	BED; MAT MATTRESS SLEEPER CAB<E40>	1-75117-852-3	01	1	9603-0003	●	●
58	BED; MAT MATTRESS SLEEPER CAB<E40>	1-75117-990-1	01	1	0004-	●	●
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40>	1-75117-861-1	01	1	9603-0003	●	●
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40>	1-75127-082-0	01	1	0004-	●	●
84	BRACKET; CURTAIN RAIL (B)	1-73998-987-4	07	1	9603-	●	●
84	BRACKET; CURTAIN RAIL EXC. AUTO ROUND CURTAIN<TAR> (A)	1-73998-986-2	02	1	9603-	●	●
85	SCREW; BRKT M5X20	5-09981-059-0	07	1	9603-	●	●
85	SCREW; BRKT EXC. AUTO ROUND CURTAIN<TAR> M5X20	5-09981-059-0	02	1	9603-	●	●
86	GROMMET; SCREW,BRKT D=8X8 L=7.5 M5 YELLOW	8-94279-740-0	07	1	9603-9708	●	●
86	GROMMET; SCREW,BRKT D=8.6X7.7 L=7.5	8-94279-078-0	07	1	9709-	●	●
86	GROMMET; SCREW,BRKT EXC. AUTO ROUND CURTAIN<TAR> D=8X8 L=7.5 M5 YELLOW	8-94279-740-0	02	1	9603-9708	●	●
86	GROMMET; SCREW,BRKT EXC. AUTO ROUND CURTAIN<TAR> D=8.6X7.7 L=7.5	8-94279-078-0	02	1	9709-	●	●
101	SCREW; STOPPER EXC. CURTAIN SLEEPER COMPARTMENT<E25>,AUTO ROUND CURTAIN<TAR>	1-73907-400-0	02	1	9603-9704	●	●
101	SCREW; STOPPER	1-73907-400-0	02	1	9705-	●	●

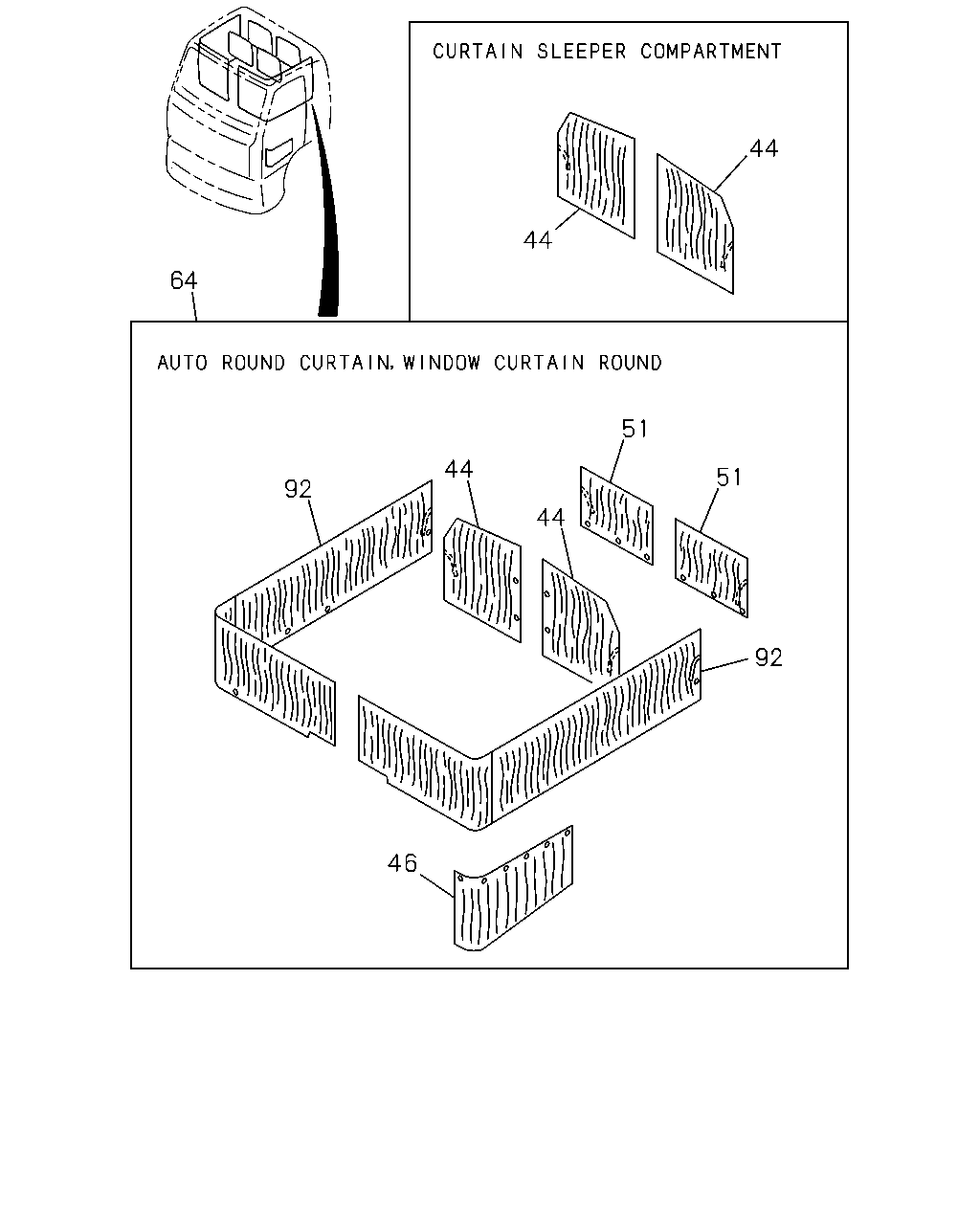

44 44 64 51 44 51 92 44 92 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
44	CURTAIN ASM; CABIN CENTER HIGH ROOF<S2F> AUTO ROUND CURTAIN<TAR>	1-73907-506-0	01	1	0103-	●	●
44	CURTAIN ASM; CABIN CENTER HIGH ROOF<S2F> AUTO ROUND CURTAIN<TAR>	1-73907-507-0	01	1	0103-	●	●
44	CURTAIN ASM; CABIN CENTER AUTO ROUND CURTAIN<TAR> EXC. HIGH ROOF<S2F>	1-73907-497-0	01	1	0103-	●	●
44	CURTAIN ASM; CABIN CENTER AUTO ROUND CURTAIN<TAR> EXC. HIGH ROOF<S2F>	1-73907-498-0	01	1	0103-	●	●
44	CURTAIN ASM; CABIN CENTER AUTO ROUND CURTAIN<TAR> EXC. HIGH ROOF<S2F>	1-73907-498-0	01	1	9905-0102	●	●
44	CURTAIN ASM; CABIN CENTER AUTO ROUND CURTAIN<TAR> EXC. HIGH ROOF<S2F>	1-73907-497-0	01	1	9905-0102	●	●
44	CURTAIN ASM; CABIN CENTER CURTAIN SLEEPER COMPARTMENT<E25>,AUTO ROUND CURTAIN<TAR>	1-73907-481-0	01	1	9603-9904	●	●
44	CURTAIN ASM; CABIN CENTER WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> EXC. HIGH ROOF<S2F>	1-73907-481-0	01	1	9905-	●	●
44	CURTAIN ASM; CABIN CENTER CURTAIN SLEEPER COMPARTMENT<E25>,AUTO ROUND CURTAIN<TAR>	1-73907-480-0	01	1	9603-9904	●	●
44	CURTAIN ASM; CABIN CENTER WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> EXC. HIGH ROOF<S2F>	1-73907-480-0	01	1	9905-	●	●
44	CURTAIN ASM; CABIN CENTER HIGH ROOF<S2F> AUTO ROUND CURTAIN<TAR>	1-73907-507-0	01	1	9905-0102	●	●
44	CURTAIN ASM; CABIN CENTER HIGH ROOF<S2F> AUTO ROUND CURTAIN<TAR>	1-73907-506-0	01	1	9905-0102	●	●
44	CURTAIN ASM; CABIN CENTER WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F>	1-73907-505-0	01	1	9905-0102	●	●
44	CURTAIN ASM; CABIN CENTER WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F>	1-73907-505-0	01	1	0103-	●	●
44	CURTAIN ASM; CABIN CENTER WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F>	1-73907-504-0	01	1	9905-0102	●	●
44	CURTAIN ASM; CABIN CENTER WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F>	1-73907-504-0	01	1	0103-	●	●
46	CURTAIN ASM; DOOR AUTO ROUND CURTAIN<TAR>	1-73907-501-0	01	1	9905-	●	●
46	CURTAIN ASM; DOOR WINDOW CURTAIN ROUND<BW4>	1-73907-494-0	01	1	9905-	●	●
51	CURTAIN; BACK AUTO ROUND CURTAIN<TAR>	1-73907-499-0	01	1	0103-	●	●
51	CURTAIN; BACK AUTO ROUND CURTAIN<TAR>	1-73907-500-0	01	1	0103-	●	●
51	CURTAIN; BACK AUTO ROUND CURTAIN<TAR>	1-73907-483-0	01	1	9603-9904	●	●
51	CURTAIN; BACK WINDOW CURTAIN ROUND<BW4>	1-73907-483-0	01	1	9905-0102	●	●
51	CURTAIN; BACK WINDOW CURTAIN ROUND<BW4>	1-73907-483-0	01	1	0103-	●	●
51	CURTAIN; BACK AUTO ROUND CURTAIN<TAR>	1-73907-482-0	01	1	9603-9904	●	●
51	CURTAIN; BACK WINDOW CURTAIN ROUND<BW4>	1-73907-482-0	01	1	9905-0102	●	●
51	CURTAIN; BACK WINDOW CURTAIN ROUND<BW4>	1-73907-482-0	01	1	0103-	●	●
51	CURTAIN; BACK AUTO ROUND CURTAIN<TAR>	1-73907-500-0	01	1	9905-0102	●	●
51	CURTAIN; BACK AUTO ROUND CURTAIN<TAR>	1-73907-499-0	01	1	9905-0102	●	●
64	CURTAIN KIT AUTO ROUND CURTAIN<TAR>	1-73907-479-0	01	1	9603-9904	●	●
64	CURTAIN KIT WINDOW CURTAIN ROUND<BW4> EXC. HIGH ROOF<S2F>	1-73907-479-0	01	1	9905-	●	●
64	CURTAIN KIT AUTO ROUND CURTAIN<TAR> EXC. HIGH ROOF<S2F>	1-73907-579-0	01	1	9905-	●	●
64	CURTAIN KIT HIGH ROOF<S2F> AUTO ROUND CURTAIN<TAR>	1-73907-580-0	01	1	9905-	●	●
64	CURTAIN KIT WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F>	1-73907-578-0	01	1	9905-	●	●
92	CURTAIN ASM; ROUND AUTO ROUND CURTAIN<TAR>	1-73907-495-0	01	1	0103-	●	●
92	CURTAIN ASM; ROUND AUTO ROUND CURTAIN<TAR>	1-73907-496-0	01	1	0103-	●	●
92	CURTAIN ASM; ROUND AUTO ROUND CURTAIN<TAR>	1-73907-485-0	01	1	9603-9904	●	●
92	CURTAIN ASM; ROUND WINDOW CURTAIN ROUND<BW4>	1-73907-485-0	01	1	9905-0102	●	●
92	CURTAIN ASM; ROUND WINDOW CURTAIN ROUND<BW4>	1-73907-485-0	01	1	0103-	●	●
92	CURTAIN ASM; ROUND AUTO ROUND CURTAIN<TAR>	1-73907-484-0	01	1	9603-9904	●	●
92	CURTAIN ASM; ROUND WINDOW CURTAIN ROUND<BW4>	1-73907-484-0	01	1	9905-0102	●	●
92	CURTAIN ASM; ROUND WINDOW CURTAIN ROUND<BW4>	1-73907-484-0	01	1	0103-	●	●
92	CURTAIN ASM; ROUND AUTO ROUND CURTAIN<TAR>	1-73907-496-0	01	1	9905-0102	●	●
92	CURTAIN ASM; ROUND AUTO ROUND CURTAIN<TAR>	1-73907-495-0	01	1	9905-0102	●	●

85 86 84 86 84 42 48 50 85 42 50 42 47 85 101 84 86 47 41 42 45 101 59 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
41	HOOK; CURTAIN RAIL AUTO ROUND CURTAIN<TAR> H=14.5 DARK GRAY	1-73996-105-0	08	1	9603-9904	●	●
41	HOOK; CURTAIN RAIL CURTAIN SLEEPER COMPARTMENT<E25>,AUTO ROUND CURTAIN<TAR> H=14.5 DARK GRAY	1-73996-105-0	13	1	9603-9904	●	●
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> H=14.5 DARK GRAY	1-73996-105-0	34	1	9905-	●	●
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4>,AUTO ROUND CURTAIN<TAR> H=14.5 DARK GRAY	1-73996-105-0	08	1	9905-	●	●
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>,AUTO ROUND CURTAIN<TAR> H=14.5 DARK GRAY	1-73996-105-0	14	1	9905-	●	●
42	STOPPER; CURTAIN RAIL (A)	1-73907-403-1	04	1	9603-9904	●	●
42	STOPPER; CURTAIN RAIL (B)	1-73996-146-2	02	1	9603-9904	●	●
42	STOPPER; CURTAIN RAIL (B)	1-73996-146-2	02	1	9905-	●	●
42	STOPPER; CURTAIN RAIL (A)	1-73907-403-1	02	1	9905-	●	●
42	STOPPER; CURTAIN RAIL EXC. AUTO ROUND CURTAIN<TAR> (C)	1-73908-193-0	04	1	9603-	●	●
45	RAIL; CURTAIN,FRT CURTAIN SLEEPER COMPARTMENT<E25>,AUTO ROUND CURTAIN<TAR> CABIN CENTER	1-73907-379-5	01	1	9603-9904	●	●
45	RAIL; CURTAIN,FRT WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>,AUTO ROUND CURTAIN<TAR> EXC. HIGH ROOF<S2F>	1-73907-379-5	01	1	9905-	●	●
45	RAIL; CURTAIN,FRT EXC. CURTAIN SLEEPER COMPARTMENT<E25>,AUTO ROUND CURTAIN<TAR> CABIN CENTER	1-73907-420-0	01	1	9603-9904	●	●
45	RAIL; CURTAIN,FRT EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>,HIGH ROOF<S2F>,AUTO ROUND CURTAIN<TAR>	1-73907-420-0	01	1	9905-	●	●
45	RAIL; CURTAIN,FRT HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>,AUTO ROUND CURTAIN<TAR>	1-73907-460-0	01	1	9905-	●	●
45	RAIL; CURTAIN,FRT WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>,AUTO ROUND CURTAIN<TAR> HIGH ROOF<S2F>	1-73907-380-6	01	1	9905-	●	●
47	SCREW; CURTAIN RAIL (A) M5X20	5-09981-059-0	32	1	9603-	●	●
47	SCREW; CURTAIN RAIL AUTO ROUND CURTAIN<TAR> (B) M5X16	9-93490-516-0	04	1	9603-	●	●
48	RAIL; CURTAIN,BACK AUTO ROUND CURTAIN<TAR>	1-73996-106-3	01	1	9603-9904	●	●
48	RAIL; CURTAIN,BACK WINDOW CURTAIN ROUND<BW4>,AUTO ROUND CURTAIN<TAR>	1-73996-106-3	01	1	9905-	●	●
48	RAIL; CURTAIN,BACK EXC. AUTO ROUND CURTAIN<TAR>	1-73996-279-0	01	1	9603-9904	●	●
48	RAIL; CURTAIN,BACK EXC. WINDOW CURTAIN ROUND<BW4>,AUTO ROUND CURTAIN<TAR>	1-73996-279-0	01	1	9905-0008	●	●
48	RAIL; CURTAIN,BACK EXC. WINDOW CURTAIN ROUND<BW4>,AUTO ROUND CURTAIN<TAR>	1-73908-111-0	01	1	0009-	●	●
50	GROMMET; SCREW,CURTAIN RAIL D=8X8 L=7.5 M5 YELLOW	8-94279-740-0	32	1	9603-9708	●	●
50	GROMMET; SCREW,CURTAIN RAIL D=8.6X7.7 L=7.5	8-94279-078-0	32	1	9709-	●	●
58	BED; MAT MATTRESS SLEEPER CAB<E40>	1-75117-852-3	01	1	9603-0003	●	●
58	BED; MAT MATTRESS SLEEPER CAB<E40>	1-75117-990-1	01	1	0004-	●	●
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40>	1-75117-861-1	01	1	9603-0003	●	●
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40>	1-75127-082-0	01	1	0004-	●	●
84	BRACKET; CURTAIN RAIL (B)	1-73998-987-4	07	1	9603-	●	●
84	BRACKET; CURTAIN RAIL EXC. AUTO ROUND CURTAIN<TAR> (A)	1-73998-986-2	02	1	9603-	●	●
85	SCREW; BRKT M5X20	5-09981-059-0	07	1	9603-	●	●
85	SCREW; BRKT EXC. AUTO ROUND CURTAIN<TAR> M5X20	5-09981-059-0	02	1	9603-	●	●
86	GROMMET; SCREW,BRKT D=8X8 L=7.5 M5 YELLOW	8-94279-740-0	07	1	9603-9708	●	●
86	GROMMET; SCREW,BRKT D=8.6X7.7 L=7.5	8-94279-078-0	07	1	9709-	●	●
86	GROMMET; SCREW,BRKT EXC. AUTO ROUND CURTAIN<TAR> D=8X8 L=7.5 M5 YELLOW	8-94279-740-0	02	1	9603-9708	●	●
86	GROMMET; SCREW,BRKT EXC. AUTO ROUND CURTAIN<TAR> D=8.6X7.7 L=7.5	8-94279-078-0	02	1	9709-	●	●
101	SCREW; STOPPER EXC. CURTAIN SLEEPER COMPARTMENT<E25>,AUTO ROUND CURTAIN<TAR>	1-73907-400-0	02	1	9603-9704	●	●
101	SCREW; STOPPER	1-73907-400-0	02	1	9705-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
