4-80 — ROAD WHEEL (#41358) — 192 parça

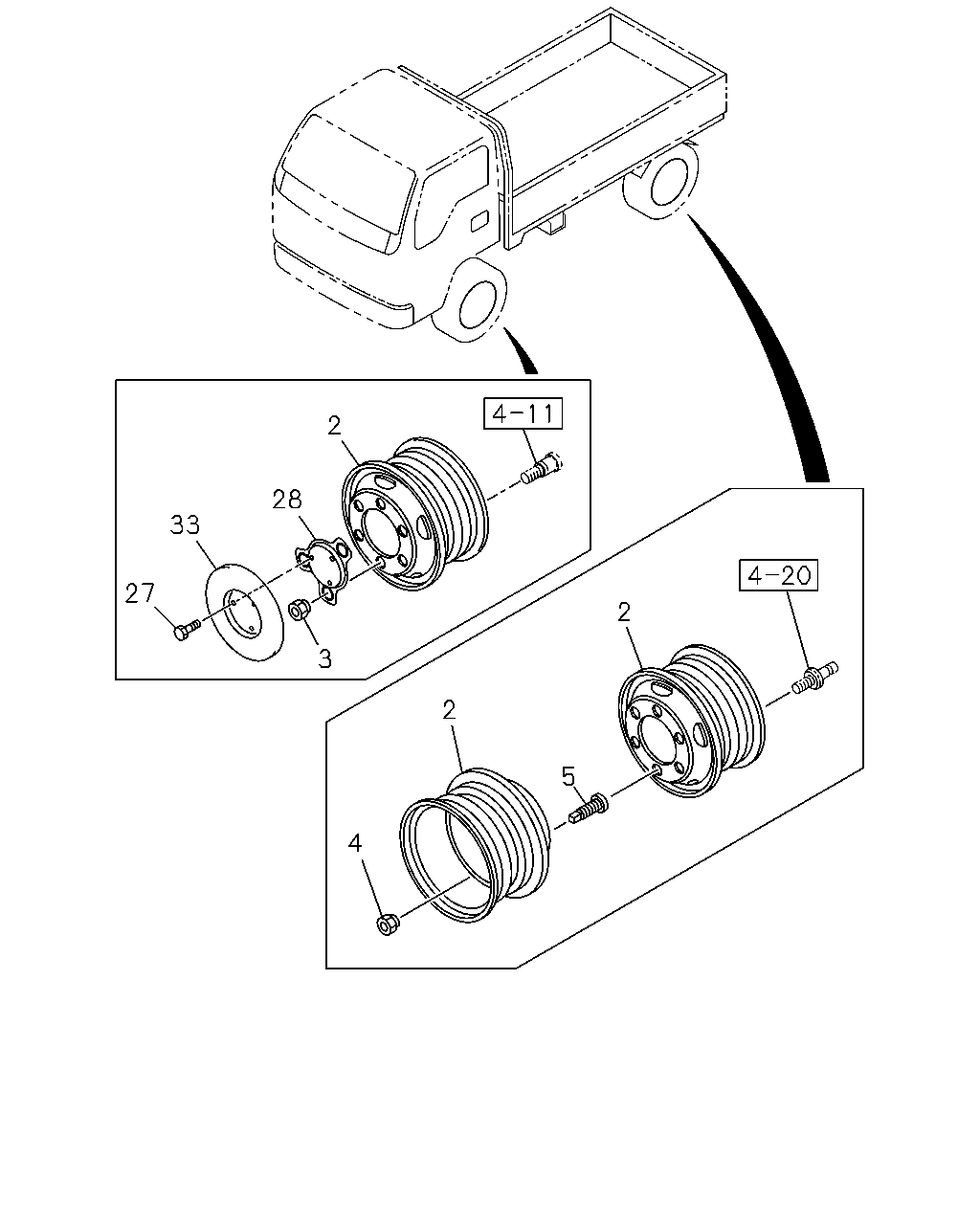

çizim 12797
2 28 33 27 2 3 2 5 4
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
2 05.803 WHEEL; DISC
(AUJ),(AVK) SPARE 17.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-97086-052-1 01 1 0302-0501 ● ● ● ● ● ● ●
2 05.803 WHEEL; DISC
(AUJ),(CRW) SPARE 17.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-97086-052-1 01 1 0502-0506 ● ● ● ● ● ● ●
2 05.803 WHEEL; DISC
(AUJ),(CRW) SPARE 17.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-97086-052-1 01 1 0507-0606 ● ● ● ● ●
2 05.803 WHEEL; DISC
(AUJ),(CRW) SPARE 17.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-97086-052-1 01 1 0607-0608 ● ● ● ●
2 05.803 WHEEL; DISC
(AUJ) SPARE 17.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-97086-052-1 01 1 0607-0608 ●
2 05.803 WHEEL; DISC
(AUJ),(CRW) SPARE 17.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-98012-857-0 01 1 0609-1010 ● ● ● ●
2 05.803 WHEEL; DISC
(AUJ) SPARE 17.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-98012-857-0 01 1 0609-1010 ●
2 05.803 WHEEL; DISC
(AUJ),(CRW) SPARE 17.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-98168-216-0 01 1 1011- ● ● ● ●
2 05.803 WHEEL; DISC
(AUJ) SPARE 17.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-98168-216-0 01 1 1011- ●
2 05.803 WHEEL; DISC
(AUJ),(AVK) FRONT 17.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-97086-052-1 02 1 0302-0501 ● ● ● ● ● ● ●
2 05.803 WHEEL; DISC
(AUJ),(CRW) FRONT 17.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-97086-052-1 02 1 0502-0506 ● ● ● ● ● ● ●
2 05.803 WHEEL; DISC
(AUJ),(CRW) FRONT 17.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-97086-052-1 02 1 0507-0606 ● ● ● ● ●
2 05.803 WHEEL; DISC
(AUJ),(CRW) FRONT 17.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-97086-052-1 02 1 0607-0608 ● ● ● ●
2 05.803 WHEEL; DISC
(AUJ) FRONT 17.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-97086-052-1 02 1 0607-0608 ●
2 05.803 WHEEL; DISC
(AUJ),(CRW) FRONT 17.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-98012-857-0 02 1 0609-1010 ● ● ● ●
2 05.803 WHEEL; DISC
(AUJ) FRONT 17.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-98012-857-0 02 1 0609-1010 ●
2 05.803 WHEEL; DISC
(AUJ),(CRW) FRONT 17.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-98168-216-0 02 1 1011- ● ● ● ●
2 05.803 WHEEL; DISC
(AUJ) FRONT 17.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-98168-216-0 02 1 1011- ●
2 05.803 WHEEL; DISC
(AUJ),(AVK) REAR 17.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-97086-052-1 04 1 0302-0501 ● ● ● ● ● ● ●
2 05.803 WHEEL; DISC
(AUJ),(CRW) REAR 17.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-97086-052-1 04 1 0502-0506 ● ● ● ● ● ● ●
2 05.803 WHEEL; DISC
(AUJ),(CRW) REAR 17.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-97086-052-1 04 1 0507-0606 ● ● ● ● ●
2 05.803 WHEEL; DISC
(AUJ),(CRW) REAR 17.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-97086-052-1 04 1 0607-0608 ● ● ● ●
2 05.803 WHEEL; DISC
(AUJ) REAR 17.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-97086-052-1 04 1 0607-0608 ●
2 05.803 WHEEL; DISC
(AUJ),(CRW) REAR 17.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-98012-857-0 04 1 0609-1010 ● ● ● ●
2 05.803 WHEEL; DISC
(AUJ) REAR 17.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-98012-857-0 04 1 0609-1010 ●
2 05.803 WHEEL; DISC
(AUJ),(CRW) REAR 17.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-98168-216-0 04 1 1011- ● ● ● ●
2 05.803 WHEEL; DISC
(AUJ) REAR 17.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-98168-216-0 04 1 1011- ●
2 05.803 WHEEL; DISC
(AUS) SPARE 17.5X6.00 OFFSET=127 BLACK 6-HOLE 		8-97086-051-2 01 1 0302-0501 ● ● ● ● ● ● ●
2 05.803 WHEEL; DISC
(CRU) SPARE 17.5X6.00 OFFSET=127 BLACK 6-HOLE 		8-97086-051-2 01 1 0502-0506 ● ● ● ● ● ● ●
2 05.803 WHEEL; DISC
(CRU) SPARE 17.5X6.00 OFFSET=127 BLACK 6-HOLE 		8-97086-051-2 01 1 0507-0606 ● ● ● ● ●
2 05.803 WHEEL; DISC
(CRU) SPARE 17.5X6.00 OFFSET=127 BLACK 6-HOLE 		8-97086-051-2 01 1 0607-0608 ● ● ● ●
2 05.803 WHEEL; DISC
(CRU) SPARE 17.5X6.00 OFFSET=127 BLACK 6-HOLE 		8-98012-856-0 01 1 0609-1010 ● ● ● ●
2 05.803 WHEEL; DISC
(CRU) SPARE 17.5X6.00 OFFSET=127 BLACK 6-HOLE 		8-98168-217-0 01 1 1011- ● ● ● ●
2 05.803 WHEEL; DISC
(AUS) FRONT,REAR 17.5X6.00 OFFSET=127 BLACK 6-HOLE 		8-97086-051-2 06 1 0302-0501 ● ● ● ● ● ● ●
2 05.803 WHEEL; DISC
(CRU) FRONT,REAR 17.5X6.00 OFFSET=127 BLACK 6-HOLE 		8-97086-051-2 06 1 0502-0506 ● ● ● ● ● ● ●
2 05.803 WHEEL; DISC
(CRU) FRONT,REAR 17.5X6.00 OFFSET=127 BLACK 6-HOLE 		8-97086-051-2 06 1 0507-0606 ● ● ● ● ●
2 05.803 WHEEL; DISC
(CRU) FRONT,REAR 17.5X6.00 OFFSET=127 BLACK 6-HOLE 		8-97086-051-2 06 1 0607-0608 ● ● ● ●
2 05.803 WHEEL; DISC
(CRU) FRONT,REAR 17.5X6.00 OFFSET=127 BLACK 6-HOLE 		8-98012-856-0 06 1 0609-1010 ● ● ● ●
2 05.803 WHEEL; DISC
(CRU) FRONT,REAR 17.5X6.00 OFFSET=127 BLACK 6-HOLE 		8-98168-217-0 06 1 1011- ● ● ● ●
2 05.803 WHEEL; DISC
(CQU) SPARE 17.5X6.00 OFFSET=127 PLATINUM SILVER 		8-97233-667-0 01 1 0303-0501 ● ● ● ● ● ● ●
2 05.803 WHEEL; DISC
(CRV) SPARE 17.5X6.00 OFFSET=127 PLATINUM SILVER 		8-97233-667-0 01 1 0502-0506 ● ● ● ● ● ● ●
2 05.803 WHEEL; DISC
(CRV) SPARE 17.5X6.00 OFFSET=127 PLATINUM SILVER 		8-97233-667-0 01 1 0507-0608 ● ● ● ● ●
2 05.803 WHEEL; DISC
(CRV) SPARE 17.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98012-855-0 01 1 0609-1010 ● ● ● ● ●
2 05.803 WHEEL; DISC
(CRV) SPARE 17.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98168-215-0 01 1 1011- ● ● ● ● ●
2 05.803 WHEEL; DISC
(CQU) FRONT,REAR 17.5X6.00 OFFSET=127 PLATINUM SILVER 		8-97233-667-0 06 1 0303-0501 ● ● ● ● ● ● ●
2 05.803 WHEEL; DISC
(CRV) FRONT,REAR 17.5X6.00 OFFSET=127 PLATINUM SILVER 		8-97233-667-0 06 1 0502-0506 ● ● ● ● ● ● ●
2 05.803 WHEEL; DISC
(CRV) FRONT,REAR 17.5X6.00 OFFSET=127 PLATINUM SILVER 		8-97233-667-0 06 1 0507-0608 ● ● ● ● ●
2 05.803 WHEEL; DISC
(CRV) FRONT,REAR 17.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98012-855-0 06 1 0609-1010 ● ● ● ● ●
2 05.803 WHEEL; DISC
(CRV) FRONT,REAR 17.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98168-215-0 06 1 1011- ● ● ● ● ●
2 05.803 WHEEL; DISC
(AYS),(BRT) SPARE 16X5.5J OFFSET=127 BLACK 6-HOLE 		8-97322-419-0 01 1 0302-0302 ● ● ● ●
2 05.803 WHEEL; DISC
(AYS) SPARE 16X5.5J OFFSET=127 BLACK 6-HOLE 		8-97322-419-0 01 1 0303-0506 ● ● ● ●
2 05.803 WHEEL; DISC
(AYS) SPARE 16X5.5J OFFSET=127 BLACK 6-HOLE 		8-97322-419-0 01 1 0507- ● ● ●
2 05.803 WHEEL; DISC
(AYS),(BRT) FRONT,REAR 16X5.5J OFFSET=127 BLACK 6-HOLE 		8-97322-419-0 06 1 0302-0302 ● ● ● ●
2 05.803 WHEEL; DISC
(AYS) FRONT,REAR 16X5.5J OFFSET=127 BLACK 6-HOLE 		8-97322-419-0 06 1 0303-0506 ● ● ● ●
2 05.803 WHEEL; DISC
(AYS) FRONT,REAR 16X5.5J OFFSET=127 BLACK 6-HOLE 		8-97322-419-0 06 1 0507- ● ● ●
2 05.803 WHEEL; DISC
(BRT),(CQT) SPARE 5.5JX16 OFFSET=127 PLATINUM SILVER 		8-97322-421-0 01 1 0303-0506 ● ● ● ●
2 05.803 WHEEL; DISC
(CQT) SPARE 5.5JX16 OFFSET=127 PLATINUM SILVER 		8-97322-421-0 01 1 0507- ● ● ●
2 05.803 WHEEL; DISC
(BRT),(CQT) FRONT,REAR 5.5JX16 OFFSET=127 PLATINUM SILVER 		8-97322-421-0 06 1 0303-0506 ● ● ● ●
2 05.803 WHEEL; DISC
(CQT) FRONT,REAR 5.5JX16 OFFSET=127 PLATINUM SILVER 		8-97322-421-0 06 1 0507- ● ● ●
2 05.803 WHEEL; DISC
(BQU),(9HY) SPARE 16X5.5J OFFSET=116.5 BLACK 5-HOLE 		8-97213-255-1 01 1 0302-0302 ● ● ●
2 05.803 WHEEL; DISC
(BQU),(9HY) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 01 1 0303- ● ● ●
2 05.803 WHEEL; DISC
(BQU),(9HY) FRONT,REAR 16X5.5J OFFSET=116.5 BLACK 5-HOLE 		8-97213-255-1 06 1 0302-0302 ● ● ●
2 05.803 WHEEL; DISC
(BQU),(9HY) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 06 1 0303- ● ● ●
2 05.803 WHEEL; DISC
(BQV) SPARE 16X5.5J OFFSET=116.5 WHITE 5-HOLE 		8-97213-256-0 01 1 0302- ● ● ●
2 05.803 WHEEL; DISC
(BQV) FRONT,REAR 16X5.5J OFFSET=116.5 WHITE 5-HOLE 		8-97213-256-0 06 1 0302- ● ● ●
3 05.813 NUT; WHEEL,FRT AXLE
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) M20 LH THREAD 		8-94427-549-1 06 1 0302-0506 ● ● ● ● ● ● ●
3 05.813 NUT; WHEEL,FRT AXLE
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) M20 LH THREAD 		8-94427-549-1 06 1 0507-0610 ● ● ● ● ●
3 05.813 NUT; WHEEL,FRT AXLE
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) M20 LH THREAD 		8-97359-808-0 06 1 0611- ● ● ● ● ●
3 05.813 NUT; WHEEL,FRT AXLE
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) M20 RH THREAD 		8-94427-548-1 06 1 0302-0506 ● ● ● ● ● ● ●
3 05.813 NUT; WHEEL,FRT AXLE
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) M20 RH THREAD 		8-94427-548-1 06 1 0507-0610 ● ● ● ● ●
3 05.813 NUT; WHEEL,FRT AXLE
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) M20 RH THREAD 		8-97359-807-0 06 1 0611- ● ● ● ● ●
3 05.813 NUT; WHEEL,FRT AXLE
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) M18 LH THREAD 		8-94365-148-0 05 1 0302-0610 ● ● ●
3 05.813 NUT; WHEEL,FRT AXLE
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) M18 LH THREAD 		8-98007-908-0 05 1 0611- ● ● ●
3 05.813 NUT; WHEEL,FRT AXLE
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) M18 RH THREAD 		8-94365-147-0 05 1 0302-0610 ● ● ●
3 05.813 NUT; WHEEL,FRT AXLE
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) M18 RH THREAD 		8-98007-907-0 05 1 0611- ● ● ●
4 05.813 NUT; WHEEL,RR AXLE
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) M30 LH THREAD 		1-42334-023-0 06 1 0302-0404 ● ● ● ● ● ● ●
4 05.813 NUT; WHEEL,RR AXLE
G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> M30 LH THREAD 		1-42334-023-0 06 1 0405-0506 ● ● ●
4 05.813 NUT; WHEEL,RR AXLE
G.V.W. 7.5-8.0TON(RPY) M30 LH THREAD 		1-42334-023-0 06 1 0405-0506 ● ● ● ●
4 05.813 NUT; WHEEL,RR AXLE
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) M30 LH THREAD 		1-42334-023-0 06 1 0405-0506 ●
4 05.813 NUT; WHEEL,RR AXLE
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) M30 LH THREAD 		1-42334-023-0 06 1 0507-0610 ● ● ● ● ●
4 05.813 NUT; WHEEL,RR AXLE
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) M30 LH THREAD 		8-97359-810-0 06 1 0611- ● ● ● ● ●
4 05.813 NUT; WHEEL,RR AXLE
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) M30 		1-42333-023-0 06 1 0302-0404 ● ● ● ● ● ● ●
4 05.813 NUT; WHEEL,RR AXLE
G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> M30 		1-42333-023-0 06 1 0405-0506 ● ● ●
4 05.813 NUT; WHEEL,RR AXLE
G.V.W. 7.5-8.0TON(RPY) M30 		1-42333-023-0 06 1 0405-0506 ● ● ● ●
4 05.813 NUT; WHEEL,RR AXLE
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) M30 		1-42333-023-0 06 1 0405-0506 ●
4 05.813 NUT; WHEEL,RR AXLE
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) M30 		1-42333-023-0 06 1 0507-0610 ● ● ● ● ●
4 05.813 NUT; WHEEL,RR AXLE
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) M30 RH THREAD 		8-97359-809-0 06 1 0611- ● ● ● ● ●
4 05.813 NUT; WHEEL,RR AXLE
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) M27 LH THREAD 		8-94365-146-0 05 1 0302-0403 ● ● ●
4 05.813 NUT; WHEEL,RR AXLE
G.V.W. 3.5-4.0TON(RPQ) M27 LH THREAD 		8-94365-146-0 05 1 0404-0406 ● ● ●
4 05.813 NUT; WHEEL,RR AXLE
G.V.W. 3.5-4.0TON(RPQ) M27 LH THREAD 		8-94365-146-0 05 1 0404-0406 ● ●
4 05.813 NUT; WHEEL,RR AXLE
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) M27 LH THREAD 		8-94365-146-0 05 1 0404-0406 ●
4 05.813 NUT; WHEEL,RR AXLE
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) M27 LH THREAD 		8-94365-146-0 05 1 0407-0606 ● ● ●
4 05.813 NUT; WHEEL,RR AXLE
M27 LH THREAD 		8-94365-146-0 05 1 0607-0610 ●
4 05.813 NUT; WHEEL,RR AXLE
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) EXC. FRAME STRAIGHT TYPE<7KJ> M27 LH THREAD 		8-94365-146-0 05 1 0607-0610 ●
4 05.813 NUT; WHEEL,RR AXLE
G.V.W. 3.5-4.0TON(RPQ) M27 LH THREAD 		8-94365-146-0 05 1 0607-0610 ●
4 05.813 NUT; WHEEL,RR AXLE
M27 LH THREAD 		8-98007-825-0 05 1 0611- ●
4 05.813 NUT; WHEEL,RR AXLE
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) EXC. FRAME STRAIGHT TYPE<7KJ> M27 LH THREAD 		8-98007-825-0 05 1 0611- ●
4 05.813 NUT; WHEEL,RR AXLE
G.V.W. 3.5-4.0TON(RPQ) M27 LH THREAD 		8-98007-825-0 05 1 0611- ●
4 05.813 NUT; WHEEL,RR AXLE
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) M27 RH THREAD 		8-94365-145-0 05 1 0302-0403 ● ● ●
4 05.813 NUT; WHEEL,RR AXLE
G.V.W. 3.5-4.0TON(RPQ) M27 RH THREAD 		8-94365-145-0 05 1 0404-0406 ● ● ●
4 05.813 NUT; WHEEL,RR AXLE
G.V.W. 3.5-4.0TON(RPQ) M27 RH THREAD 		8-94365-145-0 05 1 0404-0406 ● ●
4 05.813 NUT; WHEEL,RR AXLE
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) M27 RH THREAD 		8-94365-145-0 05 1 0404-0406 ●
4 05.813 NUT; WHEEL,RR AXLE
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) M27 RH THREAD 		8-94365-145-0 05 1 0407-0606 ● ● ●
4 05.813 NUT; WHEEL,RR AXLE
M27 RH THREAD 		8-94365-145-0 05 1 0607-0610 ●
4 05.813 NUT; WHEEL,RR AXLE
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) EXC. FRAME STRAIGHT TYPE<7KJ> M27 RH THREAD 		8-94365-145-0 05 1 0607-0610 ●
4 05.813 NUT; WHEEL,RR AXLE
G.V.W. 3.5-4.0TON(RPQ) M27 RH THREAD 		8-94365-145-0 05 1 0607-0610 ●
4 05.813 NUT; WHEEL,RR AXLE
M27 RH THREAD 		8-98007-824-0 05 1 0611- ●
4 05.813 NUT; WHEEL,RR AXLE
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) EXC. FRAME STRAIGHT TYPE<7KJ> M27 RH THREAD 		8-98007-824-0 05 1 0611- ●
4 05.813 NUT; WHEEL,RR AXLE
G.V.W. 3.5-4.0TON(RPQ) M27 RH THREAD 		8-98007-824-0 05 1 0611- ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) OUTER M30,INNER M20 LH THREAD 		1-42336-005-0 06 1 0302-0506 ● ● ● ● ● ● ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) OUTER M30,INNER M20 LH THREAD 		1-42336-005-1 06 1 0507-0610 ● ● ● ● ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) OUTER M30,INNER M20 LH THREAD 		8-97359-806-0 06 1 0611- ● ● ● ● ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) OUTER M30,INNER M20 RH THREAD 		1-42335-005-0 06 1 0302-0506 ● ● ● ● ● ● ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) OUTER M30,INNER M20 RH THREAD 		1-42335-005-1 06 1 0507-0610 ● ● ● ● ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) OUTER M30,INNER M20 RH THREAD 		8-97359-805-0 06 1 0611- ● ● ● ● ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) OUTER M27,INNER M18 LH THREAD 		8-94365-144-1 05 1 0302-0610 ● ● ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) OUTER M27,INNER M18 LH THREAD 		8-98007-811-0 05 1 0611- ● ● ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) OUTER M27,INNER M18 RH THREAD 		8-94365-143-1 05 1 0302-0610 ● ● ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) OUTER M27,INNER M18 RH THREAD 		8-98007-810-0 05 1 0611- ● ● ●
27 05.871 BOLT; COVER
03.611 M10X20 FLANGE 		0-28681-020-0 06 1 0302-0506 ● ● ● ● ● ● ●
27 05.871 BOLT; COVER
03.611 M10X20 FLANGE 		0-28681-020-0 06 1 0507-0512 ● ● ● ● ● ●
27 05.871 BOLT; COVER
02.343 M10X20 FLANGE 		0-28651-020-0 06 1 0601- ● ● ● ● ● ●
28 05.864 BRACKET; COVER
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) 		8-97169-250-0 02 1 0302-0506 ● ● ● ● ● ● ●
28 05.864 BRACKET; COVER
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) 		8-97169-250-0 02 1 0507- ● ● ● ● ●
28 05.864 BRACKET; COVER
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) 		8-97169-249-0 02 1 0302- ● ● ●
33 05.858 COVER; WHEEL 8-97167-658-0 02 1 0302-0506 ● ● ● ● ● ● ●
33 05.858 COVER; WHEEL 8-97167-658-0 02 1 0507- ● ● ● ● ● ●

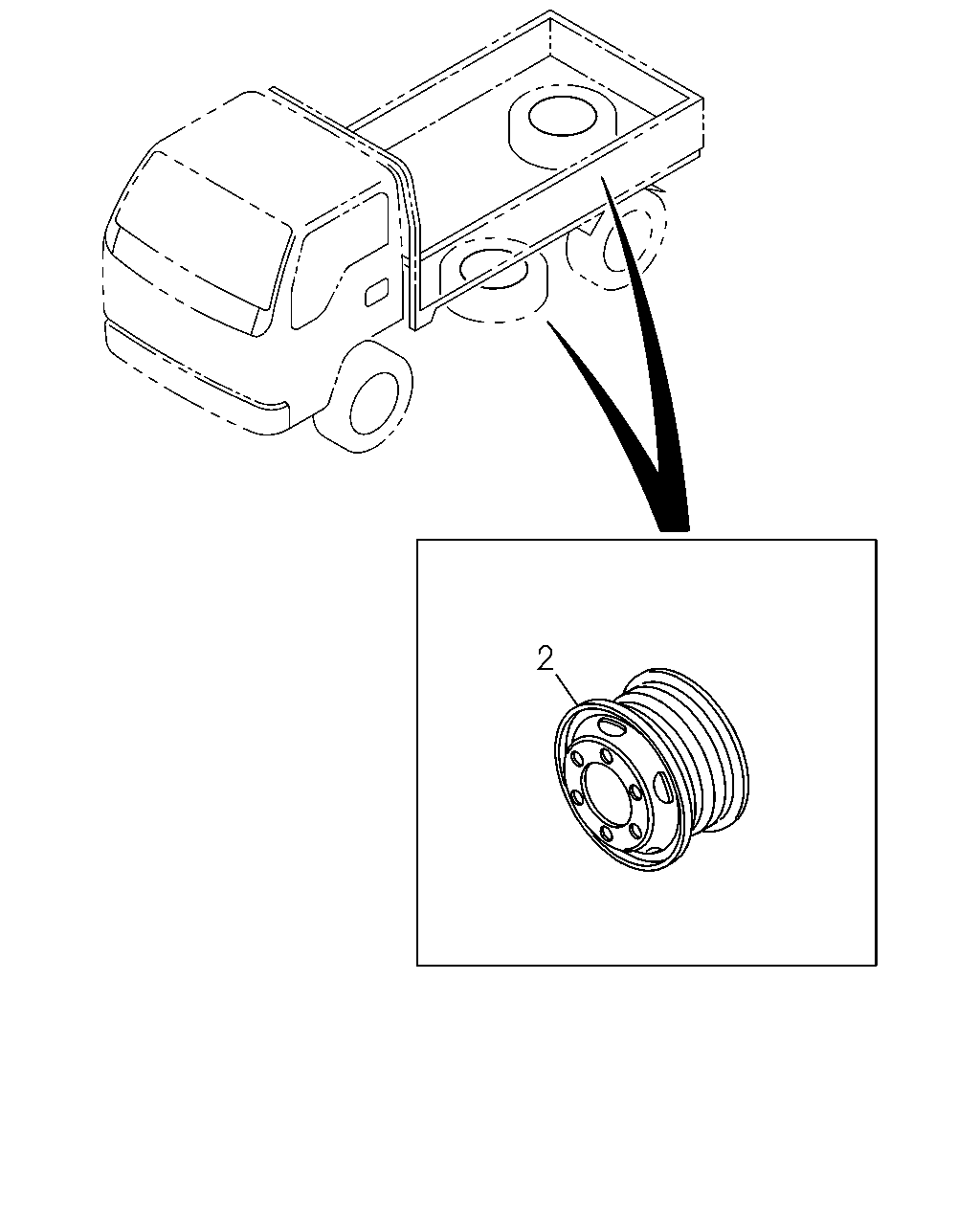

çizim 12848
2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
2 05.803 WHEEL; DISC
(AUJ),(AVK) SPARE 17.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-97086-052-1 01 1 0302-0501 ● ● ● ● ● ● ●
2 05.803 WHEEL; DISC
(AUJ),(CRW) SPARE 17.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-97086-052-1 01 1 0502-0506 ● ● ● ● ● ● ●
2 05.803 WHEEL; DISC
(AUJ),(CRW) SPARE 17.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-97086-052-1 01 1 0507-0606 ● ● ● ● ●
2 05.803 WHEEL; DISC
(AUJ),(CRW) SPARE 17.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-97086-052-1 01 1 0607-0608 ● ● ● ●
2 05.803 WHEEL; DISC
(AUJ) SPARE 17.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-97086-052-1 01 1 0607-0608 ●
2 05.803 WHEEL; DISC
(AUJ),(CRW) SPARE 17.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-98012-857-0 01 1 0609-1010 ● ● ● ●
2 05.803 WHEEL; DISC
(AUJ) SPARE 17.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-98012-857-0 01 1 0609-1010 ●
2 05.803 WHEEL; DISC
(AUJ),(CRW) SPARE 17.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-98168-216-0 01 1 1011- ● ● ● ●
2 05.803 WHEEL; DISC
(AUJ) SPARE 17.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-98168-216-0 01 1 1011- ●
2 05.803 WHEEL; DISC
(AUJ),(AVK) FRONT 17.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-97086-052-1 02 1 0302-0501 ● ● ● ● ● ● ●
2 05.803 WHEEL; DISC
(AUJ),(CRW) FRONT 17.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-97086-052-1 02 1 0502-0506 ● ● ● ● ● ● ●
2 05.803 WHEEL; DISC
(AUJ),(CRW) FRONT 17.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-97086-052-1 02 1 0507-0606 ● ● ● ● ●
2 05.803 WHEEL; DISC
(AUJ),(CRW) FRONT 17.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-97086-052-1 02 1 0607-0608 ● ● ● ●
2 05.803 WHEEL; DISC
(AUJ) FRONT 17.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-97086-052-1 02 1 0607-0608 ●
2 05.803 WHEEL; DISC
(AUJ),(CRW) FRONT 17.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-98012-857-0 02 1 0609-1010 ● ● ● ●
2 05.803 WHEEL; DISC
(AUJ) FRONT 17.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-98012-857-0 02 1 0609-1010 ●
2 05.803 WHEEL; DISC
(AUJ),(CRW) FRONT 17.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-98168-216-0 02 1 1011- ● ● ● ●
2 05.803 WHEEL; DISC
(AUJ) FRONT 17.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-98168-216-0 02 1 1011- ●
2 05.803 WHEEL; DISC
(AUJ),(AVK) REAR 17.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-97086-052-1 04 1 0302-0501 ● ● ● ● ● ● ●
2 05.803 WHEEL; DISC
(AUJ),(CRW) REAR 17.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-97086-052-1 04 1 0502-0506 ● ● ● ● ● ● ●
2 05.803 WHEEL; DISC
(AUJ),(CRW) REAR 17.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-97086-052-1 04 1 0507-0606 ● ● ● ● ●
2 05.803 WHEEL; DISC
(AUJ),(CRW) REAR 17.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-97086-052-1 04 1 0607-0608 ● ● ● ●
2 05.803 WHEEL; DISC
(AUJ) REAR 17.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-97086-052-1 04 1 0607-0608 ●
2 05.803 WHEEL; DISC
(AUJ),(CRW) REAR 17.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-98012-857-0 04 1 0609-1010 ● ● ● ●
2 05.803 WHEEL; DISC
(AUJ) REAR 17.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-98012-857-0 04 1 0609-1010 ●
2 05.803 WHEEL; DISC
(AUJ),(CRW) REAR 17.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-98168-216-0 04 1 1011- ● ● ● ●
2 05.803 WHEEL; DISC
(AUJ) REAR 17.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-98168-216-0 04 1 1011- ●
2 05.803 WHEEL; DISC
(AUS) SPARE 17.5X6.00 OFFSET=127 BLACK 6-HOLE 		8-97086-051-2 01 1 0302-0501 ● ● ● ● ● ● ●
2 05.803 WHEEL; DISC
(CRU) SPARE 17.5X6.00 OFFSET=127 BLACK 6-HOLE 		8-97086-051-2 01 1 0502-0506 ● ● ● ● ● ● ●
2 05.803 WHEEL; DISC
(CRU) SPARE 17.5X6.00 OFFSET=127 BLACK 6-HOLE 		8-97086-051-2 01 1 0507-0606 ● ● ● ● ●
2 05.803 WHEEL; DISC
(CRU) SPARE 17.5X6.00 OFFSET=127 BLACK 6-HOLE 		8-97086-051-2 01 1 0607-0608 ● ● ● ●
2 05.803 WHEEL; DISC
(CRU) SPARE 17.5X6.00 OFFSET=127 BLACK 6-HOLE 		8-98012-856-0 01 1 0609-1010 ● ● ● ●
2 05.803 WHEEL; DISC
(CRU) SPARE 17.5X6.00 OFFSET=127 BLACK 6-HOLE 		8-98168-217-0 01 1 1011- ● ● ● ●
2 05.803 WHEEL; DISC
(AUS) FRONT,REAR 17.5X6.00 OFFSET=127 BLACK 6-HOLE 		8-97086-051-2 06 1 0302-0501 ● ● ● ● ● ● ●
2 05.803 WHEEL; DISC
(CRU) FRONT,REAR 17.5X6.00 OFFSET=127 BLACK 6-HOLE 		8-97086-051-2 06 1 0502-0506 ● ● ● ● ● ● ●
2 05.803 WHEEL; DISC
(CRU) FRONT,REAR 17.5X6.00 OFFSET=127 BLACK 6-HOLE 		8-97086-051-2 06 1 0507-0606 ● ● ● ● ●
2 05.803 WHEEL; DISC
(CRU) FRONT,REAR 17.5X6.00 OFFSET=127 BLACK 6-HOLE 		8-97086-051-2 06 1 0607-0608 ● ● ● ●
2 05.803 WHEEL; DISC
(CRU) FRONT,REAR 17.5X6.00 OFFSET=127 BLACK 6-HOLE 		8-98012-856-0 06 1 0609-1010 ● ● ● ●
2 05.803 WHEEL; DISC
(CRU) FRONT,REAR 17.5X6.00 OFFSET=127 BLACK 6-HOLE 		8-98168-217-0 06 1 1011- ● ● ● ●
2 05.803 WHEEL; DISC
(CQU) SPARE 17.5X6.00 OFFSET=127 PLATINUM SILVER 		8-97233-667-0 01 1 0303-0501 ● ● ● ● ● ● ●
2 05.803 WHEEL; DISC
(CRV) SPARE 17.5X6.00 OFFSET=127 PLATINUM SILVER 		8-97233-667-0 01 1 0502-0506 ● ● ● ● ● ● ●
2 05.803 WHEEL; DISC
(CRV) SPARE 17.5X6.00 OFFSET=127 PLATINUM SILVER 		8-97233-667-0 01 1 0507-0608 ● ● ● ● ●
2 05.803 WHEEL; DISC
(CRV) SPARE 17.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98012-855-0 01 1 0609-1010 ● ● ● ● ●
2 05.803 WHEEL; DISC
(CRV) SPARE 17.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98168-215-0 01 1 1011- ● ● ● ● ●
2 05.803 WHEEL; DISC
(CQU) FRONT,REAR 17.5X6.00 OFFSET=127 PLATINUM SILVER 		8-97233-667-0 06 1 0303-0501 ● ● ● ● ● ● ●
2 05.803 WHEEL; DISC
(CRV) FRONT,REAR 17.5X6.00 OFFSET=127 PLATINUM SILVER 		8-97233-667-0 06 1 0502-0506 ● ● ● ● ● ● ●
2 05.803 WHEEL; DISC
(CRV) FRONT,REAR 17.5X6.00 OFFSET=127 PLATINUM SILVER 		8-97233-667-0 06 1 0507-0608 ● ● ● ● ●
2 05.803 WHEEL; DISC
(CRV) FRONT,REAR 17.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98012-855-0 06 1 0609-1010 ● ● ● ● ●
2 05.803 WHEEL; DISC
(CRV) FRONT,REAR 17.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98168-215-0 06 1 1011- ● ● ● ● ●
2 05.803 WHEEL; DISC
(AYS),(BRT) SPARE 16X5.5J OFFSET=127 BLACK 6-HOLE 		8-97322-419-0 01 1 0302-0302 ● ● ● ●
2 05.803 WHEEL; DISC
(AYS) SPARE 16X5.5J OFFSET=127 BLACK 6-HOLE 		8-97322-419-0 01 1 0303-0506 ● ● ● ●
2 05.803 WHEEL; DISC
(AYS) SPARE 16X5.5J OFFSET=127 BLACK 6-HOLE 		8-97322-419-0 01 1 0507- ● ● ●
2 05.803 WHEEL; DISC
(AYS),(BRT) FRONT,REAR 16X5.5J OFFSET=127 BLACK 6-HOLE 		8-97322-419-0 06 1 0302-0302 ● ● ● ●
2 05.803 WHEEL; DISC
(AYS) FRONT,REAR 16X5.5J OFFSET=127 BLACK 6-HOLE 		8-97322-419-0 06 1 0303-0506 ● ● ● ●
2 05.803 WHEEL; DISC
(AYS) FRONT,REAR 16X5.5J OFFSET=127 BLACK 6-HOLE 		8-97322-419-0 06 1 0507- ● ● ●
2 05.803 WHEEL; DISC
(BRT),(CQT) SPARE 5.5JX16 OFFSET=127 PLATINUM SILVER 		8-97322-421-0 01 1 0303-0506 ● ● ● ●
2 05.803 WHEEL; DISC
(CQT) SPARE 5.5JX16 OFFSET=127 PLATINUM SILVER 		8-97322-421-0 01 1 0507- ● ● ●
2 05.803 WHEEL; DISC
(BRT),(CQT) FRONT,REAR 5.5JX16 OFFSET=127 PLATINUM SILVER 		8-97322-421-0 06 1 0303-0506 ● ● ● ●
2 05.803 WHEEL; DISC
(CQT) FRONT,REAR 5.5JX16 OFFSET=127 PLATINUM SILVER 		8-97322-421-0 06 1 0507- ● ● ●
2 05.803 WHEEL; DISC
(BQU),(9HY) SPARE 16X5.5J OFFSET=116.5 BLACK 5-HOLE 		8-97213-255-1 01 1 0302-0302 ● ● ●
2 05.803 WHEEL; DISC
(BQU),(9HY) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 01 1 0303- ● ● ●
2 05.803 WHEEL; DISC
(BQU),(9HY) FRONT,REAR 16X5.5J OFFSET=116.5 BLACK 5-HOLE 		8-97213-255-1 06 1 0302-0302 ● ● ●
2 05.803 WHEEL; DISC
(BQU),(9HY) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 06 1 0303- ● ● ●
2 05.803 WHEEL; DISC
(BQV) SPARE 16X5.5J OFFSET=116.5 WHITE 5-HOLE 		8-97213-256-0 01 1 0302- ● ● ●
2 05.803 WHEEL; DISC
(BQV) FRONT,REAR 16X5.5J OFFSET=116.5 WHITE 5-HOLE 		8-97213-256-0 06 1 0302- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
