4-65F — REAR LEAF SPRING (#41356) — 35 parça

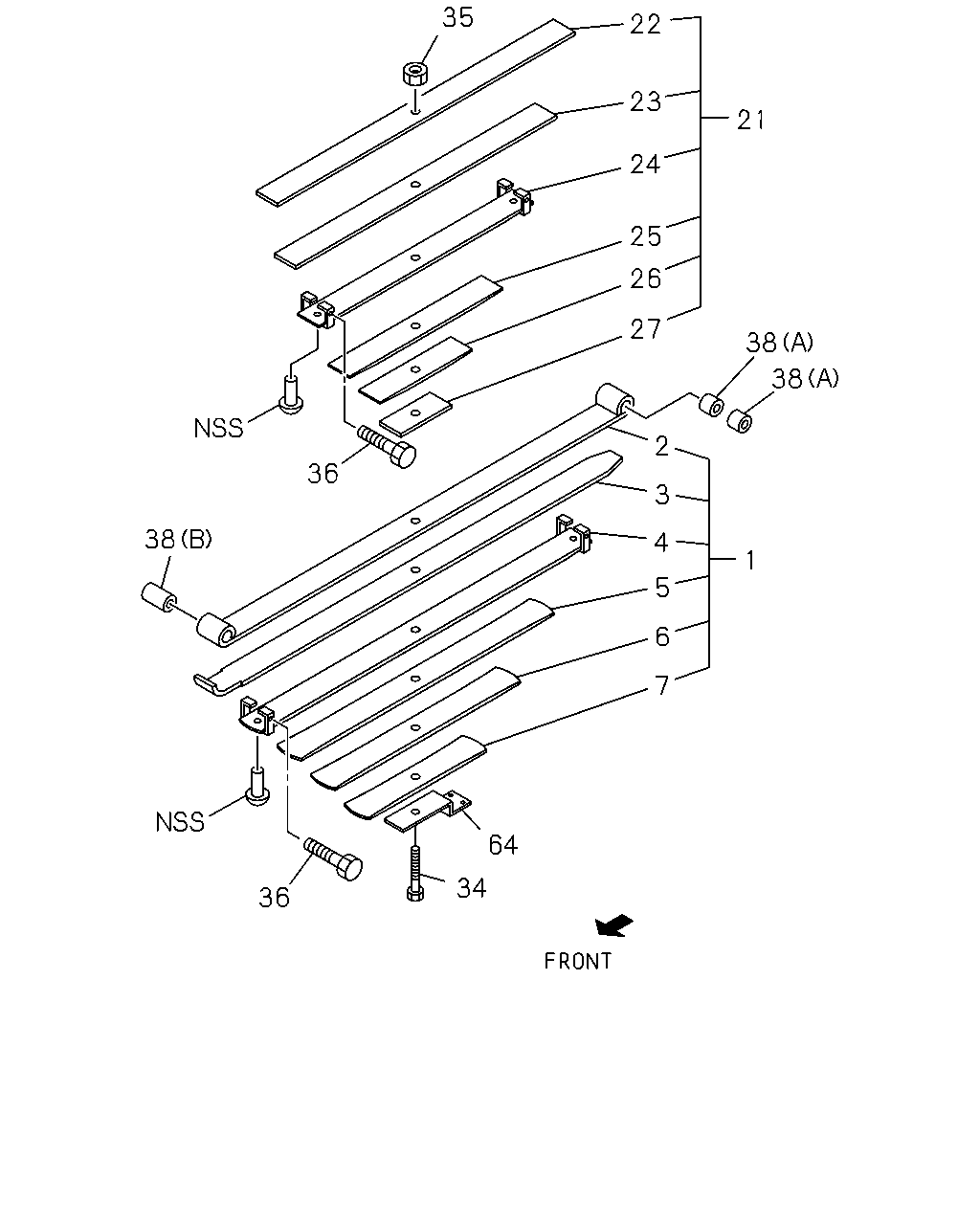

çizim 52793
35 22 23 21 24 25 26 27 38 38 2 36 3 38 4 1 5 6 7 64 34 36
BalonParca AdiParca NoAdetTipApplied Date
1 07.503 SPRING ASM; LEAF,RR MAIN
ASM PART: A = 8-97122-382-0, 97122382 		8-97135-077-0 01 1 -
1 07.503 SPRING ASM; LEAF,RR MAIN
ASM PART: B = 8-97225-581-0, 97225581 		8-97238-329-0 01 1 -
2 07.505 SPRING; LEAF,NO 1,RR MAIN
ASM PART: A = 8-97122-382-0, 97122382 		8-97130-493-0 01 1 -
2 07.505 SPRING; LEAF,NO 1,RR MAIN
ASM PART: B = 8-97225-581-0, 97225581 		8-97238-330-0 01 1 -
3 07.505 SPRING; LEAF,NO 2,RR MAIN
ASM PART: A = 8-97122-382-0, 97122382 		8-97130-494-0 01 1 -
3 07.505 SPRING; LEAF,NO 2,RR MAIN
ASM PART: B = 8-97225-581-0, 97225581 		8-97238-331-0 01 1 -
4 07.505 SPRING; LEAF,NO 3,RR MAIN
ASM PART: A = 8-97122-382-0, 97122382 		8-97130-495-0 01 1 -
4 07.505 SPRING; LEAF,NO 3,RR MAIN
ASM PART: B = 8-97225-581-0, 97225581 		8-97238-332-0 01 1 -
5 07.505 SPRING; LEAF,NO 4,RR MAIN
ASM PART: A = 8-97122-382-0, 97122382 		8-97130-496-0 01 1 -
5 07.505 SPRING; LEAF,NO 4,RR MAIN
ASM PART: B = 8-97225-581-0, 97225581 		8-97238-333-0 01 1 -
6 07.505 SPRING; LEAF,NO 5,RR MAIN
ASM PART: A = 8-97122-382-0, 97122382 		8-97130-497-0 01 1 -
6 07.505 SPRING; LEAF,NO 5,RR MAIN
ASM PART: B = 8-97225-581-0, 97225581 		8-97238-334-0 01 1 -
7 07.505 SPRING; LEAF,NO 6,RR MAIN
ASM PART: A = 8-97122-382-0, 97122382 		8-97130-498-0 01 1 -
7 07.505 SPRING; LEAF,NO 6,RR MAIN
ASM PART: B = 8-97225-581-0, 97225581 		8-97238-335-0 01 1 -
21 07.503 SPRING ASM; LEAF,RR SUB
ASM PART: A = 8-97122-382-0, 97122382 		8-97135-078-0 01 1 -
21 07.503 SPRING ASM; LEAF,RR SUB
ASM PART: B = 8-97225-581-0, 97225581 		8-97238-336-0 01 1 -
22 07.505 SPRING; LEAF,NO 1,RR SUB
ASM PART: A = 8-97122-382-0, 97122382 		8-97130-499-0 01 1 -
22 07.505 SPRING; LEAF,NO 1,RR SUB
ASM PART: B = 8-97225-581-0, 97225581 		8-97238-337-0 01 1 -
23 07.505 SPRING; LEAF,NO 2,RR SUB
ASM PART: A = 8-97122-382-0, 97122382 		8-97130-500-0 01 1 -
23 07.505 SPRING; LEAF,NO 2,RR SUB
ASM PART: B = 8-97225-581-0, 97225581 		8-97238-338-0 01 1 -
24 07.505 SPRING; LEAF,NO 3,RR SUB
ASM PART: A = 8-97122-382-0, 97122382 		8-97130-501-0 01 1 -
24 07.505 SPRING; LEAF,NO 3,RR SUB
ASM PART: B = 8-97225-581-0, 97225581 		8-97238-339-0 01 1 -
25 07.505 SPRING; LEAF,NO 4,RR SUB
ASM PART: A = 8-97122-382-0, 97122382 		8-97130-502-0 01 1 -
25 07.505 SPRING; LEAF,NO 4,RR SUB
ASM PART: B = 8-97225-581-0, 97225581 		8-97238-340-0 01 1 -
26 07.505 SPRING; LEAF,NO 5,RR SUB
ASM PART: A = 8-97122-382-0, 97122382 		8-97130-503-0 01 1 -
26 07.505 SPRING; LEAF,NO 5,RR SUB
ASM PART: B = 8-97225-581-0, 97225581 		8-97238-341-0 01 1 -
27 07.505 SPRING; LEAF,NO 6,RR SUB
ASM PART: A = 8-97122-382-0, 97122382 		8-97130-504-0 01 1 -
27 07.505 SPRING; LEAF,NO 6,RR SUB
ASM PART: B = 8-97225-581-0, 97225581 		8-97238-342-0 01 1 -
34 07.506 BOLT; CENTER,LEAF SPR,RR MAIN
L=150 ASM PART: A = 8-97122-382-0, 97122382 		8-94165-316-0 01 1 -
34 07.506 BOLT; CENTER,LEAF SPR,RR MAIN
L=155 ASM PART: B = 8-97225-581-0, 97225581 		8-94165-317-0 01 1 -
35 07.506 NUT; CENTER BOLT,LEAF SPR,RR
04.634, M12 ASM PART: A = 8-97122-382-0, 97122382, B = 8-97225-581-0, 97225581 		9-99110-512-0 01 1 -
36 07.506 BOLT; CLIP,LEAF SPR,RR
M8X90.5 ASM PART: A = 8-97122-382-0, 97122382, B = 8-97225-581-0, 97225581 		8-94407-133-0 03 1 -
38 07.505 BUSHING; LEAF SPR,RR
07.524, (A) ASM PART: A = 8-97122-382-0, 97122382, B = 8-97225-581-0, 97225581 		8-94118-588-1 02 1 -
38 07.505 BUSHING; LEAF SPR,RR
(B), OD=42 L=81 ASM PART: A = 8-97122-382-0, 97122382, B = 8-97225-581-0, 97225581 		8-97074-826-0 01 1 -
64 07.513 SUPPORT; RR SPR
ASM PART: B = 8-97225-581-0, 97225581 		8-97225-579-1 01 1 -
