◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50949 - NPR/NQR(EUROPE)-LHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-65A - REAR LEAF SPRING ▶
4-65A — REAR LEAF SPRING (#41351) — 13 parça

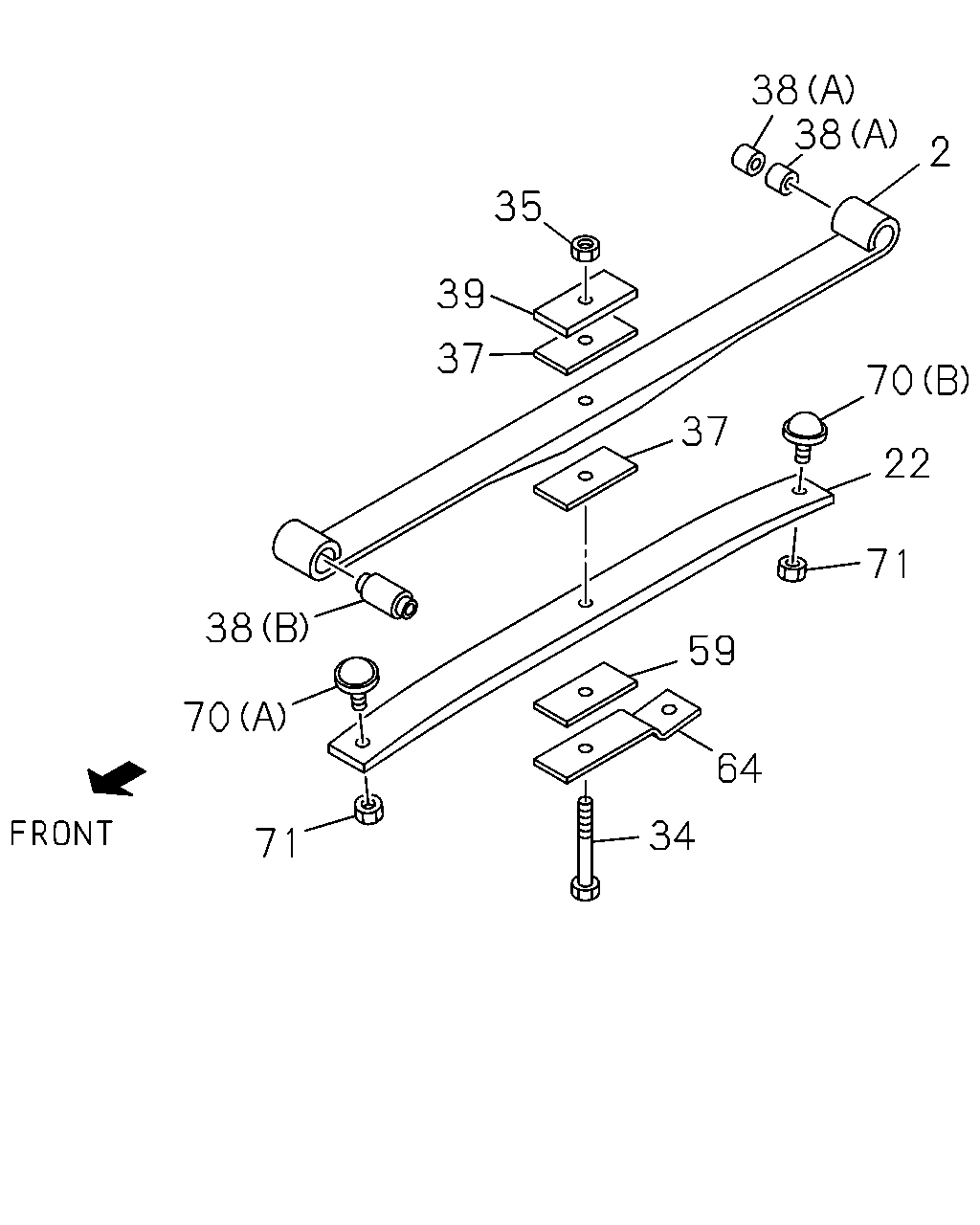

çizim 52045
38 38 2 35 39 37 70 37 22 71 38 59 70 64 34 71
BalonParca AdiParca NoAdetTipApplied Date
2 07.505 SPRING; LEAF,NO 1,RR MAIN
ASM PART: A = 8-97353-118-0, 97353118 		8-97353-816-0 01 1 -
22 07.505 SPRING; LEAF,NO 1,RR SUB
ASM PART: A = 8-97353-118-0, 97353118 		8-97353-817-0 01 1 -
34 07.506 BOLT; CENTER,LEAF SPR,RR MAIN
L=85 ASM PART: A = 8-97353-118-0, 97353118 		8-94165-303-0 01 1 -
35 07.506 NUT; CENTER BOLT,LEAF SPR,RR
04.634, M12 ASM PART: A = 8-97353-118-0, 97353118 		9-99110-512-0 01 1 -
37 07.518 SPACER; CENTER,LEAF SPR,RR
T=1 ASM PART: A = 8-97353-118-0, 97353118 		8-94448-734-0 02 1 -
38 07.505 BUSHING; LEAF SPR,RR
07.524, (A) ASM PART: A = 8-97353-118-0, 97353118 		8-94118-588-1 02 1 -
38 07.505 BUSHING; LEAF SPR,RR
(B), OD=42 L=81 ASM PART: A = 8-97353-118-0, 97353118 		8-97074-826-0 01 1 -
39 07.518 SEAT; LEAF SPR,RR MAIN
T=12 ASM PART: A = 8-97353-118-0, 97353118 		8-94169-454-0 01 1 -
59 07.513 SEAT; RR SPRING,SUB
T=8 ASM PART: A = 8-97353-118-0, 97353118 		8-97353-806-0 01 1 -
64 07.513 SUPPORT; RR SPR
ASM PART: A = 8-97353-118-0, 97353118 		8-94342-863-0 01 1 -
70 07.505 RUBBER; LEAF SPR,RR
(A) ASM PART: A = 8-97353-118-0, 97353118 		8-97233-106-0 01 1 -
70 07.505 RUBBER; LEAF SPR,RR
(B) ASM PART: A = 8-97353-118-0, 97353118 		8-97233-107-0 01 1 -
71 07.505 NUT; RUBBER,RR LEAF SPR
07.506, M10 ASM PART: A = 8-97353-118-0, 97353118 		9-09110-010-0 02 1 -
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
