◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50949 - NPR/NQR(EUROPE)-LHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-55B - FRONT LEAF SPRING ▶
4-55B — FRONT LEAF SPRING (#41348) — 23 parça

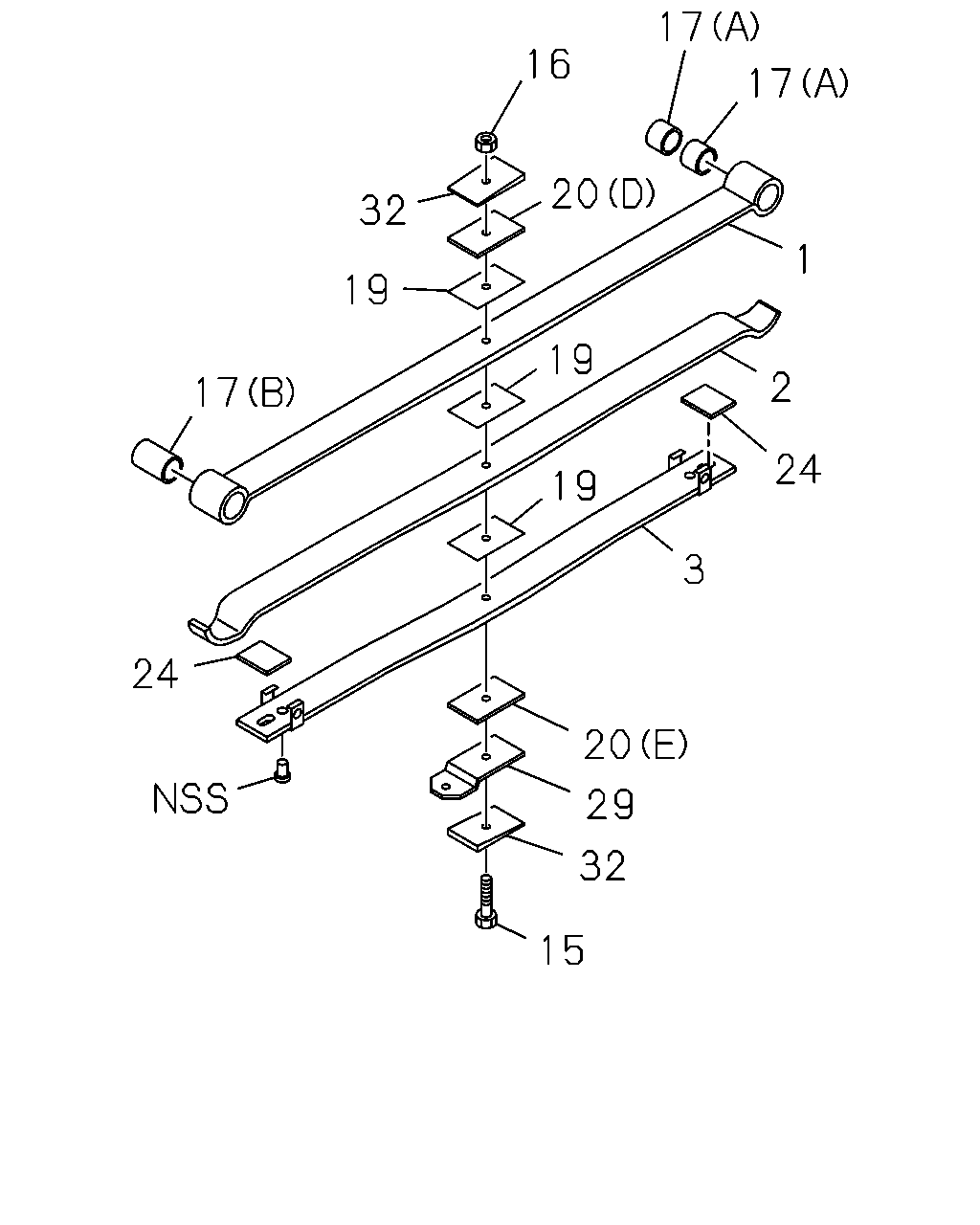

çizim 55065
17 16 17 20 32 1 19 19 2 17 24 19 3 24 20 29 32 15
BalonParca AdiParca NoAdetTipApplied Date
1 07.415 SPRING; LEAF,NO 1,FRT
ASM PART: A = 8-97134-405-2, 97134405 		8-97135-345-0 01 1 -
1 07.415 SPRING; LEAF,NO 1,FRT
ASM PART: B = 8-97134-406-2, 97134406 		8-97135-348-0 01 1 -
1 07.415 SPRING; LEAF,NO 1,FRT
ASM PART: C = 8-97184-266-0, 97184266 		8-97218-163-0 01 1 -
1 07.415 SPRING; LEAF,NO 1,FRT
ASM PART: D = 8-97184-267-0, 97184267 		8-97218-166-0 01 1 -
2 07.415 SPRING; LEAF,NO 2,FRT
ASM PART: A = 8-97134-405-2, 97134405 		8-97135-346-0 01 1 -
2 07.415 SPRING; LEAF,NO 2,FRT
ASM PART: B = 8-97134-406-2, 97134406 		8-97135-349-0 01 1 -
2 07.415 SPRING; LEAF,NO 2,FRT
ASM PART: C = 8-97184-266-0, 97184266 		8-97218-164-0 01 1 -
2 07.415 SPRING; LEAF,NO 2,FRT
ASM PART: D = 8-97184-267-0, 97184267 		8-97218-167-0 01 1 -
3 07.415 SPRING; LEAF,NO 3,FRT
ASM PART: A = 8-97134-405-2, 97134405 		8-97135-347-0 01 1 -
3 07.415 SPRING; LEAF,NO 3,FRT
ASM PART: B = 8-97134-406-2, 97134406 		8-97135-350-0 01 1 -
3 07.415 SPRING; LEAF,NO 3,FRT
ASM PART: C = 8-97184-266-0, 97184266 		8-97218-165-0 01 1 -
3 07.415 SPRING; LEAF,NO 3,FRT
ASM PART: D = 8-97184-267-0, 97184267 		8-97218-168-0 01 1 -
15 07.428 BOLT; CENTER,LEAF SPR,FRT
L=90 ASM PART: C = 8-97184-266-0, 97184266, D = 8-97184-267-0, 97184267 		8-94165-284-0 01 1 -
15 07.428 BOLT; CENTER,LEAF SPR,FRT
L=95 ASM PART: A = 8-97134-405-2, 97134405, B = 8-97134-406-2, 97134406 		8-97108-550-0 01 1 -
16 07.506 NUT; CENTER BOLT,LEAF SPR,FRT
M10 ASM PART: A = 8-97134-405-2, 97134405, B = 8-97134-406-2, 97134406, C = 8-97184-266-0, 97184266, D = 8-97184-267-0, 97184267 		1-09400-055-0 01 1 -
17 07.413 BUSHING; LEAF SPR,FRT
07.524, (A) ASM PART: A = 8-97134-405-2, 97134405, B = 8-97134-406-2, 97134406, C = 8-97184-266-0, 97184266, D = 8-97184-267-0, 97184267 		8-94118-588-1 02 1 -
17 07.413 BUSHING; LEAF SPR,FRT
07.105, (B) ASM PART: A = 8-97134-405-2, 97134405, B = 8-97134-406-2, 97134406, C = 8-97184-266-0, 97184266, D = 8-97184-267-0, 97184267 		8-94130-354-0 01 1 -
19 07.425 SPACER; LEAF SPRING,FRT
T=1 ASM PART: A = 8-97134-405-2, 97134405, B = 8-97134-406-2, 97134406, C = 8-97184-266-0, 97184266, D = 8-97184-267-0, 97184267 		8-97084-845-0 03 1 -
20 07.425 SEAT; LEAF SPR,FRT
(D), T=6 ASM PART: A = 8-97134-405-2, 97134405, B = 8-97134-406-2, 97134406, C = 8-97184-266-0, 97184266, D = 8-97184-267-0, 97184267 		8-97353-792-0 01 1 -
20 07.425 SEAT; LEAF SPR,FRT
(E), T=8 ASM PART: A = 8-97134-405-2, 97134405, B = 8-97134-406-2, 97134406, C = 8-97184-266-0, 97184266, D = 8-97184-267-0, 97184267 		8-97353-793-0 01 1 -
24 07.436 LINER; LEAF SPR,FWD FRT
ASM PART: A = 8-97134-405-2, 97134405, B = 8-97134-406-2, 97134406, C = 8-97184-266-0, 97184266, D = 8-97184-267-0, 97184267 		8-97084-848-0 02 1 -
29 07.425 SUPPORTER; LEAF SPR,FRT
ASM PART: A = 8-97134-405-2, 97134405, B = 8-97134-406-2, 97134406, C = 8-97184-266-0, 97184266, D = 8-97184-267-0, 97184267 		8-97141-927-0 01 1 -
32 07.425 PLATE; CASTER
ASM PART: A = 8-97134-405-2, 97134405, B = 8-97134-406-2, 97134406, C = 8-97184-266-0, 97184266, D = 8-97184-267-0, 97184267 		8-97164-386-2 02 1 -
