◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50949 - NPR/NQR(EUROPE)-LHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-55A - FRONT LEAF SPRING ▶
4-55A — FRONT LEAF SPRING (#41347) — 35 parça

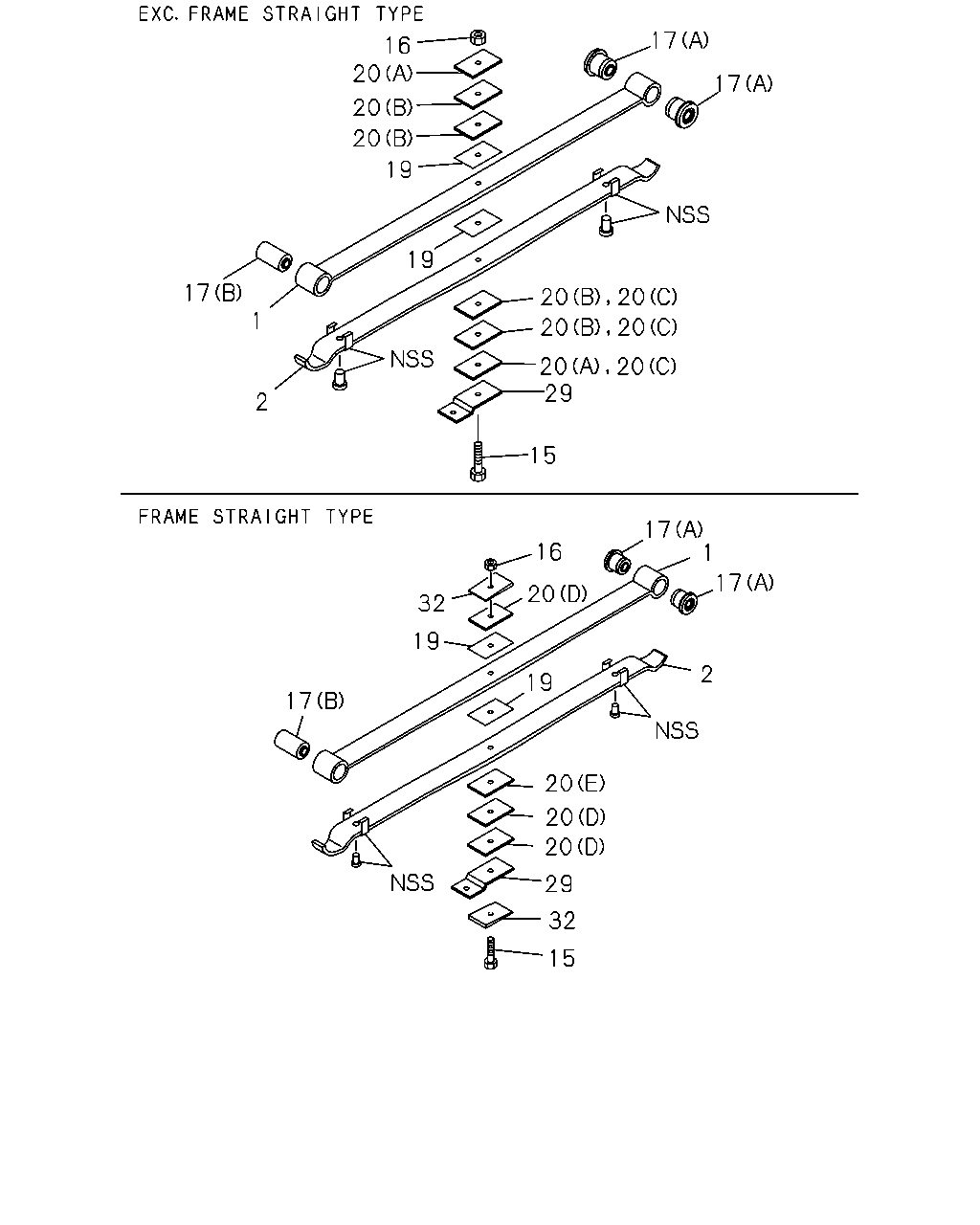

çizim 13565
17 16 20 17 20 20 19 19 17 1 20 29 20 2 15 17 1 16 17 20 32 19 2 19 17 20 20 20 29 32 15 20 20 20 20
BalonParca AdiParca NoAdetTipApplied Date
1 07.415 SPRING; LEAF,NO 1,FRT
ASM PART: A = 8-97324-637-0, 97324637, I = 8-98043-014-0, 98043014 		8-97330-043-0 01 1 -
1 07.415 SPRING; LEAF,NO 1,FRT
ASM PART: B = 8-97324-638-0, 97324638, J = 8-98043-018-0, 98043018 		8-97330-045-0 01 1 -
1 07.415 SPRING; LEAF,NO 1,FRT
ASM PART: E = 8-97353-114-0, 97353114, G = 8-98043-012-0, 98043012 		8-97353-812-0 01 1 -
1 07.415 SPRING; LEAF,NO 1,FRT
ASM PART: F = 8-97353-115-0, 97353115, H = 8-98043-013-0, 98043013 		8-97353-814-0 01 1 -
1 07.415 SPRING; LEAF,NO 1,FRT
ASM PART: C = 8-97333-819-0, 97333819 		8-97373-688-0 01 1 -
1 07.415 SPRING; LEAF,NO 1,FRT
ASM PART: D = 8-97333-820-0, 97333820 		8-97373-690-0 01 1 -
2 07.415 SPRING; LEAF,NO 2,FRT
ASM PART: A = 8-97324-637-0, 97324637, I = 8-98043-014-0, 98043014 		8-97330-044-0 01 1 -
2 07.415 SPRING; LEAF,NO 2,FRT
ASM PART: B = 8-97324-638-0, 97324638, J = 8-98043-018-0, 98043018 		8-97330-046-0 01 1 -
2 07.415 SPRING; LEAF,NO 2,FRT
ASM PART: E = 8-97353-114-0, 97353114, G = 8-98043-012-0, 98043012 		8-97353-813-0 01 1 -
2 07.415 SPRING; LEAF,NO 2,FRT
ASM PART: F = 8-97353-115-0, 97353115, H = 8-98043-013-0, 98043013 		8-97353-815-0 01 1 -
2 07.415 SPRING; LEAF,NO 2,FRT
ASM PART: C = 8-97333-819-0, 97333819 		8-97373-689-0 01 1 -
2 07.415 SPRING; LEAF,NO 2,FRT
ASM PART: D = 8-97333-820-0, 97333820 		8-97373-691-0 01 1 -
15 07.428 BOLT; CENTER,LEAF SPR,FRT
L=90 ASM PART: C = 8-97333-819-0, 97333819, D = 8-97333-820-0, 97333820 		8-94165-284-0 01 1 -
15 07.428 BOLT; CENTER,LEAF SPR,FRT
L=75 ASM PART: A = 8-97324-637-0, 97324637, B = 8-97324-638-0, 97324638, E = 8-97353-114-0, 97353114, F = 8-97353-115-0, 97353115 		8-94476-373-0 01 1 -
15 07.428 BOLT; CENTER,LEAF SPR,FRT
ASM PART: G = 8-98043-012-0, 98043012, H = 8-98043-013-0, 98043013, I = 8-98043-014-0, 98043014, J = 8-98043-018-0, 98043018 		8-98045-600-0 01 1 -
16 07.506 NUT; CENTER BOLT,LEAF SPR,FRT
M10 ASM PART: A = 8-97324-637-0, 97324637, B = 8-97324-638-0, 97324638, C = 8-97333-819-0, 97333819, D = 8-97333-820-0, 97333820, E = 8-97353-114-0, 97353114, F = 8-97353-115-0, 97353115, G = 8-98043-012-0, 98043012, H = 8-98043-013-0, 98043013, I = 8-98043-014-0, 98043014, J = 8-98043-018-0, 98043018 		1-09400-055-0 01 1 -
17 07.413 BUSHING; LEAF SPR,FRT
07.524, (A) ASM PART: G = 8-98043-012-0, 98043012 		8-94118-588-1 01 1 -
17 07.413 BUSHING; LEAF SPR,FRT
07.524, (A) ASM PART: A = 8-97324-637-0, 97324637, B = 8-97324-638-0, 97324638, C = 8-97333-819-0, 97333819, D = 8-97333-820-0, 97333820, E = 8-97353-114-0, 97353114, F = 8-97353-115-0, 97353115, H = 8-98043-013-0, 98043013, I = 8-98043-014-0, 98043014, J = 8-98043-018-0, 98043018 		8-94118-588-1 02 1 -
17 07.413 BUSHING; LEAF SPR,FRT
07.105, (B) ASM PART: C = 8-97333-819-0, 97333819, D = 8-97333-820-0, 97333820 		8-94130-354-0 01 1 -
17 07.413 BUSHING; LEAF SPR,FRT
(B), OD=42 L=81 ASM PART: A = 8-97324-637-0, 97324637, B = 8-97324-638-0, 97324638, E = 8-97353-114-0, 97353114, F = 8-97353-115-0, 97353115, G = 8-98043-012-0, 98043012, H = 8-98043-013-0, 98043013, I = 8-98043-014-0, 98043014, J = 8-98043-018-0, 98043018 		8-97081-586-0 01 1 -
19 07.425 SPACER; LEAF SPRING,FRT
T=1 ASM PART: A = 8-97324-637-0, 97324637, B = 8-97324-638-0, 97324638, C = 8-97333-819-0, 97333819, D = 8-97333-820-0, 97333820, E = 8-97353-114-0, 97353114, F = 8-97353-115-0, 97353115, G = 8-98043-012-0, 98043012, H = 8-98043-013-0, 98043013, I = 8-98043-014-0, 98043014, J = 8-98043-018-0, 98043018 		8-97084-845-0 02 1 -
20 07.425 SEAT; LEAF SPR,FRT
(A), T=6 ASM PART: A = 8-97324-637-0, 97324637, B = 8-97324-638-0, 97324638, E = 8-97353-114-0, 97353114, F = 8-97353-115-0, 97353115 		8-94409-663-1 02 1 -
20 07.425 SEAT; LEAF SPR,FRT
(B), T=8 ASM PART: E = 8-97353-114-0, 97353114, F = 8-97353-115-0, 97353115, G = 8-98043-012-0, 98043012 		8-97084-891-0 02 1 -
20 07.425 SEAT; LEAF SPR,FRT
(B), T=8 ASM PART: I = 8-98043-014-0, 98043014, J = 8-98043-018-0, 98043018 		8-97084-891-0 04 1 -
20 07.425 SEAT; LEAF SPR,FRT
(B), T=8 ASM PART: H = 8-98043-013-0, 98043013 		8-97084-891-0 01 1 -
20 07.425 SEAT; LEAF SPR,FRT
(C), T=9 ASM PART: G = 8-98043-012-0, 98043012, H = 8-98043-013-0, 98043013 		8-97327-659-0 03 1 -
20 07.425 SEAT; LEAF SPR,FRT
(C), T=9 ASM PART: A = 8-97324-637-0, 97324637 		8-97327-659-0 01 1 -
20 07.425 SEAT; LEAF SPR,FRT
(C), T=9 ASM PART: B = 8-97324-638-0, 97324638 		8-97329-863-0 01 1 -
20 07.425 SEAT; LEAF SPR,FRT
(D), T=6 ASM PART: C = 8-97333-819-0, 97333819, D = 8-97333-820-0, 97333820 		8-97353-792-0 03 1 -
20 07.425 SEAT; LEAF SPR,FRT
(E), T=8 ASM PART: C = 8-97333-819-0, 97333819, D = 8-97333-820-0, 97333820 		8-97353-793-0 01 1 -
20 07.425 SEAT; LEAF SPR,FRT
(A), T=6 ASM PART: G = 8-98043-012-0, 98043012, H = 8-98043-013-0, 98043013 		8-98030-726-0 01 1 -
20 07.425 SEAT; LEAF SPR,FRT
(A), T=6 ASM PART: I = 8-98043-014-0, 98043014, J = 8-98043-018-0, 98043018 		8-98030-726-0 02 1 -
29 07.425 SUPPORTER; LEAF SPR,FRT
ASM PART: A = 8-97324-637-0, 97324637, B = 8-97324-638-0, 97324638, E = 8-97353-114-0, 97353114, F = 8-97353-115-0, 97353115, G = 8-98043-012-0, 98043012, H = 8-98043-013-0, 98043013, I = 8-98043-014-0, 98043014, J = 8-98043-018-0, 98043018 		8-94342-292-1 01 1 -
29 07.425 SUPPORTER; LEAF SPR,FRT
ASM PART: C = 8-97333-819-0, 97333819, D = 8-97333-820-0, 97333820 		8-97141-927-0 01 1 -
32 07.425 PLATE; CASTER
ASM PART: C = 8-97333-819-0, 97333819, D = 8-97333-820-0, 97333820 		8-97164-386-2 02 1 -
