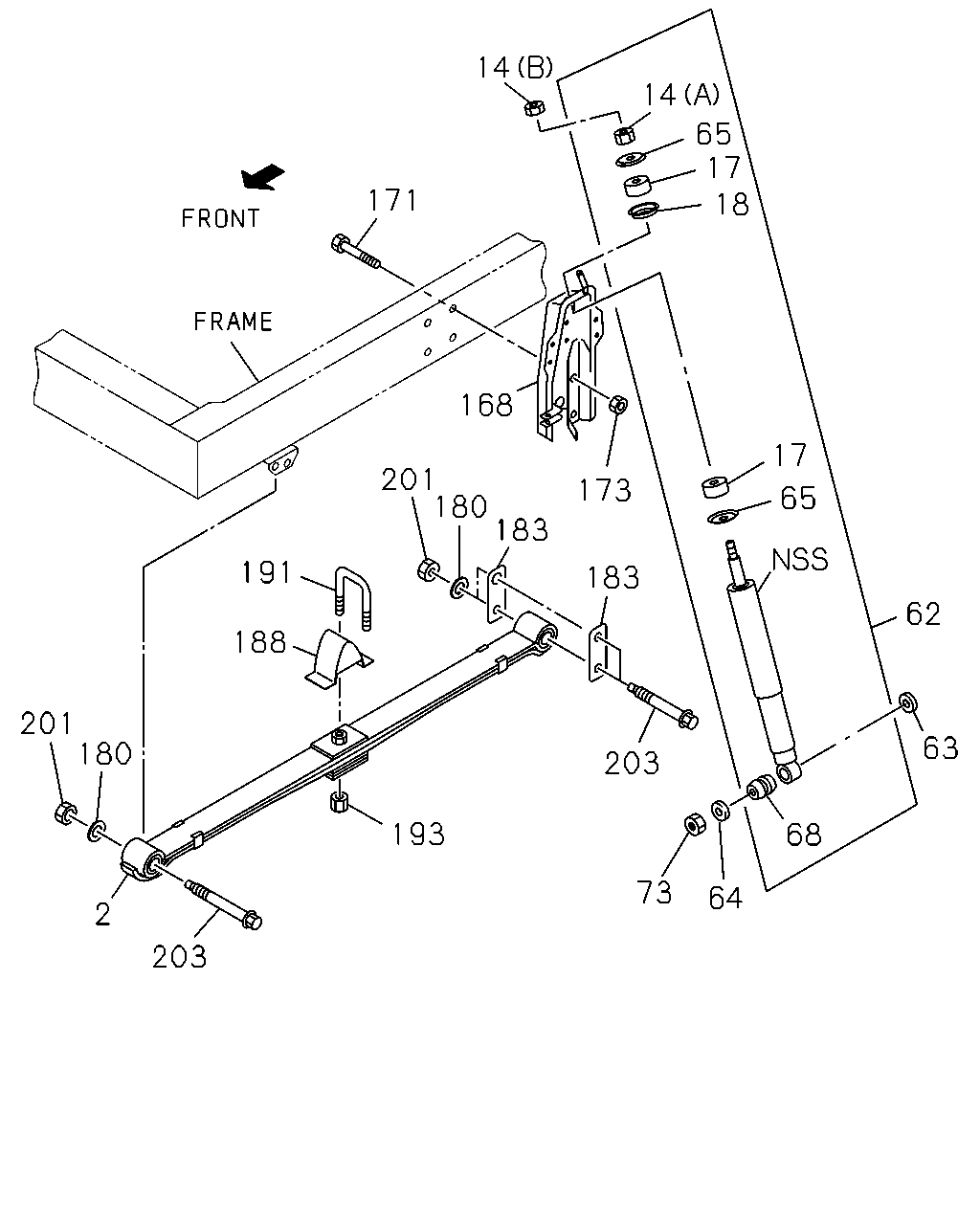

2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
G.V.W. 6.0-6.5TON(RPV)
FRAME STRAIGHT TYPE<7KJ>
3-LEAF
|
8-97184-267-0 |
01 |
1 |
0302-0506 |
● |
● |
● |
● |
|
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
G.V.W. 6.0-6.5TON(RPV)
FRAME STRAIGHT TYPE<7KJ>
2-LEAF
|
8-97333-820-0 |
01 |
1 |
0507-0606 |
|
● |
|
● |
|
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
G.V.W. 6.0-6.5TON(RPV)
2-LEAF
|
8-97333-820-0 |
01 |
1 |
0507-0606 |
|
|
● |
|
|
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
G.V.W. 6.0-6.5TON(RPV)
FRAME STRAIGHT TYPE<7KJ>
3-LEAF
|
8-97184-266-0 |
01 |
1 |
0302-0506 |
● |
● |
● |
● |
|
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
G.V.W. 6.0-6.5TON(RPV)
FRAME STRAIGHT TYPE<7KJ>
2-LEAF
|
8-97333-819-0 |
01 |
1 |
0507-0606 |
|
● |
|
● |
|
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
G.V.W. 6.0-6.5TON(RPV)
2-LEAF
|
8-97333-819-0 |
01 |
1 |
0507-0606 |
|
|
● |
|
|
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
G.V.W. 3.5-4.0TON(RPQ)
EXC. FRAME STRAIGHT TYPE<7KJ>
2-LEAF
|
8-97353-115-0 |
01 |
1 |
0302-0506 |
● |
● |
|
● |
|
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
|
8-97353-115-0 |
01 |
1 |
0507-0606 |
● |
|
|
|
|
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
G.V.W. 3.5-4.0TON(RPQ)
EXC. FRAME STRAIGHT TYPE<7KJ>
2-LEAF
|
8-97353-115-0 |
01 |
1 |
0507-0606 |
|
● |
|
● |
|
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
|
8-98043-013-0 |
01 |
1 |
0607- |
● |
|
|
|
|
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
G.V.W. 3.5-4.0TON(RPQ)
EXC. FRAME STRAIGHT TYPE<7KJ>
2-LEAF
|
8-98043-013-0 |
01 |
1 |
0607- |
|
● |
|
|
|
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
G.V.W. 3.5-4.0TON(RPQ)
2-LEAF
|
8-98043-013-0 |
01 |
1 |
0607- |
|
|
|
● |
|
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
G.V.W. 3.5-4.0TON(RPQ)
EXC. FRAME STRAIGHT TYPE<7KJ>
2-LEAF
|
8-97353-114-0 |
01 |
1 |
0302-0506 |
● |
● |
|
● |
|
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
|
8-97353-114-0 |
01 |
1 |
0507-0606 |
● |
|
|
|
|
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
G.V.W. 3.5-4.0TON(RPQ)
EXC. FRAME STRAIGHT TYPE<7KJ>
2-LEAF
|
8-97353-114-0 |
01 |
1 |
0507-0606 |
|
● |
|
● |
|
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
|
8-98043-012-0 |
01 |
1 |
0607- |
● |
|
|
|
|
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
G.V.W. 3.5-4.0TON(RPQ)
EXC. FRAME STRAIGHT TYPE<7KJ>
2-LEAF
|
8-98043-012-0 |
01 |
1 |
0607- |
|
● |
|
|
|
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
G.V.W. 3.5-4.0TON(RPQ)
2-LEAF
|
8-98043-012-0 |
01 |
1 |
0607- |
|
|
|
● |
|
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
G.V.W. 5.0-5.5TON(RPT),G.V.W.
6.0-6.5TON(RPV)
EXC. FRAME STRAIGHT TYPE<7KJ>
2-LEAF
|
8-97324-638-0 |
01 |
1 |
0302-0506 |
● |
● |
|
● |
|
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
G.V.W. 5.0-5.5TON(RPT),G.V.W.
6.0-6.5TON(RPV)
EXC. FRAME STRAIGHT TYPE<7KJ>
2-LEAF
|
8-97324-638-0 |
01 |
1 |
0507-0606 |
|
● |
|
|
|
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
G.V.W. 6.0-6.5TON(RPV)
EXC. FRAME STRAIGHT TYPE<7KJ>
2-LEAF
|
8-97324-638-0 |
01 |
1 |
0507-0606 |
|
|
|
● |
|
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
G.V.W. 5.0-5.5TON(RPT),G.V.W.
6.0-6.5TON(RPV)
EXC. FRAME STRAIGHT TYPE<7KJ>
2-LEAF
|
8-98043-018-0 |
01 |
1 |
0607- |
|
● |
|
|
|
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
G.V.W. 6.0-6.5TON(RPV)
EXC. FRAME STRAIGHT TYPE<7KJ>
2-LEAF
|
8-98043-018-0 |
01 |
1 |
0607- |
|
|
● |
|
|
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
G.V.W. 6.0-6.5TON(RPV)
2-LEAF
|
8-98043-018-0 |
01 |
1 |
0607- |
|
|
|
● |
|
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
G.V.W. 5.0-5.5TON(RPT),G.V.W.
6.0-6.5TON(RPV)
EXC. FRAME STRAIGHT TYPE<7KJ>
2-LEAF
|
8-97324-637-0 |
01 |
1 |
0302-0506 |
● |
● |
|
● |
|
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
G.V.W. 5.0-5.5TON(RPT),G.V.W.
6.0-6.5TON(RPV)
EXC. FRAME STRAIGHT TYPE<7KJ>
2-LEAF
|
8-97324-637-0 |
01 |
1 |
0507-0606 |
|
● |
|
|
|
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
G.V.W. 6.0-6.5TON(RPV)
EXC. FRAME STRAIGHT TYPE<7KJ>
2-LEAF
|
8-97324-637-0 |
01 |
1 |
0507-0606 |
|
|
|
● |
|
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
G.V.W. 5.0-5.5TON(RPT),G.V.W.
6.0-6.5TON(RPV)
EXC. FRAME STRAIGHT TYPE<7KJ>
2-LEAF
|
8-98043-014-0 |
01 |
1 |
0607- |
|
● |
|
|
|
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
G.V.W. 6.0-6.5TON(RPV)
EXC. FRAME STRAIGHT TYPE<7KJ>
2-LEAF
|
8-98043-014-0 |
01 |
1 |
0607- |
|
|
● |
|
|
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
G.V.W. 6.0-6.5TON(RPV)
2-LEAF
|
8-98043-014-0 |
01 |
1 |
0607- |
|
|
|
● |
|
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
G.V.W. 7.5-8.0TON(RPY)
FRAME STRAIGHT TYPE<7KJ>
3-LEAF
|
8-97134-406-2 |
01 |
1 |
0302-0506 |
|
● |
● |
|
● |
● |
● |
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
G.V.W. 7.5-8.0TON(RPY)
FRAME STRAIGHT TYPE<7KJ>
3-LEAF
|
8-97134-406-2 |
01 |
1 |
0507-0606 |
|
● |
|
|
|
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
G.V.W. 7.5-8.0TON(RPY)
3-LEAF
|
8-97134-406-2 |
01 |
1 |
0507-0606 |
|
|
● |
|
|
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
3-LEAF
|
8-97134-406-2 |
01 |
1 |
0507-0606 |
|
|
|
|
|
● |
● |
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
G.V.W. 7.5-8.0TON(RPY)
FRAME STRAIGHT TYPE<7KJ>
3-LEAF
|
8-97134-406-2 |
01 |
1 |
0607- |
|
● |
● |
|
|
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
3-LEAF
|
8-97134-406-2 |
01 |
1 |
0607- |
|
|
|
|
|
● |
● |
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
G.V.W. 7.5-8.0TON(RPY)
FRAME STRAIGHT TYPE<7KJ>
3-LEAF
|
8-97134-405-2 |
01 |
1 |
0302-0506 |
|
● |
● |
|
● |
● |
● |
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
G.V.W. 7.5-8.0TON(RPY)
FRAME STRAIGHT TYPE<7KJ>
3-LEAF
|
8-97134-405-2 |
01 |
1 |
0507-0606 |
|
● |
|
|
|
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
G.V.W. 7.5-8.0TON(RPY)
3-LEAF
|
8-97134-405-2 |
01 |
1 |
0507-0606 |
|
|
● |
|
|
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
3-LEAF
|
8-97134-405-2 |
01 |
1 |
0507-0606 |
|
|
|
|
|
● |
● |
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
G.V.W. 7.5-8.0TON(RPY)
FRAME STRAIGHT TYPE<7KJ>
3-LEAF
|
8-97134-405-2 |
01 |
1 |
0607- |
|
● |
● |
|
|
|
|
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
3-LEAF
|
8-97134-405-2 |
01 |
1 |
0607- |
|
|
|
|
|
● |
● |
| |
14 |
07.389 NUT; S/ABS,UPR
(A)
M10 T=8
|
9-09640-020-0 |
02 |
1 |
0302-0506 |
● |
● |
● |
● |
● |
● |
● |
| |
14 |
07.389 NUT; S/ABS,UPR
(A)
M10 T=8
|
9-09640-020-0 |
02 |
1 |
0507- |
● |
● |
● |
● |
|
● |
● |
| |
14 |
07.389 NUT; S/ABS,UPR
(B)
M10 T=6
|
9-09640-021-0 |
02 |
1 |
0302-0306 |
● |
● |
● |
● |
● |
● |
● |
| |
17 |
07.388 BUSHING; RUBBER,S/ABS
TOKICO
|
9-51631-603-0 |
04 |
1 |
0302-0506 |
● |
● |
● |
● |
● |
● |
● |
| |
17 |
07.388 BUSHING; RUBBER,S/ABS
TOKICO
|
9-51631-603-0 |
04 |
1 |
0507- |
● |
● |
● |
● |
|
● |
● |
| |
18 |
07.347 WASHER; CENTERING,S/ABS
TOKICO
|
8-94412-791-0 |
02 |
1 |
0302-0506 |
● |
● |
● |
● |
● |
● |
● |
| |
18 |
07.347 WASHER; CENTERING,S/ABS
TOKICO
|
8-94412-791-0 |
02 |
1 |
0507- |
● |
● |
● |
● |
|
● |
● |
| |
62 |
07.345 ABSORBER ASM; SHOCK,FRT
4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-97253-618-0 |
02 |
1 |
0302-0506 |
● |
● |
|
● |
|
|
|
| |
62 |
07.345 ABSORBER ASM; SHOCK,FRT
|
8-97253-618-0 |
02 |
1 |
0302-0506 |
|
|
● |
|
● |
● |
● |
| |
62 |
07.345 ABSORBER ASM; SHOCK,FRT
4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-97253-618-0 |
02 |
1 |
0507- |
● |
● |
|
● |
|
|
|
| |
62 |
07.345 ABSORBER ASM; SHOCK,FRT
|
8-97253-618-0 |
02 |
1 |
0507- |
|
|
● |
|
|
● |
● |
| |
62 |
07.345 ABSORBER ASM; SHOCK,FRT
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-97253-617-0 |
02 |
1 |
0302- |
● |
● |
|
● |
|
|
|
| |
63 |
07.347 WASHER; PL,S/ABS,LWR
08.929
ID=21 OD=40
|
9-09164-620-0 |
02 |
1 |
0302-0506 |
● |
● |
● |
● |
● |
● |
● |
| |
63 |
07.347 WASHER; PL,S/ABS,LWR
08.929
ID=21 OD=40
|
9-09164-620-0 |
02 |
1 |
0507-0605 |
● |
● |
● |
● |
|
● |
● |
| |
63 |
07.347 WASHER; PL,S/ABS,LWR
ID=21 OD=40
|
0-91614-620-0 |
02 |
1 |
0606- |
● |
● |
● |
● |
|
● |
● |
| |
64 |
07.347 WASHER; S/ABS,LWR
ID=15.0
|
9-51679-012-0 |
02 |
1 |
0302-0506 |
● |
● |
● |
● |
● |
● |
● |
| |
64 |
07.347 WASHER; S/ABS,LWR
ID=15.0
|
9-51679-012-0 |
02 |
1 |
0507-0611 |
● |
● |
● |
● |
|
● |
● |
| |
64 |
07.347 WASHER; S/ABS,LWR
ID=15
|
8-97360-056-0 |
02 |
1 |
0612- |
● |
● |
● |
● |
|
● |
● |
| |
65 |
07.347 WASHER; S/ABS
OD=40
|
9-51631-614-0 |
04 |
1 |
0302-0506 |
● |
● |
● |
● |
● |
● |
● |
| |
65 |
07.347 WASHER; S/ABS
OD=40
|
9-51631-614-0 |
04 |
1 |
0507- |
● |
● |
● |
● |
|
● |
● |
| |
68 |
07.388 BUSHING; S/ABS
TOKICO
|
8-94382-149-0 |
02 |
1 |
0302-0506 |
● |
● |
● |
● |
● |
● |
● |
| |
68 |
07.388 BUSHING; S/ABS
TOKICO
|
8-94382-149-0 |
02 |
1 |
0507- |
● |
● |
● |
● |
|
● |
● |
| |
73 |
07.347 NUT; BRKT,SHOCK
06.232
M14
|
9-99110-414-0 |
02 |
1 |
0302-0506 |
● |
● |
● |
● |
● |
● |
● |
| |
73 |
07.347 NUT; BRKT,SHOCK
06.232
M14
|
9-99110-414-0 |
02 |
1 |
0507-0512 |
● |
● |
● |
● |
|
● |
● |
| |
73 |
07.347 NUT; BRKT,SHOCK
07.833
M14
|
0-91110-514-0 |
02 |
1 |
0601- |
● |
● |
● |
● |
|
● |
● |
| |
168 |
07.380 BRACKET; S/ABS,FRT SUSP
FRAME STRAIGHT TYPE<7KJ>
EXC. DISC BRAKE FRT<J52>
|
8-97102-611-2 |
01 |
1 |
0607- |
|
● |
|
|
|
|
|
| |
168 |
07.380 BRACKET; S/ABS,FRT SUSP
FRAME STRAIGHT TYPE<7KJ>
EXC. DISC BRAKE FRT<J52>
|
8-97240-796-1 |
01 |
1 |
0607- |
|
● |
|
|
|
|
|
| |
168 |
07.380 BRACKET; S/ABS,FRT SUSP
FRAME STRAIGHT TYPE<7KJ>
|
8-97300-358-1 |
01 |
1 |
0302-0506 |
● |
● |
|
● |
|
|
|
| |
168 |
07.380 BRACKET; S/ABS,FRT SUSP
|
8-97300-358-1 |
01 |
1 |
0302-0506 |
|
|
● |
|
● |
● |
● |
| |
168 |
07.380 BRACKET; S/ABS,FRT SUSP
FRAME STRAIGHT TYPE<7KJ>
|
8-97365-362-0 |
01 |
1 |
0507-0606 |
|
● |
|
● |
|
|
|
| |
168 |
07.380 BRACKET; S/ABS,FRT SUSP
|
8-97365-362-0 |
01 |
1 |
0507-0606 |
|
|
● |
|
|
● |
● |
| |
168 |
07.380 BRACKET; S/ABS,FRT SUSP
DISC BRAKE FRT<J52>
FRAME STRAIGHT TYPE<7KJ>
|
8-97365-362-0 |
01 |
1 |
0607- |
|
● |
|
|
|
|
|
| |
168 |
07.380 BRACKET; S/ABS,FRT SUSP
FRAME STRAIGHT TYPE<7KJ>
|
8-97365-362-0 |
01 |
1 |
0607- |
|
|
● |
|
|
|
|
| |
168 |
07.380 BRACKET; S/ABS,FRT SUSP
|
8-97365-362-0 |
01 |
1 |
0607- |
|
|
|
|
|
● |
● |
| |
168 |
07.380 BRACKET; S/ABS,FRT SUSP
FRAME STRAIGHT TYPE<7KJ>
|
8-97300-359-1 |
01 |
1 |
0302-0506 |
● |
● |
|
● |
|
|
|
| |
168 |
07.380 BRACKET; S/ABS,FRT SUSP
|
8-97300-359-1 |
01 |
1 |
0302-0506 |
|
|
● |
|
● |
● |
● |
| |
168 |
07.380 BRACKET; S/ABS,FRT SUSP
FRAME STRAIGHT TYPE<7KJ>
|
8-97365-363-0 |
01 |
1 |
0507-0606 |
|
● |
|
● |
|
|
|
| |
168 |
07.380 BRACKET; S/ABS,FRT SUSP
|
8-97365-363-0 |
01 |
1 |
0507-0606 |
|
|
● |
|
|
● |
● |
| |
168 |
07.380 BRACKET; S/ABS,FRT SUSP
DISC BRAKE FRT<J52>
FRAME STRAIGHT TYPE<7KJ>
|
8-97365-363-0 |
01 |
1 |
0607- |
|
● |
|
|
|
|
|
| |
168 |
07.380 BRACKET; S/ABS,FRT SUSP
FRAME STRAIGHT TYPE<7KJ>
|
8-97365-363-0 |
01 |
1 |
0607- |
|
|
● |
|
|
|
|
| |
168 |
07.380 BRACKET; S/ABS,FRT SUSP
|
8-97365-363-0 |
01 |
1 |
0607- |
|
|
|
|
|
● |
● |
| |
168 |
07.380 BRACKET; S/ABS,FRT SUSP
EXC. FRAME STRAIGHT TYPE<7KJ>
|
8-97316-011-0 |
01 |
1 |
0302-0506 |
● |
● |
|
● |
|
|
|
| |
168 |
07.380 BRACKET; S/ABS,FRT SUSP
|
8-97376-930-0 |
01 |
1 |
0507-0606 |
● |
|
|
|
|
|
|
| |
168 |
07.380 BRACKET; S/ABS,FRT SUSP
EXC. FRAME STRAIGHT TYPE<7KJ>
|
8-97376-930-0 |
01 |
1 |
0507-0606 |
|
● |
|
● |
|
|
|
| |
168 |
07.380 BRACKET; S/ABS,FRT SUSP
|
8-97376-930-0 |
01 |
1 |
0607- |
● |
|
|
|
|
|
|
| |
168 |
07.380 BRACKET; S/ABS,FRT SUSP
DISC BRAKE FRT<J52>
EXC. FRAME STRAIGHT TYPE<7KJ>
|
8-97376-930-0 |
01 |
1 |
0607- |
|
● |
|
|
|
|
|
| |
168 |
07.380 BRACKET; S/ABS,FRT SUSP
EXC. FRAME STRAIGHT TYPE<7KJ>
|
8-97376-930-0 |
01 |
1 |
0607- |
|
|
● |
|
|
|
|
| |
168 |
07.380 BRACKET; S/ABS,FRT SUSP
DISC BRAKE FRT<J52>
|
8-97376-930-0 |
01 |
1 |
0607- |
|
|
|
● |
|
|
|
| |
168 |
07.380 BRACKET; S/ABS,FRT SUSP
EXC. FRAME STRAIGHT TYPE<7KJ>
|
8-97316-010-0 |
01 |
1 |
0302-0506 |
● |
● |
|
● |
|
|
|
| |
168 |
07.380 BRACKET; S/ABS,FRT SUSP
|
8-97376-929-0 |
01 |
1 |
0507-0606 |
● |
|
|
|
|
|
|
| |
168 |
07.380 BRACKET; S/ABS,FRT SUSP
EXC. FRAME STRAIGHT TYPE<7KJ>
|
8-97376-929-0 |
01 |
1 |
0507-0606 |
|
● |
|
● |
|
|
|
| |
168 |
07.380 BRACKET; S/ABS,FRT SUSP
|
8-97376-929-0 |
01 |
1 |
0607- |
● |
|
|
|
|
|
|
| |
168 |
07.380 BRACKET; S/ABS,FRT SUSP
DISC BRAKE FRT<J52>
EXC. FRAME STRAIGHT TYPE<7KJ>
|
8-97376-929-0 |
01 |
1 |
0607- |
|
● |
|
|
|
|
|
| |
168 |
07.380 BRACKET; S/ABS,FRT SUSP
EXC. FRAME STRAIGHT TYPE<7KJ>
|
8-97376-929-0 |
01 |
1 |
0607- |
|
|
● |
|
|
|
|
| |
168 |
07.380 BRACKET; S/ABS,FRT SUSP
DISC BRAKE FRT<J52>
|
8-97376-929-0 |
01 |
1 |
0607- |
|
|
|
● |
|
|
|
| |
168 |
07.380 BRACKET; S/ABS,FRT SUSP
EXC. DISC BRAKE FRT<J52>,FRAME
STRAIGHT TYPE<7KJ>
|
8-97316-009-0 |
01 |
1 |
0607- |
|
● |
|
|
|
|
|
| |
168 |
07.380 BRACKET; S/ABS,FRT SUSP
EXC. DISC BRAKE FRT<J52>
|
8-97316-009-0 |
01 |
1 |
0607- |
|
|
|
● |
|
|
|
| |
168 |
07.380 BRACKET; S/ABS,FRT SUSP
EXC. DISC BRAKE FRT<J52>,FRAME
STRAIGHT TYPE<7KJ>
|
8-97316-008-0 |
01 |
1 |
0607- |
|
● |
|
|
|
|
|
| |
168 |
07.380 BRACKET; S/ABS,FRT SUSP
EXC. DISC BRAKE FRT<J52>
|
8-97316-008-0 |
01 |
1 |
0607- |
|
|
|
● |
|
|
|
| |
171 |
07.395 BOLT; S/ABS BRKT
07.632
M12X35 FLANGE
|
0-28681-235-0 |
08 |
1 |
0302-0506 |
● |
● |
● |
● |
● |
● |
● |
| |
171 |
07.395 BOLT; S/ABS BRKT
07.632
M12X35 FLANGE
|
0-28681-235-0 |
08 |
1 |
0507-0512 |
● |
● |
● |
● |
|
● |
● |
| |
171 |
07.395 BOLT; S/ABS BRKT
09.003
M12X35 FLANGE
|
0-28651-235-0 |
08 |
1 |
0601- |
● |
● |
● |
● |
|
● |
● |
| |
173 |
07.395 NUT; S/ABS
FRAME STRAIGHT TYPE<7KJ>
06.606
M12
|
8-94139-015-0 |
06 |
1 |
0302-0506 |
● |
● |
|
● |
|
|
|
| |
173 |
07.395 NUT; S/ABS
06.606
M12
|
8-94139-015-0 |
06 |
1 |
0302-0506 |
|
|
● |
|
● |
● |
● |
| |
173 |
07.395 NUT; S/ABS
06.606
M12
|
8-94139-015-0 |
08 |
1 |
0507-0610 |
● |
● |
● |
● |
|
● |
● |
| |
173 |
07.395 NUT; S/ABS
M12
|
8-97360-126-0 |
08 |
1 |
0611- |
● |
● |
● |
● |
|
● |
● |
| |
173 |
07.395 NUT; S/ABS
EXC. FRAME STRAIGHT TYPE<7KJ>
06.606
M12
|
8-94139-015-0 |
08 |
1 |
0302-0506 |
● |
● |
|
● |
|
|
|
| |
180 |
07.347 WASHER; PL,PIN
KD PREPARATORY PACK<6HF>
07.172
ID=16.5
|
8-97070-925-1 |
06 |
1 |
0302-0506 |
● |
● |
● |
● |
● |
● |
● |
| |
180 |
07.347 WASHER; PL,PIN
KD PREPARATORY PACK<6HF>
07.172
ID=16.5
|
8-97070-925-1 |
06 |
1 |
0507-0611 |
● |
● |
● |
● |
|
● |
● |
| |
180 |
07.347 WASHER; PL,PIN
KD PREPARATORY PACK<6HF>
07.427
ID=16.5
|
8-98011-489-0 |
06 |
1 |
0612- |
● |
● |
● |
● |
|
● |
● |
| |
183 |
07.436 SHACKLE; FRT SUSP
|
8-94110-399-3 |
04 |
1 |
0302-0506 |
● |
● |
● |
● |
● |
● |
● |
| |
183 |
07.436 SHACKLE; FRT SUSP
|
8-94110-399-3 |
04 |
1 |
0507- |
● |
● |
● |
● |
|
● |
● |
| |
188 |
07.436 RUBBER; CLAMP,U-BOLT,FRT SPR
FRAME STRAIGHT TYPE<7KJ>
|
8-94422-380-4 |
02 |
1 |
0302-0506 |
● |
● |
|
● |
|
|
|
| |
188 |
07.436 RUBBER; CLAMP,U-BOLT,FRT SPR
|
8-94422-380-4 |
02 |
1 |
0302-0506 |
|
|
● |
|
● |
● |
● |
| |
188 |
07.436 RUBBER; CLAMP,U-BOLT,FRT SPR
FRAME STRAIGHT TYPE<7KJ>
|
8-94422-380-4 |
02 |
1 |
0507-0606 |
|
● |
|
● |
|
|
|
| |
188 |
07.436 RUBBER; CLAMP,U-BOLT,FRT SPR
|
8-94422-380-4 |
02 |
1 |
0507-0606 |
|
|
● |
|
|
● |
● |
| |
188 |
07.436 RUBBER; CLAMP,U-BOLT,FRT SPR
FRAME STRAIGHT TYPE<7KJ>
|
8-94422-380-4 |
02 |
1 |
0607- |
|
● |
● |
|
|
|
|
| |
188 |
07.436 RUBBER; CLAMP,U-BOLT,FRT SPR
|
8-94422-380-4 |
02 |
1 |
0607- |
|
|
|
|
|
● |
● |
| |
188 |
07.436 RUBBER; CLAMP,U-BOLT,FRT SPR
EXC. FRAME STRAIGHT TYPE<7KJ>
|
8-97039-571-1 |
02 |
1 |
0302-0506 |
● |
● |
|
● |
|
|
|
| |
188 |
07.436 RUBBER; CLAMP,U-BOLT,FRT SPR
|
8-97039-571-1 |
02 |
1 |
0507-0606 |
● |
|
|
|
|
|
|
| |
188 |
07.436 RUBBER; CLAMP,U-BOLT,FRT SPR
EXC. FRAME STRAIGHT TYPE<7KJ>
|
8-97039-571-1 |
02 |
1 |
0507-0606 |
|
● |
|
● |
|
|
|
| |
188 |
07.436 RUBBER; CLAMP,U-BOLT,FRT SPR
|
8-98033-516-0 |
02 |
1 |
0607- |
● |
|
|
● |
|
|
|
| |
188 |
07.436 RUBBER; CLAMP,U-BOLT,FRT SPR
EXC. FRAME STRAIGHT TYPE<7KJ>
|
8-98033-516-0 |
02 |
1 |
0607- |
|
● |
● |
|
|
|
|
| |
191 |
07.417 U-BOLT; FRT SPR
FRAME STRAIGHT TYPE<7KJ>
L=125
|
8-94119-671-4 |
04 |
1 |
0302-0506 |
● |
● |
● |
● |
● |
● |
● |
| |
191 |
07.417 U-BOLT; FRT SPR
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.5-8.0TON(RPY)
FRAME STRAIGHT TYPE<7KJ>
L=125
|
8-94119-671-4 |
04 |
1 |
0507-0606 |
|
● |
● |
● |
|
● |
● |
| |
191 |
07.417 U-BOLT; FRT SPR
L=125
|
8-94119-671-5 |
04 |
1 |
0607- |
● |
|
|
● |
|
● |
● |
| |
191 |
07.417 U-BOLT; FRT SPR
EXC. FRAME STRAIGHT TYPE<7KJ>
L=125
|
8-94119-671-5 |
04 |
1 |
0607- |
|
● |
● |
|
|
|
|
| |
191 |
07.417 U-BOLT; FRT SPR
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.5-8.0TON(RPY)
FRAME STRAIGHT TYPE<7KJ>
L=125
|
8-94119-671-5 |
04 |
1 |
0607- |
|
● |
● |
|
|
|
|
| |
191 |
07.417 U-BOLT; FRT SPR
EXC. FRAME STRAIGHT TYPE<7KJ>
L=105
|
8-94157-676-2 |
04 |
1 |
0302-0506 |
● |
● |
|
● |
|
|
|
| |
191 |
07.417 U-BOLT; FRT SPR
L=105
|
8-94157-676-2 |
04 |
1 |
0507-0606 |
● |
|
|
|
|
|
|
| |
191 |
07.417 U-BOLT; FRT SPR
EXC. FRAME STRAIGHT TYPE<7KJ>
L=105
|
8-94157-676-2 |
04 |
1 |
0507-0606 |
|
● |
|
● |
|
|
|
| |
193 |
07.417 NUT; U BOLT
M14 FLANGE
|
8-94137-483-0 |
08 |
1 |
0302-0506 |
● |
● |
● |
● |
● |
● |
● |
| |
193 |
07.417 NUT; U BOLT
M14 FLANGE
|
8-94137-483-0 |
08 |
1 |
0507-0610 |
● |
● |
● |
● |
|
● |
● |
| |
193 |
07.417 NUT; U BOLT
06.174
M14 FLANGE
|
8-97360-124-0 |
08 |
1 |
0611- |
● |
● |
● |
● |
|
● |
● |
| |
201 |
07.427 NUT; PIN LK
KD PREPARATORY PACK<6HF>
08.915
M16
|
9-99110-516-0 |
06 |
1 |
0302-0506 |
● |
● |
● |
● |
● |
● |
● |
| |
201 |
07.427 NUT; PIN LK
KD PREPARATORY PACK<6HF>
08.915
M16
|
9-99110-516-0 |
06 |
1 |
0507-0512 |
● |
● |
● |
● |
|
● |
● |
| |
201 |
07.427 NUT; PIN LK
KD PREPARATORY PACK<6HF>
06.509
M16
|
0-91110-516-0 |
06 |
1 |
0601- |
● |
● |
● |
● |
|
● |
● |
| |
201 |
07.427 NUT; PIN LK
EXC. KD PREPARATORY PACK<6HF>
07.529
M16 FLANGE
|
8-97147-389-0 |
06 |
1 |
0302-0506 |
● |
● |
● |
● |
● |
● |
● |
| |
201 |
07.427 NUT; PIN LK
EXC. KD PREPARATORY PACK<6HF>
07.529
M16 FLANGE
|
8-97147-389-0 |
06 |
1 |
0507-0610 |
● |
● |
● |
● |
|
● |
● |
| |
201 |
07.427 NUT; PIN LK
EXC. KD PREPARATORY PACK<6HF>
M16 FLANGE
|
8-97360-125-0 |
06 |
1 |
0611- |
● |
● |
● |
● |
|
● |
● |
| |
203 |
07.427 PIN; SPR TO SHACKLE
KD PREPARATORY PACK<6HF>
M16X122
|
9-51361-602-2 |
06 |
1 |
0302-0506 |
● |
● |
● |
● |
● |
● |
● |
| |
203 |
07.427 PIN; SPR TO SHACKLE
KD PREPARATORY PACK<6HF>
M16X122
|
9-51361-602-2 |
06 |
1 |
0507-0611 |
● |
● |
● |
● |
|
● |
● |
| |
203 |
07.427 PIN; SPR TO SHACKLE
KD PREPARATORY PACK<6HF>
M16X122
|
8-98011-487-0 |
06 |
1 |
0612- |
● |
● |
● |
● |
|
● |
● |
| |
203 |
07.427 PIN; SPR TO SHACKLE
EXC. KD PREPARATORY PACK<6HF>
07.529
M16X122 FLANGE
|
8-97076-850-2 |
06 |
1 |
0302-0506 |
● |
● |
● |
● |
● |
● |
● |
| |
203 |
07.427 PIN; SPR TO SHACKLE
EXC. KD PREPARATORY PACK<6HF>
07.529
M16X122 FLANGE
|
8-97076-850-2 |
06 |
1 |
0507-0610 |
● |
● |
● |
● |
|
● |
● |
| |
203 |
07.427 PIN; SPR TO SHACKLE
EXC. KD PREPARATORY PACK<6HF>
M16X122 FLANGE
|
8-97360-110-0 |
06 |
1 |
0611- |
● |
● |
● |
● |
|
● |
● |
