4-42 — POWER STEERING OIL PUMP (#41345) — 457 parça

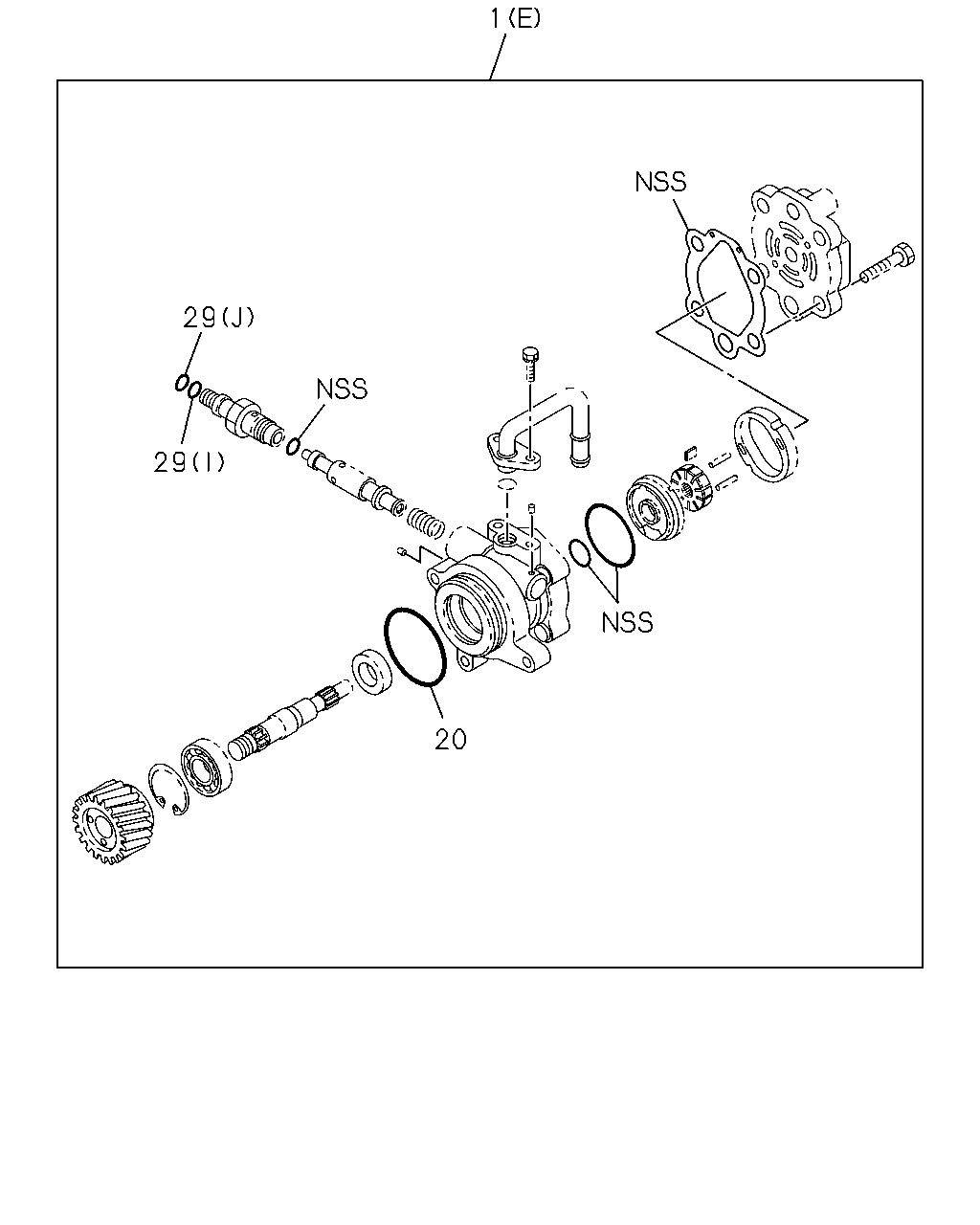

çizim 12683
1 29 29 20
BalonParca AdiParca NoAdetTipApplied Date
1 06.609 REPAIR KIT; OIL PUMP
(A) ASM PART: A = 8-97136-574-1, 97136574, D = 8-97357-213-0, 97357213 		8-97075-583-0 01 1 -
1 06.609 REPAIR KIT; OIL PUMP
(B) ASM PART: A = 8-97136-574-1, 97136574, D = 8-97357-213-0, 97357213 		8-97075-584-0 01 1 -
1 06.609 REPAIR KIT; OIL PUMP
(C) ASM PART: B = 8-97258-461-3, 97258461 		8-97182-111-0 01 1 -
1 06.609 REPAIR KIT; OIL PUMP
(D) ASM PART: C = 8-97354-730-0, 97354730 		8-97354-944-0 01 1 -
1 06.609 REPAIR KIT; OIL PUMP
(B) ASM PART: E = 8-97388-651-0, 97388651, G = 8-98041-669-2, 98041669 		8-97388-648-0 01 1 -
1 06.609 REPAIR KIT; OIL PUMP
(A) ASM PART: E = 8-97388-651-0, 97388651, G = 8-98041-669-2, 98041669 		8-97388-649-0 01 1 -
1 06.609 REPAIR KIT; OIL PUMP
(E) ASM PART: F = 8-98006-825-3, 98006825 		8-98159-585-0 01 1 -
20 06.635 GASKET; FRT,OIL PUMP
ASM PART: F = 8-98006-825-3, 98006825 		8-98061-424-0 01 1 -
29 06.609 GASKET; PLUG TO VLV
(A) ASM PART: A = 8-97136-574-1, 97136574, D = 8-97357-213-0, 97357213, E = 8-97388-651-0, 97388651, G = 8-98041-669-2, 98041669 		8-94379-658-0 01 1 -
29 06.609 GASKET; PLUG TO VLV
(B) ASM PART: A = 8-97136-574-1, 97136574, D = 8-97357-213-0, 97357213, E = 8-97388-651-0, 97388651, G = 8-98041-669-2, 98041669 		8-94379-659-0 01 1 -
29 06.609 GASKET; PLUG TO VLV
06.674, (C) ASM PART: A = 8-97136-574-1, 97136574, D = 8-97357-213-0, 97357213, E = 8-97388-651-0, 97388651, G = 8-98041-669-2, 98041669 		8-94379-666-0 01 1 -
29 06.609 GASKET; PLUG TO VLV
(D) ASM PART: A = 8-97136-574-1, 97136574, D = 8-97357-213-0, 97357213, E = 8-97388-651-0, 97388651, G = 8-98041-669-2, 98041669 		8-97075-581-0 01 1 -
29 06.609 GASKET; PLUG TO VLV
(I) ASM PART: F = 8-98006-825-3, 98006825 		8-98061-421-0 01 1 -
29 06.609 GASKET; PLUG TO VLV
(J) ASM PART: F = 8-98006-825-3, 98006825 		8-98061-422-0 01 1 -
29 06.609 GASKET; PLUG TO VLV
(G), ID=11.0 ASM PART: B = 8-97258-461-3, 97258461 		9-09561-111-0 02 1 -
29 06.609 GASKET; PLUG TO VLV
(H), ID=13.0 ASM PART: B = 8-97258-461-3, 97258461 		9-09561-113-0 02 1 -
29 06.609 GASKET; PLUG TO VLV
06.635, (E) ASM PART: B = 8-97258-461-3, 97258461 		9-48429-028-0 01 1 -
29 06.609 GASKET; PLUG TO VLV
(F) ASM PART: B = 8-97258-461-3, 97258461 		9-88510-248-0 01 1 -

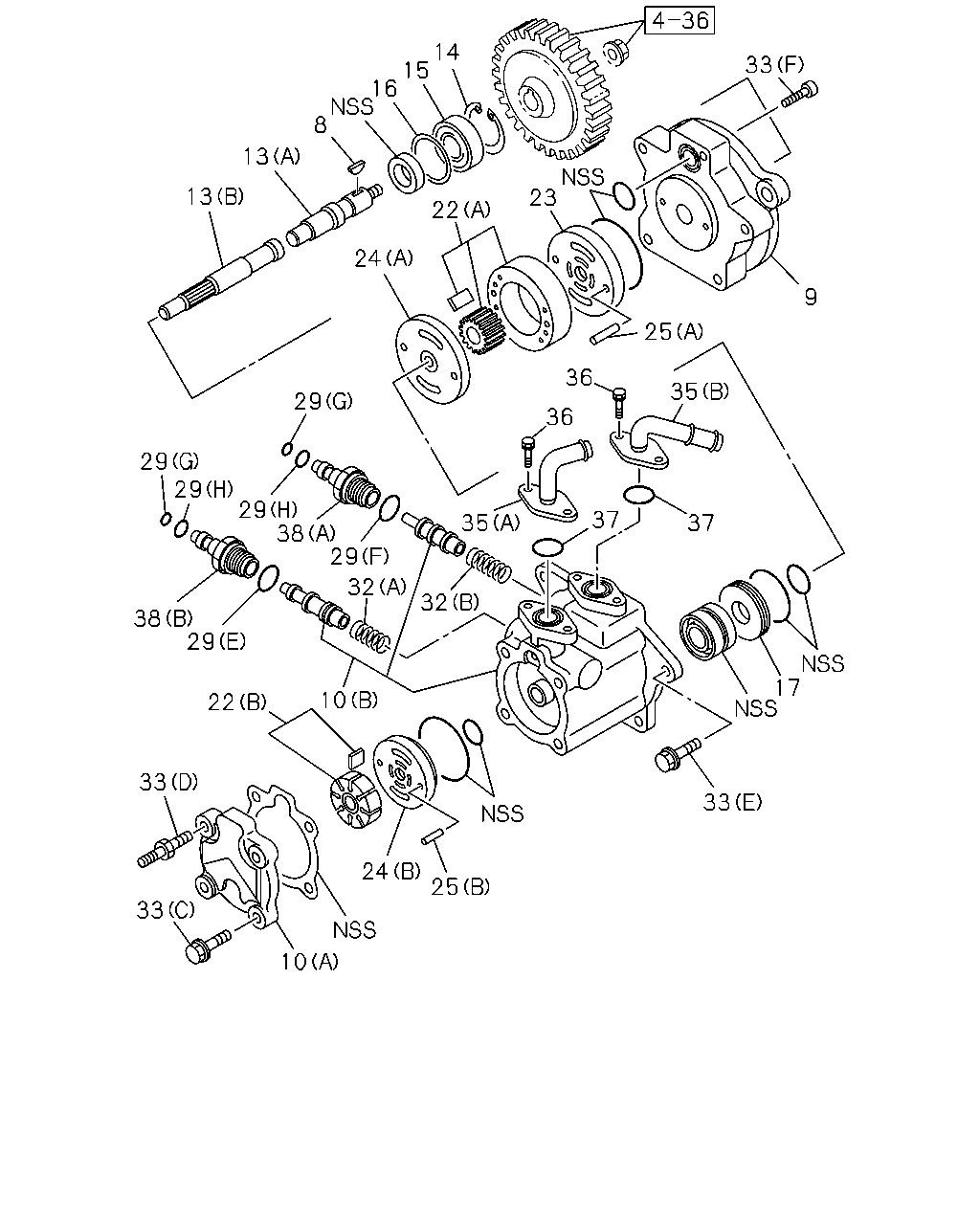

çizim 12850
14 15 16 8 33 13 23 13 22 24 9 25 36 35 29 36 29 29 29 38 37 35 37 29 32 32 38 29 17 10 22 33 33 24 5 33 10
BalonParca AdiParca NoAdetTipApplied Date
5 06.635 NUT; SHAFT,P/S PUMP
ASM PART: A = 8-97136-574-1, 97136574 		8-97029-780-0 01 1 -
8 06.616 KEY; SHAFT,OIL PUMP
ASM PART: A = 8-97136-574-1, 97136574 		8-97029-778-0 01 1 -
8 06.616 KEY; SHAFT,OIL PUMP
ASM PART: B = 8-97258-461-3, 97258461 		9-19519-089-0 01 1 -
9 06.608 BODY ASM; FRT,OIL PUMP
ASM PART: A = 8-97136-574-1, 97136574 		8-97029-764-1 01 1 -
9 06.608 BODY ASM; FRT,OIL PUMP
ASM PART: B = 8-97258-461-3, 97258461 		8-97182-095-0 01 1 -
9 06.608 BODY ASM; FRT,OIL PUMP
ASM PART: C = 8-97354-730-0, 97354730 		8-97354-933-0 01 1 -
9 06.608 BODY ASM; FRT,OIL PUMP
ASM PART: D = 8-97357-213-0, 97357213 		8-97369-595-0 01 1 -
9 06.608 BODY ASM; FRT,OIL PUMP
ASM PART: E = 8-97388-651-0, 97388651 		8-97388-641-0 01 1 -
9 06.608 BODY ASM; FRT,OIL PUMP
ASM PART: G = 8-98041-669-2, 98041669 		8-98042-394-0 01 1 -
9 06.608 BODY ASM; FRT,OIL PUMP
ASM PART: F = 8-98006-825-3, 98006825 		8-98061-428-1 01 1 -
10 06.608 BODY ASM; RR,OIL PUMP
(C) ASM PART: A = 8-97136-574-1, 97136574, D = 8-97357-213-0, 97357213, E = 8-97388-651-0, 97388651, G = 8-98041-669-2, 98041669 		8-97029-772-0 01 1 -
10 06.608 BODY ASM; RR,OIL PUMP
(D) ASM PART: C = 8-97354-730-0, 97354730 		8-97102-294-0 01 1 -
10 06.608 BODY ASM; RR,OIL PUMP
(B) ASM PART: B = 8-97258-461-3, 97258461 		8-97182-097-0 01 1 -
10 06.608 BODY ASM; RR,OIL PUMP
(A) ASM PART: B = 8-97258-461-3, 97258461 		8-97182-108-0 01 1 -
10 06.608 BODY ASM; RR,OIL PUMP
06.609, (E) ASM PART: F = 8-98006-825-3, 98006825 		8-98159-587-0 01 1 -
13 06.605 SHAFT KIT; RET
06.614, (C) ASM PART: A = 8-97136-574-1, 97136574 		8-97029-766-0 01 1 -
13 06.605 SHAFT KIT; RET
(A) ASM PART: B = 8-97258-461-3, 97258461 		8-97182-096-0 01 1 -
13 06.605 SHAFT KIT; RET
(B) ASM PART: B = 8-97258-461-3, 97258461 		8-97182-105-0 01 1 -
13 06.605 SHAFT KIT; RET
(D) ASM PART: C = 8-97354-730-0, 97354730 		8-97354-935-0 01 1 -
14 06.616 RING; RET,OIL PUMP
ASM PART: B = 8-97258-461-3, 97258461 		1-19519-257-0 01 1 -
14 06.616 RING; RET,OIL PUMP
ASM PART: C = 8-97354-730-0, 97354730 		8-97064-620-0 01 1 -
15 06.616 BEARING; BALL,OIL PUMP
ASM PART: B = 8-97258-461-3, 97258461 		1-19519-264-0 01 1 -
15 06.616 BEARING; BALL,OIL PUMP
ASM PART: A = 8-97136-574-1, 97136574 		8-97075-578-0 01 1 -
16 06.616 RING; RET,OIL PUMP
ASM PART: B = 8-97258-461-3, 97258461 		1-19519-258-0 01 1 -
16 06.616 RING; RET,OIL PUMP
ASM PART: A = 8-97136-574-1, 97136574 		8-97029-768-0 01 1 -
17 06.616 RING; RET
ASM PART: B = 8-97258-461-3, 97258461 		8-97182-106-0 01 1 -
22 06.610 CARTRIDGE ASM; OIL PUMP
(C) ASM PART: A = 8-97136-574-1, 97136574, D = 8-97357-213-0, 97357213, E = 8-97388-651-0, 97388651, G = 8-98041-669-2, 98041669 		8-97148-690-0 01 1 -
22 06.610 CARTRIDGE ASM; OIL PUMP
(A) ASM PART: B = 8-97258-461-3, 97258461 		8-97182-092-0 01 1 -
22 06.610 CARTRIDGE ASM; OIL PUMP
(B) ASM PART: B = 8-97258-461-3, 97258461 		8-97182-102-0 01 1 -
22 06.610 CARTRIDGE ASM; OIL PUMP
(D) ASM PART: C = 8-97354-730-0, 97354730 		8-97313-095-0 01 1 -
22 06.610 CARTRIDGE ASM; OIL PUMP
(E) ASM PART: F = 8-98006-825-3, 98006825 		8-98061-406-0 01 1 -
23 06.609 PLATE; SIDE,OIL PUMP
ASM PART: A = 8-97136-574-1, 97136574, D = 8-97357-213-0, 97357213, E = 8-97388-651-0, 97388651, G = 8-98041-669-2, 98041669 		8-97147-453-0 01 1 -
23 06.609 PLATE; SIDE,OIL PUMP
ASM PART: B = 8-97258-461-3, 97258461 		8-97182-094-0 01 1 -
23 06.609 PLATE; SIDE,OIL PUMP
ASM PART: C = 8-97354-730-0, 97354730 		8-97354-679-0 01 1 -
23 06.609 PLATE; SIDE,OIL PUMP
ASM PART: F = 8-98006-825-3, 98006825 		8-98061-404-0 01 1 -
24 06.612 PLATE ASM; THRUST
(A) ASM PART: B = 8-97258-461-3, 97258461 		8-97182-093-0 01 1 -
24 06.612 PLATE ASM; THRUST
(B) ASM PART: B = 8-97258-461-3, 97258461 		8-97182-103-0 01 1 -
25 06.608 PIN; HSG,P/S
(A) ASM PART: B = 8-97258-461-3, 97258461 		1-19519-052-0 02 1 -
25 06.608 PIN; HSG,P/S
(D) ASM PART: A = 8-97136-574-1, 97136574 		8-94379-646-0 01 1 -
25 06.608 PIN; HSG,P/S
(C) ASM PART: C = 8-97354-730-0, 97354730 		8-97081-859-0 02 1 -
25 06.608 PIN; HSG,P/S
(B) ASM PART: B = 8-97258-461-3, 97258461 		8-97182-104-0 02 1 -
25 06.608 PIN; HSG,P/S
(E) ASM PART: F = 8-98006-825-3, 98006825 		8-98061-412-0 02 1 -
29 06.609 GASKET; PLUG TO VLV
(A) ASM PART: A = 8-97136-574-1, 97136574, D = 8-97357-213-0, 97357213, E = 8-97388-651-0, 97388651, G = 8-98041-669-2, 98041669 		8-94379-658-0 01 1 -
29 06.609 GASKET; PLUG TO VLV
(B) ASM PART: A = 8-97136-574-1, 97136574, D = 8-97357-213-0, 97357213, E = 8-97388-651-0, 97388651, G = 8-98041-669-2, 98041669 		8-94379-659-0 01 1 -
29 06.609 GASKET; PLUG TO VLV
06.674, (C) ASM PART: A = 8-97136-574-1, 97136574, D = 8-97357-213-0, 97357213, E = 8-97388-651-0, 97388651, G = 8-98041-669-2, 98041669 		8-94379-666-0 01 1 -
29 06.609 GASKET; PLUG TO VLV
(D) ASM PART: A = 8-97136-574-1, 97136574, D = 8-97357-213-0, 97357213, E = 8-97388-651-0, 97388651, G = 8-98041-669-2, 98041669 		8-97075-581-0 01 1 -
29 06.609 GASKET; PLUG TO VLV
(I) ASM PART: F = 8-98006-825-3, 98006825 		8-98061-421-0 01 1 -
29 06.609 GASKET; PLUG TO VLV
(J) ASM PART: F = 8-98006-825-3, 98006825 		8-98061-422-0 01 1 -
29 06.609 GASKET; PLUG TO VLV
(G), ID=11.0 ASM PART: B = 8-97258-461-3, 97258461 		9-09561-111-0 02 1 -
29 06.609 GASKET; PLUG TO VLV
(H), ID=13.0 ASM PART: B = 8-97258-461-3, 97258461 		9-09561-113-0 02 1 -
29 06.609 GASKET; PLUG TO VLV
06.635, (E) ASM PART: B = 8-97258-461-3, 97258461 		9-48429-028-0 01 1 -
29 06.609 GASKET; PLUG TO VLV
(F) ASM PART: B = 8-97258-461-3, 97258461 		9-88510-248-0 01 1 -
32 06.606 SPRING; OIL PUMP
06.612, (C) ASM PART: A = 8-97136-574-1, 97136574, D = 8-97357-213-0, 97357213, E = 8-97388-651-0, 97388651, G = 8-98041-669-2, 98041669 		8-94379-654-0 01 1 -
32 06.606 SPRING; OIL PUMP
06.612, (A) ASM PART: B = 8-97258-461-3, 97258461 		8-94475-376-0 01 1 -
32 06.606 SPRING; OIL PUMP
(D) ASM PART: C = 8-97354-730-0, 97354730 		8-97064-982-0 01 1 -
32 06.606 SPRING; OIL PUMP
(E) ASM PART: C = 8-97354-730-0, 97354730 		8-97064-987-0 01 1 -
32 06.606 SPRING; OIL PUMP
(F) ASM PART: F = 8-98006-825-3, 98006825 		8-98061-411-0 01 1 -
32 06.606 SPRING; OIL PUMP
06.612, (B) ASM PART: B = 8-97258-461-3, 97258461 		9-19529-013-0 01 1 -
33 06.606 BOLT; COVER
(E) ASM PART: B = 8-97258-461-3, 97258461 		1-44519-119-0 04 1 -
33 06.606 BOLT; COVER
(C) ASM PART: B = 8-97258-461-3, 97258461 		1-48119-054-0 02 1 -
33 06.606 BOLT; COVER
06.608, (B) ASM PART: A = 8-97136-574-1, 97136574, D = 8-97357-213-0, 97357213, E = 8-97388-651-0, 97388651, G = 8-98041-669-2, 98041669 		8-97029-773-0 03 1 -
33 06.606 BOLT; COVER
(G) ASM PART: C = 8-97354-730-0, 97354730 		8-97064-979-0 04 1 -
33 06.606 BOLT; COVER
(A) ASM PART: A = 8-97136-574-1, 97136574, D = 8-97357-213-0, 97357213, E = 8-97388-651-0, 97388651, G = 8-98041-669-2, 98041669 		8-97075-585-0 01 1 -
33 06.606 BOLT; COVER
(F) ASM PART: B = 8-97258-461-3, 97258461 		8-97182-100-0 01 1 -
33 06.606 BOLT; COVER
(D) ASM PART: B = 8-97258-461-3, 97258461 		8-97182-110-0 02 1 -
33 06.606 BOLT; COVER
(H) ASM PART: F = 8-98006-825-3, 98006825 		8-98061-385-0 04 1 -
35 06.602 PIPE; HOSE CONN,OIL PUMP
(C) ASM PART: A = 8-97136-574-1, 97136574, D = 8-97357-213-0, 97357213 		8-97091-932-0 01 1 -
35 06.602 PIPE; HOSE CONN,OIL PUMP
(A) ASM PART: B = 8-97258-461-3, 97258461 		8-97182-101-0 01 1 -
35 06.602 PIPE; HOSE CONN,OIL PUMP
(B) ASM PART: B = 8-97258-461-3, 97258461 		8-97258-420-1 01 1 -
35 06.602 PIPE; HOSE CONN,OIL PUMP
(C) ASM PART: E = 8-97388-651-0, 97388651 		8-97388-640-0 01 1 -
35 06.602 PIPE; HOSE CONN,OIL PUMP
(C) ASM PART: G = 8-98041-669-2, 98041669 		8-98042-392-0 01 1 -
35 06.602 PIPE; HOSE CONN,OIL PUMP
(C) ASM PART: F = 8-98006-825-3, 98006825 		8-98061-415-0 01 1 -
36 06.602 BOLT; CONN,PIPE
ASM PART: A = 8-97136-574-1, 97136574, D = 8-97357-213-0, 97357213, E = 8-97388-651-0, 97388651, G = 8-98041-669-2, 98041669 		8-94379-664-0 02 1 -
36 06.602 BOLT; CONN,PIPE
ASM PART: B = 8-97258-461-3, 97258461 		8-94461-139-1 04 1 -
36 06.602 BOLT; CONN,PIPE
ASM PART: F = 8-98006-825-3, 98006825 		8-98061-418-0 02 1 -
37 06.635 GASKET; PIPE CONN,OIL PUMP
ASM PART: B = 8-97258-461-3, 97258461 		1-19519-292-0 02 1 -
37 06.635 GASKET; PIPE CONN,OIL PUMP
ASM PART: A = 8-97136-574-1, 97136574, D = 8-97357-213-0, 97357213 		8-97029-777-0 01 1 -
37 06.635 GASKET; PIPE CONN,OIL PUMP
ASM PART: E = 8-97388-651-0, 97388651 		8-97184-767-0 01 1 -
37 06.635 GASKET; PIPE CONN,OIL PUMP
ASM PART: G = 8-98041-669-2, 98041669 		8-97357-781-0 01 1 -
37 06.635 GASKET; PIPE CONN,OIL PUMP
ASM PART: F = 8-98006-825-3, 98006825 		8-98061-417-0 01 1 -
38 06.624 CONNECTOR; OIL PUMP
(C) ASM PART: A = 8-97136-574-1, 97136574 		8-97029-775-1 01 1 -
38 06.624 CONNECTOR; OIL PUMP
(C) ASM PART: D = 8-97357-213-0, 97357213, E = 8-97388-651-0, 97388651, G = 8-98041-669-2, 98041669 		8-97093-504-0 01 1 -
38 06.624 CONNECTOR; OIL PUMP
(A) ASM PART: B = 8-97258-461-3, 97258461 		8-97182-098-0 01 1 -
38 06.624 CONNECTOR; OIL PUMP
(B) ASM PART: B = 8-97258-461-3, 97258461 		8-97182-109-0 01 1 -
38 06.624 CONNECTOR; OIL PUMP
(D) ASM PART: C = 8-97354-730-0, 97354730 		8-97354-941-0 01 1 -
38 06.624 CONNECTOR; OIL PUMP
(E) ASM PART: C = 8-97354-730-0, 97354730 		8-97354-943-0 01 1 -
38 06.624 CONNECTOR; OIL PUMP
(F) ASM PART: F = 8-98006-825-3, 98006825 		8-98061-407-0 01 1 -

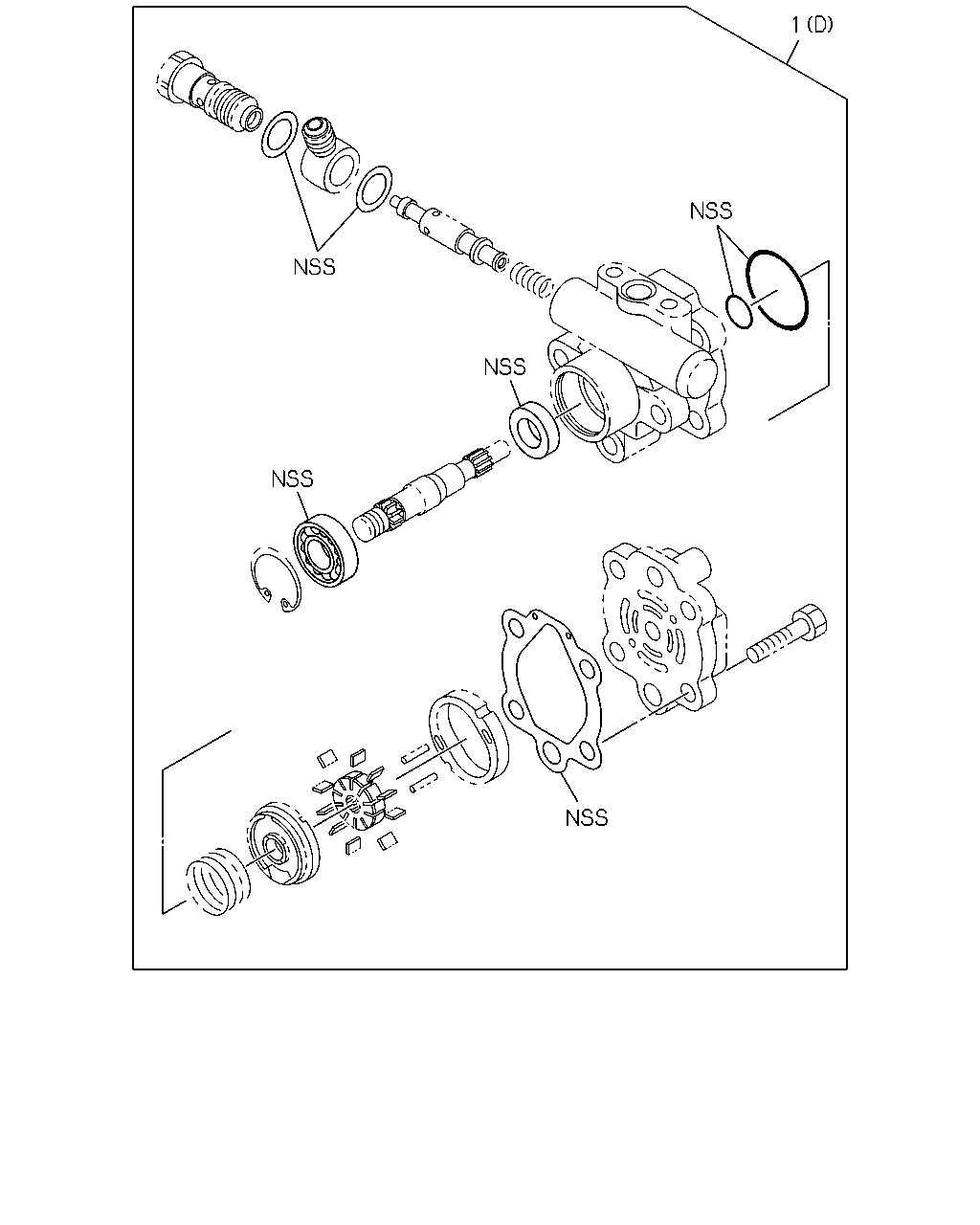

çizim 13388
1
BalonParca AdiParca NoAdetTipApplied Date
1 06.609 REPAIR KIT; OIL PUMP
(A) ASM PART: A = 8-97136-574-1, 97136574, D = 8-97357-213-0, 97357213 		8-97075-583-0 01 1 -
1 06.609 REPAIR KIT; OIL PUMP
(B) ASM PART: A = 8-97136-574-1, 97136574, D = 8-97357-213-0, 97357213 		8-97075-584-0 01 1 -
1 06.609 REPAIR KIT; OIL PUMP
(C) ASM PART: B = 8-97258-461-3, 97258461 		8-97182-111-0 01 1 -
1 06.609 REPAIR KIT; OIL PUMP
(D) ASM PART: C = 8-97354-730-0, 97354730 		8-97354-944-0 01 1 -
1 06.609 REPAIR KIT; OIL PUMP
(B) ASM PART: E = 8-97388-651-0, 97388651, G = 8-98041-669-2, 98041669 		8-97388-648-0 01 1 -
1 06.609 REPAIR KIT; OIL PUMP
(A) ASM PART: E = 8-97388-651-0, 97388651, G = 8-98041-669-2, 98041669 		8-97388-649-0 01 1 -
1 06.609 REPAIR KIT; OIL PUMP
(E) ASM PART: F = 8-98006-825-3, 98006825 		8-98159-585-0 01 1 -

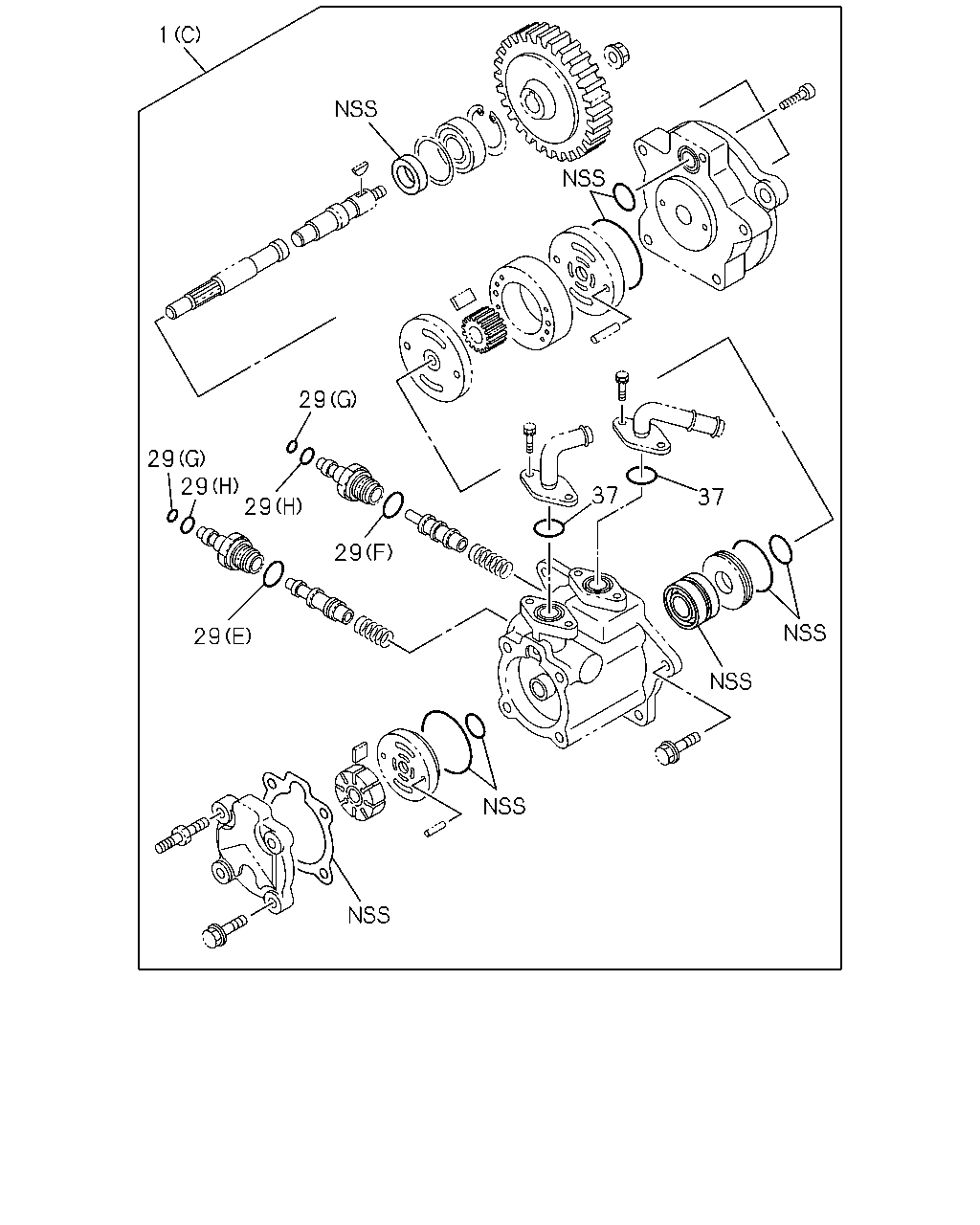

çizim 51941
1 29 29 29 29 37 37 29 29
BalonParca AdiParca NoAdetTipApplied Date
1 06.609 REPAIR KIT; OIL PUMP
(A) ASM PART: A = 8-97136-574-1, 97136574, D = 8-97357-213-0, 97357213 		8-97075-583-0 01 1 -
1 06.609 REPAIR KIT; OIL PUMP
(B) ASM PART: A = 8-97136-574-1, 97136574, D = 8-97357-213-0, 97357213 		8-97075-584-0 01 1 -
1 06.609 REPAIR KIT; OIL PUMP
(C) ASM PART: B = 8-97258-461-3, 97258461 		8-97182-111-0 01 1 -
1 06.609 REPAIR KIT; OIL PUMP
(D) ASM PART: C = 8-97354-730-0, 97354730 		8-97354-944-0 01 1 -
1 06.609 REPAIR KIT; OIL PUMP
(B) ASM PART: E = 8-97388-651-0, 97388651, G = 8-98041-669-2, 98041669 		8-97388-648-0 01 1 -
1 06.609 REPAIR KIT; OIL PUMP
(A) ASM PART: E = 8-97388-651-0, 97388651, G = 8-98041-669-2, 98041669 		8-97388-649-0 01 1 -
1 06.609 REPAIR KIT; OIL PUMP
(E) ASM PART: F = 8-98006-825-3, 98006825 		8-98159-585-0 01 1 -
29 06.609 GASKET; PLUG TO VLV
(A) ASM PART: A = 8-97136-574-1, 97136574, D = 8-97357-213-0, 97357213, E = 8-97388-651-0, 97388651, G = 8-98041-669-2, 98041669 		8-94379-658-0 01 1 -
29 06.609 GASKET; PLUG TO VLV
(B) ASM PART: A = 8-97136-574-1, 97136574, D = 8-97357-213-0, 97357213, E = 8-97388-651-0, 97388651, G = 8-98041-669-2, 98041669 		8-94379-659-0 01 1 -
29 06.609 GASKET; PLUG TO VLV
06.674, (C) ASM PART: A = 8-97136-574-1, 97136574, D = 8-97357-213-0, 97357213, E = 8-97388-651-0, 97388651, G = 8-98041-669-2, 98041669 		8-94379-666-0 01 1 -
29 06.609 GASKET; PLUG TO VLV
(D) ASM PART: A = 8-97136-574-1, 97136574, D = 8-97357-213-0, 97357213, E = 8-97388-651-0, 97388651, G = 8-98041-669-2, 98041669 		8-97075-581-0 01 1 -
29 06.609 GASKET; PLUG TO VLV
(I) ASM PART: F = 8-98006-825-3, 98006825 		8-98061-421-0 01 1 -
29 06.609 GASKET; PLUG TO VLV
(J) ASM PART: F = 8-98006-825-3, 98006825 		8-98061-422-0 01 1 -
29 06.609 GASKET; PLUG TO VLV
(G), ID=11.0 ASM PART: B = 8-97258-461-3, 97258461 		9-09561-111-0 02 1 -
29 06.609 GASKET; PLUG TO VLV
(H), ID=13.0 ASM PART: B = 8-97258-461-3, 97258461 		9-09561-113-0 02 1 -
29 06.609 GASKET; PLUG TO VLV
06.635, (E) ASM PART: B = 8-97258-461-3, 97258461 		9-48429-028-0 01 1 -
29 06.609 GASKET; PLUG TO VLV
(F) ASM PART: B = 8-97258-461-3, 97258461 		9-88510-248-0 01 1 -
37 06.635 GASKET; PIPE CONN,OIL PUMP
ASM PART: B = 8-97258-461-3, 97258461 		1-19519-292-0 02 1 -
37 06.635 GASKET; PIPE CONN,OIL PUMP
ASM PART: A = 8-97136-574-1, 97136574, D = 8-97357-213-0, 97357213 		8-97029-777-0 01 1 -
37 06.635 GASKET; PIPE CONN,OIL PUMP
ASM PART: E = 8-97388-651-0, 97388651 		8-97184-767-0 01 1 -
37 06.635 GASKET; PIPE CONN,OIL PUMP
ASM PART: G = 8-98041-669-2, 98041669 		8-97357-781-0 01 1 -
37 06.635 GASKET; PIPE CONN,OIL PUMP
ASM PART: F = 8-98006-825-3, 98006825 		8-98061-417-0 01 1 -

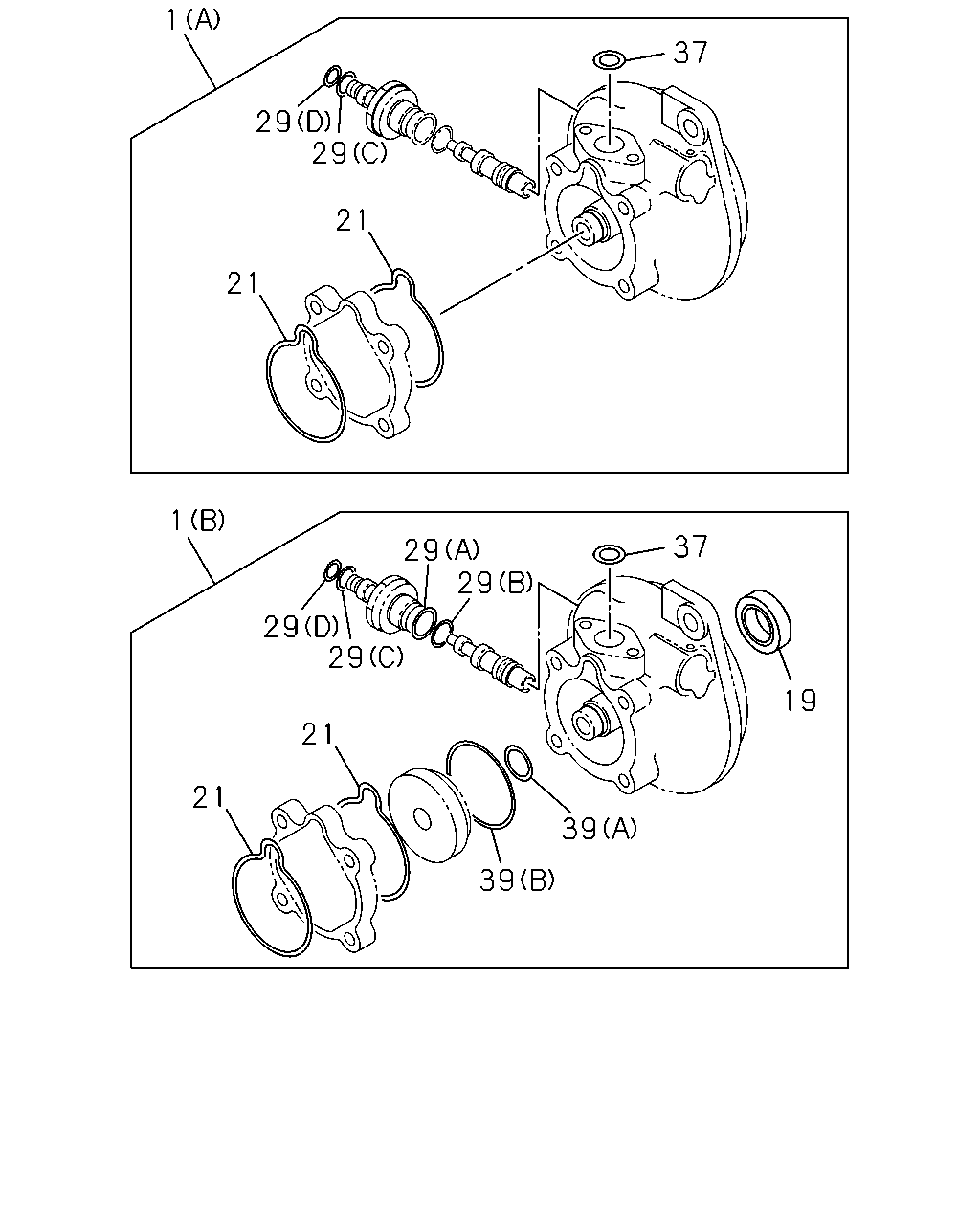

çizim 52620
1 37 29 29 21 21 1 37 29 29 29 29 19 21 21 39 39
BalonParca AdiParca NoAdetTipApplied Date
1 06.609 REPAIR KIT; OIL PUMP
(A) ASM PART: A = 8-97136-574-1, 97136574, D = 8-97357-213-0, 97357213 		8-97075-583-0 01 1 -
1 06.609 REPAIR KIT; OIL PUMP
(B) ASM PART: A = 8-97136-574-1, 97136574, D = 8-97357-213-0, 97357213 		8-97075-584-0 01 1 -
1 06.609 REPAIR KIT; OIL PUMP
(C) ASM PART: B = 8-97258-461-3, 97258461 		8-97182-111-0 01 1 -
1 06.609 REPAIR KIT; OIL PUMP
(D) ASM PART: C = 8-97354-730-0, 97354730 		8-97354-944-0 01 1 -
1 06.609 REPAIR KIT; OIL PUMP
(B) ASM PART: E = 8-97388-651-0, 97388651, G = 8-98041-669-2, 98041669 		8-97388-648-0 01 1 -
1 06.609 REPAIR KIT; OIL PUMP
(A) ASM PART: E = 8-97388-651-0, 97388651, G = 8-98041-669-2, 98041669 		8-97388-649-0 01 1 -
1 06.609 REPAIR KIT; OIL PUMP
(E) ASM PART: F = 8-98006-825-3, 98006825 		8-98159-585-0 01 1 -
19 06.617 SEAL; OIL,OIL PUMP
ASM PART: A = 8-97136-574-1, 97136574 		8-97075-577-0 01 1 -
21 06.609 GASKET; FRT COVER TO BODY
ASM PART: A = 8-97136-574-1, 97136574, D = 8-97357-213-0, 97357213, E = 8-97388-651-0, 97388651, G = 8-98041-669-2, 98041669 		8-97062-329-0 02 1 -
29 06.609 GASKET; PLUG TO VLV
(A) ASM PART: A = 8-97136-574-1, 97136574, D = 8-97357-213-0, 97357213, E = 8-97388-651-0, 97388651, G = 8-98041-669-2, 98041669 		8-94379-658-0 01 1 -
29 06.609 GASKET; PLUG TO VLV
(B) ASM PART: A = 8-97136-574-1, 97136574, D = 8-97357-213-0, 97357213, E = 8-97388-651-0, 97388651, G = 8-98041-669-2, 98041669 		8-94379-659-0 01 1 -
29 06.609 GASKET; PLUG TO VLV
06.674, (C) ASM PART: A = 8-97136-574-1, 97136574, D = 8-97357-213-0, 97357213, E = 8-97388-651-0, 97388651, G = 8-98041-669-2, 98041669 		8-94379-666-0 01 1 -
29 06.609 GASKET; PLUG TO VLV
(D) ASM PART: A = 8-97136-574-1, 97136574, D = 8-97357-213-0, 97357213, E = 8-97388-651-0, 97388651, G = 8-98041-669-2, 98041669 		8-97075-581-0 01 1 -
29 06.609 GASKET; PLUG TO VLV
(I) ASM PART: F = 8-98006-825-3, 98006825 		8-98061-421-0 01 1 -
29 06.609 GASKET; PLUG TO VLV
(J) ASM PART: F = 8-98006-825-3, 98006825 		8-98061-422-0 01 1 -
29 06.609 GASKET; PLUG TO VLV
(G), ID=11.0 ASM PART: B = 8-97258-461-3, 97258461 		9-09561-111-0 02 1 -
29 06.609 GASKET; PLUG TO VLV
(H), ID=13.0 ASM PART: B = 8-97258-461-3, 97258461 		9-09561-113-0 02 1 -
29 06.609 GASKET; PLUG TO VLV
06.635, (E) ASM PART: B = 8-97258-461-3, 97258461 		9-48429-028-0 01 1 -
29 06.609 GASKET; PLUG TO VLV
(F) ASM PART: B = 8-97258-461-3, 97258461 		9-88510-248-0 01 1 -
37 06.635 GASKET; PIPE CONN,OIL PUMP
ASM PART: B = 8-97258-461-3, 97258461 		1-19519-292-0 02 1 -
37 06.635 GASKET; PIPE CONN,OIL PUMP
ASM PART: A = 8-97136-574-1, 97136574, D = 8-97357-213-0, 97357213 		8-97029-777-0 01 1 -
37 06.635 GASKET; PIPE CONN,OIL PUMP
ASM PART: E = 8-97388-651-0, 97388651 		8-97184-767-0 01 1 -
37 06.635 GASKET; PIPE CONN,OIL PUMP
ASM PART: G = 8-98041-669-2, 98041669 		8-97357-781-0 01 1 -
37 06.635 GASKET; PIPE CONN,OIL PUMP
ASM PART: F = 8-98006-825-3, 98006825 		8-98061-417-0 01 1 -
39 06.609 GASKET; OIL PUMP
(B) ASM PART: A = 8-97136-574-1, 97136574, D = 8-97357-213-0, 97357213, E = 8-97388-651-0, 97388651, G = 8-98041-669-2, 98041669 		8-94379-647-0 01 1 -
39 06.609 GASKET; OIL PUMP
(A) ASM PART: A = 8-97136-574-1, 97136574, D = 8-97357-213-0, 97357213, E = 8-97388-651-0, 97388651, G = 8-98041-669-2, 98041669 		8-97147-441-0 01 1 -

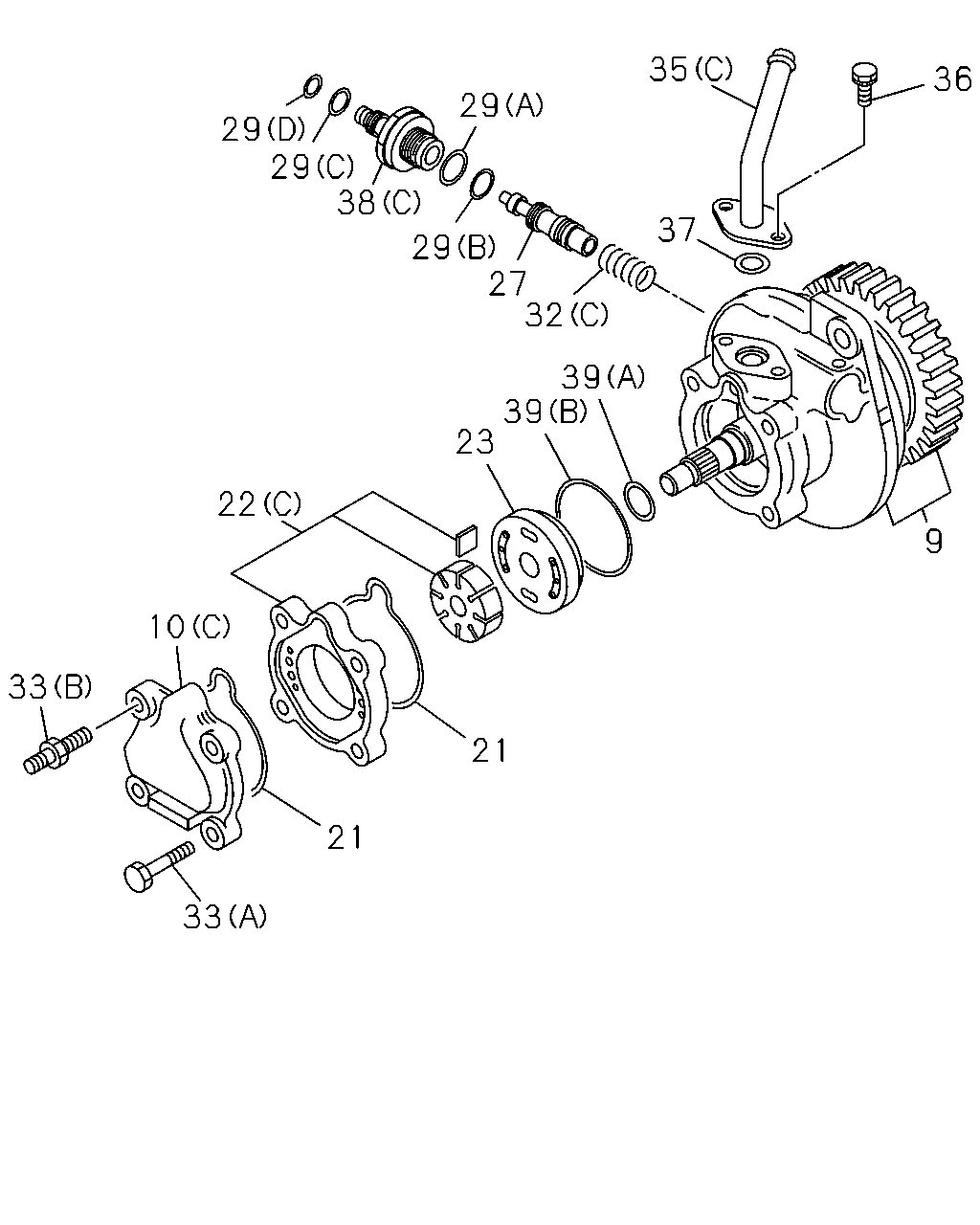

çizim 52652
35 36 29 29 29 38 37 29 27 32 39 39 23 22 9 10 33 21 21 33
BalonParca AdiParca NoAdetTipApplied Date
9 06.608 BODY ASM; FRT,OIL PUMP
ASM PART: A = 8-97136-574-1, 97136574 		8-97029-764-1 01 1 -
9 06.608 BODY ASM; FRT,OIL PUMP
ASM PART: B = 8-97258-461-3, 97258461 		8-97182-095-0 01 1 -
9 06.608 BODY ASM; FRT,OIL PUMP
ASM PART: C = 8-97354-730-0, 97354730 		8-97354-933-0 01 1 -
9 06.608 BODY ASM; FRT,OIL PUMP
ASM PART: D = 8-97357-213-0, 97357213 		8-97369-595-0 01 1 -
9 06.608 BODY ASM; FRT,OIL PUMP
ASM PART: E = 8-97388-651-0, 97388651 		8-97388-641-0 01 1 -
9 06.608 BODY ASM; FRT,OIL PUMP
ASM PART: G = 8-98041-669-2, 98041669 		8-98042-394-0 01 1 -
9 06.608 BODY ASM; FRT,OIL PUMP
ASM PART: F = 8-98006-825-3, 98006825 		8-98061-428-1 01 1 -
10 06.608 BODY ASM; RR,OIL PUMP
(C) ASM PART: A = 8-97136-574-1, 97136574, D = 8-97357-213-0, 97357213, E = 8-97388-651-0, 97388651, G = 8-98041-669-2, 98041669 		8-97029-772-0 01 1 -
10 06.608 BODY ASM; RR,OIL PUMP
(D) ASM PART: C = 8-97354-730-0, 97354730 		8-97102-294-0 01 1 -
10 06.608 BODY ASM; RR,OIL PUMP
(B) ASM PART: B = 8-97258-461-3, 97258461 		8-97182-097-0 01 1 -
10 06.608 BODY ASM; RR,OIL PUMP
(A) ASM PART: B = 8-97258-461-3, 97258461 		8-97182-108-0 01 1 -
10 06.608 BODY ASM; RR,OIL PUMP
06.609, (E) ASM PART: F = 8-98006-825-3, 98006825 		8-98159-587-0 01 1 -
21 06.609 GASKET; FRT COVER TO BODY
ASM PART: A = 8-97136-574-1, 97136574, D = 8-97357-213-0, 97357213, E = 8-97388-651-0, 97388651, G = 8-98041-669-2, 98041669 		8-97062-329-0 02 1 -
22 06.610 CARTRIDGE ASM; OIL PUMP
(C) ASM PART: A = 8-97136-574-1, 97136574, D = 8-97357-213-0, 97357213, E = 8-97388-651-0, 97388651, G = 8-98041-669-2, 98041669 		8-97148-690-0 01 1 -
22 06.610 CARTRIDGE ASM; OIL PUMP
(A) ASM PART: B = 8-97258-461-3, 97258461 		8-97182-092-0 01 1 -
22 06.610 CARTRIDGE ASM; OIL PUMP
(B) ASM PART: B = 8-97258-461-3, 97258461 		8-97182-102-0 01 1 -
22 06.610 CARTRIDGE ASM; OIL PUMP
(D) ASM PART: C = 8-97354-730-0, 97354730 		8-97313-095-0 01 1 -
22 06.610 CARTRIDGE ASM; OIL PUMP
(E) ASM PART: F = 8-98006-825-3, 98006825 		8-98061-406-0 01 1 -
23 06.609 PLATE; SIDE,OIL PUMP
ASM PART: A = 8-97136-574-1, 97136574, D = 8-97357-213-0, 97357213, E = 8-97388-651-0, 97388651, G = 8-98041-669-2, 98041669 		8-97147-453-0 01 1 -
23 06.609 PLATE; SIDE,OIL PUMP
ASM PART: B = 8-97258-461-3, 97258461 		8-97182-094-0 01 1 -
23 06.609 PLATE; SIDE,OIL PUMP
ASM PART: C = 8-97354-730-0, 97354730 		8-97354-679-0 01 1 -
23 06.609 PLATE; SIDE,OIL PUMP
ASM PART: F = 8-98006-825-3, 98006825 		8-98061-404-0 01 1 -
27 06.624 VALVE ASM; OIL PUMP
ASM PART: A = 8-97136-574-1, 97136574, D = 8-97357-213-0, 97357213, E = 8-97388-651-0, 97388651 		8-97075-587-0 01 1 -
27 06.624 VALVE ASM; OIL PUMP
ASM PART: C = 8-97354-730-0, 97354730 		8-97094-142-0 01 1 -
27 06.624 VALVE ASM; OIL PUMP
ASM PART: G = 8-98041-669-2, 98041669 		8-97134-862-0 01 1 -
27 06.624 VALVE ASM; OIL PUMP
ASM PART: F = 8-98006-825-3, 98006825 		8-98061-410-0 01 1 -
29 06.609 GASKET; PLUG TO VLV
(A) ASM PART: A = 8-97136-574-1, 97136574, D = 8-97357-213-0, 97357213, E = 8-97388-651-0, 97388651, G = 8-98041-669-2, 98041669 		8-94379-658-0 01 1 -
29 06.609 GASKET; PLUG TO VLV
(B) ASM PART: A = 8-97136-574-1, 97136574, D = 8-97357-213-0, 97357213, E = 8-97388-651-0, 97388651, G = 8-98041-669-2, 98041669 		8-94379-659-0 01 1 -
29 06.609 GASKET; PLUG TO VLV
06.674, (C) ASM PART: A = 8-97136-574-1, 97136574, D = 8-97357-213-0, 97357213, E = 8-97388-651-0, 97388651, G = 8-98041-669-2, 98041669 		8-94379-666-0 01 1 -
29 06.609 GASKET; PLUG TO VLV
(D) ASM PART: A = 8-97136-574-1, 97136574, D = 8-97357-213-0, 97357213, E = 8-97388-651-0, 97388651, G = 8-98041-669-2, 98041669 		8-97075-581-0 01 1 -
29 06.609 GASKET; PLUG TO VLV
(I) ASM PART: F = 8-98006-825-3, 98006825 		8-98061-421-0 01 1 -
29 06.609 GASKET; PLUG TO VLV
(J) ASM PART: F = 8-98006-825-3, 98006825 		8-98061-422-0 01 1 -
29 06.609 GASKET; PLUG TO VLV
(G), ID=11.0 ASM PART: B = 8-97258-461-3, 97258461 		9-09561-111-0 02 1 -
29 06.609 GASKET; PLUG TO VLV
(H), ID=13.0 ASM PART: B = 8-97258-461-3, 97258461 		9-09561-113-0 02 1 -
29 06.609 GASKET; PLUG TO VLV
06.635, (E) ASM PART: B = 8-97258-461-3, 97258461 		9-48429-028-0 01 1 -
29 06.609 GASKET; PLUG TO VLV
(F) ASM PART: B = 8-97258-461-3, 97258461 		9-88510-248-0 01 1 -
32 06.606 SPRING; OIL PUMP
06.612, (C) ASM PART: A = 8-97136-574-1, 97136574, D = 8-97357-213-0, 97357213, E = 8-97388-651-0, 97388651, G = 8-98041-669-2, 98041669 		8-94379-654-0 01 1 -
32 06.606 SPRING; OIL PUMP
06.612, (A) ASM PART: B = 8-97258-461-3, 97258461 		8-94475-376-0 01 1 -
32 06.606 SPRING; OIL PUMP
(D) ASM PART: C = 8-97354-730-0, 97354730 		8-97064-982-0 01 1 -
32 06.606 SPRING; OIL PUMP
(E) ASM PART: C = 8-97354-730-0, 97354730 		8-97064-987-0 01 1 -
32 06.606 SPRING; OIL PUMP
(F) ASM PART: F = 8-98006-825-3, 98006825 		8-98061-411-0 01 1 -
32 06.606 SPRING; OIL PUMP
06.612, (B) ASM PART: B = 8-97258-461-3, 97258461 		9-19529-013-0 01 1 -
33 06.606 BOLT; COVER
(E) ASM PART: B = 8-97258-461-3, 97258461 		1-44519-119-0 04 1 -
33 06.606 BOLT; COVER
(C) ASM PART: B = 8-97258-461-3, 97258461 		1-48119-054-0 02 1 -
33 06.606 BOLT; COVER
06.608, (B) ASM PART: A = 8-97136-574-1, 97136574, D = 8-97357-213-0, 97357213, E = 8-97388-651-0, 97388651, G = 8-98041-669-2, 98041669 		8-97029-773-0 03 1 -
33 06.606 BOLT; COVER
(G) ASM PART: C = 8-97354-730-0, 97354730 		8-97064-979-0 04 1 -
33 06.606 BOLT; COVER
(A) ASM PART: A = 8-97136-574-1, 97136574, D = 8-97357-213-0, 97357213, E = 8-97388-651-0, 97388651, G = 8-98041-669-2, 98041669 		8-97075-585-0 01 1 -
33 06.606 BOLT; COVER
(F) ASM PART: B = 8-97258-461-3, 97258461 		8-97182-100-0 01 1 -
33 06.606 BOLT; COVER
(D) ASM PART: B = 8-97258-461-3, 97258461 		8-97182-110-0 02 1 -
33 06.606 BOLT; COVER
(H) ASM PART: F = 8-98006-825-3, 98006825 		8-98061-385-0 04 1 -
35 06.602 PIPE; HOSE CONN,OIL PUMP
(C) ASM PART: A = 8-97136-574-1, 97136574, D = 8-97357-213-0, 97357213 		8-97091-932-0 01 1 -
35 06.602 PIPE; HOSE CONN,OIL PUMP
(A) ASM PART: B = 8-97258-461-3, 97258461 		8-97182-101-0 01 1 -
35 06.602 PIPE; HOSE CONN,OIL PUMP
(B) ASM PART: B = 8-97258-461-3, 97258461 		8-97258-420-1 01 1 -
35 06.602 PIPE; HOSE CONN,OIL PUMP
(C) ASM PART: E = 8-97388-651-0, 97388651 		8-97388-640-0 01 1 -
35 06.602 PIPE; HOSE CONN,OIL PUMP
(C) ASM PART: G = 8-98041-669-2, 98041669 		8-98042-392-0 01 1 -
35 06.602 PIPE; HOSE CONN,OIL PUMP
(C) ASM PART: F = 8-98006-825-3, 98006825 		8-98061-415-0 01 1 -
36 06.602 BOLT; CONN,PIPE
ASM PART: A = 8-97136-574-1, 97136574, D = 8-97357-213-0, 97357213, E = 8-97388-651-0, 97388651, G = 8-98041-669-2, 98041669 		8-94379-664-0 02 1 -
36 06.602 BOLT; CONN,PIPE
ASM PART: B = 8-97258-461-3, 97258461 		8-94461-139-1 04 1 -
36 06.602 BOLT; CONN,PIPE
ASM PART: F = 8-98006-825-3, 98006825 		8-98061-418-0 02 1 -
37 06.635 GASKET; PIPE CONN,OIL PUMP
ASM PART: B = 8-97258-461-3, 97258461 		1-19519-292-0 02 1 -
37 06.635 GASKET; PIPE CONN,OIL PUMP
ASM PART: A = 8-97136-574-1, 97136574, D = 8-97357-213-0, 97357213 		8-97029-777-0 01 1 -
37 06.635 GASKET; PIPE CONN,OIL PUMP
ASM PART: E = 8-97388-651-0, 97388651 		8-97184-767-0 01 1 -
37 06.635 GASKET; PIPE CONN,OIL PUMP
ASM PART: G = 8-98041-669-2, 98041669 		8-97357-781-0 01 1 -
37 06.635 GASKET; PIPE CONN,OIL PUMP
ASM PART: F = 8-98006-825-3, 98006825 		8-98061-417-0 01 1 -
38 06.624 CONNECTOR; OIL PUMP
(C) ASM PART: A = 8-97136-574-1, 97136574 		8-97029-775-1 01 1 -
38 06.624 CONNECTOR; OIL PUMP
(C) ASM PART: D = 8-97357-213-0, 97357213, E = 8-97388-651-0, 97388651, G = 8-98041-669-2, 98041669 		8-97093-504-0 01 1 -
38 06.624 CONNECTOR; OIL PUMP
(A) ASM PART: B = 8-97258-461-3, 97258461 		8-97182-098-0 01 1 -
38 06.624 CONNECTOR; OIL PUMP
(B) ASM PART: B = 8-97258-461-3, 97258461 		8-97182-109-0 01 1 -
38 06.624 CONNECTOR; OIL PUMP
(D) ASM PART: C = 8-97354-730-0, 97354730 		8-97354-941-0 01 1 -
38 06.624 CONNECTOR; OIL PUMP
(E) ASM PART: C = 8-97354-730-0, 97354730 		8-97354-943-0 01 1 -
38 06.624 CONNECTOR; OIL PUMP
(F) ASM PART: F = 8-98006-825-3, 98006825 		8-98061-407-0 01 1 -
39 06.609 GASKET; OIL PUMP
(B) ASM PART: A = 8-97136-574-1, 97136574, D = 8-97357-213-0, 97357213, E = 8-97388-651-0, 97388651, G = 8-98041-669-2, 98041669 		8-94379-647-0 01 1 -
39 06.609 GASKET; OIL PUMP
(A) ASM PART: A = 8-97136-574-1, 97136574, D = 8-97357-213-0, 97357213, E = 8-97388-651-0, 97388651, G = 8-98041-669-2, 98041669 		8-97147-441-0 01 1 -

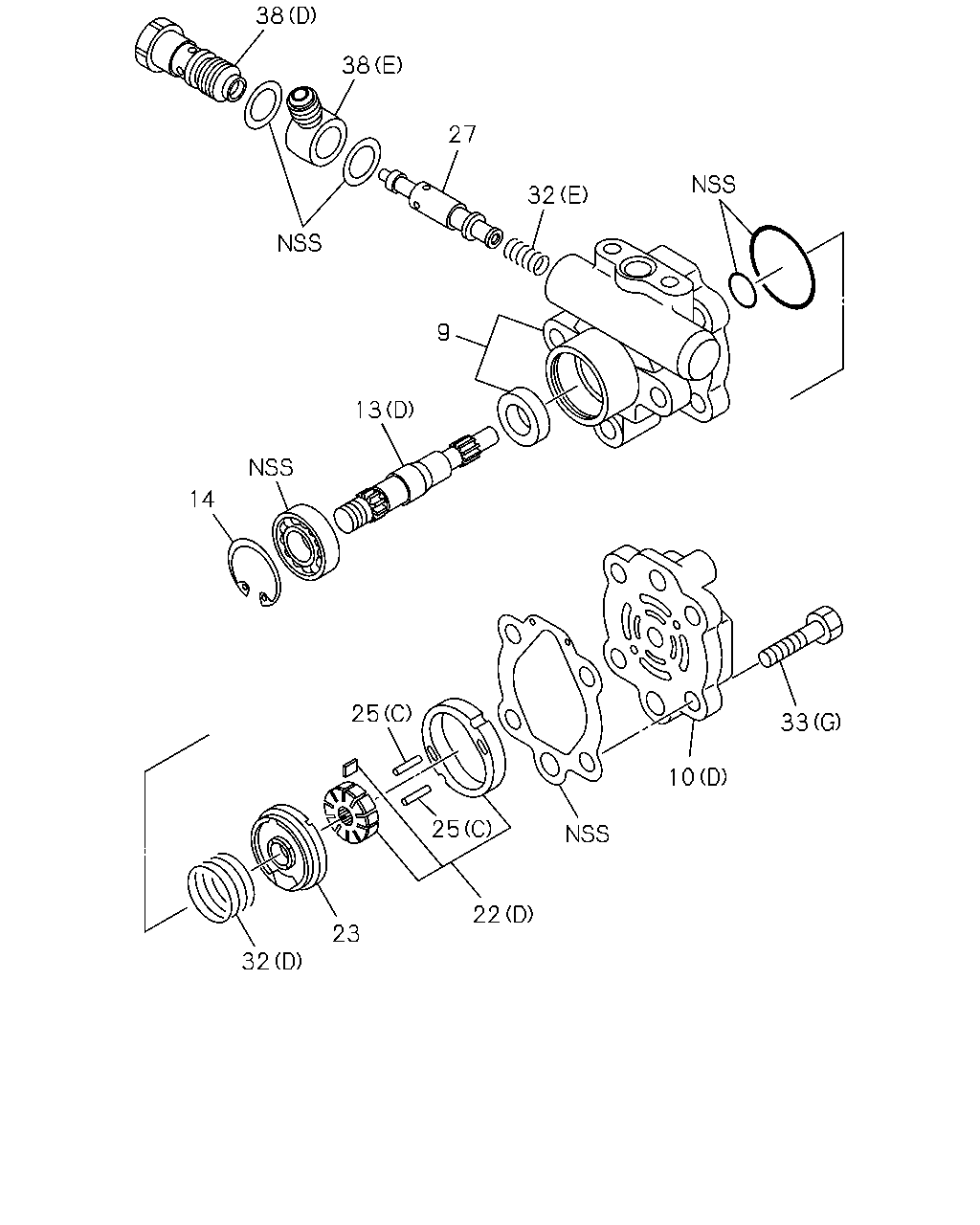

çizim 53275
38 38 27 32 9 13 14 25 33 10 25 22 23 32
BalonParca AdiParca NoAdetTipApplied Date
9 06.608 BODY ASM; FRT,OIL PUMP
ASM PART: A = 8-97136-574-1, 97136574 		8-97029-764-1 01 1 -
9 06.608 BODY ASM; FRT,OIL PUMP
ASM PART: B = 8-97258-461-3, 97258461 		8-97182-095-0 01 1 -
9 06.608 BODY ASM; FRT,OIL PUMP
ASM PART: C = 8-97354-730-0, 97354730 		8-97354-933-0 01 1 -
9 06.608 BODY ASM; FRT,OIL PUMP
ASM PART: D = 8-97357-213-0, 97357213 		8-97369-595-0 01 1 -
9 06.608 BODY ASM; FRT,OIL PUMP
ASM PART: E = 8-97388-651-0, 97388651 		8-97388-641-0 01 1 -
9 06.608 BODY ASM; FRT,OIL PUMP
ASM PART: G = 8-98041-669-2, 98041669 		8-98042-394-0 01 1 -
9 06.608 BODY ASM; FRT,OIL PUMP
ASM PART: F = 8-98006-825-3, 98006825 		8-98061-428-1 01 1 -
10 06.608 BODY ASM; RR,OIL PUMP
(C) ASM PART: A = 8-97136-574-1, 97136574, D = 8-97357-213-0, 97357213, E = 8-97388-651-0, 97388651, G = 8-98041-669-2, 98041669 		8-97029-772-0 01 1 -
10 06.608 BODY ASM; RR,OIL PUMP
(D) ASM PART: C = 8-97354-730-0, 97354730 		8-97102-294-0 01 1 -
10 06.608 BODY ASM; RR,OIL PUMP
(B) ASM PART: B = 8-97258-461-3, 97258461 		8-97182-097-0 01 1 -
10 06.608 BODY ASM; RR,OIL PUMP
(A) ASM PART: B = 8-97258-461-3, 97258461 		8-97182-108-0 01 1 -
10 06.608 BODY ASM; RR,OIL PUMP
06.609, (E) ASM PART: F = 8-98006-825-3, 98006825 		8-98159-587-0 01 1 -
13 06.605 SHAFT KIT; RET
06.614, (C) ASM PART: A = 8-97136-574-1, 97136574 		8-97029-766-0 01 1 -
13 06.605 SHAFT KIT; RET
(A) ASM PART: B = 8-97258-461-3, 97258461 		8-97182-096-0 01 1 -
13 06.605 SHAFT KIT; RET
(B) ASM PART: B = 8-97258-461-3, 97258461 		8-97182-105-0 01 1 -
13 06.605 SHAFT KIT; RET
(D) ASM PART: C = 8-97354-730-0, 97354730 		8-97354-935-0 01 1 -
14 06.616 RING; RET,OIL PUMP
ASM PART: B = 8-97258-461-3, 97258461 		1-19519-257-0 01 1 -
14 06.616 RING; RET,OIL PUMP
ASM PART: C = 8-97354-730-0, 97354730 		8-97064-620-0 01 1 -
22 06.610 CARTRIDGE ASM; OIL PUMP
(C) ASM PART: A = 8-97136-574-1, 97136574, D = 8-97357-213-0, 97357213, E = 8-97388-651-0, 97388651, G = 8-98041-669-2, 98041669 		8-97148-690-0 01 1 -
22 06.610 CARTRIDGE ASM; OIL PUMP
(A) ASM PART: B = 8-97258-461-3, 97258461 		8-97182-092-0 01 1 -
22 06.610 CARTRIDGE ASM; OIL PUMP
(B) ASM PART: B = 8-97258-461-3, 97258461 		8-97182-102-0 01 1 -
22 06.610 CARTRIDGE ASM; OIL PUMP
(D) ASM PART: C = 8-97354-730-0, 97354730 		8-97313-095-0 01 1 -
22 06.610 CARTRIDGE ASM; OIL PUMP
(E) ASM PART: F = 8-98006-825-3, 98006825 		8-98061-406-0 01 1 -
23 06.609 PLATE; SIDE,OIL PUMP
ASM PART: A = 8-97136-574-1, 97136574, D = 8-97357-213-0, 97357213, E = 8-97388-651-0, 97388651, G = 8-98041-669-2, 98041669 		8-97147-453-0 01 1 -
23 06.609 PLATE; SIDE,OIL PUMP
ASM PART: B = 8-97258-461-3, 97258461 		8-97182-094-0 01 1 -
23 06.609 PLATE; SIDE,OIL PUMP
ASM PART: C = 8-97354-730-0, 97354730 		8-97354-679-0 01 1 -
23 06.609 PLATE; SIDE,OIL PUMP
ASM PART: F = 8-98006-825-3, 98006825 		8-98061-404-0 01 1 -
25 06.608 PIN; HSG,P/S
(A) ASM PART: B = 8-97258-461-3, 97258461 		1-19519-052-0 02 1 -
25 06.608 PIN; HSG,P/S
(D) ASM PART: A = 8-97136-574-1, 97136574 		8-94379-646-0 01 1 -
25 06.608 PIN; HSG,P/S
(C) ASM PART: C = 8-97354-730-0, 97354730 		8-97081-859-0 02 1 -
25 06.608 PIN; HSG,P/S
(B) ASM PART: B = 8-97258-461-3, 97258461 		8-97182-104-0 02 1 -
25 06.608 PIN; HSG,P/S
(E) ASM PART: F = 8-98006-825-3, 98006825 		8-98061-412-0 02 1 -
27 06.624 VALVE ASM; OIL PUMP
ASM PART: A = 8-97136-574-1, 97136574, D = 8-97357-213-0, 97357213, E = 8-97388-651-0, 97388651 		8-97075-587-0 01 1 -
27 06.624 VALVE ASM; OIL PUMP
ASM PART: C = 8-97354-730-0, 97354730 		8-97094-142-0 01 1 -
27 06.624 VALVE ASM; OIL PUMP
ASM PART: G = 8-98041-669-2, 98041669 		8-97134-862-0 01 1 -
27 06.624 VALVE ASM; OIL PUMP
ASM PART: F = 8-98006-825-3, 98006825 		8-98061-410-0 01 1 -
32 06.606 SPRING; OIL PUMP
06.612, (C) ASM PART: A = 8-97136-574-1, 97136574, D = 8-97357-213-0, 97357213, E = 8-97388-651-0, 97388651, G = 8-98041-669-2, 98041669 		8-94379-654-0 01 1 -
32 06.606 SPRING; OIL PUMP
06.612, (A) ASM PART: B = 8-97258-461-3, 97258461 		8-94475-376-0 01 1 -
32 06.606 SPRING; OIL PUMP
(D) ASM PART: C = 8-97354-730-0, 97354730 		8-97064-982-0 01 1 -
32 06.606 SPRING; OIL PUMP
(E) ASM PART: C = 8-97354-730-0, 97354730 		8-97064-987-0 01 1 -
32 06.606 SPRING; OIL PUMP
(F) ASM PART: F = 8-98006-825-3, 98006825 		8-98061-411-0 01 1 -
32 06.606 SPRING; OIL PUMP
06.612, (B) ASM PART: B = 8-97258-461-3, 97258461 		9-19529-013-0 01 1 -
33 06.606 BOLT; COVER
(E) ASM PART: B = 8-97258-461-3, 97258461 		1-44519-119-0 04 1 -
33 06.606 BOLT; COVER
(C) ASM PART: B = 8-97258-461-3, 97258461 		1-48119-054-0 02 1 -
33 06.606 BOLT; COVER
06.608, (B) ASM PART: A = 8-97136-574-1, 97136574, D = 8-97357-213-0, 97357213, E = 8-97388-651-0, 97388651, G = 8-98041-669-2, 98041669 		8-97029-773-0 03 1 -
33 06.606 BOLT; COVER
(G) ASM PART: C = 8-97354-730-0, 97354730 		8-97064-979-0 04 1 -
33 06.606 BOLT; COVER
(A) ASM PART: A = 8-97136-574-1, 97136574, D = 8-97357-213-0, 97357213, E = 8-97388-651-0, 97388651, G = 8-98041-669-2, 98041669 		8-97075-585-0 01 1 -
33 06.606 BOLT; COVER
(F) ASM PART: B = 8-97258-461-3, 97258461 		8-97182-100-0 01 1 -
33 06.606 BOLT; COVER
(D) ASM PART: B = 8-97258-461-3, 97258461 		8-97182-110-0 02 1 -
33 06.606 BOLT; COVER
(H) ASM PART: F = 8-98006-825-3, 98006825 		8-98061-385-0 04 1 -
38 06.624 CONNECTOR; OIL PUMP
(C) ASM PART: A = 8-97136-574-1, 97136574 		8-97029-775-1 01 1 -
38 06.624 CONNECTOR; OIL PUMP
(C) ASM PART: D = 8-97357-213-0, 97357213, E = 8-97388-651-0, 97388651, G = 8-98041-669-2, 98041669 		8-97093-504-0 01 1 -
38 06.624 CONNECTOR; OIL PUMP
(A) ASM PART: B = 8-97258-461-3, 97258461 		8-97182-098-0 01 1 -
38 06.624 CONNECTOR; OIL PUMP
(B) ASM PART: B = 8-97258-461-3, 97258461 		8-97182-109-0 01 1 -
38 06.624 CONNECTOR; OIL PUMP
(D) ASM PART: C = 8-97354-730-0, 97354730 		8-97354-941-0 01 1 -
38 06.624 CONNECTOR; OIL PUMP
(E) ASM PART: C = 8-97354-730-0, 97354730 		8-97354-943-0 01 1 -
38 06.624 CONNECTOR; OIL PUMP
(F) ASM PART: F = 8-98006-825-3, 98006825 		8-98061-407-0 01 1 -

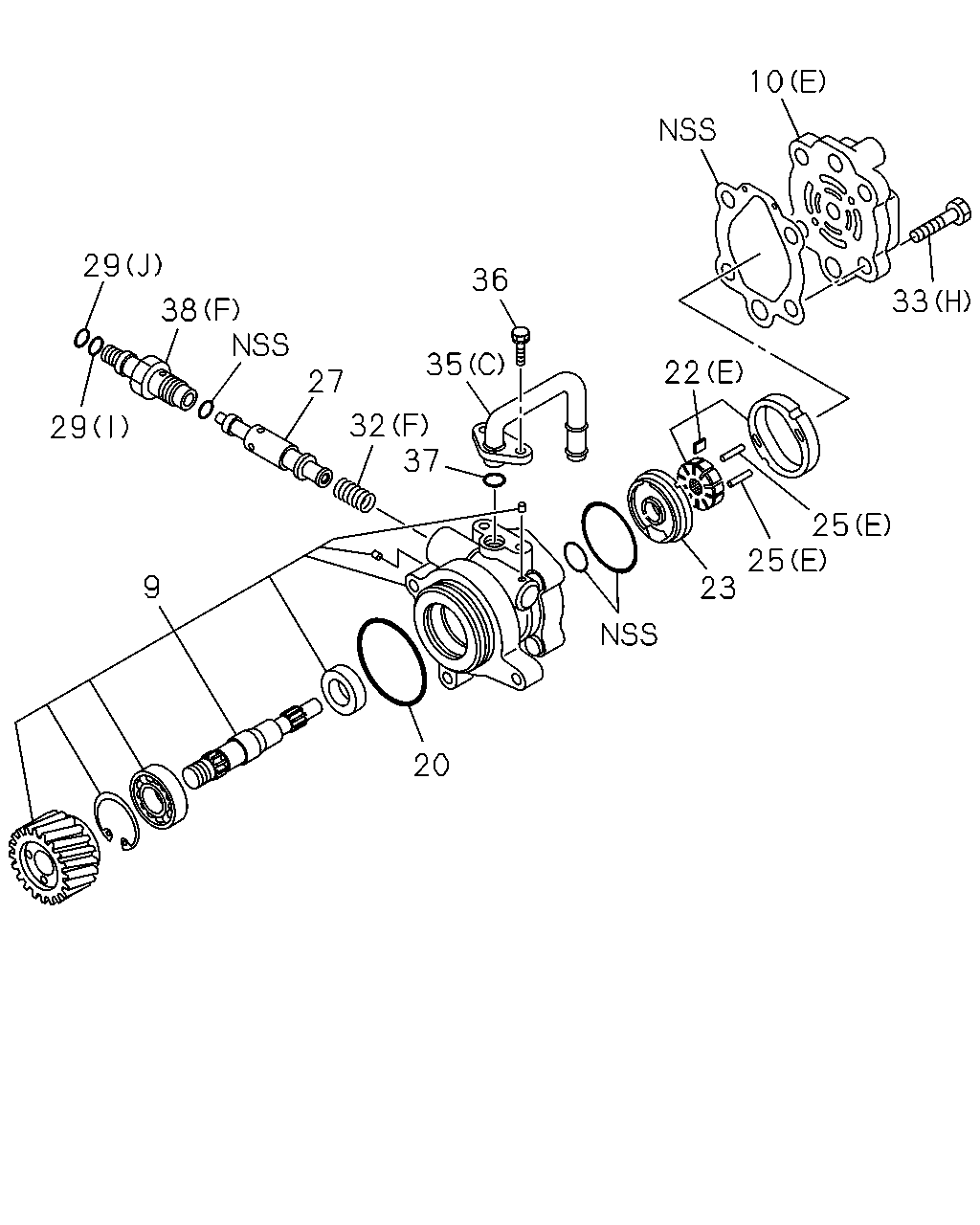

çizim 54447
10 29 36 33 38 22 35 27 32 37 29 25 25 23 9 20
BalonParca AdiParca NoAdetTipApplied Date
9 06.608 BODY ASM; FRT,OIL PUMP
ASM PART: A = 8-97136-574-1, 97136574 		8-97029-764-1 01 1 -
9 06.608 BODY ASM; FRT,OIL PUMP
ASM PART: B = 8-97258-461-3, 97258461 		8-97182-095-0 01 1 -
9 06.608 BODY ASM; FRT,OIL PUMP
ASM PART: C = 8-97354-730-0, 97354730 		8-97354-933-0 01 1 -
9 06.608 BODY ASM; FRT,OIL PUMP
ASM PART: D = 8-97357-213-0, 97357213 		8-97369-595-0 01 1 -
9 06.608 BODY ASM; FRT,OIL PUMP
ASM PART: E = 8-97388-651-0, 97388651 		8-97388-641-0 01 1 -
9 06.608 BODY ASM; FRT,OIL PUMP
ASM PART: G = 8-98041-669-2, 98041669 		8-98042-394-0 01 1 -
9 06.608 BODY ASM; FRT,OIL PUMP
ASM PART: F = 8-98006-825-3, 98006825 		8-98061-428-1 01 1 -
10 06.608 BODY ASM; RR,OIL PUMP
(C) ASM PART: A = 8-97136-574-1, 97136574, D = 8-97357-213-0, 97357213, E = 8-97388-651-0, 97388651, G = 8-98041-669-2, 98041669 		8-97029-772-0 01 1 -
10 06.608 BODY ASM; RR,OIL PUMP
(D) ASM PART: C = 8-97354-730-0, 97354730 		8-97102-294-0 01 1 -
10 06.608 BODY ASM; RR,OIL PUMP
(B) ASM PART: B = 8-97258-461-3, 97258461 		8-97182-097-0 01 1 -
10 06.608 BODY ASM; RR,OIL PUMP
(A) ASM PART: B = 8-97258-461-3, 97258461 		8-97182-108-0 01 1 -
10 06.608 BODY ASM; RR,OIL PUMP
06.609, (E) ASM PART: F = 8-98006-825-3, 98006825 		8-98159-587-0 01 1 -
20 06.635 GASKET; FRT,OIL PUMP
ASM PART: F = 8-98006-825-3, 98006825 		8-98061-424-0 01 1 -
22 06.610 CARTRIDGE ASM; OIL PUMP
(C) ASM PART: A = 8-97136-574-1, 97136574, D = 8-97357-213-0, 97357213, E = 8-97388-651-0, 97388651, G = 8-98041-669-2, 98041669 		8-97148-690-0 01 1 -
22 06.610 CARTRIDGE ASM; OIL PUMP
(A) ASM PART: B = 8-97258-461-3, 97258461 		8-97182-092-0 01 1 -
22 06.610 CARTRIDGE ASM; OIL PUMP
(B) ASM PART: B = 8-97258-461-3, 97258461 		8-97182-102-0 01 1 -
22 06.610 CARTRIDGE ASM; OIL PUMP
(D) ASM PART: C = 8-97354-730-0, 97354730 		8-97313-095-0 01 1 -
22 06.610 CARTRIDGE ASM; OIL PUMP
(E) ASM PART: F = 8-98006-825-3, 98006825 		8-98061-406-0 01 1 -
23 06.609 PLATE; SIDE,OIL PUMP
ASM PART: A = 8-97136-574-1, 97136574, D = 8-97357-213-0, 97357213, E = 8-97388-651-0, 97388651, G = 8-98041-669-2, 98041669 		8-97147-453-0 01 1 -
23 06.609 PLATE; SIDE,OIL PUMP
ASM PART: B = 8-97258-461-3, 97258461 		8-97182-094-0 01 1 -
23 06.609 PLATE; SIDE,OIL PUMP
ASM PART: C = 8-97354-730-0, 97354730 		8-97354-679-0 01 1 -
23 06.609 PLATE; SIDE,OIL PUMP
ASM PART: F = 8-98006-825-3, 98006825 		8-98061-404-0 01 1 -
25 06.608 PIN; HSG,P/S
(A) ASM PART: B = 8-97258-461-3, 97258461 		1-19519-052-0 02 1 -
25 06.608 PIN; HSG,P/S
(D) ASM PART: A = 8-97136-574-1, 97136574 		8-94379-646-0 01 1 -
25 06.608 PIN; HSG,P/S
(C) ASM PART: C = 8-97354-730-0, 97354730 		8-97081-859-0 02 1 -
25 06.608 PIN; HSG,P/S
(B) ASM PART: B = 8-97258-461-3, 97258461 		8-97182-104-0 02 1 -
25 06.608 PIN; HSG,P/S
(E) ASM PART: F = 8-98006-825-3, 98006825 		8-98061-412-0 02 1 -
27 06.624 VALVE ASM; OIL PUMP
ASM PART: A = 8-97136-574-1, 97136574, D = 8-97357-213-0, 97357213, E = 8-97388-651-0, 97388651 		8-97075-587-0 01 1 -
27 06.624 VALVE ASM; OIL PUMP
ASM PART: C = 8-97354-730-0, 97354730 		8-97094-142-0 01 1 -
27 06.624 VALVE ASM; OIL PUMP
ASM PART: G = 8-98041-669-2, 98041669 		8-97134-862-0 01 1 -
27 06.624 VALVE ASM; OIL PUMP
ASM PART: F = 8-98006-825-3, 98006825 		8-98061-410-0 01 1 -
29 06.609 GASKET; PLUG TO VLV
(A) ASM PART: A = 8-97136-574-1, 97136574, D = 8-97357-213-0, 97357213, E = 8-97388-651-0, 97388651, G = 8-98041-669-2, 98041669 		8-94379-658-0 01 1 -
29 06.609 GASKET; PLUG TO VLV
(B) ASM PART: A = 8-97136-574-1, 97136574, D = 8-97357-213-0, 97357213, E = 8-97388-651-0, 97388651, G = 8-98041-669-2, 98041669 		8-94379-659-0 01 1 -
29 06.609 GASKET; PLUG TO VLV
06.674, (C) ASM PART: A = 8-97136-574-1, 97136574, D = 8-97357-213-0, 97357213, E = 8-97388-651-0, 97388651, G = 8-98041-669-2, 98041669 		8-94379-666-0 01 1 -
29 06.609 GASKET; PLUG TO VLV
(D) ASM PART: A = 8-97136-574-1, 97136574, D = 8-97357-213-0, 97357213, E = 8-97388-651-0, 97388651, G = 8-98041-669-2, 98041669 		8-97075-581-0 01 1 -
29 06.609 GASKET; PLUG TO VLV
(I) ASM PART: F = 8-98006-825-3, 98006825 		8-98061-421-0 01 1 -
29 06.609 GASKET; PLUG TO VLV
(J) ASM PART: F = 8-98006-825-3, 98006825 		8-98061-422-0 01 1 -
29 06.609 GASKET; PLUG TO VLV
(G), ID=11.0 ASM PART: B = 8-97258-461-3, 97258461 		9-09561-111-0 02 1 -
29 06.609 GASKET; PLUG TO VLV
(H), ID=13.0 ASM PART: B = 8-97258-461-3, 97258461 		9-09561-113-0 02 1 -
29 06.609 GASKET; PLUG TO VLV
06.635, (E) ASM PART: B = 8-97258-461-3, 97258461 		9-48429-028-0 01 1 -
29 06.609 GASKET; PLUG TO VLV
(F) ASM PART: B = 8-97258-461-3, 97258461 		9-88510-248-0 01 1 -
32 06.606 SPRING; OIL PUMP
06.612, (C) ASM PART: A = 8-97136-574-1, 97136574, D = 8-97357-213-0, 97357213, E = 8-97388-651-0, 97388651, G = 8-98041-669-2, 98041669 		8-94379-654-0 01 1 -
32 06.606 SPRING; OIL PUMP
06.612, (A) ASM PART: B = 8-97258-461-3, 97258461 		8-94475-376-0 01 1 -
32 06.606 SPRING; OIL PUMP
(D) ASM PART: C = 8-97354-730-0, 97354730 		8-97064-982-0 01 1 -
32 06.606 SPRING; OIL PUMP
(E) ASM PART: C = 8-97354-730-0, 97354730 		8-97064-987-0 01 1 -
32 06.606 SPRING; OIL PUMP
(F) ASM PART: F = 8-98006-825-3, 98006825 		8-98061-411-0 01 1 -
32 06.606 SPRING; OIL PUMP
06.612, (B) ASM PART: B = 8-97258-461-3, 97258461 		9-19529-013-0 01 1 -
33 06.606 BOLT; COVER
(E) ASM PART: B = 8-97258-461-3, 97258461 		1-44519-119-0 04 1 -
33 06.606 BOLT; COVER
(C) ASM PART: B = 8-97258-461-3, 97258461 		1-48119-054-0 02 1 -
33 06.606 BOLT; COVER
06.608, (B) ASM PART: A = 8-97136-574-1, 97136574, D = 8-97357-213-0, 97357213, E = 8-97388-651-0, 97388651, G = 8-98041-669-2, 98041669 		8-97029-773-0 03 1 -
33 06.606 BOLT; COVER
(G) ASM PART: C = 8-97354-730-0, 97354730 		8-97064-979-0 04 1 -
33 06.606 BOLT; COVER
(A) ASM PART: A = 8-97136-574-1, 97136574, D = 8-97357-213-0, 97357213, E = 8-97388-651-0, 97388651, G = 8-98041-669-2, 98041669 		8-97075-585-0 01 1 -
33 06.606 BOLT; COVER
(F) ASM PART: B = 8-97258-461-3, 97258461 		8-97182-100-0 01 1 -
33 06.606 BOLT; COVER
(D) ASM PART: B = 8-97258-461-3, 97258461 		8-97182-110-0 02 1 -
33 06.606 BOLT; COVER
(H) ASM PART: F = 8-98006-825-3, 98006825 		8-98061-385-0 04 1 -
35 06.602 PIPE; HOSE CONN,OIL PUMP
(C) ASM PART: A = 8-97136-574-1, 97136574, D = 8-97357-213-0, 97357213 		8-97091-932-0 01 1 -
35 06.602 PIPE; HOSE CONN,OIL PUMP
(A) ASM PART: B = 8-97258-461-3, 97258461 		8-97182-101-0 01 1 -
35 06.602 PIPE; HOSE CONN,OIL PUMP
(B) ASM PART: B = 8-97258-461-3, 97258461 		8-97258-420-1 01 1 -
35 06.602 PIPE; HOSE CONN,OIL PUMP
(C) ASM PART: E = 8-97388-651-0, 97388651 		8-97388-640-0 01 1 -
35 06.602 PIPE; HOSE CONN,OIL PUMP
(C) ASM PART: G = 8-98041-669-2, 98041669 		8-98042-392-0 01 1 -
35 06.602 PIPE; HOSE CONN,OIL PUMP
(C) ASM PART: F = 8-98006-825-3, 98006825 		8-98061-415-0 01 1 -
36 06.602 BOLT; CONN,PIPE
ASM PART: A = 8-97136-574-1, 97136574, D = 8-97357-213-0, 97357213, E = 8-97388-651-0, 97388651, G = 8-98041-669-2, 98041669 		8-94379-664-0 02 1 -
36 06.602 BOLT; CONN,PIPE
ASM PART: B = 8-97258-461-3, 97258461 		8-94461-139-1 04 1 -
36 06.602 BOLT; CONN,PIPE
ASM PART: F = 8-98006-825-3, 98006825 		8-98061-418-0 02 1 -
37 06.635 GASKET; PIPE CONN,OIL PUMP
ASM PART: B = 8-97258-461-3, 97258461 		1-19519-292-0 02 1 -
37 06.635 GASKET; PIPE CONN,OIL PUMP
ASM PART: A = 8-97136-574-1, 97136574, D = 8-97357-213-0, 97357213 		8-97029-777-0 01 1 -
37 06.635 GASKET; PIPE CONN,OIL PUMP
ASM PART: E = 8-97388-651-0, 97388651 		8-97184-767-0 01 1 -
37 06.635 GASKET; PIPE CONN,OIL PUMP
ASM PART: G = 8-98041-669-2, 98041669 		8-97357-781-0 01 1 -
37 06.635 GASKET; PIPE CONN,OIL PUMP
ASM PART: F = 8-98006-825-3, 98006825 		8-98061-417-0 01 1 -
38 06.624 CONNECTOR; OIL PUMP
(C) ASM PART: A = 8-97136-574-1, 97136574 		8-97029-775-1 01 1 -
38 06.624 CONNECTOR; OIL PUMP
(C) ASM PART: D = 8-97357-213-0, 97357213, E = 8-97388-651-0, 97388651, G = 8-98041-669-2, 98041669 		8-97093-504-0 01 1 -
38 06.624 CONNECTOR; OIL PUMP
(A) ASM PART: B = 8-97258-461-3, 97258461 		8-97182-098-0 01 1 -
38 06.624 CONNECTOR; OIL PUMP
(B) ASM PART: B = 8-97258-461-3, 97258461 		8-97182-109-0 01 1 -
38 06.624 CONNECTOR; OIL PUMP
(D) ASM PART: C = 8-97354-730-0, 97354730 		8-97354-941-0 01 1 -
38 06.624 CONNECTOR; OIL PUMP
(E) ASM PART: C = 8-97354-730-0, 97354730 		8-97354-943-0 01 1 -
38 06.624 CONNECTOR; OIL PUMP
(F) ASM PART: F = 8-98006-825-3, 98006825 		8-98061-407-0 01 1 -

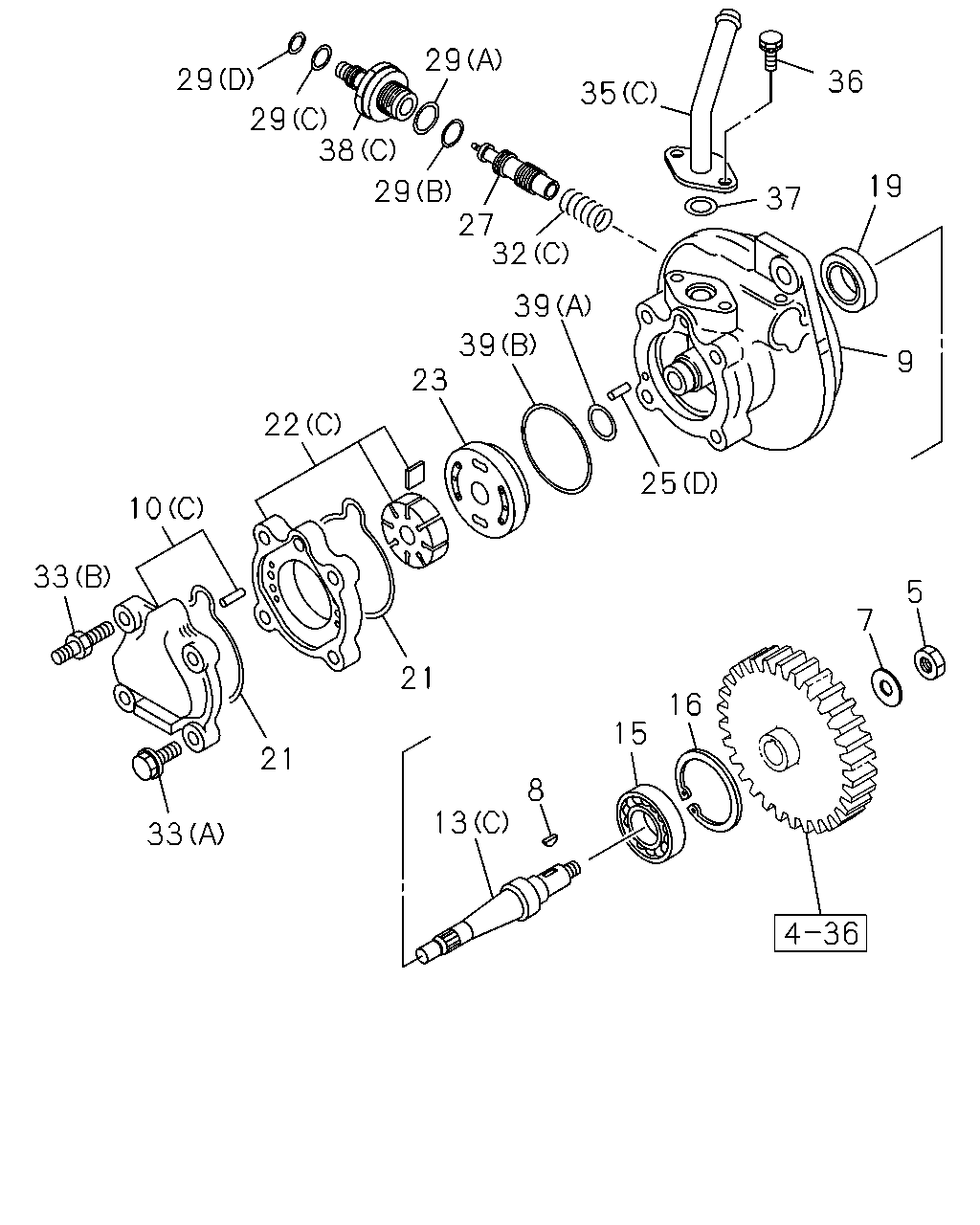

çizim 54475
29 29 36 35 29 38 19 29 27 32 37 39 39 23 9 22 25 10 33 5 7 21 16 15 21 8 13 33
BalonParca AdiParca NoAdetTipApplied Date
5 06.635 NUT; SHAFT,P/S PUMP
ASM PART: A = 8-97136-574-1, 97136574 		8-97029-780-0 01 1 -
7 06.635 WASHER; SHAFT
ASM PART: A = 8-97136-574-1, 97136574 		8-97029-779-0 01 1 -
8 06.616 KEY; SHAFT,OIL PUMP
ASM PART: A = 8-97136-574-1, 97136574 		8-97029-778-0 01 1 -
8 06.616 KEY; SHAFT,OIL PUMP
ASM PART: B = 8-97258-461-3, 97258461 		9-19519-089-0 01 1 -
9 06.608 BODY ASM; FRT,OIL PUMP
ASM PART: A = 8-97136-574-1, 97136574 		8-97029-764-1 01 1 -
9 06.608 BODY ASM; FRT,OIL PUMP
ASM PART: B = 8-97258-461-3, 97258461 		8-97182-095-0 01 1 -
9 06.608 BODY ASM; FRT,OIL PUMP
ASM PART: C = 8-97354-730-0, 97354730 		8-97354-933-0 01 1 -
9 06.608 BODY ASM; FRT,OIL PUMP
ASM PART: D = 8-97357-213-0, 97357213 		8-97369-595-0 01 1 -
9 06.608 BODY ASM; FRT,OIL PUMP
ASM PART: E = 8-97388-651-0, 97388651 		8-97388-641-0 01 1 -
9 06.608 BODY ASM; FRT,OIL PUMP
ASM PART: G = 8-98041-669-2, 98041669 		8-98042-394-0 01 1 -
9 06.608 BODY ASM; FRT,OIL PUMP
ASM PART: F = 8-98006-825-3, 98006825 		8-98061-428-1 01 1 -
10 06.608 BODY ASM; RR,OIL PUMP
(C) ASM PART: A = 8-97136-574-1, 97136574, D = 8-97357-213-0, 97357213, E = 8-97388-651-0, 97388651, G = 8-98041-669-2, 98041669 		8-97029-772-0 01 1 -
10 06.608 BODY ASM; RR,OIL PUMP
(D) ASM PART: C = 8-97354-730-0, 97354730 		8-97102-294-0 01 1 -
10 06.608 BODY ASM; RR,OIL PUMP
(B) ASM PART: B = 8-97258-461-3, 97258461 		8-97182-097-0 01 1 -
10 06.608 BODY ASM; RR,OIL PUMP
(A) ASM PART: B = 8-97258-461-3, 97258461 		8-97182-108-0 01 1 -
10 06.608 BODY ASM; RR,OIL PUMP
06.609, (E) ASM PART: F = 8-98006-825-3, 98006825 		8-98159-587-0 01 1 -
13 06.605 SHAFT KIT; RET
06.614, (C) ASM PART: A = 8-97136-574-1, 97136574 		8-97029-766-0 01 1 -
13 06.605 SHAFT KIT; RET
(A) ASM PART: B = 8-97258-461-3, 97258461 		8-97182-096-0 01 1 -
13 06.605 SHAFT KIT; RET
(B) ASM PART: B = 8-97258-461-3, 97258461 		8-97182-105-0 01 1 -
13 06.605 SHAFT KIT; RET
(D) ASM PART: C = 8-97354-730-0, 97354730 		8-97354-935-0 01 1 -
15 06.616 BEARING; BALL,OIL PUMP
ASM PART: B = 8-97258-461-3, 97258461 		1-19519-264-0 01 1 -
15 06.616 BEARING; BALL,OIL PUMP
ASM PART: A = 8-97136-574-1, 97136574 		8-97075-578-0 01 1 -
16 06.616 RING; RET,OIL PUMP
ASM PART: B = 8-97258-461-3, 97258461 		1-19519-258-0 01 1 -
16 06.616 RING; RET,OIL PUMP
ASM PART: A = 8-97136-574-1, 97136574 		8-97029-768-0 01 1 -
19 06.617 SEAL; OIL,OIL PUMP
ASM PART: A = 8-97136-574-1, 97136574 		8-97075-577-0 01 1 -
21 06.609 GASKET; FRT COVER TO BODY
ASM PART: A = 8-97136-574-1, 97136574, D = 8-97357-213-0, 97357213, E = 8-97388-651-0, 97388651, G = 8-98041-669-2, 98041669 		8-97062-329-0 02 1 -
22 06.610 CARTRIDGE ASM; OIL PUMP
(C) ASM PART: A = 8-97136-574-1, 97136574, D = 8-97357-213-0, 97357213, E = 8-97388-651-0, 97388651, G = 8-98041-669-2, 98041669 		8-97148-690-0 01 1 -
22 06.610 CARTRIDGE ASM; OIL PUMP
(A) ASM PART: B = 8-97258-461-3, 97258461 		8-97182-092-0 01 1 -
22 06.610 CARTRIDGE ASM; OIL PUMP
(B) ASM PART: B = 8-97258-461-3, 97258461 		8-97182-102-0 01 1 -
22 06.610 CARTRIDGE ASM; OIL PUMP
(D) ASM PART: C = 8-97354-730-0, 97354730 		8-97313-095-0 01 1 -
22 06.610 CARTRIDGE ASM; OIL PUMP
(E) ASM PART: F = 8-98006-825-3, 98006825 		8-98061-406-0 01 1 -
23 06.609 PLATE; SIDE,OIL PUMP
ASM PART: A = 8-97136-574-1, 97136574, D = 8-97357-213-0, 97357213, E = 8-97388-651-0, 97388651, G = 8-98041-669-2, 98041669 		8-97147-453-0 01 1 -
23 06.609 PLATE; SIDE,OIL PUMP
ASM PART: B = 8-97258-461-3, 97258461 		8-97182-094-0 01 1 -
23 06.609 PLATE; SIDE,OIL PUMP
ASM PART: C = 8-97354-730-0, 97354730 		8-97354-679-0 01 1 -
23 06.609 PLATE; SIDE,OIL PUMP
ASM PART: F = 8-98006-825-3, 98006825 		8-98061-404-0 01 1 -
25 06.608 PIN; HSG,P/S
(A) ASM PART: B = 8-97258-461-3, 97258461 		1-19519-052-0 02 1 -
25 06.608 PIN; HSG,P/S
(D) ASM PART: A = 8-97136-574-1, 97136574 		8-94379-646-0 01 1 -
25 06.608 PIN; HSG,P/S
(C) ASM PART: C = 8-97354-730-0, 97354730 		8-97081-859-0 02 1 -
25 06.608 PIN; HSG,P/S
(B) ASM PART: B = 8-97258-461-3, 97258461 		8-97182-104-0 02 1 -
25 06.608 PIN; HSG,P/S
(E) ASM PART: F = 8-98006-825-3, 98006825 		8-98061-412-0 02 1 -
27 06.624 VALVE ASM; OIL PUMP
ASM PART: A = 8-97136-574-1, 97136574, D = 8-97357-213-0, 97357213, E = 8-97388-651-0, 97388651 		8-97075-587-0 01 1 -
27 06.624 VALVE ASM; OIL PUMP
ASM PART: C = 8-97354-730-0, 97354730 		8-97094-142-0 01 1 -
27 06.624 VALVE ASM; OIL PUMP
ASM PART: G = 8-98041-669-2, 98041669 		8-97134-862-0 01 1 -
27 06.624 VALVE ASM; OIL PUMP
ASM PART: F = 8-98006-825-3, 98006825 		8-98061-410-0 01 1 -
29 06.609 GASKET; PLUG TO VLV
(A) ASM PART: A = 8-97136-574-1, 97136574, D = 8-97357-213-0, 97357213, E = 8-97388-651-0, 97388651, G = 8-98041-669-2, 98041669 		8-94379-658-0 01 1 -
29 06.609 GASKET; PLUG TO VLV
(B) ASM PART: A = 8-97136-574-1, 97136574, D = 8-97357-213-0, 97357213, E = 8-97388-651-0, 97388651, G = 8-98041-669-2, 98041669 		8-94379-659-0 01 1 -
29 06.609 GASKET; PLUG TO VLV
06.674, (C) ASM PART: A = 8-97136-574-1, 97136574, D = 8-97357-213-0, 97357213, E = 8-97388-651-0, 97388651, G = 8-98041-669-2, 98041669 		8-94379-666-0 01 1 -
29 06.609 GASKET; PLUG TO VLV
(D) ASM PART: A = 8-97136-574-1, 97136574, D = 8-97357-213-0, 97357213, E = 8-97388-651-0, 97388651, G = 8-98041-669-2, 98041669 		8-97075-581-0 01 1 -
29 06.609 GASKET; PLUG TO VLV
(I) ASM PART: F = 8-98006-825-3, 98006825 		8-98061-421-0 01 1 -
29 06.609 GASKET; PLUG TO VLV
(J) ASM PART: F = 8-98006-825-3, 98006825 		8-98061-422-0 01 1 -
29 06.609 GASKET; PLUG TO VLV
(G), ID=11.0 ASM PART: B = 8-97258-461-3, 97258461 		9-09561-111-0 02 1 -
29 06.609 GASKET; PLUG TO VLV
(H), ID=13.0 ASM PART: B = 8-97258-461-3, 97258461 		9-09561-113-0 02 1 -
29 06.609 GASKET; PLUG TO VLV
06.635, (E) ASM PART: B = 8-97258-461-3, 97258461 		9-48429-028-0 01 1 -
29 06.609 GASKET; PLUG TO VLV
(F) ASM PART: B = 8-97258-461-3, 97258461 		9-88510-248-0 01 1 -
32 06.606 SPRING; OIL PUMP
06.612, (C) ASM PART: A = 8-97136-574-1, 97136574, D = 8-97357-213-0, 97357213, E = 8-97388-651-0, 97388651, G = 8-98041-669-2, 98041669 		8-94379-654-0 01 1 -
32 06.606 SPRING; OIL PUMP
06.612, (A) ASM PART: B = 8-97258-461-3, 97258461 		8-94475-376-0 01 1 -
32 06.606 SPRING; OIL PUMP
(D) ASM PART: C = 8-97354-730-0, 97354730 		8-97064-982-0 01 1 -
32 06.606 SPRING; OIL PUMP
(E) ASM PART: C = 8-97354-730-0, 97354730 		8-97064-987-0 01 1 -
32 06.606 SPRING; OIL PUMP
(F) ASM PART: F = 8-98006-825-3, 98006825 		8-98061-411-0 01 1 -
32 06.606 SPRING; OIL PUMP
06.612, (B) ASM PART: B = 8-97258-461-3, 97258461 		9-19529-013-0 01 1 -
33 06.606 BOLT; COVER
(E) ASM PART: B = 8-97258-461-3, 97258461 		1-44519-119-0 04 1 -
33 06.606 BOLT; COVER
(C) ASM PART: B = 8-97258-461-3, 97258461 		1-48119-054-0 02 1 -
33 06.606 BOLT; COVER
06.608, (B) ASM PART: A = 8-97136-574-1, 97136574, D = 8-97357-213-0, 97357213, E = 8-97388-651-0, 97388651, G = 8-98041-669-2, 98041669 		8-97029-773-0 03 1 -
33 06.606 BOLT; COVER
(G) ASM PART: C = 8-97354-730-0, 97354730 		8-97064-979-0 04 1 -
33 06.606 BOLT; COVER
(A) ASM PART: A = 8-97136-574-1, 97136574, D = 8-97357-213-0, 97357213, E = 8-97388-651-0, 97388651, G = 8-98041-669-2, 98041669 		8-97075-585-0 01 1 -
33 06.606 BOLT; COVER
(F) ASM PART: B = 8-97258-461-3, 97258461 		8-97182-100-0 01 1 -
33 06.606 BOLT; COVER
(D) ASM PART: B = 8-97258-461-3, 97258461 		8-97182-110-0 02 1 -
33 06.606 BOLT; COVER
(H) ASM PART: F = 8-98006-825-3, 98006825 		8-98061-385-0 04 1 -
35 06.602 PIPE; HOSE CONN,OIL PUMP
(C) ASM PART: A = 8-97136-574-1, 97136574, D = 8-97357-213-0, 97357213 		8-97091-932-0 01 1 -
35 06.602 PIPE; HOSE CONN,OIL PUMP
(A) ASM PART: B = 8-97258-461-3, 97258461 		8-97182-101-0 01 1 -
35 06.602 PIPE; HOSE CONN,OIL PUMP
(B) ASM PART: B = 8-97258-461-3, 97258461 		8-97258-420-1 01 1 -
35 06.602 PIPE; HOSE CONN,OIL PUMP
(C) ASM PART: E = 8-97388-651-0, 97388651 		8-97388-640-0 01 1 -
35 06.602 PIPE; HOSE CONN,OIL PUMP
(C) ASM PART: G = 8-98041-669-2, 98041669 		8-98042-392-0 01 1 -
35 06.602 PIPE; HOSE CONN,OIL PUMP
(C) ASM PART: F = 8-98006-825-3, 98006825 		8-98061-415-0 01 1 -
36 06.602 BOLT; CONN,PIPE
ASM PART: A = 8-97136-574-1, 97136574, D = 8-97357-213-0, 97357213, E = 8-97388-651-0, 97388651, G = 8-98041-669-2, 98041669 		8-94379-664-0 02 1 -
36 06.602 BOLT; CONN,PIPE
ASM PART: B = 8-97258-461-3, 97258461 		8-94461-139-1 04 1 -
36 06.602 BOLT; CONN,PIPE
ASM PART: F = 8-98006-825-3, 98006825 		8-98061-418-0 02 1 -
37 06.635 GASKET; PIPE CONN,OIL PUMP
ASM PART: B = 8-97258-461-3, 97258461 		1-19519-292-0 02 1 -
37 06.635 GASKET; PIPE CONN,OIL PUMP
ASM PART: A = 8-97136-574-1, 97136574, D = 8-97357-213-0, 97357213 		8-97029-777-0 01 1 -
37 06.635 GASKET; PIPE CONN,OIL PUMP
ASM PART: E = 8-97388-651-0, 97388651 		8-97184-767-0 01 1 -
37 06.635 GASKET; PIPE CONN,OIL PUMP
ASM PART: G = 8-98041-669-2, 98041669 		8-97357-781-0 01 1 -
37 06.635 GASKET; PIPE CONN,OIL PUMP
ASM PART: F = 8-98006-825-3, 98006825 		8-98061-417-0 01 1 -
38 06.624 CONNECTOR; OIL PUMP
(C) ASM PART: A = 8-97136-574-1, 97136574 		8-97029-775-1 01 1 -
38 06.624 CONNECTOR; OIL PUMP
(C) ASM PART: D = 8-97357-213-0, 97357213, E = 8-97388-651-0, 97388651, G = 8-98041-669-2, 98041669 		8-97093-504-0 01 1 -
38 06.624 CONNECTOR; OIL PUMP
(A) ASM PART: B = 8-97258-461-3, 97258461 		8-97182-098-0 01 1 -
38 06.624 CONNECTOR; OIL PUMP
(B) ASM PART: B = 8-97258-461-3, 97258461 		8-97182-109-0 01 1 -
38 06.624 CONNECTOR; OIL PUMP
(D) ASM PART: C = 8-97354-730-0, 97354730 		8-97354-941-0 01 1 -
38 06.624 CONNECTOR; OIL PUMP
(E) ASM PART: C = 8-97354-730-0, 97354730 		8-97354-943-0 01 1 -
38 06.624 CONNECTOR; OIL PUMP
(F) ASM PART: F = 8-98006-825-3, 98006825 		8-98061-407-0 01 1 -
39 06.609 GASKET; OIL PUMP
(B) ASM PART: A = 8-97136-574-1, 97136574, D = 8-97357-213-0, 97357213, E = 8-97388-651-0, 97388651, G = 8-98041-669-2, 98041669 		8-94379-647-0 01 1 -
39 06.609 GASKET; OIL PUMP
(A) ASM PART: A = 8-97136-574-1, 97136574, D = 8-97357-213-0, 97357213, E = 8-97388-651-0, 97388651, G = 8-98041-669-2, 98041669 		8-97147-441-0 01 1 -
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
