◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50949 - NPR/NQR(EUROPE)-LHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-40 - STEERING UNIT ▶
4-40 — STEERING UNIT (#41344) — 18 parça

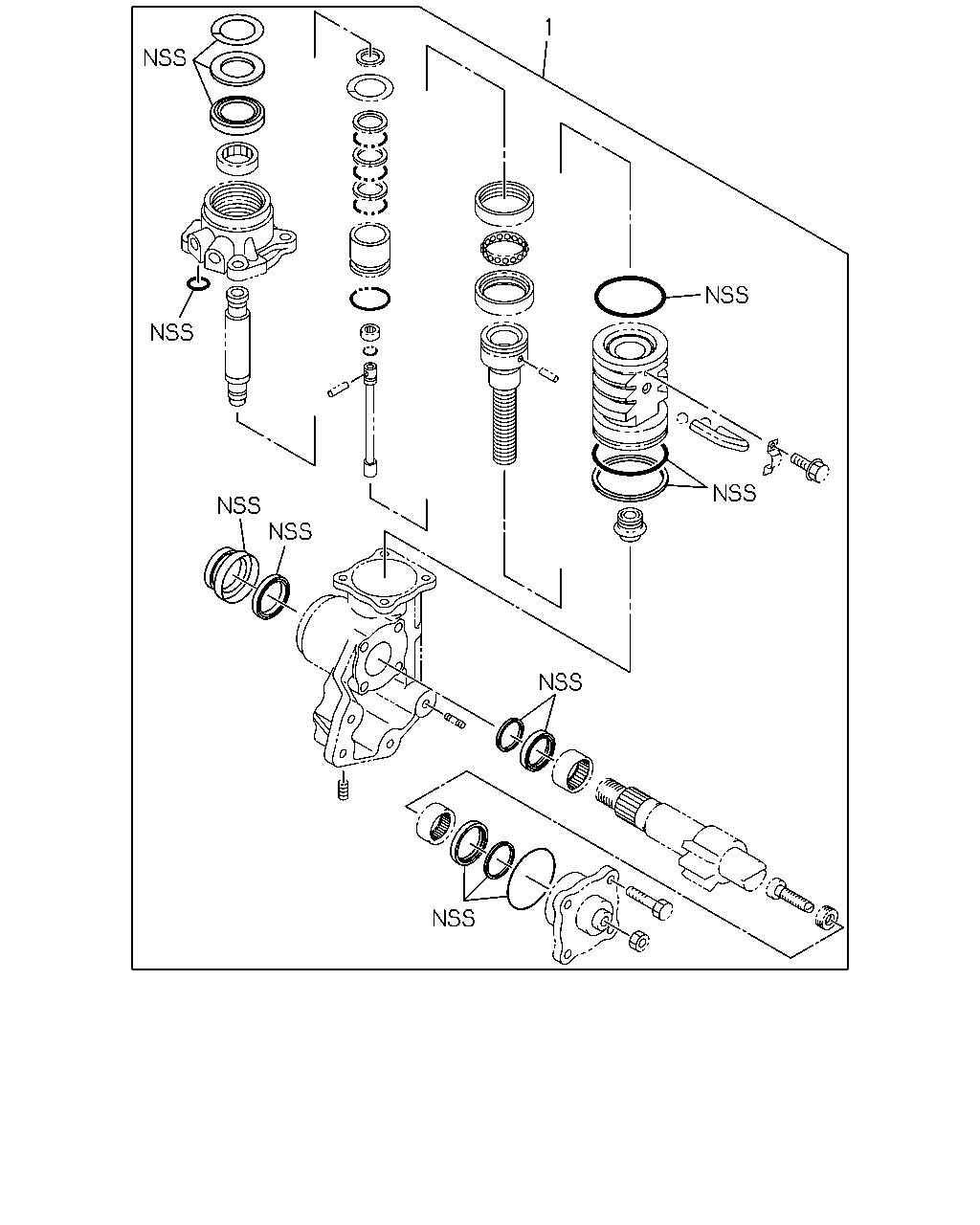

çizim 13818
1
BalonParca AdiParca NoAdetTipApplied Date
1 06.507 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: A = 8-97305-047-8, 97305047 		8-97264-442-0 01 1 -0606
1 06.507 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: A = 8-97305-047-8, 97305047 		8-98172-286-0 01 1 0607-

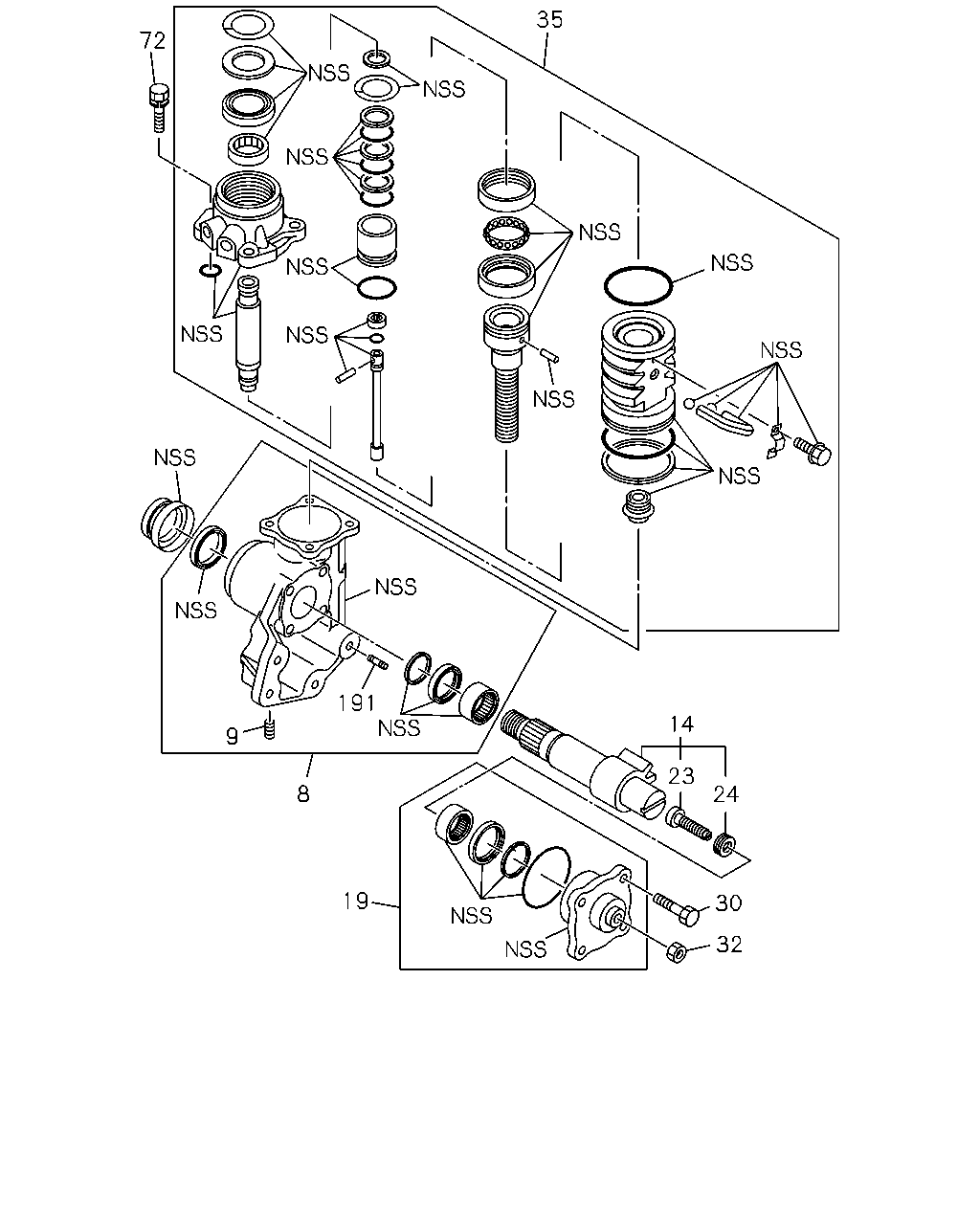

çizim 52087
35 72 191 14 9 23 8 24 19 30 32
BalonParca AdiParca NoAdetTipApplied Date
8 06.803 BOX ASM; STRG UNIT
ASM PART: A = 8-97305-047-8, 97305047 		8-97173-514-2 01 1 -
9 06.806 PLUG; FILLER,STRG UNIT
ASM PART: A = 8-97305-047-8, 97305047 		8-97014-820-0 02 1 -
14 06.850 SHAFT; SECTOR,STRG UNIT
ASM PART: A = 8-97305-047-8, 97305047 		8-97287-203-0 01 1 -
19 06.807 COVER; SIDE STRG UNIT
ASM PART: A = 8-97305-047-8, 97305047 		8-97014-933-1 01 1 -0606
19 06.807 COVER; SIDE STRG UNIT
ASM PART: A = 8-97305-047-8, 97305047 		8-98036-333-0 01 1 0607-
23 06.822 SCREW; ADJ,SECTOR SHAFT,STRG UNI
ASM PART: A = 8-97305-047-8, 97305047 		8-97014-842-0 01 1 -
24 06.822 RETAINER; STRG UNIT
ASM PART: A = 8-97305-047-8, 97305047 		8-97014-841-0 01 1 -
30 06.809 BOLT; COVER STRG UNIT
ASM PART: A = 8-97305-047-8, 97305047 		8-97014-836-0 04 1 -0606
30 06.809 BOLT; COVER STRG UNIT
ASM PART: A = 8-97305-047-8, 97305047 		8-98036-336-0 04 1 0607-
32 06.822 NUT; ADJ SCREW,STRG UNIT
ASM PART: A = 8-97305-047-8, 97305047 		8-97014-834-0 01 1 -0606
32 06.822 NUT; ADJ SCREW,STRG UNIT
ASM PART: A = 8-97305-047-8, 97305047 		8-98036-337-0 01 1 0607-
35 06.586 HOUSING & SCREW ASM; STRG UNIT
ASM PART: A = 8-97305-047-8, 97305047 		8-97287-201-1 01 1 -0606
35 06.586 HOUSING & SCREW ASM; STRG UNIT
ASM PART: A = 8-97305-047-8, 97305047 		8-98112-934-2 01 1 0607-
72 06.550 BOLT; HSG FIX STRG UNIT
ASM PART: A = 8-97305-047-8, 97305047 		1-44519-110-0 04 1 -0606
72 06.550 BOLT; HSG FIX STRG UNIT
ASM PART: A = 8-97305-047-8, 97305047 		8-98036-335-0 04 1 0607-
191 06.809 STUD; STRG UNIT
ASM PART: A = 8-97305-047-8, 97305047 		8-97078-173-0 01 1 -
