1 |

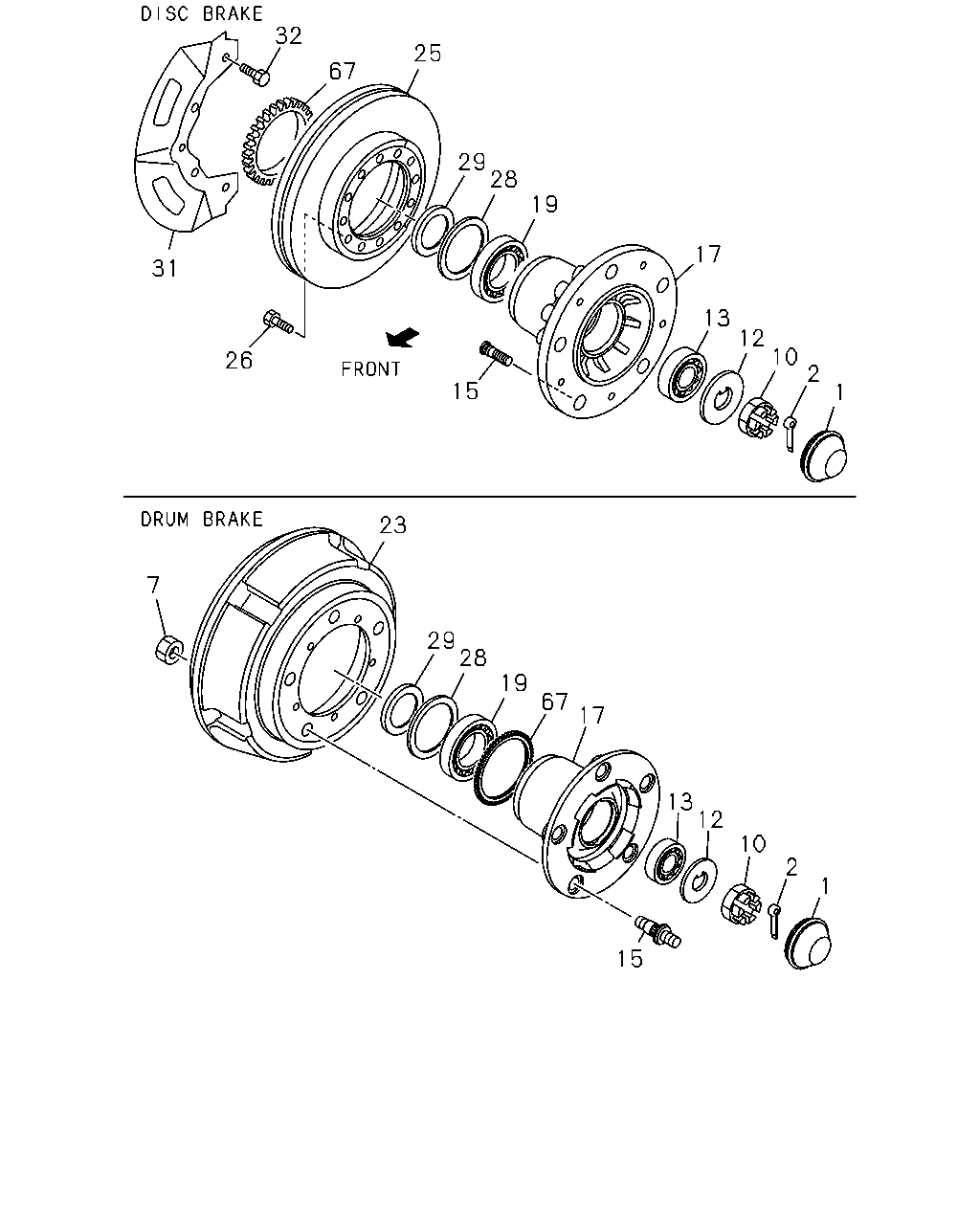

06.330 CAP; HUB,FRT AXLE
|
8-97012-619-0 |
02 |
1 |
0302-0506 |
● |
● |
● |
● |
● |
● |
● |
| |
1 |
06.330 CAP; HUB,FRT AXLE
|
8-97012-619-0 |
02 |
1 |
0507-0611 |
● |
● |
● |
|
● |
● |
● |
| |
1 |
06.330 CAP; HUB,FRT AXLE
|
8-97360-101-0 |
02 |
1 |
0612- |
● |
● |
● |
|
● |
● |
● |
| |
2 |
05.812 PIN; SPLIT,HUB TO AXLE SHAFT
OD=4.6 L=40
|
9-08115-040-0 |
02 |
1 |
0302-0506 |
● |
● |
● |
● |
● |
● |
● |
| |
2 |
05.812 PIN; SPLIT,HUB TO AXLE SHAFT
OD=4.6 L=40
|
9-08115-040-0 |
02 |
1 |
0507-0606 |
● |
● |
● |
|
● |
● |
● |
| |
2 |
05.812 PIN; SPLIT,HUB TO AXLE SHAFT
OD=4.6 L=40
|
0-81125-040-0 |
02 |
1 |
0607- |
● |
● |
● |
|
● |
● |
● |
| |
7 |
05.812 NUT; FRT HUB
G.V.W. 3.5-4.0TON(RPQ)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
DISC BRAKE FRT<J52>
07.172
M22
|
0-91110-522-0 |
12 |
1 |
0607- |
|
● |
|
|
|
● |
|
| |
7 |
05.812 NUT; FRT HUB
G.V.W. 7.5-8.0TON(RPY)
EXC. DISC BRAKE FRT<J52>
07.172
M22
|
0-91110-522-0 |
12 |
1 |
0607- |
|
● |
|
|
|
|
|
| |
7 |
05.812 NUT; FRT HUB
G.V.W. 7.5-8.0TON(RPY)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
DISC BRAKE FRT<J52>,HYDRO BRAKE BOOSTE
R<7QQ>
07.172
M22
|
0-91110-522-0 |
12 |
1 |
0607- |
|
● |
|
|
|
|
|
| |
7 |
05.812 NUT; FRT HUB
G.V.W. 6.0-6.5TON(RPV)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
DISC BRAKE FRT<J52>
M20
|
0-91110-520-0 |
10 |
1 |
0607- |
|
● |
|
|
|
● |
|
| |
10 |
05.812 NUT; FRT HUB BRG
06.022
|
8-94247-357-1 |
02 |
1 |
0302-0506 |
● |
● |
● |
● |
● |
● |
● |
| |
10 |
05.812 NUT; FRT HUB BRG
06.022
|
8-94247-357-1 |
02 |
1 |
0507- |
● |
● |
● |
|
● |
● |
● |
| |
12 |
06.321 WASHER; LK,FRT HUB BRG
|
8-94247-356-1 |
02 |
1 |
0302-0506 |
● |
● |
● |
● |
● |
● |
● |
| |
12 |
06.321 WASHER; LK,FRT HUB BRG
|
8-94247-356-1 |
02 |
1 |
0507- |
● |
● |
● |
|
● |
● |
● |
| |
13 |
06.313 BEARING; HUB OUTER,FRT AXLE
NSK
|
9-00093-172-0 |
02 |
1 |
0302-0506 |
● |
● |
● |
● |
● |
● |
● |
| |
13 |
06.313 BEARING; HUB OUTER,FRT AXLE
NSK
|
9-00093-172-0 |
02 |
1 |
0507- |
● |
● |
● |
|
● |
● |
● |
| |
15 |
05.812 PIN; WHEEL,FRT AXLE
FRAME STRAIGHT TYPE<7KJ>
M20X53 LH THREAD
|
8-97168-457-0 |
06 |
1 |
0302-0506 |
● |
● |
● |
● |
● |
● |
● |
| |
15 |
05.812 PIN; WHEEL,FRT AXLE
4 WHEEL ANTI LOCK BRAKE<JE5>
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.5-8.0TON(RPY)
M20X53 LH THREAD
|
8-97168-457-0 |
06 |
1 |
0507-0606 |
|
● |
● |
|
● |
● |
● |
| |
15 |
05.812 PIN; WHEEL,FRT AXLE
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.5-8.0TON(RPY)
4 WHEEL ANTI LOCK BRAKE<JE5>
DISC BRAKE FRT<J52>
M20X53 LH THREAD
|
8-97168-457-1 |
06 |
1 |
0607- |
|
● |
|
|
|
● |
|
| |
15 |
05.812 PIN; WHEEL,FRT AXLE
M20X53 LH THREAD
|
8-97168-457-1 |
06 |
1 |
0607- |
|
|
● |
|
● |
|
● |
| |
15 |
05.812 PIN; WHEEL,FRT AXLE
FRAME STRAIGHT TYPE<7KJ>
M20X53 RH THREAD
|
8-97168-456-0 |
06 |
1 |
0302-0506 |
● |
● |
● |
● |
● |
● |
● |
| |
15 |
05.812 PIN; WHEEL,FRT AXLE
4 WHEEL ANTI LOCK BRAKE<JE5>
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.5-8.0TON(RPY)
M20X53 RH THREAD
|
8-97168-456-0 |
06 |
1 |
0507-0606 |
|
● |
● |
|
● |
● |
● |
| |
15 |
05.812 PIN; WHEEL,FRT AXLE
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.5-8.0TON(RPY)
4 WHEEL ANTI LOCK BRAKE<JE5>
DISC BRAKE FRT<J52>
M20X53 RH THREAD
|
8-97168-456-1 |
06 |
1 |
0607- |
|
● |
|
|
|
● |
|
| |
15 |
05.812 PIN; WHEEL,FRT AXLE
M20X53 RH THREAD
|
8-97168-456-1 |
06 |
1 |
0607- |
|
|
● |
|
● |
|
● |
| |
15 |
05.812 PIN; WHEEL,FRT AXLE
EXC. FRAME STRAIGHT TYPE<7KJ>
M18X46 LH THREAD
|
8-97017-042-0 |
05 |
1 |
0302-0506 |
● |
● |
|
|
|
● |
|
| |
15 |
05.812 PIN; WHEEL,FRT AXLE
G.V.W. 3.5-4.0TON(RPQ)
M18X46 LH THREAD
|
8-97017-042-0 |
05 |
1 |
0507-0605 |
● |
● |
|
|
|
● |
|
| |
15 |
05.812 PIN; WHEEL,FRT AXLE
4 WHEEL ANTI LOCK BRAKE<JE5>
G.V.W. 5.0-5.5TON(RPT)
M18X46 LH THREAD
|
8-97017-042-0 |
05 |
1 |
0507-0605 |
|
● |
|
|
|
|
|
| |
15 |
05.812 PIN; WHEEL,FRT AXLE
G.V.W. 3.5-4.0TON(RPQ)
M18X46 LH THREAD
|
8-98028-533-0 |
05 |
1 |
0606-0606 |
● |
● |
|
|
|
● |
|
| |
15 |
05.812 PIN; WHEEL,FRT AXLE
4 WHEEL ANTI LOCK BRAKE<JE5>
G.V.W. 5.0-5.5TON(RPT)
M18X46 LH THREAD
|
8-98028-533-0 |
05 |
1 |
0606-0606 |
|
● |
|
|
|
|
|
| |
15 |
05.812 PIN; WHEEL,FRT AXLE
M18X46 LH THREAD
|
8-98028-533-1 |
05 |
1 |
0607- |
● |
|
|
|
|
|
|
| |
15 |
05.812 PIN; WHEEL,FRT AXLE
4 WHEEL ANTI LOCK BRAKE<JE5>
DISC BRAKE FRT<J52>
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
5.0-5.5TON(RPT)
EXC. HYDRO BRAKE BOOSTER<7QQ>
M18X46 LH THREAD
|
8-98028-533-1 |
05 |
1 |
0607- |
|
● |
|
|
|
● |
|
| |
15 |
05.812 PIN; WHEEL,FRT AXLE
DISC BRAKE FRT<J52>
G.V.W. 3.5-4.0TON(RPQ)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
HYDRO BRAKE BOOSTER<7QQ>
M18X46 LH THREAD
|
8-98028-533-1 |
05 |
1 |
0607- |
|
● |
|
|
|
● |
|
| |
15 |
05.812 PIN; WHEEL,FRT AXLE
EXC. FRAME STRAIGHT TYPE<7KJ>
M18X46 RH THREAD
|
8-97017-041-0 |
05 |
1 |
0302-0506 |
● |
● |
|
|
|
● |
|
| |
15 |
05.812 PIN; WHEEL,FRT AXLE
G.V.W. 3.5-4.0TON(RPQ)
M18X46 RH THREAD
|
8-97017-041-0 |
05 |
1 |
0507-0605 |
● |
● |
|
|
|
● |
|
| |
15 |
05.812 PIN; WHEEL,FRT AXLE
4 WHEEL ANTI LOCK BRAKE<JE5>
G.V.W. 5.0-5.5TON(RPT)
M18X46 RH THREAD
|
8-97017-041-0 |
05 |
1 |
0507-0605 |
|
● |
|
|
|
|
|
| |
15 |
05.812 PIN; WHEEL,FRT AXLE
G.V.W. 3.5-4.0TON(RPQ)
M18X46 RH THREAD
|
8-98028-532-0 |
05 |
1 |
0606-0606 |
● |
● |
|
|
|
● |
|
| |
15 |
05.812 PIN; WHEEL,FRT AXLE
4 WHEEL ANTI LOCK BRAKE<JE5>
G.V.W. 5.0-5.5TON(RPT)
M18X46 RH THREAD
|
8-98028-532-0 |
05 |
1 |
0606-0606 |
|
● |
|
|
|
|
|
| |
15 |
05.812 PIN; WHEEL,FRT AXLE
M18X46 RH THREAD
|
8-98028-532-1 |
05 |
1 |
0607- |
● |
|
|
|
|
|
|
| |
15 |
05.812 PIN; WHEEL,FRT AXLE
4 WHEEL ANTI LOCK BRAKE<JE5>
DISC BRAKE FRT<J52>
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
5.0-5.5TON(RPT)
EXC. HYDRO BRAKE BOOSTER<7QQ>
M18X46 RH THREAD
|
8-98028-532-1 |
05 |
1 |
0607- |
|
● |
|
|
|
● |
|
| |
15 |
05.812 PIN; WHEEL,FRT AXLE
DISC BRAKE FRT<J52>
G.V.W. 3.5-4.0TON(RPQ)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
HYDRO BRAKE BOOSTER<7QQ>
M18X46 RH THREAD
|
8-98028-532-1 |
05 |
1 |
0607- |
|
● |
|
|
|
● |
|
| |
15 |
05.812 PIN; WHEEL,FRT AXLE
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
7.5-8.0TON(RPY)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
DISC BRAKE FRT<J52>,HYDRO BRAKE BOOSTE
R<7QQ>
M20X28 LH THREAD,M22X57 RH THREAD
|
8-97081-585-3 |
06 |
1 |
0607- |
|
● |
|
|
|
|
|
| |
15 |
05.812 PIN; WHEEL,FRT AXLE
G.V.W. 3.5-4.0TON(RPQ)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
DISC BRAKE FRT<J52>
M20X28 LH THREAD,M22X57 RH THREAD
|
8-97081-585-3 |
06 |
1 |
0607- |
|
|
|
|
|
● |
|
| |
15 |
05.812 PIN; WHEEL,FRT AXLE
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
7.5-8.0TON(RPY)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
DISC BRAKE FRT<J52>,HYDRO BRAKE BOOSTE
R<7QQ>
M20X28,M22X57 RH THREAD
|
8-97081-584-3 |
06 |
1 |
0607- |
|
● |
|
|
|
|
|
| |
15 |
05.812 PIN; WHEEL,FRT AXLE
G.V.W. 3.5-4.0TON(RPQ)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
DISC BRAKE FRT<J52>
M20X28,M22X57 RH THREAD
|
8-97081-584-3 |
06 |
1 |
0607- |
|
|
|
|
|
● |
|
| |
15 |
05.812 PIN; WHEEL,FRT AXLE
G.V.W. 7.5-8.0TON(RPY)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
DISC BRAKE FRT<J52>,HYDRO BRAKE BOOSTE
R<7QQ>
M20X28 LH THREAD,M22X50 RH THREAD
|
8-97131-284-2 |
06 |
1 |
0607- |
|
● |
|
|
|
|
|
| |
15 |
05.812 PIN; WHEEL,FRT AXLE
G.V.W. 7.5-8.0TON(RPY)
HYDRO BRAKE BOOSTER<7QQ>
EXC. DISC BRAKE FRT<J52>
M20X28 LH THREAD,M22X50 RH THREAD
|
8-97131-284-2 |
06 |
1 |
0607- |
|
● |
|
|
|
|
|
| |
15 |
05.812 PIN; WHEEL,FRT AXLE
G.V.W. 7.5-8.0TON(RPY)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
DISC BRAKE FRT<J52>,HYDRO BRAKE BOOSTE
R<7QQ>
M20X28,M22X50 RH THREAD
|
8-97131-283-2 |
06 |
1 |
0607- |
|
● |
|
|
|
|
|
| |
15 |
05.812 PIN; WHEEL,FRT AXLE
G.V.W. 7.5-8.0TON(RPY)
HYDRO BRAKE BOOSTER<7QQ>
EXC. DISC BRAKE FRT<J52>
M20X28,M22X50 RH THREAD
|
8-97131-283-2 |
06 |
1 |
0607- |
|
● |
|
|
|
|
|
| |
15 |
05.812 PIN; WHEEL,FRT AXLE
G.V.W. 6.0-6.5TON(RPV)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
DISC BRAKE FRT<J52>
M18X29 LH THREAD,M20X43.5 RH THREAD
|
8-94383-437-2 |
05 |
1 |
0607- |
|
● |
|
|
|
● |
|
| |
15 |
05.812 PIN; WHEEL,FRT AXLE
G.V.W. 6.0-6.5TON(RPV)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
DISC BRAKE FRT<J52>
M18X29,M20X43.5 RH THREAD
|
8-94383-436-2 |
05 |
1 |
0607- |
|
● |
|
|
|
● |
|
| |
17 |
06.307 HUB; FRT AXLE
FRAME STRAIGHT TYPE<7KJ>
|
8-97168-460-0 |
02 |
1 |
0302-0506 |
● |
● |
● |
● |
● |
● |
● |
| |
17 |
06.307 HUB; FRT AXLE
4 WHEEL ANTI LOCK BRAKE<JE5>
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.5-8.0TON(RPY)
|
8-97168-460-0 |
02 |
1 |
0507-0606 |
|
● |
● |
|
● |
● |
● |
| |
17 |
06.307 HUB; FRT AXLE
G.V.W. 6.0-6.5TON(RPV),G.V.W.
7.5-8.0TON(RPY)
4 WHEEL ANTI LOCK BRAKE<JE5>
DISC BRAKE FRT<J52>
|
8-97168-460-0 |
02 |
1 |
0607- |
|
● |
|
|
|
● |
|
| |
17 |
06.307 HUB; FRT AXLE
|
8-97168-460-0 |
02 |
1 |
0607- |
|
|
● |
|
● |
|
● |
| |
17 |
06.307 HUB; FRT AXLE
4 WHEEL ANTI LOCK BRAKE<JE5>
EXC. FRAME STRAIGHT TYPE<7KJ>
|
8-97035-160-0 |
02 |
1 |
0302-0506 |
● |
● |
|
|
|
● |
|
| |
17 |
06.307 HUB; FRT AXLE
4 WHEEL ANTI LOCK BRAKE<JE5>
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
5.0-5.5TON(RPT)
|
8-97035-160-0 |
02 |
1 |
0507-0606 |
● |
● |
|
|
|
● |
|
| |
17 |
06.307 HUB; FRT AXLE
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
5.0-5.5TON(RPT)
4 WHEEL ANTI LOCK BRAKE<JE5>
DISC BRAKE FRT<J52>
|
8-97035-160-0 |
02 |
1 |
0607- |
● |
● |
|
|
|
● |
|
| |
17 |
06.307 HUB; FRT AXLE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
FRAME STRAIGHT TYPE<7KJ>
|
8-97017-193-0 |
02 |
1 |
0302-0506 |
● |
● |
|
|
|
● |
|
| |
17 |
06.307 HUB; FRT AXLE
G.V.W. 3.5-4.0TON(RPQ)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-97017-193-0 |
02 |
1 |
0507-0606 |
● |
● |
|
|
|
● |
|
| |
17 |
06.307 HUB; FRT AXLE
G.V.W. 3.5-4.0TON(RPQ)
DISC BRAKE FRT<J52>
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-97017-193-0 |
02 |
1 |
0607- |
● |
● |
|
|
|
● |
|
| |
17 |
06.307 HUB; FRT AXLE
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
7.5-8.0TON(RPY)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
DISC BRAKE FRT<J52>,HYDRO BRAKE BOOSTE
R<7QQ>
|
8-97081-322-0 |
02 |
1 |
0607- |
|
● |
|
|
|
|
|
| |
17 |
06.307 HUB; FRT AXLE
G.V.W. 3.5-4.0TON(RPQ)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
DISC BRAKE FRT<J52>
|
8-97081-322-0 |
02 |
1 |
0607- |
|
|
|
|
|
● |
|
| |
17 |
06.307 HUB; FRT AXLE
G.V.W. 7.5-8.0TON(RPY)
4 WHEEL ANTI LOCK BRAKE<JE5>
HYDRO BRAKE BOOSTER<7QQ>
EXC. DISC BRAKE FRT<J52>
|
8-97349-911-0 |
02 |
1 |
0607- |
|
● |
|
|
|
|
|
| |
17 |
06.307 HUB; FRT AXLE
G.V.W. 7.5-8.0TON(RPY)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
DISC BRAKE FRT<J52>
|
8-97131-236-0 |
02 |
1 |
0607- |
|
● |
|
|
|
|
|
| |
17 |
06.307 HUB; FRT AXLE
G.V.W. 6.0-6.5TON(RPV)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
DISC BRAKE FRT<J52>
|
8-94365-459-0 |
02 |
1 |
0607- |
|
● |
|
|
|
● |
|
| |
19 |
06.311 BEARING; HUB INNER,FRT AXLE
JTEKT
|
8-94248-088-2 |
02 |
1 |
0302-0506 |
● |
● |
● |
● |
● |
● |
● |
| |
19 |
06.311 BEARING; HUB INNER,FRT AXLE
JTEKT
|
8-94248-088-2 |
02 |
1 |
0507-1009 |
● |
● |
● |
|
● |
● |
● |
| |
19 |
06.311 BEARING; HUB INNER,FRT AXLE
JTEKT
|
8-98171-254-0 |
02 |
1 |
1010- |
● |
● |
● |
|
● |
● |
● |
| |
19 |
06.311 BEARING; HUB INNER,FRT AXLE
NSK
|
9-00093-149-0 |
02 |
1 |
0302-0506 |
● |
● |
● |
● |
● |
● |
● |
| |
19 |
06.311 BEARING; HUB INNER,FRT AXLE
NSK
|
9-00093-149-0 |
02 |
1 |
0507-1009 |
● |
● |
● |
|
● |
● |
● |
| |
23 |
05.809 DRUM; BRK,FRT
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
7.5-8.0TON(RPY)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
DISC BRAKE FRT<J52>,HYDRO BRAKE BOOSTE
R<7QQ>
|
8-97081-218-2 |
02 |
1 |
0607- |
|
● |
|
|
|
|
|
| |
23 |
05.809 DRUM; BRK,FRT
G.V.W. 3.5-4.0TON(RPQ)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
DISC BRAKE FRT<J52>
|
8-97081-218-2 |
02 |
1 |
0607- |
|
|
|
|
|
● |
|
| |
23 |
05.809 DRUM; BRK,FRT
G.V.W. 7.5-8.0TON(RPY)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
DISC BRAKE FRT<J52>,HYDRO BRAKE BOOSTE
R<7QQ>
|
8-97188-115-0 |
02 |
1 |
0607- |
|
● |
|
|
|
|
|
| |
23 |
05.809 DRUM; BRK,FRT
G.V.W. 7.5-8.0TON(RPY)
HYDRO BRAKE BOOSTER<7QQ>
EXC. DISC BRAKE FRT<J52>
|
8-97188-115-0 |
02 |
1 |
0607- |
|
● |
|
|
|
|
|
| |
23 |
05.809 DRUM; BRK,FRT
G.V.W. 6.0-6.5TON(RPV)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
DISC BRAKE FRT<J52>
|
8-94385-650-3 |
02 |
1 |
0607- |
|
● |
|
|
|
● |
|
| |
25 |
05.809 ROTOR; DISC BRK,FRT
G.V.W. 5.0-5.5TON(RPT),G.V.W.
6.0-6.5TON(RPV)
FRAME STRAIGHT TYPE<7KJ>
|
8-97168-631-1 |
02 |
1 |
0302-0311 |
● |
● |
● |
|
|
● |
|
| |
25 |
05.809 ROTOR; DISC BRK,FRT
EXC. FRAME STRAIGHT TYPE<7KJ>
|
8-97168-631-1 |
02 |
1 |
0302-0311 |
● |
● |
|
|
|
● |
|
| |
25 |
05.809 ROTOR; DISC BRK,FRT
G.V.W. 5.0-5.5TON(RPT),G.V.W.
6.0-6.5TON(RPV)
FRAME STRAIGHT TYPE<7KJ>
|
8-97371-876-0 |
02 |
1 |
0312-0506 |
● |
● |
● |
|
|
● |
|
| |
25 |
05.809 ROTOR; DISC BRK,FRT
EXC. FRAME STRAIGHT TYPE<7KJ>
|
8-97371-876-0 |
02 |
1 |
0312-0506 |
● |
● |
|
|
|
● |
|
| |
25 |
05.809 ROTOR; DISC BRK,FRT
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV)
|
8-97371-876-0 |
02 |
1 |
0507-0606 |
● |
● |
● |
|
|
● |
|
| |
25 |
05.809 ROTOR; DISC BRK,FRT
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
6.0-6.5TON(RPV)
|
8-97371-876-0 |
02 |
1 |
0607-0612 |
● |
|
● |
|
|
|
|
| |
25 |
05.809 ROTOR; DISC BRK,FRT
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV)
DISC BRAKE FRT<J52>
|
8-97371-876-0 |
02 |
1 |
0607-0612 |
|
● |
|
|
|
● |
|
| |
25 |
05.809 ROTOR; DISC BRK,FRT
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
6.0-6.5TON(RPV)
|
8-97387-229-0 |
02 |
1 |
0701- |
● |
|
● |
|
|
|
|
| |
25 |
05.809 ROTOR; DISC BRK,FRT
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV)
DISC BRAKE FRT<J52>
|
8-97387-229-0 |
02 |
1 |
0701- |
|
● |
|
|
|
● |
|
| |
25 |
05.809 ROTOR; DISC BRK,FRT
G.V.W. 7.5-8.0TON(RPY)
FRAME STRAIGHT TYPE<7KJ>
REFER TO PERIODICAL PCN86
|
8-98105-058-0 |
02 |
1 |
0302-0501 |
|
● |
● |
● |
● |
|
● |
| |
25 |
05.809 ROTOR; DISC BRK,FRT
4 WHEEL ANTI LOCK BRAKE<JE5>
G.V.W. 7.5-8.0TON(RPY)
FRAME STRAIGHT TYPE<7KJ>
REFER TO PERIODICAL PCN86
|
8-98105-058-0 |
02 |
1 |
0502-0506 |
|
● |
● |
● |
● |
|
● |
| |
25 |
05.809 ROTOR; DISC BRK,FRT
4 WHEEL ANTI LOCK BRAKE<JE5>
G.V.W. 7.5-8.0TON(RPY)
HYDRO BRAKE BOOSTER<7QQ>
REFER TO PERIODICAL PCN86
|
8-98105-058-0 |
02 |
1 |
0507-0606 |
|
● |
● |
|
● |
|
● |
| |
25 |
05.809 ROTOR; DISC BRK,FRT
G.V.W. 7.5-8.0TON(RPY)
DISC BRAKE FRT<J52>
REFER TO PERIODICAL PCN86
|
8-98105-058-0 |
02 |
1 |
0607- |
|
● |
● |
|
|
|
|
| |
25 |
05.809 ROTOR; DISC BRK,FRT
REFER TO PERIODICAL PCN86
|
8-98105-058-0 |
02 |
1 |
0607- |
|
|
|
|
● |
|
● |
| |
26 |
05.812 BOLT; BRK,DISC TO HUB
|
8-94474-923-0 |
24 |
1 |
0302-0506 |
● |
● |
● |
● |
● |
● |
● |
| |
26 |
05.812 BOLT; BRK,DISC TO HUB
|
8-94474-923-0 |
24 |
1 |
0507-0606 |
● |
● |
● |
|
● |
● |
● |
| |
26 |
05.812 BOLT; BRK,DISC TO HUB
|
8-94474-923-0 |
24 |
1 |
0607- |
● |
|
● |
|
● |
|
● |
| |
26 |
05.812 BOLT; BRK,DISC TO HUB
DISC BRAKE FRT<J52>
|
8-94474-923-0 |
24 |
1 |
0607- |
|
● |
|
|
|
● |
|
| |
28 |
06.326 SEAL; OIL,FRT HUB
|
8-94248-117-1 |
02 |
1 |
0302-0506 |
● |
● |
● |
● |
● |
● |
● |
| |
28 |
06.326 SEAL; OIL,FRT HUB
|
8-94248-117-1 |
02 |
1 |
0507- |
● |
● |
● |
|
● |
● |
● |
| |
29 |
06.326 DISTANCE PIECE; HUB BRKT
NTN
|
8-97234-513-0 |
02 |
1 |
0302-0506 |
● |
● |
● |
● |
● |
● |
● |
| |
29 |
06.326 DISTANCE PIECE; HUB BRKT
NTN
|
8-97234-513-0 |
02 |
1 |
0507- |
● |
● |
● |
|
● |
● |
● |
| |
31 |
04.665 COVER; DUST,FRT BRAKE
|
8-97332-209-1 |
02 |
1 |
0302-0506 |
● |
● |
● |
● |
● |
● |
● |
| |
31 |
04.665 COVER; DUST,FRT BRAKE
|
8-97332-209-1 |
02 |
1 |
0507-0606 |
● |
● |
● |
|
● |
● |
● |
| |
31 |
04.665 COVER; DUST,FRT BRAKE
|
8-97332-209-1 |
02 |
1 |
0607-0703 |
● |
|
● |
|
● |
|
● |
| |
31 |
04.665 COVER; DUST,FRT BRAKE
DISC BRAKE FRT<J52>
|
8-97332-209-1 |
02 |
1 |
0607-0703 |
|
● |
|
|
|
● |
|
| |
31 |
04.665 COVER; DUST,FRT BRAKE
|
8-98037-377-0 |
02 |
1 |
0704- |
● |
|
● |
|
● |
|
● |
| |
31 |
04.665 COVER; DUST,FRT BRAKE
DISC BRAKE FRT<J52>
|
8-98037-377-0 |
02 |
1 |
0704- |
|
● |
|
|
|
● |
|
| |
32 |
04.665 BOLT; DUST COVER TO KNUCKLE
08.900
M8X12 FLANGE
|
0-28080-812-0 |
08 |
1 |
0302-0506 |
● |
● |
● |
● |
● |
● |
● |
| |
32 |
04.665 BOLT; DUST COVER TO KNUCKLE
08.900
M8X12 FLANGE
|
0-28080-812-0 |
08 |
1 |
0507-0512 |
● |
● |
● |
|
● |
● |
● |
| |
32 |
04.665 BOLT; DUST COVER TO KNUCKLE
02.343
M8X12 FLANGE
|
0-28050-812-0 |
08 |
1 |
0601-0606 |
● |
● |
● |
|
● |
● |
● |
| |
32 |
04.665 BOLT; DUST COVER TO KNUCKLE
02.343
M8X12 FLANGE
|
0-28050-812-0 |
08 |
1 |
0607- |
● |
|
● |
|
● |
|
● |
| |
32 |
04.665 BOLT; DUST COVER TO KNUCKLE
DISC BRAKE FRT<J52>
02.343
M8X12 FLANGE
|
0-28050-812-0 |
08 |
1 |
0607- |
|
● |
|
|
|
● |
|
| |
67 |
05.811 ROTOR; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-97206-773-0 |
02 |
1 |
0302-0501 |
● |
● |
● |
● |
● |
● |
● |
| |
67 |
05.811 ROTOR; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5>
G.V.W. 5.0-5.5TON(RPT),G.V.W.
6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY)
FRAME STRAIGHT TYPE<7KJ>
|
8-97206-773-0 |
02 |
1 |
0502-0506 |
● |
● |
● |
● |
● |
● |
● |
| |
67 |
05.811 ROTOR; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5>
EXC. FRAME STRAIGHT TYPE<7KJ>
|
8-97206-773-0 |
02 |
1 |
0502-0506 |
● |
● |
|
|
|
● |
|
| |
67 |
05.811 ROTOR; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-97206-773-0 |
02 |
1 |
0507-0606 |
● |
● |
● |
|
● |
● |
● |
| |
67 |
05.811 ROTOR; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-97206-773-0 |
02 |
1 |
0607- |
● |
|
● |
|
● |
|
● |
| |
67 |
05.811 ROTOR; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5>
DISC BRAKE FRT<J52>
|
8-97206-773-0 |
02 |
1 |
0607- |
|
● |
|
|
|
● |
|
| |
67 |
05.811 ROTOR; SENSOR
G.V.W. 7.5-8.0TON(RPY)
4 WHEEL ANTI LOCK BRAKE<JE5>
HYDRO BRAKE BOOSTER<7QQ>
EXC. DISC BRAKE FRT<J52>
|
8-97234-458-0 |
02 |
1 |
0607- |
|
● |
|
|
|
|
|
