4-10 — FRONT AXLE (#41335) — 179 parça

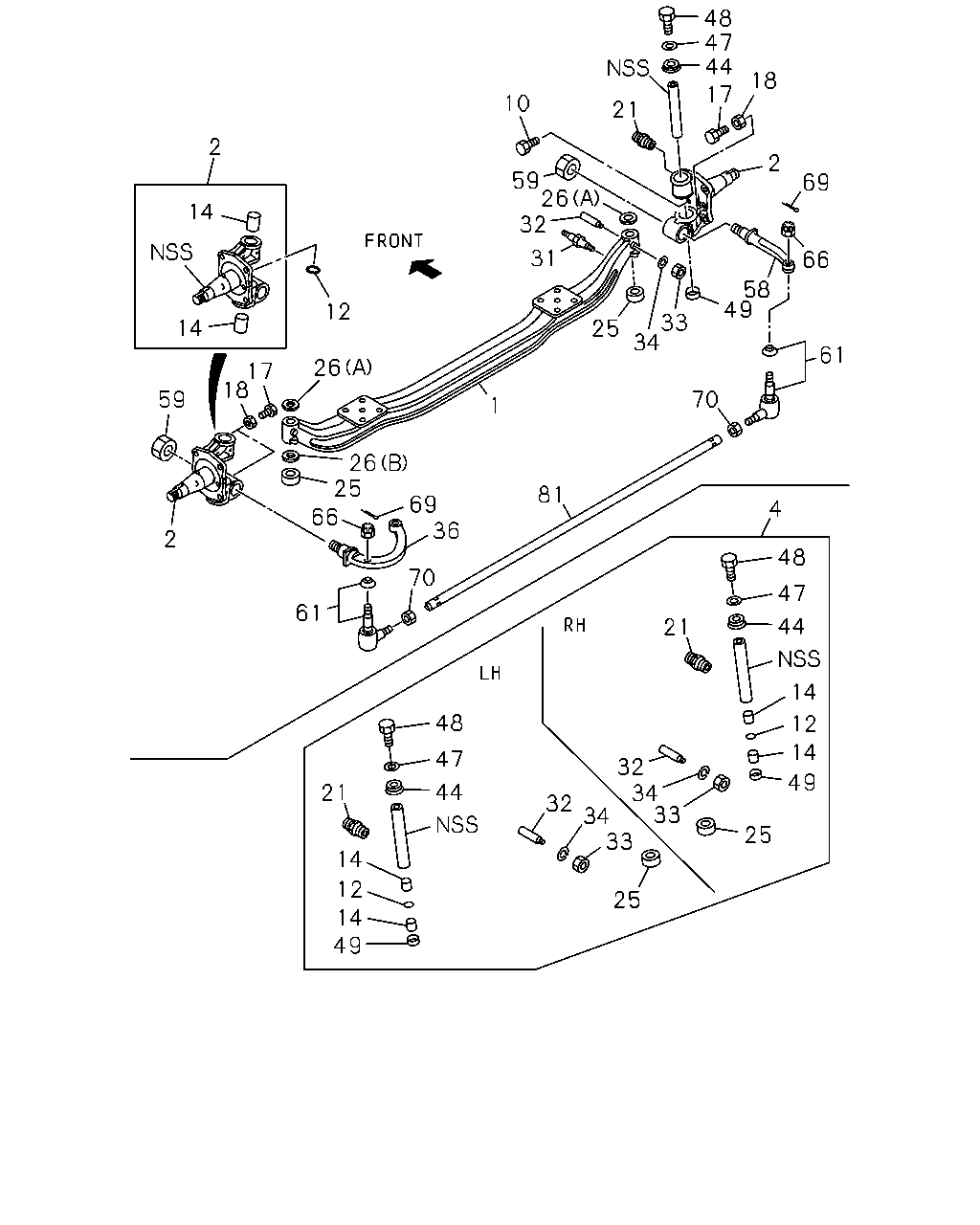

çizim 13530
48 47 44 17 18 10 21 2 2 59 26 32 69 14 31 66 58 49 12 33 34 25 14 61 26 17 18 70 59 1 26 25 81 69 36 4 66 2 48 70 47 61 44 21 14 48 12 14 47 32 34 33 49 44 21 32 34 33 25 14 12 25 14 49
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 06.008 AXLE; FRT 8-97137-588-3 01 1 0302-0506 ● ● ● ● ● ● ●
1 06.008 AXLE; FRT 8-97137-588-4 01 1 0507- ● ● ● ● ● ●
2 06.020 KNUCKLE; FRT AXLE 8-97261-550-1 01 1 0302-0506 ● ● ● ● ● ● ●
2 06.020 KNUCKLE; FRT AXLE 8-97261-550-1 01 1 0507-0606 ● ● ● ● ● ●
2 06.020 KNUCKLE; FRT AXLE 8-97261-550-1 01 1 0607- ● ● ● ●
2 06.020 KNUCKLE; FRT AXLE
DISC BRAKE FRT<J52> 		8-97261-550-1 01 1 0607- ● ●
2 06.020 KNUCKLE; FRT AXLE
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 		8-97261-550-1 01 1 0607- ●
2 06.020 KNUCKLE; FRT AXLE 8-97261-549-1 01 1 0302-0506 ● ● ● ● ● ● ●
2 06.020 KNUCKLE; FRT AXLE 8-97261-549-1 01 1 0507-0606 ● ● ● ● ● ●
2 06.020 KNUCKLE; FRT AXLE 8-97261-549-1 01 1 0607- ● ● ● ●
2 06.020 KNUCKLE; FRT AXLE
DISC BRAKE FRT<J52> 		8-97261-549-1 01 1 0607- ● ●
2 06.020 KNUCKLE; FRT AXLE
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 		8-97261-549-1 01 1 0607- ●
2 06.020 KNUCKLE; FRT AXLE
G.V.W. 7.5-8.0TON(RPY) 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER<7QQ> EXC. DISC BRAKE FRT<J52> 		8-97349-684-0 01 1 0607- ●
2 06.020 KNUCKLE; FRT AXLE
G.V.W. 7.5-8.0TON(RPY) 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER<7QQ> EXC. DISC BRAKE FRT<J52> 		8-97349-683-0 01 1 0607- ●
2 06.020 KNUCKLE; FRT AXLE
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 		8-97261-546-1 01 1 0607- ● ●
2 06.020 KNUCKLE; FRT AXLE
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,HYDRO BRAKE BOOSTE R<7QQ> 		8-97261-546-1 01 1 0607- ●
2 06.020 KNUCKLE; FRT AXLE
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 		8-97261-545-1 01 1 0607- ● ●
2 06.020 KNUCKLE; FRT AXLE
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,HYDRO BRAKE BOOSTE R<7QQ> 		8-97261-545-1 01 1 0607- ●
4 06.203 KING PIN KIT 5-87831-608-2 01 1 0302-0506 ● ● ● ● ● ● ●
4 06.203 KING PIN KIT 5-87832-183-2 01 1 0507-0606 ● ● ● ● ● ●
4 06.203 KING PIN KIT 5-87832-181-2 01 1 0607-0610 ● ● ● ● ● ●
4 06.203 KING PIN KIT 5-87832-207-0 01 1 0611-0707 ● ● ● ● ● ●
4 06.203 KING PIN KIT 5-87832-219-1 01 1 0708- ● ● ● ● ● ●
10 06.009 PLUG; PLATE,KNUCKLE 8-94107-661-0 01 1 0302-0506 ● ● ● ● ● ● ●
10 06.009 PLUG; PLATE,KNUCKLE 8-94107-661-0 01 1 0507-0610 ● ● ● ● ● ●
10 06.009 PLUG; PLATE,KNUCKLE 8-97360-117-0 01 1 0611- ● ● ● ● ● ●
12 06.021 GASKET; KNUCKLE
06.225 		9-09561-230-0 02 1 0302-0506 ● ● ● ● ● ● ●
12 06.021 GASKET; KNUCKLE
06.225 		9-09561-230-0 02 1 0507-0707 ● ● ● ● ● ●
12 06.021 GASKET; KNUCKLE 8-98084-500-0 02 1 0708- ● ● ● ● ● ●
14 06.021 BUSHING; KING PIN
DAIDO WO/NOTCH 		8-94107-672-2 04 1 0302-0506 ● ● ● ● ● ● ●
14 06.021 BUSHING; KING PIN
DAIDO WO/NOTCH 		8-94107-672-3 04 1 0507- ● ● ● ● ● ●
14 06.021 BUSHING; KING PIN
JBK 		8-94127-925-2 04 1 0302-0506 ● ● ● ● ● ● ●
14 06.021 BUSHING; KING PIN
JBK 		8-94127-925-2 04 1 0507-0809 ● ● ● ● ● ●
17 06.009 BOLT; STOPPER KNUCKLE
M12X24 EYE-BOLT 		5-09000-208-1 03 1 0302-0506 ● ● ● ● ● ● ●
17 06.009 BOLT; STOPPER KNUCKLE
M12X24 EYE-BOLT 		5-09000-208-1 03 1 0507-0611 ● ● ● ● ● ●
17 06.009 BOLT; STOPPER KNUCKLE
M12X24 EYE-BOLT 		8-97360-059-0 03 1 0612- ● ● ● ● ● ●
18 06.216 NUT; STOPPER BOLT,KNUCKLE
07.347 M12 		9-99111-512-0 03 1 0302-0506 ● ● ● ● ● ● ●
18 06.216 NUT; STOPPER BOLT,KNUCKLE
07.347 M12 		9-99111-512-0 03 1 0507-0512 ● ● ● ● ● ●
18 06.216 NUT; STOPPER BOLT,KNUCKLE
04.439 M12 		0-91111-512-0 03 1 0601- ● ● ● ● ● ●
21 06.166 NIPPLE; GREASE,KING PIN
08.984 M6 STRAIGHT 		9-09031-006-0 04 1 0302-0506 ● ● ● ● ● ● ●
21 06.166 NIPPLE; GREASE,KING PIN
08.984 M6 STRAIGHT 		9-09031-006-0 04 1 0507-0607 ● ● ● ● ● ●
21 06.166 NIPPLE; GREASE,KING PIN
05.601 M6 STRAIGHT 		0-90301-406-0 04 1 0608- ● ● ● ● ● ●
25 06.210 BEARING; THRUST,KING PIN
06.021 		8-94248-883-2 01 1 0302-0506 ● ● ● ● ● ● ●
25 06.210 BEARING; THRUST,KING PIN
06.021 		8-94248-883-2 01 1 0507-0606 ● ● ● ● ● ●
25 06.210 BEARING; THRUST,KING PIN
06.021 		8-94248-883-2 02 1 0607- ● ● ● ● ● ●
25 06.210 BEARING; THRUST,KING PIN 8-97141-943-0 01 1 0302-0506 ● ● ● ● ● ● ●
25 06.210 BEARING; THRUST,KING PIN 8-97141-943-0 01 1 0507-0606 ● ● ● ● ● ●
26 06.022 SHIM; KING PIN,BRG
(A) T=0.50 		8-94162-574-0 AR 1 0302-0506 ● ● ● ● ● ● ●
26 06.022 SHIM; KING PIN,BRG
(A) T=0.50 		8-94162-574-0 AR 1 0507- ● ● ● ● ● ●
26 06.022 SHIM; KING PIN,BRG
(A) T=0.55 		8-94162-575-0 AR 1 0302-0506 ● ● ● ● ● ● ●
26 06.022 SHIM; KING PIN,BRG
(A) T=0.55 		8-94162-575-0 AR 1 0507- ● ● ● ● ● ●
26 06.022 SHIM; KING PIN,BRG
(A) T=0.60 		8-94162-576-0 AR 1 0302-0506 ● ● ● ● ● ● ●
26 06.022 SHIM; KING PIN,BRG
(A) T=0.60 		8-94162-576-0 AR 1 0507- ● ● ● ● ● ●
26 06.022 SHIM; KING PIN,BRG
(A) T=0.65 		8-94162-577-0 AR 1 0302-0506 ● ● ● ● ● ● ●
26 06.022 SHIM; KING PIN,BRG
(A) T=0.65 		8-94162-577-0 AR 1 0507- ● ● ● ● ● ●
26 06.022 SHIM; KING PIN,BRG
(A) T=0.70 		8-94174-352-0 AR 1 0302-0506 ● ● ● ● ● ● ●
26 06.022 SHIM; KING PIN,BRG
(A) T=0.70 		8-94174-352-0 AR 1 0507- ● ● ● ● ● ●
26 06.022 SHIM; KING PIN,BRG
(A) T=0.80 		8-94174-354-0 AR 1 0302-0506 ● ● ● ● ● ● ●
26 06.022 SHIM; KING PIN,BRG
(A) T=0.80 		8-94174-354-0 AR 1 0507- ● ● ● ● ● ●
26 06.022 SHIM; KING PIN,BRG
(A) T=0.90 		8-94174-356-0 AR 1 0302-0506 ● ● ● ● ● ● ●
26 06.022 SHIM; KING PIN,BRG
(A) T=0.90 		8-94174-356-0 AR 1 0507- ● ● ● ● ● ●
26 06.022 SHIM; KING PIN,BRG
05.460 (B) T=1.95 		8-94168-490-0 01 1 0302-0506 ● ● ● ● ● ● ●
26 06.022 SHIM; KING PIN,BRG
05.460 (B) T=1.95 		8-94168-490-0 01 1 0507- ● ● ● ● ● ●
31 07.347 PIN; S/ABS,LWR 8-97145-460-0 02 1 0302-0506 ● ● ● ● ● ● ●
31 07.347 PIN; S/ABS,LWR 8-97145-460-0 02 1 0507- ● ● ● ● ● ●
32 06.216 BOLT; KEY,KING PIN 8-97141-945-1 02 1 0302-0506 ● ● ● ● ● ● ●
32 06.216 BOLT; KEY,KING PIN 8-97141-945-1 02 1 0507- ● ● ● ● ● ●
33 06.216 NUT; KEY BOLT
09.011 M10 		9-09110-410-0 02 1 0302-0506 ● ● ● ● ● ● ●
33 06.216 NUT; KEY BOLT
09.011 M10 		9-09110-410-0 02 1 0507-0512 ● ● ● ● ● ●
33 06.216 NUT; KEY BOLT
00.833 M10 		0-91110-510-0 02 1 0601- ● ● ● ● ● ●
34 06.216 WASHER; LK,KEY BOLT
00.002 ID=10.2 		9-09150-510-0 02 1 0302-0506 ● ● ● ● ● ● ●
34 06.216 WASHER; LK,KEY BOLT
00.002 ID=10.2 		9-09150-510-0 02 1 0507-0603 ● ● ● ● ● ●
34 06.216 WASHER; LK,KEY BOLT
06.606 ID=10.2 		0-91510-510-0 02 1 0604- ● ● ● ● ● ●
36 06.103 ARM; KNUCKLE
FRAME STRAIGHT TYPE<7KJ> 		8-97210-771-1 01 1 0302-0506 ● ● ● ● ● ● ●
36 06.103 ARM; KNUCKLE
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) 		8-97210-771-1 01 1 0507-0606 ● ● ● ● ●
36 06.103 ARM; KNUCKLE
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) DISC BRAKE FRT<J52> 		8-97210-771-4 01 1 0607- ● ●
36 06.103 ARM; KNUCKLE
G.V.W. 3.5-4.0TON(RPQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 		8-97210-771-4 01 1 0607- ● ●
36 06.103 ARM; KNUCKLE
G.V.W. 7.5-8.0TON(RPY) EXC. DISC BRAKE FRT<J52> 		8-97210-771-4 01 1 0607- ●
36 06.103 ARM; KNUCKLE
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,HYDRO BRAKE BOOSTE R<7QQ> 		8-97210-771-4 01 1 0607- ●
36 06.103 ARM; KNUCKLE 8-97210-771-4 01 1 0607- ● ● ●
36 06.103 ARM; KNUCKLE
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97210-770-1 01 1 0302-0506 ● ● ●
36 06.103 ARM; KNUCKLE
G.V.W. 3.5-4.0TON(RPQ) 		8-97210-770-1 01 1 0507-0606 ● ● ●
36 06.103 ARM; KNUCKLE
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 5.0-5.5TON(RPT) 		8-97210-770-1 01 1 0507-0606 ●
36 06.103 ARM; KNUCKLE 8-97210-770-4 01 1 0607- ●
36 06.103 ARM; KNUCKLE
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) DISC BRAKE FRT<J52> 		8-97210-770-4 01 1 0607- ● ●
36 06.103 ARM; KNUCKLE
G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 		8-97210-770-4 01 1 0607- ● ●
44 06.225 COVER; KING PIN
OD=36 		8-94248-675-1 02 1 0302-0506 ● ● ● ● ● ● ●
44 06.225 COVER; KING PIN
OD=36 		8-94248-675-1 02 1 0507-0611 ● ● ● ● ● ●
44 06.225 COVER; KING PIN
OD=36 		8-97360-023-0 02 1 0612- ● ● ● ● ● ●
47 06.225 WASHER; PL,COVER,KING PIN
06.896 ID=10.5 		9-09164-510-0 02 1 0302-0402 ● ● ● ● ● ● ●
48 06.225 BOLT; COVER
04.642 M10X16 		0-20801-016-0 02 1 0302-0402 ● ● ● ● ● ● ●
48 06.225 BOLT; COVER
04.640 M10X12 FLANGE 		0-28081-012-0 02 1 0403-0506 ● ● ● ● ● ● ●
48 06.225 BOLT; COVER
04.640 M10X12 FLANGE 		0-28081-012-0 02 1 0507-0512 ● ● ● ● ● ●
48 06.225 BOLT; COVER
M10X12 FLANGE 		0-28051-012-0 02 1 0601- ● ● ● ● ● ●
49 06.225 CAP; KNUCKLE 8-97261-587-0 02 1 0302-0506 ● ● ● ● ● ● ●
49 06.225 CAP; KNUCKLE 8-97261-587-0 02 1 0507-0611 ● ● ● ● ● ●
49 06.225 CAP; KNUCKLE 8-97360-024-0 02 1 0612- ● ● ● ● ● ●
58 06.103 ARM; TIE ROD 8-97147-636-0 01 1 0302-0506 ● ● ● ● ● ● ●
58 06.103 ARM; TIE ROD 8-97147-636-1 01 1 0507- ● ● ● ● ● ●
59 06.104 NUT; TIE ROD ARM 8-94247-724-0 02 1 0302-0506 ● ● ● ● ● ● ●
59 06.104 NUT; TIE ROD ARM 8-94247-724-0 02 1 0507-0611 ● ● ● ● ● ●
59 06.104 NUT; TIE ROD ARM 8-97360-123-0 02 1 0612- ● ● ● ● ● ●
61 06.233 ROD END; TIE ROD 8-97142-101-1 01 1 0302-0506 ● ● ● ● ● ● ●
61 06.233 ROD END; TIE ROD 8-97142-101-1 01 1 0507- ● ● ● ● ● ●
61 06.233 ROD END; TIE ROD 8-97142-100-1 01 1 0302-0506 ● ● ● ● ● ● ●
61 06.233 ROD END; TIE ROD 8-97142-100-1 01 1 0507- ● ● ● ● ● ●
66 06.234 NUT; TIE ROD END
08.917 M16 SLOTTED 		9-99116-516-0 02 1 0302-0506 ● ● ● ● ● ● ●
66 06.234 NUT; TIE ROD END
08.917 M16 SLOTTED 		9-99116-516-0 02 1 0507-0605 ● ● ● ● ● ●
66 06.234 NUT; TIE ROD END
M16 SLOTTED 		0-91116-516-0 02 1 0606- ● ● ● ● ● ●
69 06.255 PIN; SPLIT,TIE ROD END
01.271 OD=3.7 L=20 		9-08114-020-0 02 1 0302-0506 ● ● ● ● ● ● ●
69 06.255 PIN; SPLIT,TIE ROD END
01.271 OD=3.7 L=20 		9-08114-020-0 02 1 0507-0606 ● ● ● ● ● ●
69 06.255 PIN; SPLIT,TIE ROD END
OD=3.7 L=20 		0-81124-020-0 02 1 0607- ● ● ● ● ● ●
70 06.234 NUT; TIE ROD END
M20 LH THREAD 		8-94254-726-0 01 1 0302-0506 ● ● ● ● ● ● ●
70 06.234 NUT; TIE ROD END
M20 LH THREAD 		8-94254-726-0 01 1 0507- ● ● ● ● ● ●
70 06.234 NUT; TIE ROD END
M20 		9-99111-420-0 01 1 0302-0506 ● ● ● ● ● ● ●
70 06.234 NUT; TIE ROD END
M20 		9-99111-420-0 01 1 0507-0512 ● ● ● ● ● ●
70 06.234 NUT; TIE ROD END
M20 		0-91111-520-0 01 1 0601-0610 ● ● ● ● ● ●
70 06.234 NUT; TIE ROD END
M20 		8-98043-530-0 01 1 0611- ● ● ● ● ● ●
81 06.230 ROD; TIE 8-97061-869-0 01 1 0302-0506 ● ● ● ● ● ● ●
81 06.230 ROD; TIE 8-97061-869-0 01 1 0507- ● ● ● ● ● ●

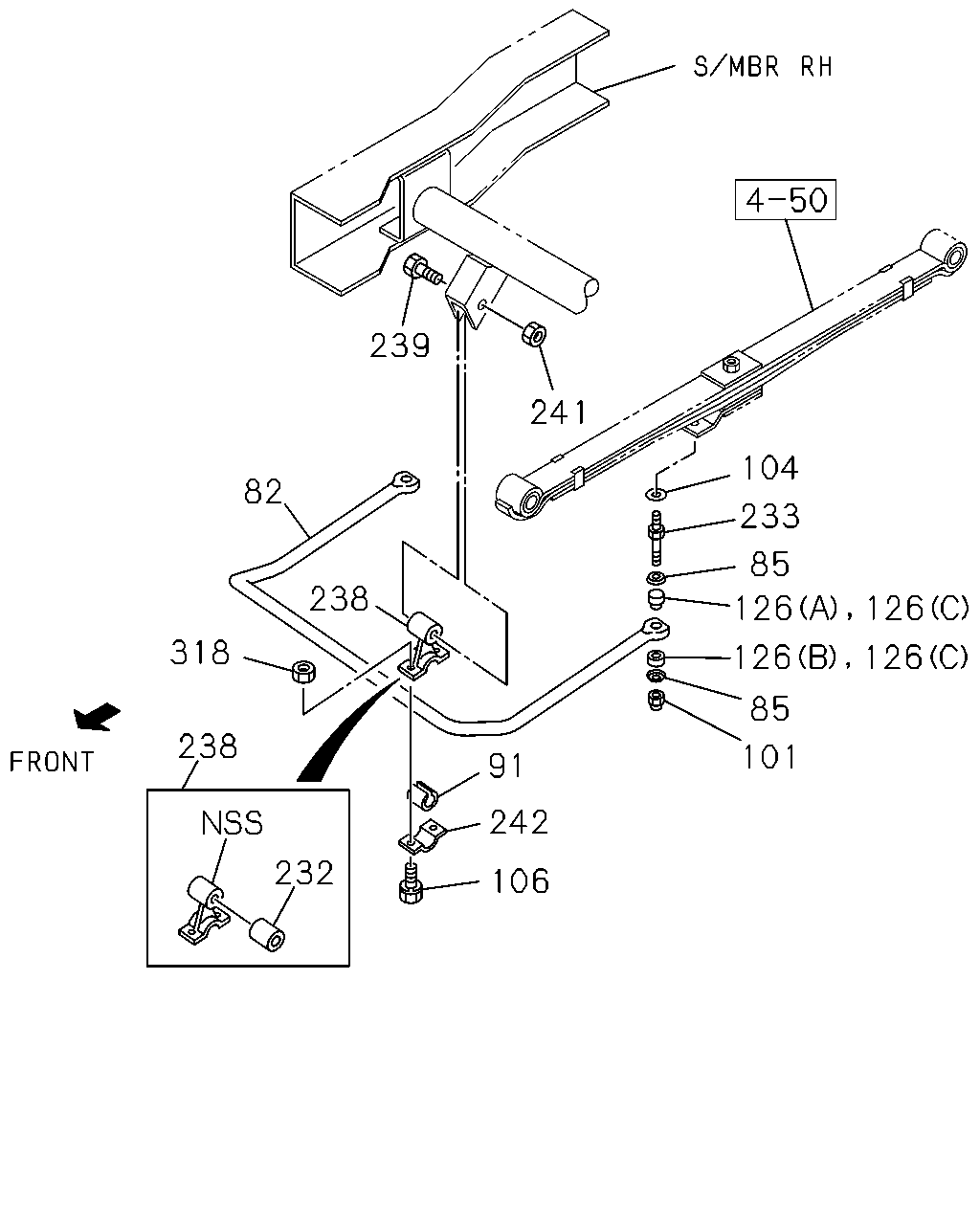

çizim 52621
239 241 104 82 233 85 238 126 126 318 126 126 85 238 101 91 242 232 106
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
82 07.241 BAR; STAB,FRT SUSP
FRONT STABILIZER SHAFT<F59> FRAME STRAIGHT TYPE<7KJ> 		8-97138-348-0 01 1 0302-0506 ● ● ● ● ● ● ●
82 07.241 BAR; STAB,FRT SUSP
FRONT STABILIZER SHAFT<F59> FRAME STRAIGHT TYPE<7KJ> 		8-97138-348-0 01 1 0507-0606 ● ●
82 07.241 BAR; STAB,FRT SUSP
FRONT STABILIZER SHAFT<F59> 		8-97138-348-0 01 1 0507-0606 ● ● ●
82 07.241 BAR; STAB,FRT SUSP
FRONT STABILIZER SHAFT<F59> FRAME STRAIGHT TYPE<7KJ> 		8-97138-348-0 01 1 0607- ● ●
82 07.241 BAR; STAB,FRT SUSP
FRONT STABILIZER SHAFT<F59> 		8-97138-348-0 01 1 0607- ● ●
82 07.241 BAR; STAB,FRT SUSP
FRONT STABILIZER SHAFT<F59> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94342-205-0 01 1 0302-0506 ● ● ●
82 07.241 BAR; STAB,FRT SUSP
FRONT STABILIZER SHAFT<F59> 		8-94342-205-0 01 1 0507-0606 ●
82 07.241 BAR; STAB,FRT SUSP
FRONT STABILIZER SHAFT<F59> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94342-205-0 01 1 0507-0606 ● ●
82 07.241 BAR; STAB,FRT SUSP
FRONT STABILIZER SHAFT<F59> 		8-94342-205-0 01 1 0607- ● ●
82 07.241 BAR; STAB,FRT SUSP
FRONT STABILIZER SHAFT<F59> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94342-205-0 01 1 0607- ● ●
85 07.242 WASHER; STAB TO FRAME
FRONT STABILIZER SHAFT<F59> 		8-94342-084-0 04 1 0302-0506 ● ● ● ● ● ● ●
85 07.242 WASHER; STAB TO FRAME
FRONT STABILIZER SHAFT<F59> 		8-94342-084-0 04 1 0507-0610 ● ● ● ● ● ●
85 07.242 WASHER; STAB TO FRAME
FRONT STABILIZER SHAFT<F59> 		8-97360-055-0 04 1 0611- ● ● ● ● ● ●
91 07.243 BUSHING; RUBBER,STAB BAR
FRONT STABILIZER SHAFT<F59> 		8-94342-187-0 02 1 0302-0506 ● ● ● ● ● ● ●
91 07.243 BUSHING; RUBBER,STAB BAR
FRONT STABILIZER SHAFT<F59> 		8-94342-187-0 02 1 0507- ● ● ● ● ● ●
101 07.242 NUT; STAB BAR
FRONT STABILIZER SHAFT<F59> 08.917 M12 LOCK NUT 		9-09131-512-0 02 1 0302-0506 ● ● ● ● ● ● ●
101 07.242 NUT; STAB BAR
FRONT STABILIZER SHAFT<F59> 08.917 M12 LOCK NUT 		9-09131-512-0 02 1 0507-0603 ● ● ● ● ● ●
101 07.242 NUT; STAB BAR
FRONT STABILIZER SHAFT<F59> M12 LOCK NUT 		0-91370-012-0 02 1 0604- ● ● ● ● ● ●
104 07.242 WASHER; LK,BRKT
FRONT STABILIZER SHAFT<F59> 00.796 ID=14.2 		9-09150-514-0 02 1 0302-0506 ● ● ● ● ● ● ●
104 07.242 WASHER; LK,BRKT
FRONT STABILIZER SHAFT<F59> 00.796 ID=14.2 		9-09150-514-0 02 1 0507-0603 ● ● ● ● ● ●
104 07.242 WASHER; LK,BRKT
FRONT STABILIZER SHAFT<F59> 05.605 ID=14.2 		0-91510-514-0 02 1 0604- ● ● ● ● ● ●
106 06.216 BOLT; CAP FIX
FRONT STABILIZER SHAFT<F59> 03.405 M10X25 FLANGE 		0-28681-025-0 04 1 0302-0506 ● ● ● ● ● ● ●
106 06.216 BOLT; CAP FIX
FRONT STABILIZER SHAFT<F59> 03.405 M10X25 FLANGE 		0-28681-025-0 04 1 0507-0512 ● ● ● ● ● ●
106 06.216 BOLT; CAP FIX
FRONT STABILIZER SHAFT<F59> 00.029 M10X25 FLANGE 		0-28651-025-0 04 1 0601- ● ● ● ● ● ●
126 07.243 RUBBER; MTG,STAB BAR
FRONT STABILIZER SHAFT<F59> FRAME STRAIGHT TYPE<7KJ> (C) 		8-94342-083-0 04 1 0302-0506 ● ● ● ● ● ● ●
126 07.243 RUBBER; MTG,STAB BAR
FRONT STABILIZER SHAFT<F59> FRAME STRAIGHT TYPE<7KJ> (C) 		8-94342-083-0 04 1 0507-0606 ● ●
126 07.243 RUBBER; MTG,STAB BAR
FRONT STABILIZER SHAFT<F59> (C) 		8-94342-083-0 04 1 0507-0606 ● ● ●
126 07.243 RUBBER; MTG,STAB BAR
FRONT STABILIZER SHAFT<F59> FRAME STRAIGHT TYPE<7KJ> (C) 		8-94342-083-0 04 1 0607- ● ●
126 07.243 RUBBER; MTG,STAB BAR
FRONT STABILIZER SHAFT<F59> (C) 		8-94342-083-0 04 1 0607- ● ●
126 07.243 RUBBER; MTG,STAB BAR
FRONT STABILIZER SHAFT<F59> EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=18 		8-97089-556-0 02 1 0302-0506 ● ● ●
126 07.243 RUBBER; MTG,STAB BAR
FRONT STABILIZER SHAFT<F59> (A) L=18 		8-97089-556-0 02 1 0507-0606 ●
126 07.243 RUBBER; MTG,STAB BAR
FRONT STABILIZER SHAFT<F59> EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=18 		8-97089-556-0 02 1 0507-0606 ● ●
126 07.243 RUBBER; MTG,STAB BAR
FRONT STABILIZER SHAFT<F59> (A) L=18 		8-97089-556-0 02 1 0607- ● ●
126 07.243 RUBBER; MTG,STAB BAR
FRONT STABILIZER SHAFT<F59> EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=18 		8-97089-556-0 02 1 0607- ● ●
126 07.243 RUBBER; MTG,STAB BAR
FRONT STABILIZER SHAFT<F59> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=29 		8-97089-557-0 02 1 0302-0506 ● ● ●
126 07.243 RUBBER; MTG,STAB BAR
FRONT STABILIZER SHAFT<F59> (B) L=29 		8-97089-557-0 02 1 0507-0606 ●
126 07.243 RUBBER; MTG,STAB BAR
FRONT STABILIZER SHAFT<F59> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=29 		8-97089-557-0 02 1 0507-0606 ● ●
126 07.243 RUBBER; MTG,STAB BAR
FRONT STABILIZER SHAFT<F59> (B) L=29 		8-97089-557-0 02 1 0607- ● ●
126 07.243 RUBBER; MTG,STAB BAR
FRONT STABILIZER SHAFT<F59> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=29 		8-97089-557-0 02 1 0607- ● ●
232 07.243 BUSHING; LINK ROD
FRONT STABILIZER SHAFT<F59> 		8-97239-911-0 02 1 0302-0506 ● ● ● ● ● ● ●
232 07.243 BUSHING; LINK ROD
FRONT STABILIZER SHAFT<F59> 		8-97239-911-0 02 1 0507- ● ● ● ● ● ●
233 07.242 STUD; STABILIZER
FRONT STABILIZER SHAFT<F59> 04.686 		8-94342-082-0 02 1 0302-0506 ● ● ● ● ● ● ●
233 07.242 STUD; STABILIZER
FRONT STABILIZER SHAFT<F59> 04.686 		8-94342-082-0 02 1 0507-0610 ● ● ● ● ● ●
233 07.242 STUD; STABILIZER
FRONT STABILIZER SHAFT<F59> 		8-97360-120-0 02 1 0611- ● ● ● ● ● ●
238 07.240 ROD LINK ASM; STABILIZER,FRT
FRONT STABILIZER SHAFT<F59> 		8-97239-907-0 02 1 0302-0506 ● ● ● ● ● ● ●
238 07.240 ROD LINK ASM; STABILIZER,FRT
FRONT STABILIZER SHAFT<F59> 		8-97239-907-0 02 1 0507- ● ● ● ● ● ●
239 07.242 BOLT; LINK ROD
FRONT STABILIZER SHAFT<F59> M14X70 		0-10806-470-0 02 1 0302-0306 ● ● ● ● ● ● ●
239 07.242 BOLT; LINK ROD
FRONT STABILIZER SHAFT<F59> M14X70 FLANGE 		0-28881-470-0 02 1 0307-0506 ● ● ● ● ● ● ●
239 07.242 BOLT; LINK ROD
FRONT STABILIZER SHAFT<F59> M14X70 FLANGE 		0-28881-470-0 02 1 0507-0512 ● ● ● ● ● ●
239 07.242 BOLT; LINK ROD
FRONT STABILIZER SHAFT<F59> M14X70 FLANGE 		0-28851-470-0 02 1 0601- ● ● ● ● ● ●
241 07.242 NUT; LINK ROD
FRONT STABILIZER SHAFT<F59> 03.613 M14 FLANGE 		0-91150-114-0 02 1 0302-0306 ● ● ● ● ● ● ●
241 07.242 NUT; LINK ROD
FRONT STABILIZER SHAFT<F59> 07.417 M14 FLANGE 		8-94137-483-0 02 1 0307-0506 ● ● ● ● ● ● ●
241 07.242 NUT; LINK ROD
FRONT STABILIZER SHAFT<F59> 07.417 M14 FLANGE 		8-94137-483-0 02 1 0507-0610 ● ● ● ● ● ●
241 07.242 NUT; LINK ROD
FRONT STABILIZER SHAFT<F59> 06.174 M14 FLANGE 		8-97360-124-0 02 1 0611- ● ● ● ● ● ●
242 07.242 CAP; LINK ROD
FRONT STABILIZER SHAFT<F59> 		8-94178-430-2 02 1 0302-0506 ● ● ● ● ● ● ●
242 07.242 CAP; LINK ROD
FRONT STABILIZER SHAFT<F59> 		8-94178-430-2 02 1 0507- ● ● ● ● ● ●
318 07.242 NUT; CAP FIX
FRONT STABILIZER SHAFT<F59> 08.917 M10 FLANGE 		0-91150-210-0 04 1 0302-0506 ● ● ● ● ● ● ●
318 07.242 NUT; CAP FIX
FRONT STABILIZER SHAFT<F59> 08.917 M10 FLANGE 		0-91150-210-0 04 1 0507-0602 ● ● ● ● ● ●
318 07.242 NUT; CAP FIX
FRONT STABILIZER SHAFT<F59> 04.085 M10 FLANGE 		0-91180-210-0 04 1 0603- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
