7-45 — CONSOLE BOX (#4133) — 87 parça

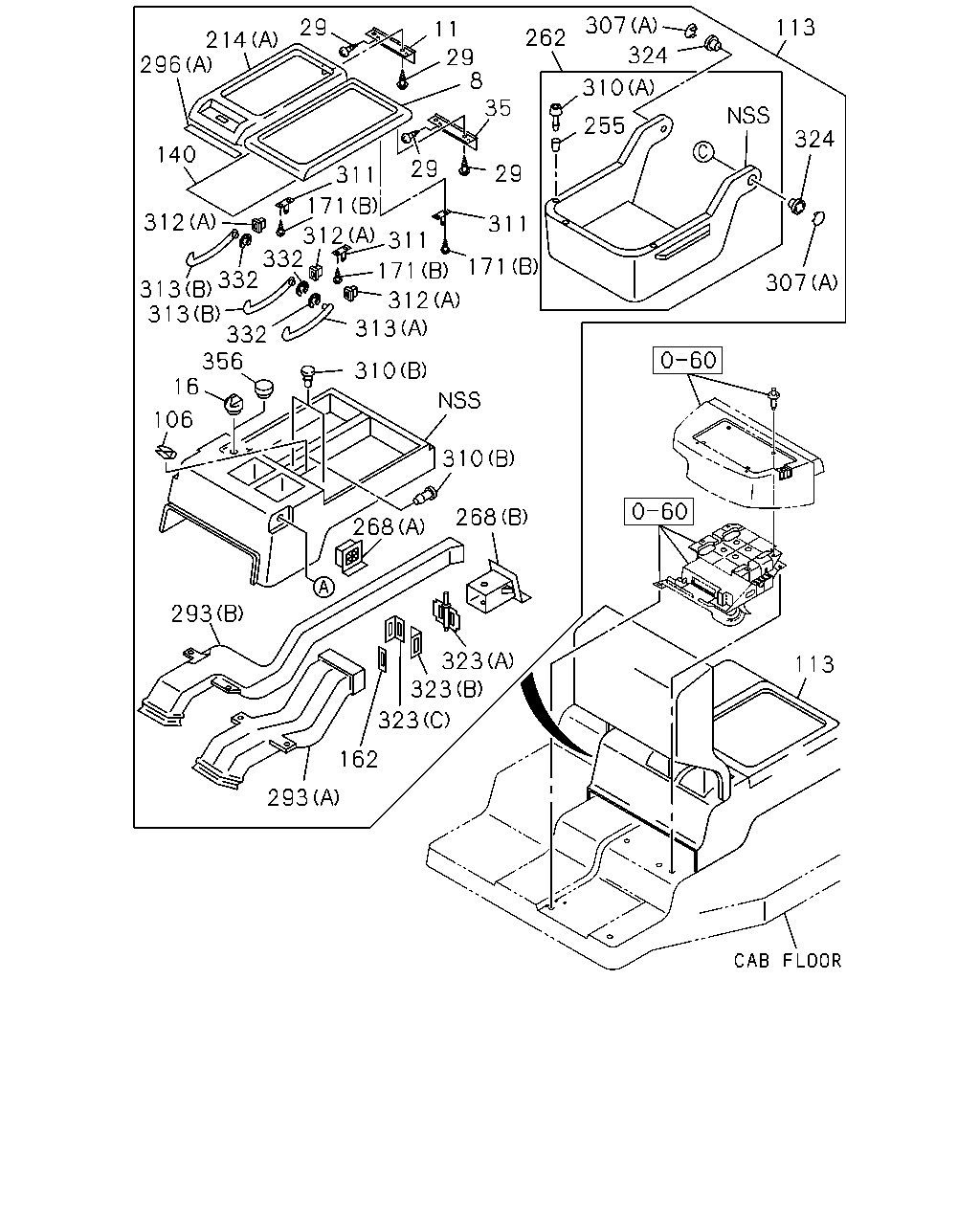

307 113 29 11 262 214 324 29 8 35 296 310 255 324 140 29 29 311 171 312 311 312 332 332 313 313 332 356 16 311 171 171 307 312 313 310 106 310 268 268 293 323 323 113 323 162 293

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	LID; CENTER CONSOLE CENTER SEAT DELETE(SP9)	1-72537-078-3	01	1	9905-	●	●
11	HINGE; CONSOLE LID CENTER SEAT DELETE(SP9)	1-72537-070-2	01	1	9905-9910	●	●
11	HINGE; CONSOLE LID CENTER SEAT DELETE(SP9)	1-72537-070-2	01	1	9911-	●	●
11	HINGE; CONSOLE LID BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-72537-070-2	01	1	9911-	●	●
16	KNOB ASM CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU>	1-72537-111-3	01	1	9905-	●	●
29	SCREW; HINGE CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> M5X14 BINDING HEAD	1-72537-168-0	08	1	9905-0011	●	●
29	SCREW; HINGE CENTER SEAT DELETE(SP9) M5X14 BINDING HEAD	1-72537-168-0	08	1	0012-	●	●
29	SCREW; HINGE CENTER SEAT DELETE(SP9) EXC. TABLE CONSOLE BOX<TDL>,COOL & HOT BOX<TMU> M5X14 FLAT HEAD	1-72537-169-0	06	1	0012-	●	●
35	HINGE; CENTER CONSOLE CENTER SEAT DELETE(SP9)	1-72538-182-1	01	1	9905-	●	●
106	LOCK; CONSOLE LID CENTER SEAT DELETE(SP9)	1-72537-079-0	02	1	9905-	●	●
113	BOX; CONSOLE CENTER SEAT DELETE(SP9)	1-72537-161-0	01	1	9607-9904	●	●
113	BOX; CONSOLE CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU>	1-72537-072-5	01	1	9905-	●	●
113	BOX; CONSOLE CENTER SEAT DELETE(SP9) EXC. TABLE CONSOLE BOX<TDL>,COOL & HOT BOX<TMU>	1-72537-154-0	01	1	9905-	●	●
140	SHEET CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU>	1-72537-093-1	01	1	9905-	●	●
162	CUSHION; PARCEL BOX CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU>	1-72537-128-0	03	1	9905-	●	●
171	SCREW; CONSOLE BOX CENTER SEAT DELETE(SP9) (A) M6X24 W/LK&PL WASHER	8-94279-404-0	04	1	9607-	●	●
171	SCREW; CONSOLE BOX CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (B) M5X14 FLAT HEAD	1-72537-169-0	06	1	9905-	●	●
214	LID; CONSOLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-72537-069-1	01	1	9911-	●	●
214	LID; CONSOLE CENTER SEAT DELETE(SP9) (A)	1-72537-076-4	01	1	9905-	●	●
255	SPRING; TABLE CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU>	1-72537-152-0	03	1	9905-0011	●	●
262	TABLE ASM CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU>	1-72537-088-6	01	1	9905-	●	●
268	COVER; DUCT CENTER SEAT DELETE(SP9) (A)	1-72537-109-0	01	1	9905-	●	●
268	COVER; DUCT CENTER SEAT DELETE(SP9) (B)	1-72537-110-1	01	1	9905-	●	●
293	DUCT CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (A)	1-72537-081-3	01	1	9905-	●	●
293	DUCT CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (B)	1-72537-083-2	01	1	9905-	●	●
296	SEAL (A) OD=25 BLACK	1-76798-019-0	02	1	9603-	●	●
296	SEAL CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (B)	1-72537-094-1	01	1	9905-	●	●
307	COVER; HOLE,CTR CONSOLE CENTER SEAT DELETE(SP9) (B)	1-72538-166-0	04	1	9607-	●	●
307	COVER; HOLE,CTR CONSOLE CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (A)	1-72537-120-1	02	1	9905-	●	●
310	CUSHION; CTR CONSOLE CENTER SEAT DELETE(SP9) (A)	1-72538-187-0	02	1	9905-	●	●
310	CUSHION; CTR CONSOLE CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (B)	1-72537-153-0	03	1	9905-0011	●	●
311	HOLDER; CONSOLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-72538-188-2	01	1	9911-	●	●
311	HOLDER; CONSOLE CENTER SEAT DELETE(SP9)	1-72538-188-2	03	1	9905-	●	●
312	STOPPER; CONSOLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-72538-184-3	01	1	9911-	●	●
312	STOPPER; CONSOLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-72538-186-1	01	1	9911-	●	●
312	STOPPER; CONSOLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C)	1-72538-187-0	02	1	9911-	●	●
312	STOPPER; CONSOLE CENTER SEAT DELETE(SP9) (A)	1-72538-186-1	03	1	9905-	●	●
313	ARM; CTR CONSOLE CENTER SEAT DELETE(SP9) (A)	1-72538-184-3	01	1	9905-	●	●
313	ARM; CTR CONSOLE CENTER SEAT DELETE(SP9) (B)	1-72538-185-3	02	1	9905-	●	●
323	SHUTTER CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (A)	1-72537-084-1	01	1	9905-	●	●
323	SHUTTER CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (B)	1-72537-126-0	01	1	9905-	●	●
323	SHUTTER CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (C)	1-72537-127-0	01	1	9905-	●	●
324	BUSHING CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU>	1-72537-116-0	02	1	9905-	●	●
332	RING; SNAP,CONSOLE BOX CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU>	1-72537-170-0	03	1	9905-0011	●	●
332	RING; SNAP,CONSOLE BOX CENTER SEAT DELETE(SP9)	1-72537-170-0	03	1	0012-	●	●
356	COVER; KNOB CENTER SEAT DELETE(SP9) EXC. TABLE CONSOLE BOX<TDL>,COOL & HOT BOX<TMU>	1-72537-155-0	01	1	0012-	●	●

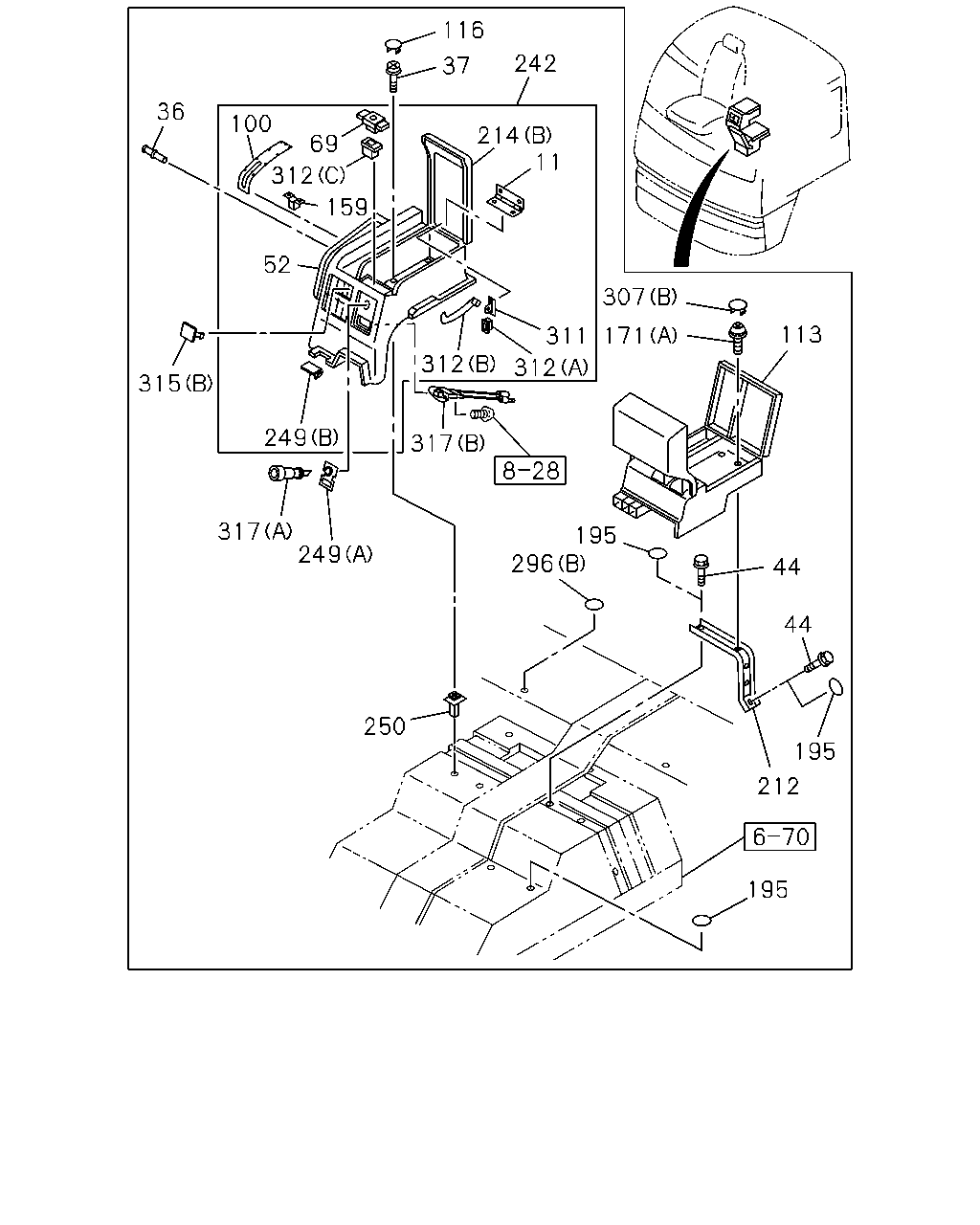

116 242 37 36 100 214 11 69 312 159 52 307 113 311 171 312 312 315 249 317 317 249 195 296 44 44 250 195 212 195

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
11	HINGE; CONSOLE LID CENTER SEAT DELETE(SP9)	1-72537-070-2	01	1	9905-9910	●	●
11	HINGE; CONSOLE LID CENTER SEAT DELETE(SP9)	1-72537-070-2	01	1	9911-	●	●
11	HINGE; CONSOLE LID BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-72537-070-2	01	1	9911-	●	●
36	FASTENER; CENTER CONSOLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) D8X13.5	1-09987-248-1	02	1	9911-	●	●
37	SCREW; CONSOLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M5X16 W/PL WASHER TAPPING	8-94279-123-0	03	1	9911-	●	●
44	BOLT; SUPPORT,CTR CONSOLE CENTER SEAT DELETE(SP9) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9607-	●	●
52	CONSOLE; FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-72537-067-5	01	1	9911-	●	●
69	LOCK ASM; CONSOLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-72538-180-0	01	1	9911-	●	●
100	RUBBER; CONSOLE,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-72538-161-3	01	1	9911-	●	●
113	BOX; CONSOLE CENTER SEAT DELETE(SP9)	1-72537-161-0	01	1	9607-9904	●	●
113	BOX; CONSOLE CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU>	1-72537-072-5	01	1	9905-	●	●
113	BOX; CONSOLE CENTER SEAT DELETE(SP9) EXC. TABLE CONSOLE BOX<TDL>,COOL & HOT BOX<TMU>	1-72537-154-0	01	1	9905-	●	●
116	COVER; HOLE,CONSOLE,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-72537-106-0	02	1	9911-	●	●
159	STRIKER; CONSOLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-72538-190-0	01	1	9911-	●	●
171	SCREW; CONSOLE BOX CENTER SEAT DELETE(SP9) (A) M6X24 W/LK&PL WASHER	8-94279-404-0	04	1	9607-	●	●
171	SCREW; CONSOLE BOX CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (B) M5X14 FLAT HEAD	1-72537-169-0	06	1	9905-	●	●
195	SEAL; CENTER CONSOLE OD=25 BLACK	1-76798-019-0	05	1	9603-9606	●	●
195	SEAL; CENTER CONSOLE EXC. CENTER SEAT DELETE(SP9) OD=25 BLACK	1-76798-019-0	05	1	9607-	●	●
212	SUPPORT; CONSOLE TO COMPT CENTER SEAT DELETE(SP9)	1-72537-095-1	01	1	9607-	●	●
214	LID; CONSOLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-72537-069-1	01	1	9911-	●	●
214	LID; CONSOLE CENTER SEAT DELETE(SP9) (A)	1-72537-076-4	01	1	9905-	●	●
242	TRAY ASM; CTR CONSOLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-72537-065-4	01	1	9911-	●	●
249	COVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-72537-124-0	01	1	9911-	●	●
249	COVER ELEC OUTLET 12V<TAW> (A)	1-82529-001-0	01	1	9905-	●	●
250	GROMMET; CONSOLE BOX D=7.8X7.8 L=18 NATURAL	8-94279-043-0	03	1	9603-	●	●
296	SEAL (A) OD=25 BLACK	1-76798-019-0	02	1	9603-	●	●
296	SEAL CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (B)	1-72537-094-1	01	1	9905-	●	●
307	COVER; HOLE,CTR CONSOLE CENTER SEAT DELETE(SP9) (B)	1-72538-166-0	04	1	9607-	●	●
307	COVER; HOLE,CTR CONSOLE CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (A)	1-72537-120-1	02	1	9905-	●	●
311	HOLDER; CONSOLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-72538-188-2	01	1	9911-	●	●
311	HOLDER; CONSOLE CENTER SEAT DELETE(SP9)	1-72538-188-2	03	1	9905-	●	●
312	STOPPER; CONSOLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-72538-184-3	01	1	9911-	●	●
312	STOPPER; CONSOLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-72538-186-1	01	1	9911-	●	●
312	STOPPER; CONSOLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C)	1-72538-187-0	02	1	9911-	●	●
312	STOPPER; CONSOLE CENTER SEAT DELETE(SP9) (A)	1-72538-186-1	03	1	9905-	●	●
315	COVER; HOLE,SW (A)	1-82359-069-2	AR	1	9603-	●	●
315	COVER; HOLE,SW (B)	8-97043-732-1	AR	1	9603-	●	●
317	CONSENT (B)	1-82523-020-2	01	1	9603-	●	●
317	CONSENT ELEC OUTLET 12V<TAW> (A)	8-94382-451-1	01	1	9905-	●	●

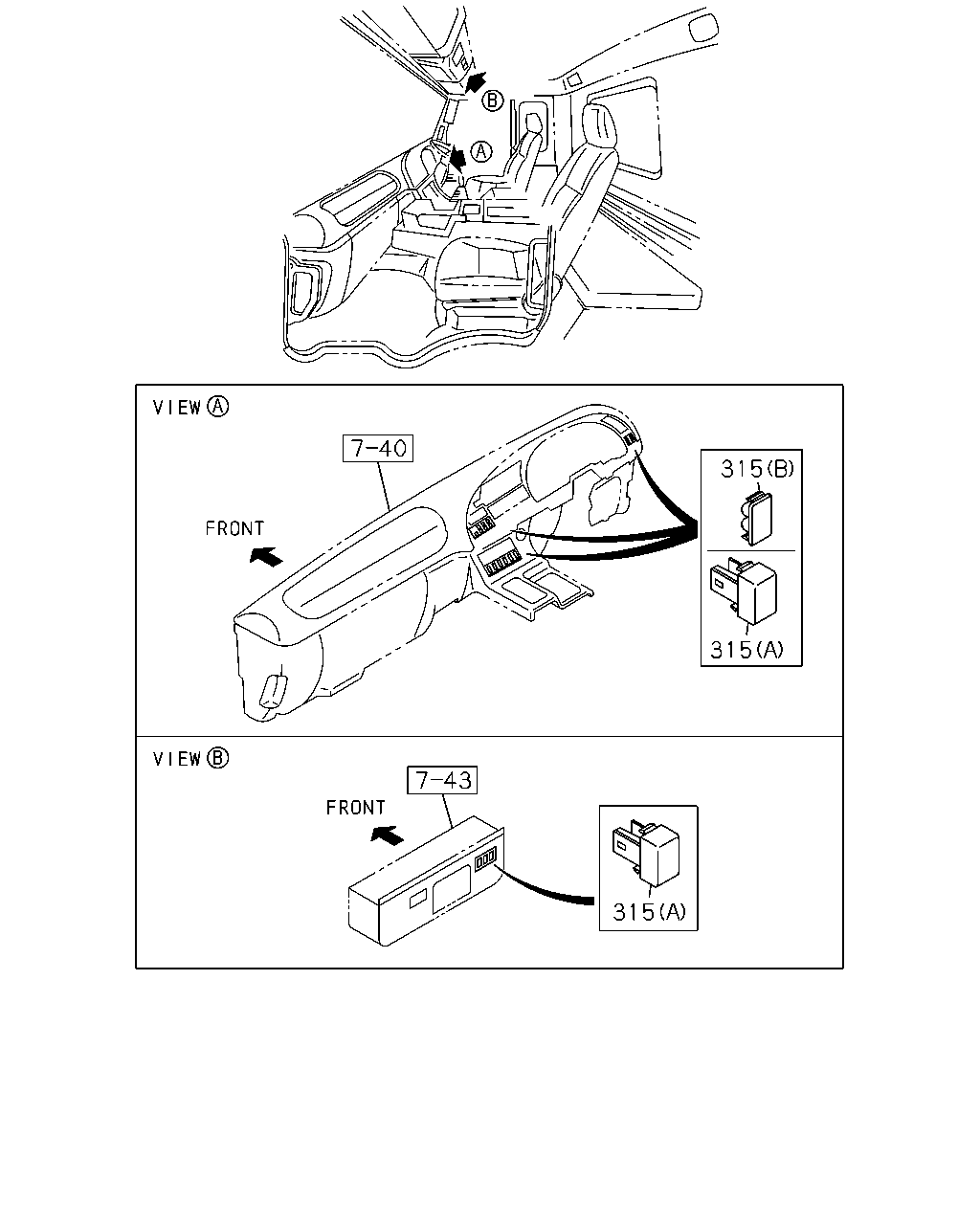

315 315 315

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	315	COVER; HOLE,SW (A)	1-82359-069-2	AR	1	9603-	●	●
	315	COVER; HOLE,SW (B)	8-97043-732-1	AR	1	9603-	●	●
