Sayfa 3-50 - Isuzu EPC

3-50 — BRAKE PIPING; OIL,MASTER CYLINDER (#41329) — 542 parça

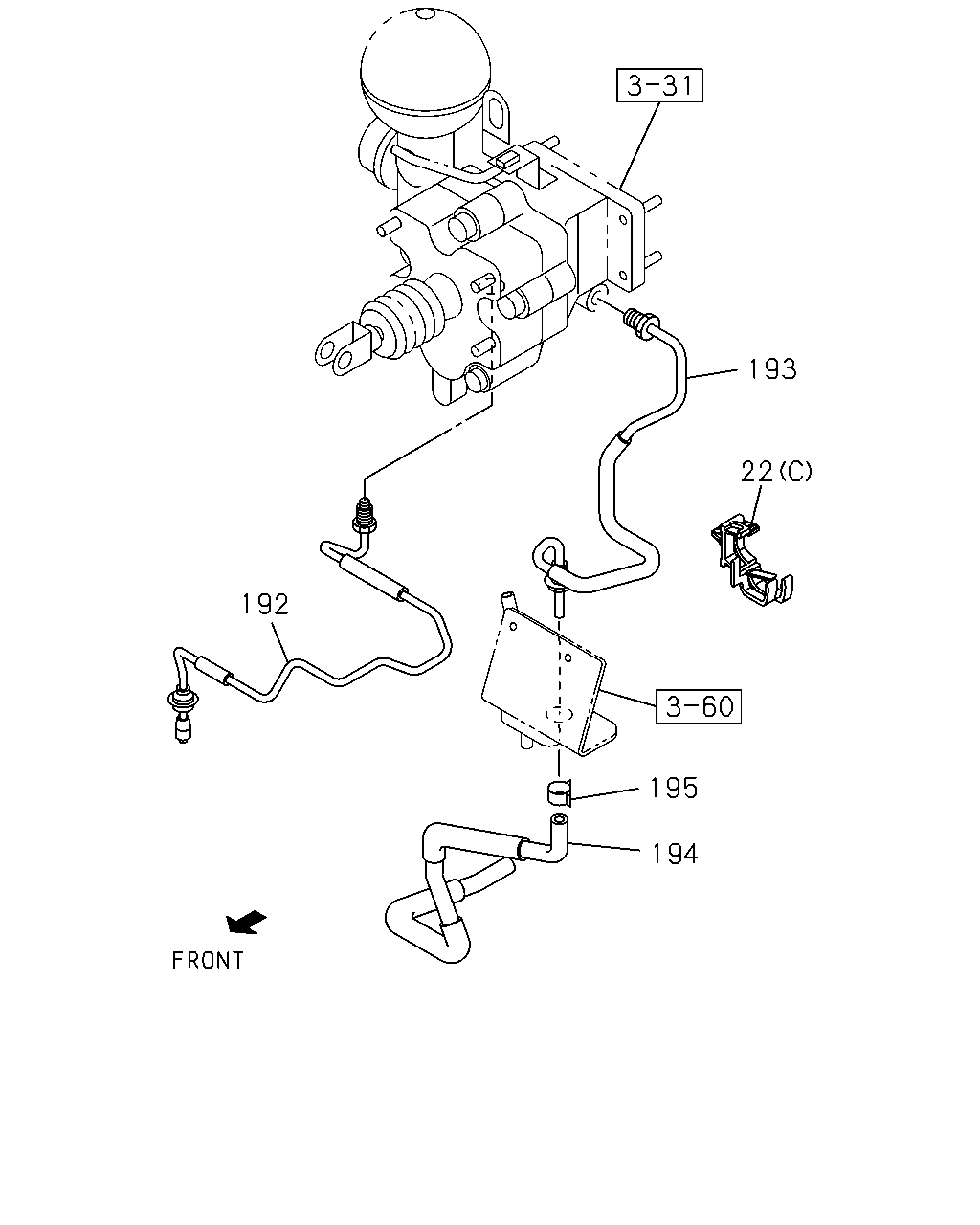

193 22 192 195 194

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
22	04.685 CLIP HYDRO BRAKE BOOSTER<7QQ> 02.343 (C) ID=10 & 16	8-94413-325-0	01	1	0408-0506	●	●
22	04.685 CLIP 02.343 (C) ID=10 & 16	8-94413-325-0	01	1	0408-0506			●	●	●
22	04.685 CLIP HYDRO BRAKE BOOSTER<7QQ> 02.343 (C) ID=10 & 16	8-94413-325-0	01	1	0507-0606	●	●		●	●
22	04.685 CLIP HYDRO BRAKE BOOSTER<7QQ> 02.343 (C) ID=10 & 16	8-94413-325-0	01	1	0607-	●	●
22	04.685 CLIP 02.343 (C) ID=10 & 16	8-94413-325-0	01	1	0607-				●	●
22	04.685 CLIP 4HE1 ENG(RLY) HYDRO BRAKE BOOSTER<7QQ> 02.559 (A) ID=11 L=16	9-09525-025-0	02	1	0302-0506	●	●
22	04.685 CLIP 4HE1 ENG(RLY) 02.559 (A) ID=11 L=16	9-09525-025-0	02	1	0302-0506			●	●	●
22	04.685 CLIP 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER<7QQ> 02.559 (A) ID=11 L=16	9-09525-025-0	02	1	0507-0606	●	●		●	●
22	04.685 CLIP 4HK1-TCC ENG(RDV) HYDRO BRAKE BOOSTER<7QQ> 02.559 (A) ID=11 L=16	9-09525-025-0	02	1	0607-0607	●	●
22	04.685 CLIP 4HK1-TCC ENG(RDV) 02.559 (A) ID=11 L=16	9-09525-025-0	02	1	0607-0607				●	●
22	04.685 CLIP 4HK1-TCC ENG(RDV) HYDRO BRAKE BOOSTER<7QQ> (A) ID=11 L=16	0-95235-025-0	02	1	0607-0708	●	●
22	04.685 CLIP 4HK1-TCC ENG(RDV) (A) ID=11 L=16	0-95235-025-0	02	1	0607-0708				●	●
22	04.685 CLIP 4HK1-TCC ENG(RDV) HYDRO BRAKE BOOSTER<7QQ> (A) ID=10 L=16.5	8-98082-034-0	02	1	0709-	●	●
22	04.685 CLIP 4HK1-TCC ENG(RDV) (A) ID=10 L=16.5	8-98082-034-0	02	1	0709-				●	●
22	04.685 CLIP 4HE1 ENG(RLY) HYDRO BRAKE BOOSTER<7QQ> 02.559 (B) ID=19 L=20	9-09525-836-0	01	1	0302-0506	●	●
22	04.685 CLIP 4HE1 ENG(RLY) 02.559 (B) ID=19 L=20	9-09525-836-0	01	1	0302-0506			●	●
22	04.685 CLIP 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER<7QQ> 02.559 (B) ID=19 L=20	9-09525-836-0	01	1	0507-0606	●	●		●
22	04.685 CLIP 4HK1-TCC ENG(RDV) HYDRO BRAKE BOOSTER<7QQ> (B) ID=19 L=20	0-95235-836-0	01	1	0607-0708	●	●
22	04.685 CLIP 4HK1-TCC ENG(RDV) (B) ID=19 L=20	0-95235-836-0	01	1	0607-0708				●
22	04.685 CLIP 4HK1-TCC ENG(RDV) HYDRO BRAKE BOOSTER<7QQ> (B) ID=17 L=21	8-98082-035-0	01	1	0709-	●	●
22	04.685 CLIP 4HK1-TCC ENG(RDV) (B) ID=17 L=21	8-98082-035-0	01	1	0709-				●
192	04.685 PIPE; PRESSURE HYDRO BRAKE BOOSTER<7QQ>	8-97148-805-2	01	1	0302-0506	●	●
192	04.685 PIPE; PRESSURE	8-97148-805-2	01	1	0302-0506			●	●	●
192	04.685 PIPE; PRESSURE HYDRO BRAKE BOOSTER<7QQ>	8-97148-805-2	01	1	0507-0606	●	●		●	●
192	04.685 PIPE; PRESSURE HYDRO BRAKE BOOSTER<7QQ>	8-97148-805-2	01	1	0607-	●	●
192	04.685 PIPE; PRESSURE	8-97148-805-2	01	1	0607-				●	●
193	04.685 PIPE; RETURN HYDRO BRAKE BOOSTER<7QQ>	8-97171-016-2	01	1	0302-0506	●	●
193	04.685 PIPE; RETURN	8-97171-016-2	01	1	0302-0506			●	●	●
193	04.685 PIPE; RETURN HYDRO BRAKE BOOSTER<7QQ>	8-97171-016-2	01	1	0507-0606	●	●		●	●
193	04.685 PIPE; RETURN HYDRO BRAKE BOOSTER<7QQ>	8-97171-016-2	01	1	0607-	●	●
193	04.685 PIPE; RETURN	8-97171-016-2	01	1	0607-				●	●
194	04.681 HOSE; CAB TO PIPE HYDRO BRAKE BOOSTER<7QQ>	8-97201-847-3	01	1	0302-0506	●	●
194	04.681 HOSE; CAB TO PIPE	8-97201-847-3	01	1	0302-0506			●	●	●
194	04.681 HOSE; CAB TO PIPE HYDRO BRAKE BOOSTER<7QQ>	8-97201-847-3	01	1	0507-0606	●	●		●	●
194	04.681 HOSE; CAB TO PIPE HYDRO BRAKE BOOSTER<7QQ>	8-97201-847-3	01	1	0607-	●	●
194	04.681 HOSE; CAB TO PIPE	8-97201-847-3	01	1	0607-				●	●
195	04.681 CLIP; HOSE HYDRO BRAKE BOOSTER<7QQ> 04.686 ID=11-19.5	8-94426-597-0	01	1	0302-0506	●	●
195	04.681 CLIP; HOSE 04.686 ID=11-19.5	8-94426-597-0	01	1	0302-0506			●	●	●
195	04.681 CLIP; HOSE HYDRO BRAKE BOOSTER<7QQ> 04.686 ID=11-19.5	8-94426-597-0	01	1	0507-0606	●	●		●	●
195	04.681 CLIP; HOSE HYDRO BRAKE BOOSTER<7QQ> 04.686 ID=11-19.5	8-94426-597-0	01	1	0607-1005	●	●
195	04.681 CLIP; HOSE 04.686 ID=11-19.5	8-94426-597-0	01	1	0607-1005				●	●
195	04.681 CLIP; HOSE HYDRO BRAKE BOOSTER<7QQ> ID=11-17	8-98173-762-0	01	1	1006-	●	●
195	04.681 CLIP; HOSE ID=11-17	8-98173-762-0	01	1	1006-				●	●

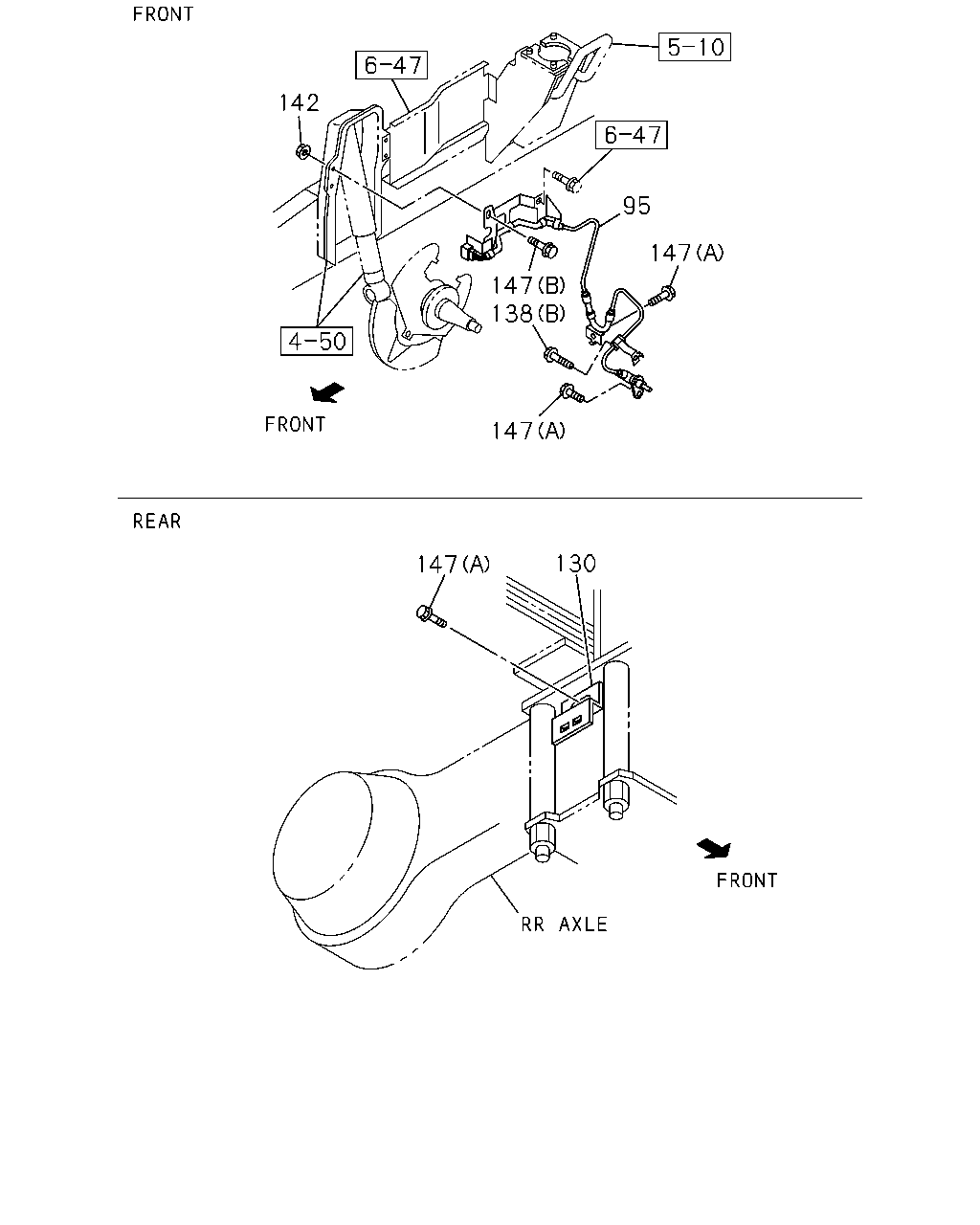

142 95 147 147 138 147 130 147

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
95	04.710 SENSOR; SPD,FRT WHEEL 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97256-622-3	01	1	0302-0506	●					●	●
95	04.710 SENSOR; SPD,FRT WHEEL	8-97256-622-3	01	1	0302-0506		●	●	●	●
95	04.710 SENSOR; SPD,FRT WHEEL 4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97256-622-3	01	1	0507-0606	●					●	●
95	04.710 SENSOR; SPD,FRT WHEEL 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97256-623-2	01	1	0302-0506						●	●
95	04.710 SENSOR; SPD,FRT WHEEL 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97256-623-2	01	1	0302-0506	●
95	04.710 SENSOR; SPD,FRT WHEEL EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97256-623-2	01	1	0302-0506		●
95	04.710 SENSOR; SPD,FRT WHEEL 4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97256-623-2	01	1	0507-0606						●	●
95	04.710 SENSOR; SPD,FRT WHEEL 4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97256-623-2	01	1	0507-0606	●
95	04.710 SENSOR; SPD,FRT WHEEL 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER<7QQ>	8-97249-056-2	01	1	0302-0506	●
95	04.710 SENSOR; SPD,FRT WHEEL HYDRO BRAKE BOOSTER<7QQ>	8-97249-056-2	01	1	0302-0506		●
95	04.710 SENSOR; SPD,FRT WHEEL	8-97249-056-2	01	1	0302-0506			●	●	●
95	04.710 SENSOR; SPD,FRT WHEEL 4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER<7QQ>	8-97249-056-2	01	1	0507-0606	●
95	04.710 SENSOR; SPD,FRT WHEEL 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52>	8-97386-640-0	01	1	0507-0606	●	●		●	●		●
95	04.710 SENSOR; SPD,FRT WHEEL 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97386-640-0	01	1	0607-						●
95	04.710 SENSOR; SPD,FRT WHEEL 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52>	8-97386-640-0	01	1	0607-	●						●
95	04.710 SENSOR; SPD,FRT WHEEL	8-97386-640-0	01	1	0607-		●		●	●
95	04.710 SENSOR; SPD,FRT WHEEL 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52>	8-97386-639-0	01	1	0507-0606	●	●		●	●		●
95	04.710 SENSOR; SPD,FRT WHEEL 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97386-639-0	01	1	0607-						●
95	04.710 SENSOR; SPD,FRT WHEEL 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52>	8-97386-639-0	01	1	0607-	●						●
95	04.710 SENSOR; SPD,FRT WHEEL	8-97386-639-0	01	1	0607-		●		●	●
130	04.686 BRACKET; SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97080-060-2	02	1	0302-0506	●					●	●
130	04.686 BRACKET; SPEED SENSOR	8-97080-060-2	02	1	0302-0506		●	●	●	●
130	04.686 BRACKET; SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97080-060-2	02	1	0507-	●					●	●
130	04.686 BRACKET; SPEED SENSOR	8-97080-060-2	02	1	0507-		●		●	●
138	04.720 BOLT; COVER 4 WHEEL ANTI LOCK BRAKE<JE5> 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0302-0506	●					●	●
138	04.720 BOLT; COVER 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0302-0506		●	●	●	●
138	04.720 BOLT; COVER 4 WHEEL ANTI LOCK BRAKE<JE5> 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0507-0512	●					●	●
138	04.720 BOLT; COVER 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0507-0512		●		●	●
138	04.720 BOLT; COVER 4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 (A) M8X12 FLANGE	0-28050-812-0	02	1	0601-	●					●	●
138	04.720 BOLT; COVER 02.343 (A) M8X12 FLANGE	0-28050-812-0	02	1	0601-		●		●	●
138	04.720 BOLT; COVER 4 WHEEL ANTI LOCK BRAKE<JE5> 04.640 (B) M10X12 FLANGE	0-28081-012-0	02	1	0302-0506	●					●	●
138	04.720 BOLT; COVER 04.640 (B) M10X12 FLANGE	0-28081-012-0	02	1	0302-0506		●	●	●	●
138	04.720 BOLT; COVER 4 WHEEL ANTI LOCK BRAKE<JE5> 04.640 (B) M10X12 FLANGE	0-28081-012-0	02	1	0507-0512	●					●	●
138	04.720 BOLT; COVER 04.640 (B) M10X12 FLANGE	0-28081-012-0	02	1	0507-0512		●		●	●
138	04.720 BOLT; COVER 4 WHEEL ANTI LOCK BRAKE<JE5> 06.225 (B) M10X12 FLANGE	0-28051-012-0	02	1	0601-0606	●					●	●
138	04.720 BOLT; COVER 06.225 (B) M10X12 FLANGE	0-28051-012-0	02	1	0601-0606		●		●	●
138	04.720 BOLT; COVER 4 WHEEL ANTI LOCK BRAKE<JE5> 06.225 (B) M10X12 FLANGE	0-28051-012-0	02	1	0607-						●
138	04.720 BOLT; COVER 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> 06.225 (B) M10X12 FLANGE	0-28051-012-0	02	1	0607-	●						●
138	04.720 BOLT; COVER 06.225 (B) M10X12 FLANGE	0-28051-012-0	02	1	0607-		●		●	●
142	04.710 NUT; SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 07.633 M8 FLANGE	0-91150-108-0	02	1	0302-0506	●					●	●
142	04.710 NUT; SPEED SENSOR 07.633 M8 FLANGE	0-91150-108-0	02	1	0302-0506		●	●	●	●
142	04.710 NUT; SPEED SENSOR 4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> 07.633 M8 FLANGE	0-91150-108-0	02	1	0507-0602	●					●	●
142	04.710 NUT; SPEED SENSOR 4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-0606	●					●	●
147	04.710 BOLT; SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 08.900 (A) M8X12 FLANGE	0-28080-812-0	06	1	0302-0506	●					●	●
147	04.710 BOLT; SPEED SENSOR 08.900 (A) M8X12 FLANGE	0-28080-812-0	06	1	0302-0506		●	●	●	●
147	04.710 BOLT; SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 08.900 (A) M8X12 FLANGE	0-28080-812-0	06	1	0507-0512	●					●	●
147	04.710 BOLT; SPEED SENSOR 08.900 (A) M8X12 FLANGE	0-28080-812-0	06	1	0507-0512		●		●	●
147	04.710 BOLT; SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 (A) M8X12 FLANGE	0-28050-812-0	06	1	0601-	●					●	●
147	04.710 BOLT; SPEED SENSOR 02.343 (A) M8X12 FLANGE	0-28050-812-0	06	1	0601-		●		●	●
147	04.710 BOLT; SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 02.664 (B) M8X20 FLANGE	0-28680-820-0	02	1	0302-0506	●					●	●
147	04.710 BOLT; SPEED SENSOR 02.664 (B) M8X20 FLANGE	0-28680-820-0	02	1	0302-0506		●	●	●	●
147	04.710 BOLT; SPEED SENSOR 4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> 02.664 (B) M8X20 FLANGE	0-28680-820-0	02	1	0507-0512	●					●	●
147	04.710 BOLT; SPEED SENSOR 4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> 01.531 (B) M8X20 FLANGE	0-28650-820-0	02	1	0601-0606	●					●	●
147	04.710 BOLT; SPEED SENSOR 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> 02.559 (B) M8X25 FLANGE	0-28680-825-0	02	1	0507-0512	●	●		●	●		●
147	04.710 BOLT; SPEED SENSOR 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	0601-0606	●	●		●	●		●
147	04.710 BOLT; SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	0607-	●					●	●
147	04.710 BOLT; SPEED SENSOR 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	0607-		●		●	●

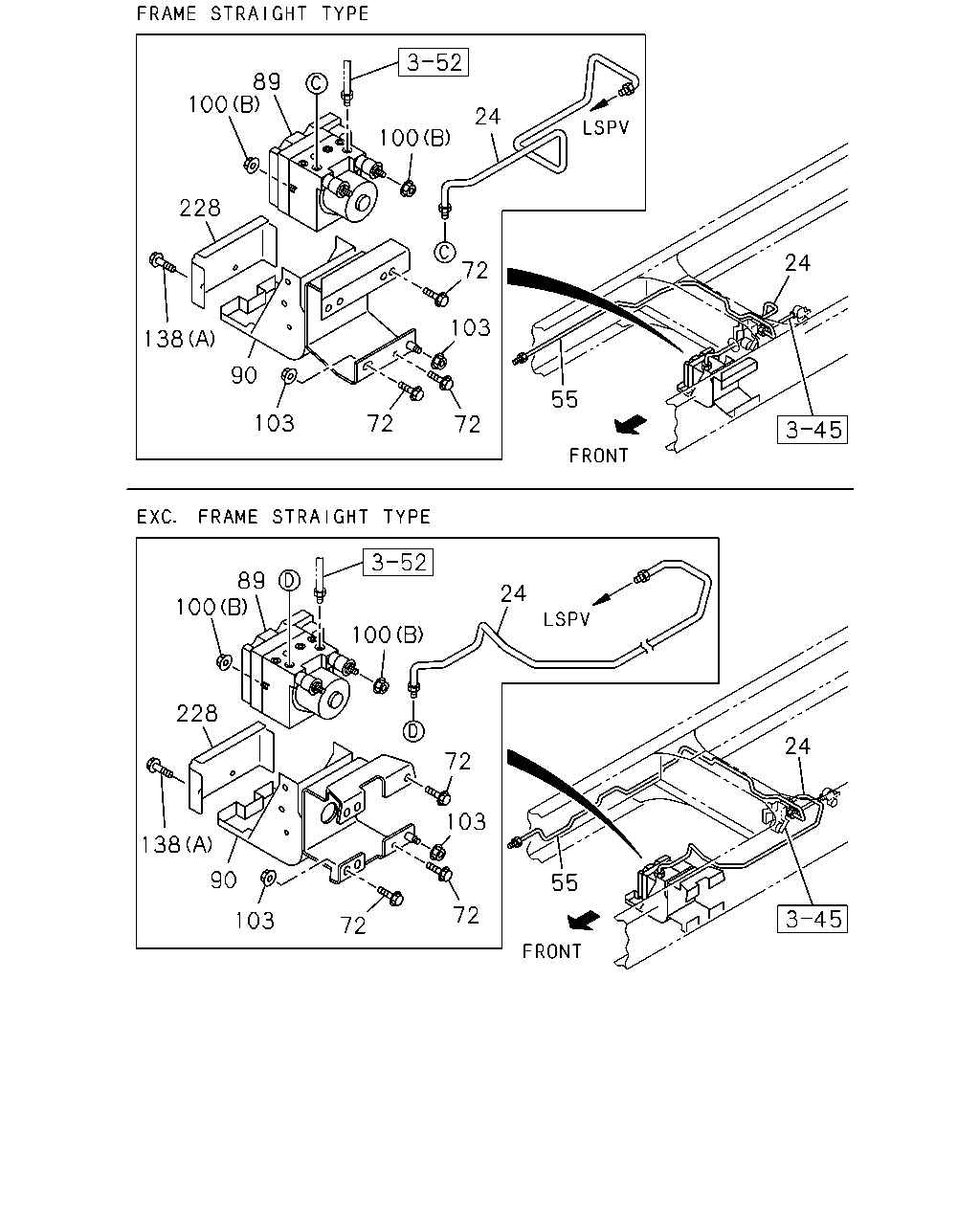

89 100 24 100 228 24 72 103 138 90 55 103 72 72 89 100 24 100 228 24 72 103 138 90 55 72 103 72

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
24	04.685 PIPE; BRK,PROPORTIONING VLV 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ>	8-97247-875-1	01	1	0302-0506	●					●	●
24	04.685 PIPE; BRK,PROPORTIONING VLV	8-97247-875-1	01	1	0302-0506		●	●	●	●
24	04.685 PIPE; BRK,PROPORTIONING VLV 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ>	8-97247-875-1	01	1	0507-0507	●						●
24	04.685 PIPE; BRK,PROPORTIONING VLV	8-97247-875-1	01	1	0507-0507		●		●	●
24	04.685 PIPE; BRK,PROPORTIONING VLV	8-97247-875-1	01	1	0507-0606		●		●	●
24	04.685 PIPE; BRK,PROPORTIONING VLV FRAME STRAIGHT TYPE<7KJ>	8-97247-875-1	01	1	0607-		●
24	04.685 PIPE; BRK,PROPORTIONING VLV	8-97247-875-1	01	1	0607-				●	●
24	04.685 PIPE; BRK,PROPORTIONING VLV 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ>	8-97247-865-4	01	1	0302-0506	●					●	●
24	04.685 PIPE; BRK,PROPORTIONING VLV 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97247-865-4	01	1	0507-0606						●
24	04.685 PIPE; BRK,PROPORTIONING VLV 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ>	8-97247-865-4	01	1	0507-0606	●						●
24	04.685 PIPE; BRK,PROPORTIONING VLV 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97247-865-4	01	1	0607-						●	●
24	04.685 PIPE; BRK,PROPORTIONING VLV 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ>	8-97247-865-4	01	1	0607-	●
24	04.685 PIPE; BRK,PROPORTIONING VLV EXC. FRAME STRAIGHT TYPE<7KJ>	8-97247-865-4	01	1	0607-		●
24	04.685 PIPE; BRK,PROPORTIONING VLV 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ>	8-98005-304-0	01	1	0507-0606	●						●
24	04.685 PIPE; BRK,PROPORTIONING VLV 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ>	8-98005-304-0	01	1	0607-	●
55	04.686 PIPE; BRK,VLV TO UNION FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 04.685 REAR	5-47411-777-0	01	1	0302-0506						●
55	04.686 PIPE; BRK,VLV TO UNION EXC. FRAME STRAIGHT TYPE<7KJ> REAR	8-97325-784-0	01	1	0302-0506						●
55	04.686 PIPE; BRK,VLV TO UNION REAR	8-97325-784-0	01	1	0507-						●
55	04.686 PIPE; BRK,VLV TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 04.685 REAR	5-47411-777-0	01	1	0302-0506						●
55	04.686 PIPE; BRK,VLV TO UNION FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> REAR	5-47411-784-0	01	1	0302-0606	●						●
55	04.686 PIPE; BRK,VLV TO UNION FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> REAR	5-47411-784-0	01	1	0607-	●
55	04.686 PIPE; BRK,VLV TO UNION EXC. FRAME STRAIGHT TYPE<7KJ> REAR	8-97325-785-0	01	1	0302-0606	●						●
55	04.686 PIPE; BRK,VLV TO UNION EXC. FRAME STRAIGHT TYPE<7KJ> REAR	8-97325-785-0	01	1	0607-	●
55	04.686 PIPE; BRK,VLV TO UNION REAR	8-97325-785-0	01	1	0607-							●
55	04.686 PIPE; BRK,VLV TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> REAR	5-47411-784-0	01	1	0302-0506	●						●
55	04.686 PIPE; BRK,VLV TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> REAR	8-98005-302-0	01	1	0507-0606	●						●
55	04.686 PIPE; BRK,VLV TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> REAR	8-98042-891-1	01	1	0607-	●
55	04.686 PIPE; BRK,VLV TO UNION 04.685 REAR	5-47411-786-0	01	1	0302-0606		●
55	04.686 PIPE; BRK,VLV TO UNION FRAME STRAIGHT TYPE<7KJ> 04.685 REAR	5-47411-786-0	01	1	0607-		●
55	04.686 PIPE; BRK,VLV TO UNION EXC. FRAME STRAIGHT TYPE<7KJ> REAR	8-97325-786-0	01	1	0607-		●
55	04.686 PIPE; BRK,VLV TO UNION REAR	8-97247-894-0	01	1	0302-0506			●
55	04.686 PIPE; BRK,VLV TO UNION REAR	5-47411-790-0	01	1	0302-				●	●
72	04.686 BOLT; BRKT TO BODY 4 WHEEL ANTI LOCK BRAKE<JE5> 03.405 M10X25 FLANGE	0-28681-025-0	03	1	0302-0506	●					●	●
72	04.686 BOLT; BRKT TO BODY 03.405 M10X25 FLANGE	0-28681-025-0	03	1	0302-0506		●	●	●	●
72	04.686 BOLT; BRKT TO BODY 4 WHEEL ANTI LOCK BRAKE<JE5> 03.405 M10X25 FLANGE	0-28681-025-0	03	1	0507-0512	●					●	●
72	04.686 BOLT; BRKT TO BODY 03.405 M10X25 FLANGE	0-28681-025-0	03	1	0507-0512		●		●	●
72	04.686 BOLT; BRKT TO BODY 4 WHEEL ANTI LOCK BRAKE<JE5> 00.029 M10X25 FLANGE	0-28651-025-0	03	1	0601-	●					●	●
72	04.686 BOLT; BRKT TO BODY 00.029 M10X25 FLANGE	0-28651-025-0	03	1	0601-		●		●	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5> VOLTAGE 24V<7AE>	8-97327-076-2	01	1	0302-0506	●					●	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK	8-97327-076-2	01	1	0302-0506		●	●	●	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> VEHICLE CATEGORY NQR<7NQ>	8-97376-873-1	01	1	0507-0606	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER<7QQ> EXC. VEHICLE CATEGORY NQR<7NQ>	8-97376-873-1	01	1	0507-0606	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) VEHICLE CATEGORY NQR<7NQ>	8-97376-873-1	01	1	0507-0606		●		●	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER<7QQ> EXC. VEHICLE CATEGORY NQR<7NQ>	8-97376-873-1	01	1	0507-0606		●		●	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) EUROPEAN BASIC EQUIPMENT(EK4) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> VEHICLE CATEGORY NQR<7NQ>	8-98042-499-1	01	1	0607-1006	●	●		●	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> HYDRO BRAKE BOOSTER<7QQ> EXC. VEHICLE CATEGORY NQR<7NQ>	8-98042-499-1	01	1	0607-1006	●	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) EUROPEAN BASIC EQUIPMENT(EK4) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> VEHICLE CATEGORY NQR<7NQ>	8-98157-962-0	01	1	1007-	●	●		●	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> HYDRO BRAKE BOOSTER<7QQ> EXC. VEHICLE CATEGORY NQR<7NQ>	8-98157-962-0	01	1	1007-	●	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. VOLTAGE 24V<7AE>	8-97327-075-2	01	1	0302-0506	●					●	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97327-075-2	01	1	0507-0606						●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. VOLTAGE 24V<7AE>	8-97327-075-2	01	1	0507-0606	●						●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52>	8-98042-500-1	01	1	0607-1006	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4JJ1 ENG(LFB) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52>	8-98042-500-1	01	1	0607-1006							●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52>	8-98157-964-0	01	1	1007-	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4JJ1 ENG(LFB) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52>	8-98157-964-0	01	1	1007-							●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HYDRO BRAKE BOOSTER<7QQ>	8-98002-691-1	01	1	0507-0606	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. HYDRO BRAKE BOOSTER<7QQ>	8-98002-691-1	01	1	0507-0606		●		●	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4HK1-TCN ENG(RDQ) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98002-691-1	01	1	0507-0606							●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> EXC. HYDRO BRAKE BOOSTER<7QQ>	8-98042-501-1	01	1	0607-1006	●	●				●	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> EXC. HYDRO BRAKE BOOSTER<7QQ>	8-98157-963-0	01	1	1007-	●	●				●	●
90	04.730 BRACKET; HYDRAULIC UNIT,ABS 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ>	8-97260-303-0	01	1	0302-0506						●
90	04.730 BRACKET; HYDRAULIC UNIT,ABS 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97260-303-0	01	1	0507-						●
90	04.730 BRACKET; HYDRAULIC UNIT,ABS 4 WHEEL ANTI LOCK BRAKE<JE5> VOLTAGE 24V<7AE>	8-97245-500-4	01	1	0302-0506						●
90	04.730 BRACKET; HYDRAULIC UNIT,ABS 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ>	8-97245-497-4	01	1	0302-0506	●						●
90	04.730 BRACKET; HYDRAULIC UNIT,ABS	8-97245-497-4	01	1	0302-0506		●	●	●	●
90	04.730 BRACKET; HYDRAULIC UNIT,ABS 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ>	8-97245-497-4	01	1	0507-0606	●						●
90	04.730 BRACKET; HYDRAULIC UNIT,ABS	8-97245-497-4	01	1	0507-0606		●		●	●
90	04.730 BRACKET; HYDRAULIC UNIT,ABS 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ>	8-97245-497-4	01	1	0607-	●
90	04.730 BRACKET; HYDRAULIC UNIT,ABS FRAME STRAIGHT TYPE<7KJ>	8-97245-497-4	01	1	0607-		●
90	04.730 BRACKET; HYDRAULIC UNIT,ABS	8-97245-497-4	01	1	0607-				●	●
90	04.730 BRACKET; HYDRAULIC UNIT,ABS 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ>	8-97245-499-1	01	1	0302-0606	●						●
90	04.730 BRACKET; HYDRAULIC UNIT,ABS 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ>	8-97245-499-1	01	1	0607-	●
90	04.730 BRACKET; HYDRAULIC UNIT,ABS EXC. FRAME STRAIGHT TYPE<7KJ>	8-97245-499-1	01	1	0607-		●
90	04.730 BRACKET; HYDRAULIC UNIT,ABS 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97245-499-1	01	1	0607-							●
100	04.730 NUT; HYDRAULIC UNIT 4 WHEEL ANTI LOCK BRAKE<JE5> 07.633 (B) M8 FLANGE	0-91150-108-0	03	1	0302-0506	●					●	●
100	04.730 NUT; HYDRAULIC UNIT 07.633 (B) M8 FLANGE	0-91150-108-0	03	1	0302-0506		●	●	●	●
100	04.730 NUT; HYDRAULIC UNIT 4 WHEEL ANTI LOCK BRAKE<JE5> 07.633 (B) M8 FLANGE	0-91150-108-0	03	1	0507-0602	●					●	●
100	04.730 NUT; HYDRAULIC UNIT 07.633 (B) M8 FLANGE	0-91150-108-0	03	1	0507-0602		●		●	●
100	04.730 NUT; HYDRAULIC UNIT 4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 (B) M8 FLANGE	0-91180-108-0	03	1	0603-	●					●	●
100	04.730 NUT; HYDRAULIC UNIT 01.062 (B) M8 FLANGE	0-91180-108-0	03	1	0603-		●		●	●
100	04.730 NUT; HYDRAULIC UNIT HYDRO BRAKE BOOSTER<7QQ> 06.606 (A) M12 SELF LOCK	8-97028-390-1	01	1	0302-0506	●	●
100	04.730 NUT; HYDRAULIC UNIT 06.606 (A) M12 SELF LOCK	8-97028-390-1	01	1	0302-0506			●	●	●
100	04.730 NUT; HYDRAULIC UNIT HYDRO BRAKE BOOSTER<7QQ> 06.606 (A) M12 SELF LOCK	8-97028-390-1	01	1	0507-0606	●	●		●	●
100	04.730 NUT; HYDRAULIC UNIT HYDRO BRAKE BOOSTER<7QQ> (A)	8-97358-958-0	01	1	0607-	●	●
100	04.730 NUT; HYDRAULIC UNIT (A)	8-97358-958-0	01	1	0607-				●	●
103	04.730 NUT; HYDRAULIC UNIT BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 04.785 M10 FLANGE	0-91150-110-0	01	1	0302-0506						●
103	04.730 NUT; HYDRAULIC UNIT BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 04.785 M10 FLANGE	0-91150-110-0	02	1	0302-0506						●
103	04.730 NUT; HYDRAULIC UNIT BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> 04.785 M10 FLANGE	0-91150-110-0	02	1	0302-0506	●						●
103	04.730 NUT; HYDRAULIC UNIT BRKT 04.785 M10 FLANGE	0-91150-110-0	02	1	0302-0506		●	●	●	●
103	04.730 NUT; HYDRAULIC UNIT BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> 04.785 M10 FLANGE	0-91150-110-0	02	1	0507-0602	●					●	●
103	04.730 NUT; HYDRAULIC UNIT BRKT 04.785 M10 FLANGE	0-91150-110-0	02	1	0507-0602		●		●	●
103	04.730 NUT; HYDRAULIC UNIT BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> 03.162 M10 FLANGE	0-91180-110-0	02	1	0603-	●					●	●
103	04.730 NUT; HYDRAULIC UNIT BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	0603-		●		●	●
103	04.730 NUT; HYDRAULIC UNIT BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	01	1	0302-0506	●					●	●
103	04.730 NUT; HYDRAULIC UNIT BRKT 07.633 M8 FLANGE	0-91150-108-0	01	1	0302-0506		●	●	●	●
103	04.730 NUT; HYDRAULIC UNIT BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	01	1	0507-0602	●						●
103	04.730 NUT; HYDRAULIC UNIT BRKT 07.633 M8 FLANGE	0-91150-108-0	01	1	0507-0602		●		●	●
103	04.730 NUT; HYDRAULIC UNIT BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-0606	●						●
103	04.730 NUT; HYDRAULIC UNIT BRKT 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-0606		●		●	●
103	04.730 NUT; HYDRAULIC UNIT BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	0607-	●
103	04.730 NUT; HYDRAULIC UNIT BRKT FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	0607-		●
103	04.730 NUT; HYDRAULIC UNIT BRKT 01.062 M8 FLANGE	0-91180-108-0	01	1	0607-				●	●
138	04.720 BOLT; COVER 4 WHEEL ANTI LOCK BRAKE<JE5> 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0302-0506	●					●	●
138	04.720 BOLT; COVER 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0302-0506		●	●	●	●
138	04.720 BOLT; COVER 4 WHEEL ANTI LOCK BRAKE<JE5> 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0507-0512	●					●	●
138	04.720 BOLT; COVER 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0507-0512		●		●	●
138	04.720 BOLT; COVER 4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 (A) M8X12 FLANGE	0-28050-812-0	02	1	0601-	●					●	●
138	04.720 BOLT; COVER 02.343 (A) M8X12 FLANGE	0-28050-812-0	02	1	0601-		●		●	●
138	04.720 BOLT; COVER 4 WHEEL ANTI LOCK BRAKE<JE5> 04.640 (B) M10X12 FLANGE	0-28081-012-0	02	1	0302-0506	●					●	●
138	04.720 BOLT; COVER 04.640 (B) M10X12 FLANGE	0-28081-012-0	02	1	0302-0506		●	●	●	●
138	04.720 BOLT; COVER 4 WHEEL ANTI LOCK BRAKE<JE5> 04.640 (B) M10X12 FLANGE	0-28081-012-0	02	1	0507-0512	●					●	●
138	04.720 BOLT; COVER 04.640 (B) M10X12 FLANGE	0-28081-012-0	02	1	0507-0512		●		●	●
138	04.720 BOLT; COVER 4 WHEEL ANTI LOCK BRAKE<JE5> 06.225 (B) M10X12 FLANGE	0-28051-012-0	02	1	0601-0606	●					●	●
138	04.720 BOLT; COVER 06.225 (B) M10X12 FLANGE	0-28051-012-0	02	1	0601-0606		●		●	●
138	04.720 BOLT; COVER 4 WHEEL ANTI LOCK BRAKE<JE5> 06.225 (B) M10X12 FLANGE	0-28051-012-0	02	1	0607-						●
138	04.720 BOLT; COVER 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> 06.225 (B) M10X12 FLANGE	0-28051-012-0	02	1	0607-	●						●
138	04.720 BOLT; COVER 06.225 (B) M10X12 FLANGE	0-28051-012-0	02	1	0607-		●		●	●
228	04.730 COVER; ABS 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97233-083-0	01	1	0302-0506	●					●	●
228	04.730 COVER; ABS	8-97233-083-0	01	1	0302-0506		●	●	●	●
228	04.730 COVER; ABS 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97233-083-0	01	1	0507-0611	●					●	●
228	04.730 COVER; ABS	8-97233-083-0	01	1	0507-0611		●		●	●
228	04.730 COVER; ABS 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97359-760-0	01	1	0612-	●					●	●
228	04.730 COVER; ABS	8-97359-760-0	01	1	0612-		●		●	●

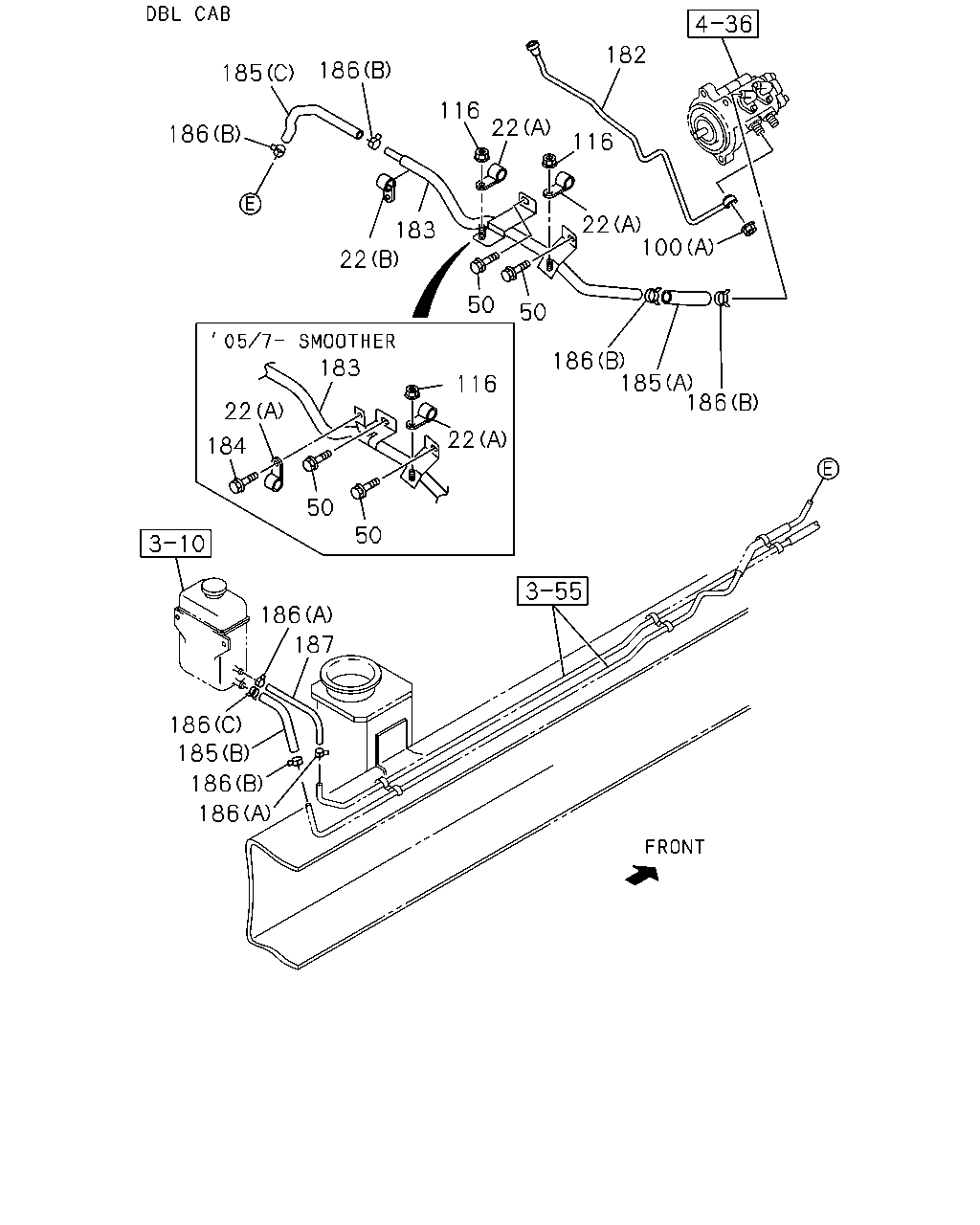

186 182 185 186 116 186 22 187 116 186 22 183 22 100 50 186 185 186 50 183 116 22 22 50 184 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G

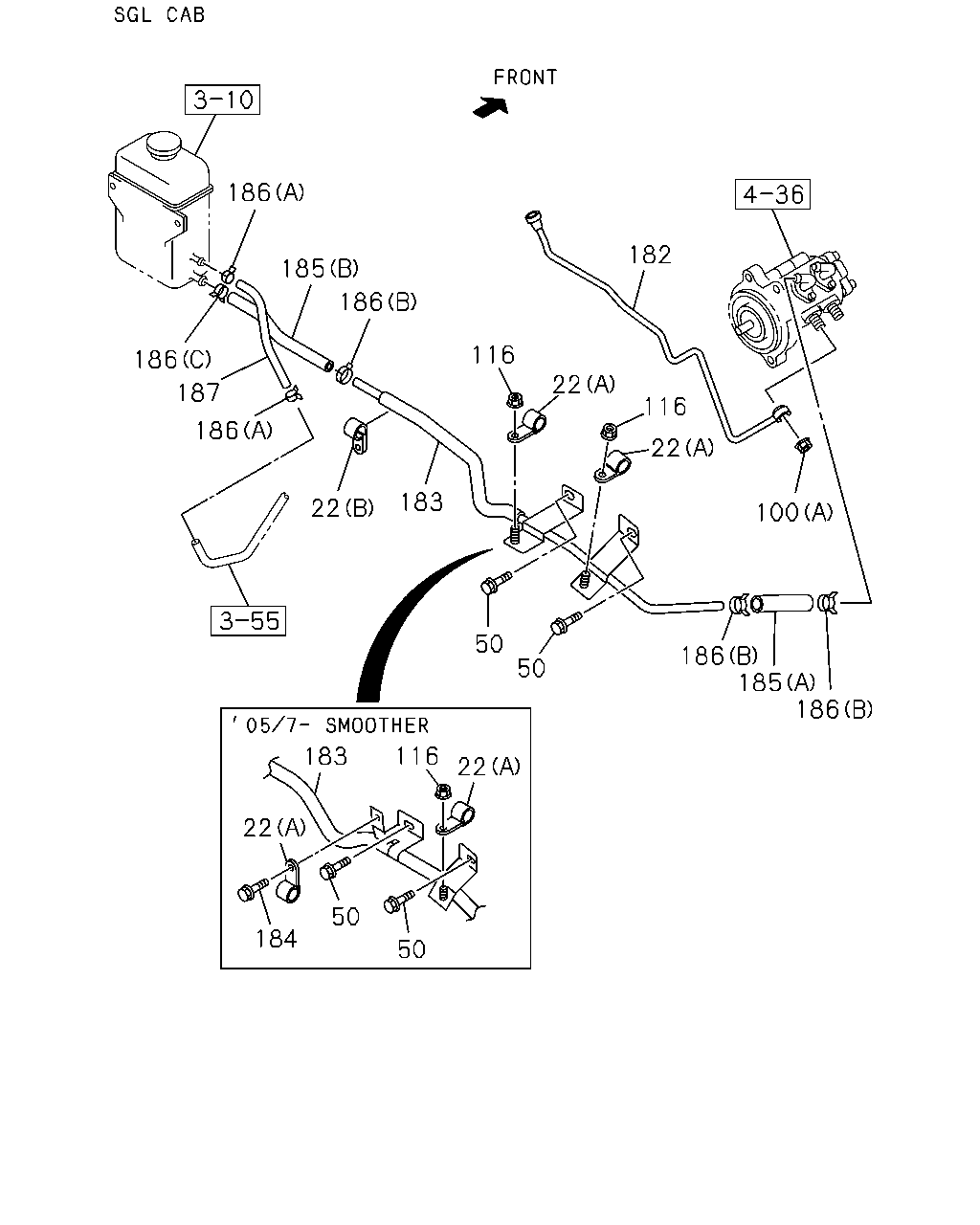

22	04.685 CLIP HYDRO BRAKE BOOSTER<7QQ> 02.343 (C) ID=10 & 16	8-94413-325-0	01	1	0408-0506	●	●
22	04.685 CLIP 02.343 (C) ID=10 & 16	8-94413-325-0	01	1	0408-0506			●	●	●
22	04.685 CLIP HYDRO BRAKE BOOSTER<7QQ> 02.343 (C) ID=10 & 16	8-94413-325-0	01	1	0507-0606	●	●		●	●
22	04.685 CLIP HYDRO BRAKE BOOSTER<7QQ> 02.343 (C) ID=10 & 16	8-94413-325-0	01	1	0607-	●	●
22	04.685 CLIP 02.343 (C) ID=10 & 16	8-94413-325-0	01	1	0607-				●	●
22	04.685 CLIP 4HE1 ENG(RLY) HYDRO BRAKE BOOSTER<7QQ> 02.559 (A) ID=11 L=16	9-09525-025-0	02	1	0302-0506	●	●
22	04.685 CLIP 4HE1 ENG(RLY) 02.559 (A) ID=11 L=16	9-09525-025-0	02	1	0302-0506			●	●	●
22	04.685 CLIP 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER<7QQ> 02.559 (A) ID=11 L=16	9-09525-025-0	02	1	0507-0606	●	●		●	●
22	04.685 CLIP 4HK1-TCC ENG(RDV) HYDRO BRAKE BOOSTER<7QQ> 02.559 (A) ID=11 L=16	9-09525-025-0	02	1	0607-0607	●	●
22	04.685 CLIP 4HK1-TCC ENG(RDV) 02.559 (A) ID=11 L=16	9-09525-025-0	02	1	0607-0607				●	●
22	04.685 CLIP 4HK1-TCC ENG(RDV) HYDRO BRAKE BOOSTER<7QQ> (A) ID=11 L=16	0-95235-025-0	02	1	0607-0708	●	●
22	04.685 CLIP 4HK1-TCC ENG(RDV) (A) ID=11 L=16	0-95235-025-0	02	1	0607-0708				●	●
22	04.685 CLIP 4HK1-TCC ENG(RDV) HYDRO BRAKE BOOSTER<7QQ> (A) ID=10 L=16.5	8-98082-034-0	02	1	0709-	●	●
22	04.685 CLIP 4HK1-TCC ENG(RDV) (A) ID=10 L=16.5	8-98082-034-0	02	1	0709-				●	●
22	04.685 CLIP 4HE1 ENG(RLY) HYDRO BRAKE BOOSTER<7QQ> 02.559 (B) ID=19 L=20	9-09525-836-0	01	1	0302-0506	●	●
22	04.685 CLIP 4HE1 ENG(RLY) 02.559 (B) ID=19 L=20	9-09525-836-0	01	1	0302-0506			●	●
22	04.685 CLIP 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER<7QQ> 02.559 (B) ID=19 L=20	9-09525-836-0	01	1	0507-0606	●	●		●
22	04.685 CLIP 4HK1-TCC ENG(RDV) HYDRO BRAKE BOOSTER<7QQ> (B) ID=19 L=20	0-95235-836-0	01	1	0607-0708	●	●
22	04.685 CLIP 4HK1-TCC ENG(RDV) (B) ID=19 L=20	0-95235-836-0	01	1	0607-0708				●
22	04.685 CLIP 4HK1-TCC ENG(RDV) HYDRO BRAKE BOOSTER<7QQ> (B) ID=17 L=21	8-98082-035-0	01	1	0709-	●	●
22	04.685 CLIP 4HK1-TCC ENG(RDV) (B) ID=17 L=21	8-98082-035-0	01	1	0709-				●
50	04.710 BOLT; PIPE HYDRO BRAKE BOOSTER<7QQ> 01.062 M8X16 FLANGE	0-28080-816-0	02	1	0302-0506	●	●
50	04.710 BOLT; PIPE 01.062 M8X16 FLANGE	0-28080-816-0	02	1	0302-0506			●	●	●
50	04.710 BOLT; PIPE HYDRO BRAKE BOOSTER<7QQ> 01.062 M8X16 FLANGE	0-28080-816-0	02	1	0507-0512	●	●		●	●
50	04.710 BOLT; PIPE HYDRO BRAKE BOOSTER<7QQ> 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0601-0606	●	●		●	●
50	04.710 BOLT; PIPE HYDRO BRAKE BOOSTER<7QQ> 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0607-	●	●
50	04.710 BOLT; PIPE 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0607-				●	●
100	04.730 NUT; HYDRAULIC UNIT 4 WHEEL ANTI LOCK BRAKE<JE5> 07.633 (B) M8 FLANGE	0-91150-108-0	03	1	0302-0506	●					●	●
100	04.730 NUT; HYDRAULIC UNIT 07.633 (B) M8 FLANGE	0-91150-108-0	03	1	0302-0506		●	●	●	●
100	04.730 NUT; HYDRAULIC UNIT 4 WHEEL ANTI LOCK BRAKE<JE5> 07.633 (B) M8 FLANGE	0-91150-108-0	03	1	0507-0602	●					●	●
100	04.730 NUT; HYDRAULIC UNIT 07.633 (B) M8 FLANGE	0-91150-108-0	03	1	0507-0602		●		●	●
100	04.730 NUT; HYDRAULIC UNIT 4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 (B) M8 FLANGE	0-91180-108-0	03	1	0603-	●					●	●
100	04.730 NUT; HYDRAULIC UNIT 01.062 (B) M8 FLANGE	0-91180-108-0	03	1	0603-		●		●	●
100	04.730 NUT; HYDRAULIC UNIT HYDRO BRAKE BOOSTER<7QQ> 06.606 (A) M12 SELF LOCK	8-97028-390-1	01	1	0302-0506	●	●
100	04.730 NUT; HYDRAULIC UNIT 06.606 (A) M12 SELF LOCK	8-97028-390-1	01	1	0302-0506			●	●	●
100	04.730 NUT; HYDRAULIC UNIT HYDRO BRAKE BOOSTER<7QQ> 06.606 (A) M12 SELF LOCK	8-97028-390-1	01	1	0507-0606	●	●		●	●
100	04.730 NUT; HYDRAULIC UNIT HYDRO BRAKE BOOSTER<7QQ> (A)	8-97358-958-0	01	1	0607-	●	●
100	04.730 NUT; HYDRAULIC UNIT (A)	8-97358-958-0	01	1	0607-				●	●
116	04.686 NUT 4HE1 ENG(RLY) HYDRO BRAKE BOOSTER<7QQ> 07.633 M8 FLANGE	0-91150-108-0	02	1	0302-0506	●	●
116	04.686 NUT 4HE1 ENG(RLY) 07.633 M8 FLANGE	0-91150-108-0	02	1	0302-0506			●	●	●
116	04.686 NUT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER<7QQ> TRANSMISSION CONTROL-SMOOTHER(8GF) 07.633 M8 FLANGE	0-91150-108-0	01	1	0507-0602	●	●		●	●
116	04.686 NUT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER<7QQ> TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-0606	●	●		●	●
116	04.686 NUT 4HK1-TCC ENG(RDV) HYDRO BRAKE BOOSTER<7QQ> TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE	0-91180-108-0	01	1	0607-	●	●
116	04.686 NUT 4HK1-TCC ENG(RDV) TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE	0-91180-108-0	01	1	0607-				●	●
116	04.686 NUT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER<7QQ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 07.633 M8 FLANGE	0-91150-108-0	02	1	0507-0602	●	●		●	●
116	04.686 NUT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER<7QQ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-0606	●	●		●	●
116	04.686 NUT 4HK1-TCC ENG(RDV) HYDRO BRAKE BOOSTER<7QQ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE	0-91180-108-0	02	1	0607-	●	●
116	04.686 NUT 4HK1-TCC ENG(RDV) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE	0-91180-108-0	02	1	0607-				●	●
182	04.685 PIPE; HYDRAULIC BRK BOOSTER 4HE1 ENG(RLY) HYDRO BRAKE BOOSTER<7QQ>	8-97328-692-0	01	1	0302-0506	●	●
182	04.685 PIPE; HYDRAULIC BRK BOOSTER 4HE1 ENG(RLY)	8-97328-692-0	01	1	0302-0506			●	●	●
182	04.685 PIPE; HYDRAULIC BRK BOOSTER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER<7QQ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97328-692-0	01	1	0507-0606	●	●		●	●
182	04.685 PIPE; HYDRAULIC BRK BOOSTER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER<7QQ> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97311-386-2	01	1	0507-0606	●	●		●	●
182	04.685 PIPE; HYDRAULIC BRK BOOSTER 4HK1-TCC ENG(RDV) HYDRO BRAKE BOOSTER<7QQ>	8-98036-161-0	01	1	0607-	●	●
182	04.685 PIPE; HYDRAULIC BRK BOOSTER 4HK1-TCC ENG(RDV)	8-98036-161-0	01	1	0607-				●	●
183	04.685 PIPE; SUCTION 4HE1 ENG(RLY) HYDRO BRAKE BOOSTER<7QQ>	8-97328-693-0	01	1	0302-0506	●	●
183	04.685 PIPE; SUCTION 4HE1 ENG(RLY)	8-97328-693-0	01	1	0302-0506			●	●	●
183	04.685 PIPE; SUCTION 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER<7QQ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97328-693-0	01	1	0507-0606	●	●		●	●
183	04.685 PIPE; SUCTION 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER<7QQ> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97311-387-1	01	1	0507-0606	●	●		●	●
183	04.685 PIPE; SUCTION 4HK1-TCC ENG(RDV) HYDRO BRAKE BOOSTER<7QQ>	8-98036-162-0	01	1	0607-	●	●
183	04.685 PIPE; SUCTION 4HK1-TCC ENG(RDV)	8-98036-162-0	01	1	0607-				●	●
184	04.681 BOLT; CLIP 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER<7QQ> TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8X16 FLANGE	0-28080-816-0	01	1	0507-0512	●	●		●	●
184	04.681 BOLT; CLIP 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER<7QQ> TRANSMISSION CONTROL-SMOOTHER(8GF) 02.343 M8X16 FLANGE	0-28050-816-0	01	1	0601-0606	●	●		●	●
184	04.681 BOLT; CLIP 4HK1-TCC ENG(RDV) HYDRO BRAKE BOOSTER<7QQ> TRANSMISSION CONTROL-SMOOTHER(8GF) 02.343 M8X16 FLANGE	0-28050-816-0	01	1	0607-	●	●
184	04.681 BOLT; CLIP 4HK1-TCC ENG(RDV) HYDRO BRAKE BOOSTER<7QQ> 02.343 M8X16 FLANGE	0-28050-816-0	01	1	0607-	●	●
184	04.681 BOLT; CLIP 4HK1-TCC ENG(RDV) TRANSMISSION CONTROL-SMOOTHER(8GF) 02.343 M8X16 FLANGE	0-28050-816-0	01	1	0607-				●	●
184	04.681 BOLT; CLIP 4HK1-TCC ENG(RDV) 02.343 M8X16 FLANGE	0-28050-816-0	01	1	0607-				●
185	04.681 HOSE; RUBBER,SUCTION HYDRO BRAKE BOOSTER<7QQ> (A)	8-97330-513-0	01	1	0302-0506	●	●
185	04.681 HOSE; RUBBER,SUCTION (A)	8-97330-513-0	01	1	0302-0506			●	●	●
185	04.681 HOSE; RUBBER,SUCTION HYDRO BRAKE BOOSTER<7QQ> (A)	8-97330-513-0	01	1	0507-0606	●	●		●	●
185	04.681 HOSE; RUBBER,SUCTION HYDRO BRAKE BOOSTER<7QQ> (A)	8-97330-513-0	01	1	0607-	●	●
185	04.681 HOSE; RUBBER,SUCTION (A)	8-97330-513-0	01	1	0607-				●	●
185	04.681 HOSE; RUBBER,SUCTION 4HE1 ENG(RLY) HYDRO BRAKE BOOSTER<7QQ> 06.670 (B) SERVICED BY L=300	0-09814-300-0	01	1	0302-0506	●	●
185	04.681 HOSE; RUBBER,SUCTION 4HE1 ENG(RLY) 06.670 (B) SERVICED BY L=300	0-09814-300-0	01	1	0302-0506			●	●
185	04.681 HOSE; RUBBER,SUCTION 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER<7QQ> 06.670 (B) SERVICED BY L=300	0-09814-300-0	01	1	0507-0606	●	●		●
185	04.681 HOSE; RUBBER,SUCTION 4HK1-TCC ENG(RDV) HYDRO BRAKE BOOSTER<7QQ> 06.670 (B) SERVICED BY L=300	0-09814-300-0	01	1	0607-	●	●
185	04.681 HOSE; RUBBER,SUCTION 4HK1-TCC ENG(RDV) 06.670 (B) SERVICED BY L=300	0-09814-300-0	01	1	0607-				●
185	04.681 HOSE; RUBBER,SUCTION 06.670 (B) L=200 SERVICED BY L=300	0-09814-300-0	01	1	0302-0506					●
185	04.681 HOSE; RUBBER,SUCTION HYDRO BRAKE BOOSTER<7QQ> 06.670 (B) L=200 SERVICED BY L=300	0-09814-300-0	01	1	0507-0606					●
185	04.681 HOSE; RUBBER,SUCTION 06.670 (B) L=200 SERVICED BY L=300	0-09814-300-0	01	1	0607-					●
185	04.681 HOSE; RUBBER,SUCTION 4HE1 ENG(RLY) (C)	8-97256-681-0	01	1	0302-0506					●
185	04.681 HOSE; RUBBER,SUCTION 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER<7QQ> (C)	8-97256-681-0	01	1	0507-0606					●
185	04.681 HOSE; RUBBER,SUCTION 4HK1-TCC ENG(RDV) (C)	8-98052-163-0	01	1	0607-0708					●
185	04.681 HOSE; RUBBER,SUCTION 4HK1-TCC ENG(RDV) (C)	8-98096-135-0	01	1	0709-					●
186	04.681 CLIP; HOSE HYDRO BRAKE BOOSTER<7QQ> 04.930 (A) ID=16	8-94238-568-0	02	1	0302-0506	●	●
186	04.681 CLIP; HOSE 04.930 (A) ID=16	8-94238-568-0	02	1	0302-0506			●	●	●
186	04.681 CLIP; HOSE HYDRO BRAKE BOOSTER<7QQ> 04.930 (A) ID=16	8-94238-568-0	02	1	0507-0606	●	●		●	●
186	04.681 CLIP; HOSE HYDRO BRAKE BOOSTER<7QQ> 04.930 (A) ID=16	8-94238-568-0	02	1	0607-0911	●	●
186	04.681 CLIP; HOSE 04.930 (A) ID=16	8-94238-568-0	02	1	0607-0911				●	●
186	04.681 CLIP; HOSE HYDRO BRAKE BOOSTER<7QQ> 03.162 (A) ID=16	8-98008-098-0	02	1	0912-	●	●
186	04.681 CLIP; HOSE 03.162 (A) ID=16	8-98008-098-0	02	1	0912-				●	●
186	04.681 CLIP; HOSE HYDRO BRAKE BOOSTER<7QQ> 06.672 (B) ID=21	8-94242-034-0	03	1	0302-0506	●	●
186	04.681 CLIP; HOSE 06.672 (B) ID=21	8-94242-034-0	03	1	0302-0506			●	●	●
186	04.681 CLIP; HOSE HYDRO BRAKE BOOSTER<7QQ> 06.672 (B) ID=21	8-94242-034-0	03	1	0507-0606	●	●		●	●
186	04.681 CLIP; HOSE HYDRO BRAKE BOOSTER<7QQ> 06.672 (B) ID=21	8-94242-034-0	03	1	0607-0911	●	●
186	04.681 CLIP; HOSE 06.672 (B) ID=21	8-94242-034-0	03	1	0607-0911				●	●
186	04.681 CLIP; HOSE HYDRO BRAKE BOOSTER<7QQ> (B) ID=21	8-98150-355-0	03	1	0912-	●	●
186	04.681 CLIP; HOSE (B) ID=21	8-98150-355-0	03	1	0912-				●	●
186	04.681 CLIP; HOSE HYDRO BRAKE BOOSTER<7QQ> 08.846 (C) ID=22	8-94382-401-0	01	1	0302-0506	●	●
186	04.681 CLIP; HOSE 08.846 (C) ID=22	8-94382-401-0	01	1	0302-0506			●	●	●
186	04.681 CLIP; HOSE HYDRO BRAKE BOOSTER<7QQ> 08.846 (C) ID=22	8-94382-401-0	01	1	0507-0606	●	●		●	●
186	04.681 CLIP; HOSE HYDRO BRAKE BOOSTER<7QQ> 08.846 (C) ID=22	8-94382-401-0	01	1	0607-1003	●	●
186	04.681 CLIP; HOSE 08.846 (C) ID=22	8-94382-401-0	01	1	0607-1003				●	●
186	04.681 CLIP; HOSE HYDRO BRAKE BOOSTER<7QQ> 03.278 (C) ID=22	8-97359-141-0	01	1	1004-	●	●
186	04.681 CLIP; HOSE 03.278 (C) ID=22	8-97359-141-0	01	1	1004-				●	●
186	04.681 CLIP; HOSE 06.672 (B) ID=21	8-94242-034-0	01	1	0302-0506					●
186	04.681 CLIP; HOSE HYDRO BRAKE BOOSTER<7QQ> 06.672 (B) ID=21	8-94242-034-0	01	1	0507-0606					●
186	04.681 CLIP; HOSE 06.672 (B) ID=21	8-94242-034-0	02	1	0607-0711					●
186	04.681 CLIP; HOSE 08.846 (B) ID=21.7	8-97203-074-0	02	1	0712-					●
187	04.681 HOSE; RUBBER,OIL TANK 4HE1 ENG(RLY) HYDRO BRAKE BOOSTER<7QQ> L=270	0-09809-270-0	01	1	0302-0506	●	●
187	04.681 HOSE; RUBBER,OIL TANK 4HE1 ENG(RLY) L=270	0-09809-270-0	01	1	0302-0506			●	●
187	04.681 HOSE; RUBBER,OIL TANK 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER<7QQ> 06.671 L=270 SERVICED BY L=3000	0-19809-300-0	01	1	0507-0606	●	●		●
187	04.681 HOSE; RUBBER,OIL TANK 4HK1-TCC ENG(RDV) HYDRO BRAKE BOOSTER<7QQ> 06.671 L=270 SERVICED BY L=3000	0-19809-300-0	01	1	0607-	●	●
187	04.681 HOSE; RUBBER,OIL TANK 4HK1-TCC ENG(RDV) 06.671 L=270 SERVICED BY L=3000	0-19809-300-0	01	1	0607-				●
187	04.681 HOSE; RUBBER,OIL TANK L=200	0-09809-200-0	01	1	0302-0506					●
187	04.681 HOSE; RUBBER,OIL TANK HYDRO BRAKE BOOSTER<7QQ> L=200	0-09809-200-0	01	1	0507-0606					●
187	04.681 HOSE; RUBBER,OIL TANK 06.671 L=200 SERVICED BY L=3000	0-19809-300-0	01	1	0607-					●

182 186 185 116 22 186 116 22 100 183 22 50 50 183 186 185 186 116 22 22 184 50 50 186 187 186 185 186 186

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
22	04.685 CLIP HYDRO BRAKE BOOSTER<7QQ> 02.343 (C) ID=10 & 16	8-94413-325-0	01	1	0408-0506	●	●
22	04.685 CLIP 02.343 (C) ID=10 & 16	8-94413-325-0	01	1	0408-0506			●	●	●
22	04.685 CLIP HYDRO BRAKE BOOSTER<7QQ> 02.343 (C) ID=10 & 16	8-94413-325-0	01	1	0507-0606	●	●		●	●
22	04.685 CLIP HYDRO BRAKE BOOSTER<7QQ> 02.343 (C) ID=10 & 16	8-94413-325-0	01	1	0607-	●	●
22	04.685 CLIP 02.343 (C) ID=10 & 16	8-94413-325-0	01	1	0607-				●	●
22	04.685 CLIP 4HE1 ENG(RLY) HYDRO BRAKE BOOSTER<7QQ> 02.559 (A) ID=11 L=16	9-09525-025-0	02	1	0302-0506	●	●
22	04.685 CLIP 4HE1 ENG(RLY) 02.559 (A) ID=11 L=16	9-09525-025-0	02	1	0302-0506			●	●	●
22	04.685 CLIP 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER<7QQ> 02.559 (A) ID=11 L=16	9-09525-025-0	02	1	0507-0606	●	●		●	●
22	04.685 CLIP 4HK1-TCC ENG(RDV) HYDRO BRAKE BOOSTER<7QQ> 02.559 (A) ID=11 L=16	9-09525-025-0	02	1	0607-0607	●	●
22	04.685 CLIP 4HK1-TCC ENG(RDV) 02.559 (A) ID=11 L=16	9-09525-025-0	02	1	0607-0607				●	●
22	04.685 CLIP 4HK1-TCC ENG(RDV) HYDRO BRAKE BOOSTER<7QQ> (A) ID=11 L=16	0-95235-025-0	02	1	0607-0708	●	●
22	04.685 CLIP 4HK1-TCC ENG(RDV) (A) ID=11 L=16	0-95235-025-0	02	1	0607-0708				●	●
22	04.685 CLIP 4HK1-TCC ENG(RDV) HYDRO BRAKE BOOSTER<7QQ> (A) ID=10 L=16.5	8-98082-034-0	02	1	0709-	●	●
22	04.685 CLIP 4HK1-TCC ENG(RDV) (A) ID=10 L=16.5	8-98082-034-0	02	1	0709-				●	●
22	04.685 CLIP 4HE1 ENG(RLY) HYDRO BRAKE BOOSTER<7QQ> 02.559 (B) ID=19 L=20	9-09525-836-0	01	1	0302-0506	●	●
22	04.685 CLIP 4HE1 ENG(RLY) 02.559 (B) ID=19 L=20	9-09525-836-0	01	1	0302-0506			●	●
22	04.685 CLIP 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER<7QQ> 02.559 (B) ID=19 L=20	9-09525-836-0	01	1	0507-0606	●	●		●
22	04.685 CLIP 4HK1-TCC ENG(RDV) HYDRO BRAKE BOOSTER<7QQ> (B) ID=19 L=20	0-95235-836-0	01	1	0607-0708	●	●
22	04.685 CLIP 4HK1-TCC ENG(RDV) (B) ID=19 L=20	0-95235-836-0	01	1	0607-0708				●
22	04.685 CLIP 4HK1-TCC ENG(RDV) HYDRO BRAKE BOOSTER<7QQ> (B) ID=17 L=21	8-98082-035-0	01	1	0709-	●	●
22	04.685 CLIP 4HK1-TCC ENG(RDV) (B) ID=17 L=21	8-98082-035-0	01	1	0709-				●
50	04.710 BOLT; PIPE HYDRO BRAKE BOOSTER<7QQ> 01.062 M8X16 FLANGE	0-28080-816-0	02	1	0302-0506	●	●
50	04.710 BOLT; PIPE 01.062 M8X16 FLANGE	0-28080-816-0	02	1	0302-0506			●	●	●
50	04.710 BOLT; PIPE HYDRO BRAKE BOOSTER<7QQ> 01.062 M8X16 FLANGE	0-28080-816-0	02	1	0507-0512	●	●		●	●
50	04.710 BOLT; PIPE HYDRO BRAKE BOOSTER<7QQ> 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0601-0606	●	●		●	●
50	04.710 BOLT; PIPE HYDRO BRAKE BOOSTER<7QQ> 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0607-	●	●
50	04.710 BOLT; PIPE 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0607-				●	●
100	04.730 NUT; HYDRAULIC UNIT 4 WHEEL ANTI LOCK BRAKE<JE5> 07.633 (B) M8 FLANGE	0-91150-108-0	03	1	0302-0506	●					●	●
100	04.730 NUT; HYDRAULIC UNIT 07.633 (B) M8 FLANGE	0-91150-108-0	03	1	0302-0506		●	●	●	●
100	04.730 NUT; HYDRAULIC UNIT 4 WHEEL ANTI LOCK BRAKE<JE5> 07.633 (B) M8 FLANGE	0-91150-108-0	03	1	0507-0602	●					●	●
100	04.730 NUT; HYDRAULIC UNIT 07.633 (B) M8 FLANGE	0-91150-108-0	03	1	0507-0602		●		●	●
100	04.730 NUT; HYDRAULIC UNIT 4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 (B) M8 FLANGE	0-91180-108-0	03	1	0603-	●					●	●
100	04.730 NUT; HYDRAULIC UNIT 01.062 (B) M8 FLANGE	0-91180-108-0	03	1	0603-		●		●	●
100	04.730 NUT; HYDRAULIC UNIT HYDRO BRAKE BOOSTER<7QQ> 06.606 (A) M12 SELF LOCK	8-97028-390-1	01	1	0302-0506	●	●
100	04.730 NUT; HYDRAULIC UNIT 06.606 (A) M12 SELF LOCK	8-97028-390-1	01	1	0302-0506			●	●	●
100	04.730 NUT; HYDRAULIC UNIT HYDRO BRAKE BOOSTER<7QQ> 06.606 (A) M12 SELF LOCK	8-97028-390-1	01	1	0507-0606	●	●		●	●
100	04.730 NUT; HYDRAULIC UNIT HYDRO BRAKE BOOSTER<7QQ> (A)	8-97358-958-0	01	1	0607-	●	●
100	04.730 NUT; HYDRAULIC UNIT (A)	8-97358-958-0	01	1	0607-				●	●
116	04.686 NUT 4HE1 ENG(RLY) HYDRO BRAKE BOOSTER<7QQ> 07.633 M8 FLANGE	0-91150-108-0	02	1	0302-0506	●	●
116	04.686 NUT 4HE1 ENG(RLY) 07.633 M8 FLANGE	0-91150-108-0	02	1	0302-0506			●	●	●
116	04.686 NUT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER<7QQ> TRANSMISSION CONTROL-SMOOTHER(8GF) 07.633 M8 FLANGE	0-91150-108-0	01	1	0507-0602	●	●		●	●
116	04.686 NUT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER<7QQ> TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-0606	●	●		●	●
116	04.686 NUT 4HK1-TCC ENG(RDV) HYDRO BRAKE BOOSTER<7QQ> TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE	0-91180-108-0	01	1	0607-	●	●
116	04.686 NUT 4HK1-TCC ENG(RDV) TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE	0-91180-108-0	01	1	0607-				●	●
116	04.686 NUT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER<7QQ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 07.633 M8 FLANGE	0-91150-108-0	02	1	0507-0602	●	●		●	●
116	04.686 NUT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER<7QQ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-0606	●	●		●	●
116	04.686 NUT 4HK1-TCC ENG(RDV) HYDRO BRAKE BOOSTER<7QQ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE	0-91180-108-0	02	1	0607-	●	●
116	04.686 NUT 4HK1-TCC ENG(RDV) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE	0-91180-108-0	02	1	0607-				●	●
182	04.685 PIPE; HYDRAULIC BRK BOOSTER 4HE1 ENG(RLY) HYDRO BRAKE BOOSTER<7QQ>	8-97328-692-0	01	1	0302-0506	●	●
182	04.685 PIPE; HYDRAULIC BRK BOOSTER 4HE1 ENG(RLY)	8-97328-692-0	01	1	0302-0506			●	●	●
182	04.685 PIPE; HYDRAULIC BRK BOOSTER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER<7QQ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97328-692-0	01	1	0507-0606	●	●		●	●
182	04.685 PIPE; HYDRAULIC BRK BOOSTER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER<7QQ> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97311-386-2	01	1	0507-0606	●	●		●	●
182	04.685 PIPE; HYDRAULIC BRK BOOSTER 4HK1-TCC ENG(RDV) HYDRO BRAKE BOOSTER<7QQ>	8-98036-161-0	01	1	0607-	●	●
182	04.685 PIPE; HYDRAULIC BRK BOOSTER 4HK1-TCC ENG(RDV)	8-98036-161-0	01	1	0607-				●	●
183	04.685 PIPE; SUCTION 4HE1 ENG(RLY) HYDRO BRAKE BOOSTER<7QQ>	8-97328-693-0	01	1	0302-0506	●	●
183	04.685 PIPE; SUCTION 4HE1 ENG(RLY)	8-97328-693-0	01	1	0302-0506			●	●	●
183	04.685 PIPE; SUCTION 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER<7QQ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97328-693-0	01	1	0507-0606	●	●		●	●
183	04.685 PIPE; SUCTION 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER<7QQ> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97311-387-1	01	1	0507-0606	●	●		●	●
183	04.685 PIPE; SUCTION 4HK1-TCC ENG(RDV) HYDRO BRAKE BOOSTER<7QQ>	8-98036-162-0	01	1	0607-	●	●
183	04.685 PIPE; SUCTION 4HK1-TCC ENG(RDV)	8-98036-162-0	01	1	0607-				●	●
184	04.681 BOLT; CLIP 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER<7QQ> TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8X16 FLANGE	0-28080-816-0	01	1	0507-0512	●	●		●	●
184	04.681 BOLT; CLIP 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER<7QQ> TRANSMISSION CONTROL-SMOOTHER(8GF) 02.343 M8X16 FLANGE	0-28050-816-0	01	1	0601-0606	●	●		●	●
184	04.681 BOLT; CLIP 4HK1-TCC ENG(RDV) HYDRO BRAKE BOOSTER<7QQ> TRANSMISSION CONTROL-SMOOTHER(8GF) 02.343 M8X16 FLANGE	0-28050-816-0	01	1	0607-	●	●
184	04.681 BOLT; CLIP 4HK1-TCC ENG(RDV) HYDRO BRAKE BOOSTER<7QQ> 02.343 M8X16 FLANGE	0-28050-816-0	01	1	0607-	●	●
184	04.681 BOLT; CLIP 4HK1-TCC ENG(RDV) TRANSMISSION CONTROL-SMOOTHER(8GF) 02.343 M8X16 FLANGE	0-28050-816-0	01	1	0607-				●	●
184	04.681 BOLT; CLIP 4HK1-TCC ENG(RDV) 02.343 M8X16 FLANGE	0-28050-816-0	01	1	0607-				●
185	04.681 HOSE; RUBBER,SUCTION HYDRO BRAKE BOOSTER<7QQ> (A)	8-97330-513-0	01	1	0302-0506	●	●
185	04.681 HOSE; RUBBER,SUCTION (A)	8-97330-513-0	01	1	0302-0506			●	●	●
185	04.681 HOSE; RUBBER,SUCTION HYDRO BRAKE BOOSTER<7QQ> (A)	8-97330-513-0	01	1	0507-0606	●	●		●	●
185	04.681 HOSE; RUBBER,SUCTION HYDRO BRAKE BOOSTER<7QQ> (A)	8-97330-513-0	01	1	0607-	●	●
185	04.681 HOSE; RUBBER,SUCTION (A)	8-97330-513-0	01	1	0607-				●	●
185	04.681 HOSE; RUBBER,SUCTION 4HE1 ENG(RLY) HYDRO BRAKE BOOSTER<7QQ> 06.670 (B) SERVICED BY L=300	0-09814-300-0	01	1	0302-0506	●	●
185	04.681 HOSE; RUBBER,SUCTION 4HE1 ENG(RLY) 06.670 (B) SERVICED BY L=300	0-09814-300-0	01	1	0302-0506			●	●
185	04.681 HOSE; RUBBER,SUCTION 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER<7QQ> 06.670 (B) SERVICED BY L=300	0-09814-300-0	01	1	0507-0606	●	●		●
185	04.681 HOSE; RUBBER,SUCTION 4HK1-TCC ENG(RDV) HYDRO BRAKE BOOSTER<7QQ> 06.670 (B) SERVICED BY L=300	0-09814-300-0	01	1	0607-	●	●
185	04.681 HOSE; RUBBER,SUCTION 4HK1-TCC ENG(RDV) 06.670 (B) SERVICED BY L=300	0-09814-300-0	01	1	0607-				●
185	04.681 HOSE; RUBBER,SUCTION 06.670 (B) L=200 SERVICED BY L=300	0-09814-300-0	01	1	0302-0506					●
185	04.681 HOSE; RUBBER,SUCTION HYDRO BRAKE BOOSTER<7QQ> 06.670 (B) L=200 SERVICED BY L=300	0-09814-300-0	01	1	0507-0606					●
185	04.681 HOSE; RUBBER,SUCTION 06.670 (B) L=200 SERVICED BY L=300	0-09814-300-0	01	1	0607-					●
185	04.681 HOSE; RUBBER,SUCTION 4HE1 ENG(RLY) (C)	8-97256-681-0	01	1	0302-0506					●
185	04.681 HOSE; RUBBER,SUCTION 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER<7QQ> (C)	8-97256-681-0	01	1	0507-0606					●
185	04.681 HOSE; RUBBER,SUCTION 4HK1-TCC ENG(RDV) (C)	8-98052-163-0	01	1	0607-0708					●
185	04.681 HOSE; RUBBER,SUCTION 4HK1-TCC ENG(RDV) (C)	8-98096-135-0	01	1	0709-					●
186	04.681 CLIP; HOSE HYDRO BRAKE BOOSTER<7QQ> 04.930 (A) ID=16	8-94238-568-0	02	1	0302-0506	●	●
186	04.681 CLIP; HOSE 04.930 (A) ID=16	8-94238-568-0	02	1	0302-0506			●	●	●
186	04.681 CLIP; HOSE HYDRO BRAKE BOOSTER<7QQ> 04.930 (A) ID=16	8-94238-568-0	02	1	0507-0606	●	●		●	●
186	04.681 CLIP; HOSE HYDRO BRAKE BOOSTER<7QQ> 04.930 (A) ID=16	8-94238-568-0	02	1	0607-0911	●	●
186	04.681 CLIP; HOSE 04.930 (A) ID=16	8-94238-568-0	02	1	0607-0911				●	●
186	04.681 CLIP; HOSE HYDRO BRAKE BOOSTER<7QQ> 03.162 (A) ID=16	8-98008-098-0	02	1	0912-	●	●
186	04.681 CLIP; HOSE 03.162 (A) ID=16	8-98008-098-0	02	1	0912-				●	●
186	04.681 CLIP; HOSE HYDRO BRAKE BOOSTER<7QQ> 06.672 (B) ID=21	8-94242-034-0	03	1	0302-0506	●	●
186	04.681 CLIP; HOSE 06.672 (B) ID=21	8-94242-034-0	03	1	0302-0506			●	●	●
186	04.681 CLIP; HOSE HYDRO BRAKE BOOSTER<7QQ> 06.672 (B) ID=21	8-94242-034-0	03	1	0507-0606	●	●		●	●
186	04.681 CLIP; HOSE HYDRO BRAKE BOOSTER<7QQ> 06.672 (B) ID=21	8-94242-034-0	03	1	0607-0911	●	●
186	04.681 CLIP; HOSE 06.672 (B) ID=21	8-94242-034-0	03	1	0607-0911				●	●
186	04.681 CLIP; HOSE HYDRO BRAKE BOOSTER<7QQ> (B) ID=21	8-98150-355-0	03	1	0912-	●	●
186	04.681 CLIP; HOSE (B) ID=21	8-98150-355-0	03	1	0912-				●	●
186	04.681 CLIP; HOSE HYDRO BRAKE BOOSTER<7QQ> 08.846 (C) ID=22	8-94382-401-0	01	1	0302-0506	●	●
186	04.681 CLIP; HOSE 08.846 (C) ID=22	8-94382-401-0	01	1	0302-0506			●	●	●
186	04.681 CLIP; HOSE HYDRO BRAKE BOOSTER<7QQ> 08.846 (C) ID=22	8-94382-401-0	01	1	0507-0606	●	●		●	●
186	04.681 CLIP; HOSE HYDRO BRAKE BOOSTER<7QQ> 08.846 (C) ID=22	8-94382-401-0	01	1	0607-1003	●	●
186	04.681 CLIP; HOSE 08.846 (C) ID=22	8-94382-401-0	01	1	0607-1003				●	●
186	04.681 CLIP; HOSE HYDRO BRAKE BOOSTER<7QQ> 03.278 (C) ID=22	8-97359-141-0	01	1	1004-	●	●
186	04.681 CLIP; HOSE 03.278 (C) ID=22	8-97359-141-0	01	1	1004-				●	●
186	04.681 CLIP; HOSE 06.672 (B) ID=21	8-94242-034-0	01	1	0302-0506					●
186	04.681 CLIP; HOSE HYDRO BRAKE BOOSTER<7QQ> 06.672 (B) ID=21	8-94242-034-0	01	1	0507-0606					●
186	04.681 CLIP; HOSE 06.672 (B) ID=21	8-94242-034-0	02	1	0607-0711					●
186	04.681 CLIP; HOSE 08.846 (B) ID=21.7	8-97203-074-0	02	1	0712-					●
187	04.681 HOSE; RUBBER,OIL TANK 4HE1 ENG(RLY) HYDRO BRAKE BOOSTER<7QQ> L=270	0-09809-270-0	01	1	0302-0506	●	●
187	04.681 HOSE; RUBBER,OIL TANK 4HE1 ENG(RLY) L=270	0-09809-270-0	01	1	0302-0506			●	●
187	04.681 HOSE; RUBBER,OIL TANK 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER<7QQ> 06.671 L=270 SERVICED BY L=3000	0-19809-300-0	01	1	0507-0606	●	●		●
187	04.681 HOSE; RUBBER,OIL TANK 4HK1-TCC ENG(RDV) HYDRO BRAKE BOOSTER<7QQ> 06.671 L=270 SERVICED BY L=3000	0-19809-300-0	01	1	0607-	●	●
187	04.681 HOSE; RUBBER,OIL TANK 4HK1-TCC ENG(RDV) 06.671 L=270 SERVICED BY L=3000	0-19809-300-0	01	1	0607-				●
187	04.681 HOSE; RUBBER,OIL TANK L=200	0-09809-200-0	01	1	0302-0506					●
187	04.681 HOSE; RUBBER,OIL TANK HYDRO BRAKE BOOSTER<7QQ> L=200	0-09809-200-0	01	1	0507-0606					●
187	04.681 HOSE; RUBBER,OIL TANK 06.671 L=200 SERVICED BY L=3000	0-19809-300-0	01	1	0607-					●

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
55	04.686 PIPE; BRK,VLV TO UNION FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 04.685 REAR	5-47411-777-0	01	1	0302-0506						●
55	04.686 PIPE; BRK,VLV TO UNION EXC. FRAME STRAIGHT TYPE<7KJ> REAR	8-97325-784-0	01	1	0302-0506						●
55	04.686 PIPE; BRK,VLV TO UNION REAR	8-97325-784-0	01	1	0507-						●
55	04.686 PIPE; BRK,VLV TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 04.685 REAR	5-47411-777-0	01	1	0302-0506						●
55	04.686 PIPE; BRK,VLV TO UNION FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> REAR	5-47411-784-0	01	1	0302-0606	●						●
55	04.686 PIPE; BRK,VLV TO UNION FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> REAR	5-47411-784-0	01	1	0607-	●
55	04.686 PIPE; BRK,VLV TO UNION EXC. FRAME STRAIGHT TYPE<7KJ> REAR	8-97325-785-0	01	1	0302-0606	●						●
55	04.686 PIPE; BRK,VLV TO UNION EXC. FRAME STRAIGHT TYPE<7KJ> REAR	8-97325-785-0	01	1	0607-	●
55	04.686 PIPE; BRK,VLV TO UNION REAR	8-97325-785-0	01	1	0607-							●
55	04.686 PIPE; BRK,VLV TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> REAR	5-47411-784-0	01	1	0302-0506	●						●
55	04.686 PIPE; BRK,VLV TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> REAR	8-98005-302-0	01	1	0507-0606	●						●
55	04.686 PIPE; BRK,VLV TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> REAR	8-98042-891-1	01	1	0607-	●
55	04.686 PIPE; BRK,VLV TO UNION 04.685 REAR	5-47411-786-0	01	1	0302-0606		●
55	04.686 PIPE; BRK,VLV TO UNION FRAME STRAIGHT TYPE<7KJ> 04.685 REAR	5-47411-786-0	01	1	0607-		●
55	04.686 PIPE; BRK,VLV TO UNION EXC. FRAME STRAIGHT TYPE<7KJ> REAR	8-97325-786-0	01	1	0607-		●
55	04.686 PIPE; BRK,VLV TO UNION REAR	8-97247-894-0	01	1	0302-0506			●
55	04.686 PIPE; BRK,VLV TO UNION REAR	5-47411-790-0	01	1	0302-				●	●

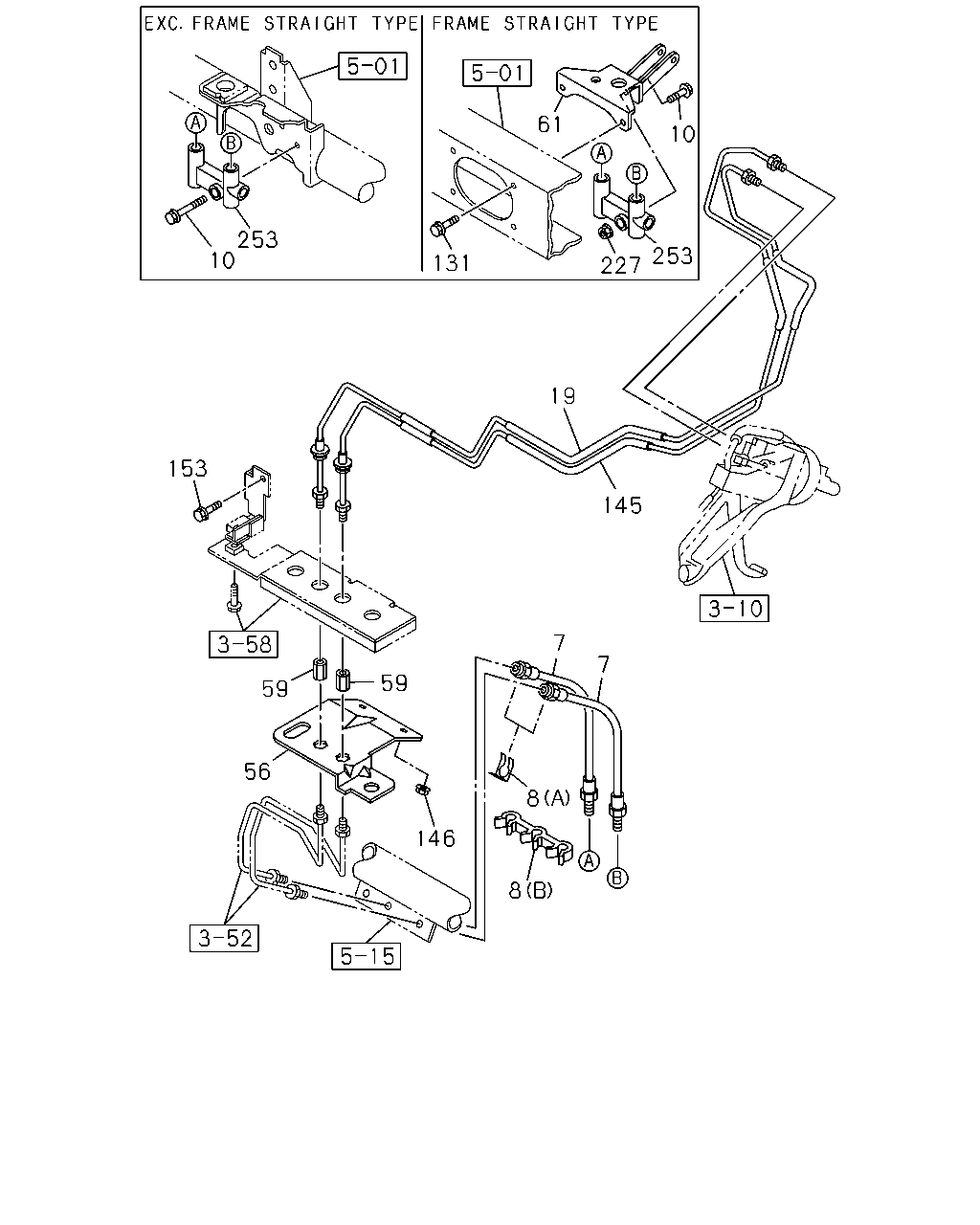

61 10 253 10 253 131 227 19 153 145 7 7 59 59 56 8 146 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
7	04.680 HOSE; FLEX,PIPE TO 5 WAY JOINT	8-97171-031-0	02	1	0302-0506	●	●	●	●	●	●	●
7	04.680 HOSE; FLEX,PIPE TO 5 WAY JOINT	8-97171-031-0	02	1	0507-	●	●		●	●	●	●
8	04.681 CLIP; FLEX HOSE,CABLE SIDE 00.785 (A)	8-94167-006-0	02	1	0302-0506	●	●	●	●	●	●	●
8	04.681 CLIP; FLEX HOSE,CABLE SIDE 00.785 (A)	8-94167-006-0	02	1	0507-0610	●	●		●	●	●	●
8	04.681 CLIP; FLEX HOSE,CABLE SIDE (A)	8-97365-304-0	02	1	0611-	●	●		●	●	●	●
8	04.681 CLIP; FLEX HOSE,CABLE SIDE 04.686 (B)	8-97076-471-0	01	1	0302-0506	●	●	●	●	●	●	●
8	04.681 CLIP; FLEX HOSE,CABLE SIDE 04.686 (B)	8-97076-471-0	01	1	0507-	●	●		●	●	●	●
10	04.686 BOLT; JOINT 03.163 M6X40 FLANGE	0-28680-640-0	01	1	0302-0506	●	●	●	●	●	●	●
10	04.686 BOLT; JOINT 03.163 M6X40 FLANGE	0-28680-640-0	01	1	0507-0512	●	●		●	●	●	●
10	04.686 BOLT; JOINT 00.685 M6X40 FLANGE	0-28650-640-0	01	1	0601-	●	●		●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION REAR	8-97314-593-0	01	1	0302-0506						●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. HYDRO BRAKE BOOSTER<7QQ> REAR	8-97314-593-0	01	1	0302-0506	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION REAR	8-97314-593-0	01	1	0507-0606						●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. HYDRO BRAKE BOOSTER<7QQ> REAR	8-97314-593-0	01	1	0507-0606	●	●		●	●
19	04.685 PIPE; BRK,M/CYL TO UNION REAR	8-97314-593-0	01	1	0607-						●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. HYDRO BRAKE BOOSTER<7QQ> REAR	8-97314-593-0	01	1	0607-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION HYDRO BRAKE BOOSTER<7QQ> REAR	8-97119-830-0	01	1	0302-0506	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION REAR	8-97119-830-0	01	1	0302-0506			●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION HYDRO BRAKE BOOSTER<7QQ> REAR	8-97119-830-0	01	1	0507-0606	●	●		●	●
19	04.685 PIPE; BRK,M/CYL TO UNION HYDRO BRAKE BOOSTER<7QQ> REAR	8-97119-830-0	01	1	0607-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION REAR	8-97119-830-0	01	1	0607-				●	●
56	04.686 BRACKET; UNION,BRK	8-97171-017-1	01	1	0302-0506	●	●	●	●	●	●	●
56	04.686 BRACKET; UNION,BRK	8-97171-017-1	01	1	0507-	●	●		●	●	●	●
59	04.686 UNION; BRK PIPE 08.963 M10 STRAIGHT	9-09227-005-0	02	1	0302-0506	●	●	●	●	●	●	●
59	04.686 UNION; BRK PIPE 08.963 M10 STRAIGHT	9-09227-005-0	02	1	0507-0607	●	●		●	●	●	●
59	04.686 UNION; BRK PIPE M10 STRAIGHT	0-92107-005-0	02	1	0608-	●	●		●	●	●	●
61	04.686 BRACKET; 5 WAY JOINT FRAME STRAIGHT TYPE<7KJ>	8-97170-632-0	01	1	0302-0506	●					●	●
61	04.686 BRACKET; 5 WAY JOINT	8-97170-632-0	01	1	0302-0506		●	●	●	●
61	04.686 BRACKET; 5 WAY JOINT FRAME STRAIGHT TYPE<7KJ>	8-97170-632-0	01	1	0507-0606	●						●
61	04.686 BRACKET; 5 WAY JOINT	8-97170-632-0	01	1	0507-0606		●		●	●
61	04.686 BRACKET; 5 WAY JOINT FRAME STRAIGHT TYPE<7KJ>	8-97170-632-0	01	1	0607-	●	●
61	04.686 BRACKET; 5 WAY JOINT	8-97170-632-0	01	1	0607-				●	●
131	04.710 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0302-0506	●					●	●
131	04.710 BOLT; BRKT 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0302-0506		●	●	●	●
131	04.710 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0507-0512	●						●
131	04.710 BOLT; BRKT 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0507-0512		●		●	●
131	04.710 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0601-0606	●						●
131	04.710 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0601-0606		●		●	●
131	04.710 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0607-	●	●
131	04.710 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0607-				●	●
145	04.685 PIPE; BRK,METERING VLV TO UNION FRONT	8-97314-586-0	01	1	0302-0506						●	●
145	04.685 PIPE; BRK,METERING VLV TO UNION EXC. HYDRO BRAKE BOOSTER<7QQ> FRONT	8-97314-586-0	01	1	0302-0506	●	●
145	04.685 PIPE; BRK,METERING VLV TO UNION FRONT	8-97314-586-0	01	1	0507-0606						●	●
145	04.685 PIPE; BRK,METERING VLV TO UNION EXC. HYDRO BRAKE BOOSTER<7QQ> FRONT	8-97314-586-0	01	1	0507-0606	●	●		●	●
145	04.685 PIPE; BRK,METERING VLV TO UNION FRONT	8-97314-586-0	01	1	0607-						●	●
145	04.685 PIPE; BRK,METERING VLV TO UNION EXC. HYDRO BRAKE BOOSTER<7QQ> FRONT	8-97314-586-0	01	1	0607-	●	●
145	04.685 PIPE; BRK,METERING VLV TO UNION HYDRO BRAKE BOOSTER<7QQ> FRONT	8-97119-829-0	01	1	0302-0506	●	●
145	04.685 PIPE; BRK,METERING VLV TO UNION FRONT	8-97119-829-0	01	1	0302-0506			●	●	●
145	04.685 PIPE; BRK,METERING VLV TO UNION HYDRO BRAKE BOOSTER<7QQ> FRONT	8-97119-829-0	01	1	0507-0606	●	●		●	●
145	04.685 PIPE; BRK,METERING VLV TO UNION HYDRO BRAKE BOOSTER<7QQ> FRONT	8-97119-829-0	01	1	0607-	●	●
145	04.685 PIPE; BRK,METERING VLV TO UNION FRONT	8-97119-829-0	01	1	0607-				●	●
146	04.685 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	02	1	0302-0506	●	●	●	●	●	●	●
146	04.685 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	02	1	0507-0602	●	●		●	●	●	●
146	04.685 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-	●	●		●	●	●	●
153	04.730 SCREW; BRKT FIX 16.802 M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	0302-0506	●	●	●	●	●	●	●
153	04.730 SCREW; BRKT FIX 16.802 M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	0507-0604	●	●		●	●	●	●
153	04.730 SCREW; BRKT FIX 03.885 M5X16 TAPPING W/PL WASHER	0-74360-516-0	01	1	0605-	●	●		●	●	●	●
227	04.685 NUT; JOINT FRAME STRAIGHT TYPE<7KJ> 04.594 M6 FLANGE	0-91150-106-0	01	1	0302-0506	●					●	●
227	04.685 NUT; JOINT 04.594 M6 FLANGE	0-91150-106-0	01	1	0302-0506		●	●	●	●
227	04.685 NUT; JOINT FRAME STRAIGHT TYPE<7KJ> 04.594 M6 FLANGE	0-91150-106-0	01	1	0507-0602	●						●
227	04.685 NUT; JOINT 04.594 M6 FLANGE	0-91150-106-0	01	1	0507-0602		●		●	●
227	04.685 NUT; JOINT FRAME STRAIGHT TYPE<7KJ> 01.062 M6 FLANGE	0-91180-106-0	01	1	0603-0606	●						●
227	04.685 NUT; JOINT 01.062 M6 FLANGE	0-91180-106-0	01	1	0603-0606		●		●	●
227	04.685 NUT; JOINT FRAME STRAIGHT TYPE<7KJ> 01.062 M6 FLANGE	0-91180-106-0	01	1	0607-	●	●
227	04.685 NUT; JOINT 01.062 M6 FLANGE	0-91180-106-0	01	1	0607-				●	●
253	04.840 JOINT 4 WHEEL ANTI LOCK BRAKE<JE5> 04.686	8-97139-922-1	01	1	0302-0506	●					●	●
253	04.840 JOINT 04.686	8-97139-922-1	01	1	0302-0506		●	●	●	●
253	04.840 JOINT 4 WHEEL ANTI LOCK BRAKE<JE5> 04.686	8-97139-922-1	01	1	0507-	●					●	●
253	04.840 JOINT 04.686	8-97139-922-1	01	1	0507-		●		●	●
253	04.840 JOINT EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 04.686	8-97120-033-2	01	1	0302-	●					●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
