3-31 — BRAKE MASTER VAC AND BRAKE BOOSTER (#41327) — 105 parça

1 17 16 24 15 12 11 23 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	04.901 MASTER VAC ASM; BRK	8-97162-800-1	01	1	0302-0506	●	●
1	04.901 MASTER VAC ASM; BRK EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97162-800-1	01	1	0302-0506			●	●
1	04.901 MASTER VAC ASM; BRK	8-97162-800-1	01	1	0507-0606	●	●
1	04.901 MASTER VAC ASM; BRK EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97162-800-1	01	1	0507-0606			●	●	●	●
1	04.901 MASTER VAC ASM; BRK DISC BRAKE FRT<J52> EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97162-800-1	01	1	0607-	●	●	●	●
1	04.901 MASTER VAC ASM; BRK G.V.W. 7.5-8.0TON(RPY) EXC. DISC BRAKE FRT<J52>,HYDRO BRAKEBOOSTER<7QQ>	8-97162-800-1	01	1	0607-			●
1	04.901 MASTER VAC ASM; BRK G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,HYDRO BRAKEBOOSTER<7QQ>	8-97162-798-1	01	1	0607-		●	●
3	04.906 RETAINER; FRT SHELL,M/VAC	9-83315-319-0	01	1	0302-0506	●	●
3	04.906 RETAINER; FRT SHELL,M/VAC EXC. HYDRO BRAKE BOOSTER<7QQ>	9-83315-319-0	01	1	0302-0506			●	●
3	04.906 RETAINER; FRT SHELL,M/VAC	9-83315-319-0	01	1	0507-0606	●	●
3	04.906 RETAINER; FRT SHELL,M/VAC EXC. HYDRO BRAKE BOOSTER<7QQ>	9-83315-319-0	01	1	0507-0606			●	●	●	●
3	04.906 RETAINER; FRT SHELL,M/VAC DISC BRAKE FRT<J52> EXC. HYDRO BRAKE BOOSTER<7QQ>	9-83315-319-0	01	1	0607-	●	●	●	●
3	04.906 RETAINER; FRT SHELL,M/VAC G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) EXC. DISC BRAKE FRT<J52>,HYDRO BRAKEBOOSTER<7QQ>	9-83315-319-0	01	1	0607-		●	●
11	04.906 FILTER; M/VAC	8-97205-576-0	01	1	0302-0506	●	●
11	04.906 FILTER; M/VAC EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97205-576-0	01	1	0302-0506			●	●
11	04.906 FILTER; M/VAC	8-97205-576-0	01	1	0507-0606	●	●
11	04.906 FILTER; M/VAC EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97205-576-0	01	1	0507-0606			●	●	●	●
11	04.906 FILTER; M/VAC DISC BRAKE FRT<J52> EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97205-576-0	01	1	0607-	●	●	●	●
11	04.906 FILTER; M/VAC G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) EXC. DISC BRAKE FRT<J52>,HYDRO BRAKEBOOSTER<7QQ>	8-97205-576-0	01	1	0607-		●	●
12	04.906 SILENCER; M/VAC	8-97205-577-0	01	1	0302-0506	●	●
12	04.906 SILENCER; M/VAC EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97205-577-0	01	1	0302-0506			●	●
12	04.906 SILENCER; M/VAC	8-97205-577-0	01	1	0507-0606	●	●
12	04.906 SILENCER; M/VAC EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97205-577-0	01	1	0507-0606			●	●	●	●
12	04.906 SILENCER; M/VAC DISC BRAKE FRT<J52> EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97205-577-0	01	1	0607-	●	●	●	●
12	04.906 SILENCER; M/VAC G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) EXC. DISC BRAKE FRT<J52>,HYDRO BRAKEBOOSTER<7QQ>	8-97205-577-0	01	1	0607-		●	●
15	04.906 RETAINER; GUARD,M/VAC	8-94375-083-0	01	1	0302-0506	●	●
15	04.906 RETAINER; GUARD,M/VAC EXC. HYDRO BRAKE BOOSTER<7QQ>	8-94375-083-0	01	1	0302-0506			●	●
15	04.906 RETAINER; GUARD,M/VAC	8-94375-083-0	01	1	0507-0606	●	●
15	04.906 RETAINER; GUARD,M/VAC EXC. HYDRO BRAKE BOOSTER<7QQ>	8-94375-083-0	01	1	0507-0606			●	●	●	●
15	04.906 RETAINER; GUARD,M/VAC DISC BRAKE FRT<J52> EXC. HYDRO BRAKE BOOSTER<7QQ>	8-94375-083-0	01	1	0607-	●	●	●	●
15	04.906 RETAINER; GUARD,M/VAC G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) EXC. DISC BRAKE FRT<J52>,HYDRO BRAKEBOOSTER<7QQ>	8-94375-083-0	01	1	0607-		●	●
16	04.662 NUT; VLV ROD,M/VAC M10	1-52139-008-0	01	1	0302-0506	●	●
16	04.662 NUT; VLV ROD,M/VAC EXC. HYDRO BRAKE BOOSTER<7QQ> M10	1-52139-008-0	01	1	0302-0506			●	●
16	04.662 NUT; VLV ROD,M/VAC M10	1-52139-008-0	01	1	0507-0606	●	●
16	04.662 NUT; VLV ROD,M/VAC EXC. HYDRO BRAKE BOOSTER<7QQ> M10	1-52139-008-0	01	1	0507-0606			●	●	●	●
16	04.662 NUT; VLV ROD,M/VAC DISC BRAKE FRT<J52> EXC. HYDRO BRAKE BOOSTER<7QQ> M10	1-52139-008-0	01	1	0607-	●	●	●	●
16	04.662 NUT; VLV ROD,M/VAC G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) EXC. DISC BRAKE FRT<J52>,HYDRO BRAKEBOOSTER<7QQ> M10	1-52139-008-0	01	1	0607-		●	●
17	04.662 CLEVIS; YOKE,M/VAC	8-97224-610-0	01	1	0302-0506	●	●
17	04.662 CLEVIS; YOKE,M/VAC EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97224-610-0	01	1	0302-0506			●	●
17	04.662 CLEVIS; YOKE,M/VAC	8-97224-610-0	01	1	0507-0606	●	●
17	04.662 CLEVIS; YOKE,M/VAC EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97224-610-0	01	1	0507-0606			●	●	●	●
17	04.662 CLEVIS; YOKE,M/VAC DISC BRAKE FRT<J52> EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97224-610-0	01	1	0607-	●	●	●	●
17	04.662 CLEVIS; YOKE,M/VAC G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) EXC. DISC BRAKE FRT<J52>,HYDRO BRAKEBOOSTER<7QQ>	8-97224-610-0	01	1	0607-		●	●
23	04.910 SEAL; M/VAC	8-97079-350-0	01	1	0302-0506	●	●
23	04.910 SEAL; M/VAC EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97079-350-0	01	1	0302-0506			●	●
23	04.910 SEAL; M/VAC	8-97079-350-0	01	1	0507-0606	●	●
23	04.910 SEAL; M/VAC EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97079-350-0	01	1	0507-0606			●	●	●	●
23	04.910 SEAL; M/VAC DISC BRAKE FRT<J52> EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97079-350-0	01	1	0607-	●	●	●	●
23	04.910 SEAL; M/VAC G.V.W. 7.5-8.0TON(RPY) EXC. DISC BRAKE FRT<J52>,HYDRO BRAKEBOOSTER<7QQ>	8-97079-350-0	01	1	0607-			●
23	04.910 SEAL; M/VAC G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,HYDRO BRAKEBOOSTER<7QQ>	8-97261-943-0	01	1	0607-		●	●
24	04.906 GUARD; VLV BODY,M/VAC	8-97205-578-0	01	1	0302-0506	●	●
24	04.906 GUARD; VLV BODY,M/VAC EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97205-578-0	01	1	0302-0506			●	●
24	04.906 GUARD; VLV BODY,M/VAC	8-97205-578-0	01	1	0507-0606	●	●
24	04.906 GUARD; VLV BODY,M/VAC EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97205-578-0	01	1	0507-0606			●	●	●	●
24	04.906 GUARD; VLV BODY,M/VAC DISC BRAKE FRT<J52> EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97205-578-0	01	1	0607-	●	●	●	●
24	04.906 GUARD; VLV BODY,M/VAC G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) EXC. DISC BRAKE FRT<J52>,HYDRO BRAKEBOOSTER<7QQ>	8-97205-578-0	01	1	0607-		●	●

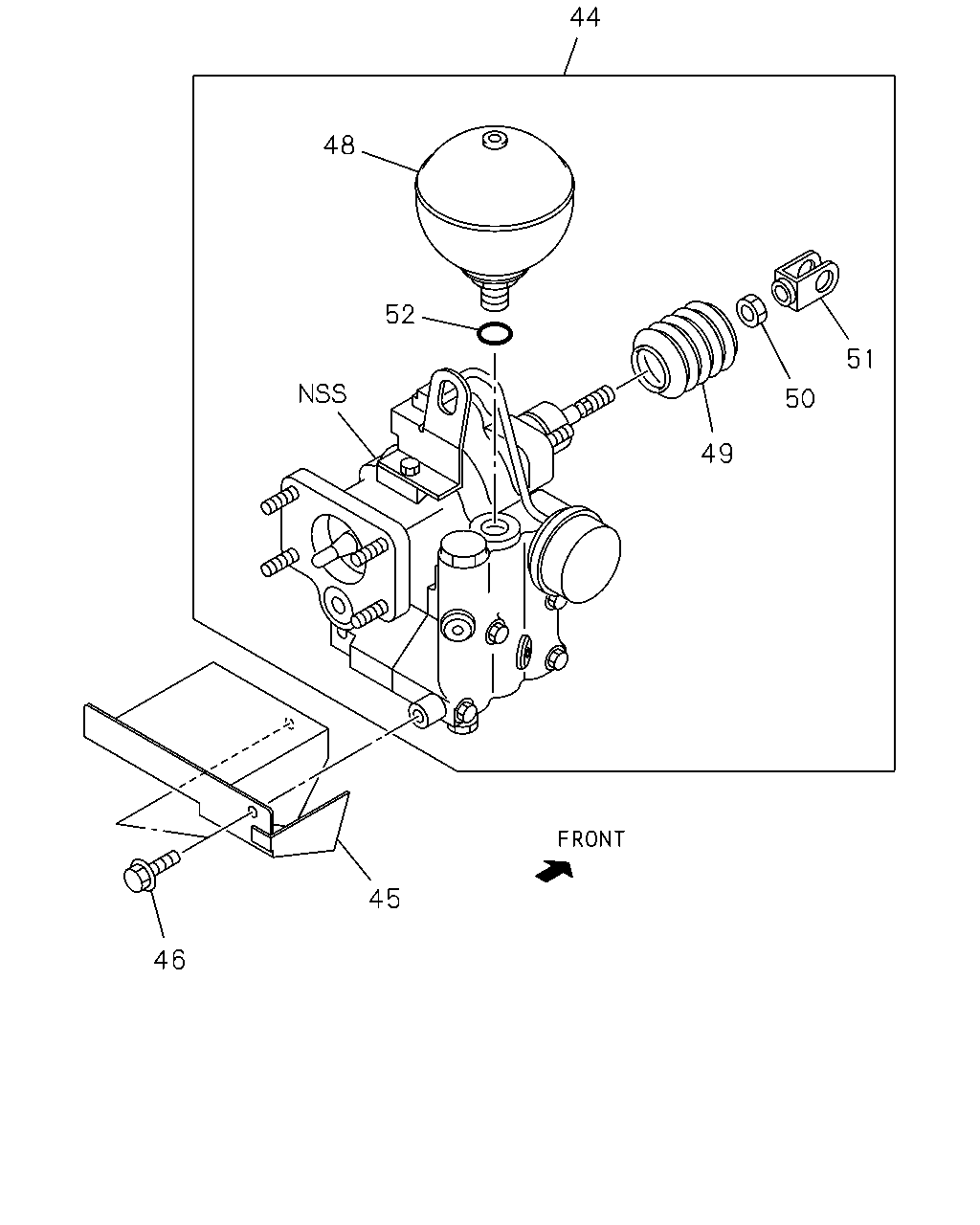

44 48 52 51 50 49 45 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	C	D	E	F	G
44	04.901 BOOSTER; HYDRAULIC BRK HYDRO BRAKE BOOSTER<7QQ>	8-97209-212-0	01	1	0302-0506	●	●
44	04.901 BOOSTER; HYDRAULIC BRK	8-97209-212-0	01	1	0302-0506			●	●	●
44	04.901 BOOSTER; HYDRAULIC BRK HYDRO BRAKE BOOSTER<7QQ>	8-97209-212-0	01	1	0507-0606	●	●	●	●
44	04.901 BOOSTER; HYDRAULIC BRK HYDRO BRAKE BOOSTER<7QQ>	8-97209-212-0	01	1	0607-0610	●	●
44	04.901 BOOSTER; HYDRAULIC BRK	8-97209-212-0	01	1	0607-0610			●	●
44	04.901 BOOSTER; HYDRAULIC BRK HYDRO BRAKE BOOSTER<7QQ>	8-98031-414-0	01	1	0611-	●	●
44	04.901 BOOSTER; HYDRAULIC BRK	8-98031-414-0	01	1	0611-			●	●
45	04.901 PROTECTOR; HEAT HYDRO BRAKE BOOSTER<7QQ>	8-97182-354-1	01	1	0302-0506	●	●
45	04.901 PROTECTOR; HEAT	8-97182-354-1	01	1	0302-0506			●	●	●
45	04.901 PROTECTOR; HEAT HYDRO BRAKE BOOSTER<7QQ>	8-97182-354-1	01	1	0507-0606	●	●	●	●
45	04.901 PROTECTOR; HEAT HYDRO BRAKE BOOSTER<7QQ>	8-97182-354-1	01	1	0607-	●	●
45	04.901 PROTECTOR; HEAT	8-97182-354-1	01	1	0607-			●	●
46	04.901 BOLT; HEAT PROTECTOR HYDRO BRAKE BOOSTER<7QQ> 02.500 M6X10 FLANGE	0-28080-610-0	02	1	0302-0506	●	●
46	04.901 BOLT; HEAT PROTECTOR 02.500 M6X10 FLANGE	0-28080-610-0	02	1	0302-0506			●	●	●
46	04.901 BOLT; HEAT PROTECTOR HYDRO BRAKE BOOSTER<7QQ> 02.500 M6X10 FLANGE	0-28080-610-0	02	1	0507-0512	●	●	●	●
46	04.901 BOLT; HEAT PROTECTOR HYDRO BRAKE BOOSTER<7QQ> 03.671 M6X10 FLANGE	0-28050-610-0	02	1	0601-0606	●	●	●	●
46	04.901 BOLT; HEAT PROTECTOR HYDRO BRAKE BOOSTER<7QQ> 03.671 M6X10 FLANGE	0-28050-610-0	02	1	0607-	●	●
46	04.901 BOLT; HEAT PROTECTOR 03.671 M6X10 FLANGE	0-28050-610-0	02	1	0607-			●	●
48	04.906 ACCUMULATOR; HYDRO BOOSTER HYDRO BRAKE BOOSTER<7QQ>	8-97191-040-0	01	1	0302-0506	●	●
48	04.906 ACCUMULATOR; HYDRO BOOSTER	8-97191-040-0	01	1	0302-0506			●	●	●
48	04.906 ACCUMULATOR; HYDRO BOOSTER HYDRO BRAKE BOOSTER<7QQ>	8-97191-040-0	01	1	0507-0606	●	●	●	●
48	04.906 ACCUMULATOR; HYDRO BOOSTER HYDRO BRAKE BOOSTER<7QQ>	8-97191-040-0	01	1	0607-0610	●	●
48	04.906 ACCUMULATOR; HYDRO BOOSTER	8-97191-040-0	01	1	0607-0610			●	●
48	04.906 ACCUMULATOR; HYDRO BOOSTER HYDRO BRAKE BOOSTER<7QQ>	8-98038-346-0	01	1	0611-	●	●
48	04.906 ACCUMULATOR; HYDRO BOOSTER	8-98038-346-0	01	1	0611-			●	●
49	04.906 GUARD; HYDRO BRK BOOSTER HYDRO BRAKE BOOSTER<7QQ>	8-97191-043-0	01	1	0302-0506	●	●
49	04.906 GUARD; HYDRO BRK BOOSTER	8-97191-043-0	01	1	0302-0506			●	●	●
49	04.906 GUARD; HYDRO BRK BOOSTER HYDRO BRAKE BOOSTER<7QQ>	8-97191-043-0	01	1	0507-0606	●	●	●	●
49	04.906 GUARD; HYDRO BRK BOOSTER HYDRO BRAKE BOOSTER<7QQ>	8-97191-043-0	01	1	0607-	●	●
49	04.906 GUARD; HYDRO BRK BOOSTER	8-97191-043-0	01	1	0607-			●	●
50	04.906 NUT; HYDRO BRK BOOSTER HYDRO BRAKE BOOSTER<7QQ> 04.662	8-97191-042-0	01	1	0302-0506	●	●
50	04.906 NUT; HYDRO BRK BOOSTER 04.662	8-97191-042-0	01	1	0302-0506			●	●	●
50	04.906 NUT; HYDRO BRK BOOSTER HYDRO BRAKE BOOSTER<7QQ> 04.662	8-97191-042-0	01	1	0507-0606	●	●	●	●
50	04.906 NUT; HYDRO BRK BOOSTER HYDRO BRAKE BOOSTER<7QQ> 04.662	8-97191-042-0	01	1	0607-0610	●	●
50	04.906 NUT; HYDRO BRK BOOSTER 04.662	8-97191-042-0	01	1	0607-0610			●	●
50	04.906 NUT; HYDRO BRK BOOSTER HYDRO BRAKE BOOSTER<7QQ>	8-98038-349-0	01	1	0611-	●	●
50	04.906 NUT; HYDRO BRK BOOSTER	8-98038-349-0	01	1	0611-			●	●
51	04.906 CLEVIS; HYDRO BRK BOOSTER HYDRO BRAKE BOOSTER<7QQ> 04.662	8-97191-041-0	01	1	0302-0506	●	●
51	04.906 CLEVIS; HYDRO BRK BOOSTER 04.662	8-97191-041-0	01	1	0302-0506			●	●	●
51	04.906 CLEVIS; HYDRO BRK BOOSTER HYDRO BRAKE BOOSTER<7QQ> 04.662	8-97191-041-0	01	1	0507-0606	●	●	●	●
51	04.906 CLEVIS; HYDRO BRK BOOSTER HYDRO BRAKE BOOSTER<7QQ> 04.662	8-97191-041-0	01	1	0607-0610	●	●
51	04.906 CLEVIS; HYDRO BRK BOOSTER 04.662	8-97191-041-0	01	1	0607-0610			●	●
51	04.906 CLEVIS; HYDRO BRK BOOSTER HYDRO BRAKE BOOSTER<7QQ>	8-98038-347-0	01	1	0611-	●	●
51	04.906 CLEVIS; HYDRO BRK BOOSTER	8-98038-347-0	01	1	0611-			●	●
52	04.906 GASKET; HYDRO BRK BOOSTER HYDRO BRAKE BOOSTER<7QQ> 04.910	8-97191-038-0	01	1	0302-0506	●	●
52	04.906 GASKET; HYDRO BRK BOOSTER 04.910	8-97191-038-0	01	1	0302-0506			●	●	●
52	04.906 GASKET; HYDRO BRK BOOSTER HYDRO BRAKE BOOSTER<7QQ> 04.910	8-97191-038-0	01	1	0507-0606	●	●	●	●
52	04.906 GASKET; HYDRO BRK BOOSTER HYDRO BRAKE BOOSTER<7QQ> 04.910	8-97191-038-0	01	1	0607-	●	●
52	04.906 GASKET; HYDRO BRK BOOSTER 04.910	8-97191-038-0	01	1	0607-			●	●
