3-30 — BRAKE MASTER CYLINDER (#41326) — 151 parça

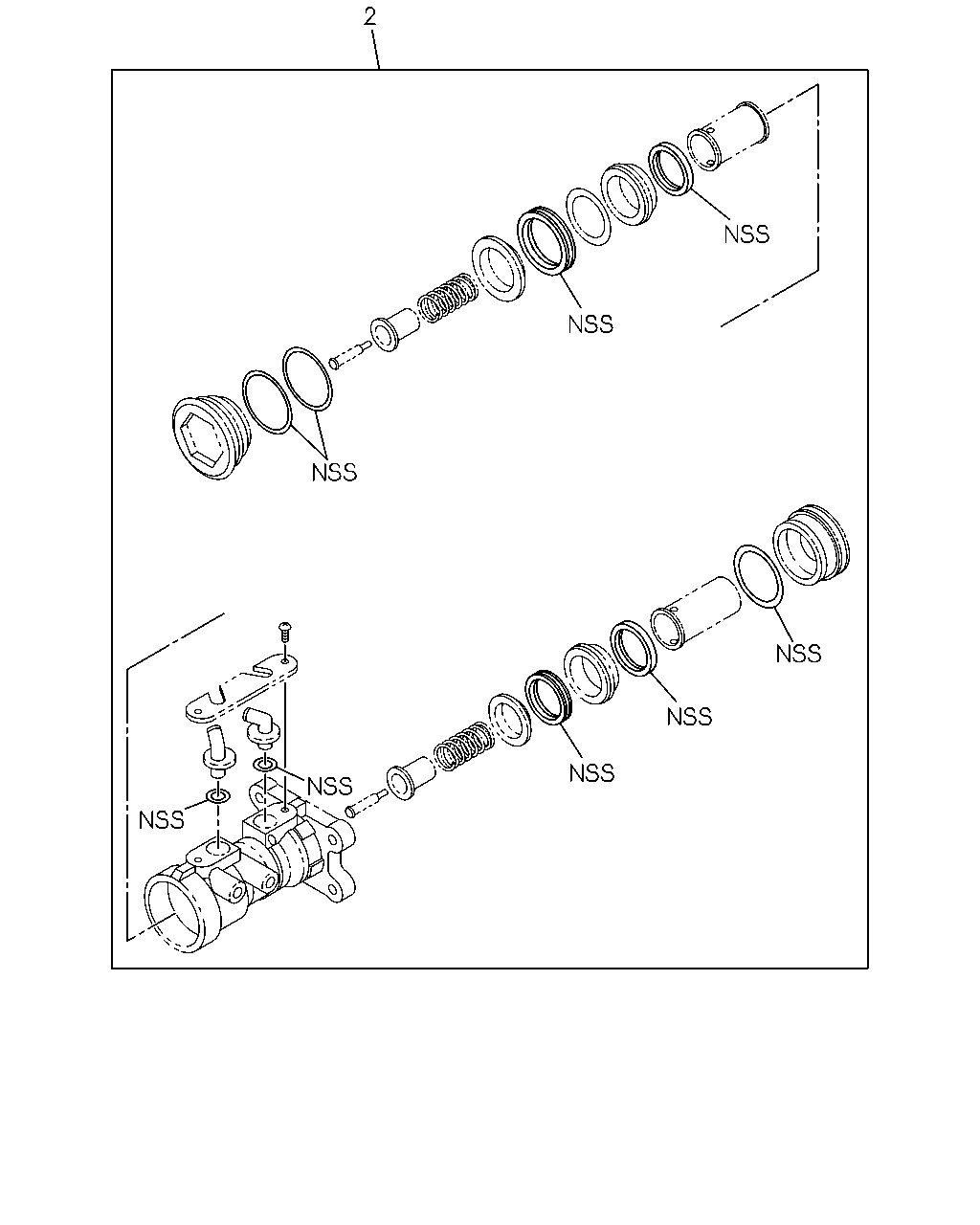

çizim 13552
2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
2 04.649 REPAIR KIT; BRK,M/CYL 8-97130-471-0 01 1 0302-0506 ● ●
2 04.649 REPAIR KIT; BRK,M/CYL
EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97130-471-0 01 1 0302-0506 ● ●
2 04.649 REPAIR KIT; BRK,M/CYL 8-97130-471-0 01 1 0507-0606 ● ●
2 04.649 REPAIR KIT; BRK,M/CYL
EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97130-471-0 01 1 0507-0606 ● ● ● ●
2 04.649 REPAIR KIT; BRK,M/CYL
DISC BRAKE FRT<J52> EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97130-471-0 01 1 0607- ● ● ● ●
2 04.649 REPAIR KIT; BRK,M/CYL
G.V.W. 7.5-8.0TON(RPY) EXC. DISC BRAKE FRT<J52>,HYDRO BRAKEBOOSTER<7QQ> 		8-97130-471-0 01 1 0607- ●
2 04.649 REPAIR KIT; BRK,M/CYL
HYDRO BRAKE BOOSTER<7QQ> 		8-97254-775-0 01 1 0302-0506 ● ●
2 04.649 REPAIR KIT; BRK,M/CYL 8-97254-775-0 01 1 0302-0506 ● ● ●
2 04.649 REPAIR KIT; BRK,M/CYL
HYDRO BRAKE BOOSTER<7QQ> 		8-97254-775-0 01 1 0507-0606 ● ● ● ●
2 04.649 REPAIR KIT; BRK,M/CYL
HYDRO BRAKE BOOSTER<7QQ> 		8-97254-775-0 01 1 0607- ● ●
2 04.649 REPAIR KIT; BRK,M/CYL 8-97254-775-0 01 1 0607- ● ●
2 04.649 REPAIR KIT; BRK,M/CYL
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,HYDRO BRAKEBOOSTER<7QQ> 		8-97130-470-0 01 1 0607- ● ●

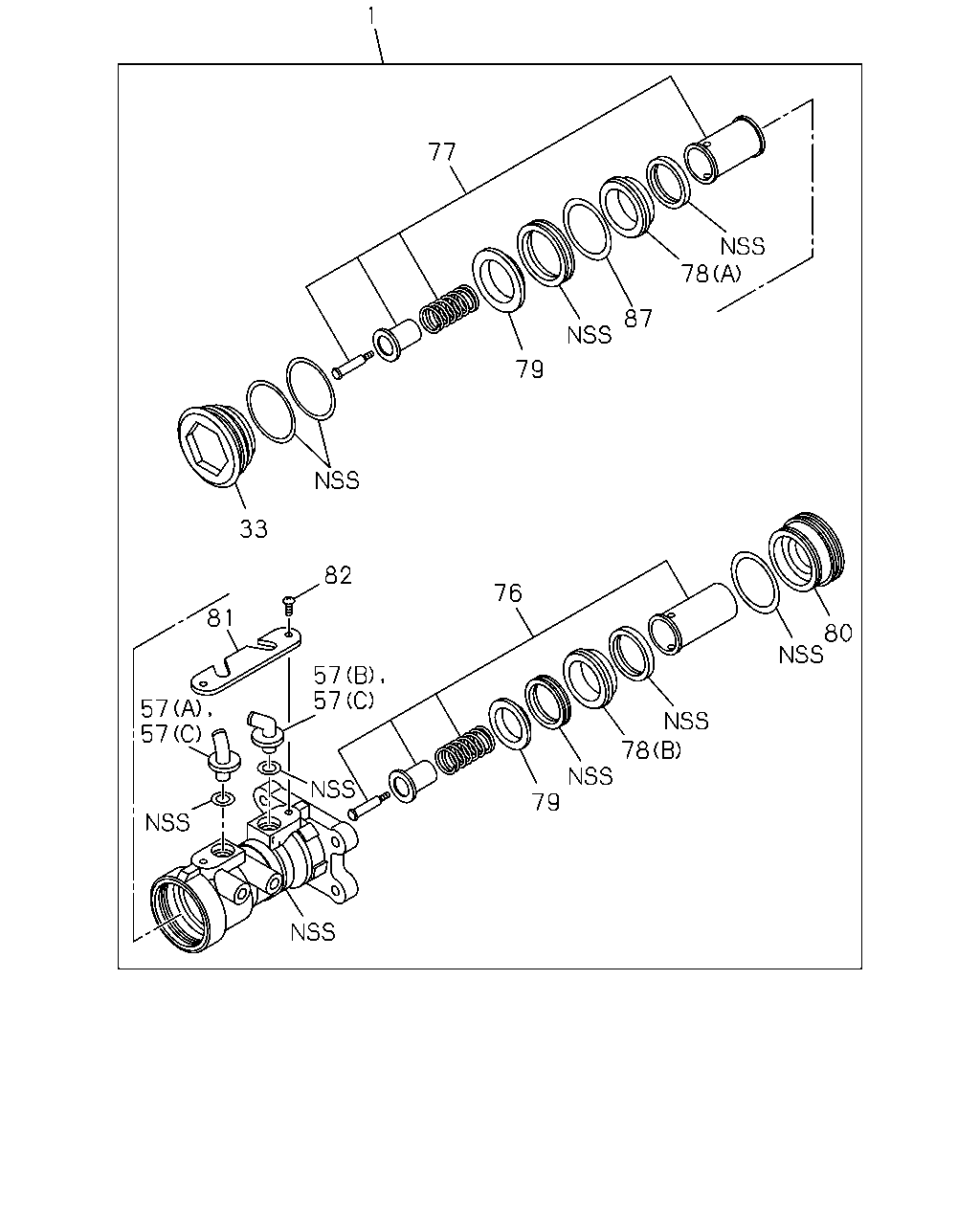

çizim 53349
1 77 78 87 79 33 82 76 81 80 57 57 57 57 78 79
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 04.650 CYLINDER ASM; BRK MASTER 8-97315-166-0 01 1 0302-0506 ● ●
1 04.650 CYLINDER ASM; BRK MASTER
EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97315-166-0 01 1 0302-0506 ● ●
1 04.650 CYLINDER ASM; BRK MASTER 8-97315-166-0 01 1 0507-0606 ● ●
1 04.650 CYLINDER ASM; BRK MASTER
EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97315-166-0 01 1 0507-0606 ● ● ● ●
1 04.650 CYLINDER ASM; BRK MASTER
DISC BRAKE FRT<J52> EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97315-166-0 01 1 0607- ● ● ● ●
1 04.650 CYLINDER ASM; BRK MASTER
G.V.W. 7.5-8.0TON(RPY) EXC. DISC BRAKE FRT<J52>,HYDRO BRAKEBOOSTER<7QQ> 		8-97315-166-0 01 1 0607- ●
1 04.650 CYLINDER ASM; BRK MASTER
HYDRO BRAKE BOOSTER<7QQ> 		8-97254-771-0 01 1 0302-0506 ● ●
1 04.650 CYLINDER ASM; BRK MASTER 8-97254-771-0 01 1 0302-0506 ● ● ●
1 04.650 CYLINDER ASM; BRK MASTER
HYDRO BRAKE BOOSTER<7QQ> 		8-97254-771-0 01 1 0507-0606 ● ● ● ●
1 04.650 CYLINDER ASM; BRK MASTER
HYDRO BRAKE BOOSTER<7QQ> 		8-97254-771-0 01 1 0607- ● ●
1 04.650 CYLINDER ASM; BRK MASTER 8-97254-771-0 01 1 0607- ● ●
1 04.650 CYLINDER ASM; BRK MASTER
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,HYDRO BRAKEBOOSTER<7QQ> 		8-97315-164-0 01 1 0607- ● ●
33 04.661 PLUG; END,M/CYL 8-97186-697-0 01 1 0302-0506 ● ●
33 04.661 PLUG; END,M/CYL
EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97186-697-0 01 1 0302-0506 ● ●
33 04.661 PLUG; END,M/CYL 8-97186-697-0 01 1 0507-0606 ● ●
33 04.661 PLUG; END,M/CYL
EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97186-697-0 01 1 0507-0606 ● ● ● ●
33 04.661 PLUG; END,M/CYL
DISC BRAKE FRT<J52> EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97186-697-0 01 1 0607- ● ● ● ●
33 04.661 PLUG; END,M/CYL
G.V.W. 7.5-8.0TON(RPY) EXC. DISC BRAKE FRT<J52>,HYDRO BRAKEBOOSTER<7QQ> 		8-97186-697-0 01 1 0607- ●
33 04.661 PLUG; END,M/CYL
HYDRO BRAKE BOOSTER<7QQ> 		8-97186-699-0 01 1 0302-0506 ● ●
33 04.661 PLUG; END,M/CYL 8-97186-699-0 01 1 0302-0506 ● ● ●
33 04.661 PLUG; END,M/CYL
HYDRO BRAKE BOOSTER<7QQ> 		8-97186-699-0 01 1 0507-0606 ● ● ● ●
33 04.661 PLUG; END,M/CYL
HYDRO BRAKE BOOSTER<7QQ> 		8-97186-699-0 01 1 0607- ● ●
33 04.661 PLUG; END,M/CYL 8-97186-699-0 01 1 0607- ● ●
33 04.661 PLUG; END,M/CYL
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,HYDRO BRAKEBOOSTER<7QQ> 		8-97186-696-0 01 1 0607- ● ●
57 04.651 NIPPLE; BRK M/CYL
(A) 		8-97130-441-0 01 1 0302-0506 ● ●
57 04.651 NIPPLE; BRK M/CYL
EXC. HYDRO BRAKE BOOSTER<7QQ> (A) 		8-97130-441-0 01 1 0302-0506 ● ●
57 04.651 NIPPLE; BRK M/CYL
(A) 		8-97130-441-0 01 1 0507-0606 ● ●
57 04.651 NIPPLE; BRK M/CYL
EXC. HYDRO BRAKE BOOSTER<7QQ> (A) 		8-97130-441-0 01 1 0507-0606 ● ● ● ●
57 04.651 NIPPLE; BRK M/CYL
DISC BRAKE FRT<J52> EXC. HYDRO BRAKE BOOSTER<7QQ> (A) 		8-97130-441-0 01 1 0607- ● ● ● ●
57 04.651 NIPPLE; BRK M/CYL
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) EXC. DISC BRAKE FRT<J52>,HYDRO BRAKEBOOSTER<7QQ> (A) 		8-97130-441-0 01 1 0607- ● ●
57 04.651 NIPPLE; BRK M/CYL
(B) 		8-97130-442-0 01 1 0302-0506 ● ●
57 04.651 NIPPLE; BRK M/CYL
EXC. HYDRO BRAKE BOOSTER<7QQ> (B) 		8-97130-442-0 01 1 0302-0506 ● ●
57 04.651 NIPPLE; BRK M/CYL
(B) 		8-97130-442-0 01 1 0507-0606 ● ●
57 04.651 NIPPLE; BRK M/CYL
EXC. HYDRO BRAKE BOOSTER<7QQ> (B) 		8-97130-442-0 01 1 0507-0606 ● ● ● ●
57 04.651 NIPPLE; BRK M/CYL
DISC BRAKE FRT<J52> EXC. HYDRO BRAKE BOOSTER<7QQ> (B) 		8-97130-442-0 01 1 0607- ● ● ● ●
57 04.651 NIPPLE; BRK M/CYL
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) EXC. DISC BRAKE FRT<J52>,HYDRO BRAKEBOOSTER<7QQ> (B) 		8-97130-442-0 01 1 0607- ● ●
57 04.651 NIPPLE; BRK M/CYL
HYDRO BRAKE BOOSTER<7QQ> (C) 		8-97130-442-0 02 1 0302-0506 ● ●
57 04.651 NIPPLE; BRK M/CYL
(C) 		8-97130-442-0 02 1 0302-0506 ● ● ●
57 04.651 NIPPLE; BRK M/CYL
HYDRO BRAKE BOOSTER<7QQ> (C) 		8-97130-442-0 02 1 0507-0606 ● ● ● ●
57 04.651 NIPPLE; BRK M/CYL
HYDRO BRAKE BOOSTER<7QQ> (C) 		8-97130-442-0 02 1 0607- ● ●
57 04.651 NIPPLE; BRK M/CYL
(C) 		8-97130-442-0 02 1 0607- ● ●
76 04.653 PISTON ASM; PRIMARY 8-97224-643-0 01 1 0302-0506 ● ●
76 04.653 PISTON ASM; PRIMARY
EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97224-643-0 01 1 0302-0506 ● ●
76 04.653 PISTON ASM; PRIMARY 8-97224-643-0 01 1 0507-0606 ● ●
76 04.653 PISTON ASM; PRIMARY
EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97224-643-0 01 1 0507-0606 ● ● ● ●
76 04.653 PISTON ASM; PRIMARY
DISC BRAKE FRT<J52> EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97224-643-0 01 1 0607- ● ● ● ●
76 04.653 PISTON ASM; PRIMARY
G.V.W. 7.5-8.0TON(RPY) EXC. DISC BRAKE FRT<J52>,HYDRO BRAKEBOOSTER<7QQ> 		8-97224-643-0 01 1 0607- ●
76 04.653 PISTON ASM; PRIMARY
HYDRO BRAKE BOOSTER<7QQ> 		8-97224-641-0 01 1 0302-0506 ● ●
76 04.653 PISTON ASM; PRIMARY 8-97224-641-0 01 1 0302-0506 ● ● ●
76 04.653 PISTON ASM; PRIMARY
HYDRO BRAKE BOOSTER<7QQ> 		8-97224-641-0 01 1 0507-0606 ● ● ● ●
76 04.653 PISTON ASM; PRIMARY
HYDRO BRAKE BOOSTER<7QQ> 		8-97224-641-0 01 1 0607- ● ●
76 04.653 PISTON ASM; PRIMARY 8-97224-641-0 01 1 0607- ● ●
76 04.653 PISTON ASM; PRIMARY
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,HYDRO BRAKEBOOSTER<7QQ> 		8-97224-636-0 01 1 0607- ● ●
77 04.653 PISTON ASM; SECONDARY 8-97224-642-0 01 1 0302-0506 ● ●
77 04.653 PISTON ASM; SECONDARY
EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97224-642-0 01 1 0302-0506 ● ●
77 04.653 PISTON ASM; SECONDARY 8-97224-642-0 01 1 0507-0606 ● ●
77 04.653 PISTON ASM; SECONDARY
EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97224-642-0 01 1 0507-0606 ● ● ● ●
77 04.653 PISTON ASM; SECONDARY
DISC BRAKE FRT<J52> EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97224-642-0 01 1 0607- ● ● ● ●
77 04.653 PISTON ASM; SECONDARY
G.V.W. 7.5-8.0TON(RPY) EXC. DISC BRAKE FRT<J52>,HYDRO BRAKEBOOSTER<7QQ> 		8-97224-642-0 01 1 0607- ●
77 04.653 PISTON ASM; SECONDARY
HYDRO BRAKE BOOSTER<7QQ> 		8-97224-640-0 01 1 0302-0506 ● ●
77 04.653 PISTON ASM; SECONDARY 8-97224-640-0 01 1 0302-0506 ● ● ●
77 04.653 PISTON ASM; SECONDARY
HYDRO BRAKE BOOSTER<7QQ> 		8-97224-640-0 01 1 0507-0606 ● ● ● ●
77 04.653 PISTON ASM; SECONDARY
HYDRO BRAKE BOOSTER<7QQ> 		8-97224-640-0 01 1 0607- ● ●
77 04.653 PISTON ASM; SECONDARY 8-97224-640-0 01 1 0607- ● ●
77 04.653 PISTON ASM; SECONDARY
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,HYDRO BRAKEBOOSTER<7QQ> 		8-97224-635-0 01 1 0607- ● ●
78 04.651 BUSHING; MASTER CYL
(A) 		8-97130-455-0 01 1 0302-0506 ● ●
78 04.651 BUSHING; MASTER CYL
EXC. HYDRO BRAKE BOOSTER<7QQ> (A) 		8-97130-455-0 01 1 0302-0506 ● ●
78 04.651 BUSHING; MASTER CYL
(A) 		8-97130-455-0 01 1 0507-0606 ● ●
78 04.651 BUSHING; MASTER CYL
EXC. HYDRO BRAKE BOOSTER<7QQ> (A) 		8-97130-455-0 01 1 0507-0606 ● ● ● ●
78 04.651 BUSHING; MASTER CYL
DISC BRAKE FRT<J52> EXC. HYDRO BRAKE BOOSTER<7QQ> (A) 		8-97130-455-0 01 1 0607- ● ● ● ●
78 04.651 BUSHING; MASTER CYL
G.V.W. 7.5-8.0TON(RPY) EXC. DISC BRAKE FRT<J52>,HYDRO BRAKEBOOSTER<7QQ> (A) 		8-97130-455-0 01 1 0607- ●
78 04.651 BUSHING; MASTER CYL
(B) 		8-97217-312-0 01 1 0302-0506 ● ●
78 04.651 BUSHING; MASTER CYL
EXC. HYDRO BRAKE BOOSTER<7QQ> (B) 		8-97217-312-0 01 1 0302-0506 ● ●
78 04.651 BUSHING; MASTER CYL
(B) 		8-97217-312-0 01 1 0507-0606 ● ●
78 04.651 BUSHING; MASTER CYL
EXC. HYDRO BRAKE BOOSTER<7QQ> (B) 		8-97217-312-0 01 1 0507-0606 ● ● ● ●
78 04.651 BUSHING; MASTER CYL
DISC BRAKE FRT<J52> EXC. HYDRO BRAKE BOOSTER<7QQ> (B) 		8-97217-312-0 01 1 0607- ● ● ● ●
78 04.651 BUSHING; MASTER CYL
G.V.W. 7.5-8.0TON(RPY) EXC. DISC BRAKE FRT<J52>,HYDRO BRAKEBOOSTER<7QQ> (B) 		8-97217-312-0 01 1 0607- ●
78 04.651 BUSHING; MASTER CYL
HYDRO BRAKE BOOSTER<7QQ> (A) 		8-97170-695-0 01 1 0302-0506 ● ●
78 04.651 BUSHING; MASTER CYL
(A) 		8-97170-695-0 01 1 0302-0506 ● ● ●
78 04.651 BUSHING; MASTER CYL
HYDRO BRAKE BOOSTER<7QQ> (A) 		8-97170-695-0 01 1 0507-0606 ● ● ● ●
78 04.651 BUSHING; MASTER CYL
HYDRO BRAKE BOOSTER<7QQ> (A) 		8-97170-695-0 01 1 0607- ● ●
78 04.651 BUSHING; MASTER CYL
(A) 		8-97170-695-0 01 1 0607- ● ●
78 04.651 BUSHING; MASTER CYL
HYDRO BRAKE BOOSTER<7QQ> (B) 		8-97207-685-0 01 1 0302-0506 ● ●
78 04.651 BUSHING; MASTER CYL
(B) 		8-97207-685-0 01 1 0302-0506 ● ● ●
78 04.651 BUSHING; MASTER CYL
HYDRO BRAKE BOOSTER<7QQ> (B) 		8-97207-685-0 01 1 0507-0606 ● ● ● ●
78 04.651 BUSHING; MASTER CYL
HYDRO BRAKE BOOSTER<7QQ> (B) 		8-97207-685-0 01 1 0607- ● ●
78 04.651 BUSHING; MASTER CYL
(B) 		8-97207-685-0 01 1 0607- ● ●
78 04.651 BUSHING; MASTER CYL
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,HYDRO BRAKEBOOSTER<7QQ> (A) 		8-97130-454-0 01 1 0607- ● ●
78 04.651 BUSHING; MASTER CYL
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,HYDRO BRAKEBOOSTER<7QQ> (B) 		8-97217-310-0 01 1 0607- ● ●
79 04.651 SUPPORTER; CUP 8-97130-463-0 02 1 0302-0506 ● ●
79 04.651 SUPPORTER; CUP
EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97130-463-0 02 1 0302-0506 ● ●
79 04.651 SUPPORTER; CUP 8-97130-463-0 02 1 0507-0606 ● ●
79 04.651 SUPPORTER; CUP
EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97130-463-0 02 1 0507-0606 ● ● ● ●
79 04.651 SUPPORTER; CUP
DISC BRAKE FRT<J52> EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97130-463-0 02 1 0607- ● ● ● ●
79 04.651 SUPPORTER; CUP
G.V.W. 7.5-8.0TON(RPY) EXC. DISC BRAKE FRT<J52>,HYDRO BRAKEBOOSTER<7QQ> 		8-97130-463-0 02 1 0607- ●
79 04.651 SUPPORTER; CUP
HYDRO BRAKE BOOSTER<7QQ> 		8-97170-698-0 02 1 0302-0506 ● ●
79 04.651 SUPPORTER; CUP 8-97170-698-0 02 1 0302-0506 ● ● ●
79 04.651 SUPPORTER; CUP
HYDRO BRAKE BOOSTER<7QQ> 		8-97170-698-0 02 1 0507-0606 ● ● ● ●
79 04.651 SUPPORTER; CUP
HYDRO BRAKE BOOSTER<7QQ> 		8-97170-698-0 02 1 0607- ● ●
79 04.651 SUPPORTER; CUP 8-97170-698-0 02 1 0607- ● ●
79 04.651 SUPPORTER; CUP
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,HYDRO BRAKEBOOSTER<7QQ> 		8-97130-462-0 02 1 0607- ● ●
80 04.651 COVER; MASTER CYL 8-97130-449-0 01 1 0302-0506 ● ●
80 04.651 COVER; MASTER CYL
EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97130-449-0 01 1 0302-0506 ● ●
80 04.651 COVER; MASTER CYL 8-97130-449-0 01 1 0507-0606 ● ●
80 04.651 COVER; MASTER CYL
EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97130-449-0 01 1 0507-0606 ● ● ● ●
80 04.651 COVER; MASTER CYL
DISC BRAKE FRT<J52> EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97130-449-0 01 1 0607- ● ● ● ●
80 04.651 COVER; MASTER CYL
G.V.W. 7.5-8.0TON(RPY) EXC. DISC BRAKE FRT<J52>,HYDRO BRAKEBOOSTER<7QQ> 		8-97130-449-0 01 1 0607- ●
80 04.651 COVER; MASTER CYL
HYDRO BRAKE BOOSTER<7QQ> 		8-97170-692-0 01 1 0302-0506 ● ●
80 04.651 COVER; MASTER CYL 8-97170-692-0 01 1 0302-0506 ● ● ●
80 04.651 COVER; MASTER CYL
HYDRO BRAKE BOOSTER<7QQ> 		8-97170-692-0 01 1 0507-0606 ● ● ● ●
80 04.651 COVER; MASTER CYL
HYDRO BRAKE BOOSTER<7QQ> 		8-97170-692-0 01 1 0607- ● ●
80 04.651 COVER; MASTER CYL 8-97170-692-0 01 1 0607- ● ●
80 04.651 COVER; MASTER CYL
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,HYDRO BRAKEBOOSTER<7QQ> 		8-97130-448-0 01 1 0607- ● ●
81 04.651 HOLDER; NIPPLE 8-97315-168-0 01 1 0302-0506 ● ●
81 04.651 HOLDER; NIPPLE
EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97315-168-0 01 1 0302-0506 ● ●
81 04.651 HOLDER; NIPPLE 8-97315-168-0 01 1 0507-0606 ● ●
81 04.651 HOLDER; NIPPLE
EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97315-168-0 01 1 0507-0606 ● ● ● ●
81 04.651 HOLDER; NIPPLE
DISC BRAKE FRT<J52> EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97315-168-0 01 1 0607- ● ● ● ●
81 04.651 HOLDER; NIPPLE
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) EXC. DISC BRAKE FRT<J52>,HYDRO BRAKEBOOSTER<7QQ> 		8-97315-168-0 01 1 0607- ● ●
81 04.651 HOLDER; NIPPLE
HYDRO BRAKE BOOSTER<7QQ> 		8-97130-445-0 01 1 0302-0506 ● ●
81 04.651 HOLDER; NIPPLE 8-97130-445-0 01 1 0302-0506 ● ● ●
81 04.651 HOLDER; NIPPLE
HYDRO BRAKE BOOSTER<7QQ> 		8-97130-445-0 01 1 0507-0606 ● ● ● ●
81 04.651 HOLDER; NIPPLE
HYDRO BRAKE BOOSTER<7QQ> 		8-97130-445-0 01 1 0607- ● ●
81 04.651 HOLDER; NIPPLE 8-97130-445-0 01 1 0607- ● ●
82 04.651 SCREW; HOLDER 8-97130-446-0 02 1 0302-0506 ● ● ● ● ● ● ●
82 04.651 SCREW; HOLDER 8-97130-446-0 02 1 0507-0606 ● ● ● ● ● ●
82 04.651 SCREW; HOLDER 8-97130-446-0 02 1 0607- ● ● ● ● ● ●
87 04.662 SPACER; CUP 8-97130-459-0 01 1 0302-0506 ● ●
87 04.662 SPACER; CUP
EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97130-459-0 01 1 0302-0506 ● ●
87 04.662 SPACER; CUP 8-97130-459-0 01 1 0507-0606 ● ●
87 04.662 SPACER; CUP
EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97130-459-0 01 1 0507-0606 ● ● ● ●
87 04.662 SPACER; CUP
DISC BRAKE FRT<J52> EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97130-459-0 01 1 0607- ● ● ● ●
87 04.662 SPACER; CUP
G.V.W. 7.5-8.0TON(RPY) EXC. DISC BRAKE FRT<J52>,HYDRO BRAKEBOOSTER<7QQ> 		8-97130-459-0 01 1 0607- ●
87 04.662 SPACER; CUP
HYDRO BRAKE BOOSTER<7QQ> 		8-97170-696-0 01 1 0302-0506 ● ●
87 04.662 SPACER; CUP 8-97170-696-0 01 1 0302-0506 ● ● ●
87 04.662 SPACER; CUP
HYDRO BRAKE BOOSTER<7QQ> 		8-97170-696-0 01 1 0507-0606 ● ● ● ●
87 04.662 SPACER; CUP
HYDRO BRAKE BOOSTER<7QQ> 		8-97170-696-0 01 1 0607- ● ●
87 04.662 SPACER; CUP 8-97170-696-0 01 1 0607- ● ●
87 04.662 SPACER; CUP
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,HYDRO BRAKEBOOSTER<7QQ> 		8-97130-458-0 01 1 0607- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
