◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50949 - NPR/NQR(EUROPE)-LHD ▶ 3 - Brakes, Brake System ▶ 3-15 - ANTILOCK BRAKE SYSTEM(A.B.S.) ▶
3-15 — ANTILOCK BRAKE SYSTEM(A.B.S.) (#41324) — 29 parça

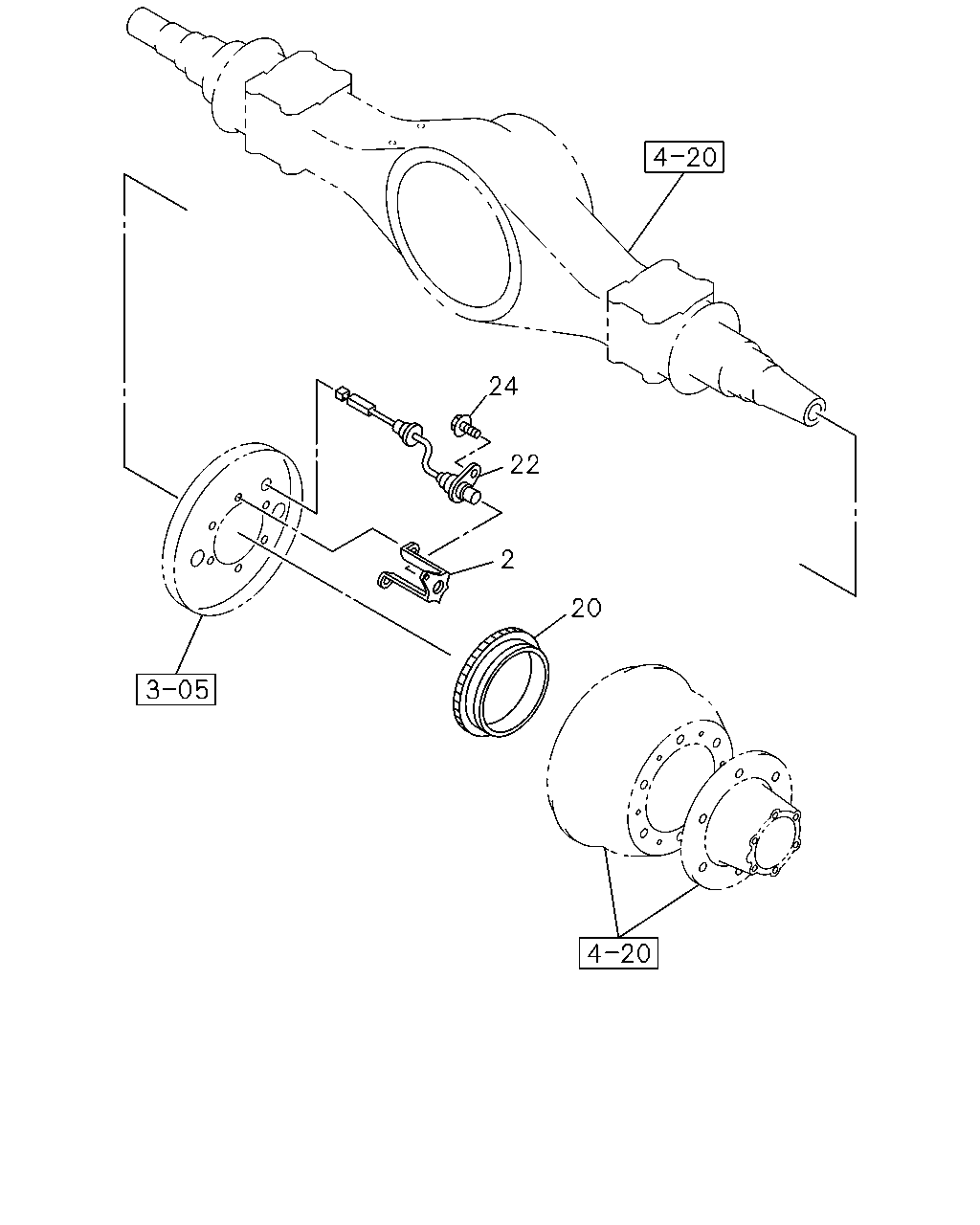

çizim 13521
24 22 2 20
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
2 04.730 BRACKET; SENSOR
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/10(GT5) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> 		8-97314-120-0 02 1 0302-0403 ● ● ● ●
2 04.730 BRACKET; SENSOR
4JH1 ENG(RJX) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97314-120-0 02 1 0302-0403 ● ● ●
2 04.730 BRACKET; SENSOR
4HE1 ENG(RLY) G.V.W. 6.0-6.5TON(RPV) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97314-120-0 02 1 0404-0506 ● ● ● ●
2 04.730 BRACKET; SENSOR
4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97314-120-0 02 1 0404-0506 ● ● ●
2 04.730 BRACKET; SENSOR
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97314-120-0 02 1 0507- ● ● ● ●
2 04.730 BRACKET; SENSOR
4HE1 ENG(RLY) G.V.W. 7.5-8.0TON(RPY) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97248-117-0 02 1 0302-0506 ● ● ● ● ●
2 04.730 BRACKET; SENSOR
G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> 		8-97248-117-0 02 1 0507-0606 ● ● ● ●
2 04.730 BRACKET; SENSOR
G.V.W. 7.5-8.0TON(RPY) 		8-97248-117-0 02 1 0607- ● ● ● ●
20 04.710 ROTOR; SENSOR
4HE1 ENG(RLY) G.V.W. 6.0-6.5TON(RPV) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97206-774-3 02 1 0302-0403 ● ● ● ●
20 04.710 ROTOR; SENSOR
4HE1 ENG(RLY) G.V.W. 6.0-6.5TON(RPV) FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/9(S2J) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97206-774-3 02 1 0404-0506 ● ● ● ●
20 04.710 ROTOR; SENSOR
G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> 		8-97206-774-3 02 1 0507-0606 ● ● ●
20 04.710 ROTOR; SENSOR
G.V.W. 6.0-6.5TON(RPV) 		8-97206-774-4 02 1 0607- ● ● ●
20 04.710 ROTOR; SENSOR
4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97234-459-2 02 1 0302-0506 ● ● ●
20 04.710 ROTOR; SENSOR
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97234-459-3 02 1 0507- ● ● ●
20 04.710 ROTOR; SENSOR
4HE1 ENG(RLY) G.V.W. 7.5-8.0TON(RPY) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97206-775-3 02 1 0302-0506 ● ● ● ● ●
20 04.710 ROTOR; SENSOR
G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> 		8-97206-775-3 02 1 0507-0606 ● ● ● ●
20 04.710 ROTOR; SENSOR
G.V.W. 7.5-8.0TON(RPY) 		8-97206-775-3 02 1 0607- ● ● ● ●
22 04.710 SENSOR; SPEED
4HE1 ENG(RLY) 		8-97206-760-2 02 1 0302-0403 ● ● ● ● ● ● ●
22 04.710 SENSOR; SPEED
4HE1 ENG(RLY) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97206-760-2 02 1 0404-0506 ● ● ● ● ● ● ●
22 04.710 SENSOR; SPEED
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97206-760-2 02 1 0507-0606 ● ● ● ● ●
22 04.710 SENSOR; SPEED
G.V.W. 7.5-8.0TON(RPY) 		8-97206-760-3 02 1 0607- ● ● ● ●
22 04.710 SENSOR; SPEED
4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97184-314-3 02 1 0302-0506 ● ● ●
22 04.710 SENSOR; SPEED
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97184-314-3 02 1 0507-0606 ● ● ●
22 04.710 SENSOR; SPEED
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97184-314-4 02 1 0607- ● ● ● ●
24 04.730 BOLT; SENSOR
4HE1 ENG(RLY) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/10(GT5) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> 08.900 M8X12 FLANGE 		0-28080-812-0 02 1 0302-0403 ● ● ● ● ● ● ●
24 04.730 BOLT; SENSOR
4JH1 ENG(RJX) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) 4 WHEEL ANTI LOCK BRAKE<JE5> 08.900 M8X12 FLANGE 		0-28080-812-0 02 1 0302-0403 ● ● ●
24 04.730 BOLT; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 08.900 M8X12 FLANGE 		0-28080-812-0 02 1 0404-0506 ● ● ● ● ● ● ●
24 04.730 BOLT; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 08.900 M8X12 FLANGE 		0-28080-812-0 02 1 0507-0512 ● ● ● ● ● ●
24 04.730 BOLT; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 M8X12 FLANGE 		0-28050-812-0 02 1 0601- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
