Sayfa 7-43 - Isuzu EPC

7-43 — SUN VISOR AND ASSIST GRIP (#4132) — 186 parça

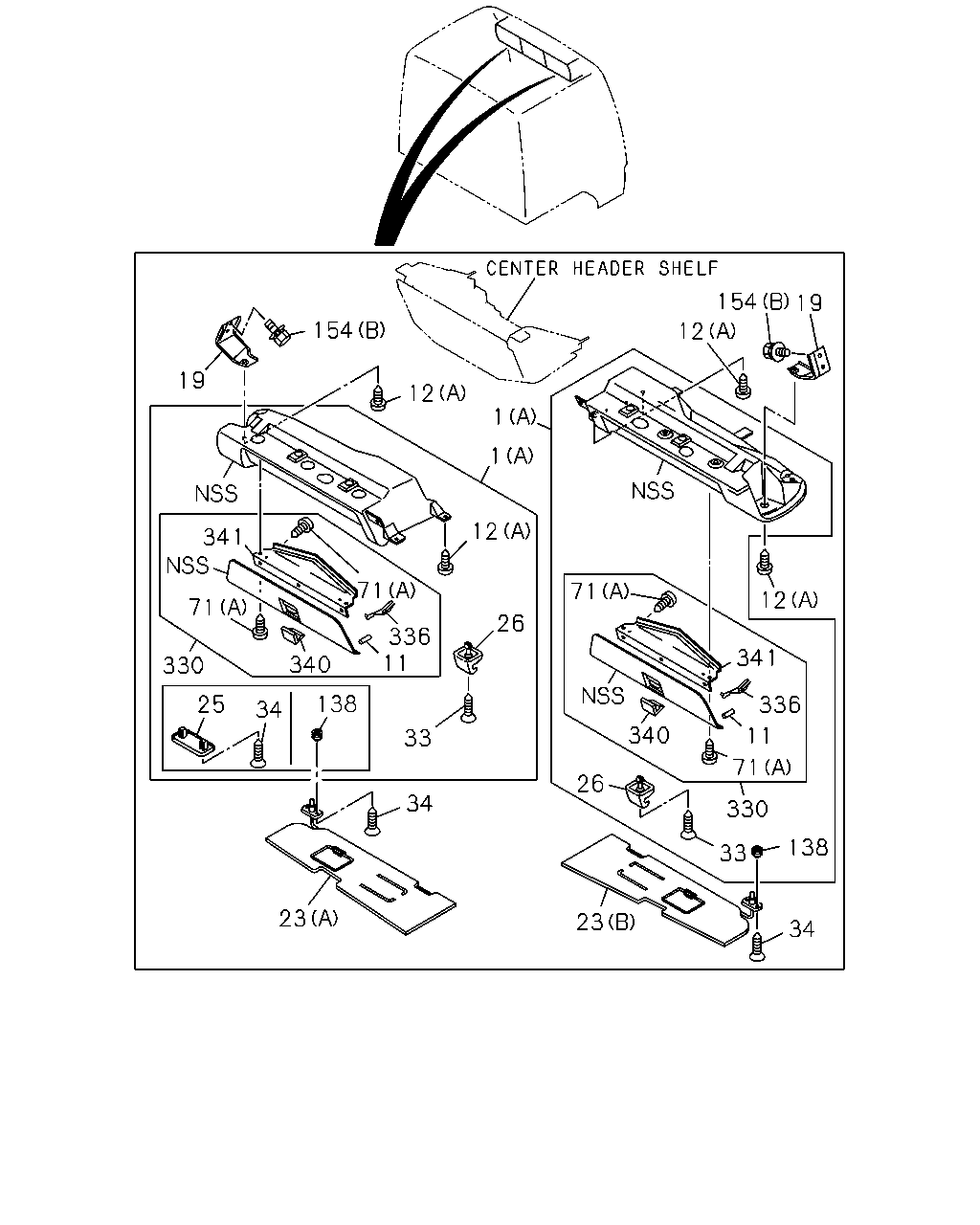

154 12 19 12 1 1 12 341 71 71 12 71 26 336 11 341 340 330 138 25 336 34 340 11 33 71 26 34 330 138 33 23 23 34 154 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BOARD; HEADER SHELF (B)	1-72447-657-2	01	1	9603-	●	●
1	BOARD; HEADER SHELF (A)	1-72448-597-2	01	1	9603-9904	●	●
1	BOARD; HEADER SHELF EXC. CHEAPER CAB(WY1) (A)	1-72448-597-2	01	1	9905-0011	●	●
1	BOARD; HEADER SHELF SUN VISOR PASSENGER<D20> (A)	1-72448-597-2	01	1	0012-	●	●
1	BOARD; HEADER SHELF (A)	1-72448-576-3	01	1	9603-9704	●	●
1	BOARD; HEADER SHELF (A)	1-72448-596-2	01	1	9603-	●	●
1	BOARD; HEADER SHELF CHEAPER CAB(WY1) (A)	1-72447-718-0	01	1	9905-0011	●	●
1	BOARD; HEADER SHELF EXC. SUN VISOR PASSENGER<D20> (A)	1-72447-718-0	01	1	0012-	●	●
1	BOARD; HEADER SHELF HIGH ROOF<S2F> (C)	1-72447-586-3	01	1	9905-	●	●
11	CAP; HEADER SHELF	8-94270-538-0	04	1	9603-	●	●
12	SCREW; HEADER SHELF (A) M6X24 W/LK&PL WASHER	8-94279-404-0	12	1	9603-	●	●
12	SCREW; HEADER SHELF HIGH ROOF<S2F> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	09	1	9905-	●	●
19	SUPPORT ASM; HEADER SHELF	1-72448-324-1	01	1	9603-	●	●
19	SUPPORT ASM; HEADER SHELF	1-72448-323-1	01	1	9603-	●	●
23	SUN VISOR (A)	1-73138-150-1	01	1	9603-9904	●	●
23	SUN VISOR EXC. CHEAPER CAB(WY1) (A)	1-73138-150-1	01	1	9905-0011	●	●
23	SUN VISOR SUN VISOR PASSENGER<D20> (A)	1-73138-150-1	01	1	0012-	●	●
23	SUN VISOR (B)	1-73138-148-1	01	1	9603-	●	●
25	COVER; HOLE,SUN VISOR CHEAPER CAB(WY1)	1-73318-614-0	01	1	9905-0011	●	●
25	COVER; HOLE,SUN VISOR EXC. SUN VISOR PASSENGER<D20>	1-73318-614-0	01	1	0012-	●	●
26	HOLDER; SUN VISOR	1-73138-142-0	02	1	9603-9904	●	●
26	HOLDER; SUN VISOR	1-73138-142-0	01	1	9905-0011	●	●
26	HOLDER; SUN VISOR EXC. CHEAPER CAB(WY1)	1-73138-142-0	01	1	9905-0011	●	●
26	HOLDER; SUN VISOR	1-73138-142-0	01	1	0012-	●	●
26	HOLDER; SUN VISOR SUN VISOR PASSENGER<D20>	1-73138-142-0	01	1	0012-	●	●
33	SCREW; HOLDER,SUN VISOR M4X16 TAPPING OVAL-HEAD	0-70580-416-0	02	1	9603-9904	●	●
33	SCREW; HOLDER,SUN VISOR M4X16 TAPPING OVAL-HEAD	0-70580-416-0	01	1	9905-0011	●	●
33	SCREW; HOLDER,SUN VISOR EXC. CHEAPER CAB(WY1) M4X16 TAPPING OVAL-HEAD	0-70580-416-0	01	1	9905-0011	●	●
33	SCREW; HOLDER,SUN VISOR M4X16 TAPPING OVAL-HEAD	0-70580-416-0	01	1	0012-	●	●
33	SCREW; HOLDER,SUN VISOR SUN VISOR PASSENGER<D20> M4X16 TAPPING OVAL-HEAD	0-70580-416-0	01	1	0012-	●	●
34	SCREW; SUN VISOR M6X25	1-09981-441-0	04	1	9603-9904	●	●
34	SCREW; SUN VISOR CHEAPER CAB(WY1) M6X25	1-09981-441-0	02	1	9905-0011	●	●
34	SCREW; SUN VISOR SUN VISOR PASSENGER<D20> M6X25	1-09981-441-0	04	1	0012-	●	●
34	SCREW; SUN VISOR EXC. CHEAPER CAB(WY1) M6X25	1-09981-441-0	04	1	9905-0011	●	●
34	SCREW; SUN VISOR EXC. SUN VISOR PASSENGER<D20> M6X25	1-09981-441-0	02	1	0012-	●	●
71	SCREW (B) M6X20 W/LK&PL WASHER	1-09981-073-0	03	1	9603-	●	●
71	SCREW (C) CANT RAIL SIDE M6X37 W/PL WASHER	1-09981-423-0	04	1	9603-9702	●	●
71	SCREW (C) CANT RAIL SIDE M6X35 W/PL WASHER	1-09981-422-0	04	1	9703-	●	●
71	SCREW (A) M5X14 W/PL WASHER	5-09981-050-0	06	1	9603-9904	●	●
71	SCREW (A) M5X14 W/PL WASHER	5-09981-050-0	03	1	9905-0011	●	●
71	SCREW EXC. CHEAPER CAB(WY1) (A) M5X14 W/PL WASHER	5-09981-050-0	03	1	9905-0011	●	●
71	SCREW (A) M5X14 W/PL WASHER	5-09981-050-0	03	1	0012-	●	●
71	SCREW SUN VISOR PASSENGER<D20> (A) M5X14 W/PL WASHER	5-09981-050-0	03	1	0012-	●	●
71	SCREW CHEAPER CAB(WY1) (A) M5X14	8-94279-325-0	03	1	9905-0011	●	●
71	SCREW EXC. SUN VISOR PASSENGER<D20> (A) M5X14	8-94279-325-0	03	1	0012-	●	●
71	SCREW NEW ZEALAND EQUIPMENT(PK5) (D) M6X20 W/LK&PL WASHER	1-09981-509-0	02	1	9712-9904		●
71	SCREW ASSIST GRIP A POST<NBK> (D) M6X34 W/LK&PL WASHER	8-94279-411-0	04	1	9905-	●	●
71	SCREW NEW ZEALAND EQUIPMENT(PK5) EXC. ASSIST GRIP A POST<NBK> (D) M6X34 W/LK&PL WASHER	8-94279-411-0	04	1	9905-		●
138	NUT; BRKT,HEADER SHELF	1-09984-166-0	04	1	9603-9904	●	●
138	NUT; BRKT,HEADER SHELF	1-09984-166-0	02	1	9905-0011	●	●
138	NUT; BRKT,HEADER SHELF EXC. CHEAPER CAB(WY1)	1-09984-166-0	02	1	9905-0011	●	●
138	NUT; BRKT,HEADER SHELF	1-09984-166-0	02	1	0012-	●	●
138	NUT; BRKT,HEADER SHELF SUN VISOR PASSENGER<D20>	1-09984-166-0	02	1	0012-	●	●
154	BOLT; SUPPORT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	10	1	9603-	●	●
154	BOLT; SUPPORT GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	04	1	9603-	●	●
154	BOLT; SUPPORT EXC. GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	9603-	●	●
330	LID; HEADER SHELF	1-72448-360-3	02	1	9603-	●	●
336	STAY; LID	1-72448-379-3	04	1	9603-	●	●
340	LOCK; HEADER SHELF	1-72448-376-0	02	1	9603-	●	●
341	HINGE; LID,HEADER SHELF	1-72448-403-1	02	1	9603-	●	●

150 106 325 71 12 55 12 83 87 329 142 54 71 1 59 71 75 72 71 59 48 49 48 142 49 54 69 48 142 75 54 56 48 12 83

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BOARD; HEADER SHELF (B)	1-72447-657-2	01	1	9603-	●	●
1	BOARD; HEADER SHELF (A)	1-72448-597-2	01	1	9603-9904	●	●
1	BOARD; HEADER SHELF EXC. CHEAPER CAB(WY1) (A)	1-72448-597-2	01	1	9905-0011	●	●
1	BOARD; HEADER SHELF SUN VISOR PASSENGER<D20> (A)	1-72448-597-2	01	1	0012-	●	●
1	BOARD; HEADER SHELF (A)	1-72448-576-3	01	1	9603-9704	●	●
1	BOARD; HEADER SHELF (A)	1-72448-596-2	01	1	9603-	●	●
1	BOARD; HEADER SHELF CHEAPER CAB(WY1) (A)	1-72447-718-0	01	1	9905-0011	●	●
1	BOARD; HEADER SHELF EXC. SUN VISOR PASSENGER<D20> (A)	1-72447-718-0	01	1	0012-	●	●
1	BOARD; HEADER SHELF HIGH ROOF<S2F> (C)	1-72447-586-3	01	1	9905-	●	●
12	SCREW; HEADER SHELF (A) M6X24 W/LK&PL WASHER	8-94279-404-0	12	1	9603-	●	●
12	SCREW; HEADER SHELF HIGH ROOF<S2F> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	09	1	9905-	●	●
48	BOLT; ASSIST GRIP (A) SIDE SILL M6X12 W/LK&PL WASHER	1-09980-611-0	04	1	9603-	●	●
48	BOLT; ASSIST GRIP (B) FRT HINGE M6X20 W/LK&PL WASHER	8-94279-203-0	06	1	9603-9607	●	●
48	BOLT; ASSIST GRIP (B) FRT HINGE M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	9608-	●	●
48	BOLT; ASSIST GRIP (D) FRT GRIP M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	9603-	●	●
48	BOLT; ASSIST GRIP (E) FRT ROOF GRIP M6X40 LK&PL WASHER	8-94279-215-0	04	1	9603-9603	●	●
48	BOLT; ASSIST GRIP (E) FRT ROOF GRIP M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	9604-	●	●
48	BOLT; ASSIST GRIP (C) CAB ENTRY,BACK M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	9603-	●	●
48	BOLT; ASSIST GRIP 8PE1S(59L),10PE1S(60L) GRIP OUT SIDE<W52> (F) M8X29.5 W/LK+PL WASHER	8-94279-218-0	03	1	9603-9709	●	●
48	BOLT; ASSIST GRIP GRIP OUT SIDE<W52> (F) M8X29.5 W/LK+PL WASHER	8-94279-218-0	03	1	9710-9904	●	●
49	NUT; ASSIST GRIP (A) M6 FLANGE	0-91150-106-0	01	1	9603-	●	●
49	NUT; ASSIST GRIP 6WA1 TC-S(56L) GRIP OUT SIDE<W52> (B) CAP M8 FLANGE	1-09984-126-0	01	1	9701-9702	●	●
49	NUT; ASSIST GRIP 6WA1 TC-S(56L) PRE CLEANER<W17> GRIP OUT SIDE<W52> (B) CAP M8 FLANGE	1-09984-126-0	01	1	9703-9708	●	●
49	NUT; ASSIST GRIP 6WA1 TC-S(56L),6WG1 TC-N(71L) PRE CLEANER<W17> GRIP OUT SIDE<W52> (B) CAP M8 FLANGE	1-09984-126-0	01	1	9709-9709	●	●
49	NUT; ASSIST GRIP PRE CLEANER<W17> GRIP OUT SIDE<W52> (B) CAP M8 FLANGE	1-09984-126-0	01	1	9710-9904	●	●
54	GRIP; ASSIST,QUARTER SIDE (A)	1-73617-067-0	01	1	9603-	●	●
54	GRIP; ASSIST,QUARTER SIDE (A)	1-73617-066-0	01	1	9603-	●	●
54	GRIP; ASSIST,QUARTER SIDE NEW ZEALAND EQUIPMENT(PK5) (B)	1-73618-158-2	01	1	9712-9904		●
54	GRIP; ASSIST,QUARTER SIDE ASSIST GRIP A POST<NBK> (B)	1-73618-185-0	02	1	9905-	●	●
54	GRIP; ASSIST,QUARTER SIDE NEW ZEALAND EQUIPMENT(PK5) EXC. ASSIST GRIP A POST<NBK> (B)	1-73618-185-0	02	1	9905-		●
55	GRIP; ASSIST,CAB SIDE UPR GRIP OUT SIDE<W52>	1-73618-169-0	02	1	9603-	●	●
56	GRIP; ASSIST,SIDE SILL	1-73617-062-5	02	1	9603-	●	●
59	COVER; ASSIST GRIP (B) OUTER	1-71998-789-2	02	1	9603-	●	●
59	COVER; ASSIST GRIP (A) INNER	1-71998-790-2	02	1	9603-	●	●
59	COVER; ASSIST GRIP (C) QUARTER SIDE	1-73617-069-0	02	1	9603-	●	●
69	BRACKET; ASSIST GRIP (A)	1-73618-178-2	01	1	9603-	●	●
69	BRACKET; ASSIST GRIP (B)	1-65570-243-0	01	1	0010-	●	●
69	BRACKET; ASSIST GRIP (B)	1-65570-242-0	01	1	0010-	●	●
71	SCREW (B) M6X20 W/LK&PL WASHER	1-09981-073-0	03	1	9603-	●	●
71	SCREW (C) CANT RAIL SIDE M6X37 W/PL WASHER	1-09981-423-0	04	1	9603-9702	●	●
71	SCREW (C) CANT RAIL SIDE M6X35 W/PL WASHER	1-09981-422-0	04	1	9703-	●	●
71	SCREW (A) M5X14 W/PL WASHER	5-09981-050-0	06	1	9603-9904	●	●
71	SCREW (A) M5X14 W/PL WASHER	5-09981-050-0	03	1	9905-0011	●	●
71	SCREW EXC. CHEAPER CAB(WY1) (A) M5X14 W/PL WASHER	5-09981-050-0	03	1	9905-0011	●	●
71	SCREW (A) M5X14 W/PL WASHER	5-09981-050-0	03	1	0012-	●	●
71	SCREW SUN VISOR PASSENGER<D20> (A) M5X14 W/PL WASHER	5-09981-050-0	03	1	0012-	●	●
71	SCREW CHEAPER CAB(WY1) (A) M5X14	8-94279-325-0	03	1	9905-0011	●	●
71	SCREW EXC. SUN VISOR PASSENGER<D20> (A) M5X14	8-94279-325-0	03	1	0012-	●	●
71	SCREW NEW ZEALAND EQUIPMENT(PK5) (D) M6X20 W/LK&PL WASHER	1-09981-509-0	02	1	9712-9904		●
71	SCREW ASSIST GRIP A POST<NBK> (D) M6X34 W/LK&PL WASHER	8-94279-411-0	04	1	9905-	●	●
71	SCREW NEW ZEALAND EQUIPMENT(PK5) EXC. ASSIST GRIP A POST<NBK> (D) M6X34 W/LK&PL WASHER	8-94279-411-0	04	1	9905-		●
72	GRIP; ASSIST,CAB ENTRY,BACK GRIP OUT SIDE<W52>	1-71907-288-2	01	1	9603-9612	●	●
72	GRIP; ASSIST,CAB ENTRY,BACK 8PE1S(59L),10PE1S(60L) GRIP OUT SIDE<W52>	1-71907-288-2	01	1	9701-9702	●	●
72	GRIP; ASSIST,CAB ENTRY,BACK 8PE1S(59L),10PE1S(60L) GRIP OUT SIDE<W52> EXC. PRE CLEANER<W17>	1-71907-288-2	01	1	9703-9703	●	●
72	GRIP; ASSIST,CAB ENTRY,BACK GRIP OUT SIDE<W52> EXC. PRE CLEANER<W17>	1-71907-288-2	01	1	9704-9711	●	●
72	GRIP; ASSIST,CAB ENTRY,BACK GRIP OUT SIDE<W52> EXC. PRE CLEANER<W17>	1-71907-540-0	01	1	9712-9904	●	●
72	GRIP; ASSIST,CAB ENTRY,BACK 6WA1 TC-S(56L) GRIP OUT SIDE<W52>	1-71907-494-0	01	1	9701-9702	●	●
72	GRIP; ASSIST,CAB ENTRY,BACK 6WA1 TC-S(56L) PRE CLEANER<W17> GRIP OUT SIDE<W52>	1-71907-494-0	01	1	9703-9703	●	●
72	GRIP; ASSIST,CAB ENTRY,BACK PRE CLEANER<W17> GRIP OUT SIDE<W52>	1-71907-494-0	01	1	9704-9711	●	●
72	GRIP; ASSIST,CAB ENTRY,BACK PRE CLEANER<W17> GRIP OUT SIDE<W52>	1-71907-544-0	01	1	9712-9904	●	●
75	SHEET; ASSIST GRIP,CAB ENTRY 8PE1S(59L),10PE1S(60L) GRIP OUT SIDE<W52>	1-71997-548-0	02	1	9603-9709	●	●
75	SHEET; ASSIST GRIP,CAB ENTRY GRIP OUT SIDE<W52>	1-71997-548-0	02	1	9710-9904	●	●
83	PLUG HIGH ROOF<S2F> D6X23 DARK GRAY	1-09987-238-0	05	1	0002-	●	●
87	GRIP; ASSIST,CANT RAIL SIDE	1-73618-170-0	02	1	9603-	●	●
106	SCREW; ASSIST GRIP GRIP OUT SIDE<W52> M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	9603-	●	●
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> (A) CAB SIDE UPPER L=25X25 25X25	8-94272-533-0	04	1	9603-9709	●	●
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> (A) CAB SIDE UPPER L=25X25 25X25	8-94272-533-0	07	1	9710-9904	●	●
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> (A) CAB SIDE UPPER L=25X25 25X25	8-94272-533-0	04	1	9905-	●	●
142	SEAL; ASSIST GRIP 8PE1S(59L),10PE1S(60L) GRIP OUT SIDE<W52> (B) L=30X35	1-71997-691-0	01	1	9603-9709	●	●
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> (B) L=30X35	1-71997-691-0	01	1	9710-9904	●	●
142	SEAL; ASSIST GRIP 8PE1S(59L),10PE1S(60L) GRIP OUT SIDE<W52> (A) CAB ENTRY,BACK L=25X25 25X25	8-94272-533-0	03	1	9603-9709	●	●
150	CLIP; ASSIST GRIP HOLE OD=6 L=17 DARK GRAY	1-73996-128-1	04	1	9603-9711	●	●
150	CLIP; ASSIST GRIP HOLE OD=6 L=17 DARK GRAY	1-73996-128-1	04	1	9712-0009	●
150	CLIP; ASSIST GRIP HOLE EXC. NEW ZEALAND EQUIPMENT(PK5) OD=6 L=17 DARK GRAY	1-73996-128-1	04	1	9712-0009		●
150	CLIP; ASSIST GRIP HOLE EXC. ASSIST GRIP A POST<NBK> OD=6 L=17 DARK GRAY	1-73996-128-1	04	1	0010-	●
150	CLIP; ASSIST GRIP HOLE EXC. ASSIST GRIP A POST<NBK>,NEW ZEALAND EQUIPMENT(PK5) OD=6 L=17 DARK GRAY	1-73996-128-1	04	1	0010-		●
150	CLIP; ASSIST GRIP HOLE NEW ZEALAND EQUIPMENT(PK5) OD=6 L=17 DARK GRAY	1-73996-128-1	02	1	9712-0009		●
325	RAIL ASM HIGH ROOF<S2F>	1-72447-636-4	01	1	9905-	●	●
329	RIVET HIGH ROOF<S2F>	1-09987-128-0	09	1	9905-	●	●

5 18 154 154 5 1 154 135 18 9 154 12 143

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BOARD; HEADER SHELF (B)	1-72447-657-2	01	1	9603-	●	●
1	BOARD; HEADER SHELF (A)	1-72448-597-2	01	1	9603-9904	●	●
1	BOARD; HEADER SHELF EXC. CHEAPER CAB(WY1) (A)	1-72448-597-2	01	1	9905-0011	●	●
1	BOARD; HEADER SHELF SUN VISOR PASSENGER<D20> (A)	1-72448-597-2	01	1	0012-	●	●
1	BOARD; HEADER SHELF (A)	1-72448-576-3	01	1	9603-9704	●	●
1	BOARD; HEADER SHELF (A)	1-72448-596-2	01	1	9603-	●	●
1	BOARD; HEADER SHELF CHEAPER CAB(WY1) (A)	1-72447-718-0	01	1	9905-0011	●	●
1	BOARD; HEADER SHELF EXC. SUN VISOR PASSENGER<D20> (A)	1-72447-718-0	01	1	0012-	●	●
1	BOARD; HEADER SHELF HIGH ROOF<S2F> (C)	1-72447-586-3	01	1	9905-	●	●
5	BRACKET; HEADER SHELF FRAME	1-72447-677-2	01	1	9603-9904	●	●
5	BRACKET; HEADER SHELF FRAME EXC. HIGH ROOF<S2F>	1-72447-677-2	01	1	9905-	●	●
5	BRACKET; HEADER SHELF FRAME HIGH ROOF<S2F>	1-72447-679-2	01	1	9905-	●	●
9	COVER; HOLE,HEADER SHELF CENTER	1-72447-663-2	01	1	9603-	●	●
12	SCREW; HEADER SHELF (A) M6X24 W/LK&PL WASHER	8-94279-404-0	12	1	9603-	●	●
12	SCREW; HEADER SHELF HIGH ROOF<S2F> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	09	1	9905-	●	●
18	SUPPORT; HEADER SHELF CENTER	1-72447-702-2	01	1	9603-9604	●	●
18	SUPPORT; HEADER SHELF CENTER	1-72447-739-0	01	1	9605-	●	●
135	CLIP; HEADER SHELF OD=7.9 BLACK	8-94279-974-1	04	1	9603-	●	●
143	BEZEL	1-72448-411-0	01	1	9603-	●	●
154	BOLT; SUPPORT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	10	1	9603-	●	●
154	BOLT; SUPPORT GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	04	1	9603-	●	●
154	BOLT; SUPPORT EXC. GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	9603-	●	●

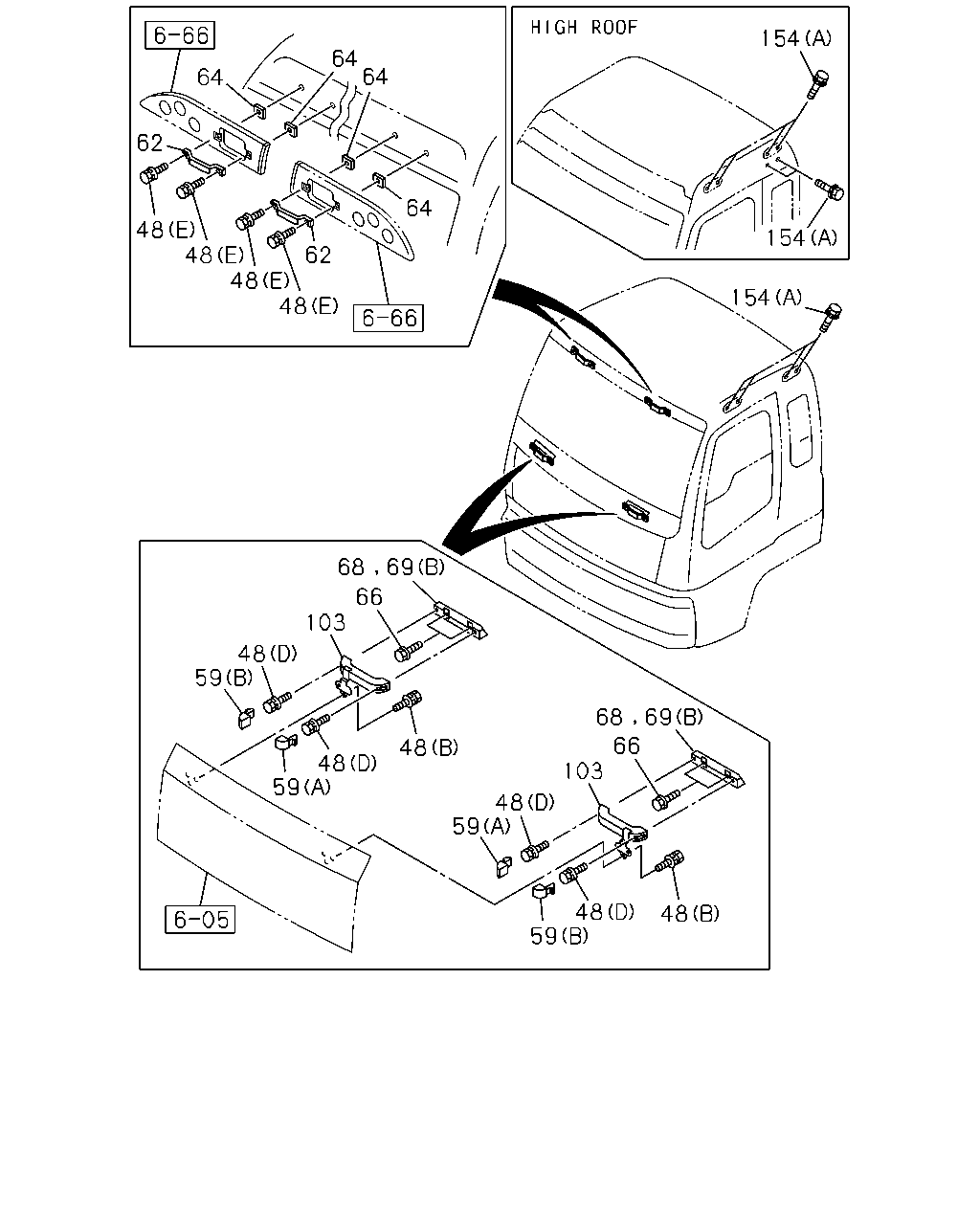

154 64 64 64 62 64 154 48 48 48 48 62 154 68 69 66 103 48 59 68 69 66 48 48 59 103 48 59 48 59 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
48	BOLT; ASSIST GRIP (A) SIDE SILL M6X12 W/LK&PL WASHER	1-09980-611-0	04	1	9603-	●	●
48	BOLT; ASSIST GRIP (B) FRT HINGE M6X20 W/LK&PL WASHER	8-94279-203-0	06	1	9603-9607	●	●
48	BOLT; ASSIST GRIP (B) FRT HINGE M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	9608-	●	●
48	BOLT; ASSIST GRIP (D) FRT GRIP M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	9603-	●	●
48	BOLT; ASSIST GRIP (E) FRT ROOF GRIP M6X40 LK&PL WASHER	8-94279-215-0	04	1	9603-9603	●	●
48	BOLT; ASSIST GRIP (E) FRT ROOF GRIP M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	9604-	●	●
48	BOLT; ASSIST GRIP (C) CAB ENTRY,BACK M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	9603-	●	●
48	BOLT; ASSIST GRIP 8PE1S(59L),10PE1S(60L) GRIP OUT SIDE<W52> (F) M8X29.5 W/LK+PL WASHER	8-94279-218-0	03	1	9603-9709	●	●
48	BOLT; ASSIST GRIP GRIP OUT SIDE<W52> (F) M8X29.5 W/LK+PL WASHER	8-94279-218-0	03	1	9710-9904	●	●
59	COVER; ASSIST GRIP (B) OUTER	1-71998-789-2	02	1	9603-	●	●
59	COVER; ASSIST GRIP (A) INNER	1-71998-790-2	02	1	9603-	●	●
59	COVER; ASSIST GRIP (C) QUARTER SIDE	1-73617-069-0	02	1	9603-	●	●
62	GRIP; ASSIST,ROOF PANEL	1-71997-895-1	02	1	9603-9610	●	●
62	GRIP; ASSIST,ROOF PANEL	1-71907-492-0	02	1	9611-	●	●
64	SHEET; ASSIST GRIP 25X25	8-94272-533-0	04	1	9603-	●	●
66	BOLT; ASSIST GRIP BRKT M8X20.5 W/LK&PL WASHER	8-94279-207-0	04	1	9603-	●	●
68	BRACKET; ASSIST GRIP,FRT PANEL	1-65580-203-0	02	1	9603-0009	●	●
69	BRACKET; ASSIST GRIP (A)	1-73618-178-2	01	1	9603-	●	●
69	BRACKET; ASSIST GRIP (B)	1-65570-243-0	01	1	0010-	●	●
69	BRACKET; ASSIST GRIP (B)	1-65570-242-0	01	1	0010-	●	●
103	GRIP; ASSIST,FRT PNL	1-71998-940-3	01	1	9603-	●	●
103	GRIP; ASSIST,FRT PNL	1-71998-939-3	01	1	9603-	●	●
154	BOLT; SUPPORT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	10	1	9603-	●	●
154	BOLT; SUPPORT GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	04	1	9603-	●	●
154	BOLT; SUPPORT EXC. GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	9603-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
