Sayfa 3-01 - Isuzu EPC

3-01 — FRONT WHEEL BRAKE (#41318) — 219 parça

66 66 72

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
66	05.815 BOLT; OIL SHIELD COVER (A) M14X23.5	8-97168-637-0	02	1	0302-0506	●	●	●	●	●	●	●
66	05.815 BOLT; OIL SHIELD COVER (A) M14X23.5	8-97168-637-0	02	1	0507-0606	●	●	●		●	●	●
66	05.815 BOLT; OIL SHIELD COVER (A) M14X23.5	8-97168-637-0	02	1	0607-0611	●		●		●		●
66	05.815 BOLT; OIL SHIELD COVER DISC BRAKE FRT<J52> (A) M14X23.5	8-97168-637-0	02	1	0607-0611		●				●
66	05.815 BOLT; OIL SHIELD COVER (A) M14X23.5	8-97359-814-0	02	1	0612-	●		●		●		●
66	05.815 BOLT; OIL SHIELD COVER DISC BRAKE FRT<J52> (A) M14X23.5	8-97359-814-0	02	1	0612-		●				●
66	05.815 BOLT; OIL SHIELD COVER (B) M14X43	8-97168-638-1	06	1	0302-0506	●	●	●	●	●	●	●
66	05.815 BOLT; OIL SHIELD COVER (B) M14X43	8-97168-638-1	06	1	0507-0606	●	●	●		●	●	●
66	05.815 BOLT; OIL SHIELD COVER (B) M14X43	8-97168-638-1	06	1	0607-	●		●		●		●
66	05.815 BOLT; OIL SHIELD COVER DISC BRAKE FRT<J52> (B) M14X43	8-97168-638-1	06	1	0607-		●				●
66	05.815 BOLT; OIL SHIELD COVER G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,HYDRO BRAKE BOOSTE R<7QQ> 05.002 (C) M14X35	8-97122-853-2	08	1	0607-0611		●
66	05.815 BOLT; OIL SHIELD COVER G.V.W. 7.5-8.0TON(RPY) HYDRO BRAKE BOOSTER<7QQ> EXC. DISC BRAKE FRT<J52> 05.002 (C) M14X35	8-97122-853-2	08	1	0607-0611		●
66	05.815 BOLT; OIL SHIELD COVER G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,HYDRO BRAKE BOOSTE R<7QQ> 05.002 (C) M14X40	8-98007-879-0	08	1	0612-		●
66	05.815 BOLT; OIL SHIELD COVER G.V.W. 7.5-8.0TON(RPY) HYDRO BRAKE BOOSTER<7QQ> EXC. DISC BRAKE FRT<J52> 05.002 (C) M14X40	8-98007-879-0	08	1	0612-		●
66	05.815 BOLT; OIL SHIELD COVER G.V.W. 3.5-4.0TON(RPQ),G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> (C) M12X33	9-09600-043-3	08	1	0607-0611		●				●
66	05.815 BOLT; OIL SHIELD COVER G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,HYDRO BRAKE BOOSTE R<7QQ> (C) M12X33	9-09600-043-3	08	1	0607-0611		●
66	05.815 BOLT; OIL SHIELD COVER G.V.W. 3.5-4.0TON(RPQ),G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> (C) M12X33	8-98009-493-2	08	1	0612-		●				●
66	05.815 BOLT; OIL SHIELD COVER G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,HYDRO BRAKE BOOSTE R<7QQ> (C) M12X33	8-98009-493-2	08	1	0612-		●
72	05.815 NUT; OIL SHIELD COVER 07.347 (A) M14 FLANGE	8-97167-635-0	06	1	0302-0506	●	●	●	●	●	●	●
72	05.815 NUT; OIL SHIELD COVER 07.347 (A) M14 FLANGE	8-97167-635-0	06	1	0507-0606	●	●	●		●	●	●
72	05.815 NUT; OIL SHIELD COVER 07.347 (A) M14 FLANGE	8-97167-635-0	06	1	0607-0611	●		●		●		●
72	05.815 NUT; OIL SHIELD COVER DISC BRAKE FRT<J52> 07.347 (A) M14 FLANGE	8-97167-635-0	06	1	0607-0611		●				●
72	05.815 NUT; OIL SHIELD COVER (A)	8-97359-815-0	06	1	0612-	●		●		●		●
72	05.815 NUT; OIL SHIELD COVER DISC BRAKE FRT<J52> (A)	8-97359-815-0	06	1	0612-		●				●
72	05.815 NUT; OIL SHIELD COVER G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,HYDRO BRAKE BOOSTE R<7QQ> 07.833 (B) M14	0-91110-514-0	08	1	0607-		●
72	05.815 NUT; OIL SHIELD COVER G.V.W. 7.5-8.0TON(RPY) HYDRO BRAKE BOOSTER<7QQ> EXC. DISC BRAKE FRT<J52> 07.833 (B) M14	0-91110-514-0	08	1	0607-		●
72	05.815 NUT; OIL SHIELD COVER G.V.W. 3.5-4.0TON(RPQ),G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 05.002 (B) M12	0-91110-512-0	08	1	0607-		●				●
72	05.815 NUT; OIL SHIELD COVER G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,HYDRO BRAKE BOOSTE R<7QQ> 05.002 (B) M12	0-91110-512-0	08	1	0607-		●

15 15 24 17 16 18 19 255 302 17 16 254 24 24 25 253 252 25 15 26 17 16 25 302 254 253 24 25 252

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B	F
15	04.665 CYLINDER; WHEEL,FRT BRK G.V.W. 7.5-8.0TON(RPY) HYDRO BRAKE BOOSTER<7QQ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> (A) FRONT	8-97353-574-0	01	1	0607-	●
15	04.665 CYLINDER; WHEEL,FRT BRK G.V.W. 7.5-8.0TON(RPY) HYDRO BRAKE BOOSTER<7QQ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> (A) REAR	8-97353-576-0	01	1	0607-	●
15	04.665 CYLINDER; WHEEL,FRT BRK G.V.W. 7.5-8.0TON(RPY) HYDRO BRAKE BOOSTER<7QQ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> (A) FRONT	8-97353-573-0	01	1	0607-	●
15	04.665 CYLINDER; WHEEL,FRT BRK G.V.W. 7.5-8.0TON(RPY) HYDRO BRAKE BOOSTER<7QQ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> (A) REAR	8-97353-575-0	01	1	0607-	●
15	04.665 CYLINDER; WHEEL,FRT BRK G.V.W. 7.5-8.0TON(RPY) 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER<7QQ> EXC. DISC BRAKE FRT<J52> 04.556 (C) FRONT	8-97358-874-0	01	1	0607-	●
15	04.665 CYLINDER; WHEEL,FRT BRK G.V.W. 7.5-8.0TON(RPY) 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER<7QQ> EXC. DISC BRAKE FRT<J52> (C) REAR	8-97358-876-0	01	1	0607-	●
15	04.665 CYLINDER; WHEEL,FRT BRK G.V.W. 7.5-8.0TON(RPY) 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER<7QQ> EXC. DISC BRAKE FRT<J52> (C) FRONT	8-97358-875-0	01	1	0607-	●
15	04.665 CYLINDER; WHEEL,FRT BRK G.V.W. 7.5-8.0TON(RPY) 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER<7QQ> EXC. DISC BRAKE FRT<J52> (C) REAR	8-97358-877-0	01	1	0607-	●
15	04.665 CYLINDER; WHEEL,FRT BRK G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,HYDRO BRAKE BOOSTE R<7QQ> (A) REAR	8-97139-819-0	01	1	0607-	●
15	04.665 CYLINDER; WHEEL,FRT BRK G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,HYDRO BRAKE BOOSTE R<7QQ> (A) FRONT	8-97139-821-0	01	1	0607-	●
15	04.665 CYLINDER; WHEEL,FRT BRK G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,HYDRO BRAKE BOOSTE R<7QQ> (A) REAR	8-97144-796-0	01	1	0607-	●
15	04.665 CYLINDER; WHEEL,FRT BRK G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,HYDRO BRAKE BOOSTE R<7QQ> (A) FRONT	8-97144-798-0	01	1	0607-	●
15	04.665 CYLINDER; WHEEL,FRT BRK G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,HYDRO BRAKE BOOSTE R<7QQ> (A) REAR	8-97139-818-0	01	1	0607-	●
15	04.665 CYLINDER; WHEEL,FRT BRK G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,HYDRO BRAKE BOOSTE R<7QQ> (A) FRONT	8-97139-820-0	01	1	0607-	●
15	04.665 CYLINDER; WHEEL,FRT BRK G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,HYDRO BRAKE BOOSTE R<7QQ> (A) REAR	8-97144-795-0	01	1	0607-	●
15	04.665 CYLINDER; WHEEL,FRT BRK G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,HYDRO BRAKE BOOSTE R<7QQ> (A) FRONT	8-97144-797-0	01	1	0607-	●
15	04.665 CYLINDER; WHEEL,FRT BRK G.V.W. 3.5-4.0TON(RPQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> (B) FRONT	8-97349-705-0	01	1	0607-	●	●
15	04.665 CYLINDER; WHEEL,FRT BRK G.V.W. 3.5-4.0TON(RPQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> (B) REAR	8-97349-707-0	01	1	0607-	●	●
15	04.665 CYLINDER; WHEEL,FRT BRK G.V.W. 3.5-4.0TON(RPQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> (B) FRONT	8-97349-706-0	01	1	0607-	●	●
15	04.665 CYLINDER; WHEEL,FRT BRK G.V.W. 3.5-4.0TON(RPQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> (B) REAR	8-97349-708-0	01	1	0607-	●	●
15	04.665 CYLINDER; WHEEL,FRT BRK G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> (A) FRONT	8-97170-950-0	01	1	0607-	●	●
15	04.665 CYLINDER; WHEEL,FRT BRK G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> (A) REAR	8-97170-952-0	01	1	0607-	●	●
15	04.665 CYLINDER; WHEEL,FRT BRK G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> (A) FRONT	8-97170-951-0	01	1	0607-	●	●
15	04.665 CYLINDER; WHEEL,FRT BRK G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> (A) REAR	8-97170-953-0	01	1	0607-	●	●
16	04.666 SCREW; BLEEDER,FRT BRK G.V.W. 7.5-8.0TON(RPY) 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER<7QQ> EXC. DISC BRAKE FRT<J52>	8-98050-477-0	02	1	0708-0710	●
16	04.666 SCREW; BLEEDER,FRT BRK (AUJ),(AYS),(CQT),(CRU),(CRV),(CRW) G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,HYDRO BRAKE BOOSTE R<7QQ>	8-98050-477-0	02	1	0711-	●
16	04.666 SCREW; BLEEDER,FRT BRK (AUJ),(AYS),(CQT),(CRU),(CRV),(CRW) G.V.W. 7.5-8.0TON(RPY) HYDRO BRAKE BOOSTER<7QQ> EXC. DISC BRAKE FRT<J52>	8-98050-477-0	02	1	0711-	●
16	04.666 SCREW; BLEEDER,FRT BRK G.V.W. 3.5-4.0TON(RPQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>	8-98050-476-0	02	1	0708-0711	●	●
16	04.666 SCREW; BLEEDER,FRT BRK G.V.W. 3.5-4.0TON(RPQ),G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>	8-98050-476-0	02	1	0712-	●	●
16	04.666 SCREW; BLEEDER,FRT BRK G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,HYDRO BRAKE BOOSTE R<7QQ>	8-98050-476-0	02	1	0712-	●
16	04.666 SCREW; BLEEDER,FRT BRK G.V.W. 3.5-4.0TON(RPQ),G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) EXC. DISC BRAKE FRT<J52>	9-47615-027-0	02	1	0607-0707	●	●
16	04.666 SCREW; BLEEDER,FRT BRK G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>	9-47615-027-0	02	1	0708-0710	●	●
16	04.666 SCREW; BLEEDER,FRT BRK G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>	9-47615-027-0	02	1	0708-0710	●
16	04.666 SCREW; BLEEDER,FRT BRK (BQU),(BQV),(9HY) G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,HYDRO BRAKE BOOSTE R<7QQ>	9-47615-027-0	02	1	0711-0711	●
16	04.666 SCREW; BLEEDER,FRT BRK (AUJ),(AYS),(CQT),(CRU),(CRV),(CRW) G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,HYDRO BRAKE BOOSTE R<7QQ>	9-47615-027-0	02	1	0711-0711	●
16	04.666 SCREW; BLEEDER,FRT BRK (BQU),(BQV),(9HY) G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>	9-47615-027-0	02	1	0711-0711		●
17	04.666 CAP; BLEEDER,FRT WHEEL CYL G.V.W. 3.5-4.0TON(RPQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>	8-98050-479-0	02	1	0708-0710	●	●
17	04.666 CAP; BLEEDER,FRT WHEEL CYL G.V.W. 7.5-8.0TON(RPY) 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER<7QQ> EXC. DISC BRAKE FRT<J52>	8-98050-479-0	02	1	0708-0710	●
17	04.666 CAP; BLEEDER,FRT WHEEL CYL (AUJ),(AYS),(CQT),(CRU),(CRV),(CRW) G.V.W. 7.5-8.0TON(RPY) HYDRO BRAKE BOOSTER<7QQ> EXC. DISC BRAKE FRT<J52>	8-98050-479-0	02	1	0711-0711	●
17	04.666 CAP; BLEEDER,FRT WHEEL CYL (AUJ),(AYS),(CQT),(CRU),(CRV),(CRW) G.V.W. 3.5-4.0TON(RPQ),G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,HYDRO BRAKE BOOSTE R<7QQ>	8-98050-479-0	02	1	0711-0711	●
17	04.666 CAP; BLEEDER,FRT WHEEL CYL (AUJ),(AYS),(CQT),(CRV) G.V.W. 3.5-4.0TON(RPQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>	8-98050-479-0	02	1	0711-0711		●
17	04.666 CAP; BLEEDER,FRT WHEEL CYL G.V.W. 3.5-4.0TON(RPQ),G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) EXC. DISC BRAKE FRT<J52>	8-98050-479-0	02	1	0712-	●	●
17	04.666 CAP; BLEEDER,FRT WHEEL CYL G.V.W. 3.5-4.0TON(RPQ),G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) EXC. DISC BRAKE FRT<J52>	1-47619-009-0	02	1	0607-0707	●	●
17	04.666 CAP; BLEEDER,FRT WHEEL CYL G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>	1-47619-009-0	02	1	0708-0710	●	●
17	04.666 CAP; BLEEDER,FRT WHEEL CYL G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>	1-47619-009-0	02	1	0708-0710	●
17	04.666 CAP; BLEEDER,FRT WHEEL CYL (BQU),(BQV),(9HY) G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,HYDRO BRAKE BOOSTE R<7QQ>	1-47619-009-0	02	1	0711-0711	●
17	04.666 CAP; BLEEDER,FRT WHEEL CYL (AUJ),(AYS),(CQT),(CRU),(CRV),(CRW) G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,HYDRO BRAKE BOOSTE R<7QQ>	1-47619-009-0	02	1	0711-0711	●
17	04.666 CAP; BLEEDER,FRT WHEEL CYL (BQU),(BQV),(9HY) G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>	1-47619-009-0	02	1	0711-0711		●
18	05.107 STOPPER; ADJ SCREW G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) EXC. DISC BRAKE FRT<J52>	8-94128-486-0	04	1	0607-	●	●
19	05.107 SCREW; STOPPER SETTING G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) EXC. DISC BRAKE FRT<J52>	8-94128-727-0	04	1	0607-	●	●
24	04.668 PISTON; FRT WHEEL CYL G.V.W. 7.5-8.0TON(RPY) HYDRO BRAKE BOOSTER<7QQ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> (A)	8-97353-579-0	04	1	0607-	●
24	04.668 PISTON; FRT WHEEL CYL G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,HYDRO BRAKE BOOSTE R<7QQ> (A)	8-94414-700-1	04	1	0607-	●
24	04.668 PISTON; FRT WHEEL CYL G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,HYDRO BRAKE BOOSTE R<7QQ> (A)	8-94414-700-1	04	1	0607-	●
24	04.668 PISTON; FRT WHEEL CYL G.V.W. 3.5-4.0TON(RPQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> (B)	8-97078-045-0	04	1	0607-	●	●
24	04.668 PISTON; FRT WHEEL CYL G.V.W. 3.5-4.0TON(RPQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> (A)	8-97349-729-0	02	1	0607-	●	●
24	04.668 PISTON; FRT WHEEL CYL G.V.W. 7.5-8.0TON(RPY) 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER<7QQ> EXC. DISC BRAKE FRT<J52> (A)	8-97349-729-0	02	1	0607-	●
24	04.668 PISTON; FRT WHEEL CYL G.V.W. 3.5-4.0TON(RPQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> (A)	8-97349-730-0	02	1	0607-	●	●
24	04.668 PISTON; FRT WHEEL CYL G.V.W. 7.5-8.0TON(RPY) 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER<7QQ> EXC. DISC BRAKE FRT<J52> (A)	8-97349-730-0	02	1	0607-	●
24	04.668 PISTON; FRT WHEEL CYL G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> (A)	8-97078-621-0	04	1	0607-	●	●
25	05.110 SCREW; ADJ,FRT WHEEL CYL G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,HYDRO BRAKE BOOSTE R<7QQ> 04.666	8-94414-702-0	04	1	0607-	●
25	05.110 SCREW; ADJ,FRT WHEEL CYL G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 04.666	8-94414-702-0	04	1	0607-	●
25	05.110 SCREW; ADJ,FRT WHEEL CYL G.V.W. 3.5-4.0TON(RPQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 04.666	8-97349-741-0	02	1	0607-	●	●
25	05.110 SCREW; ADJ,FRT WHEEL CYL G.V.W. 7.5-8.0TON(RPY) 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER<7QQ> EXC. DISC BRAKE FRT<J52> 04.666	8-97349-741-0	02	1	0607-	●
25	05.110 SCREW; ADJ,FRT WHEEL CYL G.V.W. 3.5-4.0TON(RPQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 04.666	8-97349-742-0	02	1	0607-	●	●
25	05.110 SCREW; ADJ,FRT WHEEL CYL G.V.W. 7.5-8.0TON(RPY) 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER<7QQ> EXC. DISC BRAKE FRT<J52> 04.666	8-97349-742-0	02	1	0607-	●
25	05.110 SCREW; ADJ,FRT WHEEL CYL G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>	8-97078-623-0	04	1	0607-	●	●
26	04.667 CUP SET; FRT WHEEL CYL G.V.W. 7.5-8.0TON(RPY) HYDRO BRAKE BOOSTER<7QQ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 04.665	5-87832-080-0	01	1	0607-	●
26	04.667 CUP SET; FRT WHEEL CYL G.V.W. 7.5-8.0TON(RPY) 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER<7QQ> EXC. DISC BRAKE FRT<J52>	5-87832-069-0	01	1	0607-	●
26	04.667 CUP SET; FRT WHEEL CYL G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,HYDRO BRAKE BOOSTE R<7QQ> 04.665	5-87831-598-0	01	1	0607-	●
26	04.667 CUP SET; FRT WHEEL CYL G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,HYDRO BRAKE BOOSTE R<7QQ> 04.665	5-87831-598-0	01	1	0607-	●
26	04.667 CUP SET; FRT WHEEL CYL G.V.W. 3.5-4.0TON(RPQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>	5-87832-069-0	02	1	0607-	●	●
26	04.667 CUP SET; FRT WHEEL CYL G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>	5-87831-602-0	01	1	0607-	●	●
252	04.665 GEAR; ADJ,FRT WHEEL CYL G.V.W. 7.5-8.0TON(RPY) 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER<7QQ> EXC. DISC BRAKE FRT<J52>	8-97358-894-0	02	1	0607-	●
252	04.665 GEAR; ADJ,FRT WHEEL CYL G.V.W. 7.5-8.0TON(RPY) 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER<7QQ> EXC. DISC BRAKE FRT<J52>	8-97358-895-0	02	1	0607-	●
252	04.665 GEAR; ADJ,FRT WHEEL CYL G.V.W. 3.5-4.0TON(RPQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 05.110	8-97349-738-0	02	1	0607-	●	●
252	04.665 GEAR; ADJ,FRT WHEEL CYL G.V.W. 3.5-4.0TON(RPQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 05.110	8-97349-740-0	02	1	0607-	●	●
253	04.665 WASHER; THRUST G.V.W. 3.5-4.0TON(RPQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 05.110	8-97349-736-0	04	1	0607-	●	●
253	04.665 WASHER; THRUST G.V.W. 7.5-8.0TON(RPY) 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER<7QQ> EXC. DISC BRAKE FRT<J52> 05.110	8-97349-736-0	04	1	0607-	●
254	04.665 SPRING; ADJ LEVER G.V.W. 3.5-4.0TON(RPQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 05.107	8-97349-745-0	04	1	0607-	●	●
254	04.665 SPRING; ADJ LEVER G.V.W. 7.5-8.0TON(RPY) 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER<7QQ> EXC. DISC BRAKE FRT<J52> 05.107	8-97349-745-0	04	1	0607-	●
255	04.665 LEVER; ADJ G.V.W. 3.5-4.0TON(RPQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 05.103	8-97349-743-0	02	1	0607-	●	●
255	04.665 LEVER; ADJ G.V.W. 7.5-8.0TON(RPY) 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER<7QQ> EXC. DISC BRAKE FRT<J52> 05.103	8-97349-743-0	02	1	0607-	●
255	04.665 LEVER; ADJ G.V.W. 3.5-4.0TON(RPQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 05.103	8-97349-744-0	02	1	0607-	●	●
255	04.665 LEVER; ADJ G.V.W. 7.5-8.0TON(RPY) 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER<7QQ> EXC. DISC BRAKE FRT<J52> 05.103	8-97349-744-0	02	1	0607-	●
302	04.665 SCREW; ADJ LEVER G.V.W. 3.5-4.0TON(RPQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 04.666	8-97349-747-0	04	1	0607-	●	●
302	04.665 SCREW; ADJ LEVER G.V.W. 7.5-8.0TON(RPY) 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER<7QQ> EXC. DISC BRAKE FRT<J52> 04.666	8-97349-747-0	04	1	0607-	●

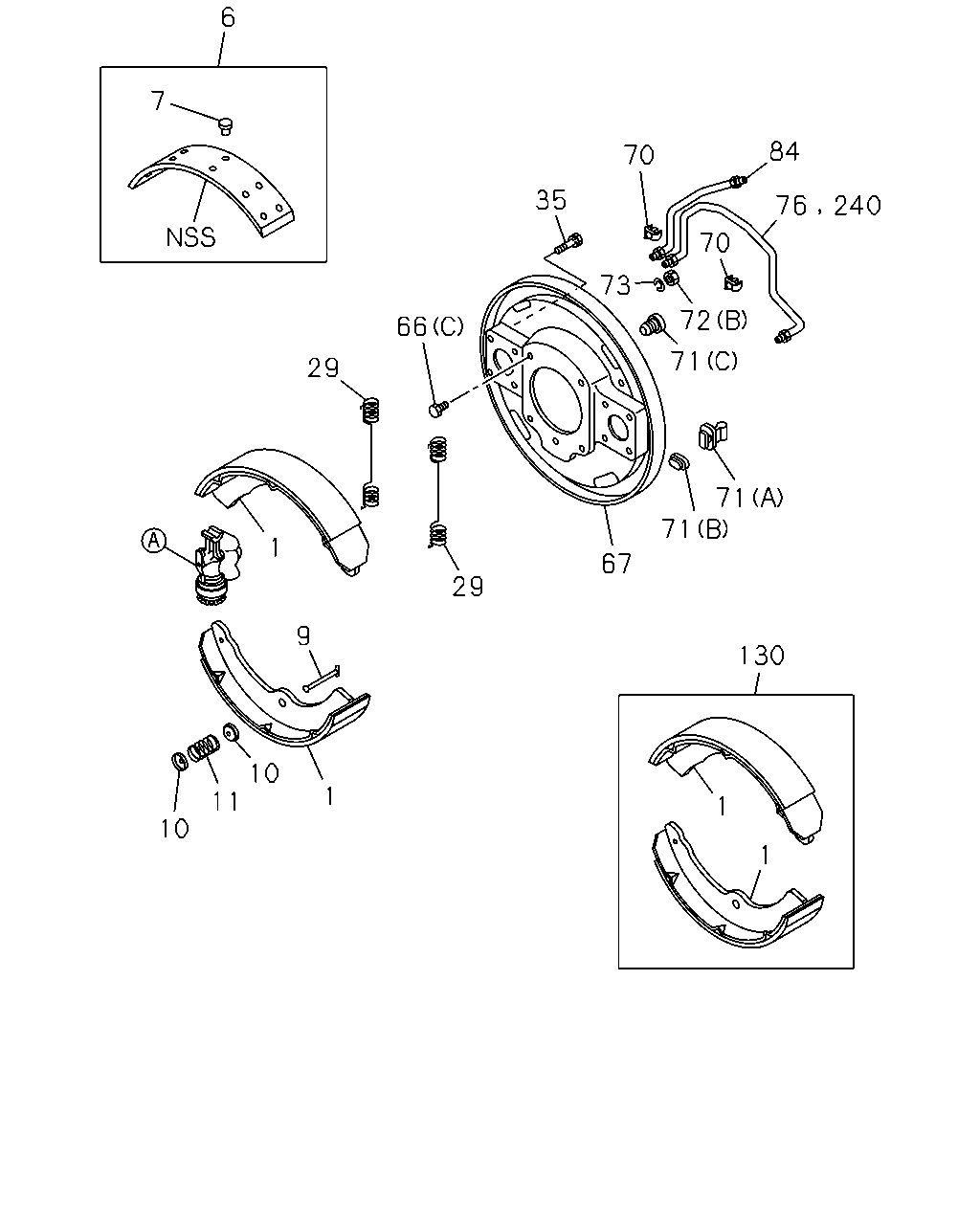

6 7 84 70 35 70 73 72 66 71 29 71 71 1 67 29 9 130 10 1 11 1 10 1 76 240

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	05.017 SHOE; BRK,FRT G.V.W. 3.5-4.0TON(RPQ),G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,HYDRO BRAKE BOOSTE R<7QQ>	8-97201-061-0	04	1	0607-		●
1	05.017 SHOE; BRK,FRT G.V.W. 3.5-4.0TON(RPQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>	8-97201-061-0	04	1	0607-						●
1	05.017 SHOE; BRK,FRT G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,HYDRO BRAKE BOOSTE R<7QQ>	8-97188-455-0	04	1	0607-		●
1	05.017 SHOE; BRK,FRT G.V.W. 7.5-8.0TON(RPY) HYDRO BRAKE BOOSTER<7QQ> EXC. DISC BRAKE FRT<J52>	8-97188-455-0	04	1	0607-		●
1	05.017 SHOE; BRK,FRT G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>	8-97287-778-0	04	1	0607-		●				●
6	05.018 LINING KIT; FRT BRK G.V.W. 3.5-4.0TON(RPQ),G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,HYDRO BRAKE BOOSTE R<7QQ>	5-87831-774-0	01	1	0607-		●
6	05.018 LINING KIT; FRT BRK G.V.W. 3.5-4.0TON(RPQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>	5-87831-774-0	01	1	0607-						●
6	05.018 LINING KIT; FRT BRK G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,HYDRO BRAKE BOOSTE R<7QQ>	5-87831-692-0	01	1	0607-		●
6	05.018 LINING KIT; FRT BRK G.V.W. 7.5-8.0TON(RPY) HYDRO BRAKE BOOSTER<7QQ> EXC. DISC BRAKE FRT<J52>	5-87831-692-0	01	1	0607-		●
6	05.018 LINING KIT; FRT BRK G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>	5-87831-801-0	01	1	0607-		●				●
7	05.019 RIVET; LINING,FRT BRK G.V.W. 3.5-4.0TON(RPQ),G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,HYDRO BRAKE BOOSTE R<7QQ>	1-09732-029-0	48	1	0607-		●
7	05.019 RIVET; LINING,FRT BRK G.V.W. 3.5-4.0TON(RPQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>	1-09732-029-0	48	1	0607-						●
7	05.019 RIVET; LINING,FRT BRK G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,HYDRO BRAKE BOOSTE R<7QQ>	1-09732-029-0	64	1	0607-		●
7	05.019 RIVET; LINING,FRT BRK G.V.W. 7.5-8.0TON(RPY) HYDRO BRAKE BOOSTER<7QQ> EXC. DISC BRAKE FRT<J52>	1-09732-029-0	64	1	0607-		●
7	05.019 RIVET; LINING,FRT BRK G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>	1-09732-029-0	40	1	0607-		●				●
9	05.026 PIN; SHOE HOLDER G.V.W. 3.5-4.0TON(RPQ),G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,HYDRO BRAKE BOOSTE R<7QQ> 05.043	8-97022-089-0	04	1	0607-		●
9	05.026 PIN; SHOE HOLDER G.V.W. 3.5-4.0TON(RPQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 05.043	8-97022-089-0	04	1	0607-						●
9	05.026 PIN; SHOE HOLDER G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,HYDRO BRAKE BOOSTE R<7QQ> 05.043	8-97122-870-0	04	1	0607-		●
9	05.026 PIN; SHOE HOLDER G.V.W. 7.5-8.0TON(RPY) HYDRO BRAKE BOOSTER<7QQ> EXC. DISC BRAKE FRT<J52> 05.043	8-97122-870-0	04	1	0607-		●
9	05.026 PIN; SHOE HOLDER G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 05.043	5-47162-001-0	04	1	0607-		●				●
10	05.043 CUP; SHOE HOLDING G.V.W. 3.5-4.0TON(RPQ),G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) EXC. DISC BRAKE FRT<J52>	9-47165-096-0	08	1	0607-		●				●
11	05.027 SPRING; SHOE HOLDING G.V.W. 3.5-4.0TON(RPQ),G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) EXC. DISC BRAKE FRT<J52> 05.043	5-09580-101-1	04	1	0607-		●				●
29	05.026 SPRING; RETURN,FRT BRK SHOE G.V.W. 3.5-4.0TON(RPQ),G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,HYDRO BRAKE BOOSTE R<7QQ>	8-97022-087-0	04	1	0607-		●
29	05.026 SPRING; RETURN,FRT BRK SHOE G.V.W. 3.5-4.0TON(RPQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>	8-97022-087-0	04	1	0607-						●
29	05.026 SPRING; RETURN,FRT BRK SHOE G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,HYDRO BRAKE BOOSTE R<7QQ>	8-97122-869-0	04	1	0607-		●
29	05.026 SPRING; RETURN,FRT BRK SHOE G.V.W. 7.5-8.0TON(RPY) HYDRO BRAKE BOOSTER<7QQ> EXC. DISC BRAKE FRT<J52>	8-97122-869-0	04	1	0607-		●
29	05.026 SPRING; RETURN,FRT BRK SHOE G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>	5-09583-118-0	04	1	0607-		●				●
35	04.665 BOLT; FRT WHEEL CYL G.V.W. 3.5-4.0TON(RPQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>	8-97081-305-0	16	1	0607-		●				●
35	04.665 BOLT; FRT WHEEL CYL G.V.W. 7.5-8.0TON(RPY) EXC. DISC BRAKE FRT<J52>	8-97081-305-0	16	1	0607-		●
35	04.665 BOLT; FRT WHEEL CYL G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>	5-09030-016-1	16	1	0607-		●				●
66	05.815 BOLT; OIL SHIELD COVER (A) M14X23.5	8-97168-637-0	02	1	0302-0506	●	●	●	●	●	●	●
66	05.815 BOLT; OIL SHIELD COVER (A) M14X23.5	8-97168-637-0	02	1	0507-0606	●	●	●		●	●	●
66	05.815 BOLT; OIL SHIELD COVER (A) M14X23.5	8-97168-637-0	02	1	0607-0611	●		●		●		●
66	05.815 BOLT; OIL SHIELD COVER DISC BRAKE FRT<J52> (A) M14X23.5	8-97168-637-0	02	1	0607-0611		●				●
66	05.815 BOLT; OIL SHIELD COVER (A) M14X23.5	8-97359-814-0	02	1	0612-	●		●		●		●
66	05.815 BOLT; OIL SHIELD COVER DISC BRAKE FRT<J52> (A) M14X23.5	8-97359-814-0	02	1	0612-		●				●
66	05.815 BOLT; OIL SHIELD COVER (B) M14X43	8-97168-638-1	06	1	0302-0506	●	●	●	●	●	●	●
66	05.815 BOLT; OIL SHIELD COVER (B) M14X43	8-97168-638-1	06	1	0507-0606	●	●	●		●	●	●
66	05.815 BOLT; OIL SHIELD COVER (B) M14X43	8-97168-638-1	06	1	0607-	●		●		●		●
66	05.815 BOLT; OIL SHIELD COVER DISC BRAKE FRT<J52> (B) M14X43	8-97168-638-1	06	1	0607-		●				●
66	05.815 BOLT; OIL SHIELD COVER G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,HYDRO BRAKE BOOSTE R<7QQ> 05.002 (C) M14X35	8-97122-853-2	08	1	0607-0611		●
66	05.815 BOLT; OIL SHIELD COVER G.V.W. 7.5-8.0TON(RPY) HYDRO BRAKE BOOSTER<7QQ> EXC. DISC BRAKE FRT<J52> 05.002 (C) M14X35	8-97122-853-2	08	1	0607-0611		●
66	05.815 BOLT; OIL SHIELD COVER G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,HYDRO BRAKE BOOSTE R<7QQ> 05.002 (C) M14X40	8-98007-879-0	08	1	0612-		●
66	05.815 BOLT; OIL SHIELD COVER G.V.W. 7.5-8.0TON(RPY) HYDRO BRAKE BOOSTER<7QQ> EXC. DISC BRAKE FRT<J52> 05.002 (C) M14X40	8-98007-879-0	08	1	0612-		●
66	05.815 BOLT; OIL SHIELD COVER G.V.W. 3.5-4.0TON(RPQ),G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> (C) M12X33	9-09600-043-3	08	1	0607-0611		●				●
66	05.815 BOLT; OIL SHIELD COVER G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,HYDRO BRAKE BOOSTE R<7QQ> (C) M12X33	9-09600-043-3	08	1	0607-0611		●
66	05.815 BOLT; OIL SHIELD COVER G.V.W. 3.5-4.0TON(RPQ),G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> (C) M12X33	8-98009-493-2	08	1	0612-		●				●
66	05.815 BOLT; OIL SHIELD COVER G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,HYDRO BRAKE BOOSTE R<7QQ> (C) M12X33	8-98009-493-2	08	1	0612-		●
67	05.001 PLATE; BACK,FRT BRK G.V.W. 7.5-8.0TON(RPY) HYDRO BRAKE BOOSTER<7QQ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>	8-97160-411-0	01	1	0607-		●
67	05.001 PLATE; BACK,FRT BRK G.V.W. 7.5-8.0TON(RPY) HYDRO BRAKE BOOSTER<7QQ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>	8-97160-410-0	01	1	0607-		●
67	05.001 PLATE; BACK,FRT BRK G.V.W. 7.5-8.0TON(RPY) 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER<7QQ> EXC. DISC BRAKE FRT<J52>	8-97358-869-0	01	1	0607-		●
67	05.001 PLATE; BACK,FRT BRK G.V.W. 7.5-8.0TON(RPY) 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER<7QQ> EXC. DISC BRAKE FRT<J52>	8-97358-868-0	01	1	0607-		●
67	05.001 PLATE; BACK,FRT BRK G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,HYDRO BRAKE BOOSTE R<7QQ>	8-97122-859-0	01	1	0607-		●
67	05.001 PLATE; BACK,FRT BRK G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,HYDRO BRAKE BOOSTE R<7QQ>	8-97122-858-0	01	1	0607-		●
67	05.001 PLATE; BACK,FRT BRK G.V.W. 3.5-4.0TON(RPQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>	8-97302-601-0	01	1	0607-		●				●
67	05.001 PLATE; BACK,FRT BRK G.V.W. 3.5-4.0TON(RPQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>	8-97302-600-0	01	1	0607-		●				●
67	05.001 PLATE; BACK,FRT BRK G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>	8-97302-589-0	01	1	0607-		●				●
67	05.001 PLATE; BACK,FRT BRK G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>	8-97302-588-0	01	1	0607-		●				●
70	04.685 CLIP; PIPE HOLD G.V.W. 3.5-4.0TON(RPQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>	8-97022-086-0	04	1	0607-		●				●
70	04.685 CLIP; PIPE HOLD G.V.W. 7.5-8.0TON(RPY) EXC. DISC BRAKE FRT<J52>	8-97022-086-0	04	1	0607-		●
70	04.685 CLIP; PIPE HOLD G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>	8-94128-306-0	02	1	0607-		●				●
71	05.002 GROMMET; CHECK HOLE G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,HYDRO BRAKE BOOSTE R<7QQ> (B)	8-97017-507-0	02	1	0607-		●
71	05.002 GROMMET; CHECK HOLE G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> (B)	8-97017-507-0	02	1	0607-		●
71	05.002 GROMMET; CHECK HOLE G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,HYDRO BRAKE BOOSTE R<7QQ> (A)	8-97044-742-1	02	1	0607-		●
71	05.002 GROMMET; CHECK HOLE G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> (A)	8-97044-742-1	02	1	0607-		●
71	05.002 GROMMET; CHECK HOLE G.V.W. 3.5-4.0TON(RPQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 04.670 (C)	1-47154-008-0	04	1	0607-		●				●
71	05.002 GROMMET; CHECK HOLE G.V.W. 7.5-8.0TON(RPY) 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER<7QQ> EXC. DISC BRAKE FRT<J52> 04.670 (C)	1-47154-008-0	04	1	0607-		●
71	05.002 GROMMET; CHECK HOLE G.V.W. 3.5-4.0TON(RPQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> (B)	8-97017-507-0	06	1	0607-		●				●
71	05.002 GROMMET; CHECK HOLE G.V.W. 7.5-8.0TON(RPY) 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER<7QQ> EXC. DISC BRAKE FRT<J52> (B)	8-97017-507-0	06	1	0607-		●
71	05.002 GROMMET; CHECK HOLE G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> (B)	8-94171-287-0	02	1	0607-		●				●
71	05.002 GROMMET; CHECK HOLE G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> (A)	9-09756-034-0	02	1	0607-		●				●
72	05.815 NUT; OIL SHIELD COVER 07.347 (A) M14 FLANGE	8-97167-635-0	06	1	0302-0506	●	●	●	●	●	●	●
72	05.815 NUT; OIL SHIELD COVER 07.347 (A) M14 FLANGE	8-97167-635-0	06	1	0507-0606	●	●	●		●	●	●
72	05.815 NUT; OIL SHIELD COVER 07.347 (A) M14 FLANGE	8-97167-635-0	06	1	0607-0611	●		●		●		●
72	05.815 NUT; OIL SHIELD COVER DISC BRAKE FRT<J52> 07.347 (A) M14 FLANGE	8-97167-635-0	06	1	0607-0611		●				●
72	05.815 NUT; OIL SHIELD COVER (A)	8-97359-815-0	06	1	0612-	●		●		●		●
72	05.815 NUT; OIL SHIELD COVER DISC BRAKE FRT<J52> (A)	8-97359-815-0	06	1	0612-		●				●
72	05.815 NUT; OIL SHIELD COVER G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,HYDRO BRAKE BOOSTE R<7QQ> 07.833 (B) M14	0-91110-514-0	08	1	0607-		●
72	05.815 NUT; OIL SHIELD COVER G.V.W. 7.5-8.0TON(RPY) HYDRO BRAKE BOOSTER<7QQ> EXC. DISC BRAKE FRT<J52> 07.833 (B) M14	0-91110-514-0	08	1	0607-		●
72	05.815 NUT; OIL SHIELD COVER G.V.W. 3.5-4.0TON(RPQ),G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 05.002 (B) M12	0-91110-512-0	08	1	0607-		●				●
72	05.815 NUT; OIL SHIELD COVER G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,HYDRO BRAKE BOOSTE R<7QQ> 05.002 (B) M12	0-91110-512-0	08	1	0607-		●
73	05.815 WASHER; LK,OIL SHIELD COVER G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,HYDRO BRAKE BOOSTE R<7QQ> 05.586 ID=14.2	0-91510-614-0	08	1	0607-0611		●
73	05.815 WASHER; LK,OIL SHIELD COVER G.V.W. 7.5-8.0TON(RPY) HYDRO BRAKE BOOSTER<7QQ> EXC. DISC BRAKE FRT<J52> 05.586 ID=14.2	0-91510-614-0	08	1	0607-0611		●
73	05.815 WASHER; LK,OIL SHIELD COVER G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,HYDRO BRAKE BOOSTE R<7QQ> 06.174 ID=14.2	0-91510-814-0	08	1	0612-		●
73	05.815 WASHER; LK,OIL SHIELD COVER G.V.W. 7.5-8.0TON(RPY) HYDRO BRAKE BOOSTER<7QQ> EXC. DISC BRAKE FRT<J52> 06.174 ID=14.2	0-91510-814-0	08	1	0612-		●
73	05.815 WASHER; LK,OIL SHIELD COVER G.V.W. 3.5-4.0TON(RPQ),G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 00.002 ID=12.2	0-91510-612-0	08	1	0607-0611		●				●
73	05.815 WASHER; LK,OIL SHIELD COVER G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,HYDRO BRAKE BOOSTE R<7QQ> 00.002 ID=12.2	0-91510-612-0	08	1	0607-0611		●
73	05.815 WASHER; LK,OIL SHIELD COVER G.V.W. 3.5-4.0TON(RPQ),G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 07.347 ID=12.2	0-91510-812-0	08	1	0612-		●				●
73	05.815 WASHER; LK,OIL SHIELD COVER G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,HYDRO BRAKE BOOSTE R<7QQ> 07.347 ID=12.2	0-91510-812-0	08	1	0612-		●
76	04.685 PIPE; OIL,BACKWARD,FRT BRK G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,HYDRO BRAKE BOOSTE R<7QQ>	8-97079-847-0	02	1	0607-		●
76	04.685 PIPE; OIL,BACKWARD,FRT BRK G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>	8-97079-847-0	02	1	0607-		●
84	04.685 PIPE; BRK,WHEEL CYL TO HOSE G.V.W. 3.5-4.0TON(RPQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>	8-97039-677-0	01	1	0607-		●				●
84	04.685 PIPE; BRK,WHEEL CYL TO HOSE G.V.W. 7.5-8.0TON(RPY) EXC. DISC BRAKE FRT<J52>	8-97039-677-0	01	1	0607-		●
84	04.685 PIPE; BRK,WHEEL CYL TO HOSE G.V.W. 3.5-4.0TON(RPQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>	8-97039-676-0	01	1	0607-		●				●
84	04.685 PIPE; BRK,WHEEL CYL TO HOSE G.V.W. 7.5-8.0TON(RPY) EXC. DISC BRAKE FRT<J52>	8-97039-676-0	01	1	0607-		●
84	04.685 PIPE; BRK,WHEEL CYL TO HOSE G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>	8-94154-918-0	01	1	0607-		●				●
84	04.685 PIPE; BRK,WHEEL CYL TO HOSE G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>	8-94154-917-0	01	1	0607-		●				●
130	05.017 SHOE KIT; BRK,FRT G.V.W. 3.5-4.0TON(RPQ),G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,HYDRO BRAKE BOOSTE R<7QQ>	5-87831-775-0	01	1	0607-		●
130	05.017 SHOE KIT; BRK,FRT G.V.W. 3.5-4.0TON(RPQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>	5-87831-775-0	01	1	0607-						●
130	05.017 SHOE KIT; BRK,FRT G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>,HYDRO BRAKE BOOSTE R<7QQ>	5-87831-693-0	01	1	0607-		●
130	05.017 SHOE KIT; BRK,FRT G.V.W. 7.5-8.0TON(RPY) HYDRO BRAKE BOOSTER<7QQ> EXC. DISC BRAKE FRT<J52>	5-87831-693-0	01	1	0607-		●
130	05.017 SHOE KIT; BRK,FRT G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>	5-87832-047-0	01	1	0607-		●				●
240	04.685 PIPE; OIL,FRT BRK G.V.W. 3.5-4.0TON(RPQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>	8-97079-847-0	02	1	0607-		●				●
240	04.685 PIPE; OIL,FRT BRK G.V.W. 7.5-8.0TON(RPY) 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER<7QQ> EXC. DISC BRAKE FRT<J52>	8-97079-847-0	02	1	0607-		●
240	04.685 PIPE; OIL,FRT BRK G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52>	8-94154-916-0	02	1	0607-		●				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
