2-42 — AUTO TRANS OIL PAN AND OIL CONTROL (#41313) — 12 parça

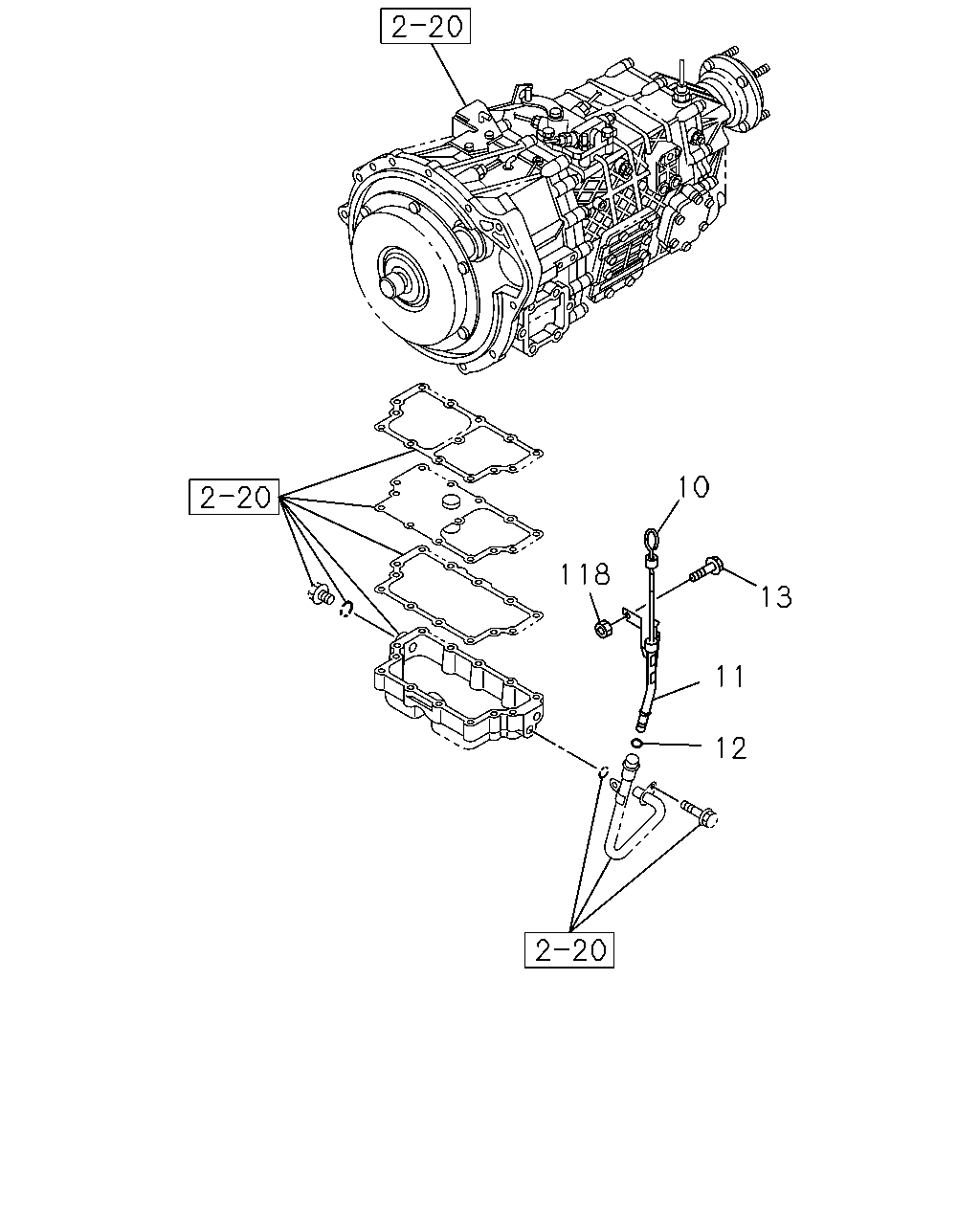

çizim 51863
10 118 13 11 12
BalonParca AdiParca NoAdetTipApplied Date A B C
10 04.197 GAUGE; OIL LEVEL
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97349-446-0 01 1 0507-0606 ● ●
10 04.197 GAUGE; OIL LEVEL
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97349-446-0 01 1 0607- ●
10 04.197 GAUGE; OIL LEVEL
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98028-128-0 01 1 0607- ● ●
11 04.197 TUBE; OIL FILLER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97367-638-1 01 1 0507-0606 ● ●
11 04.197 TUBE; OIL FILLER
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97367-638-1 01 1 0607- ●
11 04.197 TUBE; OIL FILLER
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98028-182-0 01 1 0607- ● ●
12 04.197 GASKET; OIL FILLER TUBE TO A/T
TRANSMISSION CONTROL-SMOOTHER(8GF) ID=12.3 		8-97313-558-0 01 1 0507-0606 ● ●
12 04.197 GASKET; OIL FILLER TUBE TO A/T
TRANSMISSION CONTROL-SMOOTHER(8GF) ID=12.3 		8-97313-558-0 01 1 0607- ● ● ●
13 04.197 BOLT; OIL FILLER
TRANSMISSION CONTROL-SMOOTHER(8GF) 02.343 M10X12 FLANGE 		0-28151-012-0 01 1 0607- ● ●
118 04.197 NUT; OIL FILLER TUBE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 04.785 M10 FLANGE 		0-91150-110-0 01 1 0507-0602 ● ●
118 04.197 NUT; OIL FILLER TUBE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 M10 FLANGE 		0-91180-110-0 01 1 0603-0606 ● ●
118 04.197 NUT; OIL FILLER TUBE
TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 M10 FLANGE 		0-91180-110-0 01 1 0607- ●
