◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50949 - NPR/NQR(EUROPE)-LHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-25 - SPEEDOMETER DRIVEN GEAR ▶
2-25 — SPEEDOMETER DRIVEN GEAR (#41307) — 58 parça

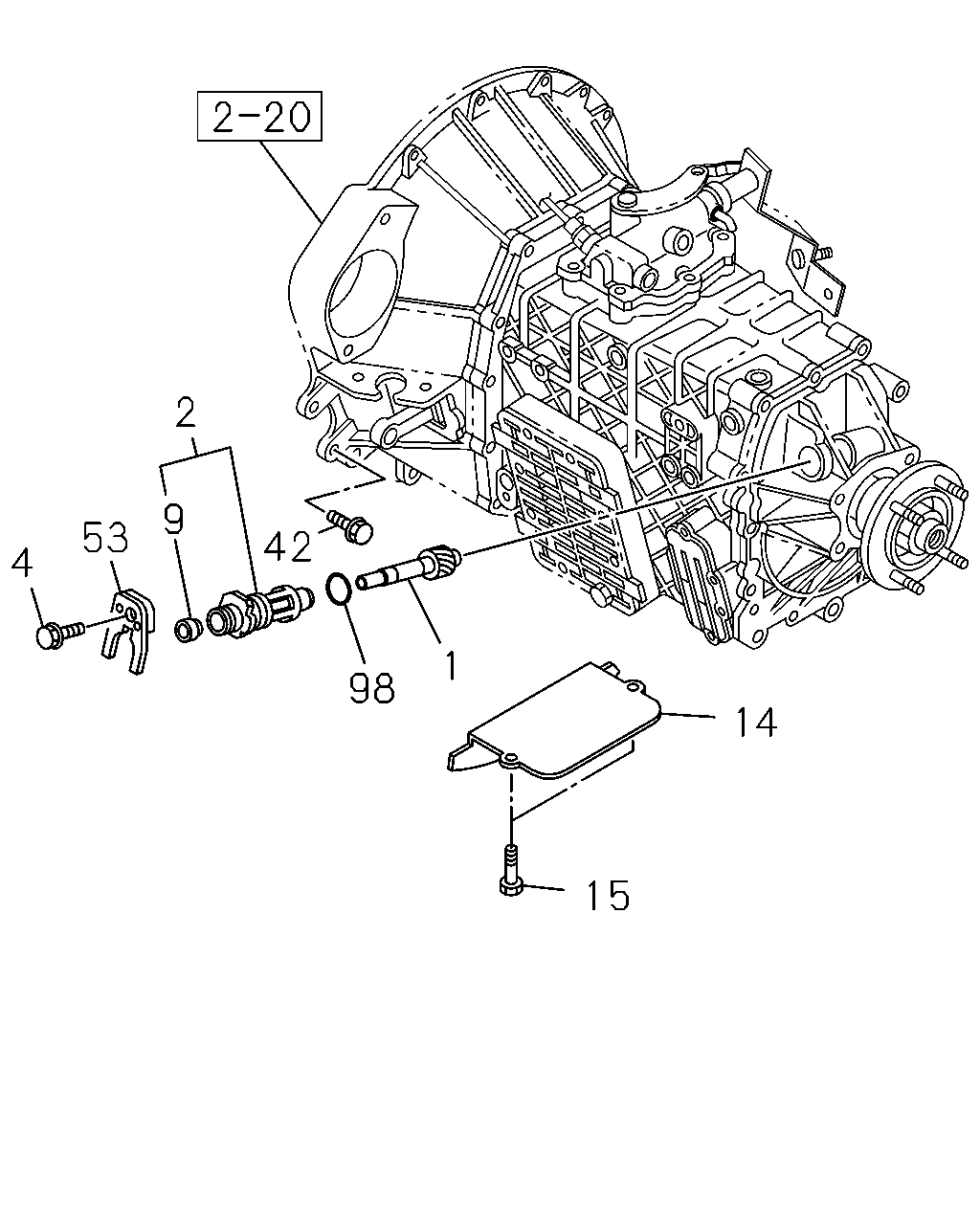

çizim 52044
2 9 53 42 4 1 98 14 15
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 41/10(GT5) (AUJ),(AUS),(AVK) Z=16 		8-97329-097-1 01 1 0302-0302 ● ● ●
1 04.337 GEAR; DRIVEN,SPD
M/T MZZ6F(RSR) (AUJ),(AUS),(AVK) Z=16 		8-97329-097-1 01 1 0302-0302 ● ● ● ●
1 04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 41/10(GT5) (AUJ),(AUS),(AVK),(CQU) Z=16 		8-97329-097-1 01 1 0303-0310 ● ● ●
1 04.337 GEAR; DRIVEN,SPD
M/T MZZ6F(RSR) (AUJ),(AUS),(AVK),(CQU) Z=16 		8-97329-097-1 01 1 0303-0310 ● ● ● ●
1 04.337 GEAR; DRIVEN,SPD
M/T MZZ6F(RSR) FINAL GEAR RATIO 41/10(GT5) (AUJ),(AUS),(AVK),(CQU) Z=16 		8-97329-097-1 01 1 0311-0501 ● ● ●
1 04.337 GEAR; DRIVEN,SPD
M/T MZZ6F(RSR) (AUJ),(AUS),(AVK),(CQU) Z=16 		8-97329-097-1 01 1 0311-0501 ● ● ● ●
1 04.337 GEAR; DRIVEN,SPD
M/T MZZ6F(RSR) FINAL GEAR RATIO 41/10(GT5) (AUJ),(CRU),(CRV),(CRW) Z=16 		8-97329-097-1 01 1 0502-0506 ● ● ●
1 04.337 GEAR; DRIVEN,SPD
M/T MZZ6F(RSR) (AUJ),(CRU),(CRV),(CRW) Z=16 		8-97329-097-1 01 1 0502-0506 ● ● ● ●
1 04.337 GEAR; DRIVEN,SPD
M/T MZZ6F(RSR) FINAL GEAR RATIO 41/10(GT5) (AUJ),(CRU),(CRV),(CRW) Z=16 		8-97329-097-1 01 1 0507-0606 ● ● ● ●
1 04.337 GEAR; DRIVEN,SPD
M/T MZZ6F(RSR) FINAL GEAR RATIO 41/10(GT5) (AUJ),(CRU),(CRV),(CRW) Z=16 		8-97329-097-1 01 1 0607- ● ●
1 04.337 GEAR; DRIVEN,SPD
M/T MZZ6F(RSR) (AUJ),(CRU),(CRV),(CRW) Z=16 		8-97329-097-1 01 1 0607- ● ●
1 04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 41/10(GT5) (AYS),(BRT) Z=17 		8-97327-119-1 01 1 0302-0302 ● ● ●
1 04.337 GEAR; DRIVEN,SPD
M/T MZZ6F(RSR) (AYS),(BRT) Z=17 		8-97327-119-1 01 1 0302-0302 ●
1 04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 41/10(GT5) (AYS),(BRT),(CQT) Z=17 		8-97327-119-1 01 1 0303-0506 ● ● ●
1 04.337 GEAR; DRIVEN,SPD
M/T MZZ6F(RSR) (AYS),(BRT),(CQT) Z=17 		8-97327-119-1 01 1 0303-0506 ●
1 04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 41/8(RU1) (AUJ),(AUS),(AVK) Z=13 		8-97253-562-1 01 1 0302-0302 ● ● ●
1 04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 41/8(RU1) (AUJ),(AUS),(AVK),(CQU) Z=13 		8-97253-562-1 01 1 0303-0501 ● ● ●
1 04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 41/8(RU1) (AUJ) Z=13 		8-97253-562-1 01 1 0502-0506 ● ● ●
1 04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 41/8(RU1) (BQU),(BQV),(9HY) Z=15 		8-97253-560-1 01 1 0302-0506 ● ● ●
1 04.337 GEAR; DRIVEN,SPD
M/T MYY5T(RSM) FINAL GEAR RATIO 41/8(RU1) (BQU),(BQV),(9HY) Z=15 		8-97253-560-1 01 1 0507-0606 ● ● ●
1 04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 43/9(S2J) (AUJ),(AUS),(AVK) Z=12 		8-97253-563-1 01 1 0302-0302 ● ● ●
1 04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 43/9(S2J) (AUJ),(AUS),(AVK),(CQU) Z=12 		8-97253-563-1 01 1 0303-0501 ● ● ●
1 04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 43/9(S2J) (AUJ) Z=12 		8-97253-563-1 01 1 0502-0506 ● ● ●
1 04.337 GEAR; DRIVEN,SPD
M/T MYY5T(RSM) FINAL GEAR RATIO 41/9(HC6) (AUJ),(AYS),(CQT),(CRU),(CRV),(CRW) Z=12 		8-97253-563-1 01 1 0507-0606 ● ● ● ● ●
1 04.337 GEAR; DRIVEN,SPD
M/T MYY5T(RSM) FINAL GEAR RATIO 43/9(S2J) (AUJ) Z=12 		8-97253-563-1 01 1 0507-0606 ● ●
1 04.337 GEAR; DRIVEN,SPD
M/T MYY5T(RSM),M/T MYY6S(RST) FINAL GEAR RATIO 41/10(GT5) (BQU),(BQV),(9HY) Z=12 		8-97253-563-1 01 1 0607- ● ● ●
1 04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 41/9(HC6) (AUJ),(AYS),(CQT),(CRU),(CRV),(CRW) Z=12 		8-97253-563-1 01 1 0607- ● ● ●
1 04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 43/9(S2J) (BQU),(BQV),(9HY) Z=14 		8-97253-561-1 01 1 0302-0506 ● ● ●
1 04.337 GEAR; DRIVEN,SPD
M/T MYY5T(RSM) FINAL GEAR RATIO 43/9(S2J) (BQU),(BQV),(9HY) Z=14 		8-97253-561-1 01 1 0507-0606 ● ● ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
FINAL GEAR RATIO 41/10(GT5) MARK "10,11,16,17" 		8-97253-124-0 01 1 0302-0501 ● ● ● ● ● ● ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
FINAL GEAR RATIO 41/10(GT5) (AUJ),(AYS),(BRT),(CQT),(CRU),(CRV), (CRW) MARK "10,11,16,17" 		8-97253-124-0 01 1 0502-0506 ● ● ● ● ● ● ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MZZ6F(RSR) FINAL GEAR RATIO 41/10(GT5) (AUJ),(CRU),(CRV),(CRW) MARK "10,11,16,17" 		8-97253-124-0 01 1 0507-0606 ● ● ● ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MZZ6F(RSR) FINAL GEAR RATIO 41/10(GT5) (AUJ),(CRU),(CRV),(CRW) MARK "10,11,16,17" 		8-97253-124-0 01 1 0607- ● ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MZZ6F(RSR) (AUJ),(CRU),(CRV),(CRW) MARK "10,11,16,17" 		8-97253-124-0 01 1 0607- ● ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) MARK "12,13,14,15" 		8-97253-125-0 01 1 0302-0501 ● ● ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) (AUJ),(BQU),(BQV),(9HY) MARK "12,13,14,15" 		8-97253-125-0 01 1 0502-0506 ● ● ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MYY5T(RSM) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) (AUJ),(BQU),(BQV),(9HY) MARK "12,13,14,15" 		8-97253-125-0 01 1 0507-0606 ● ● ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MYY5T(RSM) FINAL GEAR RATIO 41/9(HC6) (AUJ),(AYS),(CQT),(CRU),(CRV),(CRW) MARK "12,13,14,15" 		8-97253-125-0 01 1 0507-0606 ● ● ● ● ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
M/T MYY5T(RSM),M/T MYY6S(RST) FINAL GEAR RATIO 41/10(GT5) (BQU),(BQV),(9HY) MARK "12,13,14,15" 		8-97253-125-0 01 1 0607- ● ● ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
FINAL GEAR RATIO 41/9(HC6) (AUJ),(AYS),(CQT),(CRU),(CRV),(CRW) MARK "12,13,14,15" 		8-97253-125-0 01 1 0607- ● ● ●
4 04.338 BOLT; RET,DRIVEN GEAR
02.664 M8X20 FLANGE 		0-28680-820-0 01 1 0302-0506 ● ● ● ● ● ● ●
4 04.338 BOLT; RET,DRIVEN GEAR
02.664 M8X20 FLANGE 		0-28680-820-0 01 1 0507-0512 ● ● ● ● ● ●
4 04.338 BOLT; RET,DRIVEN GEAR
01.531 M8X20 FLANGE 		0-28650-820-0 01 1 0601- ● ● ● ● ● ●
9 04.338 SEAL; OIL,DRIVEN GEAR
NOK 		8-97131-328-1 01 1 0302-0506 ● ● ● ● ● ● ●
9 04.338 SEAL; OIL,DRIVEN GEAR
NOK 		8-97131-328-1 01 1 0507- ● ● ● ● ● ●
14 00.679 COVER; UNDER,TRANS
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97308-233-0 01 1 0507-0606 ● ● ● ● ●
14 00.679 COVER; UNDER,TRANS
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97308-233-0 01 1 0607- ● ● ● ● ● ●
15 00.685 BOLT; UNDER COVER TO TRANS
TRANSMISSION CONTROL-SMOOTHER(8GF) 04.439 M6X16 FLANGE 		0-28680-616-0 02 1 0507-0512 ● ● ● ● ●
15 00.685 BOLT; UNDER COVER TO TRANS
TRANSMISSION CONTROL-SMOOTHER(8GF) 02.343 M6X16 FLANGE 		0-28650-616-0 02 1 0601-0606 ● ● ● ● ●
15 00.685 BOLT; UNDER COVER TO TRANS
TRANSMISSION CONTROL-SMOOTHER(8GF) 02.343 M6X16 FLANGE 		0-28650-616-0 02 1 0607- ● ● ● ● ● ●
42 00.685 BOLT; TRANS CASE TO STIFFENER
4JH1 ENG(RJX) 03.162 M10X35 FLANGE 		0-28681-035-0 04 1 0302-0506 ● ● ●
42 00.685 BOLT; TRANS CASE TO STIFFENER
4JH1-TC ENG(RDM) 03.162 M10X35 FLANGE 		0-28681-035-0 04 1 0507-0512 ● ● ●
42 00.685 BOLT; TRANS CASE TO STIFFENER
4JH1-TC ENG(RDM) 02.277 M10X35 FLANGE 		0-28651-035-0 04 1 0601-0606 ● ● ●
53 04.338 PLATE; LOCK,DRIVEN GEAR 8-97252-679-2 01 1 0302-0506 ● ● ● ● ● ● ●
53 04.338 PLATE; LOCK,DRIVEN GEAR 8-97252-679-2 01 1 0507-0604 ● ● ● ● ● ●
53 04.338 PLATE; LOCK,DRIVEN GEAR 8-98046-217-0 01 1 0605- ● ● ● ● ● ●
98 04.338 SEAL; OIL,BUSH
04.439 		9-09561-324-0 01 1 0302-0506 ● ● ● ● ● ● ●
98 04.338 SEAL; OIL,BUSH
04.439 		9-09561-324-0 01 1 0507- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
