◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50949 - NPR/NQR(EUROPE)-LHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-07 - CLUTCH BOOSTER; MINIPACK ▶
2-07 — CLUTCH BOOSTER; MINIPACK (#41303) — 10 parça

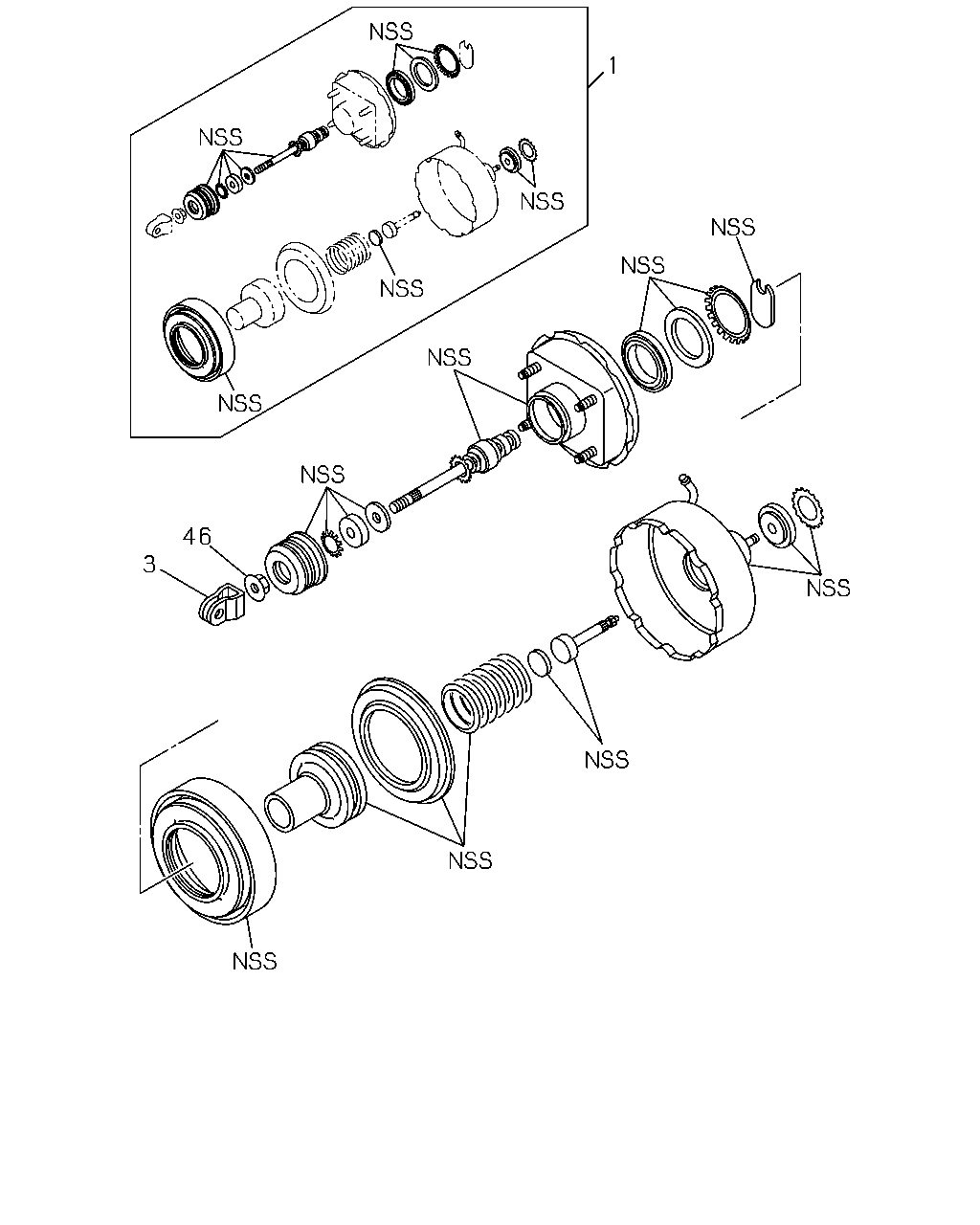

çizim 52613
1 46 3
BalonParca AdiParca NoAdetTipApplied Date A B C
1 00.775 REPAIR KIT; CLU BOOSTER
POWER ASSIST CLUTCH(S2T) 		8-97174-151-0 01 1 0302-0506 ●
1 00.775 REPAIR KIT; CLU BOOSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) POWER ASSIST CLUTCH(S2T) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97174-151-0 01 1 0507-0606 ● ●
1 00.775 REPAIR KIT; CLU BOOSTER
4HK1-TCC ENG(RDV) POWER ASSIST CLUTCH(S2T) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97174-151-0 01 1 0607- ●
1 00.775 REPAIR KIT; CLU BOOSTER
4JJ1 ENG(LFB) POWER ASSIST CLUTCH(S2T) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97174-145-0 01 1 0607- ● ●
3 00.787 CLEVIS; PUSH ROD,CLU BOOSTER
POWER ASSIST CLUTCH(S2T) 		8-97174-147-0 01 1 0302-0506 ●
3 00.787 CLEVIS; PUSH ROD,CLU BOOSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) POWER ASSIST CLUTCH(S2T) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97174-147-0 01 1 0507-0606 ● ●
3 00.787 CLEVIS; PUSH ROD,CLU BOOSTER
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) POWER ASSIST CLUTCH(S2T) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97174-147-0 01 1 0607- ● ● ●
46 00.787 NUT; PUSH ROD,CLU BOOSTER
POWER ASSIST CLUTCH(S2T) 		8-97174-148-0 01 1 0302-0506 ●
46 00.787 NUT; PUSH ROD,CLU BOOSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) POWER ASSIST CLUTCH(S2T) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97174-148-0 01 1 0507-0606 ● ●
46 00.787 NUT; PUSH ROD,CLU BOOSTER
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) POWER ASSIST CLUTCH(S2T) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97174-148-0 01 1 0607- ● ● ●
