2-05 — CLUTCH PIPING (#41301) — 146 parça

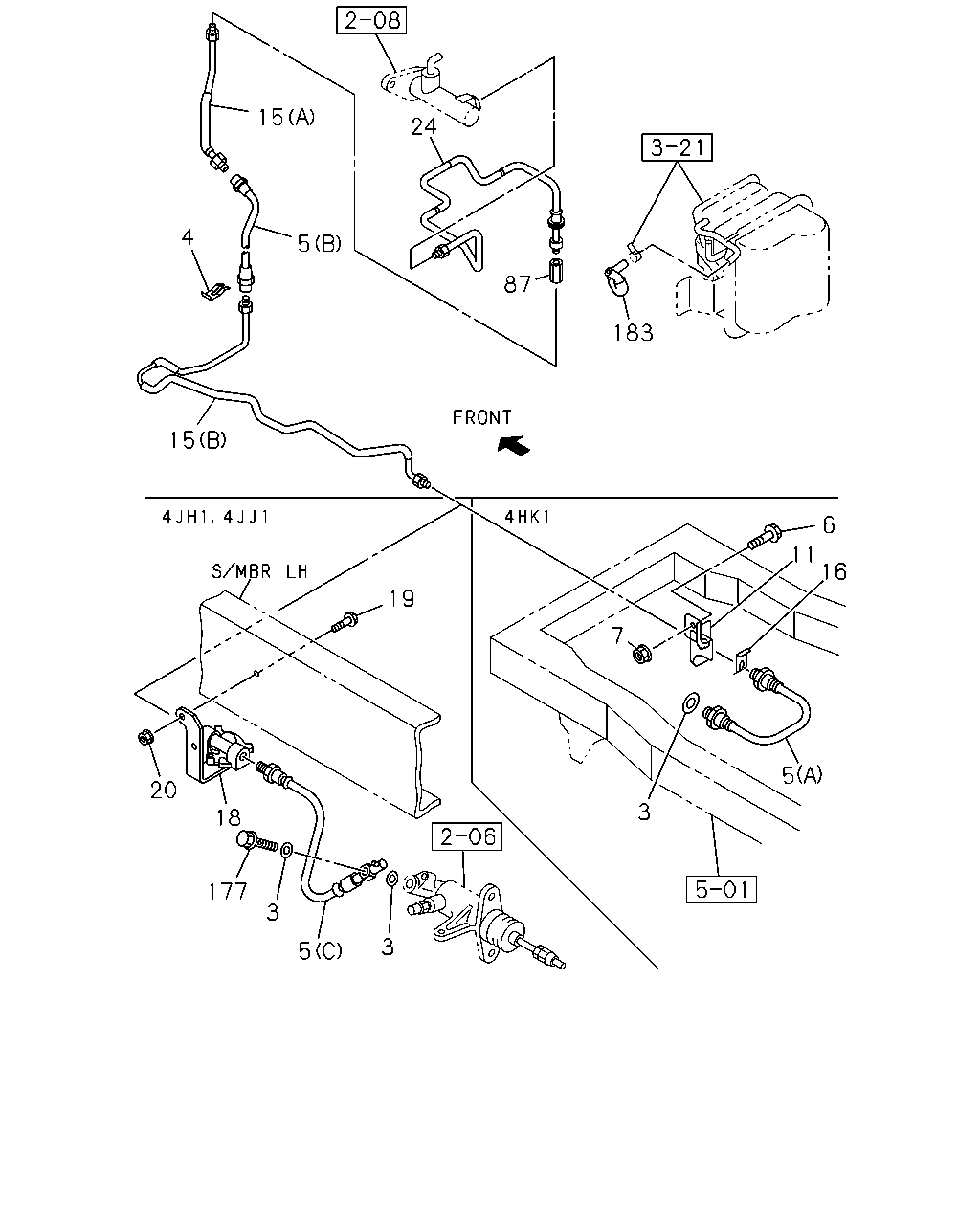

çizim 52582
24 15 4 5 87 183 15 6 11 16 19 7 5 3 18 177 3 3 5 20
BalonParca AdiParca NoAdetTipApplied Date A B C
3 00.785 GASKET; FLEX HOSE,CLU 9-09920-873-1 01 1 0302-0506 ●
3 00.785 GASKET; FLEX HOSE,CLU
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		9-09920-873-1 01 1 0507-0606 ● ●
3 00.785 GASKET; FLEX HOSE,CLU
4HK1-TCC ENG(RDV) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		9-09920-873-1 01 1 0607- ●
3 00.785 GASKET; FLEX HOSE,CLU
08.955 ID=10.2 OD=16.0 		9-09571-410-0 02 1 0302-0506 ●
3 00.785 GASKET; FLEX HOSE,CLU
4JH1-TC ENG(RDM) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 08.955 ID=10.2 OD=16.0 		9-09571-410-0 02 1 0507-0606 ●
3 00.785 GASKET; FLEX HOSE,CLU
4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 08.955 ID=10.2 OD=16.0 		9-09571-410-0 02 1 0607- ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT 8-94167-006-0 02 1 0302-0506 ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-94167-006-0 02 1 0507-0606 ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-94167-006-0 02 1 0607-0610 ● ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.681 		8-97365-304-0 02 1 0611- ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4HE1 ENG(RLY) CLUTCH SYSTEM AUTO ADJUSTER<8BG> (A) 		8-97148-640-0 01 1 0302-0506 ●
5 00.785 HOSE; FLEX,CLU PIPE
4HK1-TCN ENG(RDQ) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG>, TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97148-640-0 01 1 0507-0606 ●
5 00.785 HOSE; FLEX,CLU PIPE
4HE1 ENG(RLY) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> (A) 		8-94377-793-1 01 1 0302-0506 ●
5 00.785 HOSE; FLEX,CLU PIPE
4HK1-TCN ENG(RDQ) CLUTCH SYSTEM AUTO ADJUSTER<8BG> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97047-058-1 01 1 0507-0606 ●
5 00.785 HOSE; FLEX,CLU PIPE
4HK1-TCS ENG(RJS) CLUTCH SYSTEM AUTO ADJUSTER<8BG> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98013-965-0 01 1 0507-0606 ●
5 00.785 HOSE; FLEX,CLU PIPE
4HK1-TCC ENG(RDV) CLUTCH SYSTEM AUTO ADJUSTER<8BG> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98013-965-0 01 1 0607- ●
5 00.785 HOSE; FLEX,CLU PIPE
4HK1-TCS ENG(RJS) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG>, TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98020-158-0 01 1 0507-0606 ●
5 00.785 HOSE; FLEX,CLU PIPE
4HK1-TCC ENG(RDV) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG>, TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98020-158-0 01 1 0607- ●
5 00.785 HOSE; FLEX,CLU PIPE
(B) 		8-94248-702-2 01 1 0302-0506 ● ●
5 00.785 HOSE; FLEX,CLU PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-94248-702-2 01 1 0507-0606 ● ●
5 00.785 HOSE; FLEX,CLU PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-94248-702-2 01 1 0607-0609 ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98004-775-0 01 1 0610-0706 ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98090-655-0 01 1 0707- ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
(C) 		8-97304-980-1 01 1 0302-0506 ●
5 00.785 HOSE; FLEX,CLU PIPE
4JH1-TC ENG(RDM) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-97304-980-1 01 1 0507-0606 ●
5 00.785 HOSE; FLEX,CLU PIPE
4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-97304-980-1 01 1 0607- ● ●
6 00.785 BOLT; BRKT,FLEX HOSE
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0302-0506 ●
6 00.785 BOLT; BRKT,FLEX HOSE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0507-0512 ● ●
6 00.785 BOLT; BRKT,FLEX HOSE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0601-0606 ● ●
6 00.785 BOLT; BRKT,FLEX HOSE
4HK1-TCC ENG(RDV) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0607- ●
7 00.785 NUT; FLEX HOSE,CLU CONT
07.633 M8 FLANGE 		0-91150-108-0 01 1 0302-0506 ●
7 00.785 NUT; FLEX HOSE,CLU CONT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 07.633 M8 FLANGE 		0-91150-108-0 01 1 0507-0602 ● ●
7 00.785 NUT; FLEX HOSE,CLU CONT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0603-0606 ● ●
7 00.785 NUT; FLEX HOSE,CLU CONT
4HK1-TCC ENG(RDV) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0607- ●
11 00.785 BRACKET; FLEX HOSE,CLU 8-97126-875-0 01 1 0302-0305 ●
11 00.785 BRACKET; FLEX HOSE,CLU 8-97365-305-0 01 1 0306-0506 ●
11 00.785 BRACKET; FLEX HOSE,CLU
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97365-305-0 01 1 0507-0606 ● ●
11 00.785 BRACKET; FLEX HOSE,CLU
4HK1-TCC ENG(RDV) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97365-305-0 01 1 0607- ●
15 00.785 PIPE; CLU,FLEX HOSE
FRAME STRAIGHT TYPE<7KJ> (B) 		8-97187-578-1 01 1 0302-0506 ●
15 00.785 PIPE; CLU,FLEX HOSE
FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97187-578-1 01 1 0507-0606 ● ●
15 00.785 PIPE; CLU,FLEX HOSE
FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97187-578-1 01 1 0607- ●
15 00.785 PIPE; CLU,FLEX HOSE
(A) 		8-97328-482-0 01 1 0302-0506 ● ●
15 00.785 PIPE; CLU,FLEX HOSE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97328-482-0 01 1 0507-0606 ● ●
15 00.785 PIPE; CLU,FLEX HOSE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97328-482-0 01 1 0607- ● ● ●
15 00.785 PIPE; CLU,FLEX HOSE
EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-97325-816-2 01 1 0302-0303 ● ●
15 00.785 PIPE; CLU,FLEX HOSE
EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-97365-467-0 01 1 0304-0506 ● ●
15 00.785 PIPE; CLU,FLEX HOSE
EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97365-467-0 01 1 0507-0606 ● ●
15 00.785 PIPE; CLU,FLEX HOSE
EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98006-436-4 01 1 0607- ● ● ●
16 00.785 CLIP; FLEX HOSE 8-94167-006-0 01 1 0302-0506 ●
16 00.785 CLIP; FLEX HOSE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-94167-006-0 01 1 0507-0606 ● ●
16 00.785 CLIP; FLEX HOSE
4HK1-TCC ENG(RDV) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-94167-006-0 01 1 0607-0610 ●
16 00.785 CLIP; FLEX HOSE
4HK1-TCC ENG(RDV) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.681 		8-97365-304-0 01 1 0611- ●
18 00.830 DAMPER ASM; CLU OIL 8-97304-972-0 01 1 0302-0506 ●
18 00.830 DAMPER ASM; CLU OIL
4JH1-TC ENG(RDM) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97304-972-0 01 1 0507-0606 ●
18 00.830 DAMPER ASM; CLU OIL
4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97304-972-0 01 1 0607-0608 ● ●
18 00.830 DAMPER ASM; CLU OIL
4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98055-788-0 01 1 0609- ● ●
19 00.837 BOLT; CLU DAMPER
02.559 M8X25 FLANGE 		0-28680-825-0 02 1 0302-0506 ●
19 00.837 BOLT; CLU DAMPER
4JH1-TC ENG(RDM) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 02.559 M8X25 FLANGE 		0-28680-825-0 02 1 0507-0512 ●
19 00.837 BOLT; CLU DAMPER
4JH1-TC ENG(RDM) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 0601-0606 ●
19 00.837 BOLT; CLU DAMPER
4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 0607- ● ●
20 00.837 NUT; CLU OIL DAMPER
07.633 M8 FLANGE 		0-91150-108-0 01 1 0302-0506 ●
20 00.837 NUT; CLU OIL DAMPER
4JH1-TC ENG(RDM) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 07.633 M8 FLANGE 		0-91150-108-0 01 1 0507-0602 ●
20 00.837 NUT; CLU OIL DAMPER
4JH1-TC ENG(RDM) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0603-0606 ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
POWER ASSIST CLUTCH(S2T) 		8-97118-570-0 01 1 0302-0506 ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
POWER ASSIST CLUTCH(S2T) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97118-570-0 01 1 0507-0606 ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
POWER ASSIST CLUTCH(S2T) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97118-570-0 01 1 0607- ● ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
EXC. POWER ASSIST CLUTCH(S2T) 		8-97070-293-3 01 1 0302-0506 ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
EXC. POWER ASSIST CLUTCH(S2T), TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97070-293-3 01 1 0507-0606 ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
EXC. POWER ASSIST CLUTCH(S2T), TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97070-293-3 01 1 0607- ● ● ●
87 00.785 UNION; OIL PIPE
M12 STRAIGHT 		9-99227-006-0 01 1 0302-0506 ● ● ●
87 00.785 UNION; OIL PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M12 STRAIGHT 		9-99227-006-0 01 1 0507-0606 ● ●
87 00.785 UNION; OIL PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M12 STRAIGHT 		9-99227-006-0 01 1 0607-0607 ● ● ●
87 00.785 UNION; OIL PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M12 STRAIGHT 		0-92107-006-0 01 1 0608- ● ● ●
177 00.777 BOLT; EYE,FLEX HOSE TO M/CYL
04.665 M10X22 		5-09675-017-0 01 1 0302-0506 ●
177 00.777 BOLT; EYE,FLEX HOSE TO M/CYL
4JH1-TC ENG(RDM) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.665 M10X22 		5-09675-017-0 01 1 0507-0507 ●
177 00.777 BOLT; EYE,FLEX HOSE TO M/CYL
4JH1-TC ENG(RDM) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.681 M10X22 		8-97381-454-0 01 1 0508-0606 ●
177 00.777 BOLT; EYE,FLEX HOSE TO M/CYL
4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.681 M10X22 		8-97381-454-0 01 1 0607-0905 ● ●
177 00.777 BOLT; EYE,FLEX HOSE TO M/CYL
4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.681 M10X22 		8-98014-005-0 01 1 0906- ● ●
183 00.785 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) 		8-97093-993-1 01 1 0302-0506 ●
183 00.785 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98009-419-0 01 1 0507-0606 ● ●
183 00.785 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98009-419-0 01 1 0607- ● ● ●

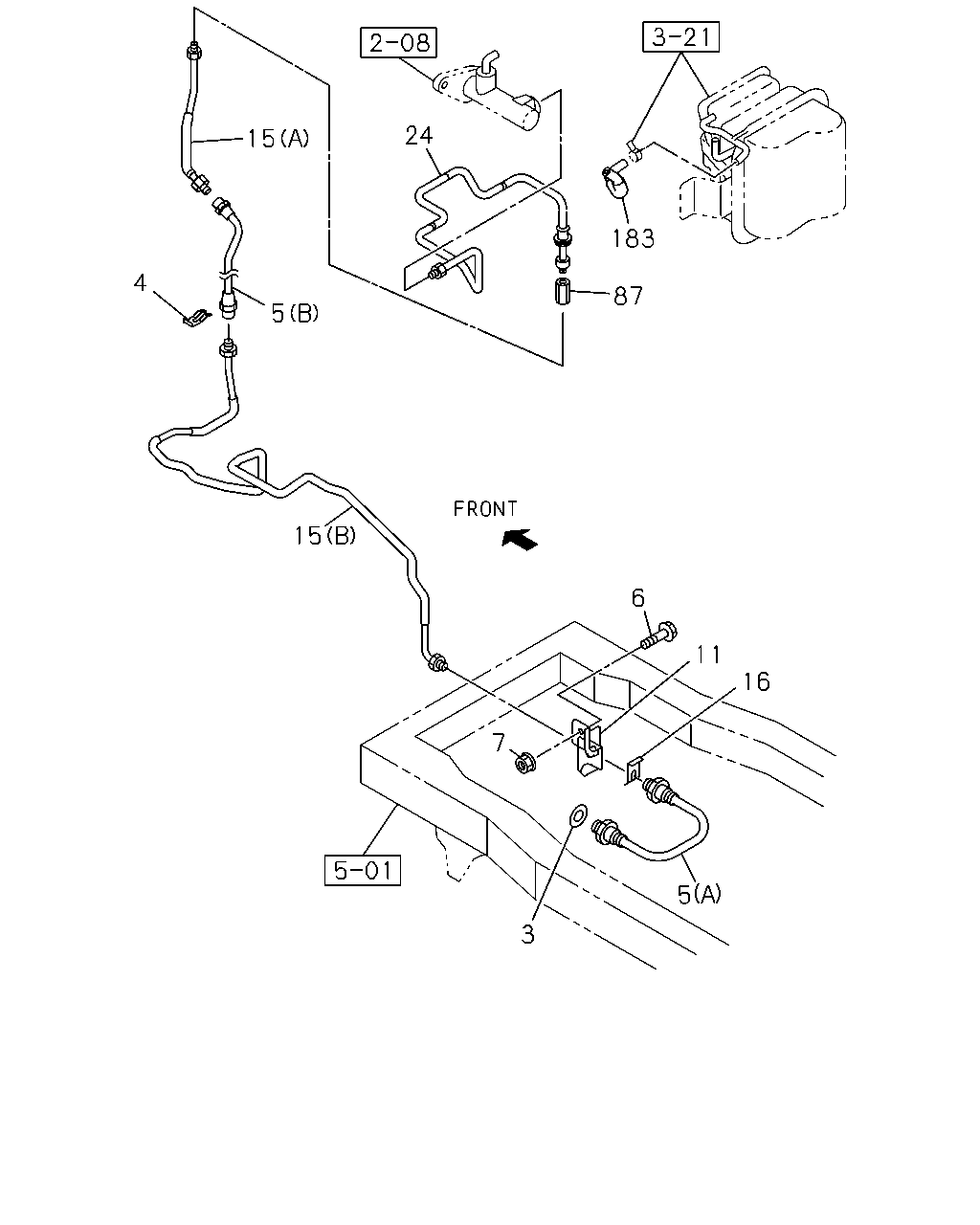

çizim 54399
24 15 183 4 87 5 15 6 11 16 7 5 3
BalonParca AdiParca NoAdetTipApplied Date A B C
3 00.785 GASKET; FLEX HOSE,CLU 9-09920-873-1 01 1 0302-0506 ●
3 00.785 GASKET; FLEX HOSE,CLU
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		9-09920-873-1 01 1 0507-0606 ● ●
3 00.785 GASKET; FLEX HOSE,CLU
4HK1-TCC ENG(RDV) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		9-09920-873-1 01 1 0607- ●
3 00.785 GASKET; FLEX HOSE,CLU
08.955 ID=10.2 OD=16.0 		9-09571-410-0 02 1 0302-0506 ●
3 00.785 GASKET; FLEX HOSE,CLU
4JH1-TC ENG(RDM) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 08.955 ID=10.2 OD=16.0 		9-09571-410-0 02 1 0507-0606 ●
3 00.785 GASKET; FLEX HOSE,CLU
4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 08.955 ID=10.2 OD=16.0 		9-09571-410-0 02 1 0607- ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT 8-94167-006-0 02 1 0302-0506 ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-94167-006-0 02 1 0507-0606 ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-94167-006-0 02 1 0607-0610 ● ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.681 		8-97365-304-0 02 1 0611- ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4HE1 ENG(RLY) CLUTCH SYSTEM AUTO ADJUSTER<8BG> (A) 		8-97148-640-0 01 1 0302-0506 ●
5 00.785 HOSE; FLEX,CLU PIPE
4HK1-TCN ENG(RDQ) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG>, TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97148-640-0 01 1 0507-0606 ●
5 00.785 HOSE; FLEX,CLU PIPE
4HE1 ENG(RLY) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> (A) 		8-94377-793-1 01 1 0302-0506 ●
5 00.785 HOSE; FLEX,CLU PIPE
4HK1-TCN ENG(RDQ) CLUTCH SYSTEM AUTO ADJUSTER<8BG> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97047-058-1 01 1 0507-0606 ●
5 00.785 HOSE; FLEX,CLU PIPE
4HK1-TCS ENG(RJS) CLUTCH SYSTEM AUTO ADJUSTER<8BG> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98013-965-0 01 1 0507-0606 ●
5 00.785 HOSE; FLEX,CLU PIPE
4HK1-TCC ENG(RDV) CLUTCH SYSTEM AUTO ADJUSTER<8BG> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98013-965-0 01 1 0607- ●
5 00.785 HOSE; FLEX,CLU PIPE
4HK1-TCS ENG(RJS) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG>, TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98020-158-0 01 1 0507-0606 ●
5 00.785 HOSE; FLEX,CLU PIPE
4HK1-TCC ENG(RDV) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG>, TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98020-158-0 01 1 0607- ●
5 00.785 HOSE; FLEX,CLU PIPE
(B) 		8-94248-702-2 01 1 0302-0506 ● ●
5 00.785 HOSE; FLEX,CLU PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-94248-702-2 01 1 0507-0606 ● ●
5 00.785 HOSE; FLEX,CLU PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-94248-702-2 01 1 0607-0609 ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98004-775-0 01 1 0610-0706 ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98090-655-0 01 1 0707- ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
(C) 		8-97304-980-1 01 1 0302-0506 ●
5 00.785 HOSE; FLEX,CLU PIPE
4JH1-TC ENG(RDM) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-97304-980-1 01 1 0507-0606 ●
5 00.785 HOSE; FLEX,CLU PIPE
4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-97304-980-1 01 1 0607- ● ●
6 00.785 BOLT; BRKT,FLEX HOSE
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0302-0506 ●
6 00.785 BOLT; BRKT,FLEX HOSE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0507-0512 ● ●
6 00.785 BOLT; BRKT,FLEX HOSE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0601-0606 ● ●
6 00.785 BOLT; BRKT,FLEX HOSE
4HK1-TCC ENG(RDV) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0607- ●
7 00.785 NUT; FLEX HOSE,CLU CONT
07.633 M8 FLANGE 		0-91150-108-0 01 1 0302-0506 ●
7 00.785 NUT; FLEX HOSE,CLU CONT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 07.633 M8 FLANGE 		0-91150-108-0 01 1 0507-0602 ● ●
7 00.785 NUT; FLEX HOSE,CLU CONT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0603-0606 ● ●
7 00.785 NUT; FLEX HOSE,CLU CONT
4HK1-TCC ENG(RDV) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0607- ●
11 00.785 BRACKET; FLEX HOSE,CLU 8-97126-875-0 01 1 0302-0305 ●
11 00.785 BRACKET; FLEX HOSE,CLU 8-97365-305-0 01 1 0306-0506 ●
11 00.785 BRACKET; FLEX HOSE,CLU
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97365-305-0 01 1 0507-0606 ● ●
11 00.785 BRACKET; FLEX HOSE,CLU
4HK1-TCC ENG(RDV) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97365-305-0 01 1 0607- ●
15 00.785 PIPE; CLU,FLEX HOSE
FRAME STRAIGHT TYPE<7KJ> (B) 		8-97187-578-1 01 1 0302-0506 ●
15 00.785 PIPE; CLU,FLEX HOSE
FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97187-578-1 01 1 0507-0606 ● ●
15 00.785 PIPE; CLU,FLEX HOSE
FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97187-578-1 01 1 0607- ●
15 00.785 PIPE; CLU,FLEX HOSE
(A) 		8-97328-482-0 01 1 0302-0506 ● ●
15 00.785 PIPE; CLU,FLEX HOSE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97328-482-0 01 1 0507-0606 ● ●
15 00.785 PIPE; CLU,FLEX HOSE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97328-482-0 01 1 0607- ● ● ●
15 00.785 PIPE; CLU,FLEX HOSE
EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-97325-816-2 01 1 0302-0303 ● ●
15 00.785 PIPE; CLU,FLEX HOSE
EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-97365-467-0 01 1 0304-0506 ● ●
15 00.785 PIPE; CLU,FLEX HOSE
EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97365-467-0 01 1 0507-0606 ● ●
15 00.785 PIPE; CLU,FLEX HOSE
EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98006-436-4 01 1 0607- ● ● ●
16 00.785 CLIP; FLEX HOSE 8-94167-006-0 01 1 0302-0506 ●
16 00.785 CLIP; FLEX HOSE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-94167-006-0 01 1 0507-0606 ● ●
16 00.785 CLIP; FLEX HOSE
4HK1-TCC ENG(RDV) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-94167-006-0 01 1 0607-0610 ●
16 00.785 CLIP; FLEX HOSE
4HK1-TCC ENG(RDV) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.681 		8-97365-304-0 01 1 0611- ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
POWER ASSIST CLUTCH(S2T) 		8-97118-570-0 01 1 0302-0506 ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
POWER ASSIST CLUTCH(S2T) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97118-570-0 01 1 0507-0606 ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
POWER ASSIST CLUTCH(S2T) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97118-570-0 01 1 0607- ● ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
EXC. POWER ASSIST CLUTCH(S2T) 		8-97070-293-3 01 1 0302-0506 ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
EXC. POWER ASSIST CLUTCH(S2T), TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97070-293-3 01 1 0507-0606 ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
EXC. POWER ASSIST CLUTCH(S2T), TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97070-293-3 01 1 0607- ● ● ●
87 00.785 UNION; OIL PIPE
M12 STRAIGHT 		9-99227-006-0 01 1 0302-0506 ● ● ●
87 00.785 UNION; OIL PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M12 STRAIGHT 		9-99227-006-0 01 1 0507-0606 ● ●
87 00.785 UNION; OIL PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M12 STRAIGHT 		9-99227-006-0 01 1 0607-0607 ● ● ●
87 00.785 UNION; OIL PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M12 STRAIGHT 		0-92107-006-0 01 1 0608- ● ● ●
183 00.785 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) 		8-97093-993-1 01 1 0302-0506 ●
183 00.785 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98009-419-0 01 1 0507-0606 ● ●
183 00.785 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98009-419-0 01 1 0607- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
