◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10720 - CXZ RHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-40 - INSTRUMENT PANEL AND BOX ▶
7-40 — INSTRUMENT PANEL AND BOX (#4130) — 121 parça
çizim 5958
18 296 554
BalonParca AdiParca NoAdetTipApplied Date A B
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 9603- ● ●
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 9603- ● ●
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 9603- ● ●
18 BOLT; BRKT
DELUXE CAB(W14) (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9905- ● ●
296 SEAL; INST CENTER BEZEL
EXC. CENTER SEAT DELETE(SP9) 		8-97856-616-0 01 1 9906- ● ●
554 BRACKET; CENTER BEZEL 1-65671-535-2 01 1 9603- ● ●

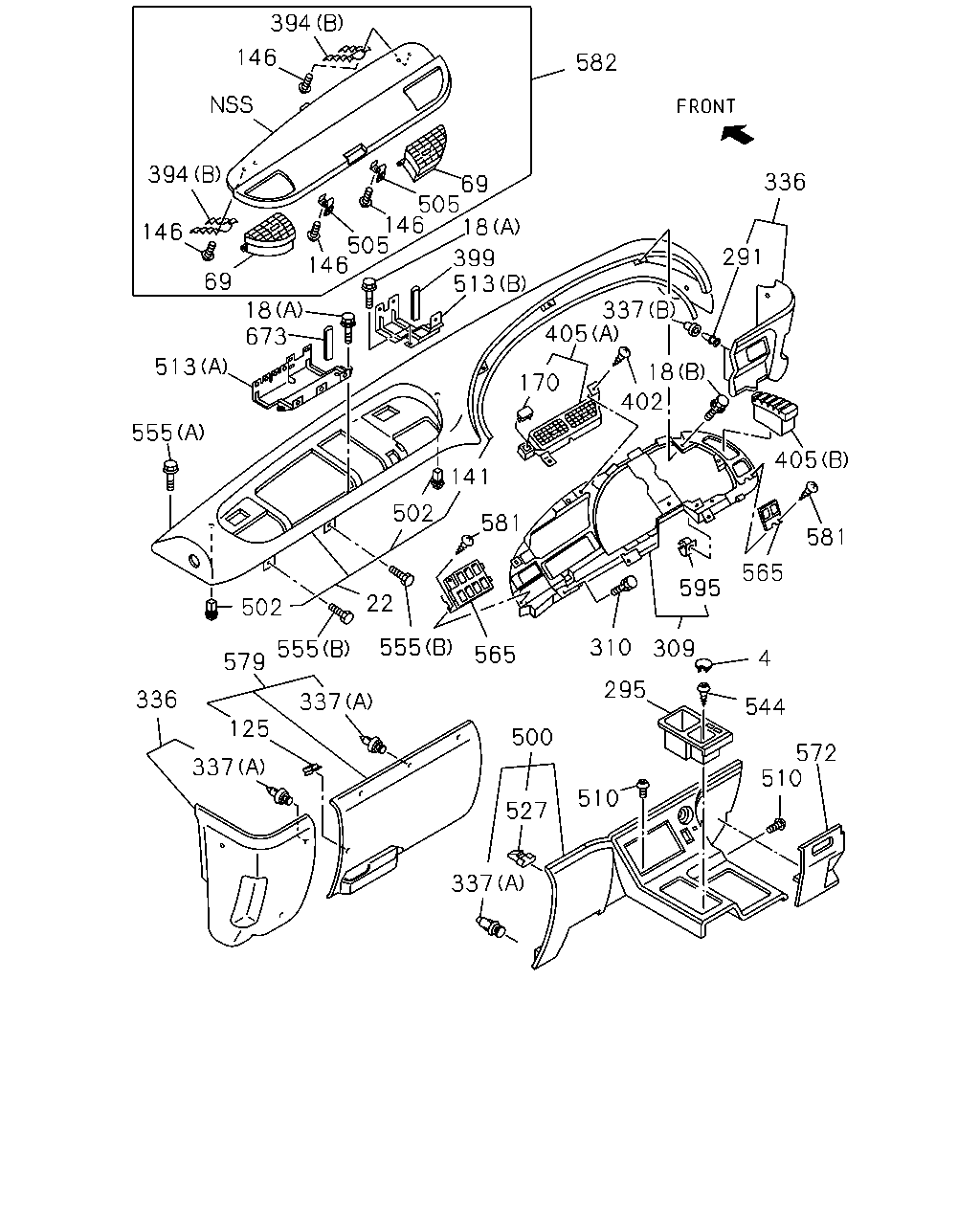

çizim 7335
394 146 582 394 336 69 505 146 18 505 146 146 291 399 513 69 337 405 18 673 513 18 170 402 555 405 141 502 581 581 565 595 22 502 555 310 309 555 565 4 579 295 336 337 544 125 500 572 510 337 510 527 337
BalonParca AdiParca NoAdetTipApplied Date A B
4 COVER; INST PNL 1-72537-106-0 01 1 9603- ● ●
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 9603- ● ●
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 9603- ● ●
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 9603- ● ●
18 BOLT; BRKT
DELUXE CAB(W14) (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9905- ● ●
22 PAD; INST 1-72317-344-1 01 1 9603- ● ●
69 GRILLE; SIDE,AIR OUTLET 1-76368-029-5 01 1 9603- ● ●
69 GRILLE; SIDE,AIR OUTLET 1-76368-028-5 01 1 9603- ● ●
125 CLIP; INST PANEL 8-97853-939-4 01 1 9603-9812 ● ●
125 CLIP; INST PANEL 8-97217-066-0 01 1 9901- ● ●
125 CLIP; INST PANEL 8-97853-939-4 10 1 9603-9812 ● ●
125 CLIP; INST PANEL 8-97217-066-0 10 1 9901- ● ●
141 PROTECTOR; EDGE 1-72318-430-0 01 1 9603- ● ●
146 SCREW; TAP
M5X14 		8-94279-325-0 10 1 9603- ● ●
170 COVER; HOLE 1-76367-068-0 01 1 9603- ● ●
291 FASTENER; INST CLUSTER 1-72438-137-0 03 1 9603- ● ●
295 TRAY; CTR CLUSTER 1-72437-543-1 01 1 9603- ● ●
309 PANEL; SW,INST 1-72418-009-6 01 1 9603- ● ●
310 BOLT; SW PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 9603- ● ●
336 COVER; INST PANEL SIDE 1-72438-111-4 01 1 9603- ● ●
336 COVER; INST PANEL SIDE 1-72438-109-6 01 1 9603- ● ●
337 FASTENER; COVER
(A) 		1-72438-124-2 12 1 9603-9606 ● ●
337 FASTENER; COVER
(A) 		1-72438-124-2 02 1 9607- ● ●
337 FASTENER; COVER
(B) 		1-72438-138-0 03 1 9603- ● ●
337 FASTENER; COVER
(A) 		1-72438-124-2 10 1 9607- ● ●
394 HOLDER; PANEL
(A) 		1-72438-066-0 08 1 9603- ● ●
394 HOLDER; PANEL
(B) 		1-72558-026-5 02 1 9603- ● ●
399 FINISHER; HARNESS
DELUXE CAB(W14) L=30 		8-94273-221-0 01 1 0006-0009 ● ●
399 FINISHER; HARNESS
DELUXE CAB(W14) L=50 		8-94270-377-1 01 1 0010- ● ●
402 SCREW; VENT GRILLE,INST
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 02 1 9603- ● ●
405 GRILLE ASM; METER VENT
(A) 		1-76367-062-1 01 1 9603- ● ●
405 GRILLE ASM; METER VENT
(B) 		1-76367-059-3 01 1 9603- ● ●
500 CLUSTER; INST CENTER 1-72437-590-0 01 1 9603-9606 ● ●
500 CLUSTER; INST CENTER
EXC. CENTER SEAT DELETE(SP9) 		1-72437-590-1 01 1 9607- ● ●
500 CLUSTER; INST CENTER
CENTER SEAT DELETE(SP9) 		1-72437-545-8 01 1 9607- ● ●
502 GROMMET; SCREW,CENTER,CLUSTER
D=7.8X7.8 L 13 M6 NATURAL 		8-94279-084-2 04 1 9603- ● ●
505 LOCK; LID 1-72558-024-2 02 1 9603- ● ●
510 SCREW; CENTER CLUSTER
M6X16 		8-94479-534-0 02 1 9603- ● ●
513 BRACKET; RELAY
(A) 		1-73908-009-9 01 1 9603- ● ●
513 BRACKET; RELAY
DELUXE CAB(W14) (B) 		1-73907-327-3 01 1 9905- ● ●
527 CLIP; INST CLUSTER 8-97853-939-4 04 1 9603-9812 ● ●
527 CLIP; INST CLUSTER 8-97217-066-0 04 1 9901- ● ●
544 SCREW; TRAY
M6X16 		8-94479-534-0 01 1 9603- ● ●
555 BOLT; PAD
(A) M10X25 FLANGE 		0-28281-025-0 08 1 9603- ● ●
555 BOLT; PAD
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 9603- ● ●
565 BEZEL; SW PANEL 1-72418-010-1 01 1 9603- ● ●
565 BEZEL; SW PANEL 1-72418-011-2 01 1 9603- ● ●
572 COVER; INSPECTION 1-72437-098-3 01 1 9603-9808 ● ●
572 COVER; INSPECTION 1-72437-633-0 01 1 9809- ● ●
579 COVER; INST PNL 1-72437-542-3 01 1 9603- ● ●
581 SCREW
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 02 1 9603- ● ●
582 LID; FUSE & RELAY 1-72547-115-8 01 1 9603- ● ●
595 NUT; HOOK 1-72418-013-0 11 1 9603- ● ●
673 FINISHER; BRKT,RELAY
L=30 		8-94273-221-0 01 1 0006-0009 ● ●
673 FINISHER; BRKT,RELAY
L=50 		8-94270-377-1 01 1 0010- ● ●

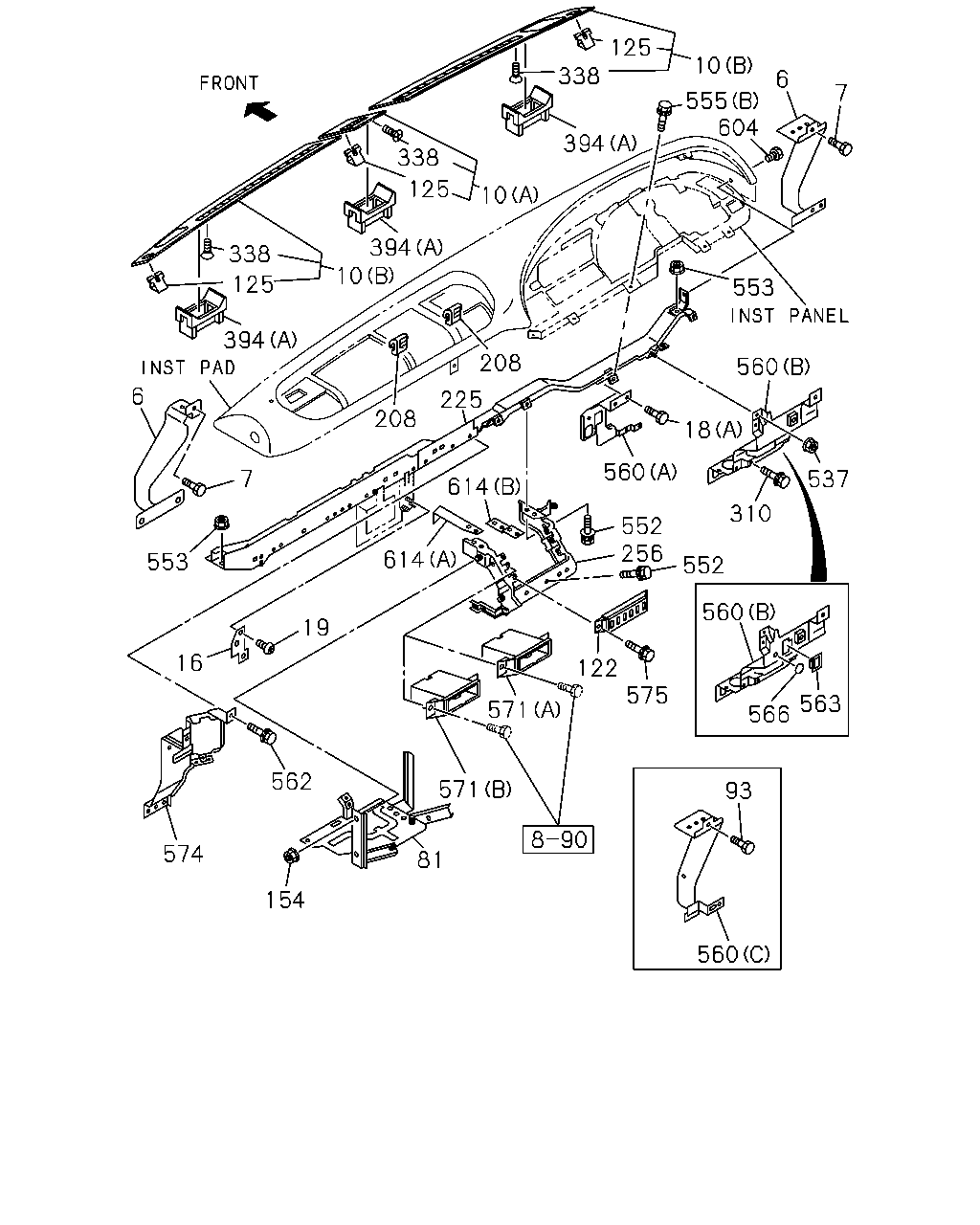

çizim 7337
125 10 338 6 7 555 604 338 394 125 10 338 394 10 125 553 394 208 560 6 225 208 18 560 7 537 614 310 552 256 614 553 552 560 19 16 122 575 563 571 566 562 571 93 574 81 154 560
BalonParca AdiParca NoAdetTipApplied Date A B
6 SUPPORT; INST PANEL
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) 		1-65681-064-2 01 1 9603- ● ●
6 SUPPORT; INST PANEL
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) 		1-65681-063-3 01 1 9603- ● ●
7 BOLT; SUPPORT,INST PNL
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 9603- ● ●
10 PANEL ASM; GARNISH
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (A) UPPER CENTER 		1-72437-592-1 01 1 9603- ● ●
10 PANEL ASM; GARNISH
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (B) UPPER 		1-72438-158-1 01 1 9603- ● ●
10 PANEL ASM; GARNISH
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (B) UPPER 		1-72438-157-1 01 1 9603- ● ●
10 PANEL ASM; GARNISH
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (A) UPPER CENTER 		1-72437-540-6 01 1 9603- ● ●
10 PANEL ASM; GARNISH
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (B) UPPER W/SPEAKER NET 		1-72437-601-5 01 1 9603- ● ●
10 PANEL ASM; GARNISH
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (B) UPPER W/SPEAKER NET 		1-72437-600-5 01 1 9603- ● ●
16 BRACKET; INST PNL
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) 		1-73908-023-2 01 1 9603- ● ●
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 9603- ● ●
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 9603- ● ●
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 9603- ● ●
18 BOLT; BRKT
DELUXE CAB(W14) (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9905- ● ●
19 SCREW; BRKT
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) M5X14 		8-94279-325-0 02 1 9603- ● ●
81 BRACKET; ELEC CONT UNIT 1-73907-276-9 01 1 9603-0003 ● ●
81 BRACKET; ELEC CONT UNIT 1-73907-655-5 01 1 0004- ● ●
93 BOLT; PANEL BRKT
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 9603- ● ●
122 PANEL; CENTER CLUSTER 1-65671-550-4 01 1 9603- ● ●
125 CLIP; INST PANEL 8-97853-939-4 01 1 9603-9812 ● ●
125 CLIP; INST PANEL 8-97217-066-0 01 1 9901- ● ●
125 CLIP; INST PANEL 8-97853-939-4 10 1 9603-9812 ● ●
125 CLIP; INST PANEL 8-97217-066-0 10 1 9901- ● ●
154 NUT
M6 FLANGE 		0-91150-106-0 04 1 9603- ● ●
208 HOLDER; BOX,DASH SIDE 1-72558-027-2 02 1 9603- ● ●
225 FRAME; FACIA 1-65671-725-6 01 1 9603- ● ●
256 BEZEL ASM; CENTER 1-65671-523-9 01 1 9603- ● ●
310 BOLT; SW PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 9603- ● ●
338 SCREW; COVER
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) M5X14 		8-94279-325-0 12 1 9603- ● ●
394 HOLDER; PANEL
(A) 		1-72438-066-0 08 1 9603- ● ●
394 HOLDER; PANEL
(B) 		1-72558-026-5 02 1 9603- ● ●
537 NUT; BRKT
M6 FLANGE 		0-91150-106-0 01 1 9603- ● ●
552 BOLT; FRAME
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 9603- ● ●
553 NUT; FRAME
M8 FLANGE 		0-91150-108-0 04 1 9603- ● ●
555 BOLT; PAD
(A) M10X25 FLANGE 		0-28281-025-0 08 1 9603- ● ●
555 BOLT; PAD
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 9603- ● ●
560 BRACKET
(A) 		1-65680-976-2 01 1 9603- ● ●
560 BRACKET
(B) 		1-65671-717-6 01 1 9603-9609 ● ●
560 BRACKET
EXC. ELECTRONIC GOV RED3(KG5) (B) 		1-65671-717-8 01 1 9610- ● ●
560 BRACKET
ELECTRONIC GOV RED3(KG5) (B) 		1-65671-715-9 01 1 9610-9701 ● ●
560 BRACKET
ELECTRONIC GOV RED3(KG5) (B) 		1-65671-756-0 01 1 9702-9904 ● ●
560 BRACKET
ELECTRONIC GOV RED3(KG5) (B) 		1-65671-760-0 01 1 9905-9912 ● ●
560 BRACKET
ELECTRONIC GOV RED3(KG5) (B) 		1-65671-760-2 01 1 0001- ●
560 BRACKET
ELECTRONIC GOV RED3(KG5) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (B) 		1-65671-760-2 01 1 0001- ●
560 BRACKET
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (C) 		1-65671-751-0 01 1 9603- ● ●
560 BRACKET
ELECTRONIC GOV RED3(KG5) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (B) 		1-65671-772-2 01 1 0001- ●
562 BOLT; PANEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 9603- ● ●
563 BEZEL; BRKT
ELECTRONIC GOV RED3(KG5) 		1-72448-410-3 01 1 9610- ● ●
566 PLUG; HOLE
OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 9603-9912 ● ●
566 PLUG; HOLE
OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 0001- ●
566 PLUG; HOLE
EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 0001- ●
571 BEZEL; POCKET
(A) 		1-72438-060-1 01 1 9603-9812 ● ●
571 BEZEL; POCKET
EXC. RADIO CLARION(SK2),RADIO AM/FM STEREO & TAPE PLAYER(UN3) (B) 		1-72438-151-0 01 1 9603-9812 ● ●
571 BEZEL; POCKET
EXC. RADIO CLARION(SK2),RADIO AM/FM STEREO & TAPE PLAYER(UN3) (B) 		1-72438-151-1 01 1 9901- ● ●
571 BEZEL; POCKET
(B) 		1-72438-151-1 01 1 9901- ● ●
574 PANEL; RELAY BOX 1-73907-365-6 01 1 9603- ● ●
575 BOLT; PANEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9603- ● ●
604 CLIP; INST PAD 1-09983-123-0 01 1 9603- ● ●
614 BRACKET; HARNESS
(A) 		1-65671-745-1 01 1 9603- ● ●
614 BRACKET; HARNESS
(B) 		1-65671-746-1 01 1 9603- ● ●
