◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXH ▶ 10585 - CXH RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-20B - TIMING GEAR CASE AND FLYWHEEL HOUSING ▶
0-20B — TIMING GEAR CASE AND FLYWHEEL HOUSING (#413) — 85 parça

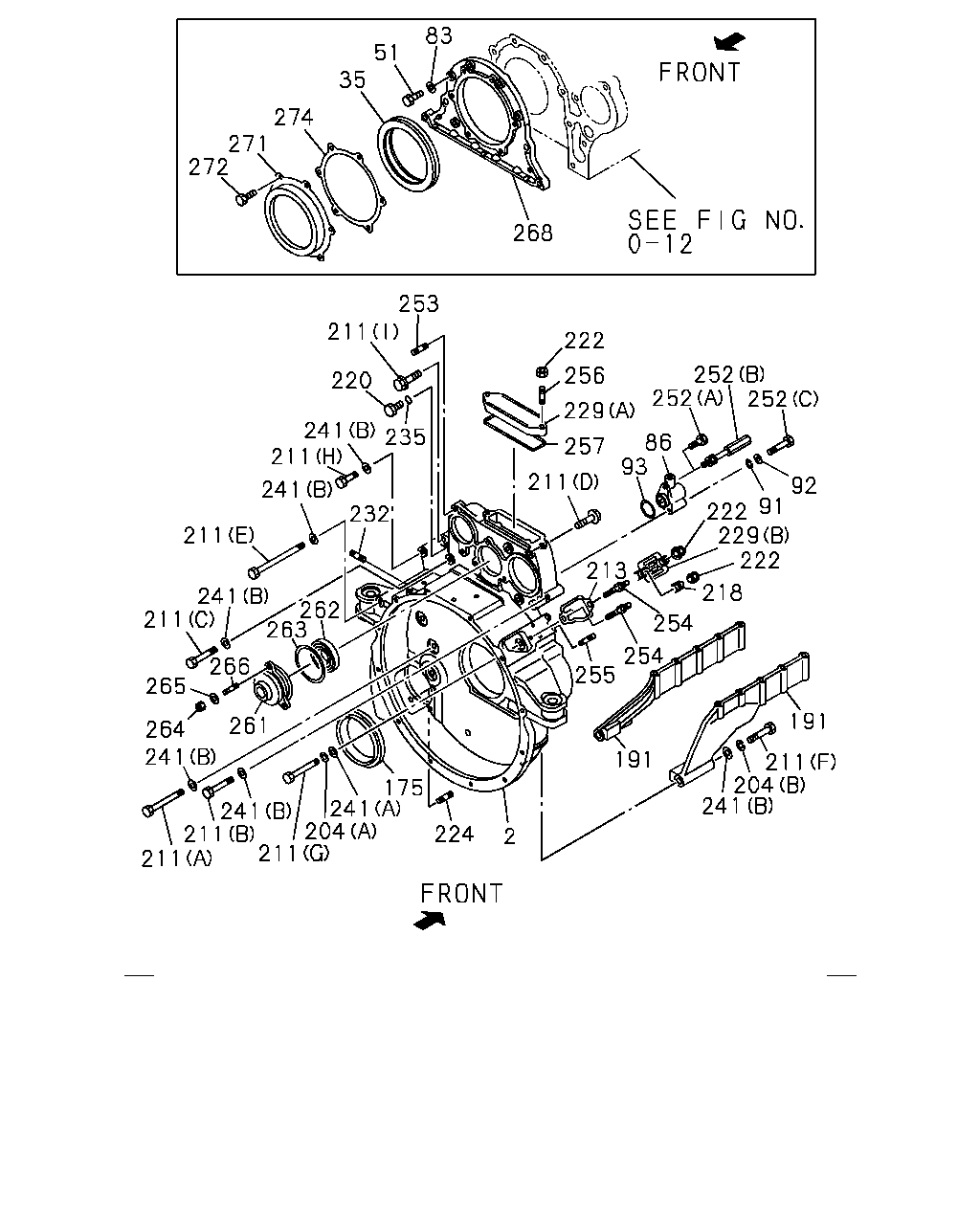

çizim 28189
83 51 35 274 271 272 268 253 222 211 252 256 220 229 235 241 211 252 252 92 86 257 93 241 211 232 211 262 241 211 263 266 265 264 261 241 241 211 211 211 91 222 229 222 213 218 191 254 211 254 255 191 2 224 175 241 204 241 204
BalonParca AdiParca NoAdetTipApplied Date A B
2 HOUSING; FLYWHEEL 1-11341-223-6 01 1 8712- ● ●
35 SEAL; OIL,CRANKSHAFT FRT
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09625-404-0 01 1 8712-8901 ●
35 SEAL; OIL,CRANKSHAFT FRT
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09625-435-0 01 1 8902-8905 ●
35 SEAL; OIL,CRANKSHAFT FRT
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09625-506-0 01 1 8906-9302 ● ●
35 SEAL; OIL,CRANKSHAFT FRT
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09625-524-2 01 1 9303- ●
51 BOLT; GEAR CASE COVER
M8X30 		9-01055-830-0 08 1 8712-8910 ●
51 BOLT; GEAR CASE COVER
M8X30 		9-02050-830-0 08 1 8911-9001 ●
51 BOLT; GEAR CASE COVER
M8X28 FLANGE 		0-28080-828-0 08 1 9002- ●
83 WASHER; PL,COVER
ID=8.4 		9-09160-508-0 08 1 8712-9001 ●
86 ELBOW; TACHOMETER DRIVE 1-85860-033-0 01 1 8712-8810 ●
86 ELBOW; TACHOMETER DRIVE 1-85860-039-1 01 1 8811-9309 ● ●
86 ELBOW; TACHOMETER DRIVE 1-85860-033-2 01 1 9310- ●
91 WASHER; LK,ELBOW
ID=8.2 		9-09150-508-0 01 1 8712- ● ●
92 WASHER; PL,ELBOW
ID=8.4 		9-09160-508-0 01 1 8712- ● ●
93 GASKET; ELBOW
ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.7 		1-09623-026-0 01 1 8712-9001 ●
93 GASKET; ELBOW
ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.7 		1-09623-416-0 01 1 9002- ●
175 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09625-400-0 01 1 8712-8807 ●
175 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09625-436-0 01 1 8808-8905 ●
175 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09625-507-1 01 1 8906-9302 ● ●
175 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09625-525-2 01 1 9303- ●
191 STAY; FLYWHEEL HSG
RH BANK 		1-11349-078-2 01 1 8712-9106 ● ●
191 STAY; FLYWHEEL HSG
RH BANK 		1-11349-168-0 01 1 9107- ●
191 STAY; FLYWHEEL HSG
LH BANK 		1-11349-124-2 01 1 8712-9106 ● ●
191 STAY; FLYWHEEL HSG
LH BANK 		1-11349-167-0 01 1 9107- ●
204 WASHER; LK,HSG
(A) ID=10.2 		9-09150-510-0 01 1 8712- ● ●
204 WASHER; LK,HSG
(B) ID=14.2 		9-09150-514-0 15 1 8712- ● ●
211 BOLT; HSG
(D) M10X28 		9-01931-028-0 02 1 8712-9001 ●
211 BOLT; HSG
(I) M10X30 		9-01931-030-0 01 1 8712-9001 ●
211 BOLT; HSG
(E) M14X230 		1-09020-003-1 01 1 8712- ● ●
211 BOLT; HSG
(F) M14X155 		1-09020-008-0 02 1 8712- ● ●
211 BOLT; HSG
(G) M10X115 		9-09804-203-1 01 1 8712- ● ●
211 BOLT; HSG
(A) M14X125 		9-09804-234-0 09 1 8712- ● ●
211 BOLT; HSG
(H) M14X55 		9-91656-455-0 01 1 8712-9005 ● ●
211 BOLT; HSG
(H) M14X55 		0-16806-455-0 01 1 9006- ●
211 BOLT; HSG
(B) M14X75 		9-91656-475-0 01 1 8712-9005 ● ●
211 BOLT; HSG
(B) M14X75 		0-16806-475-0 01 1 9006- ●
211 BOLT; HSG
(C) M14X95 		9-91656-495-0 01 1 8712-9005 ● ●
211 BOLT; HSG
(C) M14X95 		0-16806-495-0 01 1 9006-9306 ●
211 BOLT; HSG
(D) M10X25 		0-28121-025-0 02 1 9002-9002 ●
211 BOLT; HSG
(D) M10X25 FLANGE 		0-28181-025-0 02 1 9003- ●
211 BOLT; HSG
(I) M10X28 		0-28121-028-0 01 1 9002-9002 ●
211 BOLT; HSG
(I) M10X28 FLANGE 		0-28181-028-0 01 1 9003- ●
211 BOLT; HSG
(C) M14X95 		0-16806-495-0 01 1 9307- ●
213 POINTER; FLYWHEEL HSG 1-11342-010-0 01 1 8712- ● ●
218 WASHER; PL,COVER 1-11349-127-0 01 1 8712-9306 ● ●
218 WASHER; PL,COVER 1-11349-127-0 01 1 9307- ●
220 PLUG; GEAR CHECK HOLE
M12X9 		9-99202-312-0 01 1 8712-8804 ●
220 PLUG; GEAR CHECK HOLE 1-09604-066-1 01 1 8805- ● ●
222 NUT; COVER,TIMING CHECK HOLE
M8 FLANGE 		0-91150-108-0 02 1 9002- ●
224 STUD; STARTER
M14X35 L=56 		9-04411-435-0 03 1 8712- ● ●
229 COVER; TIMING CHECK HOLE
(A) 		1-11349-118-2 01 1 8712- ● ●
229 COVER; TIMING CHECK HOLE
(B) 		1-11349-126-0 01 1 8712- ● ●
232 STUD; OIL FILTER
M10X25 L=40 		9-09831-124-0 02 1 8712-9001 ●
232 STUD; OIL FILTER
M10X25 L=40 		9-04411-025-0 02 1 9002- ●
235 GASKET; PLUG GEAR CHECK HOLE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=12.2 		1-09630-084-0 01 1 8712- ● ●
241 WASHER; PL,HSG
(A) ID=10.5 OD=18 		9-09160-510-0 02 1 8712- ● ●
241 WASHER; PL,HSG
(B) ID=15 		9-09160-514-0 14 1 8712- ● ●
252 BOLT; GEAR BOX
(C) M8X22 		9-01970-822-0 01 1 8712-9001 ●
252 BOLT; GEAR BOX
(C) M8X70 		9-01055-870-0 01 1 8712-9005 ● ●
252 BOLT; GEAR BOX
(C) M8X70 		0-10805-870-0 01 1 9006- ●
252 BOLT; GEAR BOX
(A) M8X18 		0-28010-818-0 01 1 9002-9106 ●
252 BOLT; GEAR BOX
(B) M8X22 W/LK&PL WASHER L=102 		1-09009-129-1 01 1 9107- ●
253 STUD; POWER STRG PUMP
M10X30 L=45 		9-04411-030-0 02 1 8712-9001 ●
253 STUD; POWER STRG PUMP
M10X25 L=45 		9-04311-025-0 02 1 9002- ●
254 STUD; POINTER & COVER
M8X14,M8X14 L=33 		1-09300-058-1 02 1 8712- ● ●
255 STUD; RELAY LEVER BRKT
M8X16 L=28 		9-04110-816-0 04 1 8712- ● ●
256 STUD; COVER
M8X35 L=47 		9-04110-835-0 02 1 8712- ● ●
257 GASKET; TIMING CHECK HOLE
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-11349-119-0 01 1 8712-9001 ●
257 GASKET; TIMING CHECK HOLE
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-11349-142-0 01 1 9002- ●
261 COVER; INJ PUMP COUPLING 1-11349-117-0 01 1 8712- ● ●
262 BEARING 1-09810-126-0 01 1 8712- ● ●
263 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09623-268-0 01 1 8712-9001 ●
263 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09623-422-0 01 1 9002- ●
264 NUT; COVER
M8 FLANGE 		0-91150-108-0 02 1 8712-9001 ●
264 NUT; COVER
M8 		9-09110-408-0 03 1 8712-9001 ●
264 NUT; COVER
M8 FLANGE 		0-91150-108-0 05 1 9002- ●
265 WASHER; LK,COVER
ID=8.2 		9-09150-508-0 03 1 8712-9001 ●
266 STUD; COVER & TACHO BOX 1-09305-005-0 03 1 8712- ● ●
268 COVER; FRT 1-11321-024-2 01 1 8712-9001 ●
268 COVER; FRT 1-11320-056-1 01 1 9002- ●
271 COVER; DUST 1-11329-004-0 01 1 8712- ● ●
272 BOLT; DUST COVER
M8X12 		0-28020-812-0 06 1 8712-8905 ●
272 BOLT; DUST COVER
M8X10 FLANGE 		0-28020-810-0 06 1 8906-9005 ● ●
272 BOLT; DUST COVER
M8X10 FLANGE 		0-28080-810-0 06 1 9006- ●
274 GASKET; DUST COVER 1-11329-015-0 01 1 8712-8905 ●
