2-01 — CLUTCH (#41299) — 165 parça

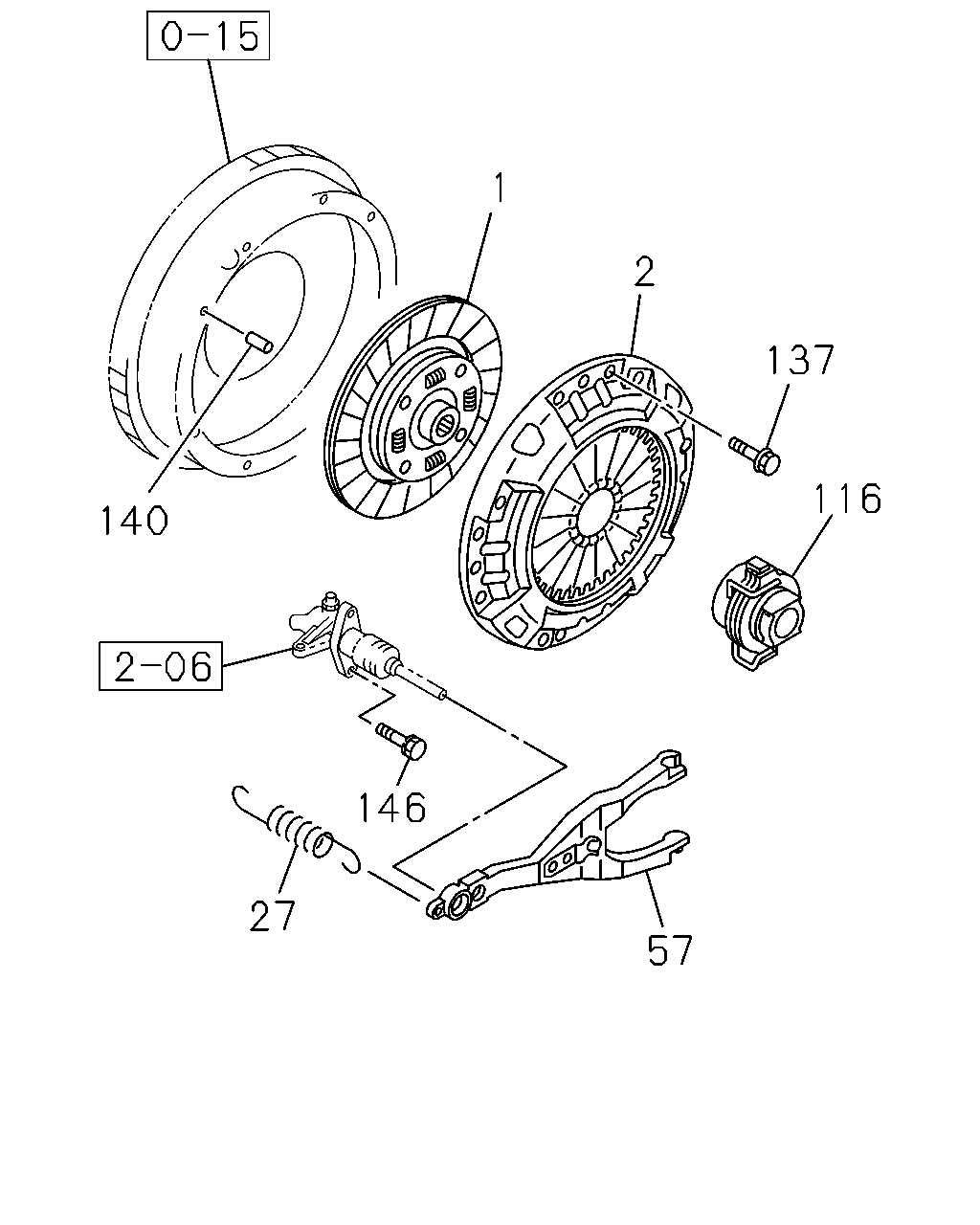

çizim 12911
1 2 137 116 140 146 27 57
BalonParca AdiParca NoAdetTipApplied Date A B C
1 00.886 DISC; CLUTCH 8-97259-940-0 01 1 0302-0308 ●
1 00.886 DISC; CLUTCH 8-97367-795-0 01 1 0309-0506 ●
1 00.886 DISC; CLUTCH
4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97367-795-0 01 1 0507-0606 ●
1 00.886 DISC; CLUTCH
4HK1-TCC ENG(RDV) HYDRO BRAKE BOOSTER<7QQ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97367-795-0 01 1 0607-1007 ●
1 00.886 DISC; CLUTCH
4HK1-TCC ENG(RDV) HYDRO BRAKE BOOSTER<7QQ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98164-917-0 01 1 1008- ●
1 00.886 DISC; CLUTCH 8-97320-355-0 01 1 0302-0412 ●
1 00.886 DISC; CLUTCH 8-97377-149-0 01 1 0501-0506 ●
1 00.886 DISC; CLUTCH
4JH1-TC ENG(RDM) 		8-97377-149-0 01 1 0507-0606 ●
1 00.886 DISC; CLUTCH
4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98037-004-2 01 1 0607- ● ●
1 00.886 DISC; CLUTCH
4HK1-TCN ENG(RDQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97362-235-0 01 1 0507-0606 ●
1 00.886 DISC; CLUTCH
4HK1-TCC ENG(RDV) EXC. HYDRO BRAKE BOOSTER<7QQ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97362-235-1 01 1 0607- ●
2 00.859 PLATE ASM; PRESSURE,CLU 8-97038-831-2 01 1 0302-0302 ●
2 00.859 PLATE ASM; PRESSURE,CLU
08.859 		8-97351-794-0 01 1 0303-0506 ●
2 00.859 PLATE ASM; PRESSURE,CLU
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 08.859 		8-97351-794-0 01 1 0507-0606 ● ●
2 00.859 PLATE ASM; PRESSURE,CLU
4HK1-TCC ENG(RDV) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 08.859 		8-97351-794-0 01 1 0607- ●
2 00.859 PLATE ASM; PRESSURE,CLU 8-97259-693-0 01 1 0302-0506 ●
2 00.859 PLATE ASM; PRESSURE,CLU
4JH1-TC ENG(RDM) 		8-97259-693-0 01 1 0507-0606 ●
2 00.859 PLATE ASM; PRESSURE,CLU
4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98040-093-0 01 1 0607- ● ●
27 00.837 SPRING; RETURN,SHIFT FORK
EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		8-97184-358-0 01 1 0302-0506 ●
27 00.837 SPRING; RETURN,SHIFT FORK
EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97184-358-0 01 1 0507-0606 ●
27 00.837 SPRING; RETURN,SHIFT FORK
4HK1-TCC ENG(RDV) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97184-358-0 01 1 0607-0812 ●
27 00.837 SPRING; RETURN,SHIFT FORK
4HK1-TCC ENG(RDV) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98025-314-0 01 1 0901- ●
27 00.837 SPRING; RETURN,SHIFT FORK
EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		8-97184-359-0 01 1 0302-0506 ●
27 00.837 SPRING; RETURN,SHIFT FORK
4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97184-359-0 01 1 0507-0606 ●
27 00.837 SPRING; RETURN,SHIFT FORK
4JJ1 ENG(LFB) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97184-359-0 01 1 0607-0812 ● ●
27 00.837 SPRING; RETURN,SHIFT FORK
4JJ1 ENG(LFB) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98025-313-0 01 1 0901- ● ●
57 00.795 FORK; SHIFT,CLU 8-97310-456-1 01 1 0302-0506 ●
57 00.795 FORK; SHIFT,CLU
4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97310-456-1 01 1 0507-0606 ●
57 00.795 FORK; SHIFT,CLU
4HK1-TCC ENG(RDV) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97310-456-1 01 1 0607- ●
57 00.795 FORK; SHIFT,CLU 8-97255-303-0 01 1 0302-0506 ●
57 00.795 FORK; SHIFT,CLU
4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97255-303-0 01 1 0507-0606 ●
57 00.795 FORK; SHIFT,CLU
4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97255-303-0 01 1 0607- ● ●
116 00.799 BLOCK; SHIFT,CLU 8-97255-313-0 01 1 0302-0506 ●
116 00.799 BLOCK; SHIFT,CLU
4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97255-313-0 01 1 0507-0606 ●
116 00.799 BLOCK; SHIFT,CLU
4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97255-313-0 01 1 0607- ● ●
137 00.862 BOLT; CLU COVER
02.559 M10X16 FLANGE 		0-28081-016-0 10 1 0302-0506 ● ●
137 00.862 BOLT; CLU COVER
4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 02.559 M10X16 FLANGE 		0-28081-016-0 10 1 0507-0512 ● ●
137 00.862 BOLT; CLU COVER
4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 02.483 M10X16 FLANGE 		0-28051-016-0 10 1 0601-0606 ● ●
137 00.862 BOLT; CLU COVER
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 02.483 M10X16 FLANGE 		0-28051-016-0 10 1 0607- ● ● ●
140 00.862 PIN; STRAIGHT
L=25 		8-94410-361-0 02 1 0302-0506 ● ●
140 00.862 PIN; STRAIGHT
4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=25 		8-94410-361-0 02 1 0507-0606 ● ●
140 00.862 PIN; STRAIGHT
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=25 		8-94410-361-0 02 1 0607- ● ● ●
146 00.780 BOLT; SLAVE CYL TO TRANS CASE
04.686 M8X30 FLANGE 		0-28680-830-0 02 1 0302-0506 ● ●
146 00.780 BOLT; SLAVE CYL TO TRANS CASE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.686 M8X30 FLANGE 		0-28680-830-0 02 1 0507-0512 ● ●
146 00.780 BOLT; SLAVE CYL TO TRANS CASE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.403 M8X30 FLANGE 		0-28650-830-0 02 1 0601-0606 ● ●
146 00.780 BOLT; SLAVE CYL TO TRANS CASE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.403 M8X30 FLANGE 		0-28650-830-0 02 1 0607- ● ● ●

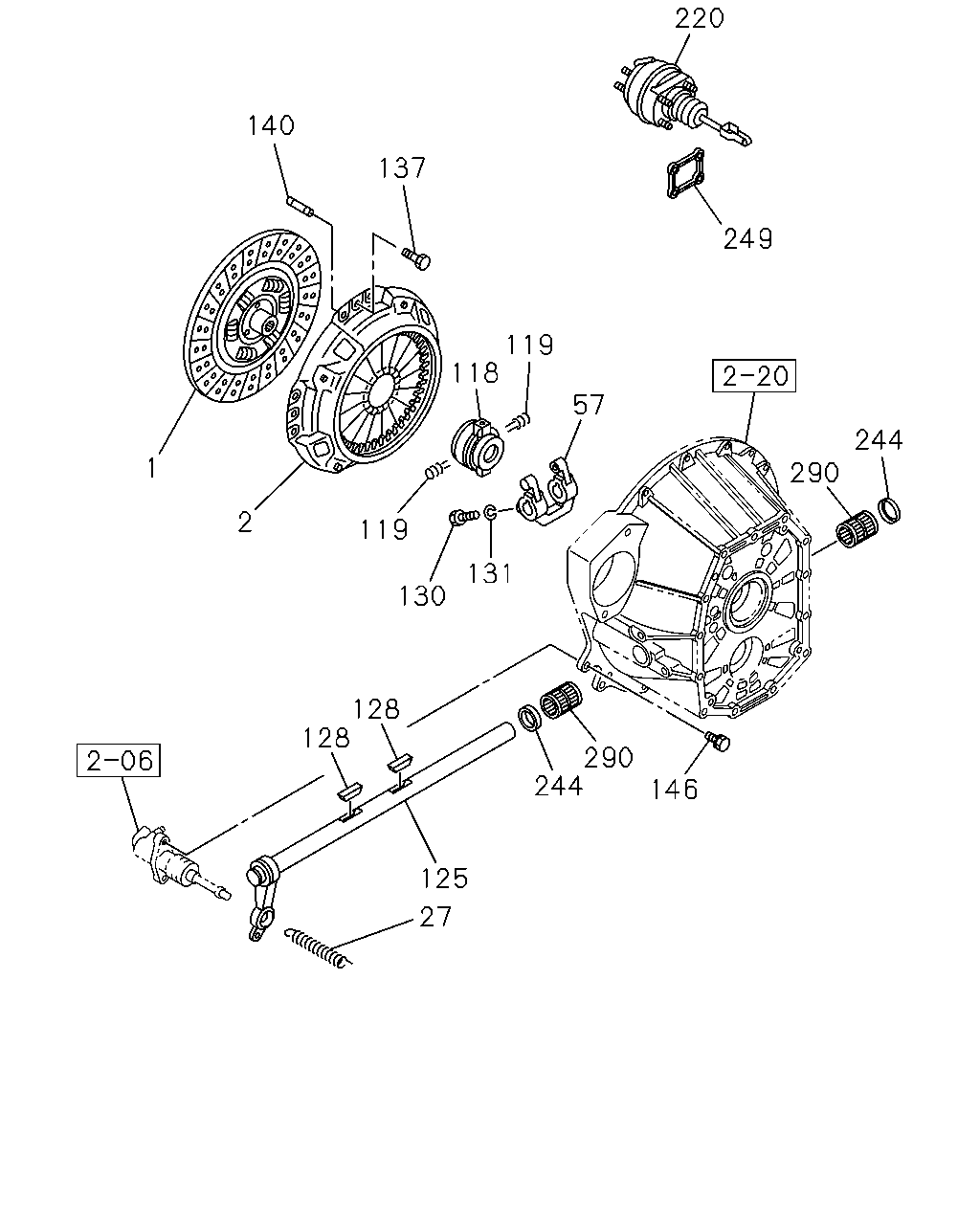

çizim 52591
220 140 137 249 119 118 57 244 1 290 2 119 131 130 128 128 290 244 146 125 27
BalonParca AdiParca NoAdetTipApplied Date A B C
1 00.886 DISC; CLUTCH 8-97259-940-0 01 1 0302-0308 ●
1 00.886 DISC; CLUTCH 8-97367-795-0 01 1 0309-0506 ●
1 00.886 DISC; CLUTCH
4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97367-795-0 01 1 0507-0606 ●
1 00.886 DISC; CLUTCH
4HK1-TCC ENG(RDV) HYDRO BRAKE BOOSTER<7QQ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97367-795-0 01 1 0607-1007 ●
1 00.886 DISC; CLUTCH
4HK1-TCC ENG(RDV) HYDRO BRAKE BOOSTER<7QQ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98164-917-0 01 1 1008- ●
1 00.886 DISC; CLUTCH 8-97320-355-0 01 1 0302-0412 ●
1 00.886 DISC; CLUTCH 8-97377-149-0 01 1 0501-0506 ●
1 00.886 DISC; CLUTCH
4JH1-TC ENG(RDM) 		8-97377-149-0 01 1 0507-0606 ●
1 00.886 DISC; CLUTCH
4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98037-004-2 01 1 0607- ● ●
1 00.886 DISC; CLUTCH
4HK1-TCN ENG(RDQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97362-235-0 01 1 0507-0606 ●
1 00.886 DISC; CLUTCH
4HK1-TCC ENG(RDV) EXC. HYDRO BRAKE BOOSTER<7QQ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97362-235-1 01 1 0607- ●
2 00.859 PLATE ASM; PRESSURE,CLU 8-97038-831-2 01 1 0302-0302 ●
2 00.859 PLATE ASM; PRESSURE,CLU
08.859 		8-97351-794-0 01 1 0303-0506 ●
2 00.859 PLATE ASM; PRESSURE,CLU
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 08.859 		8-97351-794-0 01 1 0507-0606 ● ●
2 00.859 PLATE ASM; PRESSURE,CLU
4HK1-TCC ENG(RDV) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 08.859 		8-97351-794-0 01 1 0607- ●
2 00.859 PLATE ASM; PRESSURE,CLU 8-97259-693-0 01 1 0302-0506 ●
2 00.859 PLATE ASM; PRESSURE,CLU
4JH1-TC ENG(RDM) 		8-97259-693-0 01 1 0507-0606 ●
2 00.859 PLATE ASM; PRESSURE,CLU
4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98040-093-0 01 1 0607- ● ●
27 00.837 SPRING; RETURN,SHIFT FORK
EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		8-97184-358-0 01 1 0302-0506 ●
27 00.837 SPRING; RETURN,SHIFT FORK
EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97184-358-0 01 1 0507-0606 ●
27 00.837 SPRING; RETURN,SHIFT FORK
4HK1-TCC ENG(RDV) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97184-358-0 01 1 0607-0812 ●
27 00.837 SPRING; RETURN,SHIFT FORK
4HK1-TCC ENG(RDV) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98025-314-0 01 1 0901- ●
27 00.837 SPRING; RETURN,SHIFT FORK
EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> 		8-97184-359-0 01 1 0302-0506 ●
27 00.837 SPRING; RETURN,SHIFT FORK
4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97184-359-0 01 1 0507-0606 ●
27 00.837 SPRING; RETURN,SHIFT FORK
4JJ1 ENG(LFB) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97184-359-0 01 1 0607-0812 ● ●
27 00.837 SPRING; RETURN,SHIFT FORK
4JJ1 ENG(LFB) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98025-313-0 01 1 0901- ● ●
57 00.795 FORK; SHIFT,CLU 8-97310-456-1 01 1 0302-0506 ●
57 00.795 FORK; SHIFT,CLU
4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97310-456-1 01 1 0507-0606 ●
57 00.795 FORK; SHIFT,CLU
4HK1-TCC ENG(RDV) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97310-456-1 01 1 0607- ●
57 00.795 FORK; SHIFT,CLU 8-97255-303-0 01 1 0302-0506 ●
57 00.795 FORK; SHIFT,CLU
4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97255-303-0 01 1 0507-0606 ●
57 00.795 FORK; SHIFT,CLU
4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97255-303-0 01 1 0607- ● ●
118 00.799 BEARING; CLU RELEASE 1-31310-012-0 01 1 0302-0506 ●
118 00.799 BEARING; CLU RELEASE
4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		1-31310-012-0 01 1 0507-0606 ●
118 00.799 BEARING; CLU RELEASE
4HK1-TCC ENG(RDV) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		1-31310-012-0 01 1 0607- ●
119 00.797 SPRING; SHIFT FORK 1-31329-024-0 02 1 0302-0506 ●
119 00.797 SPRING; SHIFT FORK
4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		1-31329-024-0 02 1 0507-0606 ●
119 00.797 SPRING; SHIFT FORK
4HK1-TCC ENG(RDV) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		1-31329-024-0 02 1 0607- ●
125 00.805 SHAFT; CLU 8-97310-435-0 01 1 0302-0506 ●
125 00.805 SHAFT; CLU
4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97310-435-0 01 1 0507-0606 ●
125 00.805 SHAFT; CLU
4HK1-TCC ENG(RDV) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97310-435-0 01 1 0607- ●
128 00.833 KEY; FEATHER,CLU SHAFT 9-09867-008-0 02 1 0302-0506 ●
128 00.833 KEY; FEATHER,CLU SHAFT
4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		9-09867-008-0 02 1 0507-0606 ●
128 00.833 KEY; FEATHER,CLU SHAFT
4HK1-TCC ENG(RDV) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		9-09867-008-0 02 1 0607- ●
130 00.833 SCREW; SHIFT FORK
08.977 M8X14 		9-06120-814-0 01 1 0302-0506 ●
130 00.833 SCREW; SHIFT FORK
4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 08.977 M8X14 		9-06120-814-0 01 1 0507-0512 ●
130 00.833 SCREW; SHIFT FORK
4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M8X14 		0-61200-814-0 01 1 0601-0606 ●
130 00.833 SCREW; SHIFT FORK
4HK1-TCC ENG(RDV) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M8X14 		0-61200-814-0 01 1 0607- ●
131 00.833 WASHER; LK,SHIFT FORK
00.002 ID=8.2 		9-09150-508-0 01 1 0302-0506 ●
131 00.833 WASHER; LK,SHIFT FORK
4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 00.002 ID=8.2 		9-09150-508-0 01 1 0507-0603 ●
131 00.833 WASHER; LK,SHIFT FORK
4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.439 ID=8.2 		0-91510-508-0 01 1 0604-0606 ●
131 00.833 WASHER; LK,SHIFT FORK
4HK1-TCC ENG(RDV) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.439 ID=8.2 		0-91510-508-0 01 1 0607- ●
137 00.862 BOLT; CLU COVER
02.559 M10X16 FLANGE 		0-28081-016-0 10 1 0302-0506 ● ●
137 00.862 BOLT; CLU COVER
4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 02.559 M10X16 FLANGE 		0-28081-016-0 10 1 0507-0512 ● ●
137 00.862 BOLT; CLU COVER
4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 02.483 M10X16 FLANGE 		0-28051-016-0 10 1 0601-0606 ● ●
137 00.862 BOLT; CLU COVER
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 02.483 M10X16 FLANGE 		0-28051-016-0 10 1 0607- ● ● ●
140 00.862 PIN; STRAIGHT
L=25 		8-94410-361-0 02 1 0302-0506 ● ●
140 00.862 PIN; STRAIGHT
4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=25 		8-94410-361-0 02 1 0507-0606 ● ●
140 00.862 PIN; STRAIGHT
4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=25 		8-94410-361-0 02 1 0607- ● ● ●
146 00.780 BOLT; SLAVE CYL TO TRANS CASE
04.686 M8X30 FLANGE 		0-28680-830-0 02 1 0302-0506 ● ●
146 00.780 BOLT; SLAVE CYL TO TRANS CASE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.686 M8X30 FLANGE 		0-28680-830-0 02 1 0507-0512 ● ●
146 00.780 BOLT; SLAVE CYL TO TRANS CASE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.403 M8X30 FLANGE 		0-28650-830-0 02 1 0601-0606 ● ●
146 00.780 BOLT; SLAVE CYL TO TRANS CASE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.403 M8X30 FLANGE 		0-28650-830-0 02 1 0607- ● ● ●
220 00.775 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. POWER ASSIST CLUTCH(S2T) 		8-97166-854-1 01 1 0302-0506 ●
220 00.775 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) POWER ASSIST CLUTCH(S2T) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97166-854-1 01 1 0507-0606 ● ●
220 00.775 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. 4HK1-TCC ENG(RDV) POWER ASSIST CLUTCH(S2T) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97166-854-1 01 1 0607- ●
220 00.775 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. 4JJ1 ENG(LFB) POWER ASSIST CLUTCH(S2T) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97162-962-1 01 1 0607- ● ●
244 00.805 SEAL; DUST
ALSO INCLUDED IN GASKET SET(M/T). 00.797 		1-09625-002-0 02 1 0302-0506 ●
244 00.805 SEAL; DUST
ALSO INCLUDED IN GASKET SET(M/T). 4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 00.797 		1-09625-002-0 02 1 0507-0606 ●
244 00.805 SEAL; DUST
ALSO INCLUDED IN GASKET SET(M/T). 4HK1-TCC ENG(RDV) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 00.797 		1-09625-002-0 02 1 0607- ●
249 00.864 SPACER; CLU BOOSTER
POWER ASSIST CLUTCH(S2T) 		8-97167-489-0 01 1 0302-0506 ●
249 00.864 SPACER; CLU BOOSTER
POWER ASSIST CLUTCH(S2T) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97167-489-0 01 1 0507-0606 ● ●
249 00.864 SPACER; CLU BOOSTER
POWER ASSIST CLUTCH(S2T) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97167-489-0 01 1 0607- ● ● ●
290 00.862 BEARING; NEEDLE
00.683 NTN 		1-09811-002-1 02 1 0302-0506 ●
290 00.862 BEARING; NEEDLE
4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 00.683 NTN 		1-09811-002-1 02 1 0507-0606 ●
290 00.862 BEARING; NEEDLE
4HK1-TCC ENG(RDV) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 00.683 NTN 		1-09811-002-1 02 1 0607- ●
çizim 54008
296 209 297 296 292 299 299 293 294 295 300 298 298 302 306 291 305 301 303
BalonParca AdiParca NoAdetTipApplied Date A B C
209 00.885 CLUTCH ASM
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97349-660-0 01 1 0507-0507 ●
209 00.885 CLUTCH ASM
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97378-723-2 01 1 0507- ●
209 00.885 CLUTCH ASM
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97386-360-0 01 1 0507-0606 ●
209 00.885 CLUTCH ASM
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98044-525-0 01 1 0607-0904 ● ●
209 00.885 CLUTCH ASM
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98116-930-1 01 1 0905- ● ●
291 00.863 COUPLING; FLUID
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97349-657-2 01 1 0507-0606 ●
291 00.863 COUPLING; FLUID
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98022-270-0 01 1 0607-0607 ●
291 00.863 COUPLING; FLUID
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98056-709-1 01 1 0608- ●
291 00.863 COUPLING; FLUID
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98004-189-0 01 1 0507-0606 ●
291 00.863 COUPLING; FLUID
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98030-634-0 01 1 0607-0707 ● ●
291 00.863 COUPLING; FLUID
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98087-659-1 01 1 0708- ● ●
292 00.862 RING; SEAL
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97255-329-0 01 1 0507-0606 ● ●
292 00.862 RING; SEAL
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97255-329-0 01 1 0607- ● ● ●
293 00.799 BAND; BRAKE
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97254-651-0 01 1 0507-0606 ● ●
293 00.799 BAND; BRAKE
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97254-651-0 01 1 0607- ● ● ●
294 00.846 PIN; ANCHOR
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97255-703-0 01 1 0507-0606 ● ●
294 00.846 PIN; ANCHOR
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97255-703-0 01 1 0607- ● ● ●
295 00.864 BOLT; ANCHOR PIN
TRANSMISSION CONTROL-SMOOTHER(8GF) 02.664 M8X20 FLANGE 		0-28680-820-0 01 1 0507-0512 ● ●
295 00.864 BOLT; ANCHOR PIN
TRANSMISSION CONTROL-SMOOTHER(8GF) 01.531 M8X20 FLANGE 		0-28650-820-0 01 1 0601-0606 ● ●
295 00.864 BOLT; ANCHOR PIN
TRANSMISSION CONTROL-SMOOTHER(8GF) 01.531 M8X20 FLANGE 		0-28650-820-0 01 1 0607- ● ● ●
296 00.862 BEARING; THRUST
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97255-688-0 01 1 0507-0606 ● ●
296 00.862 BEARING; THRUST
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97255-688-0 01 1 0607- ● ● ●
296 00.862 BEARING; THRUST
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97255-689-0 01 1 0507-0606 ● ●
296 00.862 BEARING; THRUST
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97255-689-0 01 1 0607- ● ● ●
297 00.862 WASHER; THRUST
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97300-070-0 01 1 0507-0606 ● ●
297 00.862 WASHER; THRUST
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97300-070-0 01 1 0607- ● ● ●
298 04.020 PUMP ASM; OIL
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97380-250-1 01 1 0507-0606 ●
298 04.020 PUMP ASM; OIL
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98002-361-2 01 1 0507-0606 ●
298 04.020 PUMP ASM; OIL
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98002-361-3 01 1 0607- ● ● ●
299 04.105 RING; SEAL
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97255-330-0 02 1 0507-0606 ● ●
299 04.105 RING; SEAL
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97255-330-0 02 1 0607- ● ● ●
300 04.226 BOLT; OIL PUMP
TRANSMISSION CONTROL-SMOOTHER(8GF) 03.704 M8X40 FLANGE 		0-28680-840-0 11 1 0507-0512 ● ●
300 04.226 BOLT; OIL PUMP
TRANSMISSION CONTROL-SMOOTHER(8GF) 00.685 M8X40 FLANGE 		0-28650-840-0 11 1 0601-0606 ● ●
300 04.226 BOLT; OIL PUMP
TRANSMISSION CONTROL-SMOOTHER(8GF) 00.685 M8X40 FLANGE 		0-28650-840-0 11 1 0607- ● ● ●
301 04.166 SEAL; OIL PUMP
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97289-811-0 01 1 0507-0606 ● ●
301 04.166 SEAL; OIL PUMP
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97289-811-0 01 1 0607- ● ● ●
302 04.226 RING; OIL PUMP
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97255-188-0 01 1 0507-0606 ● ●
302 04.226 RING; OIL PUMP
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97255-188-0 01 1 0607- ● ● ●
303 02.480 HARNESS ASM; OIL PUMP
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97316-621-1 01 1 0507-0606 ● ●
303 02.480 HARNESS ASM; OIL PUMP
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97316-621-1 01 1 0607- ● ● ●
306 00.785 CLIP; BAND
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97138-392-0 01 1 0507-0606 ● ●
306 00.785 CLIP; BAND
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97138-392-0 01 1 0607-0905 ● ● ●
306 00.785 CLIP; BAND
TRANSMISSION CONTROL-SMOOTHER(8GF) 02.559 L=100 		8-94279-939-0 01 1 0906- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
