1-45 — WATER SEDIMENTER; FUEL (#41295) — 258 parça

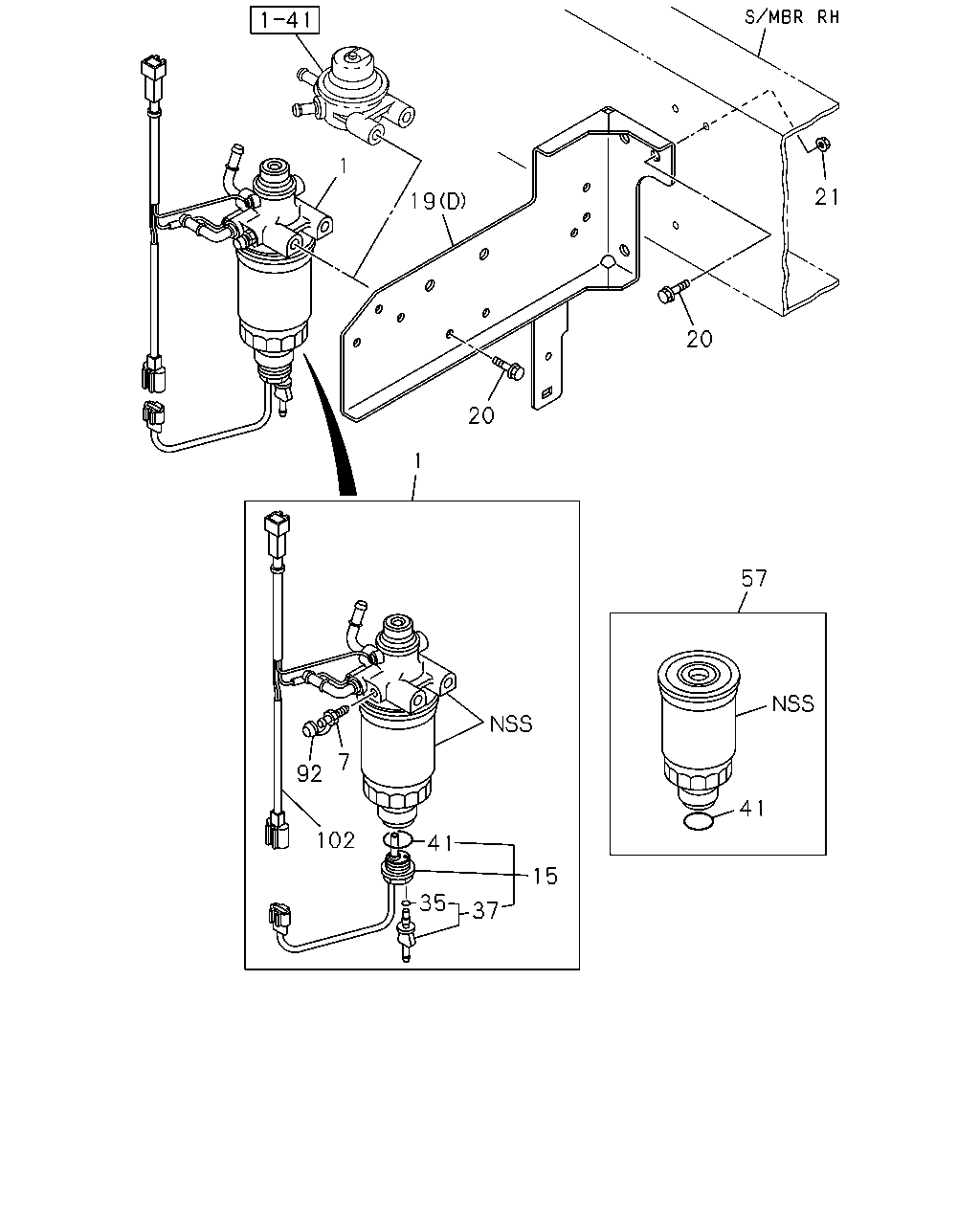

çizim 51944
1 21 19 20 20 1 57 7 92 41 102 41 15 35 37
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 03.890 SEDIMENTER; FUEL
4HE1 ENG(RLY) 		8-97188-042-0 01 1 0302-0506 ● ● ● ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FUEL SEDIMENTER WITH HEATER<6HU> 		8-98008-066-1 01 1 0507-0606 ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4HK1-TCN ENG(RDQ) FUEL SEDIMENTER WITH HEATER<6HU> 		8-98008-066-1 01 1 0507-0606 ●
1 03.890 SEDIMENTER; FUEL
4JH1 ENG(RJX) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-97240-126-2 01 1 0302-0506 ● ● ●
1 03.890 SEDIMENTER; FUEL
4JH1-TC ENG(RDM) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-97240-126-2 01 1 0507-0606 ● ● ●
1 03.890 SEDIMENTER; FUEL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-98021-775-1 01 1 0507-0606 ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4HK1-TCN ENG(RDQ) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-98021-775-1 01 1 0507-0606 ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4HE1 ENG(RLY) 		9-13219-070-0 01 1 0302-0506 ● ● ● ● ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 		8-97172-546-1 01 1 0507-0606 ● ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4HK1-TCN ENG(RDQ) 		8-97172-546-1 01 1 0507-0606 ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4JH1 ENG(RJX) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-94132-674-0 01 1 0302-0506 ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4JH1-TC ENG(RDM) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-94132-674-0 01 1 0507-0606 ● ● ●
15 03.890 SENSOR ASM; SEDIMENTER
4JH1 ENG(RJX) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-97079-821-0 01 1 0302-0506 ● ● ●
15 03.890 SENSOR ASM; SEDIMENTER
4JH1-TC ENG(RDM) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-97079-821-0 01 1 0507-0606 ● ● ●
15 03.890 SENSOR ASM; SEDIMENTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FUEL SEDIMENTER WITH HEATER<6HU> 		8-98004-758-0 01 1 0507-0606 ● ● ● ●
15 03.890 SENSOR ASM; SEDIMENTER
4HK1-TCN ENG(RDQ) FUEL SEDIMENTER WITH HEATER<6HU> 		8-98004-758-0 01 1 0507-0606 ●
15 03.890 SENSOR ASM; SEDIMENTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-98009-886-0 01 1 0507-0606 ● ● ● ●
15 03.890 SENSOR ASM; SEDIMENTER
4HK1-TCN ENG(RDQ) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-98009-886-0 01 1 0507-0606 ●
19 03.890 BRACKET; FUEL SEDIMENTER
4JH1 ENG(RJX) (C) 		8-97090-298-2 01 1 0302-0306 ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
4JH1 ENG(RJX) (C) 		8-97370-092-0 01 1 0307-0506 ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
4JH1-TC ENG(RDM) (C) 		8-97370-092-0 01 1 0507-0606 ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HE1 ENG(RLY) FUEL FILTER DUAL(S6B) (A) 		8-97363-088-0 01 1 0302-0506 ● ● ● ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (D) 		8-97368-101-5 01 1 0507-0606 ● ● ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HK1-TCN ENG(RDQ) (D) 		8-97368-101-5 01 1 0507-0606 ●
19 03.890 BRACKET; FUEL SEDIMENTER
FRAME STRAIGHT TYPE<7KJ> (D) 		8-97368-101-5 01 1 0607- ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
(D) 		8-97368-101-5 01 1 0607- ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HE1 ENG(RLY) EXC. FUEL FILTER DUAL(S6B) (B) 		8-97182-048-2 01 1 0302-0309 ● ● ● ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HE1 ENG(RLY) (B) 		8-97182-048-2 01 1 0302-0309 ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HE1 ENG(RLY) EXC. FUEL FILTER DUAL(S6B) (B) 		8-97372-020-0 01 1 0310-0310 ● ● ● ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HE1 ENG(RLY) (B) 		8-97372-020-0 01 1 0310-0310 ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HE1 ENG(RLY) EXC. FUEL FILTER DUAL(S6B) (B) 		8-97182-048-2 01 1 0311-0506 ● ● ● ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HE1 ENG(RLY) (B) 		8-97182-048-2 01 1 0311-0506 ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HE1 ENG(RLY) FUEL FILTER DUAL(S6B) 00.685 M10X30 FLANGE 		0-28081-030-0 02 1 0302-0302 ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HE1 ENG(RLY) FUEL FILTER DUAL(S6B) 00.685 M10X30 FLANGE 		0-28081-030-0 02 1 0302-0302 ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4JH1 ENG(RJX),4HE1 ENG(RLY) 00.685 M10X30 FLANGE 		0-28081-030-0 02 1 0302-0302 ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HE1 ENG(RLY) 00.685 M10X30 FLANGE 		0-28081-030-0 02 1 0302-0302 ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4JH1 ENG(RJX) 00.685 M10X30 FLANGE 		0-28081-030-0 04 1 0303-0506 ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4JH1-TC ENG(RDM) 00.685 M10X30 FLANGE 		0-28081-030-0 04 1 0507-0512 ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4JH1-TC ENG(RDM) M10X30 FLANGE 		0-28051-030-0 04 1 0601-0606 ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HE1 ENG(RLY) 03.405 M10X30 FLANGE 		0-28681-030-0 03 1 0302-0506 ● ● ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.405 M10X30 FLANGE 		0-28681-030-0 03 1 0507-0512 ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HK1-TCN ENG(RDQ) 03.405 M10X30 FLANGE 		0-28681-030-0 03 1 0507-0512 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 00.029 M10X30 FLANGE 		0-28651-030-0 03 1 0601-0606 ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HK1-TCN ENG(RDQ) 00.029 M10X30 FLANGE 		0-28651-030-0 03 1 0601-0606 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
FRAME STRAIGHT TYPE<7KJ> 00.029 M10X30 FLANGE 		0-28651-030-0 03 1 0607- ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
00.029 M10X30 FLANGE 		0-28651-030-0 03 1 0607- ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HE1 ENG(RLY) 00.685 M10X30 FLANGE 		0-28081-030-0 02 1 0303-0506 ● ● ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HE1 ENG(RLY) FUEL FILTER DUAL(S6B) 00.685 M10X30 FLANGE 		0-28081-030-0 02 1 0303-0506 ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4JH1-TC ENG(RDM) 02.664 M8X20 FLANGE 		0-28680-820-0 02 1 0507-0512 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) 02.664 M8X20 FLANGE 		0-28680-820-0 02 1 0507-0512 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 02.664 M8X20 FLANGE 		0-28680-820-0 02 1 0507-0512 ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ) 02.664 M8X20 FLANGE 		0-28680-820-0 02 1 0507-0512 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4JH1-TC ENG(RDM) 01.531 M8X20 FLANGE 		0-28650-820-0 02 1 0601-0606 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) 01.531 M8X20 FLANGE 		0-28650-820-0 02 1 0601-0606 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.531 M8X20 FLANGE 		0-28650-820-0 02 1 0601-0606 ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ) 01.531 M8X20 FLANGE 		0-28650-820-0 02 1 0601-0606 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4JH1 ENG(RJX) 02.664 M8X20 FLANGE 		0-28680-820-0 02 1 0302-0506 ● ● ●
21 03.890 NUT; BRKT TO FRAME
4JH1 ENG(RJX) 04.785 M10 FLANGE 		0-91150-110-0 03 1 0302-0302 ● ●
21 03.890 NUT; BRKT TO FRAME
4JH1 ENG(RJX) 04.785 M10 FLANGE 		0-91150-110-0 02 1 0303-0506 ● ●
21 03.890 NUT; BRKT TO FRAME
4JH1-TC ENG(RDM) 04.785 M10 FLANGE 		0-91150-110-0 02 1 0507-0602 ● ●
21 03.890 NUT; BRKT TO FRAME
4JH1-TC ENG(RDM) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0603-0606 ● ●
21 03.890 NUT; BRKT TO FRAME
FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 02 1 0607- ● ●
21 03.890 NUT; BRKT TO FRAME
03.162 M10 FLANGE 		0-91180-110-0 02 1 0607- ● ●
21 03.890 NUT; BRKT TO FRAME
4HE1 ENG(RLY) FUEL FILTER DUAL(S6B) 04.785 M10 FLANGE 		0-91150-110-0 02 1 0302-0302 ● ● ● ● ●
35 03.890 GASKET; DRAIN PLUG
4HE1 ENG(RLY) 		1-09623-490-0 01 1 0302-0506 ● ● ● ● ● ● ●
35 03.890 GASKET; DRAIN PLUG
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 		8-98004-898-0 01 1 0507-0606 ● ● ● ●
35 03.890 GASKET; DRAIN PLUG
4HK1-TCN ENG(RDQ) 		8-98004-898-0 01 1 0507-0606 ●
37 03.890 PLUG; SENSOR
4JH1 ENG(RJX) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-97123-549-0 01 1 0302-0506 ● ● ●
37 03.890 PLUG; SENSOR
4JH1-TC ENG(RDM) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-97123-549-0 01 1 0507-0606 ● ● ●
37 03.890 PLUG; SENSOR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 		8-98004-899-0 01 1 0507-0606 ● ● ● ●
37 03.890 PLUG; SENSOR
4HK1-TCN ENG(RDQ) 		8-98004-899-0 01 1 0507-0606 ●
41 03.890 GASKET; SENSOR TO CASE
4JH1 ENG(RJX) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 08.927 		9-09563-334-0 01 1 0302-0506 ● ● ●
41 03.890 GASKET; SENSOR TO CASE
4JH1-TC ENG(RDM) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 08.927 		9-09563-334-0 01 1 0507-0606 ●
41 03.890 GASKET; SENSOR TO CASE
4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 08.927 		9-09563-334-0 01 1 0507-0606 ●
41 03.890 GASKET; SENSOR TO CASE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 08.927 		9-09563-334-0 01 1 0507-0606 ● ● ●
41 03.890 GASKET; SENSOR TO CASE
4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 08.927 		9-09563-334-0 01 1 0507-0606 ●
41 03.890 GASKET; SENSOR TO CASE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FUEL SEDIMENTER WITH HEATER<6HU> 03.417 		1-09623-649-0 01 1 0507-0606 ● ● ● ●
41 03.890 GASKET; SENSOR TO CASE
4HK1-TCN ENG(RDQ) FUEL SEDIMENTER WITH HEATER<6HU> 03.417 		1-09623-649-0 01 1 0507-0606 ●
57 03.890 CARTRIDGE KIT; FUEL FILTER
4JH1 ENG(RJX) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-94369-299-3 01 1 0302-0506 ● ● ●
57 03.890 CARTRIDGE KIT; FUEL FILTER
4JH1-TC ENG(RDM) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-94369-299-3 01 1 0507-0606 ● ● ●
57 03.890 CARTRIDGE KIT; FUEL FILTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FUEL SEDIMENTER WITH HEATER<6HU> 		8-98021-811-0 01 1 0507-0511 ● ● ● ●
57 03.890 CARTRIDGE KIT; FUEL FILTER
4HK1-TCN ENG(RDQ) FUEL SEDIMENTER WITH HEATER<6HU> 		8-98021-811-0 01 1 0507-0511 ●
57 03.890 CARTRIDGE KIT; FUEL FILTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FUEL SEDIMENTER WITH HEATER<6HU> 		8-98031-847-0 01 1 0512-0606 ● ● ● ●
57 03.890 CARTRIDGE KIT; FUEL FILTER
4HK1-TCN ENG(RDQ) FUEL SEDIMENTER WITH HEATER<6HU> 		8-98031-847-0 01 1 0512-0606 ●
57 03.890 CARTRIDGE KIT; FUEL FILTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-98002-344-0 01 1 0507-0602 ● ● ● ●
57 03.890 CARTRIDGE KIT; FUEL FILTER
4HK1-TCN ENG(RDQ) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-98002-344-0 01 1 0507-0602 ●
57 03.890 CARTRIDGE KIT; FUEL FILTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-98031-840-0 01 1 0603-0606 ● ● ● ●
57 03.890 CARTRIDGE KIT; FUEL FILTER
4HK1-TCN ENG(RDQ) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-98031-840-0 01 1 0603-0606 ●
92 01.203 CAP; DRAIN
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.417 		8-97172-548-0 01 1 0507-0606 ● ● ● ●
92 01.203 CAP; DRAIN
4HK1-TCN ENG(RDQ) 03.417 		8-97172-548-0 01 1 0507-0606 ●
102 02.480 HARNESS; SEDIMENTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FUEL SEDIMENTER WITH HEATER<6HU> 		8-97372-339-0 01 1 0507-0606 ● ● ● ●
102 02.480 HARNESS; SEDIMENTER
4HK1-TCN ENG(RDQ) FUEL SEDIMENTER WITH HEATER<6HU> 		8-97372-339-0 01 1 0507-0606 ●

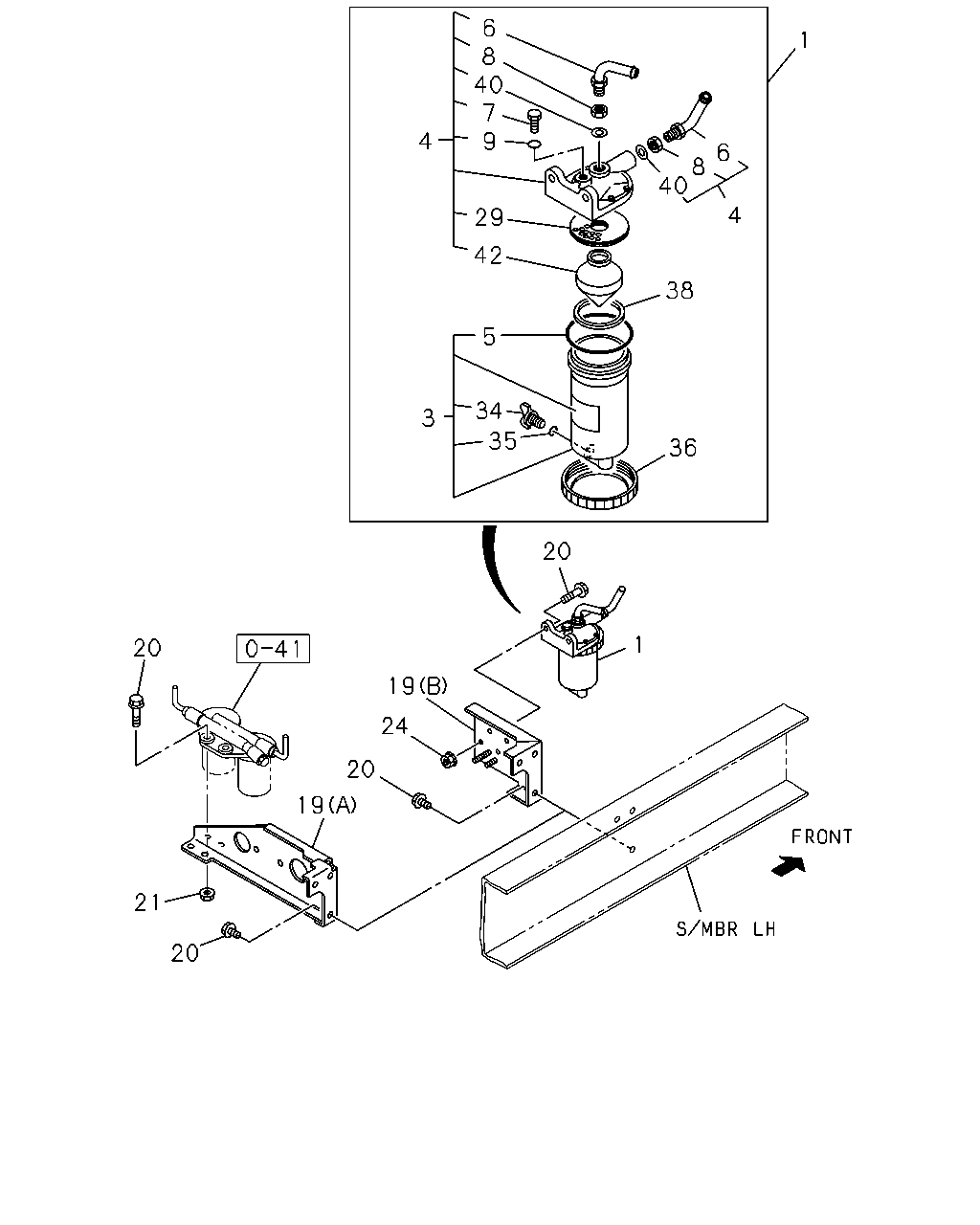

çizim 52784
6 8 40 7 9 1 4 6 8 40 4 29 42 38 5 34 3 35 36 20 1 20 19 24 20 19 21 20
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 03.890 SEDIMENTER; FUEL
4HE1 ENG(RLY) 		8-97188-042-0 01 1 0302-0506 ● ● ● ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FUEL SEDIMENTER WITH HEATER<6HU> 		8-98008-066-1 01 1 0507-0606 ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4HK1-TCN ENG(RDQ) FUEL SEDIMENTER WITH HEATER<6HU> 		8-98008-066-1 01 1 0507-0606 ●
1 03.890 SEDIMENTER; FUEL
4JH1 ENG(RJX) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-97240-126-2 01 1 0302-0506 ● ● ●
1 03.890 SEDIMENTER; FUEL
4JH1-TC ENG(RDM) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-97240-126-2 01 1 0507-0606 ● ● ●
1 03.890 SEDIMENTER; FUEL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-98021-775-1 01 1 0507-0606 ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4HK1-TCN ENG(RDQ) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-98021-775-1 01 1 0507-0606 ●
3 03.890 BODY ASM; SEDIMENTER
4HE1 ENG(RLY) 		1-13211-192-0 01 1 0302-0506 ● ● ● ● ● ● ●
4 03.890 COVER; UPR,SEDIMENTER ASM
4HE1 ENG(RLY) 		1-13212-146-0 01 1 0302-0506 ● ● ● ● ● ● ●
5 03.890 GASKET; UPR COVER,SEDIMENTER
4HE1 ENG(RLY) 		1-09623-491-0 01 1 0302-0506 ● ● ● ● ● ● ●
6 03.890 CONNECTOR ASM; SEDIMENTER
4HE1 ENG(RLY) 		1-13229-002-0 02 1 0302-0506 ● ● ● ● ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4HE1 ENG(RLY) 		9-13219-070-0 01 1 0302-0506 ● ● ● ● ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 		8-97172-546-1 01 1 0507-0606 ● ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4HK1-TCN ENG(RDQ) 		8-97172-546-1 01 1 0507-0606 ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4JH1 ENG(RJX) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-94132-674-0 01 1 0302-0506 ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4JH1-TC ENG(RDM) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-94132-674-0 01 1 0507-0606 ● ● ●
8 03.890 STOPPER; CONN,SEDIMENTER
4HE1 ENG(RLY) 		1-13229-001-0 02 1 0302-0506 ● ● ● ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HE1 ENG(RLY) 03.162 ID=8.2 OD=13.2 		1-09630-082-0 01 1 0302-0506 ● ● ● ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4JH1 ENG(RJX) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-94132-675-0 01 1 0302-0506 ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4JH1-TC ENG(RDM) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-94132-675-0 01 1 0507-0606 ● ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
4JH1 ENG(RJX) (C) 		8-97090-298-2 01 1 0302-0306 ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
4JH1 ENG(RJX) (C) 		8-97370-092-0 01 1 0307-0506 ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
4JH1-TC ENG(RDM) (C) 		8-97370-092-0 01 1 0507-0606 ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HE1 ENG(RLY) FUEL FILTER DUAL(S6B) (A) 		8-97363-088-0 01 1 0302-0506 ● ● ● ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (D) 		8-97368-101-5 01 1 0507-0606 ● ● ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HK1-TCN ENG(RDQ) (D) 		8-97368-101-5 01 1 0507-0606 ●
19 03.890 BRACKET; FUEL SEDIMENTER
FRAME STRAIGHT TYPE<7KJ> (D) 		8-97368-101-5 01 1 0607- ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
(D) 		8-97368-101-5 01 1 0607- ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HE1 ENG(RLY) EXC. FUEL FILTER DUAL(S6B) (B) 		8-97182-048-2 01 1 0302-0309 ● ● ● ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HE1 ENG(RLY) (B) 		8-97182-048-2 01 1 0302-0309 ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HE1 ENG(RLY) EXC. FUEL FILTER DUAL(S6B) (B) 		8-97372-020-0 01 1 0310-0310 ● ● ● ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HE1 ENG(RLY) (B) 		8-97372-020-0 01 1 0310-0310 ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HE1 ENG(RLY) EXC. FUEL FILTER DUAL(S6B) (B) 		8-97182-048-2 01 1 0311-0506 ● ● ● ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HE1 ENG(RLY) (B) 		8-97182-048-2 01 1 0311-0506 ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HE1 ENG(RLY) FUEL FILTER DUAL(S6B) 00.685 M10X30 FLANGE 		0-28081-030-0 02 1 0302-0302 ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HE1 ENG(RLY) FUEL FILTER DUAL(S6B) 00.685 M10X30 FLANGE 		0-28081-030-0 02 1 0302-0302 ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4JH1 ENG(RJX),4HE1 ENG(RLY) 00.685 M10X30 FLANGE 		0-28081-030-0 02 1 0302-0302 ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HE1 ENG(RLY) 00.685 M10X30 FLANGE 		0-28081-030-0 02 1 0302-0302 ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4JH1 ENG(RJX) 00.685 M10X30 FLANGE 		0-28081-030-0 04 1 0303-0506 ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4JH1-TC ENG(RDM) 00.685 M10X30 FLANGE 		0-28081-030-0 04 1 0507-0512 ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4JH1-TC ENG(RDM) M10X30 FLANGE 		0-28051-030-0 04 1 0601-0606 ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HE1 ENG(RLY) 03.405 M10X30 FLANGE 		0-28681-030-0 03 1 0302-0506 ● ● ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.405 M10X30 FLANGE 		0-28681-030-0 03 1 0507-0512 ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HK1-TCN ENG(RDQ) 03.405 M10X30 FLANGE 		0-28681-030-0 03 1 0507-0512 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 00.029 M10X30 FLANGE 		0-28651-030-0 03 1 0601-0606 ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HK1-TCN ENG(RDQ) 00.029 M10X30 FLANGE 		0-28651-030-0 03 1 0601-0606 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
FRAME STRAIGHT TYPE<7KJ> 00.029 M10X30 FLANGE 		0-28651-030-0 03 1 0607- ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
00.029 M10X30 FLANGE 		0-28651-030-0 03 1 0607- ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HE1 ENG(RLY) 00.685 M10X30 FLANGE 		0-28081-030-0 02 1 0303-0506 ● ● ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HE1 ENG(RLY) FUEL FILTER DUAL(S6B) 00.685 M10X30 FLANGE 		0-28081-030-0 02 1 0303-0506 ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4JH1-TC ENG(RDM) 02.664 M8X20 FLANGE 		0-28680-820-0 02 1 0507-0512 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) 02.664 M8X20 FLANGE 		0-28680-820-0 02 1 0507-0512 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 02.664 M8X20 FLANGE 		0-28680-820-0 02 1 0507-0512 ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ) 02.664 M8X20 FLANGE 		0-28680-820-0 02 1 0507-0512 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4JH1-TC ENG(RDM) 01.531 M8X20 FLANGE 		0-28650-820-0 02 1 0601-0606 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) 01.531 M8X20 FLANGE 		0-28650-820-0 02 1 0601-0606 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.531 M8X20 FLANGE 		0-28650-820-0 02 1 0601-0606 ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ) 01.531 M8X20 FLANGE 		0-28650-820-0 02 1 0601-0606 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4JH1 ENG(RJX) 02.664 M8X20 FLANGE 		0-28680-820-0 02 1 0302-0506 ● ● ●
21 03.890 NUT; BRKT TO FRAME
4JH1 ENG(RJX) 04.785 M10 FLANGE 		0-91150-110-0 03 1 0302-0302 ● ●
21 03.890 NUT; BRKT TO FRAME
4JH1 ENG(RJX) 04.785 M10 FLANGE 		0-91150-110-0 02 1 0303-0506 ● ●
21 03.890 NUT; BRKT TO FRAME
4JH1-TC ENG(RDM) 04.785 M10 FLANGE 		0-91150-110-0 02 1 0507-0602 ● ●
21 03.890 NUT; BRKT TO FRAME
4JH1-TC ENG(RDM) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0603-0606 ● ●
21 03.890 NUT; BRKT TO FRAME
FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 02 1 0607- ● ●
21 03.890 NUT; BRKT TO FRAME
03.162 M10 FLANGE 		0-91180-110-0 02 1 0607- ● ●
21 03.890 NUT; BRKT TO FRAME
4HE1 ENG(RLY) FUEL FILTER DUAL(S6B) 04.785 M10 FLANGE 		0-91150-110-0 02 1 0302-0302 ● ● ● ● ●
24 03.890 NUT; SEDIMENTER
4HE1 ENG(RLY) 08.917 M10 FLANGE 		0-91150-210-0 02 1 0302-0506 ● ● ● ● ● ● ●
29 03.890 SCREEN ASM; SEDIMENTER
4HE1 ENG(RLY) 		1-13219-228-0 01 1 0302-0506 ● ● ● ● ● ● ●
34 03.890 PLUG; DRAIN,FUEL FILTER
4HE1 ENG(RLY) 		1-13219-225-0 01 1 0302-0506 ● ● ● ● ● ● ●
35 03.890 GASKET; DRAIN PLUG
4HE1 ENG(RLY) 		1-09623-490-0 01 1 0302-0506 ● ● ● ● ● ● ●
35 03.890 GASKET; DRAIN PLUG
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 		8-98004-898-0 01 1 0507-0606 ● ● ● ●
35 03.890 GASKET; DRAIN PLUG
4HK1-TCN ENG(RDQ) 		8-98004-898-0 01 1 0507-0606 ●
36 03.890 RING; BODY TO CASE
4HE1 ENG(RLY) 		1-13219-226-0 01 1 0302-0506 ● ● ● ● ● ● ●
38 03.890 FLOAT; SEDIMENTER
4HE1 ENG(RLY) 		1-13219-227-0 01 1 0302-0506 ● ● ● ● ● ● ●
40 03.890 GASKET; CONNECTOR TO COVER
4HE1 ENG(RLY) 03.163 ID=14.2 OD=19.2 		1-09630-085-0 02 1 0302-0506 ● ● ● ● ● ● ●
42 03.890 PLATE; BAFFLE
4HE1 ENG(RLY) 		1-13219-229-0 01 1 0302-0506 ● ● ● ● ● ● ●
çizim 53217
1 57 7 9 41 41 15 14 37 21 19 20 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 03.890 SEDIMENTER; FUEL
4HE1 ENG(RLY) 		8-97188-042-0 01 1 0302-0506 ● ● ● ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FUEL SEDIMENTER WITH HEATER<6HU> 		8-98008-066-1 01 1 0507-0606 ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4HK1-TCN ENG(RDQ) FUEL SEDIMENTER WITH HEATER<6HU> 		8-98008-066-1 01 1 0507-0606 ●
1 03.890 SEDIMENTER; FUEL
4JH1 ENG(RJX) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-97240-126-2 01 1 0302-0506 ● ● ●
1 03.890 SEDIMENTER; FUEL
4JH1-TC ENG(RDM) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-97240-126-2 01 1 0507-0606 ● ● ●
1 03.890 SEDIMENTER; FUEL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-98021-775-1 01 1 0507-0606 ● ● ● ●
1 03.890 SEDIMENTER; FUEL
4HK1-TCN ENG(RDQ) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-98021-775-1 01 1 0507-0606 ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4HE1 ENG(RLY) 		9-13219-070-0 01 1 0302-0506 ● ● ● ● ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 		8-97172-546-1 01 1 0507-0606 ● ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4HK1-TCN ENG(RDQ) 		8-97172-546-1 01 1 0507-0606 ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4JH1 ENG(RJX) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-94132-674-0 01 1 0302-0506 ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4JH1-TC ENG(RDM) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-94132-674-0 01 1 0507-0606 ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HE1 ENG(RLY) 03.162 ID=8.2 OD=13.2 		1-09630-082-0 01 1 0302-0506 ● ● ● ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4JH1 ENG(RJX) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-94132-675-0 01 1 0302-0506 ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4JH1-TC ENG(RDM) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-94132-675-0 01 1 0507-0606 ● ● ●
14 03.890 GASKET; SENSOR TO CENTER BOLT
4JH1 ENG(RJX) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-94447-156-0 01 1 0302-0506 ● ● ●
14 03.890 GASKET; SENSOR TO CENTER BOLT
4JH1-TC ENG(RDM) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-94447-156-0 01 1 0507-0606 ● ● ●
15 03.890 SENSOR ASM; SEDIMENTER
4JH1 ENG(RJX) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-97079-821-0 01 1 0302-0506 ● ● ●
15 03.890 SENSOR ASM; SEDIMENTER
4JH1-TC ENG(RDM) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-97079-821-0 01 1 0507-0606 ● ● ●
15 03.890 SENSOR ASM; SEDIMENTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FUEL SEDIMENTER WITH HEATER<6HU> 		8-98004-758-0 01 1 0507-0606 ● ● ● ●
15 03.890 SENSOR ASM; SEDIMENTER
4HK1-TCN ENG(RDQ) FUEL SEDIMENTER WITH HEATER<6HU> 		8-98004-758-0 01 1 0507-0606 ●
15 03.890 SENSOR ASM; SEDIMENTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-98009-886-0 01 1 0507-0606 ● ● ● ●
15 03.890 SENSOR ASM; SEDIMENTER
4HK1-TCN ENG(RDQ) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-98009-886-0 01 1 0507-0606 ●
19 03.890 BRACKET; FUEL SEDIMENTER
4JH1 ENG(RJX) (C) 		8-97090-298-2 01 1 0302-0306 ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
4JH1 ENG(RJX) (C) 		8-97370-092-0 01 1 0307-0506 ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
4JH1-TC ENG(RDM) (C) 		8-97370-092-0 01 1 0507-0606 ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HE1 ENG(RLY) FUEL FILTER DUAL(S6B) (A) 		8-97363-088-0 01 1 0302-0506 ● ● ● ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (D) 		8-97368-101-5 01 1 0507-0606 ● ● ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HK1-TCN ENG(RDQ) (D) 		8-97368-101-5 01 1 0507-0606 ●
19 03.890 BRACKET; FUEL SEDIMENTER
FRAME STRAIGHT TYPE<7KJ> (D) 		8-97368-101-5 01 1 0607- ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
(D) 		8-97368-101-5 01 1 0607- ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HE1 ENG(RLY) EXC. FUEL FILTER DUAL(S6B) (B) 		8-97182-048-2 01 1 0302-0309 ● ● ● ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HE1 ENG(RLY) (B) 		8-97182-048-2 01 1 0302-0309 ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HE1 ENG(RLY) EXC. FUEL FILTER DUAL(S6B) (B) 		8-97372-020-0 01 1 0310-0310 ● ● ● ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HE1 ENG(RLY) (B) 		8-97372-020-0 01 1 0310-0310 ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HE1 ENG(RLY) EXC. FUEL FILTER DUAL(S6B) (B) 		8-97182-048-2 01 1 0311-0506 ● ● ● ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
4HE1 ENG(RLY) (B) 		8-97182-048-2 01 1 0311-0506 ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HE1 ENG(RLY) FUEL FILTER DUAL(S6B) 00.685 M10X30 FLANGE 		0-28081-030-0 02 1 0302-0302 ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HE1 ENG(RLY) FUEL FILTER DUAL(S6B) 00.685 M10X30 FLANGE 		0-28081-030-0 02 1 0302-0302 ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4JH1 ENG(RJX),4HE1 ENG(RLY) 00.685 M10X30 FLANGE 		0-28081-030-0 02 1 0302-0302 ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HE1 ENG(RLY) 00.685 M10X30 FLANGE 		0-28081-030-0 02 1 0302-0302 ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4JH1 ENG(RJX) 00.685 M10X30 FLANGE 		0-28081-030-0 04 1 0303-0506 ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4JH1-TC ENG(RDM) 00.685 M10X30 FLANGE 		0-28081-030-0 04 1 0507-0512 ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4JH1-TC ENG(RDM) M10X30 FLANGE 		0-28051-030-0 04 1 0601-0606 ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HE1 ENG(RLY) 03.405 M10X30 FLANGE 		0-28681-030-0 03 1 0302-0506 ● ● ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.405 M10X30 FLANGE 		0-28681-030-0 03 1 0507-0512 ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HK1-TCN ENG(RDQ) 03.405 M10X30 FLANGE 		0-28681-030-0 03 1 0507-0512 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 00.029 M10X30 FLANGE 		0-28651-030-0 03 1 0601-0606 ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HK1-TCN ENG(RDQ) 00.029 M10X30 FLANGE 		0-28651-030-0 03 1 0601-0606 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
FRAME STRAIGHT TYPE<7KJ> 00.029 M10X30 FLANGE 		0-28651-030-0 03 1 0607- ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
00.029 M10X30 FLANGE 		0-28651-030-0 03 1 0607- ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HE1 ENG(RLY) 00.685 M10X30 FLANGE 		0-28081-030-0 02 1 0303-0506 ● ● ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HE1 ENG(RLY) FUEL FILTER DUAL(S6B) 00.685 M10X30 FLANGE 		0-28081-030-0 02 1 0303-0506 ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4JH1-TC ENG(RDM) 02.664 M8X20 FLANGE 		0-28680-820-0 02 1 0507-0512 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) 02.664 M8X20 FLANGE 		0-28680-820-0 02 1 0507-0512 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 02.664 M8X20 FLANGE 		0-28680-820-0 02 1 0507-0512 ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ) 02.664 M8X20 FLANGE 		0-28680-820-0 02 1 0507-0512 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4JH1-TC ENG(RDM) 01.531 M8X20 FLANGE 		0-28650-820-0 02 1 0601-0606 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) 01.531 M8X20 FLANGE 		0-28650-820-0 02 1 0601-0606 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.531 M8X20 FLANGE 		0-28650-820-0 02 1 0601-0606 ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ) 01.531 M8X20 FLANGE 		0-28650-820-0 02 1 0601-0606 ●
20 03.890 BOLT; BRKT TO SEDIMENTER
4JH1 ENG(RJX) 02.664 M8X20 FLANGE 		0-28680-820-0 02 1 0302-0506 ● ● ●
21 03.890 NUT; BRKT TO FRAME
4JH1 ENG(RJX) 04.785 M10 FLANGE 		0-91150-110-0 03 1 0302-0302 ● ●
21 03.890 NUT; BRKT TO FRAME
4JH1 ENG(RJX) 04.785 M10 FLANGE 		0-91150-110-0 02 1 0303-0506 ● ●
21 03.890 NUT; BRKT TO FRAME
4JH1-TC ENG(RDM) 04.785 M10 FLANGE 		0-91150-110-0 02 1 0507-0602 ● ●
21 03.890 NUT; BRKT TO FRAME
4JH1-TC ENG(RDM) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0603-0606 ● ●
21 03.890 NUT; BRKT TO FRAME
FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 02 1 0607- ● ●
21 03.890 NUT; BRKT TO FRAME
03.162 M10 FLANGE 		0-91180-110-0 02 1 0607- ● ●
21 03.890 NUT; BRKT TO FRAME
4HE1 ENG(RLY) FUEL FILTER DUAL(S6B) 04.785 M10 FLANGE 		0-91150-110-0 02 1 0302-0302 ● ● ● ● ●
37 03.890 PLUG; SENSOR
4JH1 ENG(RJX) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-97123-549-0 01 1 0302-0506 ● ● ●
37 03.890 PLUG; SENSOR
4JH1-TC ENG(RDM) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-97123-549-0 01 1 0507-0606 ● ● ●
37 03.890 PLUG; SENSOR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 		8-98004-899-0 01 1 0507-0606 ● ● ● ●
37 03.890 PLUG; SENSOR
4HK1-TCN ENG(RDQ) 		8-98004-899-0 01 1 0507-0606 ●
41 03.890 GASKET; SENSOR TO CASE
4JH1 ENG(RJX) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 08.927 		9-09563-334-0 01 1 0302-0506 ● ● ●
41 03.890 GASKET; SENSOR TO CASE
4JH1-TC ENG(RDM) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 08.927 		9-09563-334-0 01 1 0507-0606 ●
41 03.890 GASKET; SENSOR TO CASE
4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 08.927 		9-09563-334-0 01 1 0507-0606 ●
41 03.890 GASKET; SENSOR TO CASE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 08.927 		9-09563-334-0 01 1 0507-0606 ● ● ●
41 03.890 GASKET; SENSOR TO CASE
4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 08.927 		9-09563-334-0 01 1 0507-0606 ●
41 03.890 GASKET; SENSOR TO CASE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FUEL SEDIMENTER WITH HEATER<6HU> 03.417 		1-09623-649-0 01 1 0507-0606 ● ● ● ●
41 03.890 GASKET; SENSOR TO CASE
4HK1-TCN ENG(RDQ) FUEL SEDIMENTER WITH HEATER<6HU> 03.417 		1-09623-649-0 01 1 0507-0606 ●
57 03.890 CARTRIDGE KIT; FUEL FILTER
4JH1 ENG(RJX) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-94369-299-3 01 1 0302-0506 ● ● ●
57 03.890 CARTRIDGE KIT; FUEL FILTER
4JH1-TC ENG(RDM) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-94369-299-3 01 1 0507-0606 ● ● ●
57 03.890 CARTRIDGE KIT; FUEL FILTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FUEL SEDIMENTER WITH HEATER<6HU> 		8-98021-811-0 01 1 0507-0511 ● ● ● ●
57 03.890 CARTRIDGE KIT; FUEL FILTER
4HK1-TCN ENG(RDQ) FUEL SEDIMENTER WITH HEATER<6HU> 		8-98021-811-0 01 1 0507-0511 ●
57 03.890 CARTRIDGE KIT; FUEL FILTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FUEL SEDIMENTER WITH HEATER<6HU> 		8-98031-847-0 01 1 0512-0606 ● ● ● ●
57 03.890 CARTRIDGE KIT; FUEL FILTER
4HK1-TCN ENG(RDQ) FUEL SEDIMENTER WITH HEATER<6HU> 		8-98031-847-0 01 1 0512-0606 ●
57 03.890 CARTRIDGE KIT; FUEL FILTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-98002-344-0 01 1 0507-0602 ● ● ● ●
57 03.890 CARTRIDGE KIT; FUEL FILTER
4HK1-TCN ENG(RDQ) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-98002-344-0 01 1 0507-0602 ●
57 03.890 CARTRIDGE KIT; FUEL FILTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-98031-840-0 01 1 0603-0606 ● ● ● ●
57 03.890 CARTRIDGE KIT; FUEL FILTER
4HK1-TCN ENG(RDQ) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-98031-840-0 01 1 0603-0606 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
