Sayfa 0-66B - Isuzu EPC

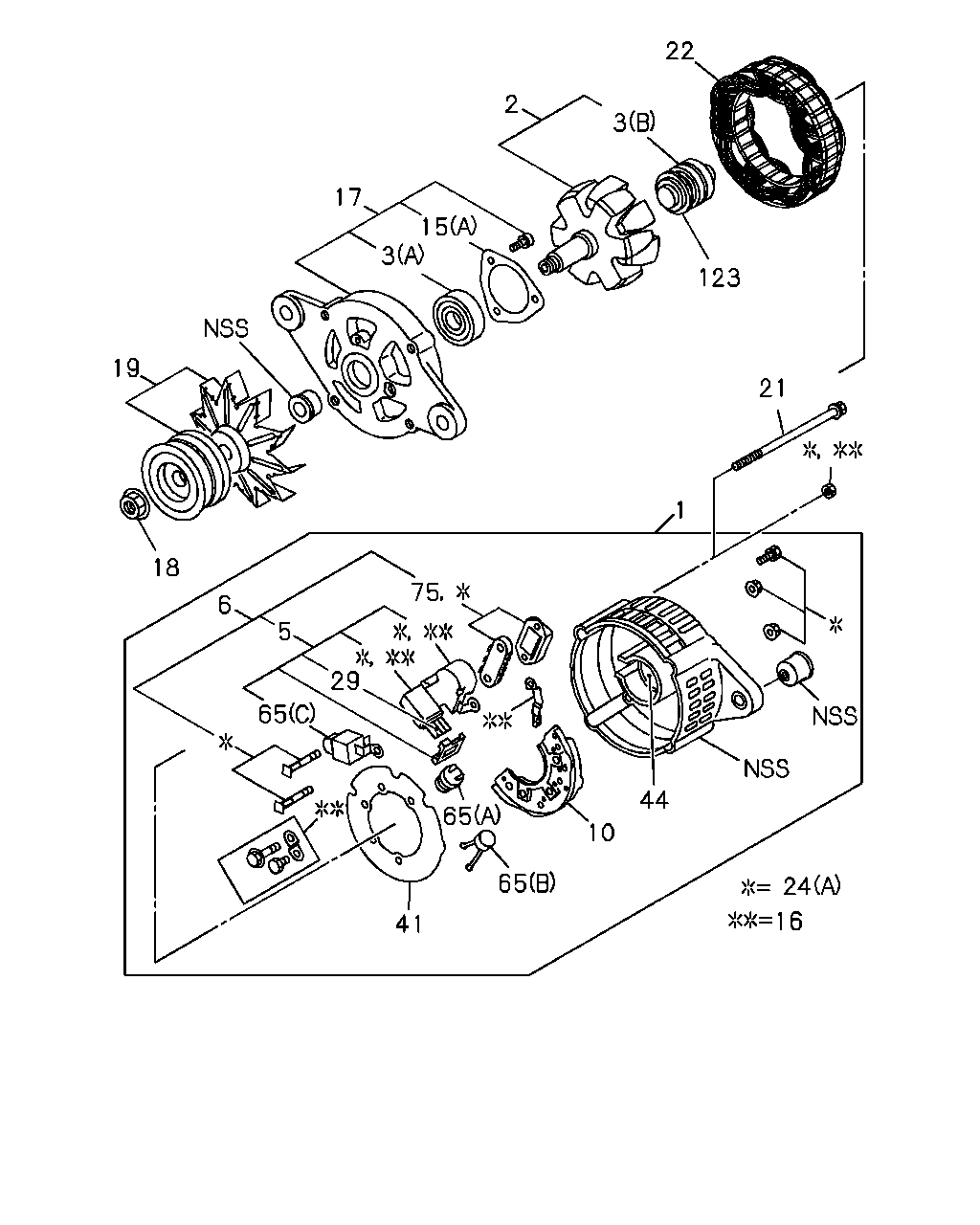

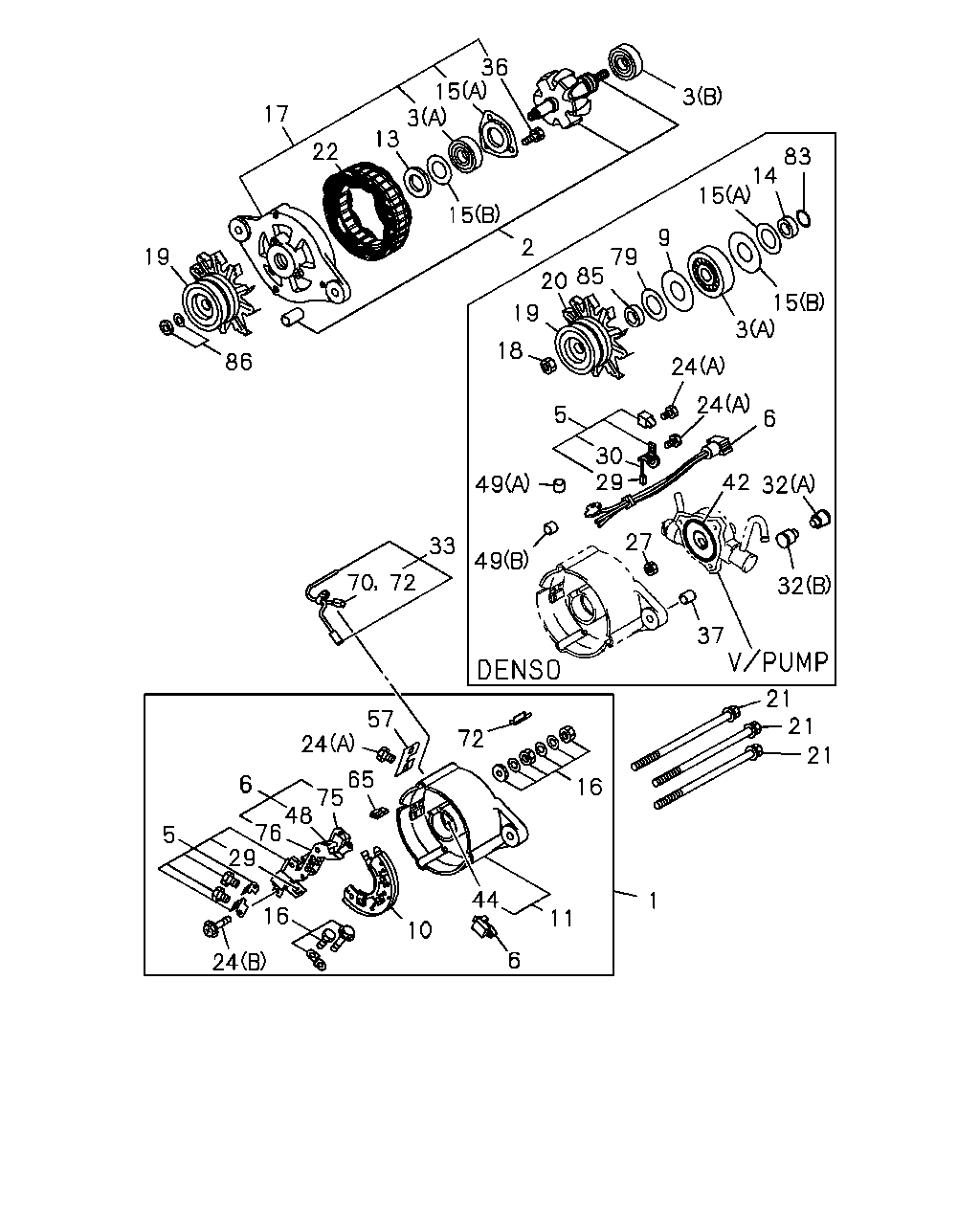

0-66B — GENERATOR (#41293) — 449 parça

17 19 22 13 3 15 36 3 15 86 2 83 9 14 15 15 79 3 85 20 19 18 24 24 6 5 49 30 42 29 49 33 72 70 27 32 32 37 21 21 21 1 11 6 16 44 10 72 57 24 65 75 6 5 48 76 29 16 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	02.297 COVER ASM; RR,GEN ASM PART: G = 8-94405-045-3, 94405045	5-81214-115-1	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: F = 8-94401-793-2, 94401793	8-94252-186-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: A = 8-94320-407-1, 94320407, B = 8-94330-186-0, 94330186	8-94381-025-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: E = 8-94382-060-0, 94382060, H = 8-97046-826-0, 97046826	8-94381-026-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: D = 8-94382-059-1, 94382059	8-94381-026-0	01	1	-9402
1	02.297 COVER ASM; RR,GEN ASM PART: C = 8-94330-187-2, 94330187	8-94456-598-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: I = 8-97074-612-0, 97074612, K = 8-97134-866-0, 97134866	8-97078-575-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: M = 8-97137-009-0, 97137009	8-97083-007-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: D = 8-94382-059-1, 94382059	8-97083-007-0	01	1	9403-
1	02.297 COVER ASM; RR,GEN ASM PART: L = 8-97137-004-0, 97137004	8-97137-331-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: J = 8-97133-854-0, 97133854	8-97142-247-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: G = 8-94405-045-3, 94405045	5-81221-059-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: F = 8-94401-793-2, 94401793	5-81221-060-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: D = 8-94382-059-1, 94382059	8-94408-389-0	01	1	-9402
2	02.279 ROTOR; GEN ASM PART: A = 8-94320-407-1, 94320407, B = 8-94330-186-0, 94330186	8-94408-390-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: E = 8-94382-060-0, 94382060, H = 8-97046-826-0, 97046826	8-97029-002-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: I = 8-97074-612-0, 97074612, K = 8-97134-866-0, 97134866	8-97062-643-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: C = 8-94330-187-2, 94330187	8-97063-381-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: M = 8-97137-009-0, 97137009	8-97083-006-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: D = 8-94382-059-1, 94382059	8-97083-006-0	01	1	9403-
2	02.279 ROTOR; GEN ASM PART: L = 8-97137-004-0, 97137004	8-97137-329-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: J = 8-97133-854-0, 97133854	8-97142-245-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: D = 8-94382-059-1, 94382059	8-94156-585-0	01	1	-9402
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: A = 8-94320-407-1, 94320407, B = 8-94330-186-0, 94330186, E = 8-94382-060-0, 94382060, H = 8-97046-826-0, 97046826	8-94156-585-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: A = 8-94320-407-1, 94320407, B = 8-94330-186-0, 94330186, E = 8-94382-060-0, 94382060, F = 8-94401-793-2, 94401793, H = 8-97046-826-0, 97046826	8-94223-979-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: D = 8-94382-059-1, 94382059	8-94223-979-0	01	1	-9402
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: F = 8-94401-793-2, 94401793, G = 8-94405-045-3, 94405045	8-94223-980-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: C = 8-94330-187-2, 94330187	8-94453-230-0	01	1	-9307
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: I = 8-97074-612-0, 97074612, K = 8-97134-866-0, 97134866, L = 8-97137-004-0, 97137004, M = 8-97137-009-0, 97137009	8-97062-654-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: D = 8-94382-059-1, 94382059	8-97062-654-0	01	1	9403-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: D = 8-94382-059-1, 94382059	8-97062-744-0	01	1	9403-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: I = 8-97074-612-0, 97074612, J = 8-97133-854-0, 97133854, K = 8-97134-866-0, 97134866, L = 8-97137-004-0, 97137004, M = 8-97137-009-0, 97137009	8-97062-744-0	01	1	-
3	02.306 BEARING; ROTOR,GEN ASM PART: C = 8-94330-187-2, 94330187	8-97105-381-0	01	1	9308-
3	02.306 BEARING; ROTOR,GEN ASM PART: J = 8-97133-854-0, 97133854	8-97142-259-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: G = 8-94405-045-3, 94405045	9-00090-630-0	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: A = 8-94320-407-1, 94320407, B = 8-94330-186-0, 94330186, D = 8-94382-059-1, 94382059, E = 8-94382-060-0, 94382060, H = 8-97046-826-0, 97046826, L = 8-97137-004-0, 97137004, M = 8-97137-009-0, 97137009	8-94156-592-0	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: F = 8-94401-793-2, 94401793, G = 8-94405-045-3, 94405045	8-94223-965-0	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: C = 8-94330-187-2, 94330187	8-94342-673-0	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: I = 8-97074-612-0, 97074612, K = 8-97134-866-0, 97134866	8-97062-649-0	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: J = 8-97133-854-0, 97133854	8-97142-251-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: L = 8-97137-004-0, 97137004, M = 8-97137-009-0, 97137009	8-94157-410-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN 02.291 ASM PART: A = 8-94320-407-1, 94320407, B = 8-94330-186-0, 94330186, D = 8-94382-059-1, 94382059, E = 8-94382-060-0, 94382060, H = 8-97046-826-0, 97046826	8-94167-410-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: G = 8-94405-045-3, 94405045	8-94250-968-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: F = 8-94401-793-2, 94401793	8-94252-185-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: C = 8-94330-187-2, 94330187	8-94342-680-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: I = 8-97074-612-0, 97074612, K = 8-97134-866-0, 97134866	8-97062-648-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: J = 8-97133-854-0, 97133854	8-97142-250-0	01	1	-
9	02.307 COVER; FELT WASHER,ROTOR,GEN ASM PART: C = 8-94330-187-2, 94330187	8-94453-231-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: G = 8-94405-045-3, 94405045	5-81218-033-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: A = 8-94320-407-1, 94320407, B = 8-94330-186-0, 94330186, L = 8-97137-004-0, 97137004	8-94156-596-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: F = 8-94401-793-2, 94401793	8-94237-729-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: C = 8-94330-187-2, 94330187	8-94342-672-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: E = 8-94382-060-0, 94382060, H = 8-97046-826-0, 97046826, M = 8-97137-009-0, 97137009	8-94408-376-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: D = 8-94382-059-1, 94382059	8-94408-396-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: I = 8-97074-612-0, 97074612, K = 8-97134-866-0, 97134866	8-97062-651-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: J = 8-97133-854-0, 97133854	8-97142-255-0	01	1	-
11	02.305 COVER; RR,GEN 02.297 ASM PART: F = 8-94401-793-2, 94401793	5-81214-091-0	01	1	-
11	02.305 COVER; RR,GEN 02.297 ASM PART: G = 8-94405-045-3, 94405045	5-81214-116-1	01	1	-
11	02.305 COVER; RR,GEN ASM PART: A = 8-94320-407-1, 94320407, B = 8-94330-186-0, 94330186, E = 8-94382-060-0, 94382060, H = 8-97046-826-0, 97046826	8-94381-029-0	01	1	-
11	02.305 COVER; RR,GEN ASM PART: D = 8-94382-059-1, 94382059	8-94381-029-0	01	1	-9402
11	02.305 COVER; RR,GEN ASM PART: D = 8-94382-059-1, 94382059	8-97083-008-0	01	1	9403-
13	02.298 GASKET; ROTOR,GEN 02.307 ASM PART: G = 8-94405-045-3, 94405045	9-82215-823-0	01	1	-
14	02.307 COLLAR; STEEL ASM PART: C = 8-94330-187-2, 94330187	8-94453-225-0	01	1	-
15	02.279 RETAINER; ROTOR,GEN 02.307, (A) ASM PART: G = 8-94405-045-3, 94405045	5-81229-055-0	01	1	-
15	02.279 RETAINER; ROTOR,GEN 02.307, (B) ASM PART: G = 8-94405-045-3, 94405045	5-81229-058-0	01	1	-
15	02.279 RETAINER; ROTOR,GEN 02.307, (A) ASM PART: A = 8-94320-407-1, 94320407, B = 8-94330-186-0, 94330186, D = 8-94382-059-1, 94382059, E = 8-94382-060-0, 94382060, F = 8-94401-793-2, 94401793, H = 8-97046-826-0, 97046826, L = 8-97137-004-0, 97137004, M = 8-97137-009-0, 97137009	8-94223-974-0	01	1	-
15	02.279 RETAINER; ROTOR,GEN 02.307, (A) ASM PART: C = 8-94330-187-2, 94330187	8-94453-228-0	01	1	-9307
15	02.279 RETAINER; ROTOR,GEN (B) ASM PART: C = 8-94330-187-2, 94330187	8-94453-229-0	01	1	-
15	02.279 RETAINER; ROTOR,GEN (A) ASM PART: I = 8-97074-612-0, 97074612, K = 8-97134-866-0, 97134866	8-97029-546-0	01	1	-
16	02.291 TERMINAL ASM; RECTIFIER,GEN 02.319 ASM PART: F = 8-94401-793-2, 94401793, G = 8-94405-045-3, 94405045	5-81229-175-0	01	1	-
16	02.291 TERMINAL ASM; RECTIFIER,GEN 02.313 ASM PART: D = 8-94382-059-1, 94382059	8-94156-597-0	01	1	-9402
16	02.291 TERMINAL ASM; RECTIFIER,GEN 02.313 ASM PART: A = 8-94320-407-1, 94320407, B = 8-94330-186-0, 94330186	8-94156-597-0	01	1	-
16	02.291 TERMINAL ASM; RECTIFIER,GEN ASM PART: I = 8-97074-612-0, 97074612, K = 8-97134-866-0, 97134866	8-97029-543-0	01	1	-
16	02.291 TERMINAL ASM; RECTIFIER,GEN ASM PART: D = 8-94382-059-1, 94382059	8-97111-390-0	01	1	9403-
16	02.291 TERMINAL ASM; RECTIFIER,GEN ASM PART: L = 8-97137-004-0, 97137004, M = 8-97137-009-0, 97137009	8-97111-390-0	01	1	-
16	02.291 TERMINAL ASM; RECTIFIER,GEN ASM PART: J = 8-97133-854-0, 97133854	8-97142-256-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: G = 8-94405-045-3, 94405045	5-81213-033-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: A = 8-94320-407-1, 94320407, B = 8-94330-186-0, 94330186, E = 8-94382-060-0, 94382060, H = 8-97046-826-0, 97046826	8-94167-414-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: D = 8-94382-059-1, 94382059	8-94167-414-0	01	1	-9402
17	02.305 COVER ASM; FRT,GEN ASM PART: F = 8-94401-793-2, 94401793	8-94223-973-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: C = 8-94330-187-2, 94330187	8-94456-588-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: I = 8-97074-612-0, 97074612, K = 8-97134-866-0, 97134866	8-97062-653-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: L = 8-97137-004-0, 97137004, M = 8-97137-009-0, 97137009	8-97071-214-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: D = 8-94382-059-1, 94382059	8-97071-214-0	01	1	9403-
18	02.274 NUT; PULLEY,GEN ASM PART: C = 8-94330-187-2, 94330187	8-94167-948-0	01	1	-
18	02.274 NUT; PULLEY,GEN 02.280 ASM PART: I = 8-97074-612-0, 97074612, J = 8-97133-854-0, 97133854, K = 8-97134-866-0, 97134866	8-97016-301-0	01	1	-
19	02.274 PULLEY; GEN 02.247 ASM PART: F = 8-94401-793-2, 94401793	5-81222-060-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: G = 8-94405-045-3, 94405045	5-81222-071-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: A = 8-94320-407-1, 94320407, B = 8-94330-186-0, 94330186	8-94167-415-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: D = 8-94382-059-1, 94382059	8-94167-415-0	01	1	-9402
19	02.274 PULLEY; GEN ASM PART: C = 8-94330-187-2, 94330187	8-94456-585-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: D = 8-94382-059-1, 94382059	8-97029-004-0	01	1	9403-
19	02.274 PULLEY; GEN ASM PART: E = 8-94382-060-0, 94382060, H = 8-97046-826-0, 97046826, L = 8-97137-004-0, 97137004, M = 8-97137-009-0, 97137009	8-97029-004-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: I = 8-97074-612-0, 97074612, K = 8-97134-866-0, 97134866	8-97062-655-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: J = 8-97133-854-0, 97133854	8-97142-260-0	01	1	-
20	02.274 FAN; GEN ASM PART: C = 8-94330-187-2, 94330187	8-94453-235-0	01	1	-
21	02.316 BOLT; THROUGH,GEN ASM PART: C = 8-94330-187-2, 94330187	1-81229-031-0	03	1	-
21	02.316 BOLT; THROUGH,GEN ASM PART: G = 8-94405-045-3, 94405045	5-81229-014-0	03	1	-
21	02.316 BOLT; THROUGH,GEN LOWER ASM PART: F = 8-94401-793-2, 94401793	5-81229-161-0	01	1	-
21	02.316 BOLT; THROUGH,GEN ASM PART: I = 8-97074-612-0, 97074612, J = 8-97133-854-0, 97133854, K = 8-97134-866-0, 97134866	8-94116-435-0	04	1	-
21	02.316 BOLT; THROUGH,GEN ASM PART: A = 8-94320-407-1, 94320407, B = 8-94330-186-0, 94330186, D = 8-94382-059-1, 94382059, E = 8-94382-060-0, 94382060, H = 8-97046-826-0, 97046826, L = 8-97137-004-0, 97137004, M = 8-97137-009-0, 97137009	8-94156-602-0	04	1	-
21	02.316 BOLT; THROUGH,GEN UPPER ASM PART: F = 8-94401-793-2, 94401793	8-94223-976-0	02	1	-
22	02.310 STATOR; GEN ASM PART: G = 8-94405-045-3, 94405045	5-81211-054-0	01	1	-
22	02.310 STATOR; GEN ASM PART: D = 8-94382-059-1, 94382059, E = 8-94382-060-0, 94382060, H = 8-97046-826-0, 97046826, M = 8-97137-009-0, 97137009	8-94167-406-0	01	1	-
22	02.310 STATOR; GEN ASM PART: A = 8-94320-407-1, 94320407, B = 8-94330-186-0, 94330186, L = 8-97137-004-0, 97137004	8-94167-407-0	01	1	-
22	02.310 STATOR; GEN ASM PART: F = 8-94401-793-2, 94401793	8-94237-114-0	01	1	-
22	02.310 STATOR; GEN ASM PART: C = 8-94330-187-2, 94330187	8-94342-675-0	01	1	-
22	02.310 STATOR; GEN ASM PART: I = 8-97074-612-0, 97074612, K = 8-97134-866-0, 97134866	8-97062-645-0	01	1	-
22	02.310 STATOR; GEN ASM PART: J = 8-97133-854-0, 97133854	8-97142-246-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN 02.291, (A) ASM PART: C = 8-94330-187-2, 94330187	1-81229-419-0	04	1	-
24	02.307 SCREW; RECTIFIER,GEN (A) ASM PART: G = 8-94405-045-3, 94405045	5-81229-177-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN 02.313, (B) ASM PART: E = 8-94382-060-0, 94382060, H = 8-97046-826-0, 97046826	8-94156-597-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN (A) ASM PART: A = 8-94320-407-1, 94320407, B = 8-94330-186-0, 94330186, E = 8-94382-060-0, 94382060, H = 8-97046-826-0, 97046826	8-94156-603-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN (A) ASM PART: D = 8-94382-059-1, 94382059	8-94156-603-0	01	1	-9402
24	02.307 SCREW; RECTIFIER,GEN (A) ASM PART: F = 8-94401-793-2, 94401793	8-94223-983-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN (A) ASM PART: I = 8-97074-612-0, 97074612, K = 8-97134-866-0, 97134866	8-97062-656-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN (B) ASM PART: D = 8-94382-059-1, 94382059	8-97109-653-0	01	1	9403-
24	02.307 SCREW; RECTIFIER,GEN (B) ASM PART: L = 8-97137-004-0, 97137004, M = 8-97137-009-0, 97137009	8-97109-653-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: J = 8-97133-854-0, 97133854	8-97142-261-0	01	1	-
27	02.291 NUT; RECTIFIER,GEN 02.313 ASM PART: C = 8-94330-187-2, 94330187	8-94206-188-0	08	1	-
29	02.285 BRUSH; GEN ASM PART: C = 8-94330-187-2, 94330187	5-81215-018-0	02	1	-
29	02.285 BRUSH; GEN ASM PART: A = 8-94320-407-1, 94320407, B = 8-94330-186-0, 94330186, D = 8-94382-059-1, 94382059, E = 8-94382-060-0, 94382060, H = 8-97046-826-0, 97046826, I = 8-97074-612-0, 97074612, K = 8-97134-866-0, 97134866, L = 8-97137-004-0, 97137004, M = 8-97137-009-0, 97137009	8-94156-593-0	02	1	-
29	02.285 BRUSH; GEN ASM PART: F = 8-94401-793-2, 94401793, G = 8-94405-045-3, 94405045	8-94223-966-0	02	1	-
29	02.285 BRUSH; GEN ASM PART: J = 8-97133-854-0, 97133854	8-97142-252-0	02	1	-
30	02.277 SPRING; BRUSH,GEN 02.291 ASM PART: C = 8-94330-187-2, 94330187	5-81216-002-0	02	1	-
32	02.291 TERMINAL; RECTIFIER,GEN 02.313, (A) ASM PART: C = 8-94330-187-2, 94330187	1-81229-410-0	02	1	-
32	02.291 TERMINAL; RECTIFIER,GEN 02.313, (B) ASM PART: C = 8-94330-187-2, 94330187	1-81229-411-0	02	1	-
33	02.500 WIRE; LEAD,GEN LOWER ASM PART: G = 8-94405-045-3, 94405045	8-94237-731-0	01	1	-
33	02.500 WIRE; LEAD,GEN LOWER ASM PART: F = 8-94401-793-2, 94401793	8-94252-184-0	01	1	-
33	02.500 WIRE; LEAD,GEN RIGHT ASM PART: E = 8-94382-060-0, 94382060, H = 8-97046-826-0, 97046826, M = 8-97137-009-0, 97137009	8-94311-728-0	01	1	-
33	02.500 WIRE; LEAD,GEN ASM PART: D = 8-94382-059-1, 94382059	8-94311-729-0	01	1	-9402
33	02.500 WIRE; LEAD,GEN ASM PART: C = 8-94330-187-2, 94330187	8-94342-676-0	01	1	-
33	02.500 WIRE; LEAD,GEN ASM PART: A = 8-94320-407-1, 94320407, B = 8-94330-186-0, 94330186	8-94408-400-0	01	1	-
33	02.500 WIRE; LEAD,GEN 02.313, UPPER ASM PART: F = 8-94401-793-2, 94401793, G = 8-94405-045-3, 94405045	8-94411-285-0	01	1	-
33	02.500 WIRE; LEAD,GEN LEFT ASM PART: E = 8-94382-060-0, 94382060, H = 8-97046-826-0, 97046826	8-97029-003-0	01	1	-
33	02.500 WIRE; LEAD,GEN ASM PART: L = 8-97137-004-0, 97137004	8-97071-213-0	01	1	-
33	02.500 WIRE; LEAD,GEN ASM PART: D = 8-94382-059-1, 94382059	8-97111-391-0	01	1	9403-
33	02.500 WIRE; LEAD,GEN ASM PART: M = 8-97137-009-0, 97137009	8-97111-391-0	01	1	-
36	02.277 SCREW; FRT COVER ASM PART: C = 8-94330-187-2, 94330187	8-94453-227-0	03	1	-
37	02.291 BUSHING; RR COVER,GEN ASM PART: C = 8-94330-187-2, 94330187	8-94456-599-0	01	1	-
42	02.307 GASKET; RR COVER,GEN ASM PART: C = 8-94330-187-2, 94330187	8-94456-608-0	01	1	-
44	02.298 SEAL; RR COVER,GEN ASM PART: A = 8-94320-407-1, 94320407, B = 8-94330-186-0, 94330186, D = 8-94382-059-1, 94382059, E = 8-94382-060-0, 94382060, H = 8-97046-826-0, 97046826, J = 8-97133-854-0, 97133854, L = 8-97137-004-0, 97137004, M = 8-97137-009-0, 97137009	8-94156-589-0	01	1	-
44	02.298 SEAL; RR COVER,GEN ASM PART: F = 8-94401-793-2, 94401793, G = 8-94405-045-3, 94405045	8-94223-981-1	01	1	-
44	02.298 SEAL; RR COVER,GEN ASM PART: I = 8-97074-612-0, 97074612, K = 8-97134-866-0, 97134866	8-97029-534-0	01	1	-
48	02.319 DIODE; GEN ASM PART: A = 8-94320-407-1, 94320407, B = 8-94330-186-0, 94330186, D = 8-94382-059-1, 94382059, E = 8-94382-060-0, 94382060, F = 8-94401-793-2, 94401793, G = 8-94405-045-3, 94405045, H = 8-97046-826-0, 97046826, L = 8-97137-004-0, 97137004, M = 8-97137-009-0, 97137009	8-94237-727-0	01	1	-
49	02.313 BUSHING; RECTIFIER,GEN (A) ASM PART: C = 8-94330-187-2, 94330187	1-81229-413-0	01	1	-
49	02.313 BUSHING; RECTIFIER,GEN (B) ASM PART: C = 8-94330-187-2, 94330187	5-81229-105-0	02	1	-
57	02.277 COVER; BRUSH,GEN 02.297 ASM PART: F = 8-94401-793-2, 94401793, G = 8-94405-045-3, 94405045	8-94223-982-0	01	1	-
57	02.277 COVER; BRUSH,GEN ASM PART: C = 8-94330-187-2, 94330187	8-94342-674-0	01	1	-
65	02.319 CONDENSER; GEN ASM PART: A = 8-94320-407-1, 94320407, B = 8-94330-186-0, 94330186, D = 8-94382-059-1, 94382059, L = 8-97137-004-0, 97137004, M = 8-97137-009-0, 97137009	8-94156-594-0	01	1	-
65	02.319 CONDENSER; GEN (A) ASM PART: I = 8-97074-612-0, 97074612, K = 8-97134-866-0, 97134866	8-97029-537-0	01	1	-
65	02.319 CONDENSER; GEN (B) ASM PART: I = 8-97074-612-0, 97074612, K = 8-97134-866-0, 97134866	8-97029-538-0	01	1	-
65	02.319 CONDENSER; GEN (C) ASM PART: I = 8-97074-612-0, 97074612, K = 8-97134-866-0, 97134866	8-97029-539-0	01	1	-
65	02.319 CONDENSER; GEN ASM PART: J = 8-97133-854-0, 97133854	8-97142-253-0	01	1	-
70	02.319 CONDENSER; LEAD WIRE,GEN 02.279 ASM PART: E = 8-94382-060-0, 94382060, H = 8-97046-826-0, 97046826	8-94310-267-0	01	1	-
72	02.319 CONDENSER; GEN ASM PART: E = 8-94382-060-0, 94382060, H = 8-97046-826-0, 97046826	8-94156-594-0	01	1	-
72	02.319 CONDENSER; GEN 02.279 ASM PART: D = 8-94382-059-1, 94382059, M = 8-97137-009-0, 97137009	8-94310-267-0	01	1	-
72	02.319 CONDENSER; GEN ASM PART: F = 8-94401-793-2, 94401793, G = 8-94405-045-3, 94405045	8-94447-332-0	01	1	-
75	02.319 REGULATOR; VOLTAGE,GEN 02.500 ASM PART: A = 8-94320-407-1, 94320407, B = 8-94330-186-0, 94330186, D = 8-94382-059-1, 94382059, E = 8-94382-060-0, 94382060, F = 8-94401-793-2, 94401793, G = 8-94405-045-3, 94405045, H = 8-97046-826-0, 97046826, L = 8-97137-004-0, 97137004, M = 8-97137-009-0, 97137009	8-94250-964-0	01	1	-
75	02.319 REGULATOR; VOLTAGE,GEN ASM PART: I = 8-97074-612-0, 97074612, K = 8-97134-866-0, 97134866	8-97062-650-0	01	1	-
75	02.319 REGULATOR; VOLTAGE,GEN ASM PART: J = 8-97133-854-0, 97133854	8-97142-254-0	01	1	-
76	02.319 BLOCK; REG,GEN 02.500 ASM PART: A = 8-94320-407-1, 94320407, B = 8-94330-186-0, 94330186, D = 8-94382-059-1, 94382059, E = 8-94382-060-0, 94382060, H = 8-97046-826-0, 97046826, L = 8-97137-004-0, 97137004, M = 8-97137-009-0, 97137009	8-94156-591-0	01	1	-
76	02.319 BLOCK; REG,GEN 02.500 ASM PART: F = 8-94401-793-2, 94401793, G = 8-94405-045-3, 94405045	8-94237-726-0	01	1	-
79	02.307 WASHER; FELT,ROTOR,GEN ASM PART: C = 8-94330-187-2, 94330187	8-94453-232-0	02	1	-9307
83	02.307 RING; SLIP,ROTOR,GEN ASM PART: C = 8-94330-187-2, 94330187	5-81229-109-0	01	1	-
85	02.277 SPACER; PULLEY,GEN 02.307 ASM PART: C = 8-94330-187-2, 94330187	8-94453-234-0	01	1	-
86	02.280 NUT SET; PULLEY,GEN ASM PART: D = 8-94382-059-1, 94382059	8-94156-601-0	01	1	-9402
86	02.280 NUT SET; PULLEY,GEN ASM PART: A = 8-94320-407-1, 94320407, B = 8-94330-186-0, 94330186	8-94156-601-0	01	1	-
86	02.280 NUT SET; PULLEY,GEN ASM PART: F = 8-94401-793-2, 94401793, G = 8-94405-045-3, 94405045	8-94223-978-0	01	1	-
86	02.280 NUT SET; PULLEY,GEN ASM PART: D = 8-94382-059-1, 94382059	8-97016-301-0	01	1	9403-
86	02.280 NUT SET; PULLEY,GEN ASM PART: E = 8-94382-060-0, 94382060, H = 8-97046-826-0, 97046826, L = 8-97137-004-0, 97137004, M = 8-97137-009-0, 97137009	8-97016-301-0	01	1	-

90 91 98 100 96 97 103 106 110 24 99 99 93 99 93 94 108 109 104 102 104

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	02.307 SCREW; RECTIFIER,GEN 02.291, (A) ASM PART: C = 8-94330-187-2, 94330187	1-81229-419-0	04	1	-
24	02.307 SCREW; RECTIFIER,GEN (A) ASM PART: G = 8-94405-045-3, 94405045	5-81229-177-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN 02.313, (B) ASM PART: E = 8-94382-060-0, 94382060, H = 8-97046-826-0, 97046826	8-94156-597-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN (A) ASM PART: A = 8-94320-407-1, 94320407, B = 8-94330-186-0, 94330186, E = 8-94382-060-0, 94382060, H = 8-97046-826-0, 97046826	8-94156-603-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN (A) ASM PART: D = 8-94382-059-1, 94382059	8-94156-603-0	01	1	-9402
24	02.307 SCREW; RECTIFIER,GEN (A) ASM PART: F = 8-94401-793-2, 94401793	8-94223-983-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN (A) ASM PART: I = 8-97074-612-0, 97074612, K = 8-97134-866-0, 97134866	8-97062-656-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN (B) ASM PART: D = 8-94382-059-1, 94382059	8-97109-653-0	01	1	9403-
24	02.307 SCREW; RECTIFIER,GEN (B) ASM PART: L = 8-97137-004-0, 97137004, M = 8-97137-009-0, 97137009	8-97109-653-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: J = 8-97133-854-0, 97133854	8-97142-261-0	01	1	-

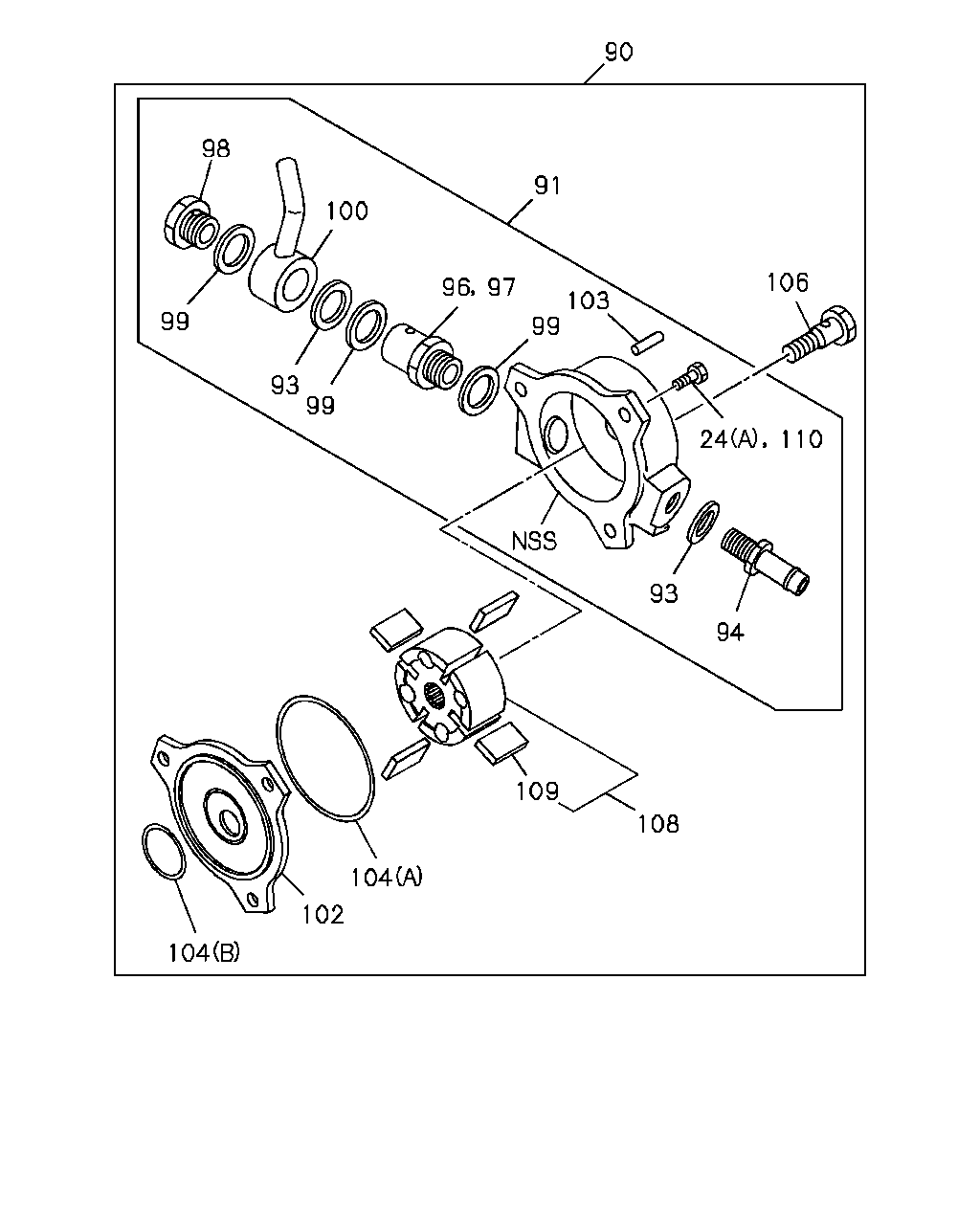

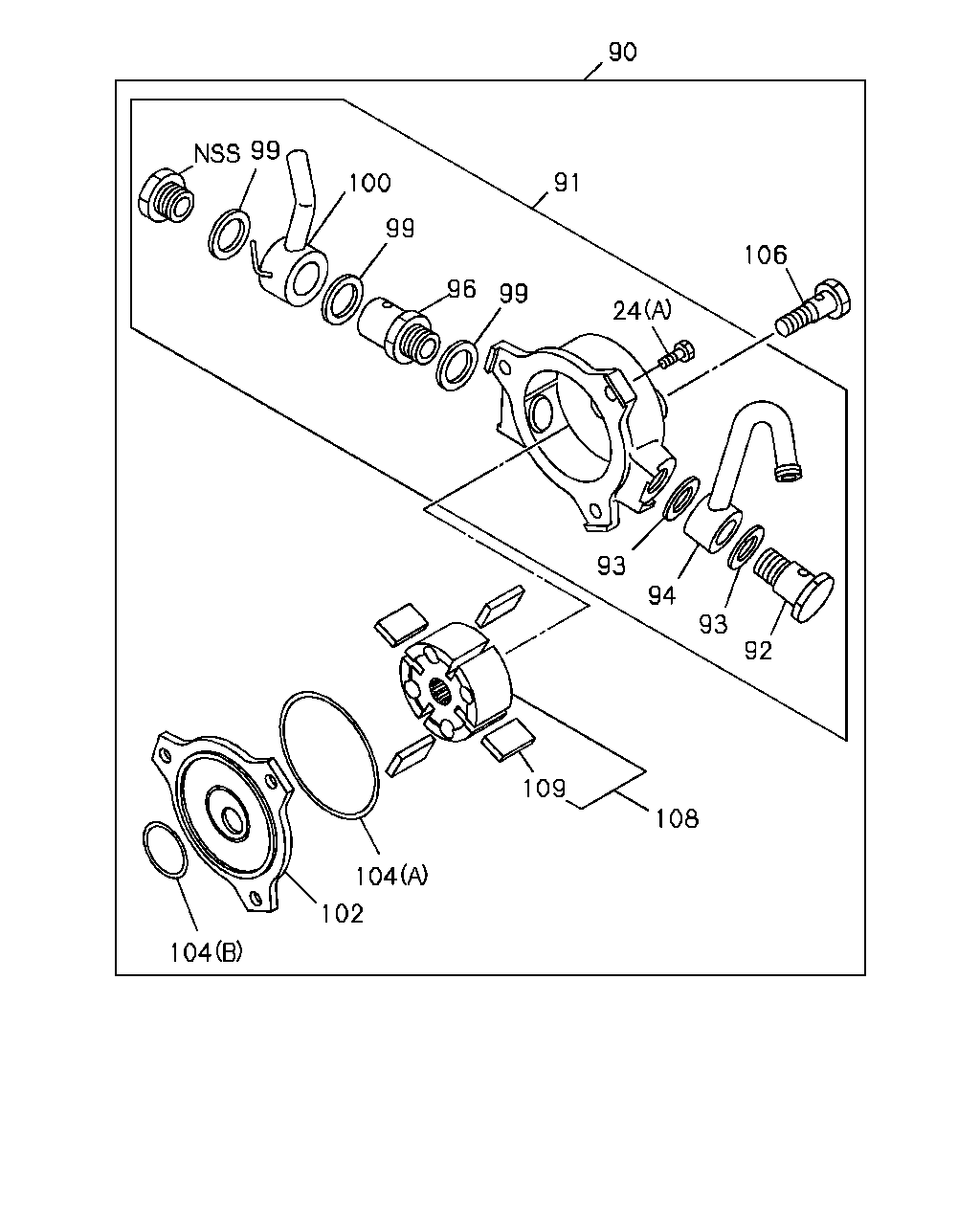

90	03.280 PUMP ASM; VAC,GEN ASM PART: D = 8-94382-059-1, 94382059	8-94311-469-0	01	1	-9402
90	03.280 PUMP ASM; VAC,GEN ASM PART: A = 8-94320-407-1, 94320407	8-94335-640-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: B = 8-94330-186-0, 94330186	8-94337-566-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: G = 8-94405-045-3, 94405045	8-94447-328-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: F = 8-94401-793-2, 94401793	8-94447-329-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: E = 8-94382-060-0, 94382060, H = 8-97046-826-0, 97046826	8-97029-005-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: I = 8-97074-612-0, 97074612	8-97062-657-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: C = 8-94330-187-2, 94330187	8-97063-382-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: D = 8-94382-059-1, 94382059	8-97109-654-0	01	1	9403-
90	03.280 PUMP ASM; VAC,GEN ASM PART: K = 8-97134-866-0, 97134866	8-97134-763-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: L = 8-97137-004-0, 97137004, M = 8-97137-009-0, 97137009	8-97137-332-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: J = 8-97133-854-0, 97133854	8-97142-262-0	01	1	-
91	03.280 BODY; VAC PUMP ASM PART: F = 8-94401-793-2, 94401793, G = 8-94405-045-3, 94405045	5-19613-004-0	01	1	-
91	03.280 BODY; VAC PUMP ASM PART: B = 8-94330-186-0, 94330186	8-94156-607-0	01	1	-
91	03.280 BODY; VAC PUMP ASM PART: A = 8-94320-407-1, 94320407, D = 8-94382-059-1, 94382059, L = 8-97137-004-0, 97137004, M = 8-97137-009-0, 97137009	8-94424-381-0	01	1	-
91	03.280 BODY; VAC PUMP ASM PART: I = 8-97074-612-0, 97074612, J = 8-97133-854-0, 97133854, K = 8-97134-866-0, 97134866	8-97062-660-0	01	1	-
93	03.280 GASKET; CONN,VAC PUMP ID=16 OD=22 ASM PART: F = 8-94401-793-2, 94401793, G = 8-94405-045-3, 94405045	5-19679-004-2	02	1	-
93	03.280 GASKET; CONN,VAC PUMP ID=16 OD=22 ASM PART: A = 8-94320-407-1, 94320407, B = 8-94330-186-0, 94330186, D = 8-94382-059-1, 94382059, E = 8-94382-060-0, 94382060, H = 8-97046-826-0, 97046826, I = 8-97074-612-0, 97074612, J = 8-97133-854-0, 97133854, K = 8-97134-866-0, 97134866, L = 8-97137-004-0, 97137004, M = 8-97137-009-0, 97137009	5-19679-004-2	01	1	-
93	03.280 GASKET; CONN,VAC PUMP ASM PART: C = 8-94330-187-2, 94330187	9-88130-081-0	03	1	-
94	03.280 CONNECTOR; VAC PUMP ASM PART: A = 8-94320-407-1, 94320407, B = 8-94330-186-0, 94330186, D = 8-94382-059-1, 94382059, E = 8-94382-060-0, 94382060, H = 8-97046-826-0, 97046826, I = 8-97074-612-0, 97074612, J = 8-97133-854-0, 97133854, K = 8-97134-866-0, 97134866, L = 8-97137-004-0, 97137004, M = 8-97137-009-0, 97137009	5-19619-034-0	01	1	-
94	03.280 CONNECTOR; VAC PUMP ASM PART: F = 8-94401-793-2, 94401793, G = 8-94405-045-3, 94405045	5-19619-042-0	01	1	-
94	03.280 CONNECTOR; VAC PUMP ASM PART: C = 8-94330-187-2, 94330187	8-94342-679-0	01	1	-
96	03.280 VALVE ASM; VAC PUMP ASM PART: A = 8-94320-407-1, 94320407, D = 8-94382-059-1, 94382059, E = 8-94382-060-0, 94382060, F = 8-94401-793-2, 94401793, G = 8-94405-045-3, 94405045, H = 8-97046-826-0, 97046826, L = 8-97137-004-0, 97137004, M = 8-97137-009-0, 97137009	8-94223-991-0	01	1	-
96	03.280 VALVE ASM; VAC PUMP ASM PART: I = 8-97074-612-0, 97074612, J = 8-97133-854-0, 97133854, K = 8-97134-866-0, 97134866	8-97018-875-0	01	1	-
97	03.280 VALVE; VAC PUMP ASM PART: B = 8-94330-186-0, 94330186	8-94223-991-0	01	1	-
97	03.280 VALVE; VAC PUMP ASM PART: C = 8-94330-187-2, 94330187	8-94456-612-0	01	1	-
98	03.280 BOLT; VAC PUMP ASM PART: C = 8-94330-187-2, 94330187	5-09000-134-0	01	1	-
99	03.280 GASKET; VAC PUMP ID=18 OD=24 ASM PART: I = 8-97074-612-0, 97074612, J = 8-97133-854-0, 97133854, K = 8-97134-866-0, 97134866	5-19679-002-0	02	1	-
99	03.280 GASKET; VAC PUMP ID=12 OD=24 ASM PART: I = 8-97074-612-0, 97074612, J = 8-97133-854-0, 97133854, K = 8-97134-866-0, 97134866	5-19679-003-0	01	1	-
99	03.280 GASKET; VAC PUMP ID=18 OD=24 ASM PART: A = 8-94320-407-1, 94320407, B = 8-94330-186-0, 94330186, D = 8-94382-059-1, 94382059, E = 8-94382-060-0, 94382060, F = 8-94401-793-2, 94401793, G = 8-94405-045-3, 94405045, H = 8-97046-826-0, 97046826, L = 8-97137-004-0, 97137004, M = 8-97137-009-0, 97137009	8-94223-992-0	02	1	-
99	03.280 GASKET; VAC PUMP ID=12 OD=24 ASM PART: A = 8-94320-407-1, 94320407, B = 8-94330-186-0, 94330186, D = 8-94382-059-1, 94382059, E = 8-94382-060-0, 94382060, F = 8-94401-793-2, 94401793, G = 8-94405-045-3, 94405045, H = 8-97046-826-0, 97046826, L = 8-97137-004-0, 97137004, M = 8-97137-009-0, 97137009	8-94223-993-0	01	1	-
99	03.280 GASKET; VAC PUMP ASM PART: C = 8-94330-187-2, 94330187	9-88130-126-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: D = 8-94382-059-1, 94382059, I = 8-97074-612-0, 97074612, K = 8-97134-866-0, 97134866	8-94311-470-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: A = 8-94320-407-1, 94320407, L = 8-97137-004-0, 97137004, M = 8-97137-009-0, 97137009	8-94335-641-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: B = 8-94330-186-0, 94330186, E = 8-94382-060-0, 94382060	8-94337-567-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: C = 8-94330-187-2, 94330187	8-94342-678-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: H = 8-97046-826-0, 97046826	8-94435-641-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: F = 8-94401-793-2, 94401793	8-94447-330-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: G = 8-94405-045-3, 94405045	8-94447-331-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: J = 8-97133-854-0, 97133854	8-97142-263-0	01	1	-
102	03.280 COVER; FRT,VAC PUMP 04.830 ASM PART: B = 8-94330-186-0, 94330186	8-94156-606-0	01	1	-
102	03.280 COVER; FRT,VAC PUMP ASM PART: F = 8-94401-793-2, 94401793, G = 8-94405-045-3, 94405045	8-94223-988-1	01	1	-
102	03.280 COVER; FRT,VAC PUMP ASM PART: A = 8-94320-407-1, 94320407, D = 8-94382-059-1, 94382059, E = 8-94382-060-0, 94382060, H = 8-97046-826-0, 97046826	8-94424-380-0	01	1	-
102	03.280 COVER; FRT,VAC PUMP ASM PART: I = 8-97074-612-0, 97074612	8-97062-659-0	01	1	-
102	03.280 COVER; FRT,VAC PUMP ASM PART: J = 8-97133-854-0, 97133854, K = 8-97134-866-0, 97134866	8-97134-764-0	01	1	-
102	03.280 COVER; FRT,VAC PUMP ASM PART: L = 8-97137-004-0, 97137004, M = 8-97137-009-0, 97137009	8-97137-334-0	01	1	-
103	03.286 PIN; VAC PUMP ASM PART: C = 8-94330-187-2, 94330187	9-88130-099-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP (A) ASM PART: C = 8-94330-187-2, 94330187	5-09623-017-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP 04.830, (B) ASM PART: A = 8-94320-407-1, 94320407, B = 8-94330-186-0, 94330186, D = 8-94382-059-1, 94382059, E = 8-94382-060-0, 94382060, H = 8-97046-826-0, 97046826, I = 8-97074-612-0, 97074612, J = 8-97133-854-0, 97133854, K = 8-97134-866-0, 97134866, L = 8-97137-004-0, 97137004, M = 8-97137-009-0, 97137009	8-94156-608-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP (A) ASM PART: A = 8-94320-407-1, 94320407, B = 8-94330-186-0, 94330186, D = 8-94382-059-1, 94382059, E = 8-94382-060-0, 94382060, F = 8-94401-793-2, 94401793, G = 8-94405-045-3, 94405045, H = 8-97046-826-0, 97046826, L = 8-97137-004-0, 97137004, M = 8-97137-009-0, 97137009	8-94223-994-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP (B) ASM PART: F = 8-94401-793-2, 94401793, G = 8-94405-045-3, 94405045	8-94223-995-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP (A) ASM PART: I = 8-97074-612-0, 97074612, J = 8-97133-854-0, 97133854, K = 8-97134-866-0, 97134866	8-94462-877-0	01	1	-
106	03.280 BOLT; OIL CONN,VAC PUMP ASM PART: A = 8-94320-407-1, 94320407, B = 8-94330-186-0, 94330186, D = 8-94382-059-1, 94382059, E = 8-94382-060-0, 94382060, F = 8-94401-793-2, 94401793, G = 8-94405-045-3, 94405045, H = 8-97046-826-0, 97046826, L = 8-97137-004-0, 97137004, M = 8-97137-009-0, 97137009	8-94223-989-0	01	1	-
106	03.280 BOLT; OIL CONN,VAC PUMP 02.291 ASM PART: C = 8-94330-187-2, 94330187	8-94456-605-0	01	1	-
108	03.280 ROTOR; VAC PUMP 04.830 ASM PART: B = 8-94330-186-0, 94330186	8-94156-605-0	01	1	-
108	03.280 ROTOR; VAC PUMP ASM PART: F = 8-94401-793-2, 94401793, G = 8-94405-045-3, 94405045	8-94223-987-0	01	1	-
108	03.280 ROTOR; VAC PUMP ASM PART: E = 8-94382-060-0, 94382060, H = 8-97046-826-0, 97046826	8-94380-632-0	01	1	-
108	03.280 ROTOR; VAC PUMP ASM PART: D = 8-94382-059-1, 94382059	8-94380-632-0	01	1	9403-
108	03.280 ROTOR; VAC PUMP ASM PART: A = 8-94320-407-1, 94320407	8-94440-270-0	01	1	-
108	03.280 ROTOR; VAC PUMP ASM PART: D = 8-94382-059-1, 94382059	8-94440-270-0	01	1	-9402
108	03.280 ROTOR; VAC PUMP ASM PART: I = 8-97074-612-0, 97074612, J = 8-97133-854-0, 97133854, K = 8-97134-866-0, 97134866	8-97062-658-0	01	1	-
108	03.280 ROTOR; VAC PUMP ASM PART: C = 8-94330-187-2, 94330187	8-97063-383-0	01	1	-
108	03.280 ROTOR; VAC PUMP ASM PART: L = 8-97137-004-0, 97137004, M = 8-97137-009-0, 97137009	8-97137-333-0	01	1	-
109	03.280 VANE; VAC PUMP ASM PART: A = 8-94320-407-1, 94320407, B = 8-94330-186-0, 94330186, D = 8-94382-059-1, 94382059, E = 8-94382-060-0, 94382060, F = 8-94401-793-2, 94401793, G = 8-94405-045-3, 94405045, H = 8-97046-826-0, 97046826, L = 8-97137-004-0, 97137004, M = 8-97137-009-0, 97137009	8-94223-985-0	04	1	-
109	03.280 VANE; VAC PUMP ASM PART: C = 8-94330-187-2, 94330187	8-94456-610-0	04	1	-
109	03.280 VANE; VAC PUMP ASM PART: I = 8-97074-612-0, 97074612, J = 8-97133-854-0, 97133854, K = 8-97134-866-0, 97134866	8-94462-883-0	04	1	-
110	03.280 BOLT; THROUGH ASM PART: C = 8-94330-187-2, 94330187	8-94456-611-0	03	1	-

22 2 3 17 19 3 15 123 21 18 5 75 29 65 65 41 65 44 10 6 1 24 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	02.297 COVER ASM; RR,GEN ASM PART: G = 8-94405-045-3, 94405045	5-81214-115-1	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: F = 8-94401-793-2, 94401793	8-94252-186-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: A = 8-94320-407-1, 94320407, B = 8-94330-186-0, 94330186	8-94381-025-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: E = 8-94382-060-0, 94382060, H = 8-97046-826-0, 97046826	8-94381-026-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: D = 8-94382-059-1, 94382059	8-94381-026-0	01	1	-9402
1	02.297 COVER ASM; RR,GEN ASM PART: C = 8-94330-187-2, 94330187	8-94456-598-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: I = 8-97074-612-0, 97074612, K = 8-97134-866-0, 97134866	8-97078-575-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: M = 8-97137-009-0, 97137009	8-97083-007-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: D = 8-94382-059-1, 94382059	8-97083-007-0	01	1	9403-
1	02.297 COVER ASM; RR,GEN ASM PART: L = 8-97137-004-0, 97137004	8-97137-331-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: J = 8-97133-854-0, 97133854	8-97142-247-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: G = 8-94405-045-3, 94405045	5-81221-059-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: F = 8-94401-793-2, 94401793	5-81221-060-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: D = 8-94382-059-1, 94382059	8-94408-389-0	01	1	-9402
2	02.279 ROTOR; GEN ASM PART: A = 8-94320-407-1, 94320407, B = 8-94330-186-0, 94330186	8-94408-390-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: E = 8-94382-060-0, 94382060, H = 8-97046-826-0, 97046826	8-97029-002-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: I = 8-97074-612-0, 97074612, K = 8-97134-866-0, 97134866	8-97062-643-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: C = 8-94330-187-2, 94330187	8-97063-381-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: M = 8-97137-009-0, 97137009	8-97083-006-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: D = 8-94382-059-1, 94382059	8-97083-006-0	01	1	9403-
2	02.279 ROTOR; GEN ASM PART: L = 8-97137-004-0, 97137004	8-97137-329-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: J = 8-97133-854-0, 97133854	8-97142-245-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: D = 8-94382-059-1, 94382059	8-94156-585-0	01	1	-9402
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: A = 8-94320-407-1, 94320407, B = 8-94330-186-0, 94330186, E = 8-94382-060-0, 94382060, H = 8-97046-826-0, 97046826	8-94156-585-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: A = 8-94320-407-1, 94320407, B = 8-94330-186-0, 94330186, E = 8-94382-060-0, 94382060, F = 8-94401-793-2, 94401793, H = 8-97046-826-0, 97046826	8-94223-979-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: D = 8-94382-059-1, 94382059	8-94223-979-0	01	1	-9402
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: F = 8-94401-793-2, 94401793, G = 8-94405-045-3, 94405045	8-94223-980-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: C = 8-94330-187-2, 94330187	8-94453-230-0	01	1	-9307
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: I = 8-97074-612-0, 97074612, K = 8-97134-866-0, 97134866, L = 8-97137-004-0, 97137004, M = 8-97137-009-0, 97137009	8-97062-654-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: D = 8-94382-059-1, 94382059	8-97062-654-0	01	1	9403-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: D = 8-94382-059-1, 94382059	8-97062-744-0	01	1	9403-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: I = 8-97074-612-0, 97074612, J = 8-97133-854-0, 97133854, K = 8-97134-866-0, 97134866, L = 8-97137-004-0, 97137004, M = 8-97137-009-0, 97137009	8-97062-744-0	01	1	-
3	02.306 BEARING; ROTOR,GEN ASM PART: C = 8-94330-187-2, 94330187	8-97105-381-0	01	1	9308-
3	02.306 BEARING; ROTOR,GEN ASM PART: J = 8-97133-854-0, 97133854	8-97142-259-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: G = 8-94405-045-3, 94405045	9-00090-630-0	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: A = 8-94320-407-1, 94320407, B = 8-94330-186-0, 94330186, D = 8-94382-059-1, 94382059, E = 8-94382-060-0, 94382060, H = 8-97046-826-0, 97046826, L = 8-97137-004-0, 97137004, M = 8-97137-009-0, 97137009	8-94156-592-0	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: F = 8-94401-793-2, 94401793, G = 8-94405-045-3, 94405045	8-94223-965-0	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: C = 8-94330-187-2, 94330187	8-94342-673-0	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: I = 8-97074-612-0, 97074612, K = 8-97134-866-0, 97134866	8-97062-649-0	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: J = 8-97133-854-0, 97133854	8-97142-251-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: L = 8-97137-004-0, 97137004, M = 8-97137-009-0, 97137009	8-94157-410-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN 02.291 ASM PART: A = 8-94320-407-1, 94320407, B = 8-94330-186-0, 94330186, D = 8-94382-059-1, 94382059, E = 8-94382-060-0, 94382060, H = 8-97046-826-0, 97046826	8-94167-410-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: G = 8-94405-045-3, 94405045	8-94250-968-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: F = 8-94401-793-2, 94401793	8-94252-185-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: C = 8-94330-187-2, 94330187	8-94342-680-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: I = 8-97074-612-0, 97074612, K = 8-97134-866-0, 97134866	8-97062-648-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: J = 8-97133-854-0, 97133854	8-97142-250-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: G = 8-94405-045-3, 94405045	5-81218-033-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: A = 8-94320-407-1, 94320407, B = 8-94330-186-0, 94330186, L = 8-97137-004-0, 97137004	8-94156-596-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: F = 8-94401-793-2, 94401793	8-94237-729-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: C = 8-94330-187-2, 94330187	8-94342-672-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: E = 8-94382-060-0, 94382060, H = 8-97046-826-0, 97046826, M = 8-97137-009-0, 97137009	8-94408-376-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: D = 8-94382-059-1, 94382059	8-94408-396-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: I = 8-97074-612-0, 97074612, K = 8-97134-866-0, 97134866	8-97062-651-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: J = 8-97133-854-0, 97133854	8-97142-255-0	01	1	-
15	02.279 RETAINER; ROTOR,GEN 02.307, (A) ASM PART: G = 8-94405-045-3, 94405045	5-81229-055-0	01	1	-
15	02.279 RETAINER; ROTOR,GEN 02.307, (B) ASM PART: G = 8-94405-045-3, 94405045	5-81229-058-0	01	1	-
15	02.279 RETAINER; ROTOR,GEN 02.307, (A) ASM PART: A = 8-94320-407-1, 94320407, B = 8-94330-186-0, 94330186, D = 8-94382-059-1, 94382059, E = 8-94382-060-0, 94382060, F = 8-94401-793-2, 94401793, H = 8-97046-826-0, 97046826, L = 8-97137-004-0, 97137004, M = 8-97137-009-0, 97137009	8-94223-974-0	01	1	-
15	02.279 RETAINER; ROTOR,GEN 02.307, (A) ASM PART: C = 8-94330-187-2, 94330187	8-94453-228-0	01	1	-9307
15	02.279 RETAINER; ROTOR,GEN (B) ASM PART: C = 8-94330-187-2, 94330187	8-94453-229-0	01	1	-
15	02.279 RETAINER; ROTOR,GEN (A) ASM PART: I = 8-97074-612-0, 97074612, K = 8-97134-866-0, 97134866	8-97029-546-0	01	1	-
16	02.291 TERMINAL ASM; RECTIFIER,GEN 02.319 ASM PART: F = 8-94401-793-2, 94401793, G = 8-94405-045-3, 94405045	5-81229-175-0	01	1	-
16	02.291 TERMINAL ASM; RECTIFIER,GEN 02.313 ASM PART: D = 8-94382-059-1, 94382059	8-94156-597-0	01	1	-9402
16	02.291 TERMINAL ASM; RECTIFIER,GEN 02.313 ASM PART: A = 8-94320-407-1, 94320407, B = 8-94330-186-0, 94330186	8-94156-597-0	01	1	-
16	02.291 TERMINAL ASM; RECTIFIER,GEN ASM PART: I = 8-97074-612-0, 97074612, K = 8-97134-866-0, 97134866	8-97029-543-0	01	1	-
16	02.291 TERMINAL ASM; RECTIFIER,GEN ASM PART: D = 8-94382-059-1, 94382059	8-97111-390-0	01	1	9403-
16	02.291 TERMINAL ASM; RECTIFIER,GEN ASM PART: L = 8-97137-004-0, 97137004, M = 8-97137-009-0, 97137009	8-97111-390-0	01	1	-
16	02.291 TERMINAL ASM; RECTIFIER,GEN ASM PART: J = 8-97133-854-0, 97133854	8-97142-256-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: G = 8-94405-045-3, 94405045	5-81213-033-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: A = 8-94320-407-1, 94320407, B = 8-94330-186-0, 94330186, E = 8-94382-060-0, 94382060, H = 8-97046-826-0, 97046826	8-94167-414-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: D = 8-94382-059-1, 94382059	8-94167-414-0	01	1	-9402
17	02.305 COVER ASM; FRT,GEN ASM PART: F = 8-94401-793-2, 94401793	8-94223-973-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: C = 8-94330-187-2, 94330187	8-94456-588-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: I = 8-97074-612-0, 97074612, K = 8-97134-866-0, 97134866	8-97062-653-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: L = 8-97137-004-0, 97137004, M = 8-97137-009-0, 97137009	8-97071-214-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: D = 8-94382-059-1, 94382059	8-97071-214-0	01	1	9403-
18	02.274 NUT; PULLEY,GEN ASM PART: C = 8-94330-187-2, 94330187	8-94167-948-0	01	1	-
18	02.274 NUT; PULLEY,GEN 02.280 ASM PART: I = 8-97074-612-0, 97074612, J = 8-97133-854-0, 97133854, K = 8-97134-866-0, 97134866	8-97016-301-0	01	1	-
19	02.274 PULLEY; GEN 02.247 ASM PART: F = 8-94401-793-2, 94401793	5-81222-060-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: G = 8-94405-045-3, 94405045	5-81222-071-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: A = 8-94320-407-1, 94320407, B = 8-94330-186-0, 94330186	8-94167-415-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: D = 8-94382-059-1, 94382059	8-94167-415-0	01	1	-9402
19	02.274 PULLEY; GEN ASM PART: C = 8-94330-187-2, 94330187	8-94456-585-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: D = 8-94382-059-1, 94382059	8-97029-004-0	01	1	9403-
19	02.274 PULLEY; GEN ASM PART: E = 8-94382-060-0, 94382060, H = 8-97046-826-0, 97046826, L = 8-97137-004-0, 97137004, M = 8-97137-009-0, 97137009	8-97029-004-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: I = 8-97074-612-0, 97074612, K = 8-97134-866-0, 97134866	8-97062-655-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: J = 8-97133-854-0, 97133854	8-97142-260-0	01	1	-
21	02.316 BOLT; THROUGH,GEN ASM PART: C = 8-94330-187-2, 94330187	1-81229-031-0	03	1	-
21	02.316 BOLT; THROUGH,GEN ASM PART: G = 8-94405-045-3, 94405045	5-81229-014-0	03	1	-
21	02.316 BOLT; THROUGH,GEN LOWER ASM PART: F = 8-94401-793-2, 94401793	5-81229-161-0	01	1	-
21	02.316 BOLT; THROUGH,GEN ASM PART: I = 8-97074-612-0, 97074612, J = 8-97133-854-0, 97133854, K = 8-97134-866-0, 97134866	8-94116-435-0	04	1	-
21	02.316 BOLT; THROUGH,GEN ASM PART: A = 8-94320-407-1, 94320407, B = 8-94330-186-0, 94330186, D = 8-94382-059-1, 94382059, E = 8-94382-060-0, 94382060, H = 8-97046-826-0, 97046826, L = 8-97137-004-0, 97137004, M = 8-97137-009-0, 97137009	8-94156-602-0	04	1	-
21	02.316 BOLT; THROUGH,GEN UPPER ASM PART: F = 8-94401-793-2, 94401793	8-94223-976-0	02	1	-
22	02.310 STATOR; GEN ASM PART: G = 8-94405-045-3, 94405045	5-81211-054-0	01	1	-
22	02.310 STATOR; GEN ASM PART: D = 8-94382-059-1, 94382059, E = 8-94382-060-0, 94382060, H = 8-97046-826-0, 97046826, M = 8-97137-009-0, 97137009	8-94167-406-0	01	1	-
22	02.310 STATOR; GEN ASM PART: A = 8-94320-407-1, 94320407, B = 8-94330-186-0, 94330186, L = 8-97137-004-0, 97137004	8-94167-407-0	01	1	-
22	02.310 STATOR; GEN ASM PART: F = 8-94401-793-2, 94401793	8-94237-114-0	01	1	-
22	02.310 STATOR; GEN ASM PART: C = 8-94330-187-2, 94330187	8-94342-675-0	01	1	-
22	02.310 STATOR; GEN ASM PART: I = 8-97074-612-0, 97074612, K = 8-97134-866-0, 97134866	8-97062-645-0	01	1	-
22	02.310 STATOR; GEN ASM PART: J = 8-97133-854-0, 97133854	8-97142-246-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN 02.291, (A) ASM PART: C = 8-94330-187-2, 94330187	1-81229-419-0	04	1	-
24	02.307 SCREW; RECTIFIER,GEN (A) ASM PART: G = 8-94405-045-3, 94405045	5-81229-177-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN 02.313, (B) ASM PART: E = 8-94382-060-0, 94382060, H = 8-97046-826-0, 97046826	8-94156-597-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN (A) ASM PART: A = 8-94320-407-1, 94320407, B = 8-94330-186-0, 94330186, E = 8-94382-060-0, 94382060, H = 8-97046-826-0, 97046826	8-94156-603-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN (A) ASM PART: D = 8-94382-059-1, 94382059	8-94156-603-0	01	1	-9402
24	02.307 SCREW; RECTIFIER,GEN (A) ASM PART: F = 8-94401-793-2, 94401793	8-94223-983-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN (A) ASM PART: I = 8-97074-612-0, 97074612, K = 8-97134-866-0, 97134866	8-97062-656-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN (B) ASM PART: D = 8-94382-059-1, 94382059	8-97109-653-0	01	1	9403-
24	02.307 SCREW; RECTIFIER,GEN (B) ASM PART: L = 8-97137-004-0, 97137004, M = 8-97137-009-0, 97137009	8-97109-653-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: J = 8-97133-854-0, 97133854	8-97142-261-0	01	1	-
29	02.285 BRUSH; GEN ASM PART: C = 8-94330-187-2, 94330187	5-81215-018-0	02	1	-
29	02.285 BRUSH; GEN ASM PART: A = 8-94320-407-1, 94320407, B = 8-94330-186-0, 94330186, D = 8-94382-059-1, 94382059, E = 8-94382-060-0, 94382060, H = 8-97046-826-0, 97046826, I = 8-97074-612-0, 97074612, K = 8-97134-866-0, 97134866, L = 8-97137-004-0, 97137004, M = 8-97137-009-0, 97137009	8-94156-593-0	02	1	-
29	02.285 BRUSH; GEN ASM PART: F = 8-94401-793-2, 94401793, G = 8-94405-045-3, 94405045	8-94223-966-0	02	1	-
29	02.285 BRUSH; GEN ASM PART: J = 8-97133-854-0, 97133854	8-97142-252-0	02	1	-
41	02.274 GUIDE; FAN,GEN ASM PART: I = 8-97074-612-0, 97074612, K = 8-97134-866-0, 97134866	8-97062-745-0	01	1	-
41	02.274 GUIDE; FAN,GEN ASM PART: J = 8-97133-854-0, 97133854	8-97142-257-0	01	1	-
44	02.298 SEAL; RR COVER,GEN ASM PART: A = 8-94320-407-1, 94320407, B = 8-94330-186-0, 94330186, D = 8-94382-059-1, 94382059, E = 8-94382-060-0, 94382060, H = 8-97046-826-0, 97046826, J = 8-97133-854-0, 97133854, L = 8-97137-004-0, 97137004, M = 8-97137-009-0, 97137009	8-94156-589-0	01	1	-
44	02.298 SEAL; RR COVER,GEN ASM PART: F = 8-94401-793-2, 94401793, G = 8-94405-045-3, 94405045	8-94223-981-1	01	1	-
44	02.298 SEAL; RR COVER,GEN ASM PART: I = 8-97074-612-0, 97074612, K = 8-97134-866-0, 97134866	8-97029-534-0	01	1	-
65	02.319 CONDENSER; GEN ASM PART: A = 8-94320-407-1, 94320407, B = 8-94330-186-0, 94330186, D = 8-94382-059-1, 94382059, L = 8-97137-004-0, 97137004, M = 8-97137-009-0, 97137009	8-94156-594-0	01	1	-
65	02.319 CONDENSER; GEN (A) ASM PART: I = 8-97074-612-0, 97074612, K = 8-97134-866-0, 97134866	8-97029-537-0	01	1	-
65	02.319 CONDENSER; GEN (B) ASM PART: I = 8-97074-612-0, 97074612, K = 8-97134-866-0, 97134866	8-97029-538-0	01	1	-
65	02.319 CONDENSER; GEN (C) ASM PART: I = 8-97074-612-0, 97074612, K = 8-97134-866-0, 97134866	8-97029-539-0	01	1	-
65	02.319 CONDENSER; GEN ASM PART: J = 8-97133-854-0, 97133854	8-97142-253-0	01	1	-
75	02.319 REGULATOR; VOLTAGE,GEN 02.500 ASM PART: A = 8-94320-407-1, 94320407, B = 8-94330-186-0, 94330186, D = 8-94382-059-1, 94382059, E = 8-94382-060-0, 94382060, F = 8-94401-793-2, 94401793, G = 8-94405-045-3, 94405045, H = 8-97046-826-0, 97046826, L = 8-97137-004-0, 97137004, M = 8-97137-009-0, 97137009	8-94250-964-0	01	1	-
75	02.319 REGULATOR; VOLTAGE,GEN ASM PART: I = 8-97074-612-0, 97074612, K = 8-97134-866-0, 97134866	8-97062-650-0	01	1	-
75	02.319 REGULATOR; VOLTAGE,GEN ASM PART: J = 8-97133-854-0, 97133854	8-97142-254-0	01	1	-
123	02.291 GUIDE; BRUSH ASM PART: I = 8-97074-612-0, 97074612, J = 8-97133-854-0, 97133854, K = 8-97134-866-0, 97134866	8-97062-644-0	01	1	-

90 91 106 24 99 96 99 100 99 93 94 93 92 108 109 104 102 104

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	02.307 SCREW; RECTIFIER,GEN 02.291, (A) ASM PART: C = 8-94330-187-2, 94330187	1-81229-419-0	04	1	-
24	02.307 SCREW; RECTIFIER,GEN (A) ASM PART: G = 8-94405-045-3, 94405045	5-81229-177-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN 02.313, (B) ASM PART: E = 8-94382-060-0, 94382060, H = 8-97046-826-0, 97046826	8-94156-597-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN (A) ASM PART: A = 8-94320-407-1, 94320407, B = 8-94330-186-0, 94330186, E = 8-94382-060-0, 94382060, H = 8-97046-826-0, 97046826	8-94156-603-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN (A) ASM PART: D = 8-94382-059-1, 94382059	8-94156-603-0	01	1	-9402
24	02.307 SCREW; RECTIFIER,GEN (A) ASM PART: F = 8-94401-793-2, 94401793	8-94223-983-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN (A) ASM PART: I = 8-97074-612-0, 97074612, K = 8-97134-866-0, 97134866	8-97062-656-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN (B) ASM PART: D = 8-94382-059-1, 94382059	8-97109-653-0	01	1	9403-
24	02.307 SCREW; RECTIFIER,GEN (B) ASM PART: L = 8-97137-004-0, 97137004, M = 8-97137-009-0, 97137009	8-97109-653-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: J = 8-97133-854-0, 97133854	8-97142-261-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: D = 8-94382-059-1, 94382059	8-94311-469-0	01	1	-9402
90	03.280 PUMP ASM; VAC,GEN ASM PART: A = 8-94320-407-1, 94320407	8-94335-640-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: B = 8-94330-186-0, 94330186	8-94337-566-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: G = 8-94405-045-3, 94405045	8-94447-328-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: F = 8-94401-793-2, 94401793	8-94447-329-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: E = 8-94382-060-0, 94382060, H = 8-97046-826-0, 97046826	8-97029-005-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: I = 8-97074-612-0, 97074612	8-97062-657-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: C = 8-94330-187-2, 94330187	8-97063-382-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: D = 8-94382-059-1, 94382059	8-97109-654-0	01	1	9403-
90	03.280 PUMP ASM; VAC,GEN ASM PART: K = 8-97134-866-0, 97134866	8-97134-763-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: L = 8-97137-004-0, 97137004, M = 8-97137-009-0, 97137009	8-97137-332-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: J = 8-97133-854-0, 97133854	8-97142-262-0	01	1	-
91	03.280 BODY; VAC PUMP ASM PART: F = 8-94401-793-2, 94401793, G = 8-94405-045-3, 94405045	5-19613-004-0	01	1	-
91	03.280 BODY; VAC PUMP ASM PART: B = 8-94330-186-0, 94330186	8-94156-607-0	01	1	-
91	03.280 BODY; VAC PUMP ASM PART: A = 8-94320-407-1, 94320407, D = 8-94382-059-1, 94382059, L = 8-97137-004-0, 97137004, M = 8-97137-009-0, 97137009	8-94424-381-0	01	1	-
91	03.280 BODY; VAC PUMP ASM PART: I = 8-97074-612-0, 97074612, J = 8-97133-854-0, 97133854, K = 8-97134-866-0, 97134866	8-97062-660-0	01	1	-
92	03.280 BOLT; DELIVERY,VAC PUMP ASM PART: F = 8-94401-793-2, 94401793, G = 8-94405-045-3, 94405045	5-19619-031-0	01	1	-
93	03.280 GASKET; CONN,VAC PUMP ID=16 OD=22 ASM PART: F = 8-94401-793-2, 94401793, G = 8-94405-045-3, 94405045	5-19679-004-2	02	1	-
93	03.280 GASKET; CONN,VAC PUMP ID=16 OD=22 ASM PART: A = 8-94320-407-1, 94320407, B = 8-94330-186-0, 94330186, D = 8-94382-059-1, 94382059, E = 8-94382-060-0, 94382060, H = 8-97046-826-0, 97046826, I = 8-97074-612-0, 97074612, J = 8-97133-854-0, 97133854, K = 8-97134-866-0, 97134866, L = 8-97137-004-0, 97137004, M = 8-97137-009-0, 97137009	5-19679-004-2	01	1	-
93	03.280 GASKET; CONN,VAC PUMP ASM PART: C = 8-94330-187-2, 94330187	9-88130-081-0	03	1	-
94	03.280 CONNECTOR; VAC PUMP ASM PART: A = 8-94320-407-1, 94320407, B = 8-94330-186-0, 94330186, D = 8-94382-059-1, 94382059, E = 8-94382-060-0, 94382060, H = 8-97046-826-0, 97046826, I = 8-97074-612-0, 97074612, J = 8-97133-854-0, 97133854, K = 8-97134-866-0, 97134866, L = 8-97137-004-0, 97137004, M = 8-97137-009-0, 97137009	5-19619-034-0	01	1	-
94	03.280 CONNECTOR; VAC PUMP ASM PART: F = 8-94401-793-2, 94401793, G = 8-94405-045-3, 94405045	5-19619-042-0	01	1	-
94	03.280 CONNECTOR; VAC PUMP ASM PART: C = 8-94330-187-2, 94330187	8-94342-679-0	01	1	-
96	03.280 VALVE ASM; VAC PUMP ASM PART: A = 8-94320-407-1, 94320407, D = 8-94382-059-1, 94382059, E = 8-94382-060-0, 94382060, F = 8-94401-793-2, 94401793, G = 8-94405-045-3, 94405045, H = 8-97046-826-0, 97046826, L = 8-97137-004-0, 97137004, M = 8-97137-009-0, 97137009	8-94223-991-0	01	1	-
96	03.280 VALVE ASM; VAC PUMP ASM PART: I = 8-97074-612-0, 97074612, J = 8-97133-854-0, 97133854, K = 8-97134-866-0, 97134866	8-97018-875-0	01	1	-
99	03.280 GASKET; VAC PUMP ID=18 OD=24 ASM PART: I = 8-97074-612-0, 97074612, J = 8-97133-854-0, 97133854, K = 8-97134-866-0, 97134866	5-19679-002-0	02	1	-
99	03.280 GASKET; VAC PUMP ID=12 OD=24 ASM PART: I = 8-97074-612-0, 97074612, J = 8-97133-854-0, 97133854, K = 8-97134-866-0, 97134866	5-19679-003-0	01	1	-
99	03.280 GASKET; VAC PUMP ID=18 OD=24 ASM PART: A = 8-94320-407-1, 94320407, B = 8-94330-186-0, 94330186, D = 8-94382-059-1, 94382059, E = 8-94382-060-0, 94382060, F = 8-94401-793-2, 94401793, G = 8-94405-045-3, 94405045, H = 8-97046-826-0, 97046826, L = 8-97137-004-0, 97137004, M = 8-97137-009-0, 97137009	8-94223-992-0	02	1	-
99	03.280 GASKET; VAC PUMP ID=12 OD=24 ASM PART: A = 8-94320-407-1, 94320407, B = 8-94330-186-0, 94330186, D = 8-94382-059-1, 94382059, E = 8-94382-060-0, 94382060, F = 8-94401-793-2, 94401793, G = 8-94405-045-3, 94405045, H = 8-97046-826-0, 97046826, L = 8-97137-004-0, 97137004, M = 8-97137-009-0, 97137009	8-94223-993-0	01	1	-
99	03.280 GASKET; VAC PUMP ASM PART: C = 8-94330-187-2, 94330187	9-88130-126-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: D = 8-94382-059-1, 94382059, I = 8-97074-612-0, 97074612, K = 8-97134-866-0, 97134866	8-94311-470-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: A = 8-94320-407-1, 94320407, L = 8-97137-004-0, 97137004, M = 8-97137-009-0, 97137009	8-94335-641-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: B = 8-94330-186-0, 94330186, E = 8-94382-060-0, 94382060	8-94337-567-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: C = 8-94330-187-2, 94330187	8-94342-678-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: H = 8-97046-826-0, 97046826	8-94435-641-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: F = 8-94401-793-2, 94401793	8-94447-330-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: G = 8-94405-045-3, 94405045	8-94447-331-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: J = 8-97133-854-0, 97133854	8-97142-263-0	01	1	-
102	03.280 COVER; FRT,VAC PUMP 04.830 ASM PART: B = 8-94330-186-0, 94330186	8-94156-606-0	01	1	-
102	03.280 COVER; FRT,VAC PUMP ASM PART: F = 8-94401-793-2, 94401793, G = 8-94405-045-3, 94405045	8-94223-988-1	01	1	-
102	03.280 COVER; FRT,VAC PUMP ASM PART: A = 8-94320-407-1, 94320407, D = 8-94382-059-1, 94382059, E = 8-94382-060-0, 94382060, H = 8-97046-826-0, 97046826	8-94424-380-0	01	1	-
102	03.280 COVER; FRT,VAC PUMP ASM PART: I = 8-97074-612-0, 97074612	8-97062-659-0	01	1	-
102	03.280 COVER; FRT,VAC PUMP ASM PART: J = 8-97133-854-0, 97133854, K = 8-97134-866-0, 97134866	8-97134-764-0	01	1	-
102	03.280 COVER; FRT,VAC PUMP ASM PART: L = 8-97137-004-0, 97137004, M = 8-97137-009-0, 97137009	8-97137-334-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP (A) ASM PART: C = 8-94330-187-2, 94330187	5-09623-017-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP 04.830, (B) ASM PART: A = 8-94320-407-1, 94320407, B = 8-94330-186-0, 94330186, D = 8-94382-059-1, 94382059, E = 8-94382-060-0, 94382060, H = 8-97046-826-0, 97046826, I = 8-97074-612-0, 97074612, J = 8-97133-854-0, 97133854, K = 8-97134-866-0, 97134866, L = 8-97137-004-0, 97137004, M = 8-97137-009-0, 97137009	8-94156-608-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP (A) ASM PART: A = 8-94320-407-1, 94320407, B = 8-94330-186-0, 94330186, D = 8-94382-059-1, 94382059, E = 8-94382-060-0, 94382060, F = 8-94401-793-2, 94401793, G = 8-94405-045-3, 94405045, H = 8-97046-826-0, 97046826, L = 8-97137-004-0, 97137004, M = 8-97137-009-0, 97137009	8-94223-994-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP (B) ASM PART: F = 8-94401-793-2, 94401793, G = 8-94405-045-3, 94405045	8-94223-995-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP (A) ASM PART: I = 8-97074-612-0, 97074612, J = 8-97133-854-0, 97133854, K = 8-97134-866-0, 97134866	8-94462-877-0	01	1	-
106	03.280 BOLT; OIL CONN,VAC PUMP ASM PART: A = 8-94320-407-1, 94320407, B = 8-94330-186-0, 94330186, D = 8-94382-059-1, 94382059, E = 8-94382-060-0, 94382060, F = 8-94401-793-2, 94401793, G = 8-94405-045-3, 94405045, H = 8-97046-826-0, 97046826, L = 8-97137-004-0, 97137004, M = 8-97137-009-0, 97137009	8-94223-989-0	01	1	-
106	03.280 BOLT; OIL CONN,VAC PUMP 02.291 ASM PART: C = 8-94330-187-2, 94330187	8-94456-605-0	01	1	-
108	03.280 ROTOR; VAC PUMP 04.830 ASM PART: B = 8-94330-186-0, 94330186	8-94156-605-0	01	1	-
108	03.280 ROTOR; VAC PUMP ASM PART: F = 8-94401-793-2, 94401793, G = 8-94405-045-3, 94405045	8-94223-987-0	01	1	-
108	03.280 ROTOR; VAC PUMP ASM PART: E = 8-94382-060-0, 94382060, H = 8-97046-826-0, 97046826	8-94380-632-0	01	1	-
108	03.280 ROTOR; VAC PUMP ASM PART: D = 8-94382-059-1, 94382059	8-94380-632-0	01	1	9403-
108	03.280 ROTOR; VAC PUMP ASM PART: A = 8-94320-407-1, 94320407	8-94440-270-0	01	1	-
108	03.280 ROTOR; VAC PUMP ASM PART: D = 8-94382-059-1, 94382059	8-94440-270-0	01	1	-9402
108	03.280 ROTOR; VAC PUMP ASM PART: I = 8-97074-612-0, 97074612, J = 8-97133-854-0, 97133854, K = 8-97134-866-0, 97134866	8-97062-658-0	01	1	-
108	03.280 ROTOR; VAC PUMP ASM PART: C = 8-94330-187-2, 94330187	8-97063-383-0	01	1	-
108	03.280 ROTOR; VAC PUMP ASM PART: L = 8-97137-004-0, 97137004, M = 8-97137-009-0, 97137009	8-97137-333-0	01	1	-
109	03.280 VANE; VAC PUMP ASM PART: A = 8-94320-407-1, 94320407, B = 8-94330-186-0, 94330186, D = 8-94382-059-1, 94382059, E = 8-94382-060-0, 94382060, F = 8-94401-793-2, 94401793, G = 8-94405-045-3, 94405045, H = 8-97046-826-0, 97046826, L = 8-97137-004-0, 97137004, M = 8-97137-009-0, 97137009	8-94223-985-0	04	1	-
109	03.280 VANE; VAC PUMP ASM PART: C = 8-94330-187-2, 94330187	8-94456-610-0	04	1	-
109	03.280 VANE; VAC PUMP ASM PART: I = 8-97074-612-0, 97074612, J = 8-97133-854-0, 97133854, K = 8-97134-866-0, 97134866	8-94462-883-0	04	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
