Sayfa 0-66A - Isuzu EPC

0-66A — GENERATOR (#41292) — 615 parça

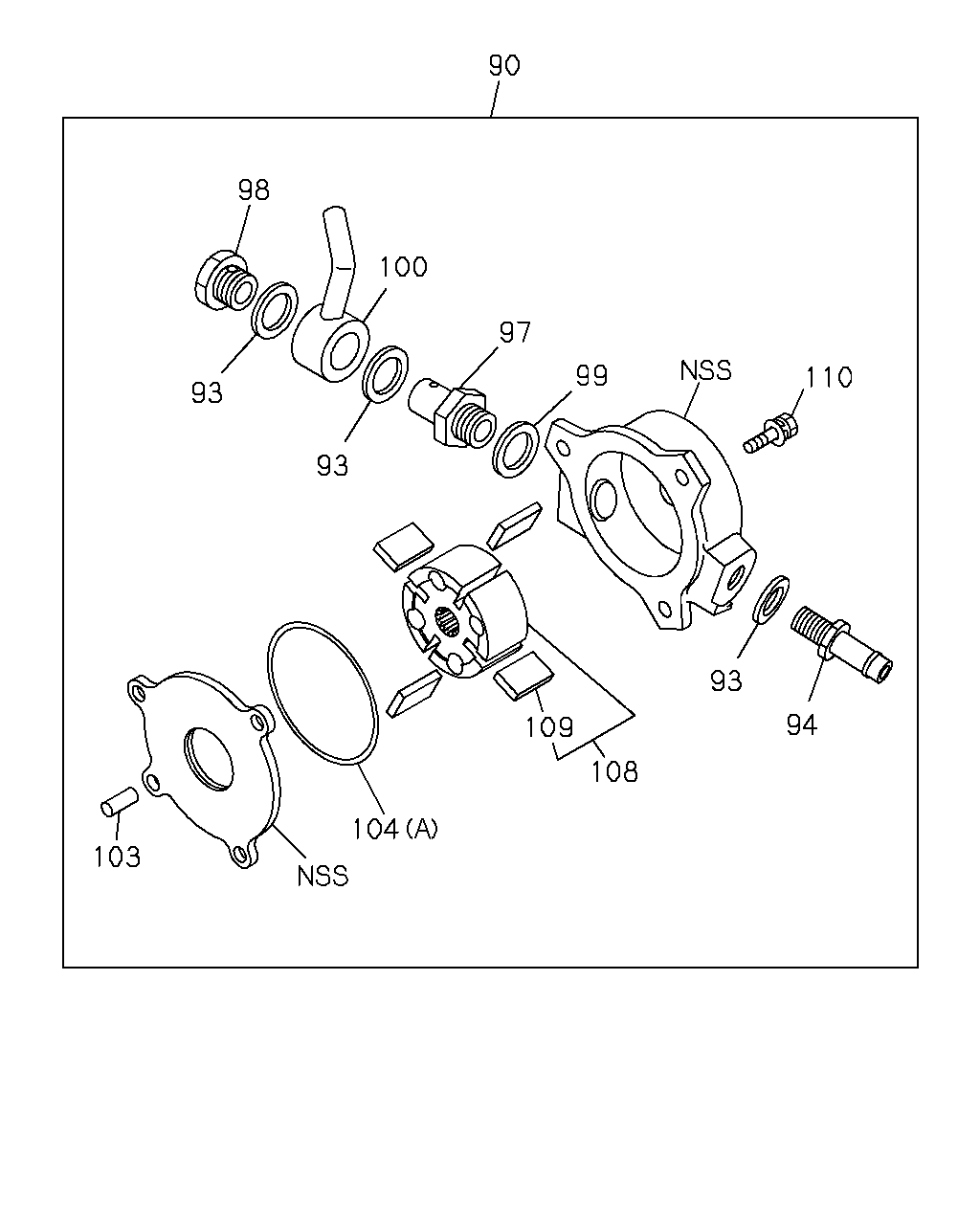

90 98 100 93 93 97 110 99 93 94 108 104 109 103

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
90	03.280 PUMP ASM; VAC,GEN ASM PART: I = 8-97940-215-0, 97940215	8-97940-247-0	01	1	-
93	03.280 GASKET; CONN,VAC PUMP ASM PART: I = 8-97940-215-0, 97940215	9-88130-081-0	03	1	-
94	03.280 CONNECTOR; VAC PUMP ASM PART: I = 8-97940-215-0, 97940215	8-94342-679-0	01	1	-
97	03.280 VALVE; VAC PUMP ASM PART: I = 8-97940-215-0, 97940215	8-94456-612-0	01	1	-
98	03.280 BOLT; VAC PUMP ASM PART: I = 8-97940-215-0, 97940215	5-09000-134-0	01	1	-
99	03.280 GASKET; VAC PUMP ASM PART: I = 8-97940-215-0, 97940215	9-88130-126-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: I = 8-97940-215-0, 97940215	8-97940-249-0	01	1	-
103	03.286 PIN; VAC PUMP ASM PART: I = 8-97940-215-0, 97940215	9-88130-099-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP (A) ASM PART: I = 8-97940-215-0, 97940215	5-09623-017-0	01	1	-
108	03.280 ROTOR; VAC PUMP ASM PART: I = 8-97940-215-0, 97940215	8-97063-383-0	01	1	-
109	03.280 VANE; VAC PUMP ASM PART: I = 8-97940-215-0, 97940215	8-94456-610-0	04	1	-
110	03.280 BOLT; THROUGH ASM PART: I = 8-97940-215-0, 97940215	8-94456-611-0	03	1	-

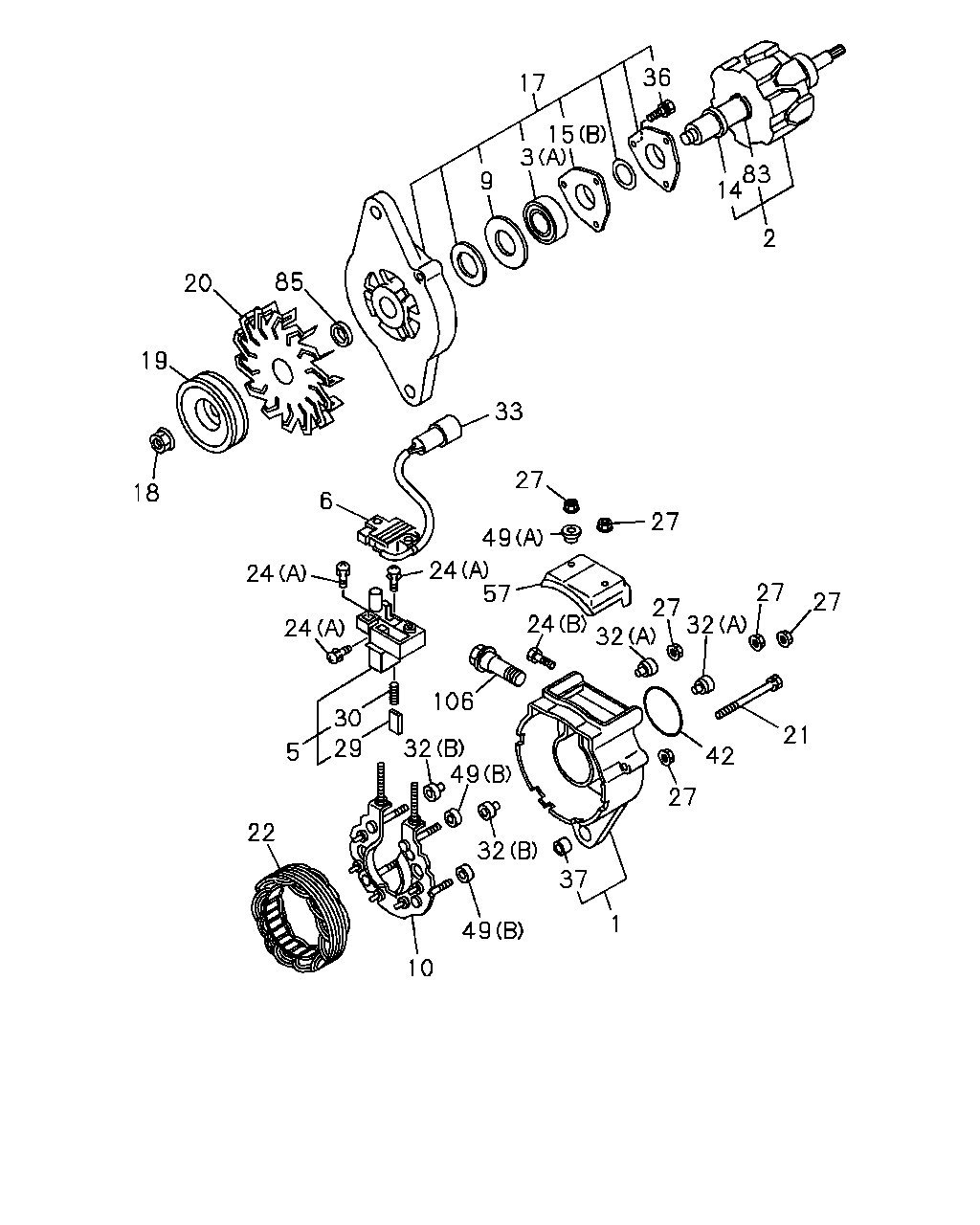

36 83 2 17 14 15 3 9 85 20 19 18 33 27 27 49 6 24 24 24 57 27 27 27 32 32 24 106 21 42 27 30 29 5 32 49 32 49 22 10 37 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	02.297 COVER ASM; RR,GEN ASM PART: C = 8-94337-636-0, 94337636, D = 8-94337-637-0, 94337637	8-94361-717-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: B = 8-94337-635-0, 94337635	8-94361-727-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: G = 8-94472-817-4, 94472817	8-94379-565-0	01	1	-9411
1	02.297 COVER ASM; RR,GEN ASM PART: F = 8-94472-816-3, 94472816	8-94379-565-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: I = 8-97940-215-0, 97940215	8-94456-598-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: G = 8-94472-817-4, 94472817	8-97130-594-0	01	1	9412-
2	02.279 ROTOR; GEN ASM PART: C = 8-94337-636-0, 94337636	8-94361-714-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: D = 8-94337-637-0, 94337637	8-94361-715-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: B = 8-94337-635-0, 94337635	8-94361-726-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: A = 8-94156-672-2, 94156672	8-94406-983-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: H = 8-97071-720-0, 97071720	8-94410-984-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: E = 8-94454-188-1, 94454188	8-94455-157-1	01	1	-
2	02.279 ROTOR; GEN ASM PART: I = 8-97940-215-0, 97940215	8-97063-381-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: F = 8-94472-816-3, 94472816	8-97065-285-0	01	1	-9302
2	02.279 ROTOR; GEN ASM PART: G = 8-94472-817-4, 94472817	8-97065-286-0	01	1	-9302
2	02.279 ROTOR; GEN ASM PART: F = 8-94472-816-3, 94472816	8-97100-262-0	01	1	9303-
2	02.279 ROTOR; GEN ASM PART: G = 8-94472-817-4, 94472817	8-97100-263-0	01	1	9303-9411
2	02.279 ROTOR; GEN ASM PART: G = 8-94472-817-4, 94472817	8-97130-705-0	01	1	9412-
3	02.306 BEARING; ROTOR,GEN 02.298, (A) ASM PART: A = 8-94156-672-2, 94156672, H = 8-97071-720-0, 97071720	8-94123-050-0	01	1	-
3	02.306 BEARING; ROTOR,GEN 02.298, (A) ASM PART: E = 8-94454-188-1, 94454188	8-94135-753-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: B = 8-94337-635-0, 94337635	8-94333-520-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: B = 8-94337-635-0, 94337635, C = 8-94337-636-0, 94337636, D = 8-94337-637-0, 94337637	8-94333-521-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: G = 8-94472-817-4, 94472817	8-94379-557-0	01	1	-9411
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: F = 8-94472-816-3, 94472816	8-94379-557-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: G = 8-94472-817-4, 94472817	8-94379-564-0	01	1	-9411
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: F = 8-94472-816-3, 94472816	8-94379-564-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: A = 8-94156-672-2, 94156672, H = 8-97071-720-0, 97071720	8-94406-981-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: I = 8-97940-215-0, 97940215	8-94453-230-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: E = 8-94454-188-1, 94454188	8-94455-153-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: C = 8-94337-636-0, 94337636, D = 8-94337-637-0, 94337637	8-94458-423-0	01	1	-
3	02.306 BEARING; ROTOR,GEN ASM PART: G = 8-94472-817-4, 94472817	8-97130-592-0	01	1	9412-
3	02.306 BEARING; ROTOR,GEN ASM PART: G = 8-94472-817-4, 94472817	8-97130-593-0	01	1	9412-
5	02.291 HOLDER; BRUSH,GEN ASM PART: A = 8-94156-672-2, 94156672, H = 8-97071-720-0, 97071720	8-94139-013-2	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: E = 8-94454-188-1, 94454188	8-94159-781-0	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: I = 8-97940-215-0, 97940215	8-94342-673-0	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: C = 8-94337-636-0, 94337636, D = 8-94337-637-0, 94337637	8-94361-720-0	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: B = 8-94337-635-0, 94337635	8-94378-478-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: A = 8-94156-672-2, 94156672, H = 8-97071-720-0, 97071720	8-94139-012-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: I = 8-97940-215-0, 97940215	8-94342-680-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: C = 8-94337-636-0, 94337636, D = 8-94337-637-0, 94337637	8-94361-719-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: B = 8-94337-635-0, 94337635	8-94378-477-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: F = 8-94472-816-3, 94472816	8-94379-568-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: G = 8-94472-817-4, 94472817	8-94379-568-0	01	1	-9411
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: E = 8-94454-188-1, 94454188	8-94455-160-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: G = 8-94472-817-4, 94472817	8-97130-596-0	01	1	9412-
9	02.307 COVER; FELT WASHER,ROTOR,GEN 02.298 ASM PART: A = 8-94156-672-2, 94156672, E = 8-94454-188-1, 94454188, H = 8-97071-720-0, 97071720	8-94123-051-0	01	1	-
9	02.307 COVER; FELT WASHER,ROTOR,GEN ASM PART: I = 8-97940-215-0, 97940215	8-94453-231-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: B = 8-94337-635-0, 94337635	5-81262-005-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: C = 8-94337-636-0, 94337636, D = 8-94337-637-0, 94337637	5-81262-006-0	01	1	-
10	02.319 RECTIFIER; GEN 02.291 ASM PART: A = 8-94156-672-2, 94156672	8-94123-052-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: H = 8-97071-720-0, 97071720	8-94125-884-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: I = 8-97940-215-0, 97940215	8-94342-672-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: F = 8-94472-816-3, 94472816	8-94379-566-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: G = 8-94472-817-4, 94472817	8-94379-589-0	01	1	-9411
10	02.319 RECTIFIER; GEN ASM PART: E = 8-94454-188-1, 94454188	8-94455-159-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: G = 8-94472-817-4, 94472817	8-97130-595-0	01	1	9412-
14	02.307 COLLAR; STEEL ASM PART: I = 8-97940-215-0, 97940215	8-94453-225-0	01	1	-
15	02.279 RETAINER; ROTOR,GEN ASM PART: B = 8-94337-635-0, 94337635	5-81229-029-0	01	1	-
15	02.279 RETAINER; ROTOR,GEN 02.307 ASM PART: C = 8-94337-636-0, 94337636, D = 8-94337-637-0, 94337637	8-94233-649-0	01	1	-
15	02.279 RETAINER; ROTOR,GEN ASM PART: G = 8-94472-817-4, 94472817	8-94379-558-0	01	1	-9411
15	02.279 RETAINER; ROTOR,GEN ASM PART: F = 8-94472-816-3, 94472816	8-94379-558-0	01	1	-
15	02.279 RETAINER; ROTOR,GEN 02.307 ASM PART: A = 8-94156-672-2, 94156672, H = 8-97071-720-0, 97071720	8-94406-982-0	01	1	-
15	02.279 RETAINER; ROTOR,GEN (B) ASM PART: I = 8-97940-215-0, 97940215	8-94453-229-0	01	1	-
15	02.279 RETAINER; ROTOR,GEN ASM PART: E = 8-94454-188-1, 94454188	8-94455-154-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: C = 8-94337-636-0, 94337636, D = 8-94337-637-0, 94337637	8-94361-723-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: B = 8-94337-635-0, 94337635	8-94361-729-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: F = 8-94472-816-3, 94472816	8-94379-556-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: G = 8-94472-817-4, 94472817	8-94379-556-0	01	1	-9411
17	02.305 COVER ASM; FRT,GEN ASM PART: A = 8-94156-672-2, 94156672	8-94406-980-1	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: H = 8-97071-720-0, 97071720	8-94413-890-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: I = 8-97940-215-0, 97940215	8-94456-588-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: E = 8-94454-188-1, 94454188	8-94465-402-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: G = 8-94472-817-4, 94472817	8-97130-591-0	01	1	9412-
18	02.274 NUT; PULLEY,GEN 02.280 ASM PART: A = 8-94156-672-2, 94156672, E = 8-94454-188-1, 94454188, H = 8-97071-720-0, 97071720	8-94123-043-0	01	1	-
18	02.274 NUT; PULLEY,GEN ASM PART: I = 8-97940-215-0, 97940215	8-94167-948-0	01	1	-
18	02.274 NUT; PULLEY,GEN ASM PART: F = 8-94472-816-3, 94472816	8-97065-287-0	01	1	-
18	02.274 NUT; PULLEY,GEN ASM PART: G = 8-94472-817-4, 94472817	8-97065-287-0	01	1	-9411
19	02.274 PULLEY; GEN ASM PART: F = 8-94472-816-3, 94472816, G = 8-94472-817-4, 94472817	8-94330-006-0	01	1	-9302
19	02.274 PULLEY; GEN ASM PART: B = 8-94337-635-0, 94337635	8-94333-519-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: C = 8-94337-636-0, 94337636, D = 8-94337-637-0, 94337637	8-94333-529-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: A = 8-94156-672-2, 94156672, H = 8-97071-720-0, 97071720	8-94406-979-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: I = 8-97940-215-0, 97940215	8-94456-585-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: E = 8-94454-188-1, 94454188	8-94465-401-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: G = 8-94472-817-4, 94472817	8-97100-264-0	01	1	9303-9411
19	02.274 PULLEY; GEN ASM PART: F = 8-94472-816-3, 94472816	8-97100-264-0	01	1	9303-
19	02.274 PULLEY; GEN ASM PART: G = 8-94472-817-4, 94472817	8-97130-603-0	01	1	9412-
20	02.274 FAN; GEN ASM PART: F = 8-94472-816-3, 94472816	8-94330-008-0	01	1	-
20	02.274 FAN; GEN ASM PART: G = 8-94472-817-4, 94472817	8-94330-008-0	01	1	-9411
20	02.274 FAN; GEN ASM PART: I = 8-97940-215-0, 97940215	8-94453-235-0	01	1	-
20	02.274 FAN; GEN ASM PART: G = 8-94472-817-4, 94472817	8-97130-599-0	01	1	9412-
21	02.316 BOLT; THROUGH,GEN ASM PART: I = 8-97940-215-0, 97940215	1-81229-031-0	03	1	-
21	02.316 BOLT; THROUGH,GEN UPPER ASM PART: B = 8-94337-635-0, 94337635	5-81229-182-0	02	1	-
21	02.316 BOLT; THROUGH,GEN LOWER ASM PART: B = 8-94337-635-0, 94337635	5-81229-183-0	01	1	-
21	02.316 BOLT; THROUGH,GEN ASM PART: C = 8-94337-636-0, 94337636, D = 8-94337-637-0, 94337637	8-94116-435-0	04	1	-
21	02.316 BOLT; THROUGH,GEN ASM PART: E = 8-94454-188-1, 94454188	8-94455-164-0	02	1	-
21	02.316 BOLT; THROUGH,GEN ASM PART: F = 8-94472-816-3, 94472816	8-97021-490-0	04	1	-
21	02.316 BOLT; THROUGH,GEN ASM PART: G = 8-94472-817-4, 94472817	8-97021-490-0	04	1	-9411
21	02.316 BOLT; THROUGH,GEN ASM PART: G = 8-94472-817-4, 94472817	8-97130-597-0	04	1	9412-
22	02.310 STATOR; GEN ASM PART: B = 8-94337-635-0, 94337635	5-81211-058-0	01	1	-
22	02.310 STATOR; GEN ASM PART: D = 8-94337-637-0, 94337637	5-81211-067-0	01	1	-
22	02.310 STATOR; GEN ASM PART: I = 8-97940-215-0, 97940215	8-94342-675-0	01	1	-
22	02.310 STATOR; GEN ASM PART: C = 8-94337-636-0, 94337636	8-94361-716-0	01	1	-
22	02.310 STATOR; GEN ASM PART: F = 8-94472-816-3, 94472816	8-94379-569-0	01	1	-9302
22	02.310 STATOR; GEN ASM PART: G = 8-94472-817-4, 94472817	8-94379-590-0	01	1	-9302
22	02.310 STATOR; GEN ASM PART: F = 8-94472-816-3, 94472816	8-97100-260-0	01	1	9303-
22	02.310 STATOR; GEN ASM PART: G = 8-94472-817-4, 94472817	8-97100-261-0	01	1	9303-9411
22	02.310 STATOR; GEN ASM PART: G = 8-94472-817-4, 94472817	8-97130-707-0	01	1	9412-
24	02.307 SCREW; RECTIFIER,GEN 02.313 ASM PART: I = 8-97940-215-0, 97940215	1-81229-409-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN 02.291, (A) ASM PART: I = 8-97940-215-0, 97940215	1-81229-419-0	04	1	-
24	02.307 SCREW; RECTIFIER,GEN (B) ASM PART: B = 8-94337-635-0, 94337635	5-81229-165-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN 02.291, (A) ASM PART: B = 8-94337-635-0, 94337635, C = 8-94337-636-0, 94337636, D = 8-94337-637-0, 94337637	5-81229-166-0	02	1	-
24	02.307 SCREW; RECTIFIER,GEN 02.291, (A) ASM PART: A = 8-94156-672-2, 94156672, E = 8-94454-188-1, 94454188, H = 8-97071-720-0, 97071720	8-94123-061-0	02	1	-
24	02.307 SCREW; RECTIFIER,GEN 02.291, (B) ASM PART: A = 8-94156-672-2, 94156672	8-94123-066-0	07	1	-9603
24	02.307 SCREW; RECTIFIER,GEN 02.291, (B) ASM PART: H = 8-97071-720-0, 97071720	8-94123-066-0	07	1	-
24	02.307 SCREW; RECTIFIER,GEN (B) ASM PART: C = 8-94337-636-0, 94337636, D = 8-94337-637-0, 94337637	8-94233-653-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN 02.277 ASM PART: G = 8-94472-817-4, 94472817	8-94379-559-0	03	1	-9411
24	02.307 SCREW; RECTIFIER,GEN 02.277 ASM PART: F = 8-94472-816-3, 94472816	8-94379-559-0	03	1	-
24	02.307 SCREW; RECTIFIER,GEN (B) ASM PART: E = 8-94454-188-1, 94454188	8-94455-161-0	06	1	-
24	02.307 SCREW; RECTIFIER,GEN (B) ASM PART: A = 8-94156-672-2, 94156672	8-94455-161-0	07	1	9604-
24	02.307 SCREW; RECTIFIER,GEN (C) ASM PART: E = 8-94454-188-1, 94454188	8-94455-162-0	01	1	-
27	02.291 NUT; RECTIFIER,GEN 02.316, (A) ASM PART: A = 8-94156-672-2, 94156672, H = 8-97071-720-0, 97071720	8-94123-064-0	07	1	-
27	02.291 NUT; RECTIFIER,GEN 02.316, (A) ASM PART: E = 8-94454-188-1, 94454188	8-94123-064-0	02	1	-
27	02.291 NUT; RECTIFIER,GEN 02.313, (B) ASM PART: E = 8-94454-188-1, 94454188, H = 8-97071-720-0, 97071720	8-94206-186-0	02	1	-
27	02.291 NUT; RECTIFIER,GEN 02.313, (B) ASM PART: A = 8-94156-672-2, 94156672	8-94206-186-0	01	1	-
27	02.291 NUT; RECTIFIER,GEN 02.313 ASM PART: I = 8-97940-215-0, 97940215	8-94206-188-0	08	1	-
27	02.291 NUT; RECTIFIER,GEN ASM PART: F = 8-94472-816-3, 94472816	8-94379-577-0	02	1	-
27	02.291 NUT; RECTIFIER,GEN ASM PART: G = 8-94472-817-4, 94472817	8-94379-577-0	02	1	-9411
29	02.285 BRUSH; GEN ASM PART: I = 8-97940-215-0, 97940215	5-81215-018-0	02	1	-
29	02.285 BRUSH; GEN ASM PART: A = 8-94156-672-2, 94156672, E = 8-94454-188-1, 94454188, H = 8-97071-720-0, 97071720	8-94123-056-0	02	1	-
29	02.285 BRUSH; GEN ASM PART: C = 8-94337-636-0, 94337636, D = 8-94337-637-0, 94337637	8-94361-721-0	02	1	-
29	02.285 BRUSH; GEN ASM PART: B = 8-94337-635-0, 94337635	8-94378-479-0	02	1	-
29	02.285 BRUSH; GEN ASM PART: G = 8-94472-817-4, 94472817	8-97130-604-0	01	1	9412-
30	02.277 SPRING; BRUSH,GEN 02.291 ASM PART: I = 8-97940-215-0, 97940215	5-81216-002-0	02	1	-
30	02.277 SPRING; BRUSH,GEN 02.291 ASM PART: A = 8-94156-672-2, 94156672, E = 8-94454-188-1, 94454188, H = 8-97071-720-0, 97071720	8-94123-057-0	02	1	-
30	02.277 SPRING; BRUSH,GEN ASM PART: G = 8-94472-817-4, 94472817	8-97130-605-0	01	1	9412-
32	02.291 TERMINAL; RECTIFIER,GEN 02.313, (A) ASM PART: I = 8-97940-215-0, 97940215	1-81229-410-0	02	1	-
32	02.291 TERMINAL; RECTIFIER,GEN 02.313, (B) ASM PART: I = 8-97940-215-0, 97940215	1-81229-411-0	02	1	-
32	02.291 TERMINAL; RECTIFIER,GEN 02.298 ASM PART: H = 8-97071-720-0, 97071720	8-94123-059-0	01	1	-
33	02.500 WIRE; LEAD,GEN ASM PART: I = 8-97940-215-0, 97940215	8-94342-676-0	01	1	-
33	02.500 WIRE; LEAD,GEN UPPER ASM PART: B = 8-94337-635-0, 94337635, C = 8-94337-636-0, 94337636, D = 8-94337-637-0, 94337637	8-94361-724-0	01	1	-
33	02.500 WIRE; LEAD,GEN L0WER ASM PART: B = 8-94337-635-0, 94337635, C = 8-94337-636-0, 94337636, D = 8-94337-637-0, 94337637	8-94361-725-0	01	1	-
36	02.277 SCREW; FRT COVER 02.307 ASM PART: H = 8-97071-720-0, 97071720	8-94123-047-0	04	1	-
36	02.277 SCREW; FRT COVER ASM PART: F = 8-94472-816-3, 94472816	8-94379-559-0	02	1	-
36	02.277 SCREW; FRT COVER ASM PART: G = 8-94472-817-4, 94472817	8-94379-559-0	02	1	-9411
36	02.277 SCREW; FRT COVER ASM PART: I = 8-97940-215-0, 97940215	8-94453-227-0	03	1	-
36	02.277 SCREW; FRT COVER ASM PART: A = 8-94156-672-2, 94156672	8-97148-282-0	04	1	9604-
37	02.291 BUSHING; RR COVER,GEN ASM PART: I = 8-97940-215-0, 97940215	8-94456-599-0	01	1	-
42	02.307 GASKET; RR COVER,GEN ASM PART: I = 8-97940-215-0, 97940215	8-94456-608-0	01	1	-
49	02.313 BUSHING; RECTIFIER,GEN (A) ASM PART: I = 8-97940-215-0, 97940215	1-81229-413-0	01	1	-
49	02.313 BUSHING; RECTIFIER,GEN (B) ASM PART: I = 8-97940-215-0, 97940215	5-81229-105-0	02	1	-
49	02.313 BUSHING; RECTIFIER,GEN 02.298 ASM PART: A = 8-94156-672-2, 94156672	8-94123-063-0	01	1	-
49	02.313 BUSHING; RECTIFIER,GEN 02.291 ASM PART: E = 8-94454-188-1, 94454188	8-94465-403-0	01	1	-
57	02.277 COVER; BRUSH,GEN ASM PART: I = 8-97940-215-0, 97940215	8-94342-674-0	01	1	-
83	02.307 RING; SLIP,ROTOR,GEN ASM PART: I = 8-97940-215-0, 97940215	5-81229-109-0	01	1	-
83	02.307 RING; SLIP,ROTOR,GEN ASM PART: G = 8-94472-817-4, 94472817	8-97130-701-0	01	1	9412-
85	02.277 SPACER; PULLEY,GEN ASM PART: G = 8-94472-817-4, 94472817	8-94379-563-0	01	1	-9411
85	02.277 SPACER; PULLEY,GEN ASM PART: F = 8-94472-816-3, 94472816	8-94379-563-0	01	1	-
85	02.277 SPACER; PULLEY,GEN 02.307 ASM PART: I = 8-97940-215-0, 97940215	8-94453-234-0	01	1	-
106	03.280 BOLT; OIL CONN,VAC PUMP 02.291 ASM PART: I = 8-97940-215-0, 97940215	8-94456-605-0	01	1	-

2 9 3 15 3 17 54 36 25 24 19 18 52 59 27 27 67 27 24 49 32 43 27 39 5 31 30 29 24 27 24 6 10 21 26 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	02.279 ROTOR; GEN ASM PART: C = 8-94337-636-0, 94337636	8-94361-714-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: D = 8-94337-637-0, 94337637	8-94361-715-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: B = 8-94337-635-0, 94337635	8-94361-726-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: A = 8-94156-672-2, 94156672	8-94406-983-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: H = 8-97071-720-0, 97071720	8-94410-984-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: E = 8-94454-188-1, 94454188	8-94455-157-1	01	1	-
2	02.279 ROTOR; GEN ASM PART: I = 8-97940-215-0, 97940215	8-97063-381-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: F = 8-94472-816-3, 94472816	8-97065-285-0	01	1	-9302
2	02.279 ROTOR; GEN ASM PART: G = 8-94472-817-4, 94472817	8-97065-286-0	01	1	-9302
2	02.279 ROTOR; GEN ASM PART: F = 8-94472-816-3, 94472816	8-97100-262-0	01	1	9303-
2	02.279 ROTOR; GEN ASM PART: G = 8-94472-817-4, 94472817	8-97100-263-0	01	1	9303-9411
2	02.279 ROTOR; GEN ASM PART: G = 8-94472-817-4, 94472817	8-97130-705-0	01	1	9412-
3	02.306 BEARING; ROTOR,GEN 02.298, (A) ASM PART: A = 8-94156-672-2, 94156672, H = 8-97071-720-0, 97071720	8-94123-050-0	01	1	-
3	02.306 BEARING; ROTOR,GEN 02.298, (A) ASM PART: E = 8-94454-188-1, 94454188	8-94135-753-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: B = 8-94337-635-0, 94337635	8-94333-520-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: B = 8-94337-635-0, 94337635, C = 8-94337-636-0, 94337636, D = 8-94337-637-0, 94337637	8-94333-521-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: G = 8-94472-817-4, 94472817	8-94379-557-0	01	1	-9411
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: F = 8-94472-816-3, 94472816	8-94379-557-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: G = 8-94472-817-4, 94472817	8-94379-564-0	01	1	-9411
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: F = 8-94472-816-3, 94472816	8-94379-564-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: A = 8-94156-672-2, 94156672, H = 8-97071-720-0, 97071720	8-94406-981-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: I = 8-97940-215-0, 97940215	8-94453-230-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: E = 8-94454-188-1, 94454188	8-94455-153-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: C = 8-94337-636-0, 94337636, D = 8-94337-637-0, 94337637	8-94458-423-0	01	1	-
3	02.306 BEARING; ROTOR,GEN ASM PART: G = 8-94472-817-4, 94472817	8-97130-592-0	01	1	9412-
3	02.306 BEARING; ROTOR,GEN ASM PART: G = 8-94472-817-4, 94472817	8-97130-593-0	01	1	9412-
5	02.291 HOLDER; BRUSH,GEN ASM PART: A = 8-94156-672-2, 94156672, H = 8-97071-720-0, 97071720	8-94139-013-2	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: E = 8-94454-188-1, 94454188	8-94159-781-0	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: I = 8-97940-215-0, 97940215	8-94342-673-0	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: C = 8-94337-636-0, 94337636, D = 8-94337-637-0, 94337637	8-94361-720-0	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: B = 8-94337-635-0, 94337635	8-94378-478-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: A = 8-94156-672-2, 94156672, H = 8-97071-720-0, 97071720	8-94139-012-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: I = 8-97940-215-0, 97940215	8-94342-680-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: C = 8-94337-636-0, 94337636, D = 8-94337-637-0, 94337637	8-94361-719-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: B = 8-94337-635-0, 94337635	8-94378-477-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: F = 8-94472-816-3, 94472816	8-94379-568-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: G = 8-94472-817-4, 94472817	8-94379-568-0	01	1	-9411
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: E = 8-94454-188-1, 94454188	8-94455-160-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: G = 8-94472-817-4, 94472817	8-97130-596-0	01	1	9412-
9	02.307 COVER; FELT WASHER,ROTOR,GEN 02.298 ASM PART: A = 8-94156-672-2, 94156672, E = 8-94454-188-1, 94454188, H = 8-97071-720-0, 97071720	8-94123-051-0	01	1	-
9	02.307 COVER; FELT WASHER,ROTOR,GEN ASM PART: I = 8-97940-215-0, 97940215	8-94453-231-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: B = 8-94337-635-0, 94337635	5-81262-005-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: C = 8-94337-636-0, 94337636, D = 8-94337-637-0, 94337637	5-81262-006-0	01	1	-
10	02.319 RECTIFIER; GEN 02.291 ASM PART: A = 8-94156-672-2, 94156672	8-94123-052-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: H = 8-97071-720-0, 97071720	8-94125-884-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: I = 8-97940-215-0, 97940215	8-94342-672-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: F = 8-94472-816-3, 94472816	8-94379-566-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: G = 8-94472-817-4, 94472817	8-94379-589-0	01	1	-9411
10	02.319 RECTIFIER; GEN ASM PART: E = 8-94454-188-1, 94454188	8-94455-159-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: G = 8-94472-817-4, 94472817	8-97130-595-0	01	1	9412-
11	02.305 COVER; RR,GEN ASM PART: B = 8-94337-635-0, 94337635	5-81214-132-0	01	1	-
11	02.305 COVER; RR,GEN 02.297 ASM PART: A = 8-94156-672-2, 94156672	8-94123-062-0	01	1	-
11	02.305 COVER; RR,GEN ASM PART: C = 8-94337-636-0, 94337636, D = 8-94337-637-0, 94337637	8-94361-718-0	01	1	-
11	02.305 COVER; RR,GEN 02.297 ASM PART: E = 8-94454-188-1, 94454188	8-94455-165-0	01	1	-
11	02.305 COVER; RR,GEN ASM PART: H = 8-97071-720-0, 97071720	8-94455-369-0	01	1	-
15	02.279 RETAINER; ROTOR,GEN ASM PART: B = 8-94337-635-0, 94337635	5-81229-029-0	01	1	-
15	02.279 RETAINER; ROTOR,GEN 02.307 ASM PART: C = 8-94337-636-0, 94337636, D = 8-94337-637-0, 94337637	8-94233-649-0	01	1	-
15	02.279 RETAINER; ROTOR,GEN ASM PART: G = 8-94472-817-4, 94472817	8-94379-558-0	01	1	-9411
15	02.279 RETAINER; ROTOR,GEN ASM PART: F = 8-94472-816-3, 94472816	8-94379-558-0	01	1	-
15	02.279 RETAINER; ROTOR,GEN 02.307 ASM PART: A = 8-94156-672-2, 94156672, H = 8-97071-720-0, 97071720	8-94406-982-0	01	1	-
15	02.279 RETAINER; ROTOR,GEN (B) ASM PART: I = 8-97940-215-0, 97940215	8-94453-229-0	01	1	-
15	02.279 RETAINER; ROTOR,GEN ASM PART: E = 8-94454-188-1, 94454188	8-94455-154-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: C = 8-94337-636-0, 94337636, D = 8-94337-637-0, 94337637	8-94361-723-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: B = 8-94337-635-0, 94337635	8-94361-729-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: F = 8-94472-816-3, 94472816	8-94379-556-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: G = 8-94472-817-4, 94472817	8-94379-556-0	01	1	-9411
17	02.305 COVER ASM; FRT,GEN ASM PART: A = 8-94156-672-2, 94156672	8-94406-980-1	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: H = 8-97071-720-0, 97071720	8-94413-890-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: I = 8-97940-215-0, 97940215	8-94456-588-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: E = 8-94454-188-1, 94454188	8-94465-402-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: G = 8-94472-817-4, 94472817	8-97130-591-0	01	1	9412-
18	02.274 NUT; PULLEY,GEN 02.280 ASM PART: A = 8-94156-672-2, 94156672, E = 8-94454-188-1, 94454188, H = 8-97071-720-0, 97071720	8-94123-043-0	01	1	-
18	02.274 NUT; PULLEY,GEN ASM PART: I = 8-97940-215-0, 97940215	8-94167-948-0	01	1	-
18	02.274 NUT; PULLEY,GEN ASM PART: F = 8-94472-816-3, 94472816	8-97065-287-0	01	1	-
18	02.274 NUT; PULLEY,GEN ASM PART: G = 8-94472-817-4, 94472817	8-97065-287-0	01	1	-9411
19	02.274 PULLEY; GEN ASM PART: F = 8-94472-816-3, 94472816, G = 8-94472-817-4, 94472817	8-94330-006-0	01	1	-9302
19	02.274 PULLEY; GEN ASM PART: B = 8-94337-635-0, 94337635	8-94333-519-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: C = 8-94337-636-0, 94337636, D = 8-94337-637-0, 94337637	8-94333-529-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: A = 8-94156-672-2, 94156672, H = 8-97071-720-0, 97071720	8-94406-979-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: I = 8-97940-215-0, 97940215	8-94456-585-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: E = 8-94454-188-1, 94454188	8-94465-401-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: G = 8-94472-817-4, 94472817	8-97100-264-0	01	1	9303-9411
19	02.274 PULLEY; GEN ASM PART: F = 8-94472-816-3, 94472816	8-97100-264-0	01	1	9303-
19	02.274 PULLEY; GEN ASM PART: G = 8-94472-817-4, 94472817	8-97130-603-0	01	1	9412-
21	02.316 BOLT; THROUGH,GEN ASM PART: I = 8-97940-215-0, 97940215	1-81229-031-0	03	1	-
21	02.316 BOLT; THROUGH,GEN UPPER ASM PART: B = 8-94337-635-0, 94337635	5-81229-182-0	02	1	-
21	02.316 BOLT; THROUGH,GEN LOWER ASM PART: B = 8-94337-635-0, 94337635	5-81229-183-0	01	1	-
21	02.316 BOLT; THROUGH,GEN ASM PART: C = 8-94337-636-0, 94337636, D = 8-94337-637-0, 94337637	8-94116-435-0	04	1	-
21	02.316 BOLT; THROUGH,GEN ASM PART: E = 8-94454-188-1, 94454188	8-94455-164-0	02	1	-
21	02.316 BOLT; THROUGH,GEN ASM PART: F = 8-94472-816-3, 94472816	8-97021-490-0	04	1	-
21	02.316 BOLT; THROUGH,GEN ASM PART: G = 8-94472-817-4, 94472817	8-97021-490-0	04	1	-9411
21	02.316 BOLT; THROUGH,GEN ASM PART: G = 8-94472-817-4, 94472817	8-97130-597-0	04	1	9412-
24	02.307 SCREW; RECTIFIER,GEN 02.313 ASM PART: I = 8-97940-215-0, 97940215	1-81229-409-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN 02.291, (A) ASM PART: I = 8-97940-215-0, 97940215	1-81229-419-0	04	1	-
24	02.307 SCREW; RECTIFIER,GEN (B) ASM PART: B = 8-94337-635-0, 94337635	5-81229-165-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN 02.291, (A) ASM PART: B = 8-94337-635-0, 94337635, C = 8-94337-636-0, 94337636, D = 8-94337-637-0, 94337637	5-81229-166-0	02	1	-
24	02.307 SCREW; RECTIFIER,GEN 02.291, (A) ASM PART: A = 8-94156-672-2, 94156672, E = 8-94454-188-1, 94454188, H = 8-97071-720-0, 97071720	8-94123-061-0	02	1	-
24	02.307 SCREW; RECTIFIER,GEN 02.291, (B) ASM PART: A = 8-94156-672-2, 94156672	8-94123-066-0	07	1	-9603
24	02.307 SCREW; RECTIFIER,GEN 02.291, (B) ASM PART: H = 8-97071-720-0, 97071720	8-94123-066-0	07	1	-
24	02.307 SCREW; RECTIFIER,GEN (B) ASM PART: C = 8-94337-636-0, 94337636, D = 8-94337-637-0, 94337637	8-94233-653-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN 02.277 ASM PART: G = 8-94472-817-4, 94472817	8-94379-559-0	03	1	-9411
24	02.307 SCREW; RECTIFIER,GEN 02.277 ASM PART: F = 8-94472-816-3, 94472816	8-94379-559-0	03	1	-
24	02.307 SCREW; RECTIFIER,GEN (B) ASM PART: E = 8-94454-188-1, 94454188	8-94455-161-0	06	1	-
24	02.307 SCREW; RECTIFIER,GEN (B) ASM PART: A = 8-94156-672-2, 94156672	8-94455-161-0	07	1	9604-
24	02.307 SCREW; RECTIFIER,GEN (C) ASM PART: E = 8-94454-188-1, 94454188	8-94455-162-0	01	1	-
25	02.313 BUSHING; INSULATION TERMINAL 02.298 ASM PART: A = 8-94156-672-2, 94156672, H = 8-97071-720-0, 97071720	8-94123-059-0	04	1	-
26	02.297 COVER; RR END,GEN ASM PART: A = 8-94156-672-2, 94156672	8-94178-603-0	01	1	-
26	02.297 COVER; RR END,GEN ASM PART: E = 8-94454-188-1, 94454188	8-94455-158-0	01	1	-
27	02.291 NUT; RECTIFIER,GEN 02.316, (A) ASM PART: A = 8-94156-672-2, 94156672, H = 8-97071-720-0, 97071720	8-94123-064-0	07	1	-
27	02.291 NUT; RECTIFIER,GEN 02.316, (A) ASM PART: E = 8-94454-188-1, 94454188	8-94123-064-0	02	1	-
27	02.291 NUT; RECTIFIER,GEN 02.313, (B) ASM PART: E = 8-94454-188-1, 94454188, H = 8-97071-720-0, 97071720	8-94206-186-0	02	1	-
27	02.291 NUT; RECTIFIER,GEN 02.313, (B) ASM PART: A = 8-94156-672-2, 94156672	8-94206-186-0	01	1	-
27	02.291 NUT; RECTIFIER,GEN 02.313 ASM PART: I = 8-97940-215-0, 97940215	8-94206-188-0	08	1	-
27	02.291 NUT; RECTIFIER,GEN ASM PART: F = 8-94472-816-3, 94472816	8-94379-577-0	02	1	-
27	02.291 NUT; RECTIFIER,GEN ASM PART: G = 8-94472-817-4, 94472817	8-94379-577-0	02	1	-9411
29	02.285 BRUSH; GEN ASM PART: I = 8-97940-215-0, 97940215	5-81215-018-0	02	1	-
29	02.285 BRUSH; GEN ASM PART: A = 8-94156-672-2, 94156672, E = 8-94454-188-1, 94454188, H = 8-97071-720-0, 97071720	8-94123-056-0	02	1	-
29	02.285 BRUSH; GEN ASM PART: C = 8-94337-636-0, 94337636, D = 8-94337-637-0, 94337637	8-94361-721-0	02	1	-
29	02.285 BRUSH; GEN ASM PART: B = 8-94337-635-0, 94337635	8-94378-479-0	02	1	-
29	02.285 BRUSH; GEN ASM PART: G = 8-94472-817-4, 94472817	8-97130-604-0	01	1	9412-
30	02.277 SPRING; BRUSH,GEN 02.291 ASM PART: I = 8-97940-215-0, 97940215	5-81216-002-0	02	1	-
30	02.277 SPRING; BRUSH,GEN 02.291 ASM PART: A = 8-94156-672-2, 94156672, E = 8-94454-188-1, 94454188, H = 8-97071-720-0, 97071720	8-94123-057-0	02	1	-
30	02.277 SPRING; BRUSH,GEN ASM PART: G = 8-94472-817-4, 94472817	8-97130-605-0	01	1	9412-
31	02.291 SHEET; BRUSH,GEN ASM PART: A = 8-94156-672-2, 94156672, H = 8-97071-720-0, 97071720	8-94139-014-2	01	1	-
32	02.291 TERMINAL; RECTIFIER,GEN 02.313, (A) ASM PART: I = 8-97940-215-0, 97940215	1-81229-410-0	02	1	-
32	02.291 TERMINAL; RECTIFIER,GEN 02.313, (B) ASM PART: I = 8-97940-215-0, 97940215	1-81229-411-0	02	1	-
32	02.291 TERMINAL; RECTIFIER,GEN 02.298 ASM PART: H = 8-97071-720-0, 97071720	8-94123-059-0	01	1	-
36	02.277 SCREW; FRT COVER 02.307 ASM PART: H = 8-97071-720-0, 97071720	8-94123-047-0	04	1	-
36	02.277 SCREW; FRT COVER ASM PART: F = 8-94472-816-3, 94472816	8-94379-559-0	02	1	-
36	02.277 SCREW; FRT COVER ASM PART: G = 8-94472-817-4, 94472817	8-94379-559-0	02	1	-9411
36	02.277 SCREW; FRT COVER ASM PART: I = 8-97940-215-0, 97940215	8-94453-227-0	03	1	-
36	02.277 SCREW; FRT COVER ASM PART: A = 8-94156-672-2, 94156672	8-97148-282-0	04	1	9604-
39	02.297 COVER; END,RR COVER,GEN 02.305 ASM PART: H = 8-97071-720-0, 97071720	8-94125-886-0	01	1	-
43	02.307 SCREW; RR END COVER 02.316 ASM PART: E = 8-94454-188-1, 94454188	8-94455-163-0	03	1	-
49	02.313 BUSHING; RECTIFIER,GEN (A) ASM PART: I = 8-97940-215-0, 97940215	1-81229-413-0	01	1	-
49	02.313 BUSHING; RECTIFIER,GEN (B) ASM PART: I = 8-97940-215-0, 97940215	5-81229-105-0	02	1	-
49	02.313 BUSHING; RECTIFIER,GEN 02.298 ASM PART: A = 8-94156-672-2, 94156672	8-94123-063-0	01	1	-
49	02.313 BUSHING; RECTIFIER,GEN 02.291 ASM PART: E = 8-94454-188-1, 94454188	8-94465-403-0	01	1	-
52	02.313 CAP; RUBBER,TERMINAL ASM PART: E = 8-94454-188-1, 94454188	8-94465-405-0	01	1	-
54	02.291 BOLT; RECTIFIER,GEN 02.316 ASM PART: A = 8-94156-672-2, 94156672, H = 8-97071-720-0, 97071720	8-94123-048-0	04	1	-
54	02.291 BOLT; RECTIFIER,GEN ASM PART: G = 8-94472-817-4, 94472817	8-94379-580-0	01	1	-9411
54	02.291 BOLT; RECTIFIER,GEN ASM PART: F = 8-94472-816-3, 94472816	8-94379-580-0	01	1	-
54	02.291 BOLT; RECTIFIER,GEN ASM PART: E = 8-94454-188-1, 94454188	8-94455-156-0	02	1	-
59	02.297 PLATE; BRUSH,GEN ASM PART: E = 8-94454-188-1, 94454188	8-94465-404-0	01	1	-
67	02.307 COLLAR; SPACE,GEN ASM PART: E = 8-94454-188-1, 94454188	8-94423-439-0	01	1	-

127 3 36 17 25 68 68 21 20 19 88 87 18 85 30 6 29 77 6 27 1 7 7 53 45 10 24 2 45 64 65 4 89 54 22 3 83 78 84 126 18 15 87 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	02.297 COVER ASM; RR,GEN ASM PART: C = 8-94337-636-0, 94337636, D = 8-94337-637-0, 94337637	8-94361-717-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: B = 8-94337-635-0, 94337635	8-94361-727-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: G = 8-94472-817-4, 94472817	8-94379-565-0	01	1	-9411
1	02.297 COVER ASM; RR,GEN ASM PART: F = 8-94472-816-3, 94472816	8-94379-565-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: I = 8-97940-215-0, 97940215	8-94456-598-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: G = 8-94472-817-4, 94472817	8-97130-594-0	01	1	9412-
2	02.279 ROTOR; GEN ASM PART: C = 8-94337-636-0, 94337636	8-94361-714-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: D = 8-94337-637-0, 94337637	8-94361-715-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: B = 8-94337-635-0, 94337635	8-94361-726-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: A = 8-94156-672-2, 94156672	8-94406-983-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: H = 8-97071-720-0, 97071720	8-94410-984-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: E = 8-94454-188-1, 94454188	8-94455-157-1	01	1	-
2	02.279 ROTOR; GEN ASM PART: I = 8-97940-215-0, 97940215	8-97063-381-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: F = 8-94472-816-3, 94472816	8-97065-285-0	01	1	-9302
2	02.279 ROTOR; GEN ASM PART: G = 8-94472-817-4, 94472817	8-97065-286-0	01	1	-9302
2	02.279 ROTOR; GEN ASM PART: F = 8-94472-816-3, 94472816	8-97100-262-0	01	1	9303-
2	02.279 ROTOR; GEN ASM PART: G = 8-94472-817-4, 94472817	8-97100-263-0	01	1	9303-9411
2	02.279 ROTOR; GEN ASM PART: G = 8-94472-817-4, 94472817	8-97130-705-0	01	1	9412-
3	02.306 BEARING; ROTOR,GEN 02.298, (A) ASM PART: A = 8-94156-672-2, 94156672, H = 8-97071-720-0, 97071720	8-94123-050-0	01	1	-
3	02.306 BEARING; ROTOR,GEN 02.298, (A) ASM PART: E = 8-94454-188-1, 94454188	8-94135-753-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: B = 8-94337-635-0, 94337635	8-94333-520-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: B = 8-94337-635-0, 94337635, C = 8-94337-636-0, 94337636, D = 8-94337-637-0, 94337637	8-94333-521-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: G = 8-94472-817-4, 94472817	8-94379-557-0	01	1	-9411
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: F = 8-94472-816-3, 94472816	8-94379-557-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: G = 8-94472-817-4, 94472817	8-94379-564-0	01	1	-9411
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: F = 8-94472-816-3, 94472816	8-94379-564-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: A = 8-94156-672-2, 94156672, H = 8-97071-720-0, 97071720	8-94406-981-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: I = 8-97940-215-0, 97940215	8-94453-230-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: E = 8-94454-188-1, 94454188	8-94455-153-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: C = 8-94337-636-0, 94337636, D = 8-94337-637-0, 94337637	8-94458-423-0	01	1	-
3	02.306 BEARING; ROTOR,GEN ASM PART: G = 8-94472-817-4, 94472817	8-97130-592-0	01	1	9412-
3	02.306 BEARING; ROTOR,GEN ASM PART: G = 8-94472-817-4, 94472817	8-97130-593-0	01	1	9412-
4	02.291 TERMINAL; BRUSH,GEN ASM PART: G = 8-94472-817-4, 94472817	8-97130-602-0	01	1	9412-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: A = 8-94156-672-2, 94156672, H = 8-97071-720-0, 97071720	8-94139-012-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: I = 8-97940-215-0, 97940215	8-94342-680-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: C = 8-94337-636-0, 94337636, D = 8-94337-637-0, 94337637	8-94361-719-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: B = 8-94337-635-0, 94337635	8-94378-477-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: F = 8-94472-816-3, 94472816	8-94379-568-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: G = 8-94472-817-4, 94472817	8-94379-568-0	01	1	-9411
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: E = 8-94454-188-1, 94454188	8-94455-160-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: G = 8-94472-817-4, 94472817	8-97130-596-0	01	1	9412-
7	02.291 WASHER; INSULATE,RECTIFIER,GEN LK WASHER ASM PART: G = 8-94472-817-4, 94472817	8-94379-576-0	02	1	-9411
7	02.291 WASHER; INSULATE,RECTIFIER,GEN LK WASHER ASM PART: F = 8-94472-816-3, 94472816	8-94379-576-0	02	1	-
7	02.291 WASHER; INSULATE,RECTIFIER,GEN PL WASHER ASM PART: G = 8-94472-817-4, 94472817	8-94379-579-0	01	1	-9411
7	02.291 WASHER; INSULATE,RECTIFIER,GEN PL WASHER ASM PART: F = 8-94472-816-3, 94472816	8-94379-579-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: B = 8-94337-635-0, 94337635	5-81262-005-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: C = 8-94337-636-0, 94337636, D = 8-94337-637-0, 94337637	5-81262-006-0	01	1	-
10	02.319 RECTIFIER; GEN 02.291 ASM PART: A = 8-94156-672-2, 94156672	8-94123-052-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: H = 8-97071-720-0, 97071720	8-94125-884-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: I = 8-97940-215-0, 97940215	8-94342-672-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: F = 8-94472-816-3, 94472816	8-94379-566-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: G = 8-94472-817-4, 94472817	8-94379-589-0	01	1	-9411
10	02.319 RECTIFIER; GEN ASM PART: E = 8-94454-188-1, 94454188	8-94455-159-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: G = 8-94472-817-4, 94472817	8-97130-595-0	01	1	9412-
15	02.279 RETAINER; ROTOR,GEN ASM PART: B = 8-94337-635-0, 94337635	5-81229-029-0	01	1	-
15	02.279 RETAINER; ROTOR,GEN 02.307 ASM PART: C = 8-94337-636-0, 94337636, D = 8-94337-637-0, 94337637	8-94233-649-0	01	1	-
15	02.279 RETAINER; ROTOR,GEN ASM PART: G = 8-94472-817-4, 94472817	8-94379-558-0	01	1	-9411
15	02.279 RETAINER; ROTOR,GEN ASM PART: F = 8-94472-816-3, 94472816	8-94379-558-0	01	1	-
15	02.279 RETAINER; ROTOR,GEN 02.307 ASM PART: A = 8-94156-672-2, 94156672, H = 8-97071-720-0, 97071720	8-94406-982-0	01	1	-
15	02.279 RETAINER; ROTOR,GEN (B) ASM PART: I = 8-97940-215-0, 97940215	8-94453-229-0	01	1	-
15	02.279 RETAINER; ROTOR,GEN ASM PART: E = 8-94454-188-1, 94454188	8-94455-154-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: C = 8-94337-636-0, 94337636, D = 8-94337-637-0, 94337637	8-94361-723-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: B = 8-94337-635-0, 94337635	8-94361-729-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: F = 8-94472-816-3, 94472816	8-94379-556-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: G = 8-94472-817-4, 94472817	8-94379-556-0	01	1	-9411
17	02.305 COVER ASM; FRT,GEN ASM PART: A = 8-94156-672-2, 94156672	8-94406-980-1	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: H = 8-97071-720-0, 97071720	8-94413-890-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: I = 8-97940-215-0, 97940215	8-94456-588-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: E = 8-94454-188-1, 94454188	8-94465-402-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: G = 8-94472-817-4, 94472817	8-97130-591-0	01	1	9412-
18	02.274 NUT; PULLEY,GEN 02.280 ASM PART: A = 8-94156-672-2, 94156672, E = 8-94454-188-1, 94454188, H = 8-97071-720-0, 97071720	8-94123-043-0	01	1	-
18	02.274 NUT; PULLEY,GEN ASM PART: I = 8-97940-215-0, 97940215	8-94167-948-0	01	1	-
18	02.274 NUT; PULLEY,GEN ASM PART: F = 8-94472-816-3, 94472816	8-97065-287-0	01	1	-
18	02.274 NUT; PULLEY,GEN ASM PART: G = 8-94472-817-4, 94472817	8-97065-287-0	01	1	-9411
19	02.274 PULLEY; GEN ASM PART: F = 8-94472-816-3, 94472816, G = 8-94472-817-4, 94472817	8-94330-006-0	01	1	-9302
19	02.274 PULLEY; GEN ASM PART: B = 8-94337-635-0, 94337635	8-94333-519-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: C = 8-94337-636-0, 94337636, D = 8-94337-637-0, 94337637	8-94333-529-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: A = 8-94156-672-2, 94156672, H = 8-97071-720-0, 97071720	8-94406-979-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: I = 8-97940-215-0, 97940215	8-94456-585-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: E = 8-94454-188-1, 94454188	8-94465-401-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: G = 8-94472-817-4, 94472817	8-97100-264-0	01	1	9303-9411
19	02.274 PULLEY; GEN ASM PART: F = 8-94472-816-3, 94472816	8-97100-264-0	01	1	9303-
19	02.274 PULLEY; GEN ASM PART: G = 8-94472-817-4, 94472817	8-97130-603-0	01	1	9412-
20	02.274 FAN; GEN ASM PART: F = 8-94472-816-3, 94472816	8-94330-008-0	01	1	-
20	02.274 FAN; GEN ASM PART: G = 8-94472-817-4, 94472817	8-94330-008-0	01	1	-9411
20	02.274 FAN; GEN ASM PART: I = 8-97940-215-0, 97940215	8-94453-235-0	01	1	-
20	02.274 FAN; GEN ASM PART: G = 8-94472-817-4, 94472817	8-97130-599-0	01	1	9412-
21	02.316 BOLT; THROUGH,GEN ASM PART: I = 8-97940-215-0, 97940215	1-81229-031-0	03	1	-
21	02.316 BOLT; THROUGH,GEN UPPER ASM PART: B = 8-94337-635-0, 94337635	5-81229-182-0	02	1	-
21	02.316 BOLT; THROUGH,GEN LOWER ASM PART: B = 8-94337-635-0, 94337635	5-81229-183-0	01	1	-
21	02.316 BOLT; THROUGH,GEN ASM PART: C = 8-94337-636-0, 94337636, D = 8-94337-637-0, 94337637	8-94116-435-0	04	1	-
21	02.316 BOLT; THROUGH,GEN ASM PART: E = 8-94454-188-1, 94454188	8-94455-164-0	02	1	-
21	02.316 BOLT; THROUGH,GEN ASM PART: F = 8-94472-816-3, 94472816	8-97021-490-0	04	1	-
21	02.316 BOLT; THROUGH,GEN ASM PART: G = 8-94472-817-4, 94472817	8-97021-490-0	04	1	-9411
21	02.316 BOLT; THROUGH,GEN ASM PART: G = 8-94472-817-4, 94472817	8-97130-597-0	04	1	9412-
22	02.310 STATOR; GEN ASM PART: B = 8-94337-635-0, 94337635	5-81211-058-0	01	1	-
22	02.310 STATOR; GEN ASM PART: D = 8-94337-637-0, 94337637	5-81211-067-0	01	1	-
22	02.310 STATOR; GEN ASM PART: I = 8-97940-215-0, 97940215	8-94342-675-0	01	1	-
22	02.310 STATOR; GEN ASM PART: C = 8-94337-636-0, 94337636	8-94361-716-0	01	1	-
22	02.310 STATOR; GEN ASM PART: F = 8-94472-816-3, 94472816	8-94379-569-0	01	1	-9302
22	02.310 STATOR; GEN ASM PART: G = 8-94472-817-4, 94472817	8-94379-590-0	01	1	-9302
22	02.310 STATOR; GEN ASM PART: F = 8-94472-816-3, 94472816	8-97100-260-0	01	1	9303-
22	02.310 STATOR; GEN ASM PART: G = 8-94472-817-4, 94472817	8-97100-261-0	01	1	9303-9411
22	02.310 STATOR; GEN ASM PART: G = 8-94472-817-4, 94472817	8-97130-707-0	01	1	9412-
24	02.307 SCREW; RECTIFIER,GEN 02.313 ASM PART: I = 8-97940-215-0, 97940215	1-81229-409-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN 02.291, (A) ASM PART: I = 8-97940-215-0, 97940215	1-81229-419-0	04	1	-
24	02.307 SCREW; RECTIFIER,GEN (B) ASM PART: B = 8-94337-635-0, 94337635	5-81229-165-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN 02.291, (A) ASM PART: B = 8-94337-635-0, 94337635, C = 8-94337-636-0, 94337636, D = 8-94337-637-0, 94337637	5-81229-166-0	02	1	-
24	02.307 SCREW; RECTIFIER,GEN 02.291, (A) ASM PART: A = 8-94156-672-2, 94156672, E = 8-94454-188-1, 94454188, H = 8-97071-720-0, 97071720	8-94123-061-0	02	1	-
24	02.307 SCREW; RECTIFIER,GEN 02.291, (B) ASM PART: A = 8-94156-672-2, 94156672	8-94123-066-0	07	1	-9603
24	02.307 SCREW; RECTIFIER,GEN 02.291, (B) ASM PART: H = 8-97071-720-0, 97071720	8-94123-066-0	07	1	-
24	02.307 SCREW; RECTIFIER,GEN (B) ASM PART: C = 8-94337-636-0, 94337636, D = 8-94337-637-0, 94337637	8-94233-653-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN 02.277 ASM PART: G = 8-94472-817-4, 94472817	8-94379-559-0	03	1	-9411
24	02.307 SCREW; RECTIFIER,GEN 02.277 ASM PART: F = 8-94472-816-3, 94472816	8-94379-559-0	03	1	-
24	02.307 SCREW; RECTIFIER,GEN (B) ASM PART: E = 8-94454-188-1, 94454188	8-94455-161-0	06	1	-
24	02.307 SCREW; RECTIFIER,GEN (B) ASM PART: A = 8-94156-672-2, 94156672	8-94455-161-0	07	1	9604-
24	02.307 SCREW; RECTIFIER,GEN (C) ASM PART: E = 8-94454-188-1, 94454188	8-94455-162-0	01	1	-
25	02.313 BUSHING; INSULATION TERMINAL 02.298 ASM PART: A = 8-94156-672-2, 94156672, H = 8-97071-720-0, 97071720	8-94123-059-0	04	1	-
27	02.291 NUT; RECTIFIER,GEN 02.316, (A) ASM PART: A = 8-94156-672-2, 94156672, H = 8-97071-720-0, 97071720	8-94123-064-0	07	1	-
27	02.291 NUT; RECTIFIER,GEN 02.316, (A) ASM PART: E = 8-94454-188-1, 94454188	8-94123-064-0	02	1	-
27	02.291 NUT; RECTIFIER,GEN 02.313, (B) ASM PART: E = 8-94454-188-1, 94454188, H = 8-97071-720-0, 97071720	8-94206-186-0	02	1	-
27	02.291 NUT; RECTIFIER,GEN 02.313, (B) ASM PART: A = 8-94156-672-2, 94156672	8-94206-186-0	01	1	-
27	02.291 NUT; RECTIFIER,GEN 02.313 ASM PART: I = 8-97940-215-0, 97940215	8-94206-188-0	08	1	-
27	02.291 NUT; RECTIFIER,GEN ASM PART: F = 8-94472-816-3, 94472816	8-94379-577-0	02	1	-
27	02.291 NUT; RECTIFIER,GEN ASM PART: G = 8-94472-817-4, 94472817	8-94379-577-0	02	1	-9411
29	02.285 BRUSH; GEN ASM PART: I = 8-97940-215-0, 97940215	5-81215-018-0	02	1	-
29	02.285 BRUSH; GEN ASM PART: A = 8-94156-672-2, 94156672, E = 8-94454-188-1, 94454188, H = 8-97071-720-0, 97071720	8-94123-056-0	02	1	-
29	02.285 BRUSH; GEN ASM PART: C = 8-94337-636-0, 94337636, D = 8-94337-637-0, 94337637	8-94361-721-0	02	1	-
29	02.285 BRUSH; GEN ASM PART: B = 8-94337-635-0, 94337635	8-94378-479-0	02	1	-
29	02.285 BRUSH; GEN ASM PART: G = 8-94472-817-4, 94472817	8-97130-604-0	01	1	9412-
30	02.277 SPRING; BRUSH,GEN 02.291 ASM PART: I = 8-97940-215-0, 97940215	5-81216-002-0	02	1	-
30	02.277 SPRING; BRUSH,GEN 02.291 ASM PART: A = 8-94156-672-2, 94156672, E = 8-94454-188-1, 94454188, H = 8-97071-720-0, 97071720	8-94123-057-0	02	1	-
30	02.277 SPRING; BRUSH,GEN ASM PART: G = 8-94472-817-4, 94472817	8-97130-605-0	01	1	9412-
36	02.277 SCREW; FRT COVER 02.307 ASM PART: H = 8-97071-720-0, 97071720	8-94123-047-0	04	1	-
36	02.277 SCREW; FRT COVER ASM PART: F = 8-94472-816-3, 94472816	8-94379-559-0	02	1	-
36	02.277 SCREW; FRT COVER ASM PART: G = 8-94472-817-4, 94472817	8-94379-559-0	02	1	-9411
36	02.277 SCREW; FRT COVER ASM PART: I = 8-97940-215-0, 97940215	8-94453-227-0	03	1	-
36	02.277 SCREW; FRT COVER ASM PART: A = 8-94156-672-2, 94156672	8-97148-282-0	04	1	9604-
45	02.307 WASHER; INSULATE,RR COVER,GEN ASM PART: G = 8-94472-817-4, 94472817	8-94379-578-0	02	1	-9411
45	02.307 WASHER; INSULATE,RR COVER,GEN ASM PART: F = 8-94472-816-3, 94472816	8-94379-578-0	02	1	-
53	02.291 TUBE; RECTIFIER,GEN ASM PART: F = 8-94472-816-3, 94472816	8-94379-575-0	01	1	-
53	02.291 TUBE; RECTIFIER,GEN ASM PART: G = 8-94472-817-4, 94472817	8-94379-575-0	01	1	-9411
54	02.291 BOLT; RECTIFIER,GEN 02.316 ASM PART: A = 8-94156-672-2, 94156672, H = 8-97071-720-0, 97071720	8-94123-048-0	04	1	-
54	02.291 BOLT; RECTIFIER,GEN ASM PART: G = 8-94472-817-4, 94472817	8-94379-580-0	01	1	-9411
54	02.291 BOLT; RECTIFIER,GEN ASM PART: F = 8-94472-816-3, 94472816	8-94379-580-0	01	1	-
54	02.291 BOLT; RECTIFIER,GEN ASM PART: E = 8-94454-188-1, 94454188	8-94455-156-0	02	1	-
64	02.319 SCREW; CONDENSER ASM PART: G = 8-94472-817-4, 94472817	8-94379-581-0	01	1	-9411
64	02.319 SCREW; CONDENSER ASM PART: F = 8-94472-816-3, 94472816	8-94379-581-0	01	1	-
65	02.319 CONDENSER; GEN ASM PART: G = 8-94472-817-4, 94472817	8-94379-582-0	01	1	-9411
65	02.319 CONDENSER; GEN ASM PART: F = 8-94472-816-3, 94472816	8-94379-582-0	01	1	-
65	02.319 CONDENSER; GEN ASM PART: G = 8-94472-817-4, 94472817	8-97130-598-0	01	1	9412-
68	02.277 WASHER; THROUGH BOLT,GEN (A) ASM PART: F = 8-94472-816-3, 94472816	8-94379-570-0	04	1	-
68	02.277 WASHER; THROUGH BOLT,GEN (A) ASM PART: G = 8-94472-817-4, 94472817	8-94379-570-0	04	1	-9411
68	02.277 WASHER; THROUGH BOLT,GEN (B) ASM PART: G = 8-94472-817-4, 94472817	8-94379-571-0	04	1	-9411
68	02.277 WASHER; THROUGH BOLT,GEN (B) ASM PART: F = 8-94472-816-3, 94472816	8-94379-571-0	04	1	-
77	02.319 SCREW; REG 02.277 ASM PART: F = 8-94472-816-3, 94472816	8-94379-559-0	02	1	-
77	02.319 SCREW; REG 02.277 ASM PART: G = 8-94472-817-4, 94472817	8-94379-559-0	02	1	-9411
78	02.307 CLIP; ROTOR,GEN ASM PART: F = 8-94472-816-3, 94472816	8-94379-561-0	01	1	-
78	02.307 CLIP; ROTOR,GEN ASM PART: G = 8-94472-817-4, 94472817	8-94379-561-0	01	1	-9411
83	02.307 RING; SLIP,ROTOR,GEN ASM PART: I = 8-97940-215-0, 97940215	5-81229-109-0	01	1	-
83	02.307 RING; SLIP,ROTOR,GEN ASM PART: G = 8-94472-817-4, 94472817	8-97130-701-0	01	1	9412-
84	02.307 RING; SUPPORT,GEN ASM PART: F = 8-94472-816-3, 94472816	8-94379-562-0	01	1	-
84	02.307 RING; SUPPORT,GEN ASM PART: G = 8-94472-817-4, 94472817	8-94379-562-0	01	1	-9411
85	02.277 SPACER; PULLEY,GEN ASM PART: G = 8-94472-817-4, 94472817	8-94379-563-0	01	1	-9411
85	02.277 SPACER; PULLEY,GEN ASM PART: F = 8-94472-816-3, 94472816	8-94379-563-0	01	1	-
85	02.277 SPACER; PULLEY,GEN 02.307 ASM PART: I = 8-97940-215-0, 97940215	8-94453-234-0	01	1	-
87	02.307 WASHER; PULLEY,GEN ASM PART: F = 8-94472-816-3, 94472816	8-94379-586-0	01	1	-
87	02.307 WASHER; PULLEY,GEN ASM PART: G = 8-94472-817-4, 94472817	8-94379-586-0	01	1	-9411
88	02.277 WASHER; PL,PULLEY GEN ASM PART: F = 8-94472-816-3, 94472816	8-94379-584-0	01	1	-
88	02.277 WASHER; PL,PULLEY GEN ASM PART: G = 8-94472-817-4, 94472817	8-94379-584-0	01	1	-9411
89	02.291 BOLT; RECTIFIER,GEN ASM PART: F = 8-94472-816-3, 94472816	8-94379-573-0	01	1	-
89	02.291 BOLT; RECTIFIER,GEN ASM PART: G = 8-94472-817-4, 94472817	8-94379-573-0	01	1	-9411
126	02.279 RETAINER KIT; ROTOR,GEN ASM PART: G = 8-94472-817-4, 94472817	8-97130-600-0	01	1	9412-
127	02.277 BOLT SET; GEN ASM PART: G = 8-94472-817-4, 94472817	8-97161-598-0	01	1	9412-

86 19 3 17 15 24 24 24 2 22 3 21 21 1 75 24 5 33 29 24 11 24 6 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	02.297 COVER ASM; RR,GEN ASM PART: C = 8-94337-636-0, 94337636, D = 8-94337-637-0, 94337637	8-94361-717-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: B = 8-94337-635-0, 94337635	8-94361-727-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: G = 8-94472-817-4, 94472817	8-94379-565-0	01	1	-9411
1	02.297 COVER ASM; RR,GEN ASM PART: F = 8-94472-816-3, 94472816	8-94379-565-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: I = 8-97940-215-0, 97940215	8-94456-598-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: G = 8-94472-817-4, 94472817	8-97130-594-0	01	1	9412-
2	02.279 ROTOR; GEN ASM PART: C = 8-94337-636-0, 94337636	8-94361-714-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: D = 8-94337-637-0, 94337637	8-94361-715-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: B = 8-94337-635-0, 94337635	8-94361-726-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: A = 8-94156-672-2, 94156672	8-94406-983-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: H = 8-97071-720-0, 97071720	8-94410-984-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: E = 8-94454-188-1, 94454188	8-94455-157-1	01	1	-
2	02.279 ROTOR; GEN ASM PART: I = 8-97940-215-0, 97940215	8-97063-381-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: F = 8-94472-816-3, 94472816	8-97065-285-0	01	1	-9302
2	02.279 ROTOR; GEN ASM PART: G = 8-94472-817-4, 94472817	8-97065-286-0	01	1	-9302
2	02.279 ROTOR; GEN ASM PART: F = 8-94472-816-3, 94472816	8-97100-262-0	01	1	9303-
2	02.279 ROTOR; GEN ASM PART: G = 8-94472-817-4, 94472817	8-97100-263-0	01	1	9303-9411
2	02.279 ROTOR; GEN ASM PART: G = 8-94472-817-4, 94472817	8-97130-705-0	01	1	9412-
3	02.306 BEARING; ROTOR,GEN 02.298, (A) ASM PART: A = 8-94156-672-2, 94156672, H = 8-97071-720-0, 97071720	8-94123-050-0	01	1	-
3	02.306 BEARING; ROTOR,GEN 02.298, (A) ASM PART: E = 8-94454-188-1, 94454188	8-94135-753-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: B = 8-94337-635-0, 94337635	8-94333-520-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: B = 8-94337-635-0, 94337635, C = 8-94337-636-0, 94337636, D = 8-94337-637-0, 94337637	8-94333-521-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: G = 8-94472-817-4, 94472817	8-94379-557-0	01	1	-9411
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: F = 8-94472-816-3, 94472816	8-94379-557-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: G = 8-94472-817-4, 94472817	8-94379-564-0	01	1	-9411
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: F = 8-94472-816-3, 94472816	8-94379-564-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: A = 8-94156-672-2, 94156672, H = 8-97071-720-0, 97071720	8-94406-981-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: I = 8-97940-215-0, 97940215	8-94453-230-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: E = 8-94454-188-1, 94454188	8-94455-153-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: C = 8-94337-636-0, 94337636, D = 8-94337-637-0, 94337637	8-94458-423-0	01	1	-
3	02.306 BEARING; ROTOR,GEN ASM PART: G = 8-94472-817-4, 94472817	8-97130-592-0	01	1	9412-
3	02.306 BEARING; ROTOR,GEN ASM PART: G = 8-94472-817-4, 94472817	8-97130-593-0	01	1	9412-
5	02.291 HOLDER; BRUSH,GEN ASM PART: A = 8-94156-672-2, 94156672, H = 8-97071-720-0, 97071720	8-94139-013-2	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: E = 8-94454-188-1, 94454188	8-94159-781-0	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: I = 8-97940-215-0, 97940215	8-94342-673-0	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: C = 8-94337-636-0, 94337636, D = 8-94337-637-0, 94337637	8-94361-720-0	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: B = 8-94337-635-0, 94337635	8-94378-478-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: A = 8-94156-672-2, 94156672, H = 8-97071-720-0, 97071720	8-94139-012-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: I = 8-97940-215-0, 97940215	8-94342-680-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: C = 8-94337-636-0, 94337636, D = 8-94337-637-0, 94337637	8-94361-719-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: B = 8-94337-635-0, 94337635	8-94378-477-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: F = 8-94472-816-3, 94472816	8-94379-568-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: G = 8-94472-817-4, 94472817	8-94379-568-0	01	1	-9411
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: E = 8-94454-188-1, 94454188	8-94455-160-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: G = 8-94472-817-4, 94472817	8-97130-596-0	01	1	9412-
10	02.319 RECTIFIER; GEN ASM PART: B = 8-94337-635-0, 94337635	5-81262-005-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: C = 8-94337-636-0, 94337636, D = 8-94337-637-0, 94337637	5-81262-006-0	01	1	-
10	02.319 RECTIFIER; GEN 02.291 ASM PART: A = 8-94156-672-2, 94156672	8-94123-052-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: H = 8-97071-720-0, 97071720	8-94125-884-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: I = 8-97940-215-0, 97940215	8-94342-672-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: F = 8-94472-816-3, 94472816	8-94379-566-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: G = 8-94472-817-4, 94472817	8-94379-589-0	01	1	-9411
10	02.319 RECTIFIER; GEN ASM PART: E = 8-94454-188-1, 94454188	8-94455-159-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: G = 8-94472-817-4, 94472817	8-97130-595-0	01	1	9412-
11	02.305 COVER; RR,GEN ASM PART: B = 8-94337-635-0, 94337635	5-81214-132-0	01	1	-
11	02.305 COVER; RR,GEN 02.297 ASM PART: A = 8-94156-672-2, 94156672	8-94123-062-0	01	1	-
11	02.305 COVER; RR,GEN ASM PART: C = 8-94337-636-0, 94337636, D = 8-94337-637-0, 94337637	8-94361-718-0	01	1	-
11	02.305 COVER; RR,GEN 02.297 ASM PART: E = 8-94454-188-1, 94454188	8-94455-165-0	01	1	-
11	02.305 COVER; RR,GEN ASM PART: H = 8-97071-720-0, 97071720	8-94455-369-0	01	1	-
15	02.279 RETAINER; ROTOR,GEN ASM PART: B = 8-94337-635-0, 94337635	5-81229-029-0	01	1	-
15	02.279 RETAINER; ROTOR,GEN 02.307 ASM PART: C = 8-94337-636-0, 94337636, D = 8-94337-637-0, 94337637	8-94233-649-0	01	1	-
15	02.279 RETAINER; ROTOR,GEN ASM PART: G = 8-94472-817-4, 94472817	8-94379-558-0	01	1	-9411
15	02.279 RETAINER; ROTOR,GEN ASM PART: F = 8-94472-816-3, 94472816	8-94379-558-0	01	1	-
15	02.279 RETAINER; ROTOR,GEN 02.307 ASM PART: A = 8-94156-672-2, 94156672, H = 8-97071-720-0, 97071720	8-94406-982-0	01	1	-
15	02.279 RETAINER; ROTOR,GEN (B) ASM PART: I = 8-97940-215-0, 97940215	8-94453-229-0	01	1	-
15	02.279 RETAINER; ROTOR,GEN ASM PART: E = 8-94454-188-1, 94454188	8-94455-154-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: C = 8-94337-636-0, 94337636, D = 8-94337-637-0, 94337637	8-94361-723-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: B = 8-94337-635-0, 94337635	8-94361-729-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: F = 8-94472-816-3, 94472816	8-94379-556-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: G = 8-94472-817-4, 94472817	8-94379-556-0	01	1	-9411
17	02.305 COVER ASM; FRT,GEN ASM PART: A = 8-94156-672-2, 94156672	8-94406-980-1	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: H = 8-97071-720-0, 97071720	8-94413-890-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: I = 8-97940-215-0, 97940215	8-94456-588-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: E = 8-94454-188-1, 94454188	8-94465-402-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: G = 8-94472-817-4, 94472817	8-97130-591-0	01	1	9412-
19	02.274 PULLEY; GEN ASM PART: F = 8-94472-816-3, 94472816, G = 8-94472-817-4, 94472817	8-94330-006-0	01	1	-9302
19	02.274 PULLEY; GEN ASM PART: B = 8-94337-635-0, 94337635	8-94333-519-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: C = 8-94337-636-0, 94337636, D = 8-94337-637-0, 94337637	8-94333-529-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: A = 8-94156-672-2, 94156672, H = 8-97071-720-0, 97071720	8-94406-979-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: I = 8-97940-215-0, 97940215	8-94456-585-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: E = 8-94454-188-1, 94454188	8-94465-401-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: G = 8-94472-817-4, 94472817	8-97100-264-0	01	1	9303-9411
19	02.274 PULLEY; GEN ASM PART: F = 8-94472-816-3, 94472816	8-97100-264-0	01	1	9303-
19	02.274 PULLEY; GEN ASM PART: G = 8-94472-817-4, 94472817	8-97130-603-0	01	1	9412-
21	02.316 BOLT; THROUGH,GEN ASM PART: I = 8-97940-215-0, 97940215	1-81229-031-0	03	1	-
21	02.316 BOLT; THROUGH,GEN UPPER ASM PART: B = 8-94337-635-0, 94337635	5-81229-182-0	02	1	-
21	02.316 BOLT; THROUGH,GEN LOWER ASM PART: B = 8-94337-635-0, 94337635	5-81229-183-0	01	1	-
21	02.316 BOLT; THROUGH,GEN ASM PART: C = 8-94337-636-0, 94337636, D = 8-94337-637-0, 94337637	8-94116-435-0	04	1	-
21	02.316 BOLT; THROUGH,GEN ASM PART: E = 8-94454-188-1, 94454188	8-94455-164-0	02	1	-
21	02.316 BOLT; THROUGH,GEN ASM PART: F = 8-94472-816-3, 94472816	8-97021-490-0	04	1	-
21	02.316 BOLT; THROUGH,GEN ASM PART: G = 8-94472-817-4, 94472817	8-97021-490-0	04	1	-9411
21	02.316 BOLT; THROUGH,GEN ASM PART: G = 8-94472-817-4, 94472817	8-97130-597-0	04	1	9412-
22	02.310 STATOR; GEN ASM PART: B = 8-94337-635-0, 94337635	5-81211-058-0	01	1	-
22	02.310 STATOR; GEN ASM PART: D = 8-94337-637-0, 94337637	5-81211-067-0	01	1	-
22	02.310 STATOR; GEN ASM PART: I = 8-97940-215-0, 97940215	8-94342-675-0	01	1	-
22	02.310 STATOR; GEN ASM PART: C = 8-94337-636-0, 94337636	8-94361-716-0	01	1	-
22	02.310 STATOR; GEN ASM PART: F = 8-94472-816-3, 94472816	8-94379-569-0	01	1	-9302
22	02.310 STATOR; GEN ASM PART: G = 8-94472-817-4, 94472817	8-94379-590-0	01	1	-9302
22	02.310 STATOR; GEN ASM PART: F = 8-94472-816-3, 94472816	8-97100-260-0	01	1	9303-
22	02.310 STATOR; GEN ASM PART: G = 8-94472-817-4, 94472817	8-97100-261-0	01	1	9303-9411
22	02.310 STATOR; GEN ASM PART: G = 8-94472-817-4, 94472817	8-97130-707-0	01	1	9412-
24	02.307 SCREW; RECTIFIER,GEN 02.313 ASM PART: I = 8-97940-215-0, 97940215	1-81229-409-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN 02.291, (A) ASM PART: I = 8-97940-215-0, 97940215	1-81229-419-0	04	1	-
24	02.307 SCREW; RECTIFIER,GEN (B) ASM PART: B = 8-94337-635-0, 94337635	5-81229-165-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN 02.291, (A) ASM PART: B = 8-94337-635-0, 94337635, C = 8-94337-636-0, 94337636, D = 8-94337-637-0, 94337637	5-81229-166-0	02	1	-
24	02.307 SCREW; RECTIFIER,GEN 02.291, (A) ASM PART: A = 8-94156-672-2, 94156672, E = 8-94454-188-1, 94454188, H = 8-97071-720-0, 97071720	8-94123-061-0	02	1	-
24	02.307 SCREW; RECTIFIER,GEN 02.291, (B) ASM PART: A = 8-94156-672-2, 94156672	8-94123-066-0	07	1	-9603
24	02.307 SCREW; RECTIFIER,GEN 02.291, (B) ASM PART: H = 8-97071-720-0, 97071720	8-94123-066-0	07	1	-
24	02.307 SCREW; RECTIFIER,GEN (B) ASM PART: C = 8-94337-636-0, 94337636, D = 8-94337-637-0, 94337637	8-94233-653-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN 02.277 ASM PART: G = 8-94472-817-4, 94472817	8-94379-559-0	03	1	-9411
24	02.307 SCREW; RECTIFIER,GEN 02.277 ASM PART: F = 8-94472-816-3, 94472816	8-94379-559-0	03	1	-
24	02.307 SCREW; RECTIFIER,GEN (B) ASM PART: E = 8-94454-188-1, 94454188	8-94455-161-0	06	1	-
24	02.307 SCREW; RECTIFIER,GEN (B) ASM PART: A = 8-94156-672-2, 94156672	8-94455-161-0	07	1	9604-
24	02.307 SCREW; RECTIFIER,GEN (C) ASM PART: E = 8-94454-188-1, 94454188	8-94455-162-0	01	1	-
29	02.285 BRUSH; GEN ASM PART: I = 8-97940-215-0, 97940215	5-81215-018-0	02	1	-
29	02.285 BRUSH; GEN ASM PART: A = 8-94156-672-2, 94156672, E = 8-94454-188-1, 94454188, H = 8-97071-720-0, 97071720	8-94123-056-0	02	1	-
29	02.285 BRUSH; GEN ASM PART: C = 8-94337-636-0, 94337636, D = 8-94337-637-0, 94337637	8-94361-721-0	02	1	-
29	02.285 BRUSH; GEN ASM PART: B = 8-94337-635-0, 94337635	8-94378-479-0	02	1	-
29	02.285 BRUSH; GEN ASM PART: G = 8-94472-817-4, 94472817	8-97130-604-0	01	1	9412-
33	02.500 WIRE; LEAD,GEN ASM PART: I = 8-97940-215-0, 97940215	8-94342-676-0	01	1	-
33	02.500 WIRE; LEAD,GEN UPPER ASM PART: B = 8-94337-635-0, 94337635, C = 8-94337-636-0, 94337636, D = 8-94337-637-0, 94337637	8-94361-724-0	01	1	-
33	02.500 WIRE; LEAD,GEN L0WER ASM PART: B = 8-94337-635-0, 94337635, C = 8-94337-636-0, 94337636, D = 8-94337-637-0, 94337637	8-94361-725-0	01	1	-
75	02.319 REGULATOR; VOLTAGE,GEN ASM PART: B = 8-94337-635-0, 94337635, C = 8-94337-636-0, 94337636, D = 8-94337-637-0, 94337637	8-94361-722-0	01	1	-
86	02.280 NUT SET; PULLEY,GEN ASM PART: C = 8-94337-636-0, 94337636, D = 8-94337-637-0, 94337637	8-94156-601-0	01	1	-
86	02.280 NUT SET; PULLEY,GEN ASM PART: B = 8-94337-635-0, 94337635	9-82235-015-0	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
