0-60 — ENGINE ELECTRICAL CONTROL PARTS (#41289) — 356 parça

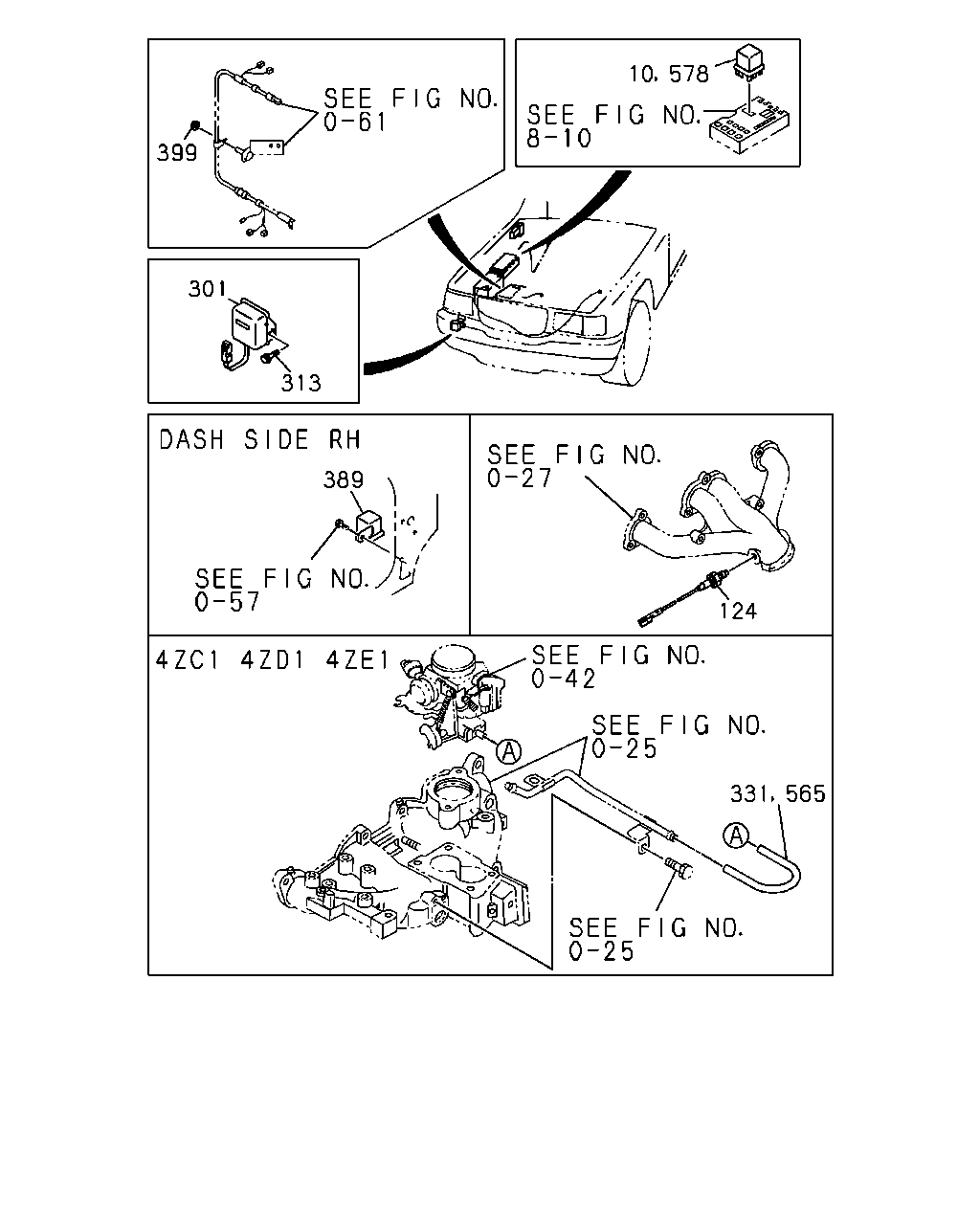

çizim 16817
399 10 578 301 313 389 124 331 565
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
10 02.100 RELAY; STARTER
UNITED KINGDOM EQUIPMENT(EK3) 02.510 12V 15A 		8-94147-095-0 01 1 9210-9406 ●
10 02.100 RELAY; STARTER
02.510 12V 15A 		8-94147-095-0 01 1 9210-9406 ●
10 02.100 RELAY; STARTER
02.510 12V 15A 		8-94147-095-0 01 1 9407-9509 ●
10 02.100 RELAY; STARTER
02.510 12V 15A 		8-94147-095-0 01 1 9510- ●
10 02.100 RELAY; STARTER
03.910 12V 20A 		8-94218-497-0 01 1 9210-9308 ●
10 02.100 RELAY; STARTER
THAILAND EQUIPMENT(PM9) 03.910 12V 20A 		8-94218-497-0 01 1 9210-9308 ●
10 02.100 RELAY; STARTER
THAILAND EQUIPMENT(PM9) 03.910 12V 20A 		8-94218-497-0 01 1 9309- ●
124 01.150 SENSOR; OXYGEN
UNITED KINGDOM EQUIPMENT(EK3) 		8-25105-107-0 01 1 9210-9406 ●
301 02.510 RESISTOR; DROPPING
UNITED KINGDOM EQUIPMENT(EK3) 		8-94338-264-0 01 1 9210- ● ●
313 02.500 BOLT; RESISTOR TO BRKT
UNITED KINGDOM EQUIPMENT(EK3) 08.900 M6X14 W/LK&PL WASHER 		0-50140-614-0 02 1 9210-9509 ●
331 03.726 HOSE; CARB TO 3 WAY
SINGAPORE EQUIPMENT(S9Y) 08.962 L=150 SERVICED BY L=3000 		0-04742-300-0 01 1 9210-9308 ●
331 03.726 HOSE; CARB TO 3 WAY
AUSTRALIA EQUIPMENT(RR3) 08.962 L=150 SERVICED BY L=3000 		0-04742-300-0 01 1 9210-9308 ●
331 03.726 HOSE; CARB TO 3 WAY
SINGAPORE EQUIPMENT(S9Y) 08.962 L=150 SERVICED BY L=3000 		0-04742-300-0 01 1 9309-9403 ●
331 03.726 HOSE; CARB TO 3 WAY
SINGAPORE EQUIPMENT(S9Y) 08.962 L=150 SERVICED BY L=3000 		0-04742-300-0 01 1 9404-9509 ●
331 03.726 HOSE; CARB TO 3 WAY
EXC. SINGAPORE EQUIPMENT(S9Y) 		8-94372-343-1 01 1 9210-9309 ●
331 03.726 HOSE; CARB TO 3 WAY
EXC. SINGAPORE EQUIPMENT(S9Y) 		8-94372-343-1 01 1 9310-9403 ●
331 03.726 HOSE; CARB TO 3 WAY
EXC. AUSTRALIA EQUIPMENT(RR3) 		8-94372-343-1 01 1 9310-9403 ●
331 03.726 HOSE; CARB TO 3 WAY 8-94372-343-1 01 1 9404-9509 ●
331 03.726 HOSE; CARB TO 3 WAY
EXC. AUSTRALIA EQUIPMENT(RR3) 		8-94372-343-1 01 1 9404-9509 ●
331 03.726 HOSE; CARB TO 3 WAY
EXC. AUSTRALIA EQUIPMENT(RR3) 		8-94372-344-0 01 1 9210-9309 ●
389 03.670 RELAY; HEAT,ECM
UNITED KINGDOM EQUIPMENT(EK3) 03.910 12V 20A 		8-94218-497-0 01 1 9210-9509 ●
399 02.559 NUT; CLIP
07.829 M6 FLANGE 		5-09440-004-0 01 1 9210- ● ● ●
399 02.559 NUT; CLIP
07.829 M6 FLANGE 		5-09440-004-0 02 1 9210- ● ● ●
565 03.672 HOSE; RUBBER
EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) 08.962 L=110 SERVICED BY L=3000 		0-04742-300-0 01 1 9210-9308 ●
565 03.672 HOSE; RUBBER
EXC. UNITED KINGDOM EQUIPMENT(EK3), SINGAPORE EQUIPMENT(S9Y) 08.962 L=110 SERVICED BY L=3000 		0-04742-300-0 01 1 9309-9406 ●
565 03.672 HOSE; RUBBER
EXC. SINGAPORE EQUIPMENT(S9Y) 08.962 L=110 SERVICED BY L=3000 		0-04742-300-0 01 1 9407- ●
578 02.510 RELAY; CHARGE WARNING
EXC. UNITED KINGDOM EQUIPMENT(EK3) 12V 20A BLUE 		8-94235-627-0 01 1 9210-9506 ●
578 02.510 RELAY; CHARGE WARNING
12V 20A BLUE 		8-94235-627-0 01 1 9210-9506 ● ●
578 02.510 RELAY; CHARGE WARNING
EXC. UNITED KINGDOM EQUIPMENT(EK3) 12V 20A BLUE 		8-94235-627-0 01 1 9507-9509 ●
578 02.510 RELAY; CHARGE WARNING
EXC. THAILAND EQUIPMENT(PM9) 12V 20A BLUE 		8-94235-627-0 01 1 9507-9509 ● ●
578 02.510 RELAY; CHARGE WARNING
12V 20A BLUE 		8-94235-627-0 01 1 9510- ● ●
578 02.510 RELAY; CHARGE WARNING
EXC. THAILAND EQUIPMENT(PM9) 12V 20A BLUE 		8-94235-627-0 01 1 9510- ● ●
578 02.510 RELAY; CHARGE WARNING
THAILAND EQUIPMENT(PM9) 03.910 12V 20A 		8-94218-497-0 01 1 9507- ●

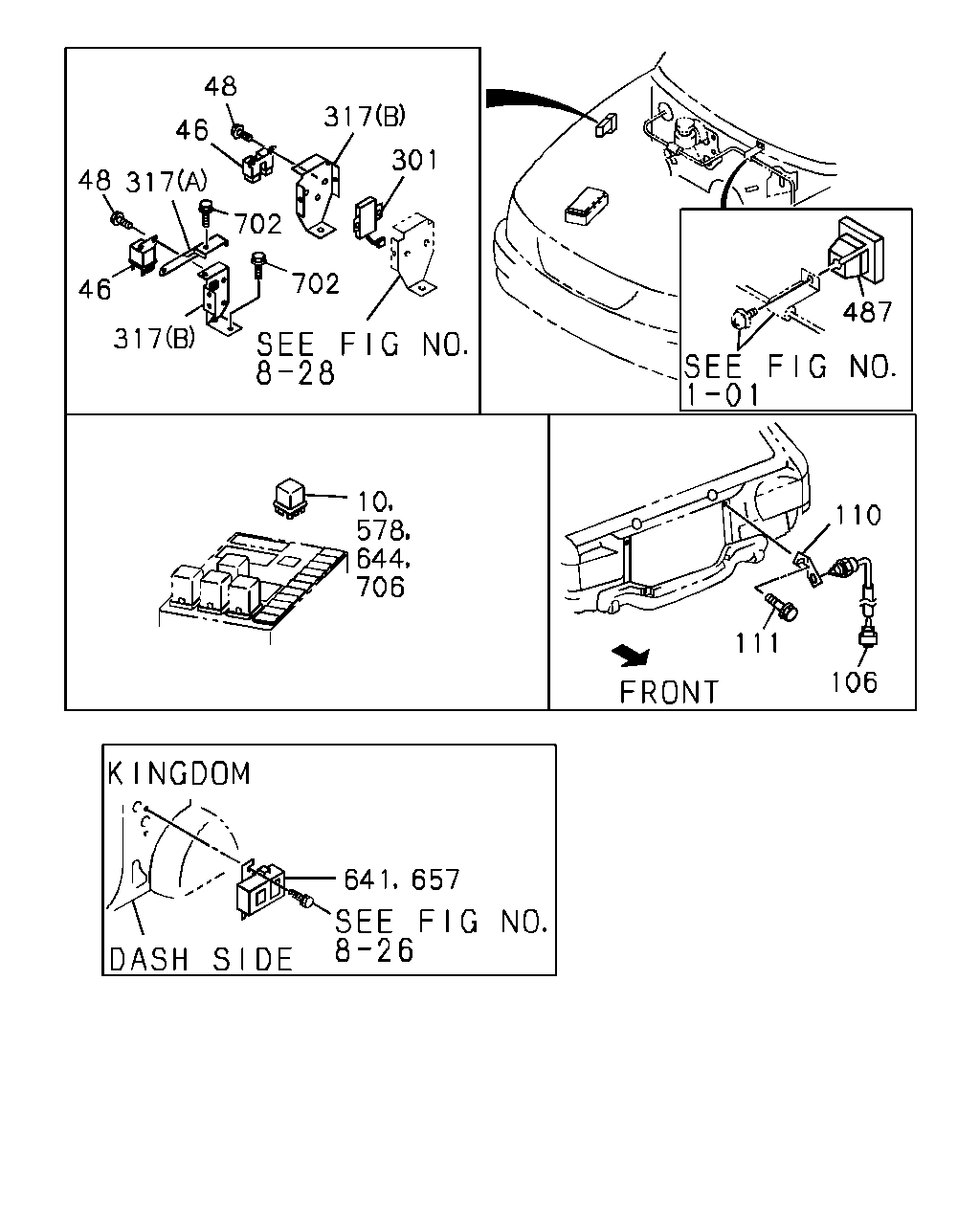

çizim 65834
48 46 48 317 317 702 301 702 46 317 10 706 644 578 641 657 111 106 110 487
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
10 02.100 RELAY; STARTER
UNITED KINGDOM EQUIPMENT(EK3) 02.510 12V 15A 		8-94147-095-0 01 1 9210-9406 ●
10 02.100 RELAY; STARTER
02.510 12V 15A 		8-94147-095-0 01 1 9210-9406 ●
10 02.100 RELAY; STARTER
02.510 12V 15A 		8-94147-095-0 01 1 9407-9509 ●
10 02.100 RELAY; STARTER
02.510 12V 15A 		8-94147-095-0 01 1 9510- ●
10 02.100 RELAY; STARTER
03.910 12V 20A 		8-94218-497-0 01 1 9210-9308 ●
10 02.100 RELAY; STARTER
THAILAND EQUIPMENT(PM9) 03.910 12V 20A 		8-94218-497-0 01 1 9210-9308 ●
10 02.100 RELAY; STARTER
THAILAND EQUIPMENT(PM9) 03.910 12V 20A 		8-94218-497-0 01 1 9309- ●
46 02.510 RELAY; GLOW PLUG 8-94248-161-0 01 1 9210-9308 ●
46 02.510 RELAY; GLOW PLUG
EXC. THAILAND EQUIPMENT(PM9) 		8-94459-495-0 01 1 9210- ● ●
48 02.183 BOLT; GLOW PLUG RELAY
03.680 M6X12 W/LK&PL WASHER 		0-50140-612-0 01 1 9210-9308 ●
48 02.183 BOLT; GLOW PLUG RELAY
EXC. THAILAND EQUIPMENT(PM9) 03.680 M6X12 W/LK&PL WASHER 		0-50140-612-0 02 1 9210- ● ●
106 01.150 SWITCH; THERMO,AIR
UNITED KINGDOM EQUIPMENT(EK3) 		8-97019-773-0 01 1 9510- ●
110 01.251 BRACKET; THERMO SW CONNECTOR
UNITED KINGDOM EQUIPMENT(EK3) 		8-97079-795-0 01 1 9210- ●
111 01.251 BOLT; SWITCH BRKT
UNITED KINGDOM EQUIPMENT(EK3) EXC. AIR CON(C60) 00.685 M6X12 W/LK WASHER 		0-50040-612-0 01 1 9210- ●
301 02.510 RESISTOR; DROPPING
UNITED KINGDOM EQUIPMENT(EK3) 		8-94338-264-0 01 1 9210- ● ●
317 02.510 BRACKET; GLOW PLUG RELAY
(B) 		8-94318-577-0 01 1 9210-9308 ●
317 02.510 BRACKET; GLOW PLUG RELAY
EXC. THAILAND EQUIPMENT(PM9) (A) 		8-94479-552-2 01 1 9210-9308 ● ● ●
317 02.510 BRACKET; GLOW PLUG RELAY
EXC. THAILAND EQUIPMENT(PM9) (A) 		8-94479-552-2 01 1 9309- ● ●
317 02.510 BRACKET; GLOW PLUG RELAY
EXC. THAILAND EQUIPMENT(PM9) (B) 		8-97074-308-1 01 1 9210- ● ●
487 02.343 NUT
EXC. THAILAND EQUIPMENT(PM9) 09.190 D=9.7X9.7 L=8 		8-94222-314-0 01 1 9407- ● ●
578 02.510 RELAY; CHARGE WARNING
EXC. UNITED KINGDOM EQUIPMENT(EK3) 12V 20A BLUE 		8-94235-627-0 01 1 9210-9506 ●
578 02.510 RELAY; CHARGE WARNING
12V 20A BLUE 		8-94235-627-0 01 1 9210-9506 ● ●
578 02.510 RELAY; CHARGE WARNING
EXC. UNITED KINGDOM EQUIPMENT(EK3) 12V 20A BLUE 		8-94235-627-0 01 1 9507-9509 ●
578 02.510 RELAY; CHARGE WARNING
EXC. THAILAND EQUIPMENT(PM9) 12V 20A BLUE 		8-94235-627-0 01 1 9507-9509 ● ●
578 02.510 RELAY; CHARGE WARNING
12V 20A BLUE 		8-94235-627-0 01 1 9510- ● ●
578 02.510 RELAY; CHARGE WARNING
EXC. THAILAND EQUIPMENT(PM9) 12V 20A BLUE 		8-94235-627-0 01 1 9510- ● ●
578 02.510 RELAY; CHARGE WARNING
THAILAND EQUIPMENT(PM9) 03.910 12V 20A 		8-94218-497-0 01 1 9507- ●
641 02.510 TIMER; QOS
UNITED KINGDOM EQUIPMENT(EK3) 		8-97068-785-0 01 1 9210- ●
644 02.510 RELAY; COLD START DEVICE
HEATER & DEFROSTER(C41),AIR CON(C60) 03.910 12V 20A 		8-94218-497-0 01 1 9210- ● ●
657 02.510 TIMER; GLOW PLUG
EXC. UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9) 		8-97068-786-0 01 1 9210- ● ●
702 02.500 BOLT; RELAY
EXC. THAILAND EQUIPMENT(PM9) 03.680 M6X12 W/LK&PL WASHER 		0-50140-612-0 04 1 9210-9308 ● ● ●
702 02.500 BOLT; RELAY
EXC. THAILAND EQUIPMENT(PM9) 03.680 M6X12 W/LK&PL WASHER 		0-50140-612-0 04 1 9309- ● ●
706 02.510 RELAY; QWS
TURBOCHARGER<K51> 03.910 12V 20A 		8-94218-497-0 01 1 9407- ●

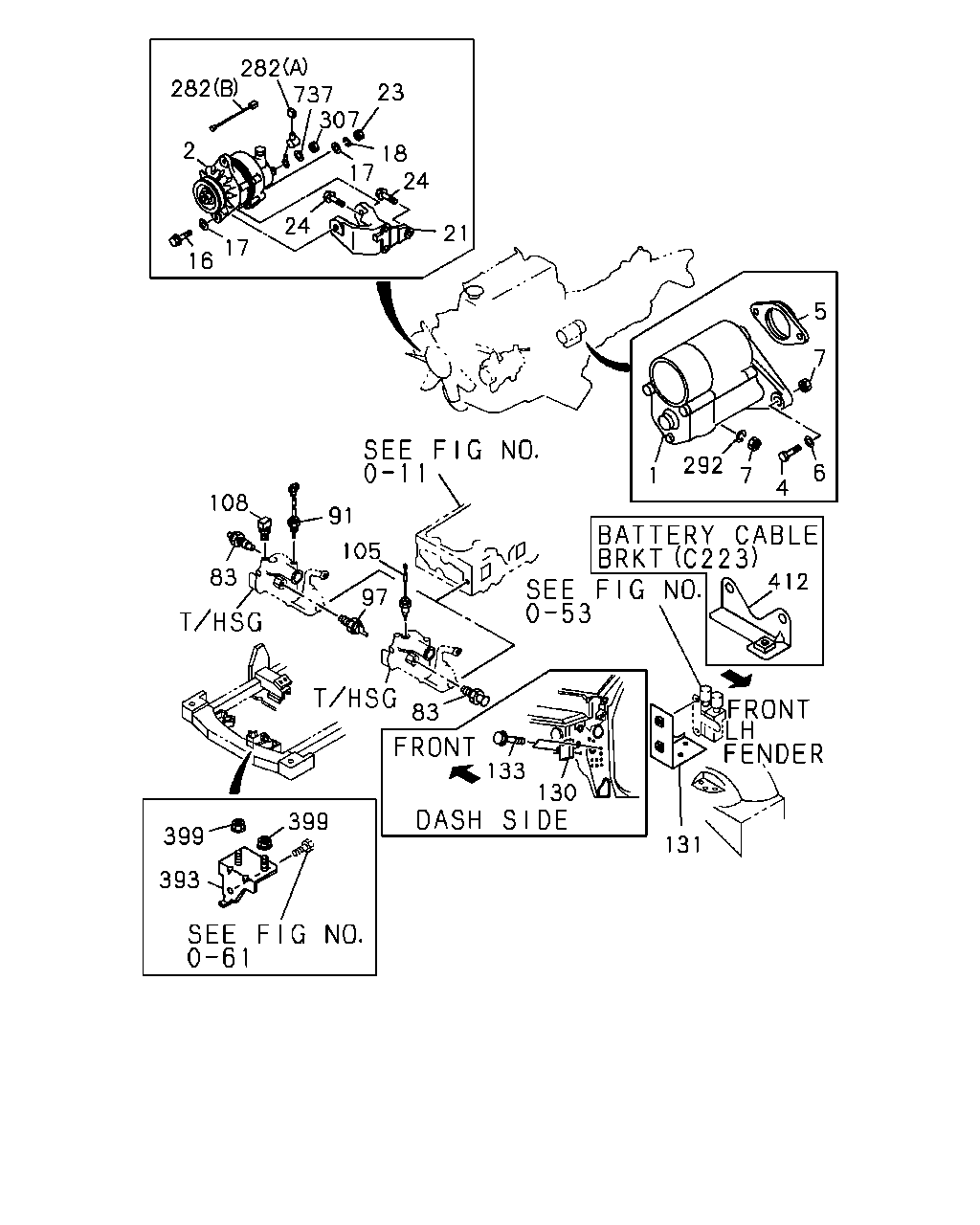

çizim 68311
282 282 2 737 23 307 21 24 18 17 24 17 16 5 7 6 4 7 292 1 412 108 91 83 105 83 97 399 399 393 133 130 131
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 1.0KW 		8-94156-671-0 01 1 9210- ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 1.2KW 		8-94371-833-1 01 1 9210- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 		8-94448-959-1 01 1 9210-9308 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. THAILAND EQUIPMENT(PM9) 12V 2.0KW 		8-94448-959-1 01 1 9210-9308 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. THAILAND EQUIPMENT(PM9) 12V 2.0KW 		8-94448-959-2 01 1 9309-9601 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. THAILAND EQUIPMENT(PM9) 12V 2.0KW 		8-94448-959-2 01 1 9602- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EAST MALAYSIA EQUIPMENT(PM6) 12V 2.0KW 		8-94448-959-2 01 1 9602- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. UNITED KINGDOM EQUIPMENT(EK3) 12V 2.3KW HITACHI 		8-94433-912-2 01 1 9210-9411 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9) 12V 2.0KW 		8-94460-417-1 01 1 9210-9411 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.0KW 		8-94460-417-1 01 1 9210-9411 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. THAILAND EQUIPMENT(PM9) 12V 2.8KW 		8-97112-549-0 01 1 9412-9511 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. UNITED KINGDOM EQUIPMENT(EK3) 12V 2.3KW 		8-97136-688-0 01 1 9512- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. THAILAND EQUIPMENT(PM9) 12V 2.0KW 		8-97136-687-0 01 1 9512-9601 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9) 12V 2.0KW 		8-97136-687-0 01 1 9602- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. UNITED KINGDOM EQUIPMENT(EK3), EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9) 12V 2.0KW 		8-97136-687-0 01 1 9602- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 35A(K83) HITACHI 12V 35A 		8-94337-635-0 01 1 9210-9411 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 40A(K78) HITACHI 12V 40A 		8-94337-636-0 01 1 9210-9509 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 50A(RN9) HITACHI 12V 50A 		8-94337-637-0 01 1 9210-9509 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 45A(K88) EXC. UNITED KINGDOM EQUIPMENT(EK3) BOSCH 12V 45A 		8-94472-816-3 01 1 9210-9410 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. AIR CON(C60),COOLER WO/HEATER(YL1) EXC. GENERATOR 80A(K97) 12V 50A 		8-97046-826-0 01 1 9411-9511 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 80A(K97) 12V 50A 		8-97137-009-0 01 1 9512- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 55A(K96) BOSCH 12V 55A 		8-94472-817-4 01 1 9210-9509 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 55A(K96) BOSCH 12V 55A 		8-94472-817-4 01 1 9510- ● ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. UNITED KINGDOM EQUIPMENT(EK3) GENERATOR 45A(K88) DENSO 		8-94454-188-1 01 1 9210-9509 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 45A(K88) DENSO 		8-94454-188-1 01 1 9210-9509 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 70A(K73) DENSO 12V 75A 		8-97071-720-0 01 1 9510- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 55A(K96) DENSO 12V 55A 		8-94156-672-1 01 1 9210-9509 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. DENSO 12V 55A 		8-94156-672-2 01 1 9510- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 70A(K73) 12V 75A 		8-97071-720-0 01 1 9210-9410 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. AIR CON(C60),COOLER WO/HEATER(YL1) 02.251 12V 50A 		8-94401-793-2 01 1 9210-9308 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. AIR CON(C60),COOLER WO/HEATER(YL1) 12V 40A 		8-94405-045-3 01 1 9210-9308 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. AIR CON(C60),COOLER WO/HEATER(YL1) 12V 50A 		8-94320-407-1 01 1 9210-9511 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. AIR CON(C60),UNITED KINGDOM EQUIPMENT(EK3),THAILAND EQUIPMENT(PM9), COOLER WO/HEATER(YL1) 12V 50A 		8-94330-186-0 01 1 9210-9511 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9) 12V 40A 		8-97137-004-0 01 1 9512- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. THAILAND EQUIPMENT(PM9) COOLER WO/HEATER(YL1) 12V 40A 		8-97940-215-0 01 1 9609- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. THAILAND EQUIPMENT(PM9) EXC. COOLER WO/HEATER(YL1) 12V 40A 		8-94330-187-2 01 1 9210- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. UNITED KINGDOM EQUIPMENT(EK3) GENERATOR 80A(K97) 12V 80A 		8-97074-612-0 01 1 9504-9508 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. UNITED KINGDOM EQUIPMENT(EK3) GENERATOR 80A(K97) 12V 80A 		8-97134-866-0 01 1 9509-9509 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. UNITED KINGDOM EQUIPMENT(EK3) GENERATOR 80A(K97) 12V 80A 		8-97134-866-0 01 1 9510-9603 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. AUSTRALIA EQUIPMENT(RR3) GENERATOR 80A(K97) 12V 80A 		8-97134-866-0 01 1 9510-9603 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. UNITED KINGDOM EQUIPMENT(EK3) GENERATOR 80A(K97) 12V 80A 		8-97133-854-0 01 1 9604- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. AUSTRALIA EQUIPMENT(RR3) GENERATOR 80A(K97) 12V 80A 		8-97133-854-0 01 1 9604- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. UNITED KINGDOM EQUIPMENT(EK3) EXC. GENERATOR 80A(K97) 12V 50A 		8-94382-059-1 01 1 9210-9406 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. UNITED KINGDOM EQUIPMENT(EK3) 12V 50A 		8-94382-059-1 01 1 9407-9503 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. UNITED KINGDOM EQUIPMENT(EK3) EXC. GENERATOR 80A(K97) 12V 50A 		8-94382-059-1 01 1 9504- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. AIR CON(C60),COOLER WO/HEATER(YL1) EXC. GENERATOR 80A(K97) 12V 50A 		8-97046-826-0 01 1 9210-9410 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 80A(K97) 12V 80A 		8-97074-612-0 01 1 9210-9410 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. AIR CON(C60),GENERATOR 80A(K97), COOLER WO/HEATER(YL1) 12V 50A 		8-94382-060-0 01 1 9210-9511 ●
4 02.042 BOLT; STARTER
05.130 M12X60 		0-10806-260-0 02 1 9210-9308 ●
4 02.042 BOLT; STARTER
A/T AISIN(RMD) M12X70 FLANGE 		0-28091-270-0 02 1 9409-9412 ●
4 02.042 BOLT; STARTER
A/T AISIN(RMD) M12X80 		0-28081-280-0 02 1 9501- ●
4 02.042 BOLT; STARTER
A/T AISIN(RMD) M10X45 FLANGE 		0-28091-045-0 01 1 9501-9502 ●
4 02.042 BOLT; STARTER
A/T AISIN(RMD) M10X45 FLANGE 		0-28091-045-0 04 1 9503- ●
4 02.042 BOLT; STARTER
M/T MSG 5 SPEED(M75) THAILAND EQUIPMENT(PM9) M12X60 		8-97161-846-0 02 1 9609- ●
4 02.042 BOLT; STARTER
THAILAND EQUIPMENT(PM9) M12X65 		0-10806-265-0 02 1 9210-9402 ●
4 02.042 BOLT; STARTER
THAILAND EQUIPMENT(PM9) M12X65 		0-10806-265-0 02 1 9406-9509 ●
4 02.042 BOLT; STARTER
M/T MSG 5 SPEED(M75) THAILAND EQUIPMENT(PM9) M12X65 		0-10806-265-0 02 1 9510-9607 ●
4 02.042 BOLT; STARTER
M/T MSG 5 SPEED(M75) EXC. THAILAND EQUIPMENT(PM9) 07.347 M12X55 		0-10806-255-0 02 1 9406-9607 ● ●
4 02.042 BOLT; STARTER
M/T MSG 5 SPEED(M75) EXC. THAILAND EQUIPMENT(PM9) 00.724 M12X50 FLANGE 		0-28081-250-0 02 1 9608- ● ●
4 02.042 BOLT; STARTER
EXC. THAILAND EQUIPMENT(PM9) 07.347 M12X55 		0-10806-255-0 02 1 9210-9402 ● ●
5 02.042 DISTANCE; STARTER
THAILAND EQUIPMENT(PM9) 		8-94139-746-0 01 1 9210- ●
5 02.042 DISTANCE; STARTER
EAST MALAYSIA EQUIPMENT(PM6) 		8-97045-783-0 01 1 9505- ●
6 02.042 WASHER; PL,STARTER
03.430 ID=12.5 		9-09160-512-0 04 1 9210-9308 ● ● ●
6 02.042 WASHER; PL,STARTER
03.430 ID=12.5 		9-09160-512-0 04 1 9309-9402 ● ●
6 02.042 WASHER; PL,STARTER
M/T MSG 4 SPEED(M20),M/T MSG 5 SPEED(M75) 03.430 ID=12.5 		9-09160-512-0 04 1 9406-9409 ● ●
6 02.042 WASHER; PL,STARTER
03.430 ID=12.5 		9-09160-512-0 04 1 9410-9607 ● ●
7 02.042 NUT; STARTER
04.309 M8 W/LK WASHER 		8-94413-537-0 01 1 9210- ● ● ●
7 02.042 NUT; STARTER
05.816 M12 		9-99110-412-0 02 1 9210-9308 ● ● ●
7 02.042 NUT; STARTER
05.816 M12 		9-99110-412-0 02 1 9309-9402 ● ●
7 02.042 NUT; STARTER
A/T AISIN(RMD) 05.586 M12 FLANGE 		0-91150-112-0 02 1 9409-9608 ●
7 02.042 NUT; STARTER
M/T MSG 5 SPEED(M75),A/T AISIN(RMD) 05.586 M12 FLANGE 		0-91150-112-0 02 1 9609- ● ●
7 02.042 NUT; STARTER
M/T MSG 4 SPEED(M20),M/T MSG 5 SPEED(M75) 05.816 M12 		9-99110-412-0 02 1 9406-9409 ● ●
7 02.042 NUT; STARTER
05.816 M12 		9-99110-412-0 02 1 9410-9607 ● ●
16 02.277 BOLT; GEN
GENERATOR 35A(K83) M8X107 L=120 		9-09801-030-1 01 1 9210-9411 ●
16 02.277 BOLT; GEN
GENERATOR 40A(K78),GENERATOR 50A(RN9) M10X118 		9-09801-061-1 01 1 9210-9509 ●
16 02.277 BOLT; GEN
03.417 M10X100 		0-10806-000-0 01 1 9210-9509 ● ●
16 02.277 BOLT; GEN
03.417 M10X100 		0-10806-000-0 01 1 9510- ● ● ●
16 02.277 BOLT; GEN
01.840 M10X40 W/LK&PL WASHER 		0-50141-040-0 02 1 9210-9308 ●
16 02.277 BOLT; GEN
M10X130 		8-94402-322-1 01 1 9210-9304 ● ●
16 02.277 BOLT; GEN
M10X133 		5-09000-169-1 01 1 9305- ● ●
17 02.277 WASHER; PL,GEN
16.682 ID=10.5 OD=22 		9-09160-610-0 02 1 9210- ● ●
18 02.317 WASHER; LK,GEN
GENERATOR 35A(K83) 00.002 ID=8.2 		9-09150-508-0 01 1 9210-9411 ●
18 02.317 WASHER; LK,GEN
GENERATOR 40A(K78),GENERATOR 50A(RN9) 00.002 ID=10.2 		9-09150-510-0 01 1 9210-9509 ●
18 02.317 WASHER; LK,GEN
00.002 ID=10.2 		9-09150-510-0 01 1 9210-9509 ● ● ● ●
18 02.317 WASHER; LK,GEN
00.002 ID=10.2 		9-09150-510-0 01 1 9510- ● ● ● ● ●
21 02.277 BRACKET; GEN
GENERATOR 35A(K83) 		8-94450-237-1 01 1 9210-9411 ●
21 02.277 BRACKET; GEN
GENERATOR 40A(K78),GENERATOR 50A(RN9) 		8-94450-238-1 01 1 9210-9509 ●
21 02.277 BRACKET; GEN 8-94433-419-2 01 1 9210-9509 ●
21 02.277 BRACKET; GEN 8-94433-419-2 01 1 9510- ● ●
21 02.277 BRACKET; GEN 8-97071-652-1 01 1 9210- ●
21 02.277 BRACKET; GEN 8-94114-007-0 01 1 9210-9308 ●
21 02.277 BRACKET; GEN 8-94437-276-2 01 1 9210- ● ●
23 02.277 NUT; GEN
GENERATOR 35A(K83) 00.002 M8 		9-09110-508-0 01 1 9210-9411 ●
23 02.277 NUT; GEN
GENERATOR 40A(K78),GENERATOR 50A(RN9) 00.002 M10 		9-09110-510-0 01 1 9210-9509 ●
23 02.277 NUT; GEN
00.002 M10 		9-09110-510-0 01 1 9210-9509 ● ● ● ●
23 02.277 NUT; GEN
00.002 M10 		9-09110-510-0 01 1 9510- ● ● ● ● ●
23 02.277 NUT; GEN
02.343 M6 W/LK WASHER 		8-94424-179-0 01 1 9210-9405 ●
24 02.277 BOLT; GEN BRKT
EXC. SINGAPORE EQUIPMENT(S9Y) 11.377 M10X20 W/LK WASHER 		0-50041-020-0 01 1 9210-9509 ●
24 02.277 BOLT; GEN BRKT
EXC. POWER STEERING<N40> 11.377 M10X20 W/LK WASHER 		0-50041-020-0 01 1 9210-9509 ● ●
24 02.277 BOLT; GEN BRKT
11.377 M10X20 W/LK WASHER 		0-50041-020-0 01 1 9510- ●
24 02.277 BOLT; GEN BRKT
EXC. POWER STEERING<N40> 11.377 M10X20 W/LK WASHER 		0-50041-020-0 01 1 9510- ● ●
24 02.277 BOLT; GEN BRKT
01.652 M10X25 W/LK WASHER 		0-50041-025-0 02 1 9210- ● ● ●
24 02.277 BOLT; GEN BRKT
00.029 M10X28 W/LK WASHER 		0-50041-028-0 04 1 9210-9308 ●
24 02.277 BOLT; GEN BRKT
09.171 M10X35 W/LK WASHER 		0-50041-035-0 01 1 9210- ● ●
24 02.277 BOLT; GEN BRKT
M10X70 W/LK WASHER 		0-50041-070-0 02 1 9210- ● ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94247-437-1 01 1 9210- ● ● ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 9210-9308 ● ● ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 9309- ● ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 9210-9308 ● ● ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 9309- ● ●
91 01.150 SWITCH; THERMO HTR
UNITED KINGDOM EQUIPMENT(EK3) 		8-97038-956-0 01 1 9210- ●
97 01.150 SWITCH; THERMO,EGR CONT
UNITED KINGDOM EQUIPMENT(EK3) 		8-94368-591-0 01 1 9407- ●
105 01.150 SWITCH; THERMO,QOS
EXC. THAILAND EQUIPMENT(PM9) 		8-94121-152-1 01 1 9210- ● ●
108 01.150 SWITCH; THERMO 8-94326-772-0 01 1 9210-9308 ●
130 02.510 CONTROLLER; EGR
UNITED KINGDOM EQUIPMENT(EK3) 		8-97107-227-0 01 1 9407- ●
131 03.670 BRACKET; EGR
UNITED KINGDOM EQUIPMENT(EK3) 		8-97106-698-0 01 1 9407- ●
133 02.500 BOLT; EGR CONTROLLER
UNITED KINGDOM EQUIPMENT(EK3) 06.635 M6X16 FLANGE 		0-28480-616-0 02 1 9407- ●
133 02.500 BOLT; EGR CONTROLLER
UNITED KINGDOM EQUIPMENT(EK3) 03.342 M6X16 		8-97012-496-0 01 1 9407- ●
133 02.500 BOLT; EGR CONTROLLER
03.342 M6X16 		8-97012-496-0 02 1 9301-9406 ● ●
133 02.500 BOLT; EGR CONTROLLER
EXC. UNITED KINGDOM EQUIPMENT(EK3) 03.342 M6X16 		8-97012-496-0 02 1 9407- ●
133 02.500 BOLT; EGR CONTROLLER
03.342 M6X16 		8-97012-496-0 02 1 9407- ●
282 02.480 HARNESS; EXT,GEN
GENERATOR 80A(K97) (A) 		8-97069-208-0 01 1 9210-9410 ●
282 02.480 HARNESS; EXT,GEN
GENERATOR 80A(K97) (B) 		8-94457-269-2 01 1 9510- ●
282 02.480 HARNESS; EXT,GEN
GENERATOR 80A(K97) (A) 		8-97069-208-0 01 1 9510- ●
292 02.042 WASHER; LK,STARTER
04.634 ID=12.2 		9-09150-512-0 02 1 9210-9308 ● ● ●
292 02.042 WASHER; LK,STARTER
04.634 ID=12.2 		9-09150-512-0 02 1 9309-9402 ● ●
292 02.042 WASHER; LK,STARTER
M/T MSG 4 SPEED(M20),M/T MSG 5 SPEED(M75) 04.634 ID=12.2 		9-09150-512-0 02 1 9406-9409 ● ●
292 02.042 WASHER; LK,STARTER
04.634 ID=12.2 		9-09150-512-0 02 1 9410-9607 ● ●
307 02.483 NUT; EXT HARNESS
GENERATOR 80A(K97) 02.343 M6 W/LK WASHER 		8-94424-179-0 01 1 9210-9410 ●
307 02.483 NUT; EXT HARNESS
GENERATOR 80A(K97) 02.343 M6 W/LK WASHER 		8-94424-179-0 01 1 9510- ●
393 02.343 BRACKET; HARNESS TO BODY 8-94329-854-0 01 1 9210- ● ● ●
399 02.559 NUT; CLIP
07.829 M6 FLANGE 		5-09440-004-0 01 1 9210- ● ● ●
399 02.559 NUT; CLIP
07.829 M6 FLANGE 		5-09440-004-0 02 1 9210- ● ● ●
412 02.343 BRACKET; BATTERY CABLE
4X2(TFB***) 		8-94233-402-0 02 1 9210-9308 ●
737 03.901 WASHER; PL
GENERATOR 80A(K97) 00.206 ID=6.4 		9-09160-506-0 01 1 9210-9410 ●
737 03.901 WASHER; PL
GENERATOR 80A(K97) 00.206 ID=6.4 		9-09160-506-0 01 1 9510- ●

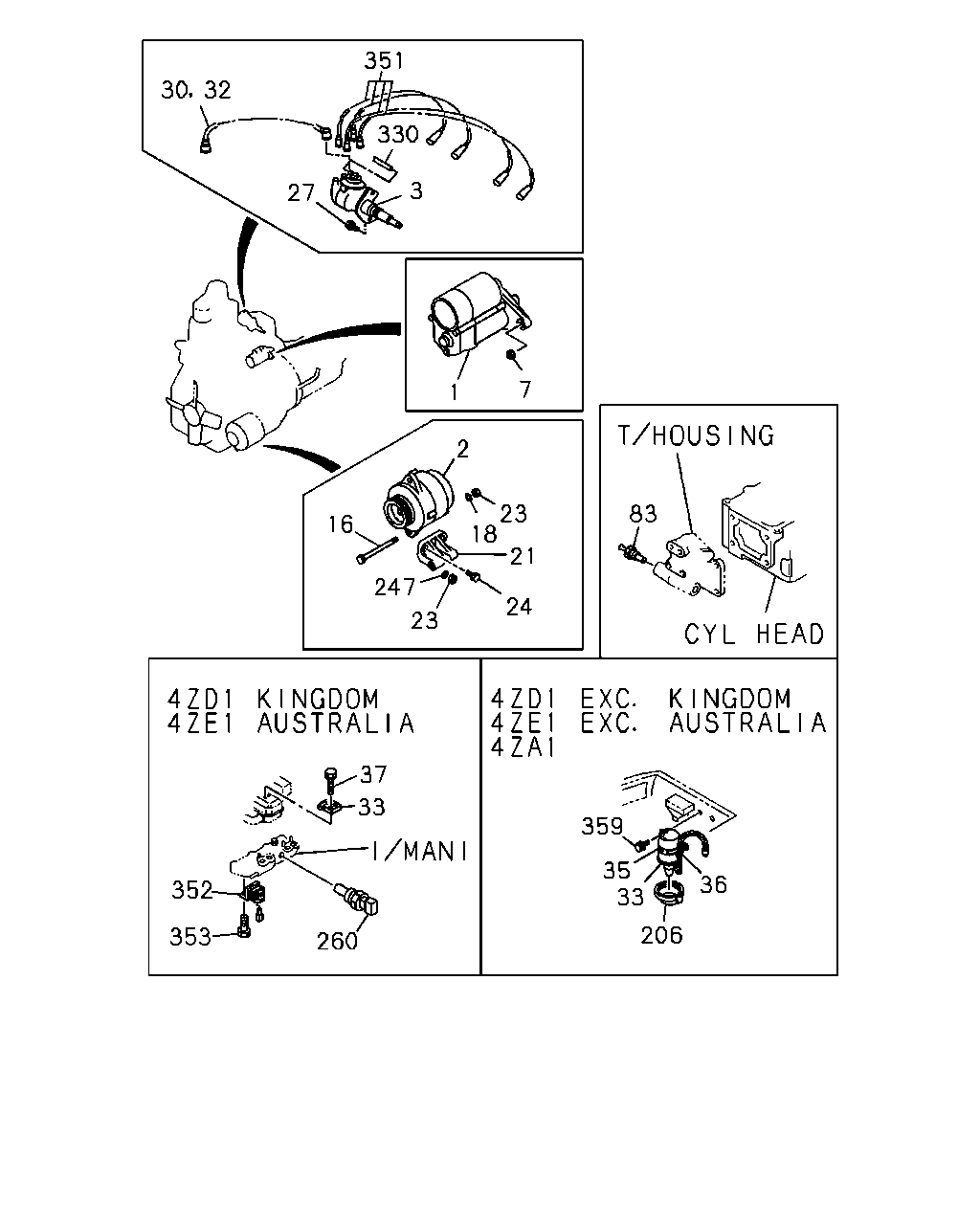

çizim 68541
30 32 351 330 27 3 1 7 2 16 23 18 247 21 23 24 83 359 35 206 36 260 353 352 33 37 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 1.0KW 		8-94156-671-0 01 1 9210- ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 1.2KW 		8-94371-833-1 01 1 9210- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 		8-94448-959-1 01 1 9210-9308 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. THAILAND EQUIPMENT(PM9) 12V 2.0KW 		8-94448-959-1 01 1 9210-9308 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. THAILAND EQUIPMENT(PM9) 12V 2.0KW 		8-94448-959-2 01 1 9309-9601 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. THAILAND EQUIPMENT(PM9) 12V 2.0KW 		8-94448-959-2 01 1 9602- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EAST MALAYSIA EQUIPMENT(PM6) 12V 2.0KW 		8-94448-959-2 01 1 9602- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. UNITED KINGDOM EQUIPMENT(EK3) 12V 2.3KW HITACHI 		8-94433-912-2 01 1 9210-9411 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9) 12V 2.0KW 		8-94460-417-1 01 1 9210-9411 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.0KW 		8-94460-417-1 01 1 9210-9411 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. THAILAND EQUIPMENT(PM9) 12V 2.8KW 		8-97112-549-0 01 1 9412-9511 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. UNITED KINGDOM EQUIPMENT(EK3) 12V 2.3KW 		8-97136-688-0 01 1 9512- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. THAILAND EQUIPMENT(PM9) 12V 2.0KW 		8-97136-687-0 01 1 9512-9601 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9) 12V 2.0KW 		8-97136-687-0 01 1 9602- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. UNITED KINGDOM EQUIPMENT(EK3), EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9) 12V 2.0KW 		8-97136-687-0 01 1 9602- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 35A(K83) HITACHI 12V 35A 		8-94337-635-0 01 1 9210-9411 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 40A(K78) HITACHI 12V 40A 		8-94337-636-0 01 1 9210-9509 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 50A(RN9) HITACHI 12V 50A 		8-94337-637-0 01 1 9210-9509 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 45A(K88) EXC. UNITED KINGDOM EQUIPMENT(EK3) BOSCH 12V 45A 		8-94472-816-3 01 1 9210-9410 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. AIR CON(C60),COOLER WO/HEATER(YL1) EXC. GENERATOR 80A(K97) 12V 50A 		8-97046-826-0 01 1 9411-9511 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 80A(K97) 12V 50A 		8-97137-009-0 01 1 9512- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 55A(K96) BOSCH 12V 55A 		8-94472-817-4 01 1 9210-9509 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 55A(K96) BOSCH 12V 55A 		8-94472-817-4 01 1 9510- ● ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. UNITED KINGDOM EQUIPMENT(EK3) GENERATOR 45A(K88) DENSO 		8-94454-188-1 01 1 9210-9509 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 45A(K88) DENSO 		8-94454-188-1 01 1 9210-9509 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 70A(K73) DENSO 12V 75A 		8-97071-720-0 01 1 9510- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 55A(K96) DENSO 12V 55A 		8-94156-672-1 01 1 9210-9509 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. DENSO 12V 55A 		8-94156-672-2 01 1 9510- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 70A(K73) 12V 75A 		8-97071-720-0 01 1 9210-9410 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. AIR CON(C60),COOLER WO/HEATER(YL1) 02.251 12V 50A 		8-94401-793-2 01 1 9210-9308 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. AIR CON(C60),COOLER WO/HEATER(YL1) 12V 40A 		8-94405-045-3 01 1 9210-9308 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. AIR CON(C60),COOLER WO/HEATER(YL1) 12V 50A 		8-94320-407-1 01 1 9210-9511 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. AIR CON(C60),UNITED KINGDOM EQUIPMENT(EK3),THAILAND EQUIPMENT(PM9), COOLER WO/HEATER(YL1) 12V 50A 		8-94330-186-0 01 1 9210-9511 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. UNITED KINGDOM EQUIPMENT(EK3), THAILAND EQUIPMENT(PM9) 12V 40A 		8-97137-004-0 01 1 9512- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. THAILAND EQUIPMENT(PM9) COOLER WO/HEATER(YL1) 12V 40A 		8-97940-215-0 01 1 9609- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. THAILAND EQUIPMENT(PM9) EXC. COOLER WO/HEATER(YL1) 12V 40A 		8-94330-187-2 01 1 9210- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. UNITED KINGDOM EQUIPMENT(EK3) GENERATOR 80A(K97) 12V 80A 		8-97074-612-0 01 1 9504-9508 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. UNITED KINGDOM EQUIPMENT(EK3) GENERATOR 80A(K97) 12V 80A 		8-97134-866-0 01 1 9509-9509 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. UNITED KINGDOM EQUIPMENT(EK3) GENERATOR 80A(K97) 12V 80A 		8-97134-866-0 01 1 9510-9603 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. AUSTRALIA EQUIPMENT(RR3) GENERATOR 80A(K97) 12V 80A 		8-97134-866-0 01 1 9510-9603 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. UNITED KINGDOM EQUIPMENT(EK3) GENERATOR 80A(K97) 12V 80A 		8-97133-854-0 01 1 9604- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. AUSTRALIA EQUIPMENT(RR3) GENERATOR 80A(K97) 12V 80A 		8-97133-854-0 01 1 9604- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. UNITED KINGDOM EQUIPMENT(EK3) EXC. GENERATOR 80A(K97) 12V 50A 		8-94382-059-1 01 1 9210-9406 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. UNITED KINGDOM EQUIPMENT(EK3) 12V 50A 		8-94382-059-1 01 1 9407-9503 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. UNITED KINGDOM EQUIPMENT(EK3) EXC. GENERATOR 80A(K97) 12V 50A 		8-94382-059-1 01 1 9504- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. AIR CON(C60),COOLER WO/HEATER(YL1) EXC. GENERATOR 80A(K97) 12V 50A 		8-97046-826-0 01 1 9210-9410 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 80A(K97) 12V 80A 		8-97074-612-0 01 1 9210-9410 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. AIR CON(C60),GENERATOR 80A(K97), COOLER WO/HEATER(YL1) 12V 50A 		8-94382-060-0 01 1 9210-9511 ●
3 02.361 DISTRIBUTOR ASM
SEE FIG-NO 0-71 FOR COMPONENT. 		8-94450-250-1 01 1 9210- ●
3 02.361 DISTRIBUTOR ASM
SEE FIG-NO 0-71 FOR COMPONENT. UNITED KINGDOM EQUIPMENT(EK3) 		8-94341-340-0 01 1 9210-9406 ●
3 02.361 DISTRIBUTOR ASM
SEE FIG-NO 0-71 FOR COMPONENT. EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-94476-142-1 01 1 9210-9406 ●
3 02.361 DISTRIBUTOR ASM
SEE FIG-NO 0-71 FOR COMPONENT. EXC. AUSTRALIA EQUIPMENT(RR3) 		8-94476-142-1 01 1 9210-9406 ●
3 02.361 DISTRIBUTOR ASM
SEE FIG-NO 0-71 FOR COMPONENT. 		8-94476-142-1 01 1 9407- ●
3 02.361 DISTRIBUTOR ASM
SEE FIG-NO 0-71 FOR COMPONENT. EXC. AUSTRALIA EQUIPMENT(RR3) 		8-94476-142-1 01 1 9407- ●
3 02.361 DISTRIBUTOR ASM
SEE FIG-NO 0-71 FOR COMPONENT. AUSTRALIA EQUIPMENT(RR3) 		8-97040-454-0 01 1 9210- ●
7 02.042 NUT; STARTER
04.309 M8 W/LK WASHER 		8-94413-537-0 01 1 9210- ● ● ●
7 02.042 NUT; STARTER
05.816 M12 		9-99110-412-0 02 1 9210-9308 ● ● ●
7 02.042 NUT; STARTER
05.816 M12 		9-99110-412-0 02 1 9309-9402 ● ●
7 02.042 NUT; STARTER
A/T AISIN(RMD) 05.586 M12 FLANGE 		0-91150-112-0 02 1 9409-9608 ●
7 02.042 NUT; STARTER
M/T MSG 5 SPEED(M75),A/T AISIN(RMD) 05.586 M12 FLANGE 		0-91150-112-0 02 1 9609- ● ●
7 02.042 NUT; STARTER
M/T MSG 4 SPEED(M20),M/T MSG 5 SPEED(M75) 05.816 M12 		9-99110-412-0 02 1 9406-9409 ● ●
7 02.042 NUT; STARTER
05.816 M12 		9-99110-412-0 02 1 9410-9607 ● ●
16 02.277 BOLT; GEN
GENERATOR 35A(K83) M8X107 L=120 		9-09801-030-1 01 1 9210-9411 ●
16 02.277 BOLT; GEN
GENERATOR 40A(K78),GENERATOR 50A(RN9) M10X118 		9-09801-061-1 01 1 9210-9509 ●
16 02.277 BOLT; GEN
03.417 M10X100 		0-10806-000-0 01 1 9210-9509 ● ●
16 02.277 BOLT; GEN
03.417 M10X100 		0-10806-000-0 01 1 9510- ● ● ●
16 02.277 BOLT; GEN
01.840 M10X40 W/LK&PL WASHER 		0-50141-040-0 02 1 9210-9308 ●
16 02.277 BOLT; GEN
M10X130 		8-94402-322-1 01 1 9210-9304 ● ●
16 02.277 BOLT; GEN
M10X133 		5-09000-169-1 01 1 9305- ● ●
18 02.317 WASHER; LK,GEN
GENERATOR 35A(K83) 00.002 ID=8.2 		9-09150-508-0 01 1 9210-9411 ●
18 02.317 WASHER; LK,GEN
GENERATOR 40A(K78),GENERATOR 50A(RN9) 00.002 ID=10.2 		9-09150-510-0 01 1 9210-9509 ●
18 02.317 WASHER; LK,GEN
00.002 ID=10.2 		9-09150-510-0 01 1 9210-9509 ● ● ● ●
18 02.317 WASHER; LK,GEN
00.002 ID=10.2 		9-09150-510-0 01 1 9510- ● ● ● ● ●
21 02.277 BRACKET; GEN
GENERATOR 35A(K83) 		8-94450-237-1 01 1 9210-9411 ●
21 02.277 BRACKET; GEN
GENERATOR 40A(K78),GENERATOR 50A(RN9) 		8-94450-238-1 01 1 9210-9509 ●
21 02.277 BRACKET; GEN 8-94433-419-2 01 1 9210-9509 ●
21 02.277 BRACKET; GEN 8-94433-419-2 01 1 9510- ● ●
21 02.277 BRACKET; GEN 8-97071-652-1 01 1 9210- ●
21 02.277 BRACKET; GEN 8-94114-007-0 01 1 9210-9308 ●
21 02.277 BRACKET; GEN 8-94437-276-2 01 1 9210- ● ●
23 02.277 NUT; GEN
GENERATOR 35A(K83) 00.002 M8 		9-09110-508-0 01 1 9210-9411 ●
23 02.277 NUT; GEN
GENERATOR 40A(K78),GENERATOR 50A(RN9) 00.002 M10 		9-09110-510-0 01 1 9210-9509 ●
23 02.277 NUT; GEN
00.002 M10 		9-09110-510-0 01 1 9210-9509 ● ● ● ●
23 02.277 NUT; GEN
00.002 M10 		9-09110-510-0 01 1 9510- ● ● ● ● ●
23 02.277 NUT; GEN
02.343 M6 W/LK WASHER 		8-94424-179-0 01 1 9210-9405 ●
24 02.277 BOLT; GEN BRKT
EXC. SINGAPORE EQUIPMENT(S9Y) 11.377 M10X20 W/LK WASHER 		0-50041-020-0 01 1 9210-9509 ●
24 02.277 BOLT; GEN BRKT
EXC. POWER STEERING<N40> 11.377 M10X20 W/LK WASHER 		0-50041-020-0 01 1 9210-9509 ● ●
24 02.277 BOLT; GEN BRKT
11.377 M10X20 W/LK WASHER 		0-50041-020-0 01 1 9510- ●
24 02.277 BOLT; GEN BRKT
EXC. POWER STEERING<N40> 11.377 M10X20 W/LK WASHER 		0-50041-020-0 01 1 9510- ● ●
24 02.277 BOLT; GEN BRKT
01.652 M10X25 W/LK WASHER 		0-50041-025-0 02 1 9210- ● ● ●
24 02.277 BOLT; GEN BRKT
00.029 M10X28 W/LK WASHER 		0-50041-028-0 04 1 9210-9308 ●
24 02.277 BOLT; GEN BRKT
09.171 M10X35 W/LK WASHER 		0-50041-035-0 01 1 9210- ● ●
24 02.277 BOLT; GEN BRKT
M10X70 W/LK WASHER 		0-50041-070-0 02 1 9210- ● ●
27 02.363 BOLT; DISTR
02.559 M8X22 W/LK&PL WASHER 		0-50140-822-0 01 1 9210- ● ● ●
30 02.240 CABLE; DISTR TO IGN COIL 8-94329-908-0 01 1 9210-9406 ●
30 02.240 CABLE; DISTR TO IGN COIL
EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-94329-908-0 01 1 9210-9406 ●
30 02.240 CABLE; DISTR TO IGN COIL
EXC. AUSTRALIA EQUIPMENT(RR3) 		8-94329-908-0 01 1 9210-9406 ●
30 02.240 CABLE; DISTR TO IGN COIL 8-94329-908-0 01 1 9407- ● ●
30 02.240 CABLE; DISTR TO IGN COIL
EXC. AUSTRALIA EQUIPMENT(RR3) 		8-94329-908-0 01 1 9407- ●
32 02.525 CABLE; DISTR TO IGN COIL
UNITED KINGDOM EQUIPMENT(EK3) 02.240 		8-94136-794-0 01 1 9210-9406 ●
32 02.525 CABLE; DISTR TO IGN COIL
AUSTRALIA EQUIPMENT(RR3) 		8-94449-496-1 01 1 9210- ●
33 02.170 COIL ASM; IGN 8-94416-513-0 01 1 9210-9406 ●
33 02.170 COIL ASM; IGN
EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-94416-513-0 01 1 9210-9406 ●
33 02.170 COIL ASM; IGN
EXC. AUSTRALIA EQUIPMENT(RR3) 		8-94416-513-0 01 1 9210-9406 ●
33 02.170 COIL ASM; IGN 8-94416-513-0 01 1 9407- ● ●
33 02.170 COIL ASM; IGN
EXC. AUSTRALIA EQUIPMENT(RR3) 		8-94416-513-0 01 1 9407- ●
33 02.170 COIL ASM; IGN
UNITED KINGDOM EQUIPMENT(EK3) 		8-94371-838-0 01 1 9210-9406 ●
33 02.170 COIL ASM; IGN
AUSTRALIA EQUIPMENT(RR3) 		8-94338-923-0 01 1 9210- ●
35 02.183 BRACKET; IGN COIL 8-94109-761-0 01 1 9210-9406 ●
35 02.183 BRACKET; IGN COIL
EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-94109-761-0 01 1 9210-9406 ●
35 02.183 BRACKET; IGN COIL
EXC. AUSTRALIA EQUIPMENT(RR3) 		8-94109-761-0 01 1 9210-9406 ●
35 02.183 BRACKET; IGN COIL 8-94109-761-0 01 1 9407- ● ●
35 02.183 BRACKET; IGN COIL
EXC. AUSTRALIA EQUIPMENT(RR3) 		8-94109-761-0 01 1 9407- ●
36 02.239 WIRE; IGN COIL 8-94416-512-0 01 1 9210-9406 ●
36 02.239 WIRE; IGN COIL
EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-94416-512-0 01 1 9210-9406 ●
36 02.239 WIRE; IGN COIL
EXC. AUSTRALIA EQUIPMENT(RR3) 		8-94416-512-0 01 1 9210-9406 ●
36 02.239 WIRE; IGN COIL 8-94416-512-0 01 1 9407- ● ●
36 02.239 WIRE; IGN COIL
EXC. AUSTRALIA EQUIPMENT(RR3) 		8-94416-512-0 01 1 9407- ●
37 02.559 BOLT; IGN COIL
UNITED KINGDOM EQUIPMENT(EK3) GENERATOR 45A(K88) M6X28 		0-28080-628-0 02 1 9210-9406 ●
37 02.559 BOLT; IGN COIL
AUSTRALIA EQUIPMENT(RR3) M6X28 		0-28080-628-0 02 1 9210-9406 ●
37 02.559 BOLT; IGN COIL
AUSTRALIA EQUIPMENT(RR3) M6X28 		0-28080-628-0 02 1 9407-9509 ●
37 02.559 BOLT; IGN COIL
M6X28 		0-28080-628-0 02 1 9510- ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94247-437-1 01 1 9210- ● ● ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 9210-9308 ● ● ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 9309- ● ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 9210-9308 ● ● ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 9309- ● ●
206 02.183 CAP; IGN COIL 8-94235-010-0 01 1 9210-9406 ●
206 02.183 CAP; IGN COIL
EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-94235-010-0 01 1 9210-9406 ●
206 02.183 CAP; IGN COIL
EXC. AUSTRALIA EQUIPMENT(RR3) 		8-94235-010-0 01 1 9210-9406 ●
206 02.183 CAP; IGN COIL 8-94235-010-0 01 1 9407- ● ●
206 02.183 CAP; IGN COIL
EXC. AUSTRALIA EQUIPMENT(RR3) 		8-94235-010-0 01 1 9407- ●
247 02.277 WASHER; PL,BRKT,GEN
EXC. SINGAPORE EQUIPMENT(S9Y) 00.206 ID=8.4 		9-09164-508-0 01 1 9210-9403 ●
247 02.277 WASHER; PL,BRKT,GEN
EXC. POWER STEERING<N40> 00.206 ID=8.4 		9-09164-508-0 01 1 9210-9403 ● ●
247 02.277 WASHER; PL,BRKT,GEN
00.206 ID=8.4 		9-09164-508-0 01 1 9404- ●
247 02.277 WASHER; PL,BRKT,GEN
EXC. POWER STEERING<N40> 00.206 ID=8.4 		9-09164-508-0 01 1 9404- ● ●
260 01.150 SENSOR; WATER TEMP
AUSTRALIA EQUIPMENT(RR3) 03.682 		8-94205-866-0 01 1 9210- ●
330 03.726 HOSE; CARBURETOR TO DISTR
08.962 L=70 SERVICED BY L=3000 		0-04742-300-0 01 1 9210-9406 ●
330 03.726 HOSE; CARBURETOR TO DISTR
EXC. UNITED KINGDOM EQUIPMENT(EK3) 08.962 L=70 SERVICED BY L=3000 		0-04742-300-0 01 1 9210-9406 ●
330 03.726 HOSE; CARBURETOR TO DISTR
EXC. AUSTRALIA EQUIPMENT(RR3) 08.962 L=70 SERVICED BY L=3000 		0-04742-300-0 01 1 9210-9406 ●
330 03.726 HOSE; CARBURETOR TO DISTR
08.962 L=70 SERVICED BY L=3000 		0-04742-300-0 01 1 9407- ● ●
330 03.726 HOSE; CARBURETOR TO DISTR
EXC. AUSTRALIA EQUIPMENT(RR3) 08.962 L=70 SERVICED BY L=3000 		0-04742-300-0 01 1 9407- ●
330 03.726 HOSE; CARBURETOR TO DISTR
UNITED KINGDOM EQUIPMENT(EK3) 08.962 L=150 SERVICED BY L=3000 		0-04742-300-0 01 1 9210-9406 ●
351 02.239 CABLE KIT; HIGH TENSION 8-94433-364-1 01 1 9210- ● ●
351 02.239 CABLE KIT; HIGH TENSION
EXC. AUSTRALIA EQUIPMENT(RR3) 		8-94433-364-1 01 1 9210- ●
351 02.239 CABLE KIT; HIGH TENSION
AUSTRALIA EQUIPMENT(RR3) 		8-94342-910-0 01 1 9210-9409 ●
352 02.188 SWITCH ASM; POWER,IGN COIL
AUSTRALIA EQUIPMENT(RR3) 		8-94474-294-2 01 1 9210-9406 ●
352 02.188 SWITCH ASM; POWER,IGN COIL
AUSTRALIA EQUIPMENT(RR3) 		8-97094-755-0 01 1 9407- ●
353 02.195 BOLT; POWER SW,IGN COIL
AUSTRALIA EQUIPMENT(RR3) 04.686 M6X16 W/LK WASHER 		0-50040-616-0 02 1 9210- ●
359 02.393 SCREW; COIL TO BODY 8-94457-204-0 02 1 9210-9406 ●
359 02.393 SCREW; COIL TO BODY
EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-94457-204-0 02 1 9210-9406 ●
359 02.393 SCREW; COIL TO BODY
EXC. AUSTRALIA EQUIPMENT(RR3) 		8-94457-204-0 02 1 9210-9406 ●
359 02.393 SCREW; COIL TO BODY 8-94457-204-0 02 1 9407- ● ●
359 02.393 SCREW; COIL TO BODY
EXC. AUSTRALIA EQUIPMENT(RR3) 		8-94457-204-0 02 1 9407- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
